Brand	BabyGO
Model	Jumper
Product Type	Stroller (jogger type)
Recommended Age	From 6 months
Safety Standard	Compliant with EN1888 and EEC regulations
Dimensions (unfolded)	Approximately 90 x 50 x 100 cm (L x W x H)
Dimensions (folded)	Approximately 60 x 30 x 80 cm
Weight	Approximately 8 kg
Frame Materials	Aluminum or steel (not specified)
Textile Covering	Washable fabric, do not remove logos
Brake Type	Automatic brake with handle
Restraint System	Adjustable 5-point safety harness
Front Protection Bar	Removable bar with latches
Canopy	Openable and adjustable
Recline Adjustment	Via side buttons on the frame
Front Wheels	Lockable and swivel
Care and Cleaning	Soft cloth and soapy water, avoid harsh products
Spare Parts and Repairability	Contact BabyGO customer service
General Information	Stroller designed for child comfort and safety

Frequently Asked Questions - Jumper BabyGO

How to fold and unfold the Jumper stroller?

To unfold: release the automatic brake, lower the front wheels and raise the handles until the frame is vertical, then lower the rear latch. To fold: close the stroller and engage the safety brake.

How to adjust the safety harness?

Press the button to open the harness. The shoulder straps are adjustable in length. Make sure the harness is properly adjusted for your child's safety.

What is the recommended age for using this stroller?

This stroller is suitable for children from 6 months.

How to clean the Jumper stroller?

Use a soft cloth with soapy water to clean the frame and textiles. Avoid harsh products. Do not remove logos or stickers.

What is the maximum weight supported by the stroller?

The maximum weight is not specified in the manual, but strollers of this type generally support up to 15 kg.

Can I use this stroller for jogging?

Yes, the Jumper model is designed as a jogger. Make sure the front wheels are locked for stable use while running.

How to attach and detach the front bar?

To attach, hook the bar onto the tubular arms on each side. To remove, lift the levers located on each side.

How to use the brake?

To engage the brake, lower the brake lever. To release, raise the lever. A second brake under the stroller keeps the stroller open.

How to adjust the seat recline?

Push the recline buttons located on each side at the bottom of the frame forward or backward depending on the desired seated position.

Where to find spare parts for the stroller?

Contact BabyGO customer service for any spare parts or repair requests.

USER MANUAL Jumper BabyGO

Black and white photo of a baby stroller with a logo on the backrest, no visible text or symbols.

Jumper - Kindersitz

Bedienungsanleitung

Jumper - Buggy / pram

Instruction manual

Jumper – Buggy / Poussettes

Black and white baby stroller with silver frame and matching handle, no visible text or symbols

Jumper - Buggy

Bedienungsanleitung

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating motion direction (no text or symbols)

Illustration of a stroller with a magnified inset showing internal components (no text or symbols)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Buggy / pram Instruction manual

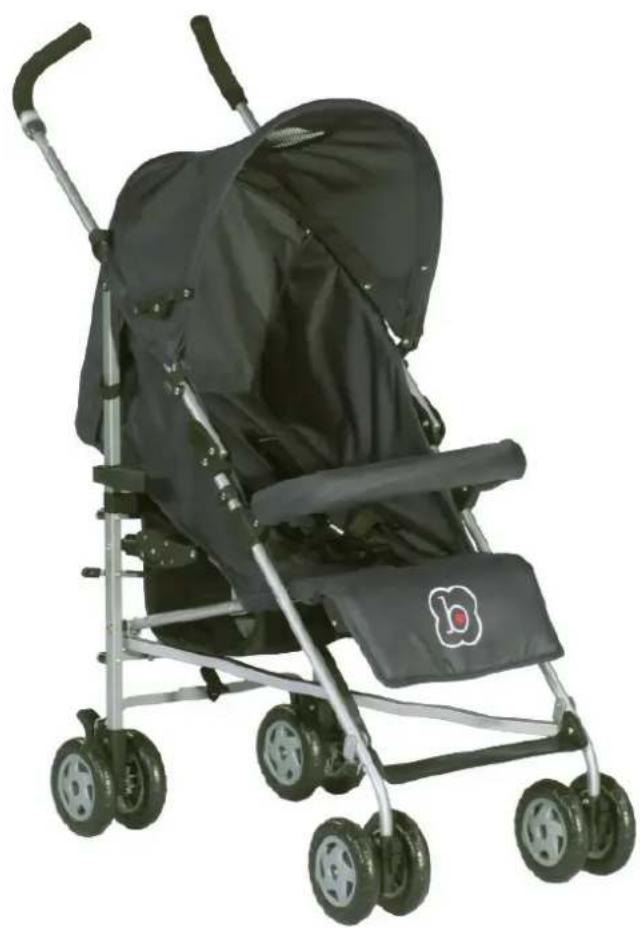

Black and white photo of a baby stroller with four wheels and a logo on the front (no visible text or symbols)

Jumper - Buggy / pram

Instruction manual

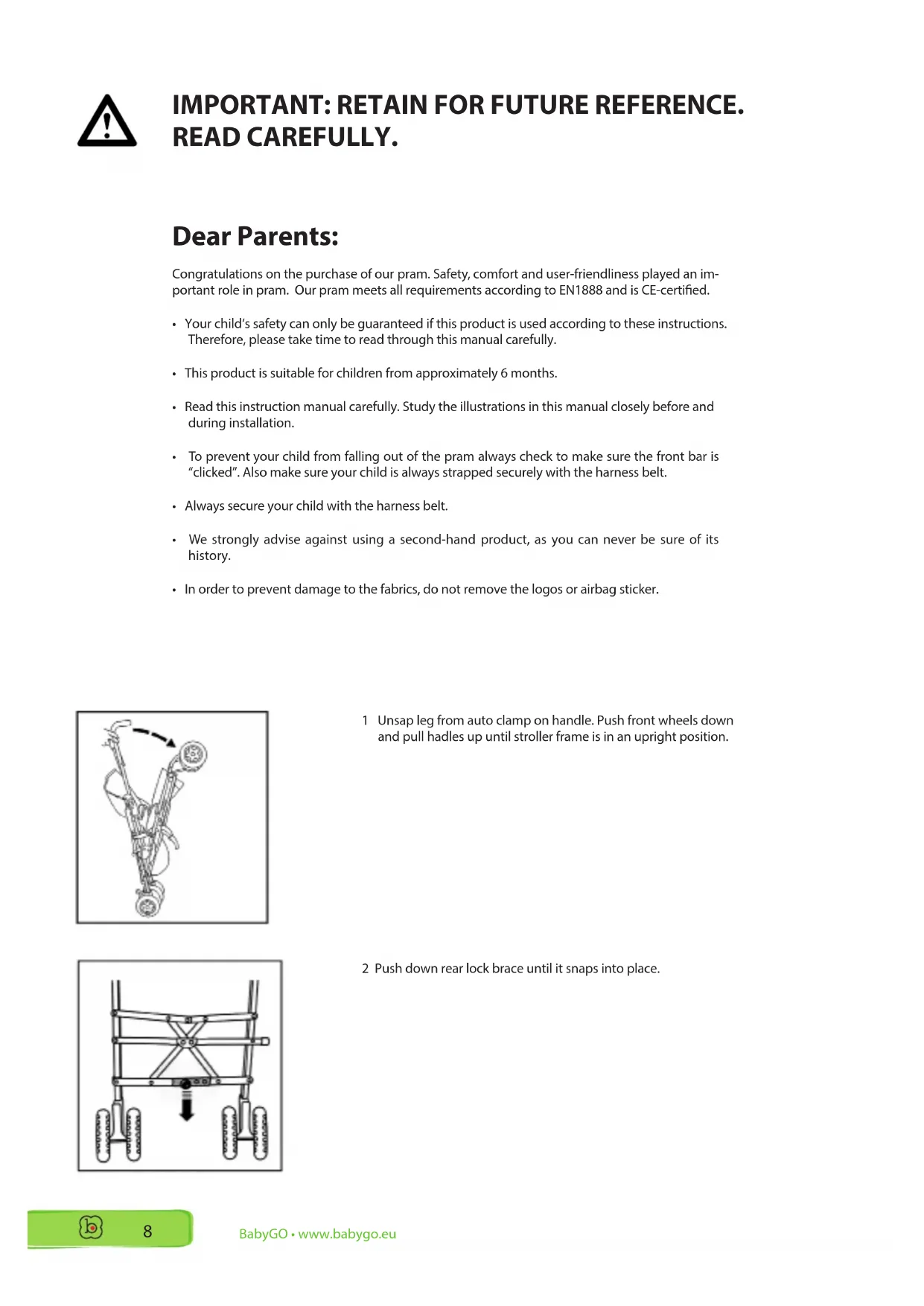

IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLY.

Dear Parents:

Congratulations on the purchase of our pram. Safety, comfort and user-friendliness played an important role in pram. Our pram meets all requirements according to EN1888 and is CE-certified.

• Your child's safety can only be guaranteed if this product is used according to these instructions. Therefore, please take time to read through this manual carefully.
  • This product is suitable for children from approximately 6 months.
• Read this instruction manual carefully. Study the illustrations in this manual closely before and during installation.
• To prevent your child from falling out of the pram always check to make sure the front bar is "clicked". Also make sure your child is always strapped securely with the harness belt.
  • Always secure your child with the harness belt.
  • We strongly advise against using a second-hand product, as you can never be sure of its history.
  • In order to prevent damage to the fabrics, do not remove the logos or airbag sticker.

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

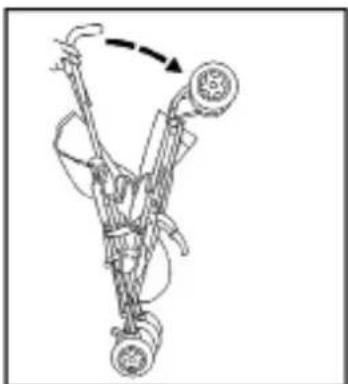

1 Unsap leg from auto clamp on handle. Push front wheels down and pull hadles up until stroller frame is in an upright position.

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

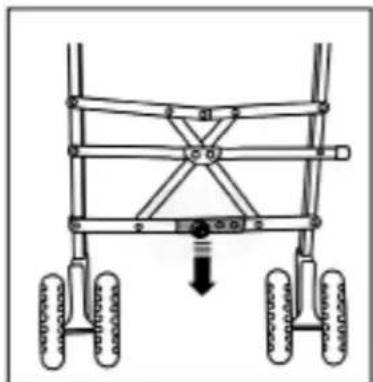

2 Push down rear lock brace until it snaps into place.

Technical diagram of a mechanical assembly with no visible text or symbols

1. Engage the front wheels. Make sure that, re fully hook.

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

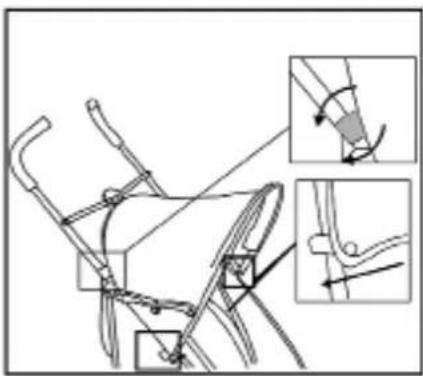

1. Push reclining plastic buttons at both lower sides of frame to slide back or for ward into desired seating position.

Diagram showing two mechanical assembly states with arrows indicating movement, no text or symbols present

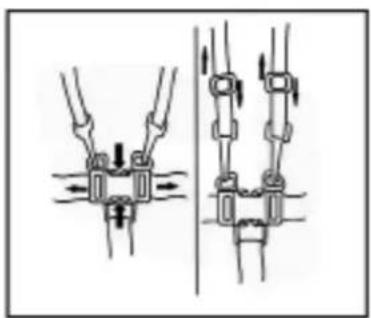

1. Press to open the safety harness. Belts are adjustable.

STOP 1 2

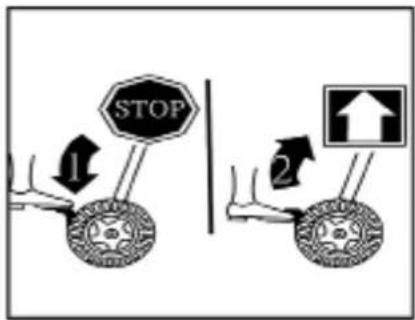

1. To step down the brake lev to lock the jogger. To unlock: lift up the brake lever.

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

1. Hook the naper bar onto the arm tubing then round strap around the naper bar.

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

1. Lift up the base lock 10 release, and step down at the second safety locking bar to close the stroller.

Technical diagram showing mechanical assembly with labeled components and directional arrows

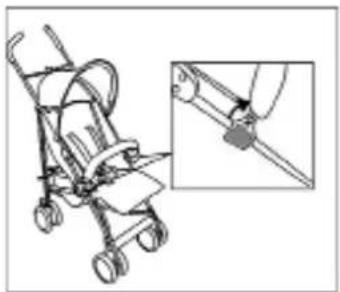

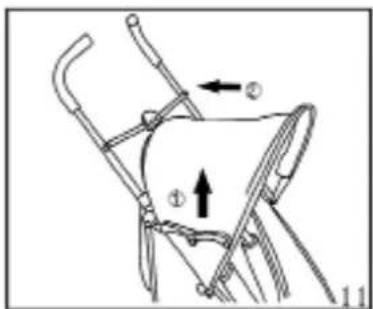

1. Take off the canopy, adjust the upright position.

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

1. Pull up the buttons 10 remove the front bumper.

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

11./12. Squeeze the stroller and lock the folding catch.

Line drawing of a mechanical device with gears and lever (no text or symbols)

Black and white photo of a baby stroller with four wheels and a logo on the front (no visible text or symbols)

Jumper - Buggy / Poussettes

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating movement, no text or symbols present

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Black and white baby stroller with silver frame and matching logo, no visible text or symbols

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating movement, no text or symbols present

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Black and white photo of a baby stroller with four wheels and a logo on the front (no visible text or symbols)

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating movement, no text or symbols present

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

Line drawing of a stroller with a hand holding a clip, shown in two views: one close-up and one enlarged (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Buggy / kinderwagen Handleiding

Black and white baby stroller with silver frame and matching handle, no visible text or symbols

Jumper - Buggy / kinderwagen

Handleiding

BELANGRIJK: BEWAREN VOOR LATER GEBRUIK. LEES AANDACHTIG.

Beste Ouders:

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating movement, no text or symbols present

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

1. Haal de kap weg en pas de opstaande positie aan.

Line drawing of a stroller with a hand holding a clip, shown in two views: one close-up and one enlarged (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Black and white baby stroller with silver frame and matching logo, no visible text or symbols

Jumper - Buggy / babakocsi

Használati utasítás

FONTOS: ÖRIZZE MEG, A JÖVÖBEN SZÜKSÉGE LEHET RÁ. FIGYELMESEN OLVASSA EL.

Kedves Szülők!

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating motion, no text or symbols present

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Black and white photo of a baby stroller with four wheels and a hooded canopy (no text or symbols visible)

Jumper - Buggy / wózek

Instrukcja oblsugi

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating motion, no text or symbols present

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Buggy / barnvagn Instruktionsmanual

Black and white baby stroller with silver frame and matching handle, no visible text or symbols

Jumper – Buggy / barnvagn

Instruktionsmanual

VIKTIGT: SPARA FÖR FRAMTIDA REFERENS. LÄS IGENOM NOGGRANT.

Kära föräldrar:

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating motion direction (no text or symbols)

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Black and white baby stroller with silver frame and matching handle, no visible text or symbols

Jumper - Buggy / καρότσι

Εγχειρίδιο οδηγιών

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical fastening or fastening setups with arrows indicating motion (no text or symbols)

Illustration of a stroller with an inset showing internal components (no text or symbols)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Buggy / pram Navodila za uporabo

Black and white baby stroller with silver frame and matching handle, no visible text or symbols

Jumper - Buggy / pram

Navodila za uporabo

POMEMBNO: SHRANITE ZA NADALJNJO UPORABO. PREBERITE PREVIDNO.

Dragi starši:

Diagram of a mechanical device with pulleys and a belt, showing motion direction (no text or symbols)

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

1. Potisnite navzdol ključavnico zadnjega opornika dokler se ta ne zaskoči.

Technical diagram of a mechanical assembly with no visible text or symbols

1. Raztegnite sprednja kolesa. Prepričajte se, da so v celoti kotalna.

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating movement, no text or symbols present

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

1. Dvignite streho, prilagodite pokončni položaj.

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

1. Dvignite gumbe, da odstranite sprednji odbijač.

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

11./12. Stisnite voziček in zaklenite zložljivi del.

Line drawing of a mechanical device with gears and lever (no text or symbols)

Buggy / carucior STOLČKA

Black and white photo of a baby stroller with four wheels and a logo on the front (no visible text or symbols)

Jumper – Buggy / carucior manual de instructiuni

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

1. Impingeti in jos tija de blocare a rotilor pana se fixeaza pe pozitie.

Technical diagram of a mechanical assembly with no visible text or symbols

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

1. Impingeti butoanele rabatabile din plastic pe ambele parti ale cadrului, astfel incat pozitia de sedere sa poata fi reglata in functie de preferinte/

Diagram showing two mechanical assembly states with arrows indicating movement, no text or symbols present

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

1. Fixati bara de protectie in tubul de sustinere a bratelor, apoi treceti centura in jurul barei de protectie.

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

1. Pentru a impacheta caruciorul, ridicati tija ce mentine cadranul blocat si apasati cea de-a doua tija de blocare.

Technical diagram showing mechanical assembly with labeled components and directional arrows

1. Scoateti copertina para-solar si ajustati in pozitie verticala.

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and lever (no text or symbols)

Lud / kolica uputstvo za upotrebu

Black and white baby stroller with silver frame and matching handle, no visible text or symbols

Jumper - Lud / kolica

uputstvo za upotrebu

VAŽNO: SAČUVAJTE ZA KASNIJU UPOTREBU. PROČITAJTE PAŽLJIVO.

Dragi roditelji:

Diagram of a mechanical device with pulleys and a belt, no text or symbols present

1. Odvojite nogar od automatske spojnice na ručki. Gurnite prednje točkove nadole, a zatim povucite ručke nagore dok ram kolica ne bude u uspravnom položaju.

Diagram of a vehicle chassis with wheels and structural beams, no text or symbols present

1. Podupirač na pozadini kolica gurnite nadole dok ne škljocne na mesto.

Technical diagram of a mechanical assembly with no visible text or symbols

1. Namestite prednje točkove. Uverite se da su u potpunosti zategnuti.

Line drawing of a stroller with an inset showing a close-up of the seat (no text or symbols)

1. Sa obe donje strane rama pritisnite dugmad za naslon tako da mogu da klize nazad ili napred, u zavisnosti od željenog položaja za sedenje.

Diagram showing two mechanical assembly states with arrows indicating movement, no text or symbols present

1. Pritisnite kopču kako biste otkopčali sigurnosni pojas. Kaiševi mogu da se podešavaju.

STOP 1 2

1. Kako biste sprečili da se kolica pomeraju, stanite na polugu. Da ponovo omogućite pomeranje: podignite polugu.

Illustration of a stroller with an inset showing a hand holding a cart (no text or symbols present)

Diagram of a wheeled cart with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and directional arrows

1. Zaklopite tendu i podesite je u uspravni položaj.

Line drawing of a stroller with a close-up inset showing the handle (no text or symbols)

1. Povucite dugmad nagore kako biste uklonili prednji branik.

Mechanical assembly diagram showing a linkage mechanism with no visible text or symbols

11./12. Sklopite kolica i zakačite nogar na automatsku spojnicu na ručki.

Line drawing of a mechanical device with gears and lever (no text or symbols)

Impressum:

BabyGO Baby Products

Am Bahndamm 1 – 3

D-33378 Rheda-Wiedenbrück

Germany

Tel.: [phone]

Fax: [phone]

email: [e-mail]

Web: www.babygo.eu
