USER MANUAL D1 Plus 24 ABB

D12C5M258763R0621
D1PLUS2CSM257583R0621
D1PLUS242CSM256403R062
D1PLUS1102CSM258673R0621
D1 SYNCHRO2CSM257493R0621
D2 2CSM256313R0621
D2PLUS2CSM277583H0521
D2 SYNCHRO2CSM277353R0521

1099G20LWSO2

D1

D2

Digital time switch
Interruttore orario digitale
Int. horario digitale
Horloge digitale
Digitale Wochenschaltuhr
ψηφ.χρονδιακόππης
Digital time switch
PeneBpeMeHHUHbp
Int. horario dig
Digitale Schakelklok
Zegar cyfrowy

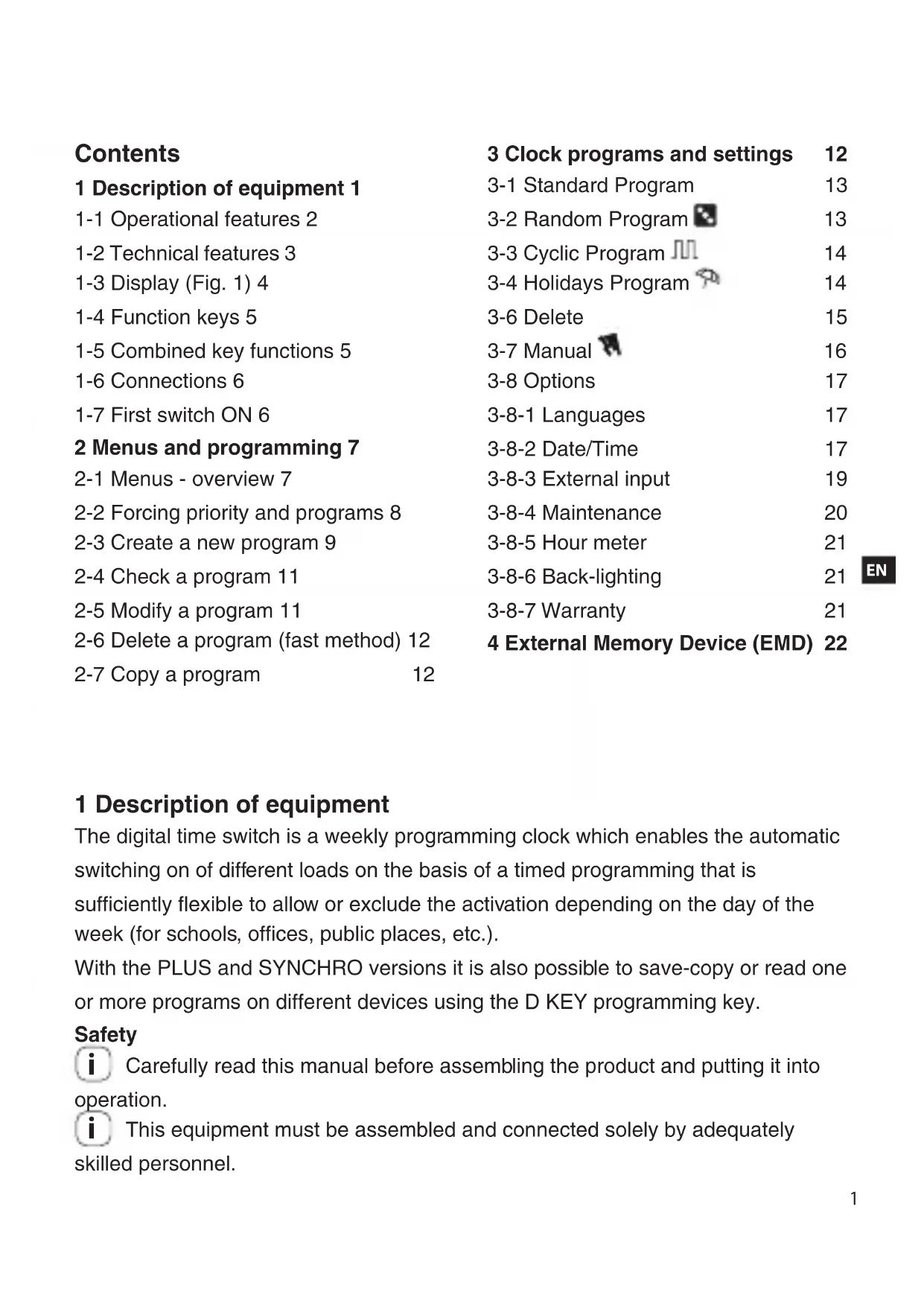

1 Description of equipment 1

1-1 Operational features 2
1-2 Technical features 3
1-3 Display (Fig. 1) 4
1-4 Function keys 5
1-5 Combined key functions 5
1-6 Connections 6
1-7 First switch ON 6

2 Menus and programming 7

2-1 Menus - overview 7
2-2 Forcing priority and programs 8
2-3 Create a new program 9
2-4 Check a program 11
2-5 Modify a program 11
2-6 Delete a program (fast method) 12
2-7 Copy a program 12

3Clock programs and settings 12

3-1 Standard Program 13
3-2 Random Program 13
3-3 Cyclic Program 14
3-4 Holidays Program 14
3-6 Delete 15
3-7 Manual 16
3-8 Options 17
3-8-1 Languages 17
3-8-2 Date/Time 17
3-8-3 External input 19
3-8-4 Maintenance 20

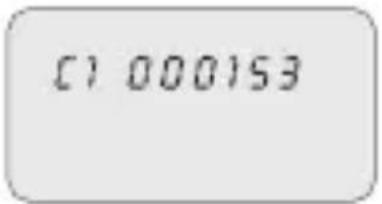

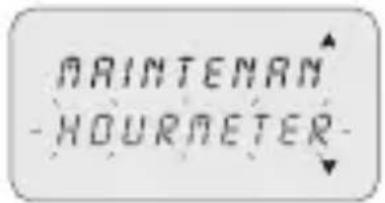

3-8-5 Hour meter 21
3-8-6 Back-lighting 21
3-8-7 Warranty 21

4 External Memory Device (EMD) 22

1 Description of equipment

The digital time switch is a weekly programming clock which enables the automatic switching on of different loads on the basis of a timed programming that is sufficiently flexible to allow or exclude the activation depending on the day of the week (for schools, offices, public places, etc.).

With the PLUS and SYNCHRO versions it is also possible to save-copy or read one or more programs on different devices using the D KEY programming key.

Safety

Carefully read this manual before assembling the product and putting it into operation.
This equipment must be assembled and connected solely by adequately skilled personnel.

The equipment contains a non-removable battery and it must not be disposed of as urban waste but recycled in order to protect the environment. Failure to

comply with the requirements of EU Directive 2006/66, and the national legislations for implementation of this Directive, for the disposal of products at the end of their service life, is punishable by law.

1-1 Operational features

Model (series)	D1 D1	Plus	D1 Synchro	D2 D2	Plus	D2 Synchro
Channels (circuits) 1 2
Programs which may be memorised	64
Special programs (Random, Cyclic, Holiday)	✓
Weekly/annual time	✓
External input	✓	✓		✓	✓
Manual forcing	✓
External Memory Device EMD		✓	✓		✓	✓
GPS or DCF77 receiver (optional)			✓			✓

1-2 Technical features

Power supply voltage 230 V AC +/- 10% 110 V AC +/- 10% (D1 Plus 110) 24 V AC / DC +/- 10% (D1 Plus 24)
Frequency 50-60 Hz
Protection rating IP20
Outlet type Potential-free relay exchang e contact; N.O. contact = 16(10)A / 250V~ (limited current with Resistance for Zero Crossing of high value); N.C. contact = 16(2)A / 250V~ N.O./N.C. contacts = 16(2)A / 250V~ (D1 Plus 24, D1 Plus 110)
Maximum AC output N.O. 16(10)A / N.	C. 16(2)A N.O./N.C. 16(2) (D1 Plus 24, D1 Plus 110)
Operating temperature from -5°C to +55°C
Storage temperature from -10°C to +65°C
Absorption/Self-consumption 6.5 VA single channel / 7.8 VA twin channel
Cross-section of cables at terminals 1	..6 mm²
CE standards LVD/EMC EN60730-2-7
Languages available on equipment Italian, English, German, French, Spanish, Swedish, Portuguese, Dutch, Russian, Polish, Greek
Backup in case of power failure 6 years from first switch on, guaranteed by lithium battery
Nominal pulse voltage	4kV
Operational precision + 0.5 sec/day at	25°C

Maximum pilotable power
3000W 3000W 1100W			900W(125 μF)	7W - 23W (max.23 lamps)
Models D1 PLUS 24 - D1 PLUS 110
2300W 2300W 1000W			500W(70 μF)	7W - 23W (max.18 lamps)

1-3 Display (Fig. 1)

C1/C2	Channel 1/Channel 2 OFF/ Channel deactivated
A	Manual forcing of channel ON / Channel active
B	Random programs Cyclic programs
C	Holidays icon Keyboard lock
D	GPS or DCF77 signal reception indication		▲ Scroll up
P88	Program no. selected P01-P64		▼ Scroll down

The striped bar on the display also shows:
Progress, ref. Fig.2 (e.g. deletion ref. subsection 3-6).
Display hours, ref. Fig.3.
The display shows alternately (for a few seconds) the date and the time and the programs or forcings set.

1-4 Function keys

入NU	Enter main menu (from initial screen).Exit from any setting
▲	Scroll list upwards.Increase a numerical value or change a parameter.Hold down to display status of channel 1 until button is released (under normal operation).
▼	Scroll list downwards.Decrease a numerical value or change a parameter.Hold down to display status of channel 2 (twin channel models) until button is released (under normal operation).
OK	Confirm proposed setting.
RESET	Reset equipment (NOTE: The programs and external input settings are not deleted).

1-5 Combined key functions

Function Combined keys
Lock / unlock keys (+)	2 secs.
Temporary manual forcing of channel 1 and 2 (ref. subsection 3-7). Alternate pressure to change it from TEMP ON to TEMP OFF.	+ Ln1- Rn2+
Function Combined keys
Permanent manual forcing of channel 1 and 2 (ref. subsection 3-7). Press for 2 secs. to access PERM and alternate pressure to change it from PERM ON to PERM OFF.	2 secs.	2 secs.
Return to AUTO mode (if any manual forcing has been activated).	2 secs.	2 secs.

It is necessary to be on the initial screen to carry out any of the above-mentioned functions

1-6 Connections

Maximum distance for external input: 100m

Connection of single channel and twin channel models

Ref. Fig. 5-1 to Fig.5-3.

Connection of Synchro models

Single channel or twin channel Synchro models with GPS or DCF77 Antenna. Ref. Fig. 6-1 to Fig.6-2.

1-7 First switch ON

The equipment is supplied without any settings.

1. Press RESET with a pointed object to unlock the equipment (ref. Fig.4). Set following data:2.

LANGUAGES (ref. subsection 3-8-1).
DATE/TIME (Year, Month, Day, Time, Time Zone (ref. subsection 3-8-2)).

If there is a power failure, the Date/Time is memorised, and the digital switch: disables relay(s), deactivates back-lighting, if active,

displays flashing date and time for 2 minutes, and then changes to stand-by mode (display switched OFF) storing all the programmed data, until the mains power supply is reconnected or until a button which restarts the counter for the stand-by mode is pressed for more than 1 sec.

2 Menus and programming

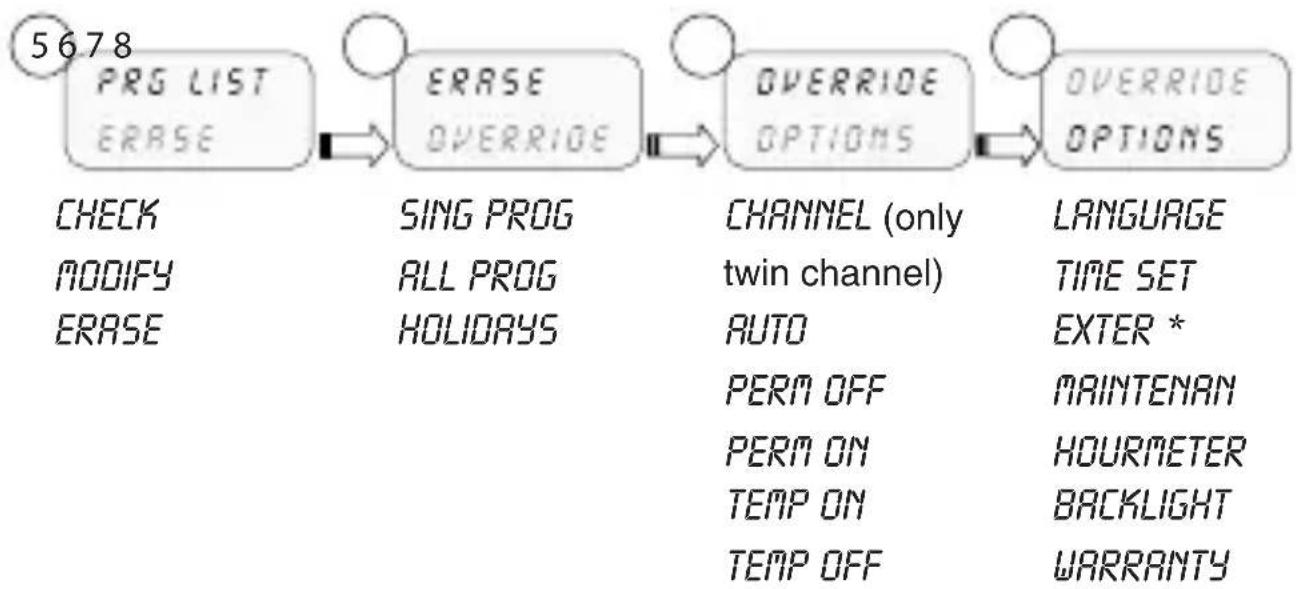

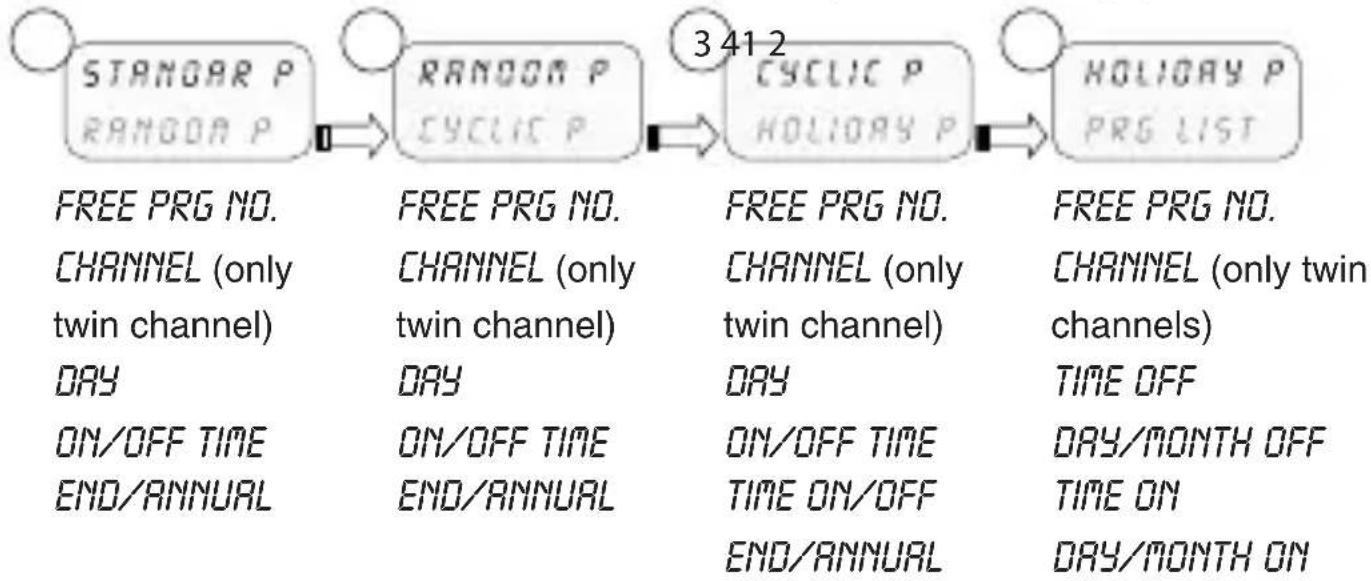

2-1 Menus - overview

The menus listed from 1 to 8 are in the sequence present in the equipment.

* Excluding Synchro models.

Press1. MENU.

The first menu which may be selected appears (P Standard)》 Scroll the various menus using keys A. Confirm desired menu with 3. OK.

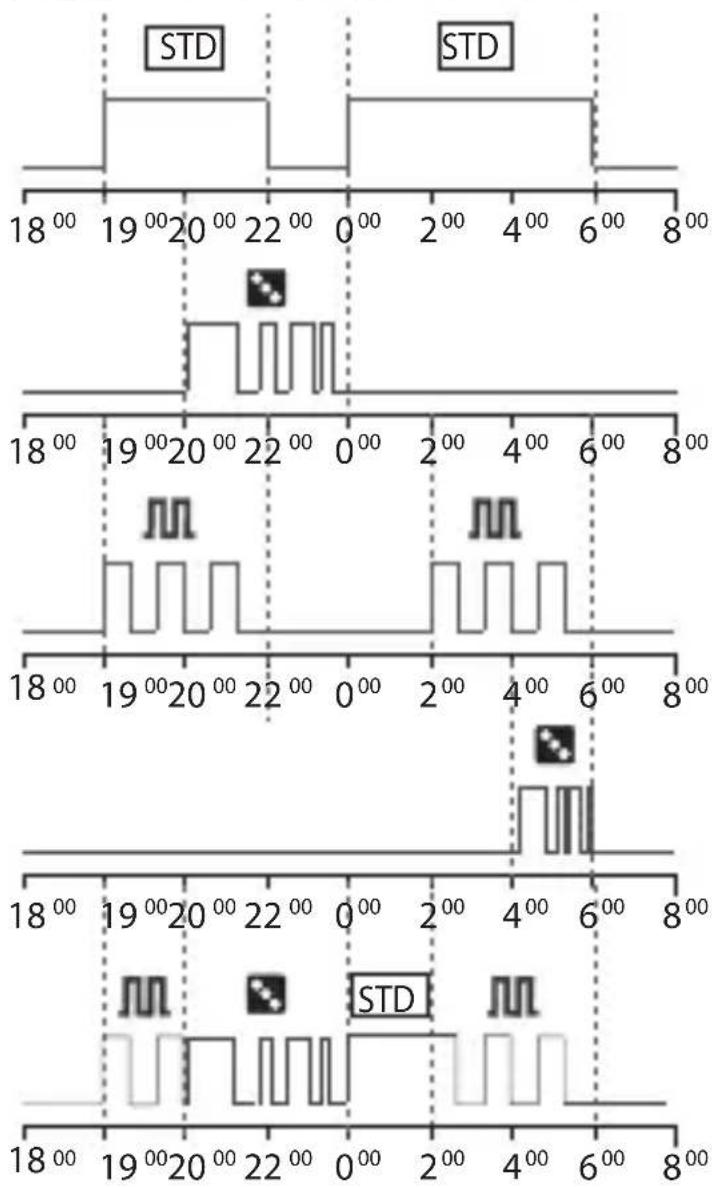

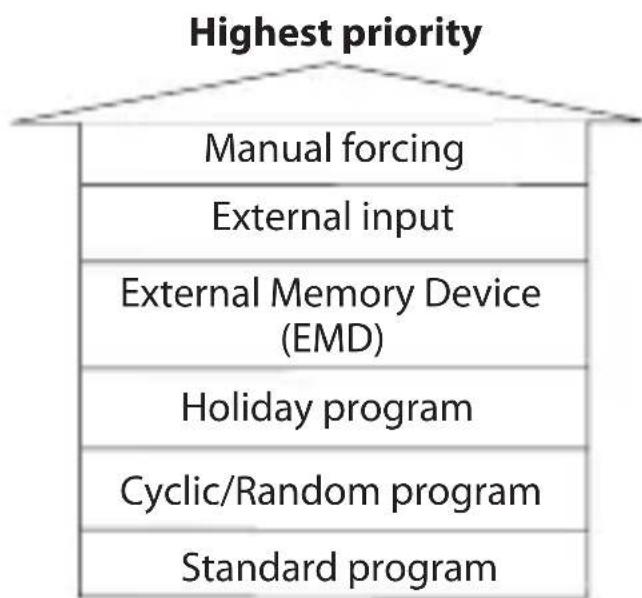

2-2 Forcing priority and programs

A priority is assigned to every type of program, as shown alongside.
Take the priorities into consideration when various types of programs are programmed for the same period of time.

EN

P01: Standard Program ON 19:00 - OFF 22:00
P02: Standard Program ON 00:00 - OFF 06:00
P03: Random Program ON 20:00 - OFF 00:00
P04: Cyclic Program ON 19:00 - OFF 22:00
P05: Cyclic Program ON 02:00 - OFF 06:00
P06: Random Program ON 04:00 - OFF 06:00

Behaviour of output load with programs from P01 to P06, according to the priorities.

2-3 Create a new program

Procedure valid for all types of programs Further settings are described in the individual programs.

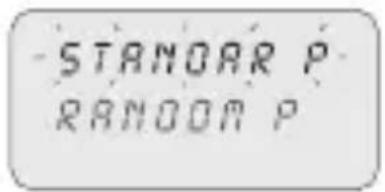

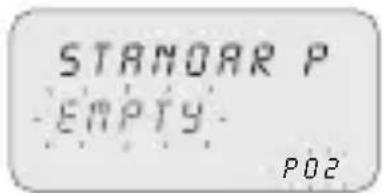

Selection of program type (e.g. with P Standard):

Press1. MENU.

Select program type using keys

Press3. OK to confirm selection.

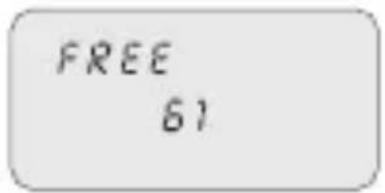

The number of free programs appears for 3 secs.

The first program in the memory appears.

Press4. for 2 secs.

The display shows the first empty program.

Press5. OK to confirm.

The program number is selected.

Followed by channel setting.

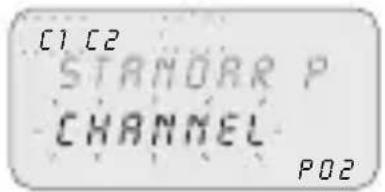

Select channel (only twin channel models)

Set channel (twin channel) using keys

C1/C2 or both flash.

Press2. OK to confirm.

The channel is set.

Followed by day setting.

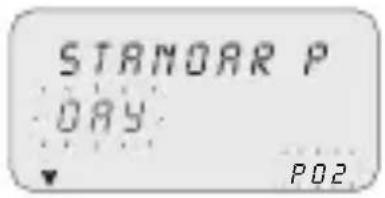

Set day

Select the day or group of days in which the program must be executed.

Set the day or group of days using keys

The flashing arrow indicates the day or group of days selected.

Press2. OK to confirm.

Followed by TIME/ON setting.

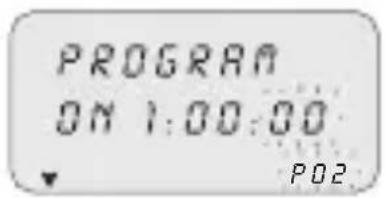

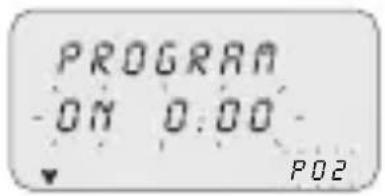

Set TIME/ON

Set program start time using keys in the format hh/mm.

Single pressure of keys moves field by minutes. Prolonged pressure of keys moves field by hours

Press2. OK to confirm.

The seconds field appears.

Set the seconds using keys A.

Press4. OK to confirm.

The program start time has been set> Followed by TIME/OFF setting.>

Set TIME/OFF

Set program end time using keys A.

Repeat operations as per TIME/ON.

Press2. OK to confirm.

The program end time has been set> Press3. OK to confirm program end time.

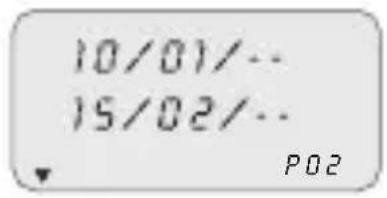

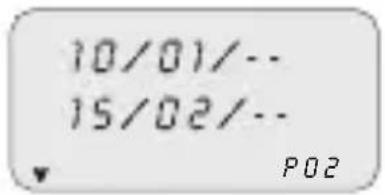

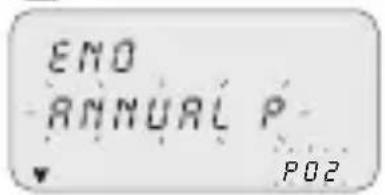

Set ANNUAL PERIOD

Enables a defined period to be set, in which the program set up previously must be executed.

The period defined in the annual program is repeated cyclically every year.

Set the start and end of the period in the format 1. dd/mm-- using keys

Press2. OK to confirm every field. The annual period is set.

1. Press MENU to exit programming.

2-4 Check a program

Access desired program menus (STANDARD P, CYCLIC P...) by pressing MENU.

Select the program type from the menu (e.g. RAN-1. DOM P) using keys

Press2. OK to confirm. The programs of the same type in the memory are displayed.

Select the program to be checked using keys. The display shows the settings cyclically.

2-5 Modify a program

1. Press OK to confirm program to be modified.

Set new values as described in subsection 2-3.2.

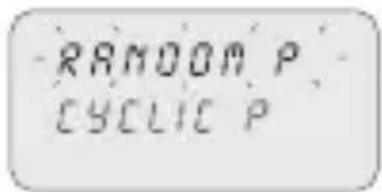

2-6 Delete a program (fast method)

Select from the menu the program type to be deleted 1. using keys

e.g. RANDOM P» Press keys A simultaneously for 2 secs.

The display shows "ERASE". Press3. OK to confirm. The display shows "EMPTY". The program is deleted.

EN

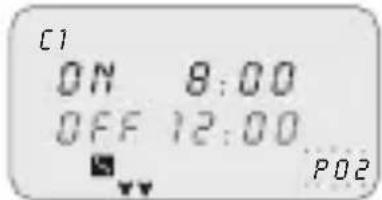

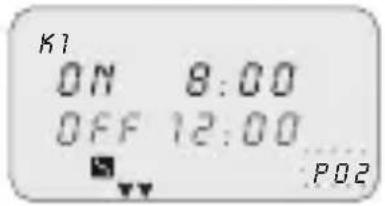

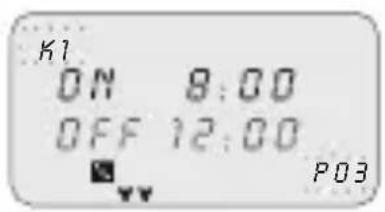

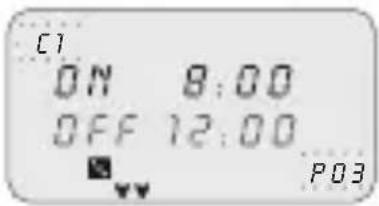

2-7 Copy a program

Select from the menu the program type to be copied 1. (e.g. RANDOM P) using keys AV

The program number flashes.

Press2. OK for approx. 3 seconds

The program is copied in the first free position in » the memory.

The first modifiable data (channel) is displayed flashing.

Modify data as described in subsection 2-3.3.

i

2 programs with the same data cannot coexist!

3 Clock programs and settings

1. Press MENU to access available menus. Scroll menus using keys and press OK to confirm.

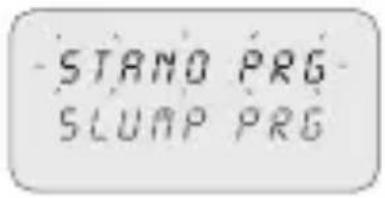

3-1 Standard Program

Enables a defined period of an ON and OFF cycle to be set up.

i For programming ref. section 2-3.

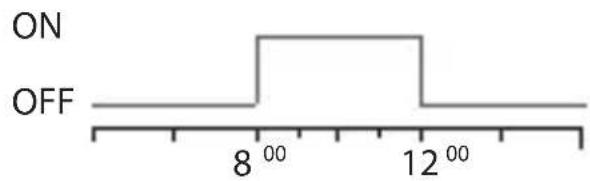

Example of set up from image:

Standard Program ON 8:00 - OFF 12:00.

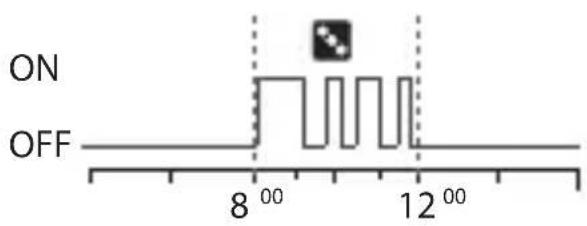

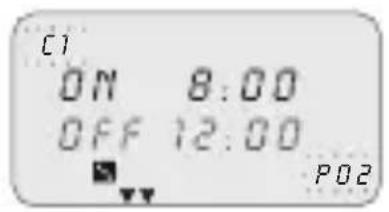

3-2 Random Program

Enables one or more channels to be activated and deactivated in a random manner within an established period.

i For programming ref. section 2-3.

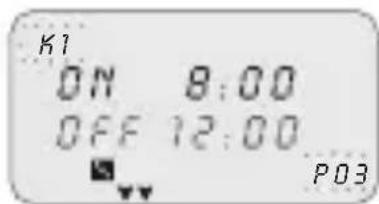

Example of set up from image:

Random Program ON 8:00 - OFF 12:00.

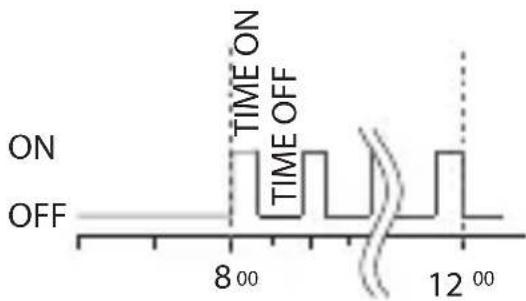

3-3 Cyclic Program

Enables a series of pulses to be executed within a defined period.

The ON time and the OFF time may vary from 1 sec. up to 23:59:59 hours

For programming ref. section 2-3.

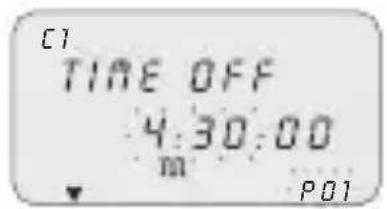

In addition, set the time of 1. TIME ON and TIME OFF using keys

EN Example of set up:

Cyclic Program ON 8:00 - OFF 12:00.

Timing of TIME ON 10 min and TIME OFF 15 min.

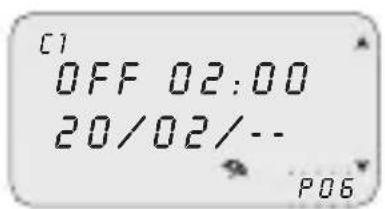

3-4 Holidays Program

This enables a period of suspension of the programs to be set, for example, for summer closing.

Select HOLIDAY P as described under subsection 1. 2-3.

Set the suspension start time (OFF) using keys 2. Press3. OK to confirm.

Set suspension start date using keys AV in format dd/mm/-.

Set the suspension end time and date (ON) as per 5. operations 2 to 4.

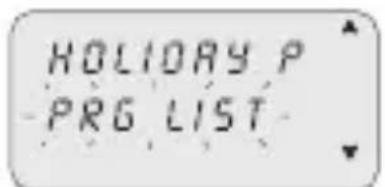

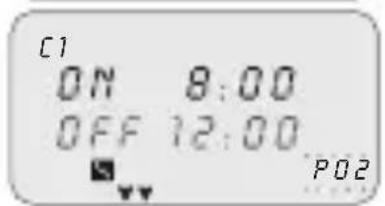

3-5 PRG List

This menu enables any program in the memory to be displayed, modified or deleted.

Scroll to "PRG LIST" using keys

Press2. OK to confirm.

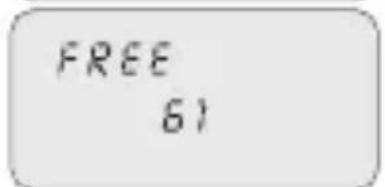

The number of free programs appears.

The first program in the memory is displayed.

Select the desired program using keys A.

i Ref. subsections 2-2 to 2-4 for details on checking, modifying or deleting data.

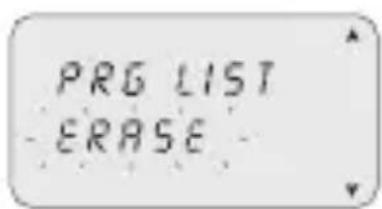

3-6 Delete

This menu enables different type of deletions to be made.

Scroll to 1. ERASE using keys

Press2. OK to confirm.

The type of deletion in the sub-menu is accessed (ref. table below).

Select deletion type using keys

Press3. OK to confirm deletion.

Press MENU to cancel deletion.

Sub-menu Function
SING PROG Delete single programs selected
ALL PROG	Delete all programs All programs in the memory will be deleted!
HOLIDAY P	Delete all holiday programs

3-7 Manual

This enables the status of the outputs to be forced manually regardless of active program. Possible settings:

Forcing mode	Display symbol	Channel-Condition	Forcing function
AUTO ON		C2	No forcing on channel; management from program.
PERM	A	C1 OnC2 On	Permanent channel activated.
PERM	B	C1 OFFC2 OFF	Permanent channel de-activated.
TEMP	C	C1 OnC2 On	Channel activated until next program activity.
TEMP	D	C1 OFFC2 OFF	Channel de-activated until next program activity.

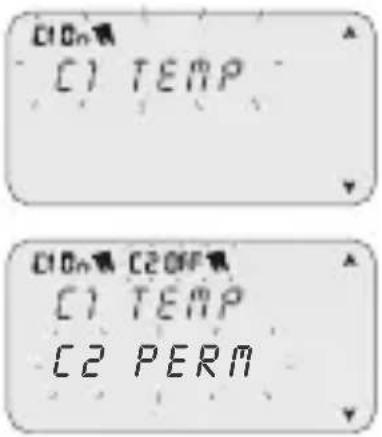

Activate a forcing

Select sub-menu "OVERRIDE" using keys A.Y

Press2. OK to confirm.

Press combined keys (ref. subsection 1-6) to select 3. channel (only twin channel models).

The display shows information on channel(s) (ref. table above).

Set type of forcing using keys.

Press5. OK to confirm selection.

It returns to the main screen.

The display shows the type of forcing on the channel.

De-activate a forcing

Press combined keys of the channel to be de-activated (ref. subsection 1-6) for 1. approx. 2 secs.

Select "AUTO" mode to deactivate using the menu (ref. subsection "Activate a forcing").

3-8 Options

This enables various clock parameters to be set.

Select "OPTIONS" using keys. Press2. OK to confirm. The sub-menus follow.

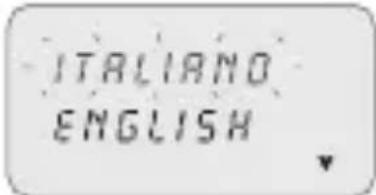

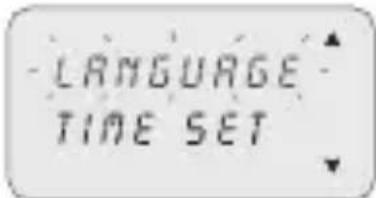

3-8-1 Languages

This enables the desired interface language to be set.

Select the "LANGUAGE" sub-menu using keys. Press2. OK to confirm. Select the desired language using keys. Press4. OK to confirm.

3-8-2 Date/Time

This enables the date and time of the equipment to be set.

If the equipment is reset the date must be set again.

Select "TIME SET"1. using keys.. Press2. OK to confirm. Set YEAR, MONTH, DAY, HOUR, MINUTES, 3. respectively, using keys.

Single pressure of keys moves field by minutes. Prolonged pressure of keys moves field by hours Press4. OK to confirm.

Date and time are set.»
Followed by "SUM/WIN" setting.»

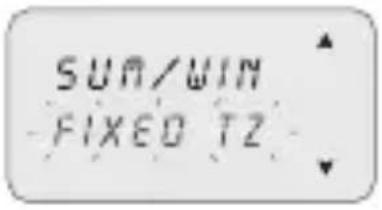

Summer/winter time change

Select switching type using keys.
Press2. OK to confirm.
Set values (ref. table) using keys.
Press4. OK to confirm.

Possible selections on display	Summer switching Winter	switching
NONE	None None
EUROPE	Last Sunday in March Last	Sunday in October
USR	Second Sunday in March First	First Sunday in November
FREE TZ	Week/day (Sun.) freely programmed	Week/day (Sun.) freely programmed
FIXED TZ	Fixed date freely pro-programmed (e.g. 28/02)	Fixed date freely pro-programmed (e.g. 29/10)

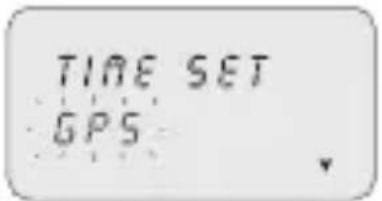

Time Zone GPS (only GPS and DCF77 models)

Set the local time by adding/subtracting the number of hours with respect to GMT, the so-called T ZONE (e.g. Italy, T ZONE +1).

i After setting TIME SET (ref. subsection 3-8-2). Select "GPS" using keys

Press2. OK to confirm.

Select the SUM/WIN mode (ref. previous table).3. Set number of T ZONE hours using keys AY.

Press5. OK to confirm.

The time change has been set. It returns to the main screen.

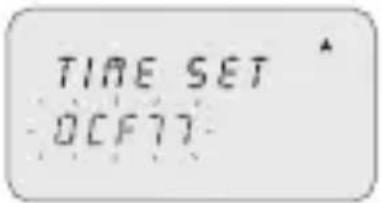

Time Zone DCF77 (only GPS and DCF77 models)

The receiver, on the contrary to the GPS, transmits the time with the summer/ winter correction.

It is necessary to set the correct number of hours with respect to the Frankfurt position.

Select "DCF77" using keys

Press2. OK to confirm.

Set the T ZONE number as described in the previous 3. operations from 4 to 5.

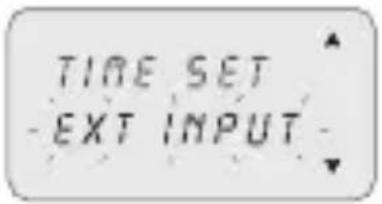

3-8-3 External input

This enables manual ON and OFF forcing functions to be executed from a remote position, (ref. section 3), by means of buttons or switches.

Function not available for the SYNCHRO models (the "EXT INPUT" item is not available in the "OPTIONS" menu).

Select the "EXT INPUT" sub-menu using keys

Press2. OK to confirm.

Select switching type (ref. table below) using keys 3.

Press4. OK to confirm.

In order to deactivate settings made, repeat actions from 1 to 2.

Press OK to confirm "DEACTIVAT" selection.

Display selection	Channel C1 or C2 (twin channel)	Symbol Function External		control
PERM ON	OFF		Permanent forcing of channel on ON or OFF.	—
TEMP	-		Temporary forcing of the channel until the next switching of a program set previously.	—
TIMER ON	OFF		Forcing of a timed channel (e.g. stairway lighting control). Time may be set in format hh:mm:ss.	#

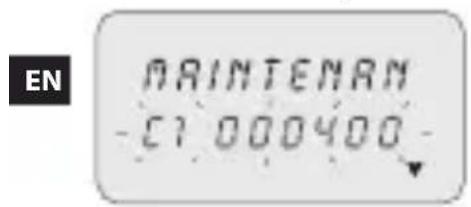

3-8-4 Maintenance

This enables a period of operation in ON to be set for each channel. After this period, the clock signals the need for an intervention with the message "C1 MAINT" or "C2 MAINT", alternating with the current data.

Select the "MAINTENAN" sub-menu using keys A C1 flashes.

Select channel using keys (twin channel models).

Press3. OK to confirm.

Set number of hours using keys A.

Press5. OK to confirm.

In order to modify or rest the values, follow instructions from 1 to 5.

Cancel maintenance notice

i Pressing the OK button on the main screen for 2 secs. eliminates the "MAINT" message shown on the display.

3-8-5 Hour meter

This enables the number of hours of the channels in the ON status to be displayed.

Select the "HOURMETER" sub-menu using keys

Press2. OK to confirm.

Select channel using keys A.

The display shows the hours of operation.

i Press keys+ to zero.

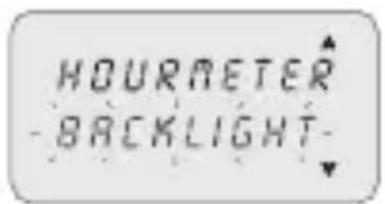

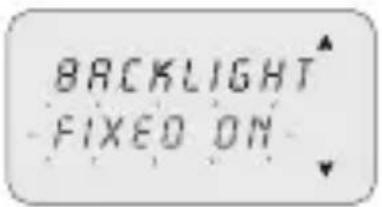

3-8-6 Back-lighting

This enables the display backlighting time to be set.

Select the "BACKLIGHT" sub-menu using keys

Press2. OK to confirm.

Select using keys between: FIXED ON,

FIXED OFF or TEMP 6SEC.

Press4. OK to confirm.

3-8-7 Warranty

This enables the time since the putting into service of the clock to be displayed in days.

Select the "WARRANTY" sub-menu using keys.. Press2. OK to confirm.

The display shows the time, as described above. Counter may not be zeroed.

4 External Memory Device (EMD)

The EMD is an external memory card, which is able to manage 64 programs, including the holidays.

The EMD is the D KEY programming key.

Insert the EMD.1.

The display shows the memory management » menu

Select the desired sub-menu (ref. table) using keys 2.

Press3. OK to confirm every selection.

Sub-menu Function Notes
EXECUTE	Execute programs directly from EMD	The programs are executed only from EMD
SAVE->ENO	Save all clock memory on EMD	Overwrite all programs already present on EMD
LOAD<-ENO	Load all content from EMD on clock memory	Overwrite all programs present on clock
READ	Read programs from EMD Display	ay only the programs present on EMD
HOLIO->ENO	Load Holiday programs from clock to EMD	Overwrite all Holiday programs present on EMD
HOLIO<-ENO	Load Holiday programs from EMD to clock	Overwrite all Holiday programs present on clock
ERASE	Delete programs present on EMD	Permanently delete all EMD memory

1. Press MENU to exit.

Press2. OK to confirm "ABORT" selection.

The EMD is excluded from the clock.

The EMD memory is no longer recognised.» Withdraw the EMD.3.

Sommario

inhabilita el/los rele/s,

Programa Standar ON hora 8:00, OFF hora 12:00.

3-2 Programa Casual

Programa Casual ON hora 8:00, OFF hora 12:00.

désactive le(s) relais,

3-3 Programme cyclique

2-5 TpoTOnToiOnn TpoypaMaToC

Pntno1. OK yia va eTIIeBaiwoTe To TPOypaMa Tou TPOkEiTai va TpoTTOin0eI. PuOmuTE TIG VEC SIOE COTWCS TEPiYpAeTAI OTNV UTOEVOTnTa 2-3.2.

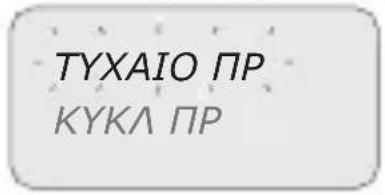

2-6 iaypaqn ppoypaμatoc (ypnyopn μεθoδoc)

EπIεεTov TUTO TPOypaμaTOG TOU TPOkεITai va 1.
diaypaΦe i e Ta πλκTpa A
π.x.TYXAIO PP

Pntote tautoxpova ta TnKtpa 2yia 2 dutepo-
AETTA.

TnV oOvN eupavizetai n evdsiEg «AIAPAH».Pnto3. OK yia va EpiBepaiwoeTe.

TnV oOvN eUavizEaI n evoEiEg «ADEIO».» To npoypa ma diaypapKε.»

2-7 AvTIypaΦn TPOypaμaTOs

EπiεεTov TUTO TPOypaμaTO S OU TPOkεITai va 1. aviypaεi aTo To μεvou (π.x. TYXAIO IIP) με Ta πλκτρα

O apiθμoc πpoypaμatoç avαβoσβnει.»

PntnoTe to 2. OK yia Tep. 3 dEutepoAeTTa

To poypa ma avtipapetai otnv tpwtn kevn 0tn uynm.

To npwto otoixeio (kavai) Tou mTOpEi va TpoTOnoi- nEi, avaBooBnvi.

TpoTOnToInote ta oToixeia oTWC TepiypaPcTaI OTNv 3. UTOEVOTnTa 2-3.

i pnpovva unapxouv tautoxpova 2 npoypaumatae ta iia otoixia!

3 Ppoypaata kai puOmuic poLoyoiou

Pntno1. MENOY yia va i oTa diathetaiua evou.

Iepinynte oTa uevou e Ta kouptia Kai Tnote To OK yia va EtniBcaiwoTe.

Papadjiya puthetaiogc eikova:

Kavovikó πρόγραμα ON 8:00 - OFF 12:00.

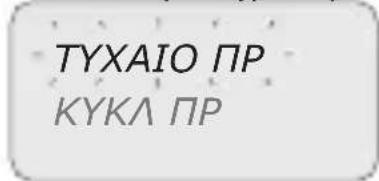

3-2 Tuxaio póypαμα

Kaiotra duvat n tv evpyooinon kai n v aeevpyooinon evoc n Tepiootepowkavaiw u e tuaio troTIOEVTOSIAC KaopioeVNG Tepiodou.

I Tn pUoian npoypaumato, avatpeEe otnv evotnta 2-3.

Papadjiya puthetaiogs eikova:

Tuxaio Tpóypaμα ON 8:00 - OFF 12:00.

3-3 Kukliko Tpóypαμα

P02: Standard program

ON 00:00 - OFF 06:00

P03: Slumpprogram

ON 20:00 - OFF 00:00

P04: Cykelprogram

ON 19:00 - OFF 22:00

P05: Cykelprogram

ON 02:00 - OFF 06:00

P06: Slumpprogram

ON 04:00 - OFF 06:00

3-1 Standard program

Medger installing av en bestamd period for en ON / OFF cykel.

Satt i EMD-minnet.1.

Displayen visar menyn for minenshantering.

Välj önskad untermeny (se tabellen) med knapparna 2.

YcTaHOBnTb IOnHbI INEPNO

I03BOJRAET yCTaHOBITb ONpeJeHnBI nepIOd, BO BpeM KOTOPORO paHee 3aDaHHa nporpaMMa DOJXHa BblONHrTbcra.

OnpeJeHbB B roDnHOB npoPamMe nepnoN NOBTOpeTcA uKlnueckn exe- roJHO.

BBeCTn Haayano n KOHeu nepnoa B opMaTe 1. dM/-- KnaBnShaMn A

PoiTBePdntbKaXdoe nOle KnaBnwei 2. OK.

「OДИЧьI INEPNOI 3aHaH.»

HaxaTb KnaBnuy 3. MEHIO, YTO6bl BbIITN n3 nporpaMmnpoBaHn.

2-4 Поберпь порраму

BbIbpaTb n3 MeHIO TnI npOrpaMMbl (HaNP. Ip cIyuaHna) 1. KJIaBNIaMn A

IopTBePdntb KnaBnwei 2. OK.

OTo6paKaIOTcI npOrpaMMbI OdHaKOBOro Tnna,» HaxOJaUneCBy B namrTn.

BbI6paTb nporpaMMy, KOtopyu cneJeT npOBepntb 3. KJIaBNiShaMn A

Ha dincpnee uiknueckn noBnIOTc yCTaHObKn.»

2-5 Измен综合体оррамmy

IodTBePdntb nporpamMy, KOTOpyO cJeDyET n3MeHnTB KnaBnWe1 1. OK.

1. BBeCTn HOBbie 3HaueHnra, KaK OINcaHO B pa3d. 2-3.

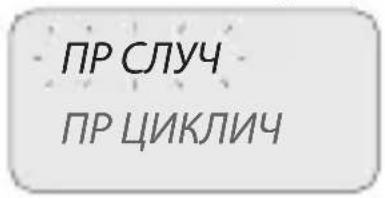

2-6 YdaJIntb nporpaMMy (6bICTpbI MeTOd)

BbipbI MHeIO Tn IporpaMMbl, KOTopyo XeJaem 1. ydaJIITb KnaBnAmN

Приимер: П сныаная»

HaxaTb OndHOBpeMeHHo KnaBnIu B Teu.2ceK.

Ha dncnnee BbICBeuBaetcra «OCHCTKA».

L R M G U R G E YCTBPEMEH

BbipbnoMeHIO «LANGUAGE» KnaBnAmn A

IoTBePntb KnaBnwei 2. OK.

BbipbXeJaembln3bIKKnaBnwaMn

B cIyue BbInonHeHn c6pOca, cIeNyET 3aHOBO BBecTn DaTy.

LANGUAGE YCTBPEMEH

Bb6paTb «YCTBPEMH»1. KnaBnshaM

PoiTBePdntb KnaBnwei 2. OK.

BBeTn IOD, MECaU, DEHb, YAC, MNHYT 3.

COOTBETCTBYUIMN KJIaBNIuAMN

Ozhopa30Boe haxatne knaBnI nepemeaet noJe MNHyT. PpOJXITbHoe haxatne knaBnI nepemeaET NOJIe YacOB.

IoTBePntb KnaBnwei 4. OK.

Yncno IN Bpem 3aHaHbI.

CneyuTe yctaHOBka «JIETO/3IMA».»

CmeHaJIeTHero/3mMheroBpeMeHn

JIETO/3NMA

ΦUKC3OHA

BbipbTnpeKIOueHnaBnAmn

IopTBePdntb KnaBnwei 2. OK.

BBeTn 3NaueHnra (cm. Ta6nua) KnaBnssamn

IoTBePdntb KnaBnwei 4. OK.

BBeCTN KOJIueCTBO YacOB KnaBnShaMn A

IoTBePntb KnaBnwei 5. OK.

i UTo6bI N3MeHnTb IJIb BHOBb 3aDaTb 3HaueHnA, Bbl- NOJHnTb INHCTpyKcNt O T 1 Do 5.

RU

OTMeHnTb npeDynpexKeHne o Texo6cnyxuBaHnn

Haxatne KnaBnO NK B Teu. 2 cek. Ha rnaBHOJ kpaHHoC TpaHnue ydaJeT coo6eHne «TEXO5C», oTo6paxeHoe Ha dinCnnee.

3-8-5 CyeTnK YacOB

I03B0JareT KOJIueCTBO YacOB HaxOxJeHna KaHaNoB B COCToHn BKJI.

BPEMRA

C4ET4ACOB

BbI6paTb noDmeHIO «CHTUACOB» KnaBnShaMn A

IoTBePdntb KnaBnwei 2. OK.

BbipbKaHaJI KnaBnAmn

Ha dncnnee BbICBeuHBaETcKoJIueCTBO yacOB pa60Tbl.

000153

Haxatb KnaBnA+V, yTo6bl 06HyIITb.

3-8-6 Повсветka

I03B0JareT 3aadatb BpeM NOcCBETKn Dncnnpe.

CYETYACOB

ПОДCBETKA

BbI6paTb IOmEnHIO «ПОДCBETKA» KnaBnShaMn

Pecorrer os various menus com as teclas A.

Programa Casual ON hora 08:00, OFF hora 12:00.
