Product Type	Wireless Remote Control
Brand	ABUS
Model	FU8150 (FUBE50015)
Frequency	868.6625 MHz
Transmission Power	10 mW
Display	8 Status LEDs
Free Field Range	Approx. 200 m
Building Range	Varies depending on conditions
Power Supply	Lithium battery CR2450 3 V
Low Battery Threshold	< 2.4 V
Operating Temperature	-10 °C to +40 °C
Max Humidity	75 % (non-condensing)
Dimensions (W x H x D)	36.2 x 62 x 17 mm
Weight	35 g
Security Grade	2 (EN50131-1)
Environmental Class	II
Main Functions	Secvest alarm activation/deactivation, panic alarm, rolling code
Compatibility	Secvest alarms FUAA50xxx and FU800x, 868 MHz transceivers
Maintenance and Cleaning	Avoid water and heat, clean with a dry cloth
Spare Parts and Repairability	Replaceable battery (CR2450)
General Information	Compliant with RED, EMC, RoHS, WEEE

Frequently Asked Questions - FU8150 ABUS

How to install the battery in the FU8150 remote control?

Open the battery compartment, insert a CR2450 battery respecting polarity. When powering on, all LEDs light up to verify proper operation.

What is the range of the ABUS FU8150 remote control?

In open field, the range is about 200 meters. Inside a building, it may vary depending on obstacles and environmental conditions.

How does the rolling code work on the FU8150?

The rolling code changes with each use to prevent replay and hacking. It is enabled by default and compatible with Secvest FUAA50xxx systems.

Can I use this remote control with a Secvest FU8000 alarm?

Yes, if you disable the rolling code, the remote works as a FU8100 and is compatible with FU8000 and FUAA50xx.

What to do if the remote control stops working?

First check the battery: if the voltage is below 2.4 V, replace it with a new CR2450. If the problem persists, contact your installer.

How to reset the FU8150 remote control?

Remove the battery, wait a few seconds, then reinsert it. The remote returns to factory settings. For more details, refer to the manual page 61.

Is the remote control waterproof?

No, it is not waterproof. Avoid any contact with water and do not expose it to excessive humidity (max 75% non-condensing).

How many LEDs are there and what do they mean?

8 status LEDs indicate the alarm system status (armed, disarmed, alarm, etc.). The top two are used to read the software version (red = major version, green = minor version).

What is the battery life?

The CR2450 battery typically lasts several months to a year depending on usage. A low battery message (flashing LED) appears when the voltage drops below 2.4 V.

Where to find the declaration of conformity for the FU8150?

The EU declaration of conformity is available for download at www.abus.com by searching for the reference FUBE50015, or by contacting ABUS Security-Center.

USER MANUAL FU8150 ABUS

Security Tech Germany

Security Tech Germany

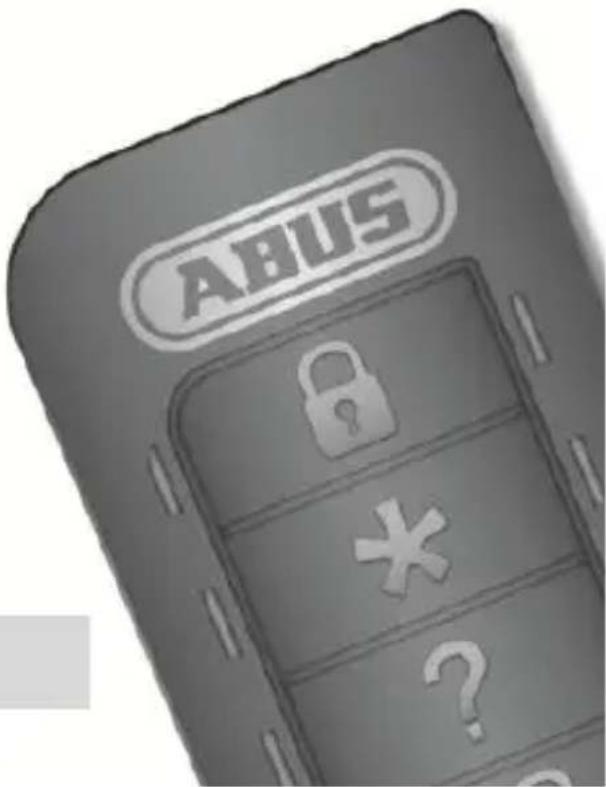

FUBE50015 USER GUIDE

[UK] User Guide 11
[FR] Notice d'utilisation. 21
[NL] Gebruikershandleiding 31
[DK] Betjeningsvejledning 41
[ES] Manual de instrucciones 51

CE

FUBE50015

Note

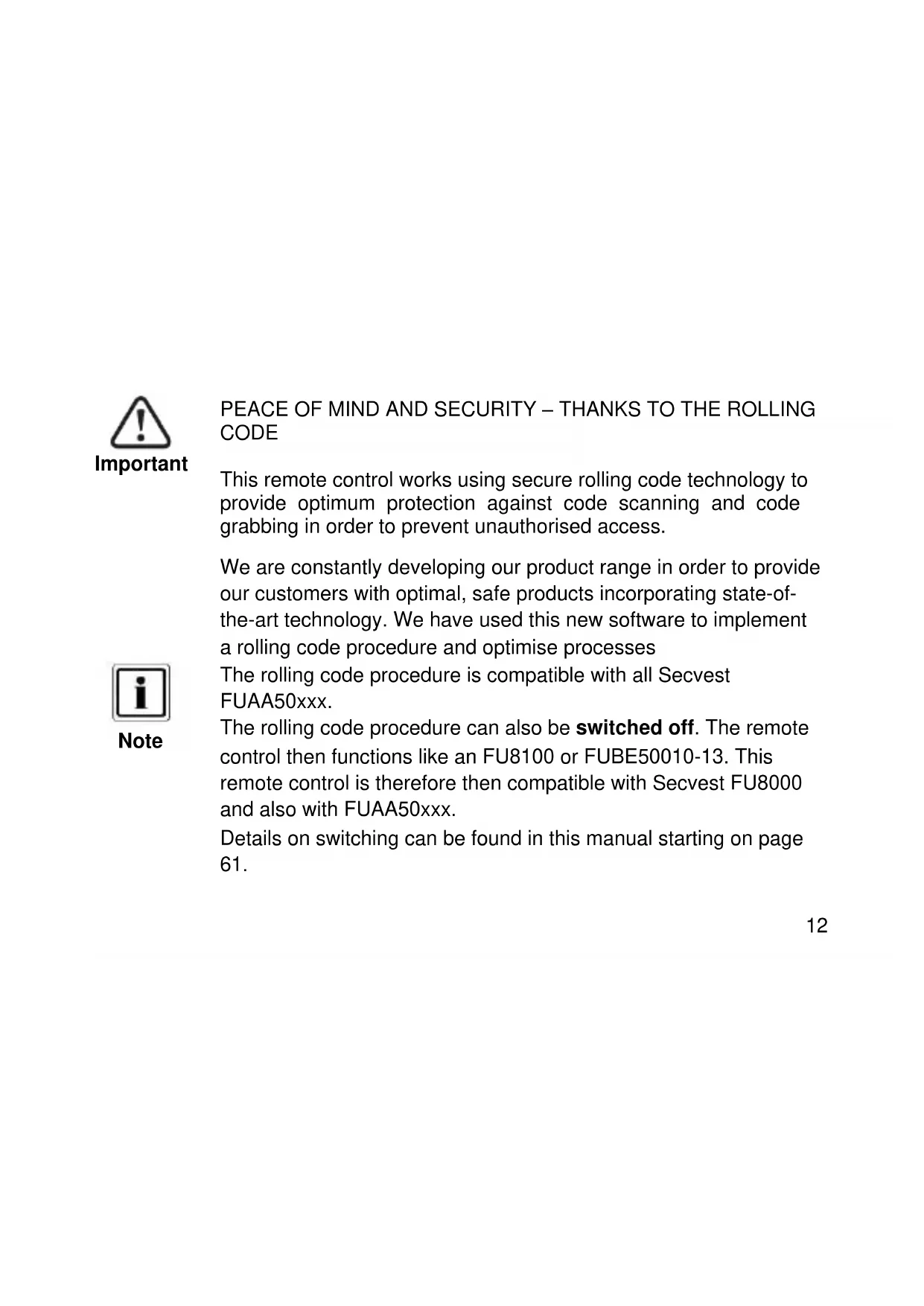

PEACE OF MIND AND SECURITY - THANKS TO THE ROLLING CODE

This remote control works using secure rolling code technology to provide optimum protection against code scanning and code grabbing in order to prevent unauthorised access.

We are constantly developing our product range in order to provide our customers with optimal, safe products incorporating state-of-the-art technology. We have used this new software to implement a rolling code procedure and optimise processes

The rolling code procedure is compatible with all Secvest FUAA50xxx.

The rolling code procedure can also be switched off. The remote control then functions like an FU8100 or FUBE50010-13. This remote control is therefore then compatible with Secvest FU8000 and also with FUAA50xxx.

Details on switching can be found in this manual starting on page 61.

Preface

Dear customer,

Thank you for purchasing this wireless remote control. In choosing our product, you now have a piece of equipment that is built according to state-of-the-art technology.

This document refers to the V3.1 software version of the wireless remote control.

This user guide contains important installation and operation information. Store this user guide in a safe place for future reference. This user guide belongs to this product - bear this in mind if you pass on this product to others.

Conformity

Hereby, ABUS Security-Center GmbH & Co. KG declares that the radio equipment type FUBE50015 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.abus.com search: FUBE50015/Downloads.

The declaration of conformity can be obtained from the following address: ABUS Security-Center GmbH & Co. KG, Linker Kreuthweg 5, 86444 Affing, GERMANY

Intended use

Read the notes and advice in this user guide carefully. If you do not follow these instructions, your guarantee claim becomes invalid. No liability can be accepted for resulting damages. No part of the product may be changed or modified in any way. The remote control

is not waterproof. Please avoid direct contact with water. Everything possible has been done to ensure that the content of this user guide is correct. However, neither the author nor ABUS Security-Center GmbH & Co. KG can be held liable for loss or damages caused by incorrect or improper use or failure to observe the safety instructions and warnings. We reserve the right to make changes to these instructions without prior notice.

Refer to the end of the user guide for more notes and information on operating the wireless remote control. [beginning on page 61]

Information on the battery

The device is supplied with direct current from a 3V lithium battery. To guarantee a long service life and avoid fire and injury, please note the following:

• Do not dispose of the battery in domestic waste.
• The battery must not be directly exposed to heat or sunlight, and must not be stored in a place with a very high temperature.
• The battery must not be burned.
• The battery must not come into contact with water.
• The battery must not be dismantled, pierced or otherwise damaged.
• The battery contacts must not be short-circuited.
• The battery must be kept away from small children.
• The battery cannot be recharged.

Packaging

Keep packaging material and small parts away from children. There is a risk of suffocation.

Disposal

Disposal as per directive WEEE 2012/19/EU

The product contains valuable raw materials. At the end of its service life, dispose of the product according to the applicable legal requirements. Within the EU, the product and its accessories must be collected and disposed of separately. Devices displaying this symbol may not be disposed of as

domestic waste. Please contact your dealer or dispose of the products at the local collection point for electronic waste.

Features

The wireless remote control is used for arming and disarming Secvest alarm systems FUAA50xxx and FU800x. It indicates the current status of the alarm system. An output can also be activated as an option. The wireless remote control has a panic feature. This can also be used for controlling 868 MHz transceivers in the Secvest product range.

Technical data

Wireless frequency: 868.6625 MHz

Transmission power: max. 10mW (amplifier output)

Display: 8 status LEDs

Range (outdoors): approx. 200m

Range (indoors): Depending on ambient conditions

Power supply: Lithium battery type / CR 2450 Li-Mn 3V

Battery error message: < 2.4V ("Low battery" threshold)

Operating temperature: -10^ to +40^

Humidity: max. 75% (non-condensing)

Dimension (WxHxD): 36.2 × 62 × 17 ~mm

Weight: 35 g

Security level: 2 (EN50131-1+A1:2009, Section 6)

Environmental class: II (EN50131-1+A1:2009, Section 7)

Standards, compliance: EN50131-1, 3, 5-3, 6

EU directives: RED: 2014/53/EU, EMV: 2014/30/EU,

RoHS: 2011/65/EU, WEEE: 2012/19/EU, ErP: 2009/125/EC, Low

Voltage: 2014/35/EU, General Safety: 2001/95/EC

Operation

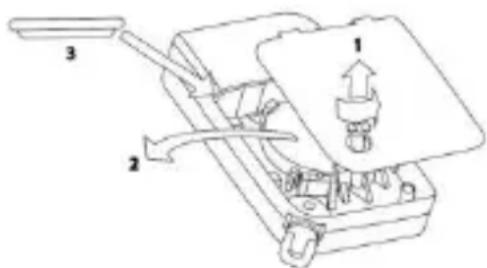

Inserting or changing the battery

Before the wireless remote control can be used, the battery has to be inserted. When inserting the battery, all the LED pairs light up red and green one after another which show that all the LEDs are working properly.

Reading the software version

The software version of the remote control is then shown by the two LEDs at the top. The main version is shown by the flashing red LED and the sub version is shown by the flashing green LED.

Learning in

Follow the steps described in the user guide for the compatible component. The " *" button can be used for "arming internally" or for switching an output. Find out more details from the user guide for the compatible component.

Customer service and support

End consumer

Please consult your dealer or installer if you have any questions.

Dealer/installer

Consult our website for product information.

© ABUS Security-Center GmbH & Co. KG, May 2017

Security Tech Germany

FUBE50015 NOTICE D'UTILISATION

[UK] User Guide 11

Chere cliente, cher client,

Security Tech Germany

FUBE50015 GEBRUIKERSHANDLEIDING

[UK] User Guide 11
[FR] Notice d'utilisation. 21
[NL] Gebruikershandleiding ...... 31
[DK] Betjeningsvejledning 41
[ES] Manual de instrucciones 51

12871844

CE

FUBE50015

MET VEILIGHEID EEN GOED GEVOEL - DANKZIJ DE ROLLINGCODE

Security Tech Germany

FUBE50015 BETJENINGSVEJLEDNING

[UK] User Guide 11
[FR] Notice d'utilisation. 21
[NL] Gebruikershandleiding 31
[DK] Betjeningsvejledning 41
[ES] Manual de instrucciones.......51

12871844

CE

FUBE50015

SIKKERHED GIVER EN GOD FORNEMMELSE - TAKKET VAERE ROLLING-CODE

Denne fjernbetjening fungerer med den sikre rolling-codeteknologi. Til optimal beskyttelse mod code-scanning og code-grabbing, sa u autoriseret adgang hindres.

Directivas UE: RED: 2014/53/UE, CEM: 2014/30/UE, RoHS: 2011/65/UE,

[UK] When arming the system, you are not allowed to be in the controlled area. When using alarm panels which are installed regarding Vds3438 this device is not allowed for arming or disarming the panel.
