HG8411MBB - Cooker Atag - Free user manual and instructions

Brand	Atag
Model	HG8411MBB
Product type	Gas hob (cooktop)
Number of burners	4 (semi-rapid, rapid, simmer, wok)
Wok burner	Yes, with inner ring (wok position) and outer ring (roast position)
Energy source	Gas (type to be checked according to installation)
Ignition	Electronic via spark plug
Safety	Thermocouple on each burner (automatic shut-off if flame goes out)
Surface material	Glass or stainless steel (depending on version)
Pot supports	Enamelled, with positioning notches
Included accessories	Wok ring, small pan support grid
Maintenance	Regular cleaning with mild detergent; do not put burner components in dishwasher
Troubleshooting	Fault table integrated in the manual
Number of pages in manual	74
Available languages	FR, DA, DE, EN, ES, FI, NL, NO, SV

Frequently Asked Questions - HG8411MBB Atag

How to light a burner?

Press the burner knob and turn it to the left. Hold down for 3 seconds between the maximum and minimum positions to activate the thermocouple safety.

Why won't a burner light?

Check that the plug is connected, the fuse is ok, the spark plug is clean and dry, the burner components are properly assembled, and the gas valve is open. Consult the fault table.

How to use the wok burner?

Turn the knob fully, push it in and turn to the minimum position (4). For roast mode, pivot the adjustment ring to the roast position (6). Note: the inner ring turns off in roast mode.

What to do if the burner goes out after lighting?

You may not have held the knob long enough (minimum 3 seconds) or the thermocouple is dirty. Clean the thermocouple and try again.

How to clean the burners?

Clean with a mild detergent. Never put burner components in the dishwasher. Dry thoroughly before reassembly.

Can I use a small diameter pan?

Use the small pan support grid provided on the burners (except wok) to stabilize pans less than 12 cm in diameter.

How to properly assemble the wok burner?

Mount the cup in the housing, then the inner and outer rings aligning the positioning notches. Incorrect assembly may prevent proper operation.

What to do if the ceramic glass top is broken?

Close the gas valve and unplug the appliance. Contact your installer. Do not throw a cracked glass top in the trash, take it to the recycling centre.

How to maintain the stainless steel of the hob?

Use a specific stainless steel cleaner and rub in the direction of the grain to avoid shiny marks. Discoloration is normal.

What to do if there is a gas smell?

Close the main gas valve and contact your installer. Check the connections.

USER MANUAL HG8411MBB Atag

The appliance identification card is located on the bottom of the appliance.

Stick the appliance identifi cation card here.

Fest apparatels ID kor her.

When contacting the service department, have the complete type number to hand.

Serg for at have hele typenummeret klar, när servicealdelingen kontaktes.

Ha hele typenummeret for hånden när du kontakter serviceavdelingen.

You will find the addresses and phone numbers of the service organisation on the guarantee card.

Instructions for use

Gas hob

Anvendelse

Gaskogeplade

Bruksanvisning

Gasskoketopp

Käyttöohjeet

Kaasutaso

Bruksanvisning

Gashäll

Modern kitchen gas stove with black grilles and a golden vent (no text or symbols visible)

700004592100

HG8471MBA

HG8471MBB

HG8411MBA

HG8411MBB

NL NL BE

Illustration of a cooking pot on a stove burner (no text or symbols)

fout

Pannen

Illustration of a stainless steel cooking pot on a gas stove (no text or symbols)

goed

Pure mechanical diagram of a circular ring component with four arms (no text or symbols)

wokring

Wokring en verkleinrooster

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

verkleinrooster

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Brander

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a circular component with internal components.

kelk plaatsen

4 3 2

ringen plaatsen

zijaanzicht

Onderhoud

Symbol of a trash bin with crossed lines indicating no waste or restriction, no text present

Illustration of a cooking pot on a stove burner (no text or symbols)

incorrect

Illustration of a cooking pot on a gas stove (no text or symbols)

correct

Pure mechanical diagram of a circular ring component with four arms (no text or symbols)

anneau pour wok

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Brûleur

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a circular component with internal components.

vue de profil

Entretien

Symbol of a trash bin with crossed lines indicating no waste or restriction, no text present

Illustration of a cooking pot on a gas stove (no text or symbols)

falsch

Illustration of a cooking pot on a gas stove (no text or symbols)

richtig

Isometric line drawing of a circular mechanical component with four arms (no text or symbols)

Wok-Ring

Technical line drawing of a mechanical component with four symmetrical arms and central hub (no text or symbols)

Verkleinerungsrost

Kochgeschirr

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Brenner

Technical diagram showing two views of a mechanical component with numbered annotations and a directional arrow indicating rotation.

Technical diagram of a multi-layered mechanical component with numbered parts and directional arrows indicating assembly or flow.

Seitenansicht

Wartung

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

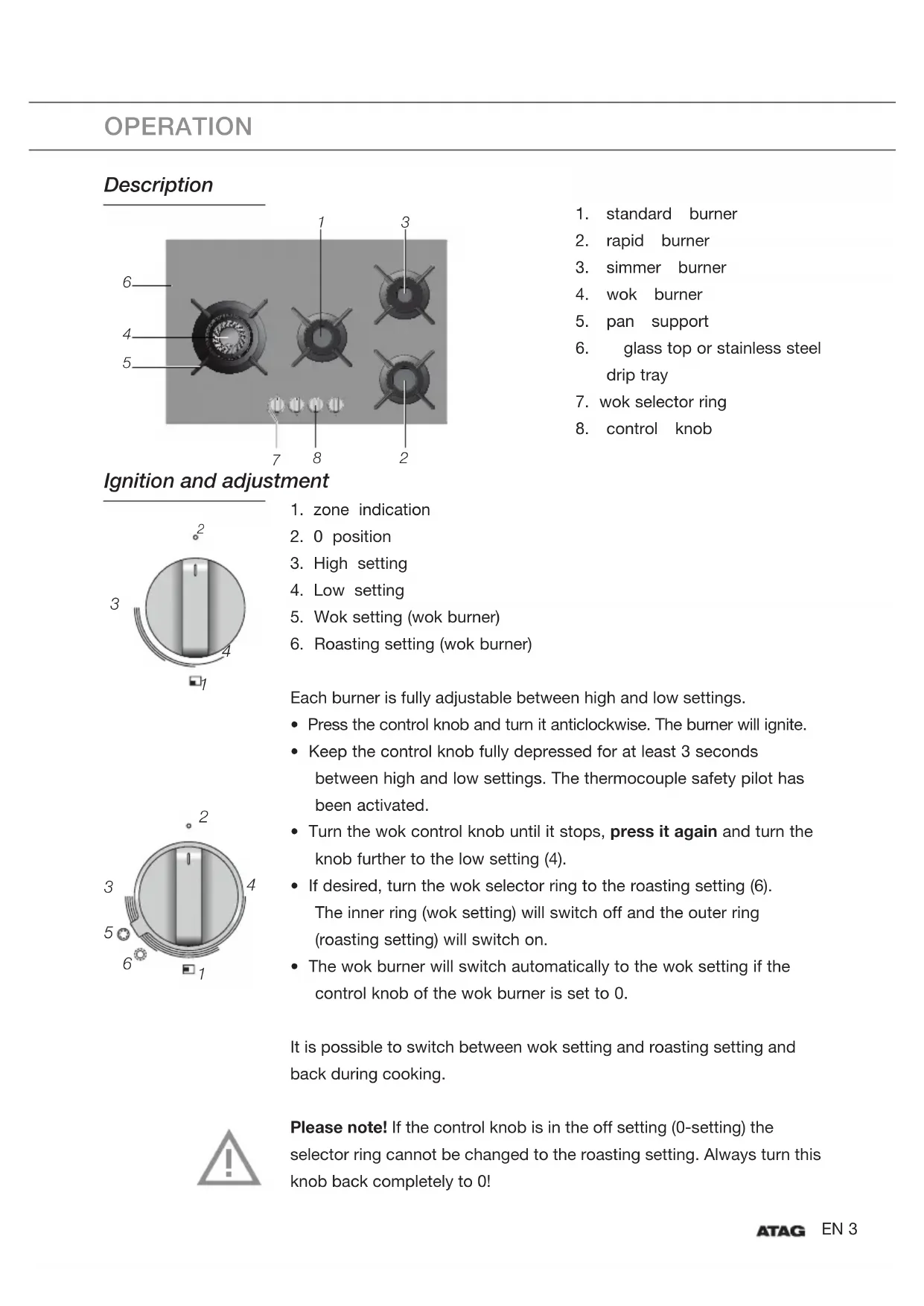

Ignition and adjustment

2 3 4 1

1 2 3 4 5 6

1. zone indication
   2.0 position
2. High setting
3. Low setting
4. Wok setting (wok burner)
5. Roasting setting (wok burner)

Each burner is fully adjustable between high and low settings.

• Press the control knob and turn it anticlockwise. The burner will ignite.
• Keep the control knob fully depressed for at least 3 seconds between high and low settings. The thermocouple safety pilot has been activated.
• Turn the wok control knob until it stops, press it again and turn the knob further to the low setting (4).
• If desired, turn the wok selector ring to the roasting setting (6). The inner ring (wok setting) will switch off and the outer ring (roasting setting) will switch on.
• The wok burner will switch automatically to the wok setting if the control knob of the wok burner is set to 0.

It is possible to switch between wok setting and roasting setting and back during cooking.

Please note! If the control knob is in the off setting (0-setting) the selector ring cannot be changed to the roasting setting. Always turn this knob back completely to 0!

Use

Illustration of a cooking pot on a stove burner (no text or symbols)

error

Pans

• Always ensure that the flames stay under the pan. A lot of energy is lost if flames burn around the pan. The handles may also become too hot.
• Do not use pans with a base diameter smaller than 12 cm. Smaller pans are not as stable.

Illustration of a cooking pot on a stove (no text or symbols)

good

Wok ring and small pan grid

The wok ring for use with the wok burner supplied or obtainable as an accessory provides extra stability for woks with a round base. The small pan grid supplied or obtainable as an accessory makes it possible to use very small pans.

Pure mechanical ring diagram without any text, numbers, or symbols

wok ring

Do not use the small pan grid on the wok burner. Do not use the wok ring on the wok roasting setting. This can result in discolouring.

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

small pan grid

Pan support

Place the pan supports vertically, without sliding over the drip tray. Use the leads to position the pan supports on the drip tray.

Technical diagram of a mechanical assembly with labeled parts 1 and 2

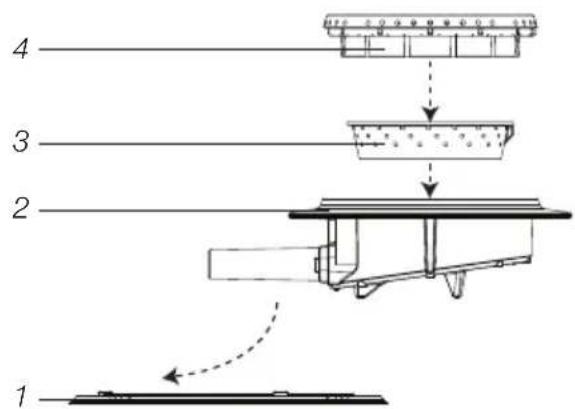

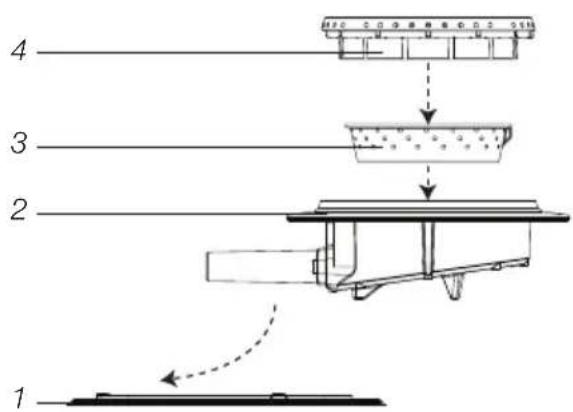

Burner

Use the leads (1) to put together the burner parts.

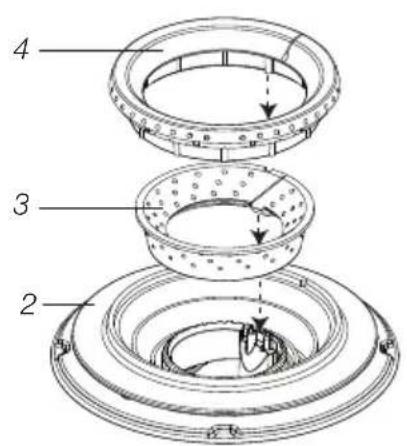

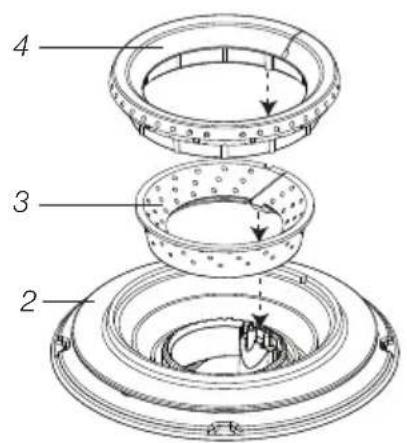

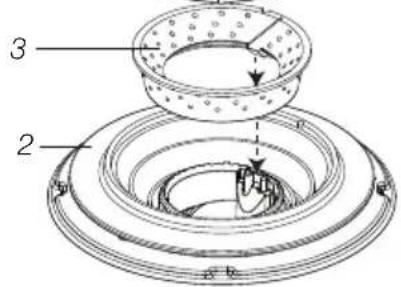

Wok burner

Place the wok burner correctly. Placing the wok burner parts incorrectly can result in a poorly functioning burner.

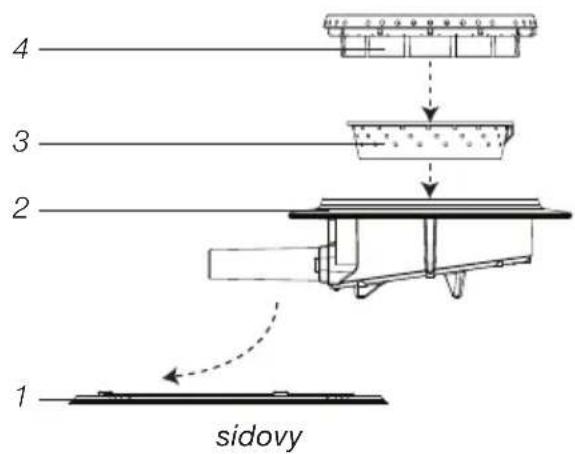

1. Place the burner distributor (2) in the burner housing (1).
2. Use the leads to place the inner ring (3) on the burner distributor (2).
3. Use the leads to place the outer ring (4) on the burner distributor (2).

Technical line drawing of a mechanical component with no visible text or symbols

4

Technical diagram of a mechanical assembly with concentric rings and a curved arrow indicating motion (no text or symbols)

Technical diagram of a mechanical component with labeled parts 2 and 3, showing internal structure and assembly.

position rings

position distributor

1 2 3 4

side view

Maintenance

Regular maintenance after use prevents spilt food from setting too long and creating stubborn stains. Use a mild detergent for this. First clean the control knobs, burners and pan supports and only then the drip tray or glass cover. This prevents the drip tray or glass cover to becoming dirty again after cleaning.

Please note! Do not clean burner parts in the dishwasher. Dishwasher detergent can corrode burner parts!

Persistent stains on enamel (pan supports, burner caps)

Persistent stains can best be removed with a fluid detergent or a plastic scouring sponge. Never use scouring powder, scouring pads, sharp objects or aggressive cleaning products.

Persistent stains on the glass cover

Clean the glass cover with a special cleaning product for ceramic hobs. Water stains or limescale are best cleaned using cleaning vinegar.

Persistent stains on the stainless steel (drip trays)

Persistent stains on stainless steel are best removed with a special stainless steel cleaning product. Always wipe with the structure of the steel to prevent scraping away the protective layer (damage caused in this way does not fall under the guarantee!) The surface of stainless steel drip trays can discolour slightly over time.

Brass wok burner parts

Some wok burner parts are made from brass. It is normal for the brass colour to change as a result of the high temperatures involved in wok use.

Consult the www.atagservice.nl website for additional maintenance and cleaning instructions!

Fault list

If your gas hob does not work properly, this does not always mean that it is defective. Try to deal with the problem yourself first by checking the points below or check the 'www.atagservice.nl' website for more information.

SYMPTOM POSSIBLE CAUSE SOLUTION
You smell gas near the appliance.	The appliance connection is leaking.	Close the main gas switch. Contact the your installer.
A burner does not ignite.12	Plug not in socket.Fuse defective/fuse switched off in fuse cupboard.Spark plug (1) dirty/damp.Burner parts not placed correctly.Burner parts dirty/damp.Main gas tap closed.Fault in gas mains.Gas bottle or tank is empty.Wrong type of gas used.	Put the plug into the socket.Put in a new fuse or switch on the fuse in the fuse box.Clean/dry the spark plug.Use the centring leads to put the burner parts together.Clean/dry the burner parts. Make sure that the outflow holes are open.Open the main gas tap.Consult you gas supplier.Connect a new gas bottle or have the tank refilled.Check whether the gas used is suitable for the appliance. Contact your installer if it is not correct.
The burner does not burn evenly.	Burner parts not placed correctly.Burner parts dirty/damp.Wrong type of gas used.	Use the centring leads to put the burner parts together.Clean/dry the burner parts. Make sure that the outflow holes are open.Check whether the gas used is suitable for the appliance. Contact your technician if it is not correct.
Burner extinguishes after igniting.	The control knob has not been depressed long or deep enough (at least 3 seconds).Thermocouple (2) is dirty.	Keep the control knob fully depressed for at least 3 seconds between high and low settings. This can take longer the first time because of the gas supply.Clean/dry thermocouple.
SYMPTOM POSSIBLE	LE CAUSE SOLUTION
Timer indicates error code F0 – F6 (if present).	There is an object, water or dirt on the buttons. Button used for too long.	Ensure that there is nothing on the buttons.Ensure that the buttons are clean and there is no water on them.Contact the technician if the error code does not disappear.
Ceramic glass plate broken.	Object fallen onto it. Close the gas main switch and pull the plug out of the socket. Contact the your installer.Please note! Do not throw a broken ceramic glass plate in the glass recycling bin but take this to the Municipality's waste recycling centre.

Disposal of the appliance and packaging

Sustainable materials have been used during manufacture of this appliance.

The appliance packaging is recyclable. The following may have been used:

• cardboard;
• paper;
  • polyethylene film (PE);
  • CFC-free polystyrene (PS-rigid foam);
  • polypropylene tape (PP).

Dispose of these materials in a responsible manner and in accordance with government regulations.

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

To designate the requirement for separate collection of household electrical appliances, the symbol of a crossed-out dustbin is applied to the product.

This means that at the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance such as this hob separately avoids possible negative consequences for the environment and health and enables the constituent materials to be recovered, resulting in significant savings in energy and resources.

Please note! Do not throw a broken ceramic glass plate in the glass recycling bin but take this to the Municipality's waste recycling centre.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

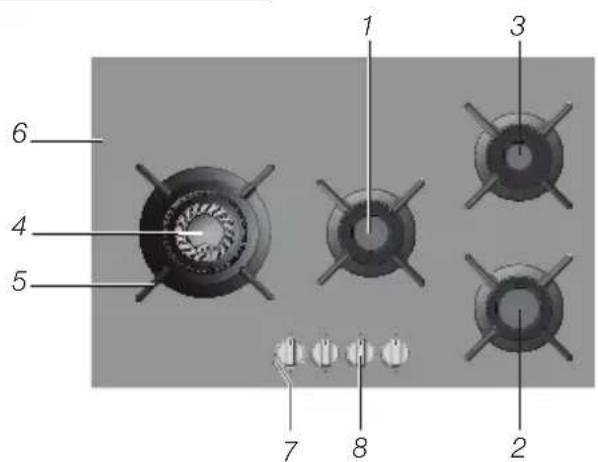

Beskrivelse

1 2 3 4 5 6 7 8

Illustration of a cooking pot on a stove burner (no text or symbols)

fejl

Illustration of a cooking pot on a stove (no text or symbols)

god

Technical line drawing of a circular mechanical component with four arms (no text or symbols)

wokring

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

rist til små gryder

Gryder

Technical diagram of a mechanical assembly with labeled parts 1 and 2

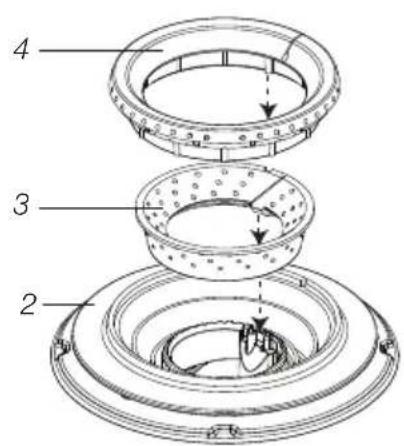

Brænder

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a directional arrow indicating rotation or movement.

placering af fordeler

Technical diagram of a multi-layered mechanical component with numbered parts and directional arrows indicating assembly or flow.

placering af ringe

1 2 3 4

set fra siden

Vedligeholdelse

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Illustration of a cooking pot on a gas stove (no text or symbols)

feil

Kjeler

Illustration of a cooking pot on a gas stove (no text or symbols)

bra

Pure mechanical ring diagram without any text, numbers, or symbols

wokring

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

liten rist

Kasserollestøtte

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Brenner

Technical line drawing of a mechanical component with labeled part '2' (no text or symbols beyond label)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Technical diagram of a mechanical assembly with concentric rings and a curved arrow indicating motion (no text or symbols)

Messing wok-brennerdeler

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a blank rectangular base (no text or symbols)

Illustration of a cooking pot on a gas stove (no text or symbols)

fel

Kokkärl

Illustration of a cooking pot on a stove (no text or symbols)

rätt

Pure mechanical ring diagram without any text, numbers, or symbols

wokring

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Brännare

Technical diagram showing mechanical assembly with labeled parts 1 and 2, including a directional arrow indicating rotation or movement.

Technical diagram of a multi-layered mechanical component with numbered parts and directional arrows indicating assembly or flow.

ringarnas position

1 sidovy 2 3 4

Underhåll

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Illustration of a cooking pot on a gas stove burner (no text or symbols)

väärin

Astiat

Illustration of a stainless steel cooking pot on a gas stove (no text or symbols)

oikein

Pure mechanical ring diagram without any text, numbers, or symbols

wokkirengas

Pure mechanical component diagram without any text, numbers, or symbols

pienen astian ritilä

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Poltin

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical component with concentric rings and a curved arrow indicating motion (no text or symbols)

aseta tasoitin

Technical diagram of a mechanical assembly with numbered parts labeled 2, 3, and 4

aseta renkaat

1 2 3 4

näkymä sivulta

Ylläpito

Symbol of a trash bin with crossed x-marks and a blank base (no text or numbers)

Illustration of a cooking pot on a gas stove burner (no text or symbols)

incorrecto

Illustration of a cooking pot on a stove (no text or symbols)

correcto

Pure mechanical ring diagram without any text, numbers, or symbols

anillo para woks

Technical line drawing of a mechanical component with symmetrical arms and central hub (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Fogón

Technical diagram showing two views of a mechanical component with numbered annotations and directional arrows indicating motion or assembly.

Technical diagram of a multi-layered mechanical component with numbered parts and directional arrows indicating assembly or flow.

Symbol of a trash bin crossed with no visible text or labels
