USER MANUAL PWDE 7125 W INDESIT

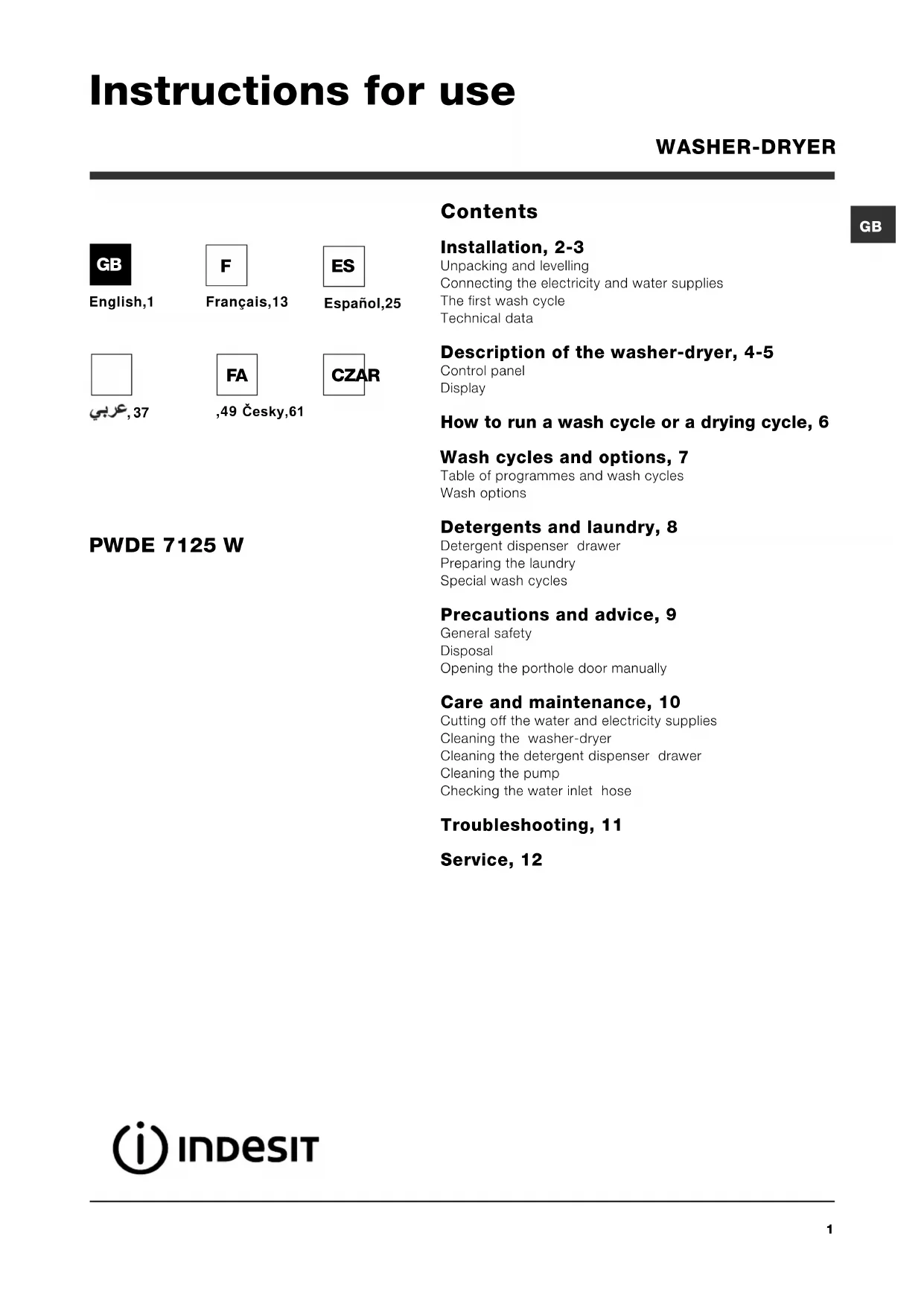

WASHER-DRYER Contents Installation, 2-3 Unpacking and levelling Connecting the electricity and water supplies The first wash cycle Technical data Description of the washer-dryer, 4-5 Control panel Display How to run a wash cycle or a drying cycle, 6 Wash cycles and options, 7 Table of programmes and wash cycles Wash options Detergents and laundry, 8 Detergent dispenser drawer Preparing the laundry Special wash cycles Precautions and advice, 9 General safety Disposal Opening the porthole door manually Care and maintenance, 10 Cutting off the water and electricity supplies Cleaning the washer-dryer Cleaning the detergent dispenser drawer Cleaning the pump Checking the water inlet hose Troubleshooting, 11 Service, 12 PWDE 7125 W Instructions for use Français,13

Installation This instruction manual should be kept in a safe place for future reference. If the washer-dryer is sold, transferred or moved, make sure that the instruction manual remains with the machine so that the new owner is able to familiarise himself/herself with its operation and features. Read these instructions carefully: they contain vital information relating to the safe installation and operation of the appliance. Unpacking and levelling Unpacking

1. Remove the washer-dryer from its packaging.

2. Make sure that the washer-dryer has not been

damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

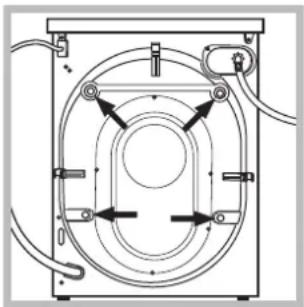

protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

4. Close off the holes using the plastic plugs provided.

5. Keep all the parts in a safe place: you will need them

again if the washer-dryer needs to be moved to another location. Packaging materials should not be used as toys for children. Levelling

1. Install the washer-dryer on a flat sturdy floor, without

resting it up against walls, furniture cabinets or anything else.

2. If the floor is not

perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2°. Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washer-dryer. Connecting the electricity and water supplies Connecting the water inlet hose

1. Connect the inlet hose

by screwing it to a cold water tab using a 3/4 gas threaded connection (see figure). Before performing the connection, allow the water to run freely until it is perfectly clear.

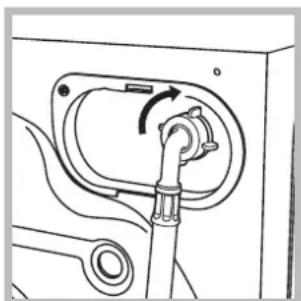

2. Connect the inlet hose

to the washer-dryer by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right- hand side of the rear part of the appliance (see figure).

3. Make sure that the hose is not folded over or bent.

The water pressure at the tap must fall within the range of values indicated in the Technical data table (see next page). If the inlet hose is not long enough, contact a specialised shop or an authorised technician. Never use second-hand hoses. Use the ones supplied with the machine.3

Connecting the drain hose Connect the drain hose, without bending it, to a drain duct or a wall drain situated between 65 and 100 cm from the floor; alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater. We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. Electrical connections Before plugging the appliance into the electricity socket, make sure that: the socket is earthed and complies with all applicable laws; the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite); the power supply voltage falls within the values indicated in the Technical data table (see opposite); the socket is compatible with the plug of the washer-dryer. If this is not the case, replace the socket or the plug. The washer-dryer must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions. When the washer-dryer has been installed, the electricity socket must remain within easy reach. Do not use extension cords or multiple sockets.

The cable should not be bent or compressed. The power supply cable must only be replaced by authorised technicians. Warning! The company shall not be held responsible in the event that these standards are not observed. The first wash cycle Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using wash cycle number 2. Technical data ModelPWDE 7125 WDimensionswidth 59,5 cmheight 85 cmdepth 55 cmCapacityfrom 1to 7 kg for wash programmefrom 1 to 5 kg for the drying programmeElectricalconnectionsplease refer to the technical dataplate fixed to the machineWater connectionsmaximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 52 litresSpin speedup to 1200 rotations per minuteEnergy ratedprogrammesaccording toregulationEN 50229Wash: programme 2; temperature60°C; using a load of 7 kg.Drying: first drying cycle performedwith a 2 kg load, by selecting thedrying level "A1" (IRON);Second drying cycle performed with a5 kg load, selecting the maximumdrying level "A4" (EXTRA).This appliance conforms to thefollowing EC Directives:- 89/336/EEC dated 03/05/89(Electromagnetic Compatibility) andsubsequent modifications- 2006/95/EC (Low Voltage)- 2002/96/EC4

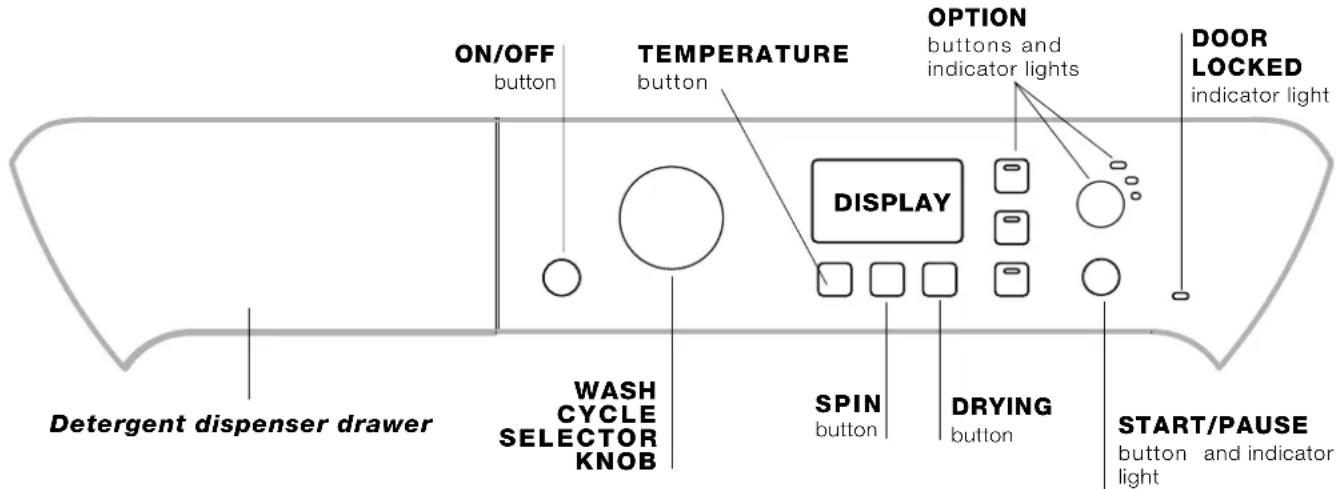

Description of the washer-dryer Control panel TEMPERATURE button WASH CYCLE SELECTOR KNOB Detergent dispenser drawer ON/OFF button SPIN button START/PAUSE button and indicatorlight DISPLAY DRYING button OPTION buttons andindicator lights DOOR LOCKED indicator light Detergent dispenser drawer: used to dispense detergents and washing additives ( see Detergents and laundry). ON/OFF button: press this briefly to switch the machine on or off. The START/PAUSE indicator light which flashes slowly in a blue colour shows that the machine is switched on. To switch off the washer- dryer during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled. WASH CYCLE SELECTOR KNOB: used to set the desired wash cycle (see Table of programmes and wash cycles). OPTION buttons and indicator lights: press to select the available options. The indicator light corresponding to the selected option will remain lit. SPIN button: press to reduce or completely exclude the spin cycle; the value appears on the display. TEMPERATURE button: press to reduce or completely exclude the temperature; the value appears on the display. DRYING button : press to decrease or exclude drying; the selected drying level or time will appear on the display (see "How to run a wash cycle or a drying cycle"). START/PAUSE button and indicator light: when the blue indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an amber colour. If the symbol is not illuminated, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again. DOOR LOCKED indicator light: The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened. Standby mode This washer-dryer, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after a few minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.5

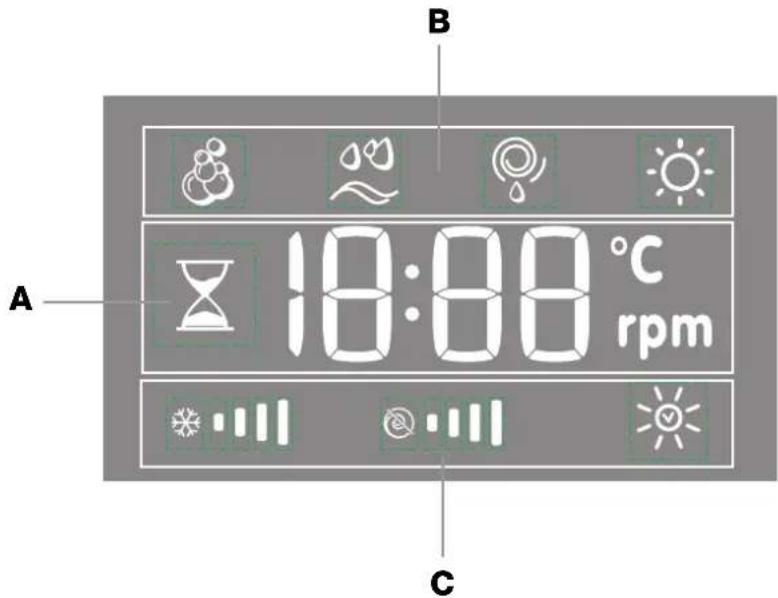

The display is useful when programming the machine and provides a great deal of information. The duration of the available wash cycles and the remaining time of a running cycle appear in section A; if the DELAYED START option has been set, the countdown to the start of the selected wash cycle will appear. Furthermore, pressing the corresponding button allows you to view the maximum temperature, spin speed and drying level or time values attained by the machine during the selected cycle. The hour-glass flashes while the machine is processing data, depending on the wash cycle and Smart level selected. After a maximum of 10 minutes, the hour-glass icon remains lit in a fixed manner and the final amount of time remaining is displayed. The hour-glass icon will then switch off approximately 1 minute after the final amount of time remaining has appeared. The phases scheduled for the selected cycle and, once the cycle has begun, the current phase of the wash cycle (and drying cycle, if applicable) appear in section B: Main wash Rinse Spin/Drain Drying The icons corresponding to temperature, spin and drying (working from the left) are displayed in section C. The temperature bars indicate the maximum temperature level which may be selected for the set cycle. The spin bars indicate the maximum spin level which may be selected for the set cycle. The symbol lights up while the drying settings are being adjusted. Display

How to run a wash cycle or a drying cycle

1. SWITCH THE MACHINE ON. Press the

button; the START/PAUSE indicator light will flash slowly in a blue colour.

2. LOAD THE LAUNDRY. Open the porthole door.

Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes and wash cycles on the following page.

3. MEASURE OUT THE DETERGENT. Pull out the

detergent dispenser drawer and pour the detergent into the relevant compartments as described in Detergents and laundry.

CYCLE SELECTOR knob to select the desired wash cycle. A temperature and spin speed is set for each wash cycle; these values may be adjusted. The duration of the cycle will appear on the display.

6. CUSTOMISE THE WASH CYCLE. Use the

relevant buttons: Modify the temperature and/or spin speed. The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the button, until the cold wash OFF setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the OFF setting). If these buttons are pressed again, the maximum values are restored. Setting the drying cycle The first time the button is pressed, the machine will automatically select the maximum drying cycle which is compatible with the selected wash cycle. Subsequent presses will decrease the drying level and then the drying time, until the cycle is excluded completely ("OFF"). If these buttons are pressed again, the maximum values are restored. Drying may be set as follows: A- Based on the desired laundry dryness level: Iron: suitable for clothes which will need ironing afterwards. the remaining dampness softens creases, making them easier to remove. "A1" appears on the display. Hanger: ideal for clothes which do not need to be dried fully. "A2" appears on the display. Cupboard: suitable for laundry which can be put back in a cupboard without being ironed. "A3" appears on the display. Extra: suitable for garments which need to be dried completely, such as sponges and bathrobes. "A4" appears on the display. B - Based on a set time period: between 30 and 180 minutes (Max. load 4 kg). If your laundry load to be washed and dried is much greater than the maximum stated load (see adjacent table of programmes), perform the wash cycle, and when the cycle is complete, divide the garments into groups and put some of them back in the drum. At this point, follow the instructions provided for a "Drying only" cycle. Repeat this procedure for the remainder of the load. A cooling-down period is always added to the end of each drying cycle. Drying only Use the cycle selector knob to select a drying cycle (11-12-13) in accordance with the type of fabric. The desired drying level or time may also be set using the DRYING button

Modify the cycle settings. Press the button to enable the option; the indicator light corresponding to the button will switch on. Press the button again to disable the option; the indicator light will switch off. If the selected option is not compatible with the set wash cycle, the indicator light will flash and the option will not be activated. If the selected option is not compatible with a previously selected one, the indicator light corresponding to the first function selected will flash and only the second option will be activated; the indicator light for the option which has been activated will be illuminated. Note: if the SMART option has been selected, none of the incompatible options may be activated. The options may affect the recommended load value and/or the duration of the cycle.

7. START THE WASH CYCLE. Press the START/

PAUSE button. The corresponding indicator light will turn blue, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol will be lit). To change a wash cycle while it is in progress, pause the washer-dryer using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an amber colour); then select the desired cycle and press the START/ PAUSE button again. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened. Press the START/ PAUSE button again to restart the wash cycle from the point at which it was interrupted.

8. THE END OF THE WASH CYCLE. This will be

indicated by the text END on the display; when the DOOR LOCKED symbol switches off the door may be opened. Open the door, unload the laundry and switch off the machine. If you wish to cancel a cycle which has already begun, press and hold the button. The cycle will be stopped and the machine will switch off.7

Wash cycles and options Wash options The option optimises washing to suit the quantity of laundry loaded into the machine, thereby reducing the overall wash cycle duration while minimising water and energy consumption. Press the button to select the type of wash cycle desired: Intensive: vigorous wash cycle for garments with a heavy soil level. 4 You: standard wash cycle for garments with a normal soil level. Fast: quick wash cycle for garments with a light soil level. This may only be used in conjunction with wash cycles 1, 2, 3, 4, 5 (all three levels) and 6, 7 (4 You and Fast levels). Easy iron By selecting this function, the wash and spin cycles will be modified in order to reduce the formation of creases. At the end of the cycle the washer-dryer will perform slow rotations of the drum, while the EASY IRON and START/PAUSE indicator lights will flash (blue and orange respectively). To end the cycle, press the START/PAUSE button or the EASY IRON button. For wash cycles number 9-10, the machine will end the cycle while the laundry is soaking; the EASY IRON and START/PAUSE indicator lights will flash. To drain the water so that the laundry may be removed, press the START/ PAUSE button or the EASY IRON button. It cannot be used in conjunction with wash cycles 8, 11, 12, 13,

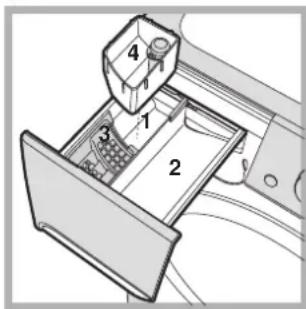

Note: If you also want to run the drying cycle, this option is enabled only if combined with level A1 (Iron dry). Stain removal This function is particularly useful for the removal of stubborn stains. Insert extra compartment 4 (supplied with the appliance) into compartment

1. When pouring in the bleach,

be careful not to exceed the max level marked on the central pivot (see figure). To bleach laundry with no other washing action, pour the bleach into extra compartment 4, select the Rinse cycle and activate the Stain removal option . To bleach during a wash cycle, pour in the detergent and any fabric softener you wish to use, select the desired wash cycle and enable the Stain removal option. The use of extra compartment 4 excludes the pre-wash function. It cannot be used in conjunction with wash cycles 1, 6, 8, 9, 10, 11, 12, 13,

Delayed start To set a delayed start for the selected cycle, press the corresponding button repeatedly until the required delay period has been reached. When this option is enabled, the corresponding indicator light will remain lit. To remove the delayed start setting, press the button until the text "OFF" appears on the display. This option can be used in conjunction with all cycles. For all Test Institutes:1) Test wash cycle in compliance with regulation EN 50229: select wash cycle 2 with a temperature of 60°C.2) Long wash cycle for cottons: select wash cycle 2 with a temperature of 40.3) Short wash cycle for cottons: select wash cycle 4 with a temperature of 40. Table of programmes and wash cycles

Drying Pre- wash Main wash Bleach Fabric softener Max. load (kg) Cycle duration

Cottons with Pre-wash: extremely soiled whites. 90°

White Cottons: extremely soiled whites. 90°

White Cottons (1): heavily soiled whites and resistant colours. 60°

White Cottons (2): heavily soiled whites and delicate colours. 40°

Cottons: heavily soiled whites and resistant colours. 60°

Coloured Cottons(3): lightly soiled whites and delicate colours. 40°

Synthetics: heavily soiled resistant colours. 60°

8 Wool: for wool, cashmere, etc. 40°

Silk/Curtains: for garments in silk and viscose, lingerie. 30°

- - 2 Partial cycles

- - - - 7 Drain - 0 - - - - - 7 Wash cycles The duration of the wash cycles can be checked on the display.8

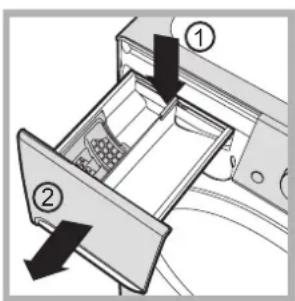

Detergents and laundry Detergent dispenser drawer Successful washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution. Do not use hand washing detergents; they create too much foam. Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows. Compartment 1: Pre-wash detergent (powder) Before pouring in the detergent, make sure that extra compartment 4 has been removed. Compartment 2: Washing detergent (powder or liquid) Liquid detergent should only be poured in immediately prior to the start of the wash cycle. Compartment 3: Additives (fabric softeners, etc.) The fabric softener should not overflow the grid. extra compartment 4: Bleach Preparing the laundry Divide the laundry according to: - the type of fabric/the symbol on the label - the colours: separate coloured garments from whites. Empty all garment pockets and check the buttons. Do not exceed the listed values, which refer to the weight of the laundry when dry: Durable fabrics: max. 7 kg Synthetic fabrics: max. 3 kg Delicate fabrics: max. 2 kg Wool: max. 1,5 kg Silk: max. 1 kg How much does your laundry weigh? 1 sheet 400-500 g 1 pillow case 150-200 g 1 tablecloth 400-500 g 1 bathrobe 900-1,200 g 1 towel 150-250 g Special wash cycles Jeans: turn the garments inside out before washing and use liquid detergent. Use wash cycle 6. Shirts: use special wash cycle 7 to wash shirts in various fabrics and colours.

It guarantees maximum care is taken of the garments and minimises the formation of creases. Wool: wash cycle 8 can be used to wash all woollen garments in the machine, even those carrying the hand wash only label. To achieve the best results, use a special detergent and do not exceed the maximum load of 1,5 kg. Silk: use special wash cycle 9 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes. Curtains: we recommend you fold the curtains and place them in a pillow case or mesh bag. Use wash cycle 9. Outwear( wash cycle 10): is studied for washing water- repellent fabrics and winter jackets (e.g. Gore-Tex, polyester, nylon); for best results, use a liquid detergent and dosage suitable for a half-load; pre-treat necks, cuffs and stains if necessary; do not use softeners or detergents containing softeners. Stuffed duvets cannot be washed with this programme. Load balancing system Before every spin cycle, to avoid excessive vibrations before every spin and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washer-dryer performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.9

Precautions and tips Opening the porthole door manually In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

1. Remove the plug from

the electrical socket..

2. Make sure the water

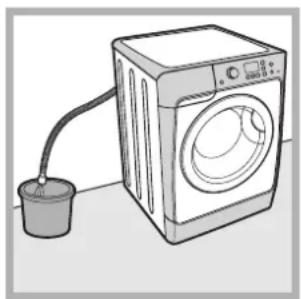

level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

3. Remove the cover panel on the lower front part of

the washer-dryer (see overleaf).

4. Pull outwards using the tab as indicated in the

figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.

5. Reposition the panel, making sure the hooks are

securely in place before you push it onto the appliance. This washer-dryer was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully. General safety This appliance was designed for domestic use only. The washer-dryer must only be used by adults, in accordance with the instructions provided in this manual. Do not touch the machine when barefoot or with wet or damp hands or feet. Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull. Do not open the detergent dispenser drawer while the machine is in operation. Do not touch the drained water as it may reach extremely high temperatures. Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening. If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself. Always keep children well away from the appliance while it is operating. The door can become quite hot during the wash cycle. If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. Before loading laundry into the washer-dryer, make sure the drum is empty. During the drying phase, the door tends to get quite hot. Do not use the appliance to dry clothes that have been washed with flammable solvents (e.g. trichlorethylene). Do not use the appliance to dry foam rubber or similar elastomers. Make sure that the water tap is turned on during the drying cycles. Disposal Disposing of the packaging materials: observe local regulations so that the packaging may be re-used. The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For more information relating to the correct disposal of household appliances, owners should contact their local authorities or appliance dealer.10

Care and maintenance Cutting off the water and electricity supplies Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washer-dryer and help to prevent leaks. Unplug the washer-dryer when cleaning it and during all maintenance work. Cleaning the washer-dryer The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the detergent dispenser drawer To remove the drawer, press lever (1) and pull the drawer outwards (2) (see figure). Wash it under running water; this procedure should be repeated frequently. Cleaning the pump The washer-dryer is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the protective pre-chamber at the base of the pump. Make sure the wash cycle has finished and unplug the appliance. To access the pre-chamber:

1. Take off the cover panel

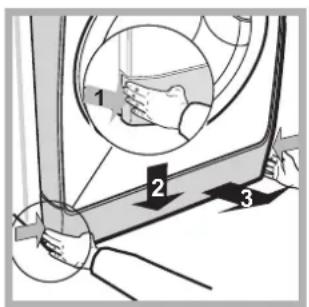

on the front of the machine by first pressing it in the centre and then pushing downwards on both sides until you can remove it (see figures).

2. Unscrew the lid by

rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal.

3. Clean the inside thoroughly.

4. Screw the lid back on.

5. Reposition the panel, making sure the hooks are

securely in place before you push it onto the appliance. Checking the water inlet hose Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. Never use second-hand hoses.11

Troubleshooting Your washer-dryer could occasionally fail to work. Before contacting the Technical Assistance Service (see Service), make sure that the problem cannot be not solved easily using the following list. Problem: The washer-dryer does not switch on. The wash cycle does not start. The washer-dryer does not fill with water (the text H2O flashes on the display). The washer-dryer continuously takes in and drains water. The washer-dryer does not drain or spin. The washer-dryer vibrates a lot during the spin cycle. The washer-dryer leaks. The option and START/PAUSE indicator lights flash rapidly and an error code appears on the display (e.g.: F-01, F-..). There is too much foam. The washer-dryer does not dry. Possible causes / Solutions: The appliance is not plugged into the socket fully, or not enough to make contact. There is no power in the house. The washer-dryer door is not closed properly. The ON/OFF button has not been pressed. The START/PAUSE button has not been pressed. The water tap has not been opened. A delayed start has been set. The water inlet hose is not connected to the tap. The hose is bent. The water tap has not been opened. There is no water supply in the house. The pressure is too low. The START/PAUSE button has not been pressed. The drain hose is not fitted at a height between 65 and 100 cm from the floor (see Installation). The free end of the hose is under water (see Installation). The wall drainage system is not fitted with a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Technical Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washer-dryer to fill with water and drain continuously. Special anti- draining valves are available in shops and help to prevent this inconvenience. The wash cycle does not include draining: some cycles require the draining process to be enabled manually. The EASY IRON option is enabled: To complete the wash cycle, press the START/PAUSE button (see Wash cycles and options). The drain hose is bent (see Installation). The drainage duct is clogged. The drum was not unlocked correctly during installation (see Installation). The washer-dryer is not level (see Installation). The washer-dryer is trapped between cabinets and walls (see Installation). The water inlet hose is not screwed on properly (see Installation). The detergent dispenser drawer is blocked (for cleaning instructions, see Care and maintenance). The drain hose is not fixed properly (see Installation). Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again. If the problem persists, contact the Technical Assistance Service. The detergent is not suitable for machine washing (it should display the text for washer-dryers or hand and machine wash, or the like). Too much detergent was used. The appliance is not plugged into the socket, or not enough to make contact. There has been a power failure. The appliance door is not shut properly. A DELAY TIMER has been set. DRYING is in the OFF position.12

Service Before contacting the Technical Assistance Service: Check whether you can solve the problem alone (see Troubleshooting). Restart the wash cycle to check whether the problem has been solved. If this is not the case, contact an authorised Technical Assistance Centre. Always request the assistance of authorised technicians. Have the following information to hand: the type of problem; the appliance model (Mod.); the serial number (S/N). This information can be found on the data plate applied to the rear of the washer-dryer, and can also be found on the front of the appliance by opening the door.13
