Product type	Food processor
Brand	Montiss
Model	KFP5777M
Power supply	Mains 220-240 V~
Max power	1000 W
Rated voltage	220-240 V~
Rated frequency	50 Hz
Main functions	Chopping, kneading, slicing, grating, blending, whisking, juicing
Included accessories	Mixing bowl, processor bowl, juicer bowl, julienne disc, adjustable slicing disc, reversible grating disc, whisk, kneading accessory, inner and outer pushers, spatula, juicer sieve
Mixing bowl capacity	Approx. 1.5 L (max 1 L for hot liquids)
Processor bowl capacity	Maximum level indication (MAX)
Control type	On/off button with pulse function
Safety	Safety lock prevents operation if bowls are not correctly assembled
Maintenance and cleaning	Removable parts are dishwasher safe (except motor unit and blade protection cap). Clean the motor unit with a damp sponge.
Warranty	24 months
After-sales service	Van den Berg Products BV ([e-mail]) / Spare parts at www.muppa.nl

Frequently Asked Questions - KFP5777M Montiss

How to correctly assemble the food processor so it works?

Make sure all alignment marks on the bowl lid, bowl, mixing bowl or juicer bowl are aligned with the motor unit. The appliance will not start if the parts are not correctly in place.

What to do if the appliance stops suddenly during use?

This can happen if the lid has opened or if the operation is too difficult. Check that the lid is properly closed. If the problem persists, turn off, unplug, let cool, then reduce the amount of food.

Can I put all parts in the dishwasher?

Yes, except for the motor unit and the blade protection cap of the food processor. These parts must be hand washed with a damp sponge.

How to chop onions without them becoming too fine?

Use the pulse function with short, repeated presses. This allows you to control the chopping and avoid a too fine result.

What types of accessories are included with the KFP5777M?

The appliance comes with a mixing bowl, processor bowl, juicer bowl, discs (julienne, adjustable slicing, reversible grating), a whisk, a kneading accessory, pushers and a spatula.

Can I use the food processor to knead bread dough?

Yes, use the supplied kneading accessory. Do not use the whisk for this task.

How to adjust the slicing thickness with the adjustable disc?

Attach the adjustment device under the disc, turn it to the desired position (indicated by dots) to lock, then adjust the thickness by turning the device.

Which fruits and vegetables should I peel or pit before using the juicer?

Peel citrus fruits, pineapple, melons, etc. Pit cherries, plums, apricots, peaches, etc. before juicing.

Where to find spare parts or additional accessories?

You can order parts and accessories on the website www.muppa.nl. For any questions, contact after-sales service at [e-mail].

How to quickly clean the mixing bowl without disassembling the blades?

Fill the bowl halfway with hot water and a little detergent, then activate the pulse function for a few seconds. Rinse afterwards with clean water.

USER MANUAL KFP5777M Montiss

IHR GARANTIESCHEIN 38

SERVICEFORMULAR 39

TABLE OF CONTENTS

SAFETY REGULATIONS

THE PRODUCT

ASSEMBLY

THE USE

MAINTENANCE AND CLEANING 24

SOLVING PROBLEMS

DISPOSAL OF YOUR OLD APPLIANCE 25

TECHNICAL DETAILS

GUARANTEE

SERVICE FORM

SOMMAIRE

CONSGNES DE SECURITE 40

17LE PRODUIT 41

18 INSTRUCTIONS DE MONTAGE 42

18 UTILISATION DE L'APPAREIL 42

ENTRETIEN ET NETTOYAGE 48

25 RÉSOLUTION DES PROBLEMES 49

ÉLIMINATION DE VOTRE ANCIEN 49

APAREIL

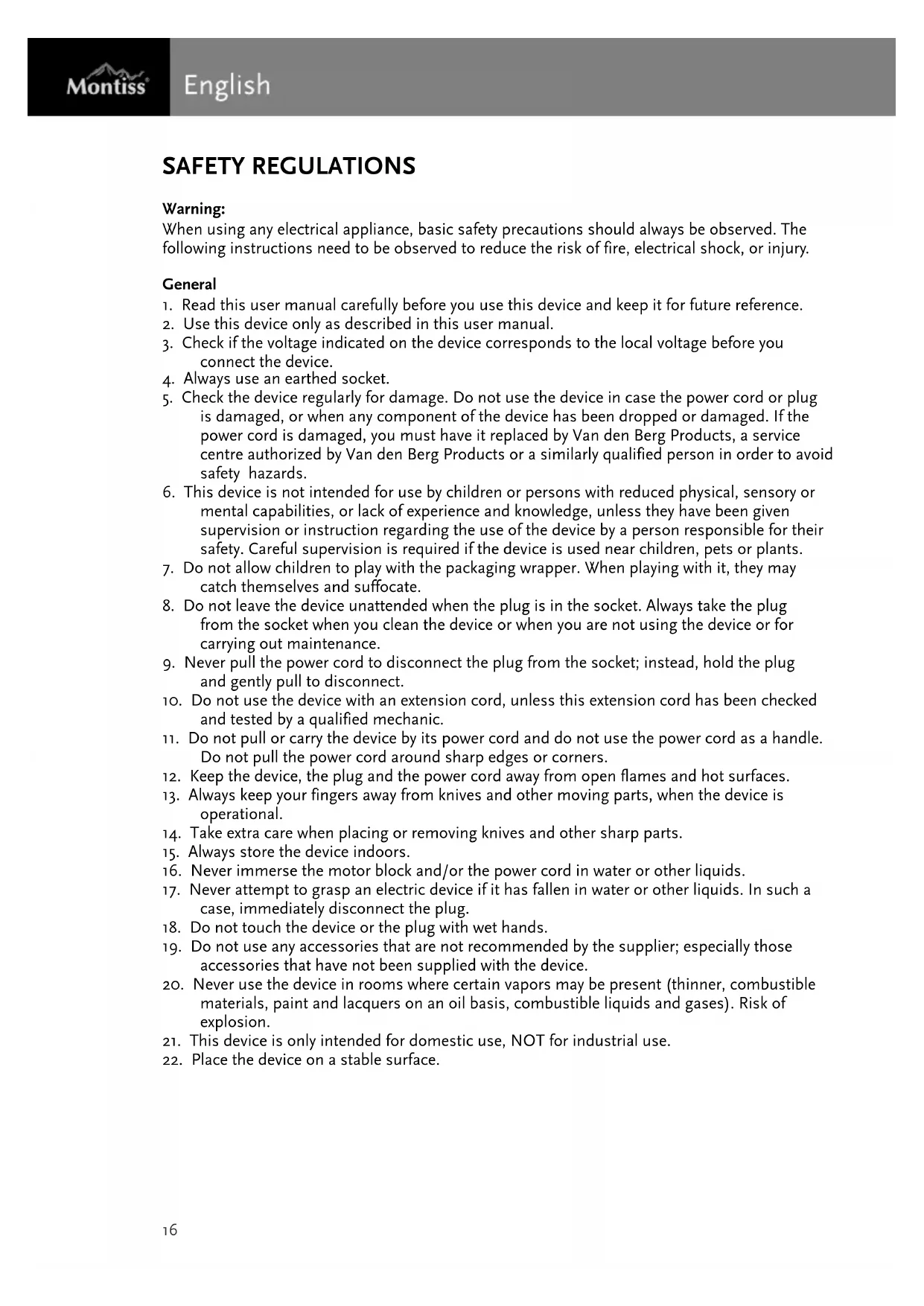

When using any electrical appliance, basic safety precautions should always be observed. The following instructions need to be observed to reduce the risk of fire, electrical shock, or injury.

General

1. Read this user manual carefully before you use this device and keep it for future reference.
2. Use this device only as described in this user manual.
3. Check if the voltage indicated on the device corresponds to the local voltage before you connect the device.
4. Always use an earthed socket.
5. Check the device regularly for damage. Do not use the device in case the power cord or plug is damaged, or when any component of the device has been dropped or damaged. If the power cord is damaged, you must have it replaced by Van den Berg Products, a service centre authorized by Van den Berg Products or a similarly qualified person in order to avoid safety hazards.
6. This device is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction regarding the use of the device by a person responsible for their safety. Careful supervision is required if the device is used near children, pets or plants.
7. Do not allow children to play with the packaging wrapper. When playing with it, they may catch themselves and suffocate.
8. Do not leave the device unattended when the plug is in the socket. Always take the plug from the socket when you clean the device or when you are not using the device or for carrying out maintenance.
9. Never pull the power cord to disconnect the plug from the socket; instead, hold the plug and gently pull to disconnect.
10. Do not use the device with an extension cord, unless this extension cord has been checked and tested by a qualified mechanic.
11. Do not pull or carry the device by its power cord and do not use the power cord as a handle. Do not pull the power cord around sharp edges or corners.
12. Keep the device, the plug and the power cord away from open flames and hot surfaces.
13. Always keep your fingers away from knives and other moving parts, when the device is operational.
14. Take extra care when placing or removing knives and other sharp parts.
15. Always store the device indoors.
16. Never immerse the motor block and/or the power cord in water or other liquids.
17. Never attempt to grasp an electric device if it has fallen in water or other liquids. In such a case, immediately disconnect the plug.
18. Do not touch the device or the plug with wet hands.
19. Do not use any accessories that are not recommended by the supplier; especially those accessories that have not been supplied with the device.
20. Never use the device in rooms where certain vapors may be present (thinner, combustible materials, paint and lacquers on an oil basis, combustible liquids and gases). Risk of explosion.
21. This device is only intended for domestic use, NOT for industrial use.
22. Place the device on a stable surface.

THE PRODUCT THE PRODUCT

Blender jar/measuring cup with lid and blade unit with sealing ring

Food processor bowl

Lid of food processor bowl

Inner and outer pusher Blade unit

Kneading accessory

Julienne disc Ad

justable slicing disc Granulating disc

Balloon beater

Pusher of juice extractor

Lid of juice extractor bowl

Juicer extractor bowl with spout

Sieve of juice extractor

Juice extractor coupling unit with clamps

Tool holder Spatula

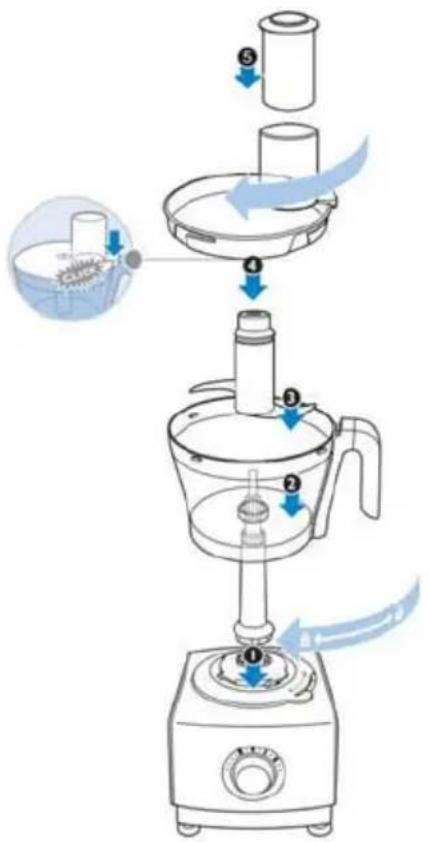

ASSEMBLY

THE USE

Before use

• Remove all packaging materials.
• Make sure the device is disconnected from the power supply.
• Clean the outside of the device with a soft cloth. Wash all parts that come into contact with food in warm, soapy water. Rinse with clean water and dry thoroughly.
• Inspect the power cord and plug for damage before each use. Do not use the device if the power cord or the device is damaged or not working properly.
• Never switch off the device by turning the blender jar, the food processor bowl or the juice extractor bowl. Always switch off the device by turning the knob to 'off'.
  Wait until moving parts stop running before you remove the lid of the bowl or blender jar.
• Do not exceed the maximum content indicated on the food processor bowl or the blender jar.
• Do not use the juice extractor if the sieve is damaged.
• Do not process hot ingredients in the device. Cool them down first.

Operation

Take care:

The device is suited with a safety lock. The device can only be switched on if the blender jar with blade unit, the food processor bowl or the juice extractor bowl is correctly assembled on the motor unit.
- Use this device only to prepare food.
- Place the device on a stable and flat surface.

• If the device is connected to the power supply, a blue LED light will light up around the knob.

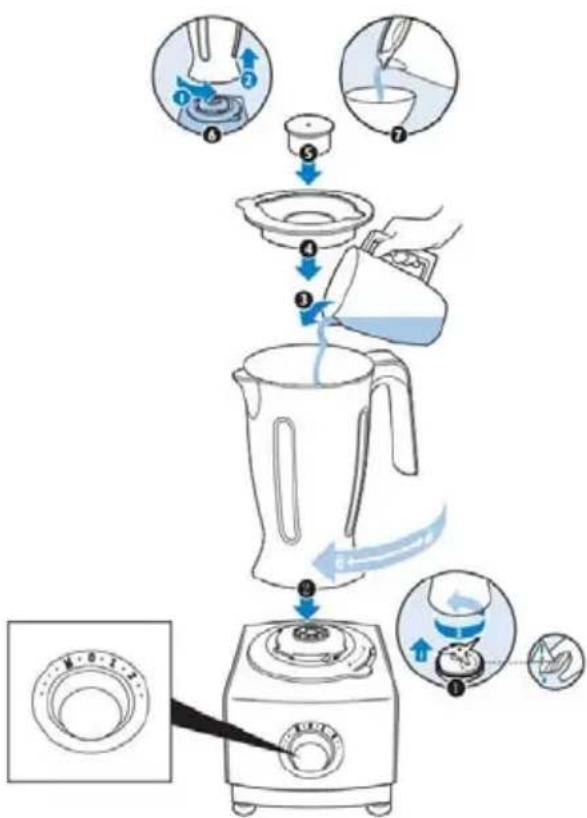

Blender

Take care:

• Ensure that the sealing ring is assembled onto the blade unit before the blade unit is placed in the blender jar.
  Always let the device cool down to room temperature after you have processed two batches.
• Never open the lid when the blade rotates.

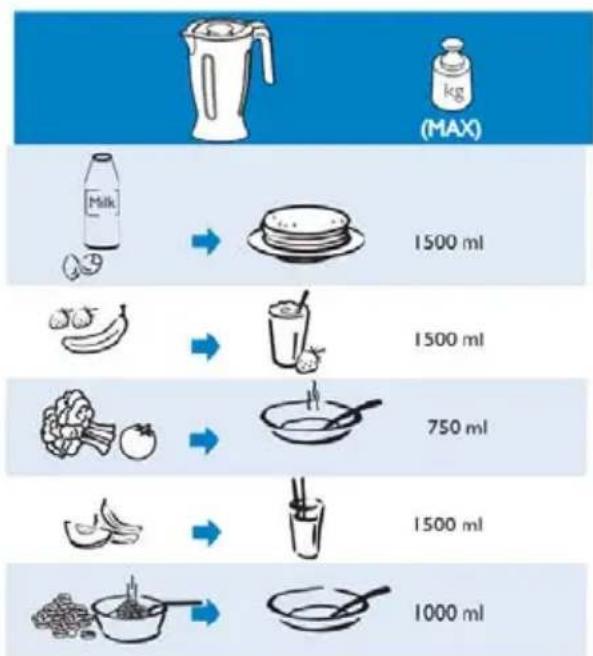

Use and tips:

To add liquid ingredients during processing: pour the ingredients in the blender jar through the hole in the lid.
- Pre-cut solid ingredients into smaller pieces before you process them.
If you want to prepare a large quantity, process small batches of ingredients instead of a large quantity at once.
- Use cooked ingredients when you blend a soup.
- When you add a liquid that is hot or tends to foam (e.g. milk), do not put more than 1 litre in the blender jar to avoid spillage.
If you are not satisfied with the result, switch off the device and stir the ingredients with a spatula. Remove some of the contents to process a smaller quantity or add some liquid.
- If ingredients stick to the wall of the blender jar:

Switch off the device and unplug it.
o Remove the lid and use a spatula to remove the ingredients from the wall of the blender jar.
- Keep the spatula at a safe distance from the blades.

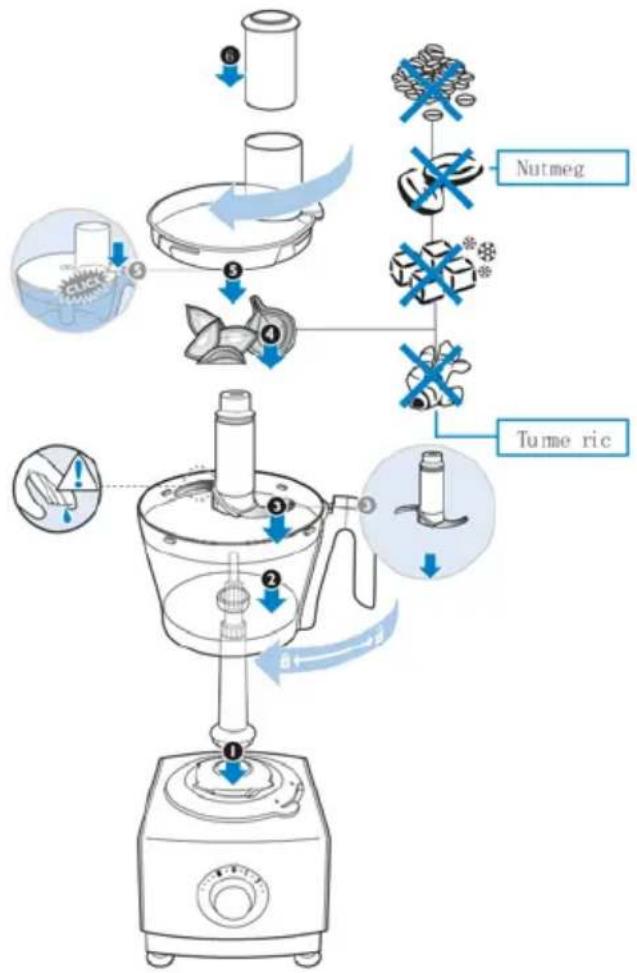

Chopping

Take care:

• Ensure that the food processor blade is assembled in the bowl before you start to add the ingredients.
• Do not let the device run too long when you chop (hard) cheese or chocolate. Otherwise these ingredients become too hot, start to melt and turn lumpy.
• Do not use the blade unit to chop very hard ingredients such as coffee beans, nutmeg, turmeric and ice cubes. This may cause the blade to become blunt.

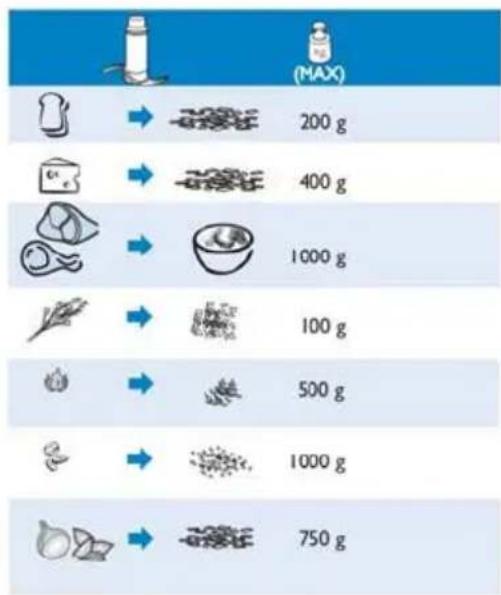

Use and tips:

• Chopping onions: use the pulse function a few times to prevent the onions from becoming too finely chopped.
• If ingredients stick to the wall of the blender jar:

Switch off the device and unplug it.
○ Remove the lid and use a spatula to remove the ingredients from the wall of the blender jar.
- Keep the spatula at a safe distance from the blades.

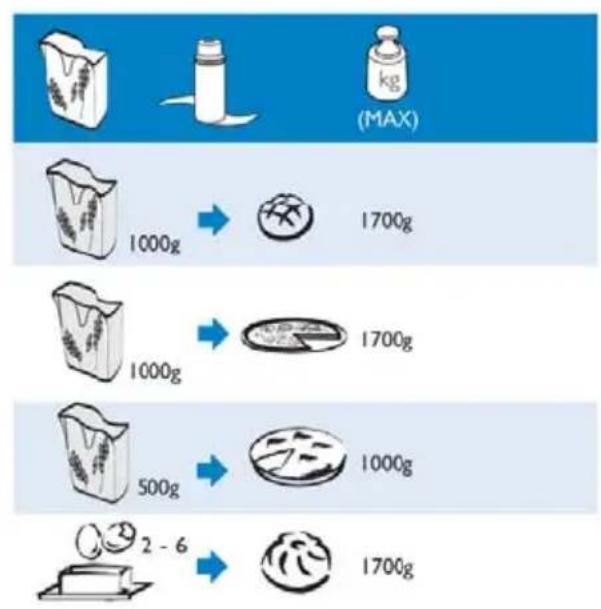

Kneading

Take care:

• Ensure that the kneading accessory is assembled in the bowl before you start to add the ingredients.

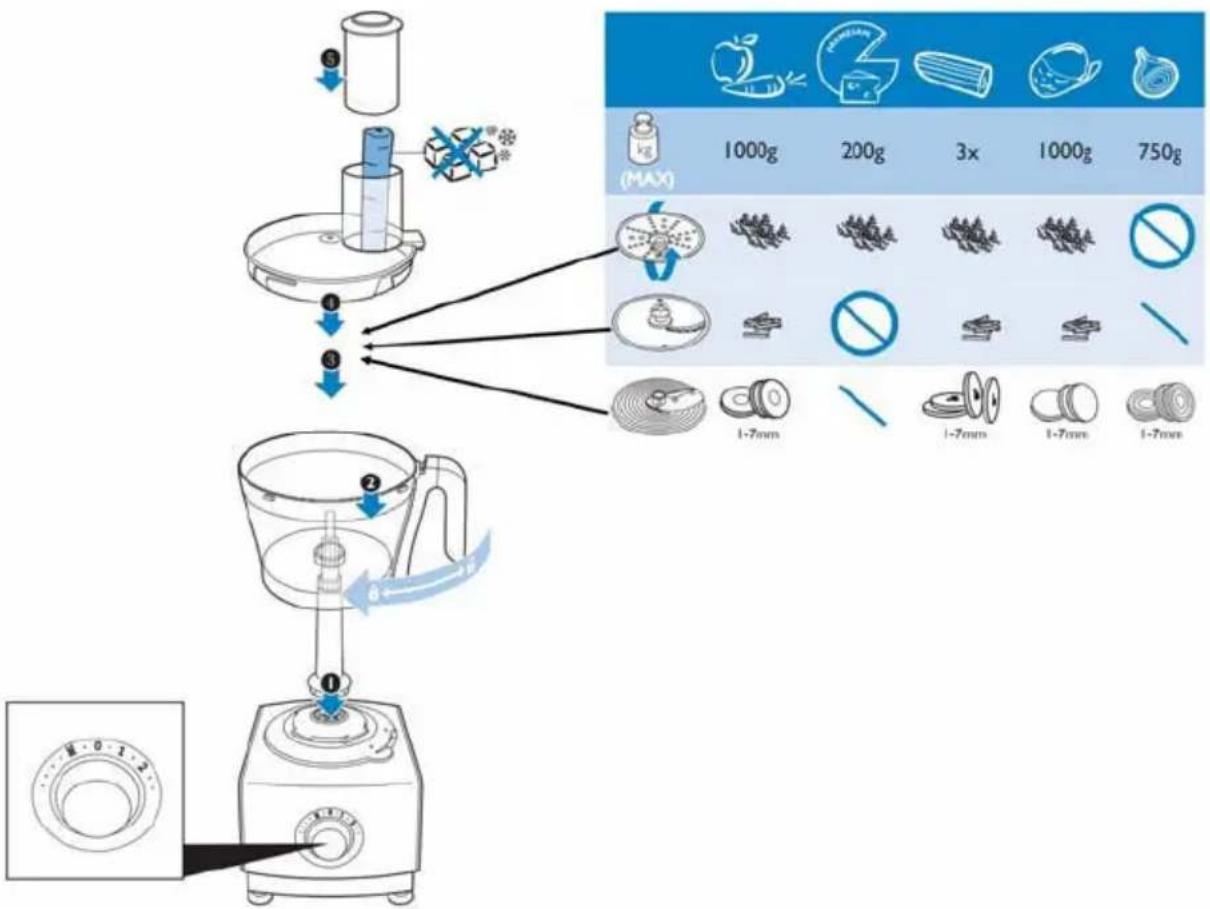

Discs

Take care:

• Do not exert too much pressure on the pusher when you press ingredients down the feeding tube.
• Do not let the device run too long when you shred (hard) cheese. Otherwise the cheese becomes too hot, starts to melt and turns lumpy.
• Do not use the shredding disc to shred chocolate. Use the food processor blade for this purpose.
• Do not fill the bowl beyond the 'MAX' indication.

Use and tips

• Pre-cut large ingredients to make them fit into the feeding tube.
• Fill the feeding tube evenly for the best result.
• When you want to process a large amount of ingredients, process small batches and empty the bowl between batches.
  Use a low speed to shred or granulate soft ingredients, to prevent the ingredients from turning into a puree.

• If the ingredients you are going to shred or slice have a small diameter, put the outer pusher in the feeding tube to make the feeding tube smaller. Then use the inner pusher to push the ingredients down the feeding tube.

• Adjustable slicing disc:

The adjustable slicing disc allows you to cut ingredients to any thickness you like.

The slicing disc is very sharp. Do not touch the cutting edge.

Insert the disc into the top of the carrier.

○Attach the adjusting knob to the bottom of the disc and turn it to the position marked with a dot to lock it.

oTurn the adjusting knob to set the slicing disc to the preferred slicing thickness.

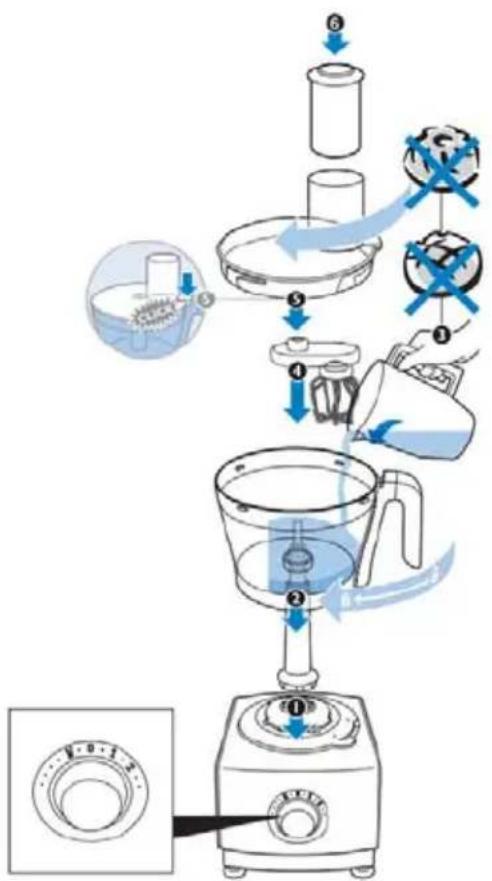

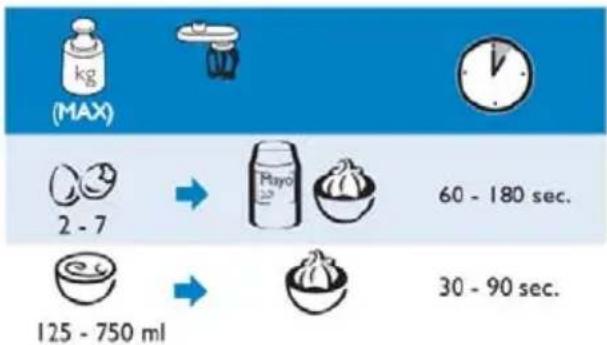

Beating

Take care:

• Do not use the balloon beater to prepare cake mixtures with butter or margarine or to knead dough. Use the kneading accessory for these jobs.

Use and tips:

• The balloon beater can be used to whip cream and to whisk eggs, egg whites, instant pudding, mayonnaise and sponge cake mixtures.
  Make sure the bowl and the balloon beater are dry and free from grease when you whisk egg whites. The egg whites have to be at room temperature.
• Clean the balloon beater after every use.

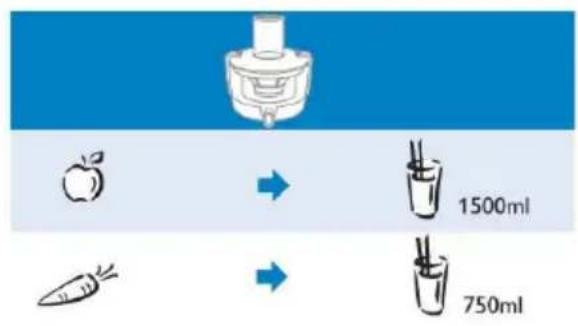

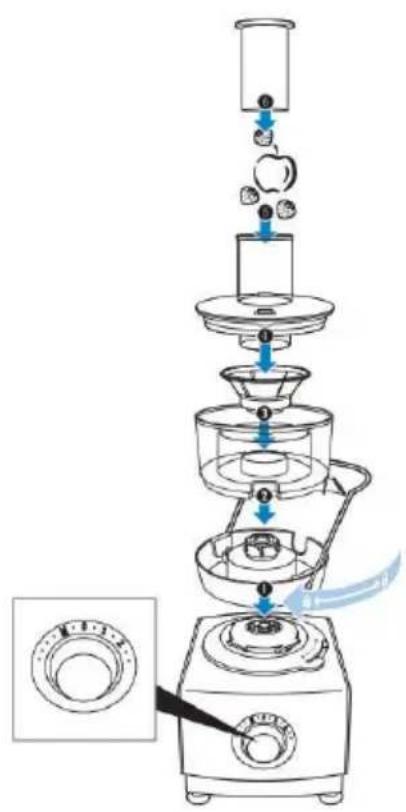

Juice extractor

Take care:

• Never insert your hand or any object (e.g. a fork, knife, spoon or spatula) into the feeding tube. Only use the pusher supplied with the device for this purpose.
• Wait until the sieve has completely stopped rotating before you remove the lid.
• Check the sieve before every use. Do not use the juice extractor if you notice any damage like cracks, crazes or a loose grating disc.

Use and tips

• Peel citrus fruits, pineapples, melons, etc. before you juice them.
  Stone cherries, plums, apricots, peaches, etc. before you juice them.

MAINTENANCE AND CLEANING

Cleaning

Take care: Never immerse the device and/or power cord in water or other liquids. All parts, except for the motor unit and protection cap of food processor blade, are dishwasher safe.

Quick cleaning

1. Take the plug from the socket before cleaning the device.
2. Fill the blender jar or food processor bowl for half with hot water and add a little detergent.
3. Set the device to 'pulse' position for a few seconds.
4. Remove the blender jar or food processor bowl from the motor unit.
5. Rinse the blender jar or food processor bowl under running water.

Thorough cleaning

Take care: Be careful when cleaning the knives, since they are very sharp.

1. Take the plug from the socket before cleaning the device.
2. Wash all parts, except for the motor unit and protection cap of food processor blade, in a warm suds.

Cleaning the motor unit

Take care: Never immerse the motor unit in water or other liquids.

Clean the motor block with a moist, soft sponge and a little detergent.

SOLVING PROBLEMS

Nr.	Problem Possible solution
1	The appliance does not go on.	Make sure that all assembly indications (on the lid of the bowl, on the bowl, on the blender jar and on the motor unit) are aligned.
2	The appliance suddenly stops running.	The lid of the bowl may have become undone during a heavy processing job. Close the lid properly. The device immediately starts working again.
		The processing job is too heavy. Set the control knob to 'off' to switch off the device and remove the mains plug from the wall socket. Then let the device cool down to room temperature. Plug in the device and switch it on again. Process smaller batches.

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

TECHNICAL DETAILS

Model number KFP5777M

Power max. 1000W

Nominal voltage 220-240V~

Nominal frequency 50Hz

Montiss is a registered brand name of:

Van den Berg Products BV

I|zerwerf 10-12

6641 TK Beuningen

The Netherlands

www.vdbergproducts.com

GUARANTEE

This guarantee covers your device for a period of 24 months from the date of purchase for service and replacement of parts, on the condition that you have used the device correctly as described in the user manual. This guarantee does not exclude national legislation that may exist in the country of purchase in regards to warranty regulations.

When you make a claim under this guarantee, you must submit the original invoice or receipt with clear mention of the date of purchase, name of retailer and the description and model number of the device. You are advised to keep these documents in a safe place.

This device is intended for domestic use only. Damage and/or malfunctions as the result of industrial or commercial use are excluded from the warranty.

The guarantee for this device expires if:

The original invoice or receipt has in one way or another been changed or made illegible;
The model or serial number on the device has been changed, removed, deleted or made illegible:
- Repairs have been executed by unauthorized repair workshops or persons who are not authorized to do so:
- The damage is the result of an external cause, such as fire damage, water damage, transport damage, atmospheric discharges, insufficient or improper maintenance;
- The device has been operated in another country than for which originally designed, approved, released and produced, as well as defects occurred as the result of such modifications:
The device has not been used according to the guidelines and directions in the user manual supplied with the device.

In the unlikely event your device is not functioning well or shows any defect, please contact your retailer. To avoid any inconvenience, we advise you to read the user manual carefully before contacting them.

SERVICE FORM

Unfortunately we CANNOT handle any service forms that have been completed unclearly or partly. Therefore please always fill in the service form as clearly and completely as possible!

THE PRODUCT

Article number: KFP5777M

Article description: Montiss Food Processor

Shop of purchase:

Date of purchase:

YOUR DATA

Name:
Address:
Postal code:
City:
Telephone:
Fax:
E-mail:

DESCRIPTION OF THE PROBLEM

You can send this form, together with the proof of purchase, to:

Postal address: Van den Berg Products BV, IJzerwerf 10-12, 6641 TK Beuningen, The Netherlands Fax: [phone]

E-mail: [e-mail]

DAS PRODUKT DAS PRODUKT

LE PRODUIT LE PRODUIT
