Brand	Montiss
Model	Chicago CVC635
Product type	Stick vacuum and handheld vacuum 2-in-1
Main use	Cleaning hard floors and carpets (stick) and small surfaces (handheld)
Power source	Rechargeable battery, mains adapter 230-240 V~, 50 Hz, output 15 V DC 200 mA
Initial charging time	Minimum 24 hours
Normal charging time	Up to 16 hours
Suction power	100 W (12 V DC)
Filter type	Washable HEPA filter
Dust container capacity	Approximately 0.5 L (estimate)
Included accessories	Turbo brush, oval brush, crevice tool, rubber attachment for liquids
Main functions	Dry vacuuming (stick), liquid vacuuming (handheld with rubber attachment)
Maintenance and cleaning	Empty the container, clean the HEPA filter with water, clean the roller brush
Safety	Do not immerse, do not vacuum hot or flammable substances, use only the supplied charger
Weight	Approximately 2.5 kg (estimate)
Dimensions (L x W x H)	Approximately 25 x 20 x 110 cm (estimate)
Warranty	24 months from date of purchase
Model number	CVC635
Spare parts available	HEPA filter, roller brush, battery, accessories (at www.muppa.nl)
Customer service	Phone [phone], www.montiss.com

Frequently Asked Questions - Chicago CVC635 Montiss

How long should I charge the vacuum before first use?

Charge the appliance for at least 24 hours before first use. After this initial charge, the maximum charging time is 16 hours.

What to do if suction is weak?

First check if the battery is discharged: recharge the appliance. If the problem persists, empty the dust container and clean the HEPA filter.

Can I use the vacuum to vacuum liquids?

Yes, but only with the handheld vacuum and the rubber attachment. The stick vacuum is only suitable for dry dirt.

How to maintain the HEPA filter?

Remove the HEPA filter and the plastic cover from the container. Shake them over a trash can, then rinse them with clean water. Make sure they are completely dry before reinstalling.

How to clean the turbo brush?

Unlock the cover of the roller brush, remove the roller. Remove hair or threads with scissors or a comb. You can wash the roller with water. Ensure it is dry before reassembling.

Does the appliance get hot during charging?

Yes, it is normal for the appliance to become warm during charging. This does not pose any danger.

What accessories are included with the vacuum?

The included accessories are: a turbo brush for carpets, an oval brush for furniture, a crevice tool for corners, and a rubber attachment for liquids.

How to store the vacuum after use?

Ensure the appliance and all accessories are clean and dry. Store it indoors, away from humidity and heat sources.

Where can I buy spare parts?

Spare parts such as filters, brushes, and batteries can be ordered on the website www.muppa.nl.

What does the 24-month warranty cover?

The warranty covers service costs for manufacturing defects, provided the appliance has been used in accordance with the instruction manual. Damages caused by improper use, unauthorized repairs, or normal wear of accessories are not covered.

USER MANUAL Chicago CVC635 Montiss

Wet & Dry Vacuum Cleaner Chicago

Black vacuum cleaner with two side-mounted clamps (no visible text or symbols)

Gebruiksaanwijzing

User manual

CVC635

Bedienunsanleitung

12/14

Mode d'emploi

Inhoud

Nederlands 3

Deutsch....9

English 15

Français....21

Nederlands

Gebruiksaanwijzing

Monss Cordless Wet & Dry Vacuum Cleaner Chicago CVC635

INHOUDSOPGAVE

VEILIGHEIDSVOORSCHRIFTEN

HET PRODUCT

MONTAGE

HET GEBRUIK

ONDERHOUD EN REINIGING

PROBLEMEN OPLOSSEN

INFORMATIEPLICHT INZAKE BATTERIJVERORDENING

TECHNISCHE GEGEVENS

GARANTIEBEWIJS

VEILIGHEIDSVOORSCHRIFTEN

Waarschuwing:

Exploded view diagram of a washing machine with numbered parts and labeled parts like motor button and electric shock absorber.

1. Oplader 16. Kierenzuiger
2. Bout 17. Turboborstel
3. Moer 18. Basiseenheid
4. Luchnlaat 19. Handgreep
5. Knop ontgrendelen stofcontainer 20. Aan/uit knop steelstofzuiger
6. Indicaelampje vermogen 21. Indicaelampje opladen
7. Aan/uit knop handstofzuiger 22. Oplaadpunt oplader
8. Motor 23. Knop ontgrendelen handstofzuiger
9. Luchtuitlaat 24. Vergrendelingsknop handstofzuiger
10. Afdichngsring 25. Elektrode
11. HEPA-Iter 26. Rolborstel
12. Kunststof afdekkap Iter 27. Elektrode
13. Stofcontainer 28. Vergrendelingsknop turboborstel
14. Rubber opzetstuk 29. Ontgrendelingsknop rolborstel
15. Ovale borstel 30. Afdekkapje rolborstel

MONTAGE

Monss Cordless Wet & Dry Vacuum Cleaner Chicago CVC635

INHALTSVERZEICHNIS

Exploded view diagram of a washing machine with numbered parts and labeled parts including motor bottom and electrical switch.

Simple line drawing of a faucet with a tail, labeled 'Abb. 16' (no other text or symbols)

Abb. 14

Abb. 15

Illustration of three plastic bucket designs with different shapes (no text or symbols)

Four-step diagram illustrating a mechanical device with labeled parts and a hand operating the tool.

Two technical diagrams of a mechanical device with labeled parts, shown from different angles (no text or symbols present)

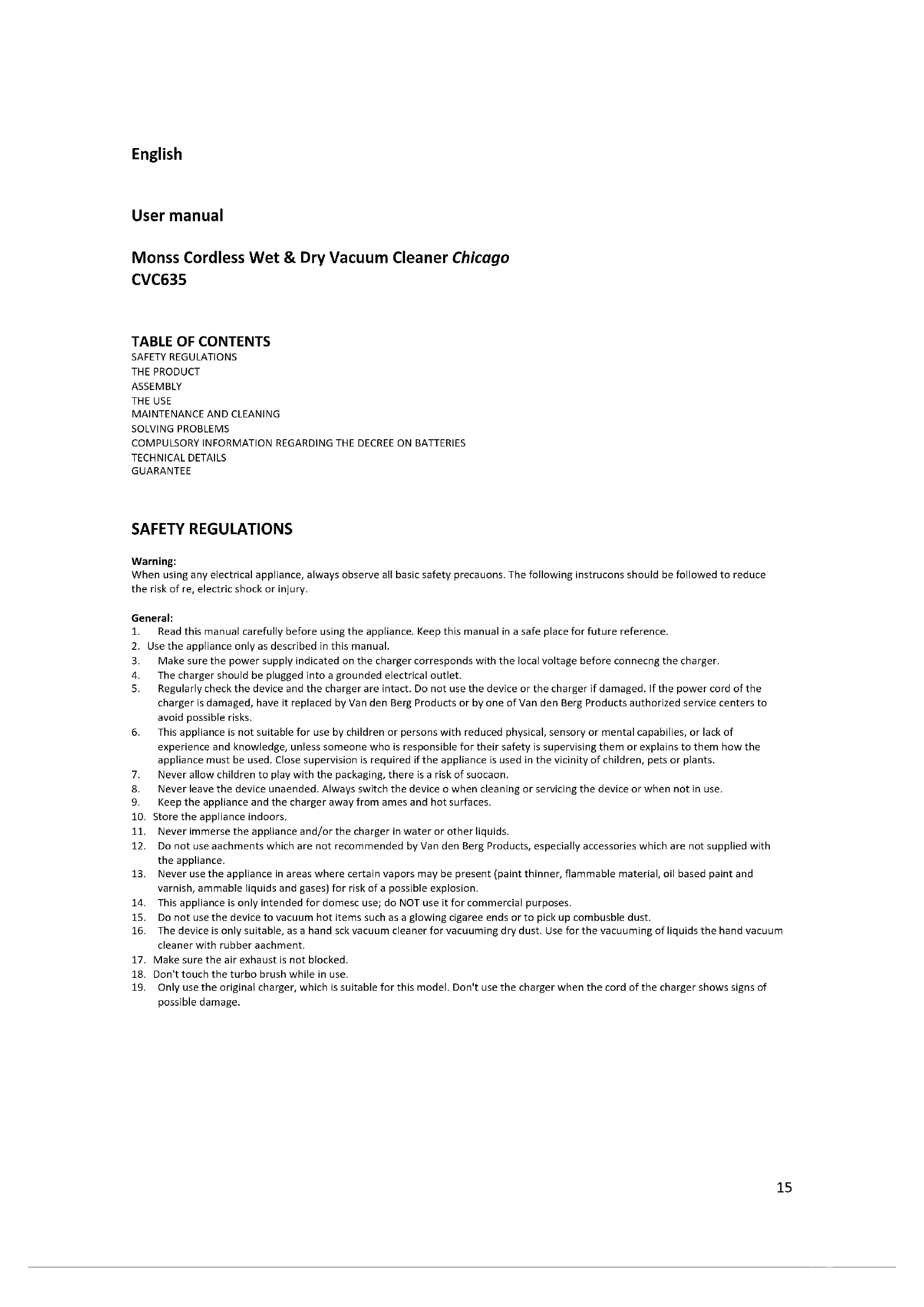

Monss Cordless Wet & Dry Vacuum Cleaner Chicago CVC635

TABLE OF CONTENTS

SAFETY REGULATIONS

THE PRODUCT

ASSEMBLY

THE USE

MAINTENANCE AND CLEANING

SOLVING PROBLEMS

COMPULSORY INFORMATION REGARDING THE DECREE ON BATTERIES

TECHNICAL DETAILS

GUARANTEE

SAFETY REGULATIONS

Warning:

When using any electrical appliance, always observe all basic safety precautions. The following instrucons should be followed to reduce the risk of re, electric shock or injury.

General:

1. Read this manual carefully before using the appliance. Keep this manual in a safe place for future reference.

2. Use the appliance only as described in this manual.

3. Make sure the power supply indicated on the charger corresponds with the local voltage before connecng the charger.

4. The charger should be plugged into a grounded electrical outlet.

5. Regularly check the device and the charger are intact. Do not use the device or the charger if damaged. If the power cord of the charger is damaged, have it replaced by Van den Berg Products or by one of Van den Berg Products authorized service centers to avoid possible risks.

6. This appliance is not suitable for use by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless someone who is responsible for their safety is supervising them or explains to them how the appliance must be used. Close supervision is required if the appliance is used in the vicinity of children, pets or plants.

7. Never allow children to play with the packaging, there is a risk of suocaon.

8. Never leave the device unended. Always switch the device o when cleaning or servicing the device or when not in use.

9. Keep the appliance and the charger away from ames and hot surfaces.

10. Store the appliance indoors.

11. Never immerse the appliance and/or the charger in water or other liquids.

12. Do not use aachments which are not recommended by Van den Berg Products, especially accessories which are not supplied with the appliance.

13. Never use the appliance in areas where certain vapors may be present (paint thinner, flammable material, oil based paint and varnish, ammable liquids and gases) for risk of a possible explosion.

14. This appliance is only intended for domesc use; do NOT use it for commercial purposes.

15. Do not use the device to vacuum hot items such as a glowing cigarette ends or to pick up combustible dust.

16. The device is only suitable, as a hand sick vacuum cleaner for vacuuming dry dust. Use for the vacuuming of liquids the hand vacuum cleaner with rubber aachment.

17. Make sure the air exhaust is not blocked.

18. Don't touch the turbo brush while in use.

19. Only use the original charger, which is suitable for this model. Don't use the charger when the cord of the charger shows signs of possible damage.

THE PRODUCT

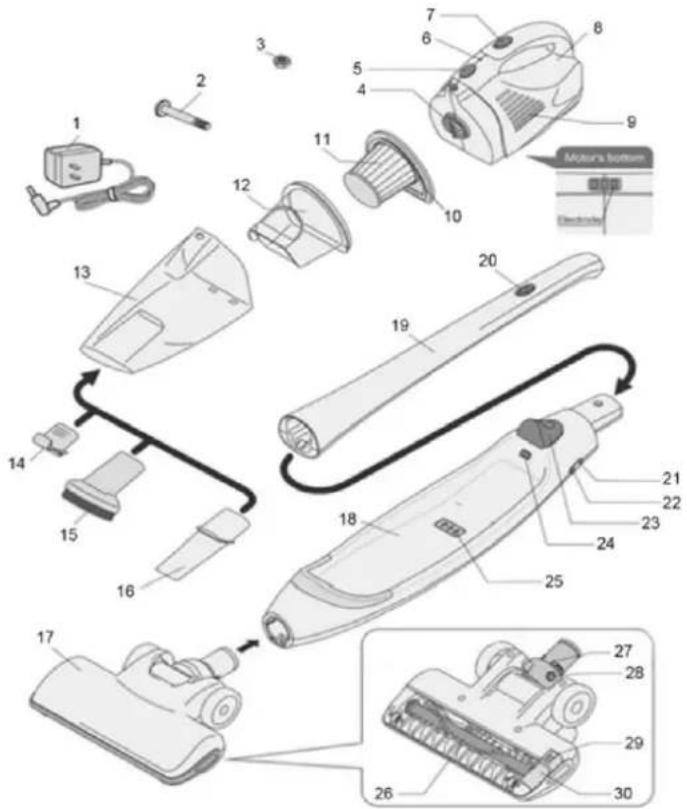

Exploded view diagram of a handwashing device with numbered parts and labeled parts including a motor button and electric shock absorber.

1. Charger 16. Crevice nozzle
2. Bolt 17. Turbo brush
3. Nut 18. Main unit
4. Air inlet 19. Handle
5. Buon to unlock dust container 20. On/o switch sick vacuum cleaner
6. Indicaon light power 21. Indicaon light charging
7. On/o switch hand vacuum cleaner 22. Charge point charger
8. Motor 23. Buon to unlock hand vacuum cleaner
9. Air outlet 24. Lock buon hand vacuum cleaner
10. Sealing ring 25. Electrode
11. HEPA-Iter 26. Roll brush
12. Plasc cover Iter 27. Electrode
13. Dust container 28. Lock buon turbo brush
14. Rubber nozzle 29. Buon to unlock roll brush
15. Oval brush 30. Plasc cover roll brush

ASSEMBLY

• Remove all packaging materials.

• Clean the device with a wet cloth and some detergent if necessary (also see the paragraph "maintenance and cleaning").
  • Make sure that all parts are clean and dry before assembling the appliance.

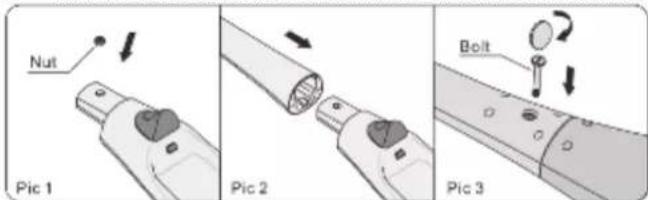

• Place the nut into the hole at the top of the main unit (Fig. 1).

• Aach the handle to the main unit (Fig. 2).
• Place the bolt at the backside in the handle and turn the bolt clockwise to ghten it(Fig. 3).

Nut Pic 1 Pic 2 Bolt Pic 3

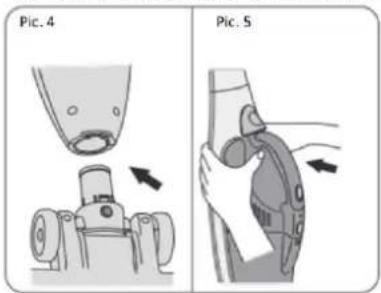

1. Push the lock buon turbo brush (28) while u place the main unit on the turbo brush (17) (Fig. 4).

2. Place the plasc cover Iter (12) in the dust container (13).

3. Then put the HEPA-Iter (11) in the plasc cover Iter.
4. Mount the dust container with HEPA-Iter thereaer on the motor (8). The hand vacuum cleaner is now fully assembled.
5. Push the hand vacuum cleaner next, with the front side downwards, into the main unit until you hear a click(Fig. 5).

Pic. 4 Pic. 5

THE USE

Before use

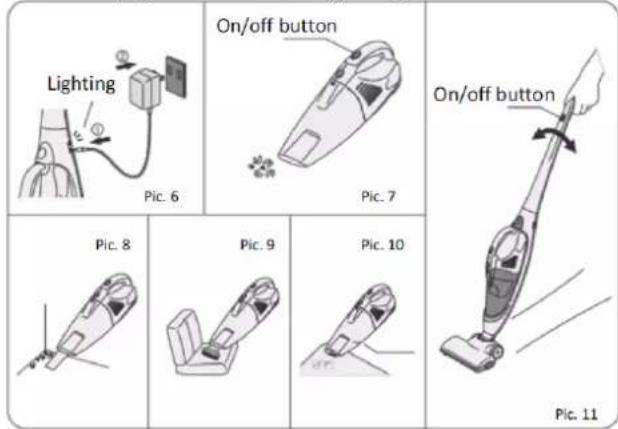

- Charge the device for at least 24 hours before rst me use (Fig. 6). Aer this rst me charge, the maximum charging me will be 16 hours.

Note: the device may become warm during charging. This is normal.

- Check the device for damage before each use. Do not use the device if it is damaged or not working properly.

Use of the handheld vacuum cleaner

The handheld vacuum cleaner can be used for cleaning both wet and dry dirt.

1. Make sure that the handheld vacuum cleaner has been mounted in the correct way (see chapter Assembly).
2. Turn on the handheld vacuum cleaner by pushing the on/o switch on the handle (7) forward (Fig. 7).
3. If desired, you can use the following aachments:

Note: always turn o the handheld vacuum cleaner before you mount the aachments on it.

a. Crevice nozzle (16) (Fig. 8) to clean corners, cracks and other places which are difficult to reach.
b. Oval brush (15) (Fig. 9) to clean furniture.
c. Rubber nozzle (14) (Fig. 10) to clean up liquids.

Use of the upright vacuum cleaner

Note: the upright vacuum cleaner can only be used to vacuum dry dirt. In order to vacuum wet dirt, you must use the hand-held vacuum cleaner with the rubber nozzle.

1. Make sure that the upright vacuum cleaner has been mounted correctly (see chapter Assembly).
2. Turn on the upright vacuum cleaner by pushing the on/ switch on the handle (20) forward (Fig.. 11).

Lighting Pic. 6 On/off button Pic. 7 On/off button Pic. 8 Pic. 9 Pic. 10 Pic. 11

Charging

As soon as the indicaon light power (6) is connuously on, you must recharge the device.

Note: always turn o the device before recharging.

At the moment you turn o the device, the power indicaon light will be switched o. As soon as the device has been fully recharged, the light will switch on again.

Aer use

Recharge the device aer use so it will have full power the next me you use it.

MAINTENANCE AND CLEANING

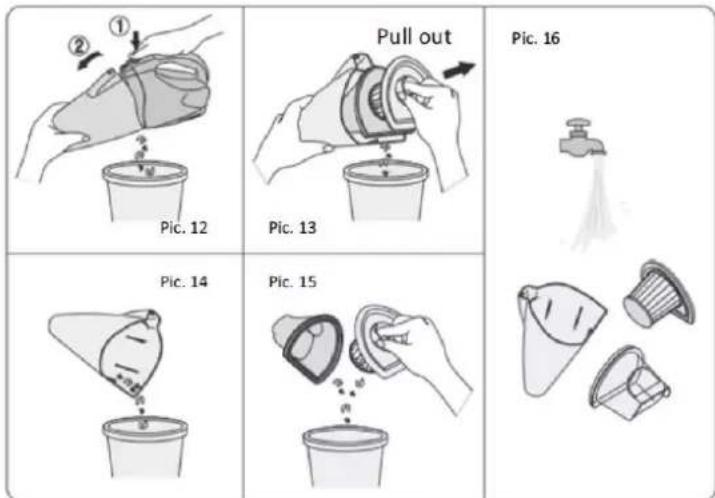

Empty dust container

Note: clean the dust container, the plasc cover and the HEPA-Iter regularly. The power decreases when the dust container is too full or when the HEPA-Iter is dirty.

1. Push the buon (5) to unlock the dust container (Fig. 12).
2. Remove the HEPA-Iter (11) and the plasc cover (12) (Fig. 13).
3. Carefully shake the dust container (13), the plasc cover (12) and the HEPA-Iter (11) over a dust bin (Fig. 14 and 15).
4. The dust container (13), plasc cover (12) and the HEPA-Iter may be cleaned with water (Fig. 16).

Note: do not use cleaning aids to clean the HEPA-Iter and make sure all parts are completely dry before you mount them back on and use the device.

① ② Pic. 12 Pull out Pic. 13 Pic. 16 Pic. 14 Pic. 15

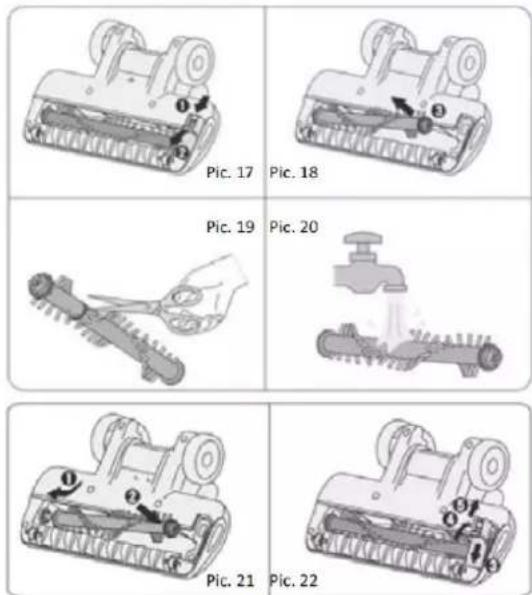

Cleaning the turbo brush

1. Push the button on the cover of the roller (30) downwards (Fig. 17).
2. Remove the roller (26) from the device (Fig. 18).
3. Remove the grove debris from the roller with for example a scissor or comb (Fig. 19).
4. The roller may be cleaned with water (Fig. 20).
   Note: make sure that the roller is completely dry before you mount it back on and use the device

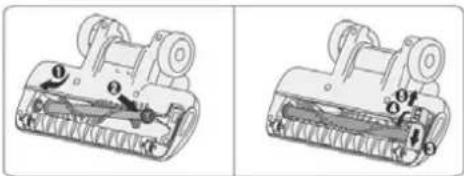

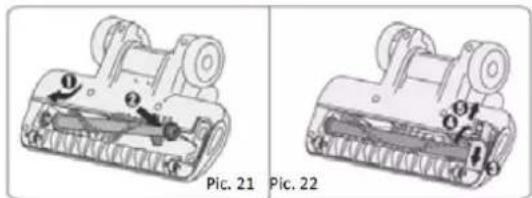

5. Mount the roller back onto the device (Fig. 21).
6. Put the cover of the roller back on its place and push the button up to lock it(Fig. 22).
7. Mount the roller back onto the device (Fig. 21).
8. Put the cover of the roller back on its place and push the button up to lock it (Fig. 22).

Pic. 17 Pic. 18 Pic. 19 Pic. 20 Pic. 21 Pic. 22

Two mechanical components labeled Pic. 21 and Pic. 22, showing internal mechanisms without any text or symbols.

Pic. 17 Pic. 18 Pic. 19 Pic. 20 Pic. 21 Pic. 22

Cleaning the device

Note: never immerse the device and/or the charger in water or other liquids.

1. Shut the device down before cleaning it.
2. Clean the device with a wet cloth and some detergent if necessary and dry o thoroughly.
3. Never use abrasives, bleaching agents or steel wool to clean the device. This could cause damage to the material.

Storage

Make sure that the device and the aachments are completely clean and dry before you store the device

SOLVING PROBLEMS

Problem	Possible cause	Possible soluon
The device won't turn on.	Baery is empty.	Recharge the device.
Low sucon.	The dust container is full.	Empty the dust container
	The HEPA-Iter is dirty.	Clean the HEPA-filter.
Baery empes faster.	The device has not been recharged long enough.	Recharge the device.
	The baery won't charge.	Replace the baery.

COMPULSORY INFORMATION REGARDING THE DECREE ON BATTERIES

Baeries do not belong in your household waste. Users are required by law to return used baeries. For proper disposal of baeries, you can nd designated disposal containers in specialized shops as well as in municipal collecng facilities. This is a solid contribuon to the protecon of the environment. Since 1998, the decree on baeries requires all citizens to dispose used baeries only via these specialized shops or collecng facilities. Specialized shops and manufactures are obliged to accept used baeries in return and re-use them in accordance to the decree or dispose of them as dangerous waste. If you wish to return your used baeries to us, you can mail them to our address in an adequately stamped envelope.

Baeries that need to be labelled by law are provided with one of the illustraons below, being a crossed-out wheeled bin and the chemical symbol for the classicaon of pollutants-containing heavy metals. The chemical symbol (Cd, Hg or Pb) will be shown under the illustraon.

The following text can be found on the pollutants-containing baeries:

Pb: Baery contains lead

Cd: Baery contains cadmium

Hg: Baery contains mercury

TECHNICAL DETAILS

Model number CVC635

Vacuum cleaner input 12V dc 100W

Adapter input 230-240V\~50Hz, 40mA

Adapter output 15V dc 200mA

Monss

Thermiekstraat 1a

6361 HB Nuth

Netherlands

www.monss.com

GUARANTEE

This guarantee covers your device for a period of 24 months from the date of purchase for service and replacement of parts, on the condition that you have used the device correctly as described in this user manual. This guarantee does not exclude naonal legislaon that may exist in the country of purchase in regards to warranty regulaons.

When you make a claim under this guarantee, you must submit the original invoice or receipt with clear menon of the date of purchase, name of retailer and the descripon and model number of the device. You are advised to keep these documents in a safe place.

This device is intended for domesc use only. Damage and/or malfuncons as the result of industrial or commercial use are excluded from the warranty.

The guarantee does not cover the supplied accessories or other parts of the device that are subject to wear. If you want to reorder these parts, then that is possible through www.muppa.nl.

The guarantee for this device expires if:

• The original invoice or receipt has in one way or another been changed or made illegible;
• The model or serial number on the device has been changed, removed, deleted or made illegible;
• Repairs have been executed by unauthorized repair workshops or persons who are not authorized to do so;
- The damage is the result of an external cause, such as re damage, water damage, transport damage, atmospheric discharges, insucient or improper maintenance;
- The device has been operated in another country than for which originally designed, approved, released and produced, as well as defects occurred as the result of such modicaons;
• The device has not been used according to the guidelines and direcons in this user manual supplied with the device.

In the unlikely event your device is not functioning well or shows any defect, please contact your retailer. To avoid any inconvenience, we advise you to read this user manual carefully before contacting them.

SERVICE

If you have any further questions about the product aer reading this manual, please contact the Monss customer service: Phone: [phone], € 1.00 per conversaon + regular phone costs.

Français

Mode d'emploi

Monss Cordless Wet & Dry Vacuum Cleaner Chicago CVC635

SOMMAIRE

CONSIGNES DE SÉCURITÉ

LE PRODUIT

ASSEMBLAGE

UTILISATION DE L'APPAREIL

ENTRETIEN ET NETTOYAGE

RÉSOLUTION DES PROBLÈMES

INFORMATION DE RIGUEUR SUR LE DECRET À PROPOS DES PILES

DONNÉES TECHNIQUES

VOTRE CERTIFICAT DE GARANTIE

CONSIGNES DE SÉCURITÉ

Averssement:

Exploded view diagram of a vacuum cleaner with numbered parts and labeled accessories
