USER MANUAL MX412SEC SHURE

Black-and-white photo of a desktop microphone with a curved neck and a small cylindrical device on the left (no text or symbols visible)

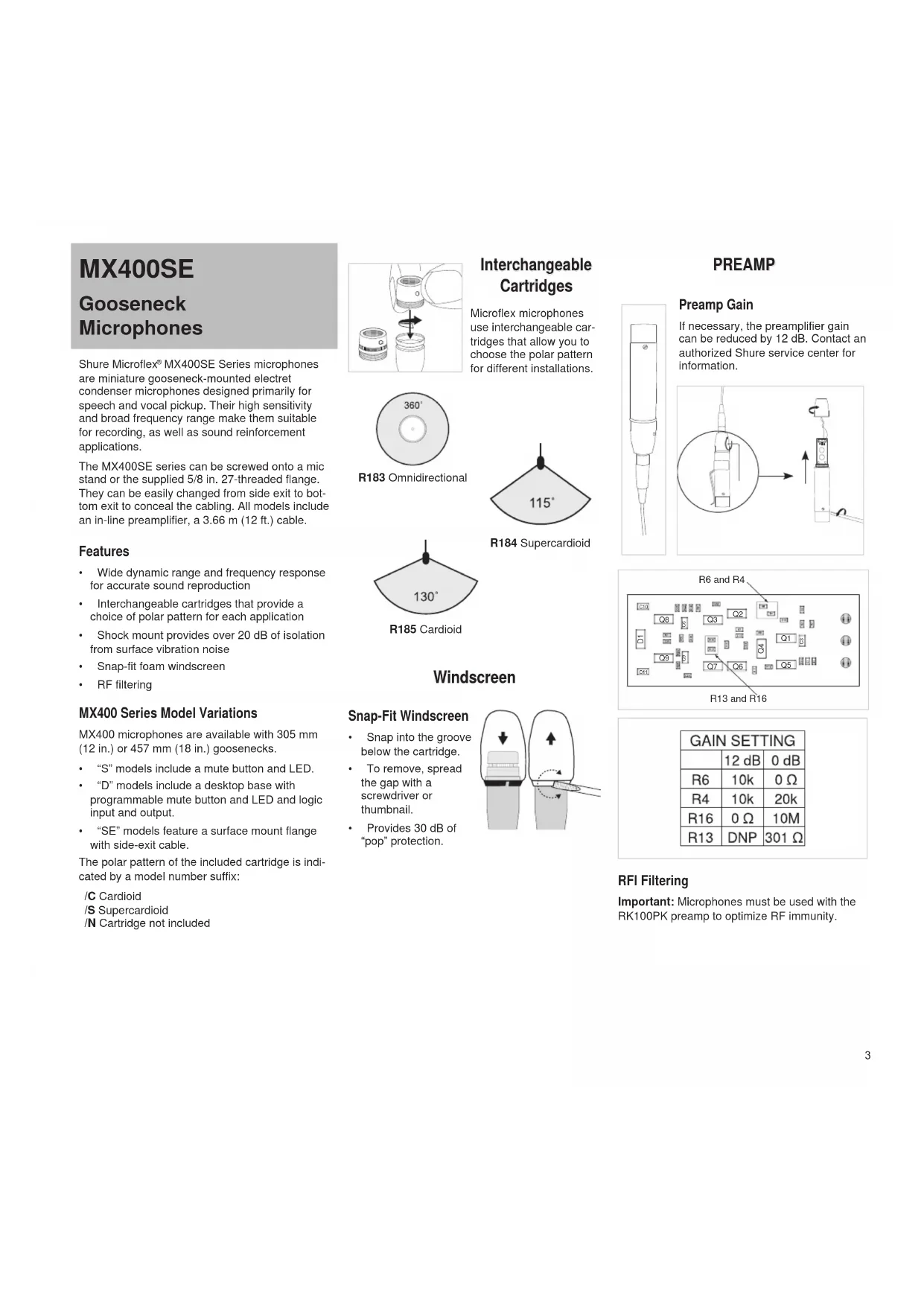

MX412SE

MX400SE

Gooseneck Microphones

Shure Microflex ^29 MX400SE Series microphones are miniature gooseneck-mounted electret condenser microphones designed primarily for speech and vocal pickup. Their high sensitivity and broad frequency range make them suitable for recording, as well as sound reinforcement applications.

The MX400SE series can be screwed onto a mic stand or the supplied 5/8 in. 27-threaded flange. They can be easily changed from side exit to bottom exit to conceal the cabling. All models include an in-line preamplifier, a 3.66 m (12 ft.) cable.

Features

• Wide dynamic range and frequency response for accurate sound reproduction
  • Interchangeable cartridges that provide a choice of polar pattern for each application
• Shock mount provides over 20 dB of isolation from surface vibration noise
• Snap-fit foam windscreen
• RF filtering

MX400 Series Model Variations

MX400 microphones are available with 305 mm (12 in.) or 457 mm (18 in.) goosenecks.

• "S" models include a mute button and LED.
• "D" models include a desktop base with programmable mute button and LED and logic input and output.
• "SE" models feature a surface mount flange with side-exit cable.

The polar pattern of the included cartridge is indicated by a model number suffix:

/C Cardioid

/S Supercardioid

/N Cartridge not included

Diagram showing a hand pressing down a cylindrical component with a rotating arrow indicating motion (no text or symbols)

Interchangeable Cartridges

Microflex microphones use interchangeable cartridges that allow you to choose the polar pattern for different installations.

R183 Omnidirectional

R184 Supercardioid

R185 Cardioid

Windscreen

Snap-Fit Windscreen

• Snap into the groove below the cartridge.
  • To remove, spread the gap with a screwdriver or thumbnail.
• Provides 30 dB of "pop" protection.

Diagram illustrating a mechanical or electrical process with directional arrows and a tool, showing a component being inserted into a body.

PREAMP

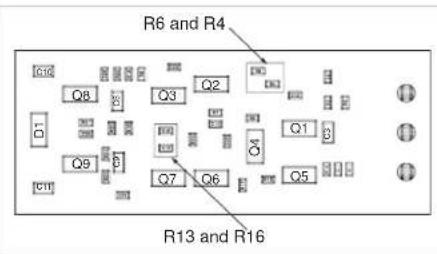

Preamp Gain

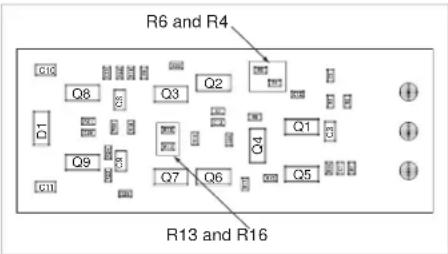

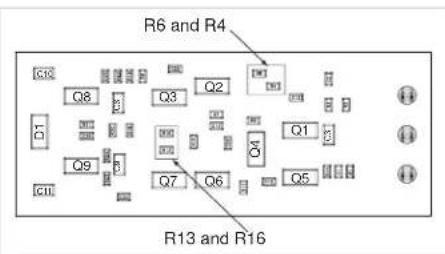

If necessary, the preamplifier gain can be reduced by 12 dB. Contact an authorized Shure service center for information.

Diagram showing a device with a magnified inset, likely illustrating a physical or engineering concept.

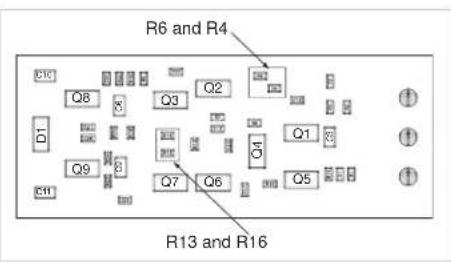

R6 and R4 Q8 Q3 Q2 D1 Q9 Q7 Q6 Q5 CII R13 and R16

GAIN SETTING
	12 dB	0 dB
R6	10k	0 Ω
R4	10k	20k
R16	0 Ω	10M
R13	DNP	301 Ω

RFI Filtering

Important: Microphones must be used with the RK100PK preamp to optimize RF immunity.

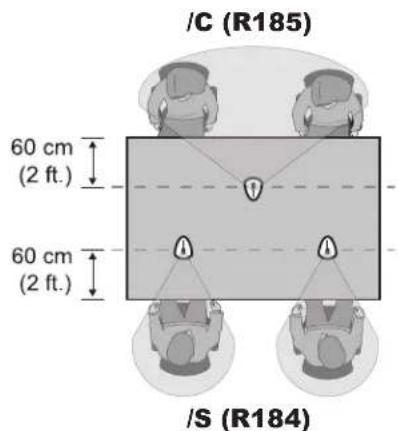

Microphone Placement

• Aim the microphone toward the desired source, such as the talker.
• Aim it away from any unwanted source, such as a loudspeaker.
• Place the microphone within 15 to 30cm (6 to 12 in.) of the desired sound source.
  • Always use the supplied windscreen or optional metal windscreen to control breath noise.
• If four or more microphones will be open at the same time, use of an automatic mixer, such as the Shure SCM810 or SCM410, is recommended.

/C (R185) 60 cm (2 ft.) 60 cm (2 ft.) /S (R184)

Permanent Installation

Changing from Side Exit to Bottom Exit

Do not cut the cable to reroute. This will compromise RF immunity.

Pure electrical circuit lines without any symbols

Mount the microphone using one of the following methods.

Flange

Slip the mounting flange retaining ring over the bottom of the preamplifier and slide it up until it is flush to the bottom of the flange. Then press the ring firmly into place.

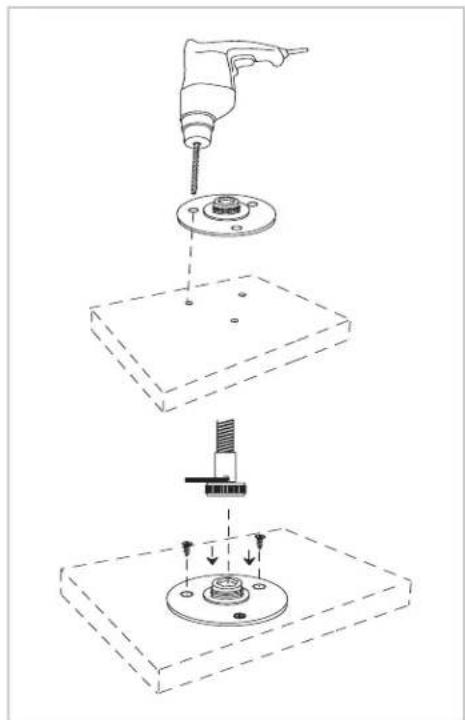

Technical diagram showing a drill bit being inserted into a workpiece, with labeled components and directional arrows.

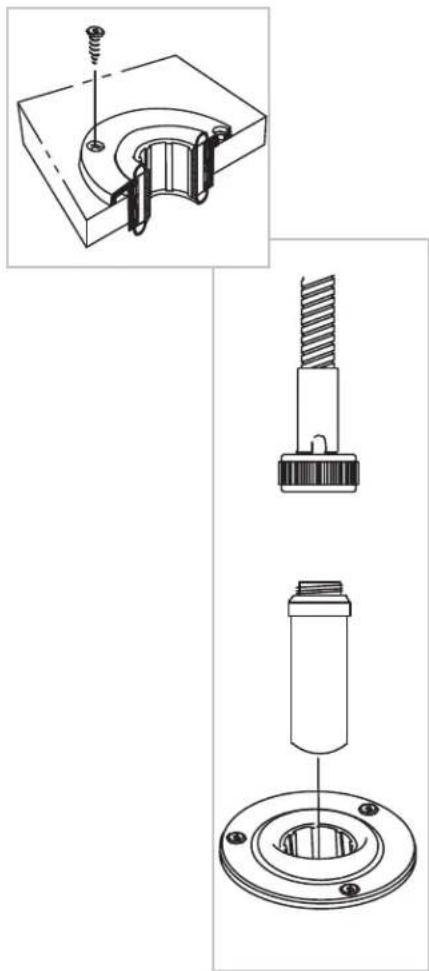

Shock Mount

1. Drill a 44mm(1-3/4 in.) diameter hole in desired mounting surface.
2. Mark and drill starter holes for screws, using shock mount as a template.
3. Secure shock mount to mounting surface with screws.
4. Thread the supplied adapter onto the MX400SE microphone before inserting it into the shock mount.

Technical line drawings of mechanical components including a spring, threaded screw, and flange (no text or labels)

Specifications

Type

Condenser (electret bias)

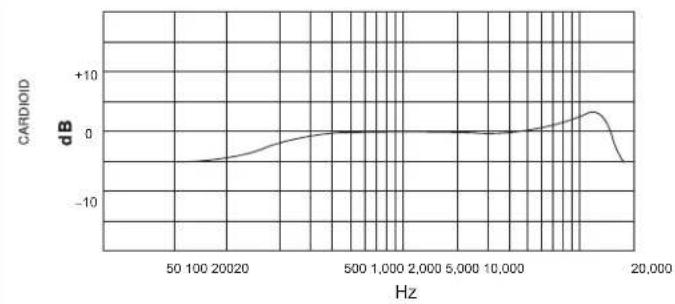

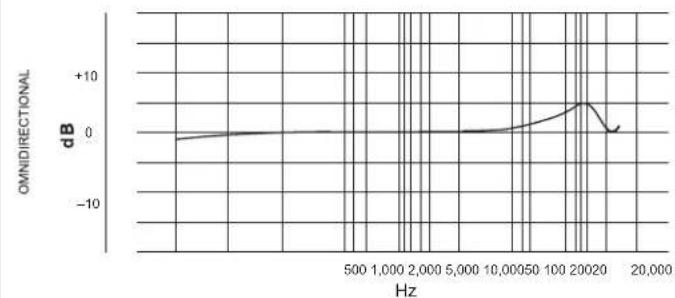

Frequency Response

50–17000 Hz

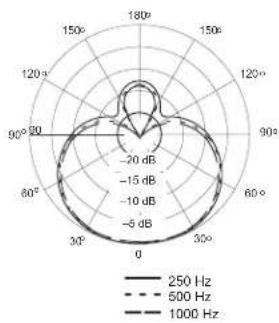

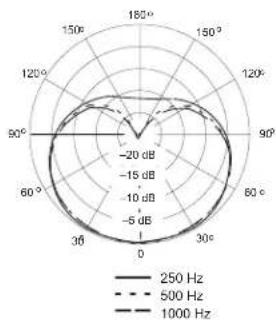

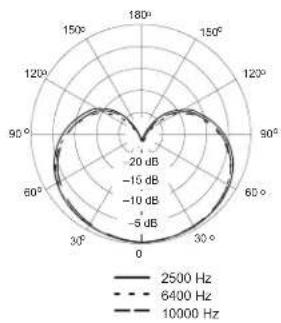

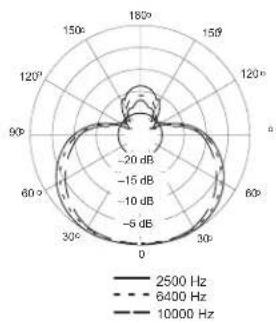

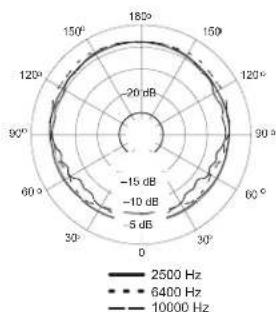

Polar Pattern

MX412SE/C, MX418SE/C: Cardioid

MX412SE/S, MX418SE/S: Supercardioid

Output Impedance

EIA Rated at 150 Ω (180 Ω actual)

Output Configuration

Active balanced

Sensitivity (at 1 kHz, open circuit voltage)

Cardioid: -35 dBV/Pa (18 mV)

Supercardioid: -34 dBV/Pa (21 mV)

1 Pascal=94 dB SPL

Maximum SPL (1 kHz at 1% THD, 1 kΩ load)

Cardioid: 124 dB

Supercardioid: 123 dB

Equivalent Output Noise (A-weighted)

Cardioid: 28 dB SPL

Supercardioid: 27 dB SPL

Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)

Cardioid: 66 dB

Supercardioid: 68 dB

Dynamic Range (1 kΩ load at 1 kHz)

96 dB

Common Mode Rejection (10 Hz to 100 kHz)

45 dB minimum

Preamplifier Output Clipping Level (1% THD)

-6 dBV (0.5 V)

Polarity

Positive sound pressure on diaphragm produces

positive voltage on pin 2 relative to pin 3 of out-

put XLR connector.

Cable

3.65 m (12 ft)

Environmental Conditions

Operating Temperature: -18–57 °C (0–135 °F)

Storage Temperature: -29–74 °C (-20–165 °F)

Relative Humidity: 0–95%

Power Requirements

11–52 Vdc phantom, 2.0 mA

Furnished Accessories

Flange 65B8264

Clamp (MX202B and

MX202WP)

80A476

Shock Mount A400SM

Snap-fit Foam Windscreen (1

furnished, 4 in replacement kit)

RK412WS

Optional Accessories

Foam Ball Windscreen A99WS

Metal Locking Windscreen A412MWS

Replacement Parts

Omnidirectional Cartridge (Black) R183B

Supercardioid Cartridge (Black) R184B

Cardioid Cartridge (Black) R185B

In-Line Preamplifier (Black) RK100PK

CERTIFICATION

Eligible to bear CE Marking. Conforms to

European EMC Directive 2004/108/EC. Meets

Harmonized Standards EN55103-1:1996 and

EN55103-2:1996, for residential (E1) and light industrial (E2) environments.

The Declaration of Conformity can be obtained from:

Authorized European representative:

Shure Europe GmbH

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Wannenacker Str. 28

D-74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

Email: [e-mail]

MX400SE

Diagram showing a hand holding a cylindrical component with a separate cylindrical component, illustrating a process with an arrow indicating rotation (no text or symbols present)

Capsules interchangeables

Illustration of a hand holding a tool interacting with a device, showing two states of movement (no text or symbols present)

Line drawing of a cylindrical device with a pointed tip and a coiled cable (no text or symbols)

Diagram showing a device with rotating arm and connected to a vertical scale, with an inset circular view highlighting the component.

R6 and R4 Q10 Q8 D1 Q9 C11 Q3 Q2 E3 E4 E5 E6 Q7 Q6 Q5 Q4 Q1 B R13 and R16

GAIN SETTING
	12 dB	0 dB
R6	10k	0 Ω
R4	10k	20k
R16	0 Ω	10M
R13	DNP	301 Ω

Filtrage HF

Pure electrical circuit lines without any symbols

Technical diagram showing a drill bit being inserted into a workpiece, with labeled components and assembly steps.

Monture silentbloc

Technical line drawing of a mechanical component with mounting holes and a curved housing (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and flange base (no text or symbols)

11–52 V c.c. fantôme, 2,0 mA

Accessoires fournis

Bride 65B8264

D-74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

Email: [e-mail]

MX400SE

Schwanenhalsmikrofone

Diagram showing a hand holding a cylindrical component with an arrow indicating rotation or assembly (no text or symbols present)

Diagram showing two mechanical components with directional arrows indicating movement or force (no text or symbols)

Technical diagram showing a mechanical device with labeled components and directional arrows indicating assembly or operation.

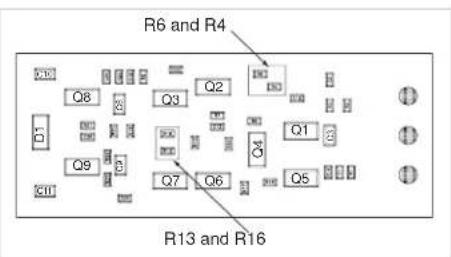

R6 and R4 Q8 Q3 Q2 D1 Q9 Q7 Q6 Q5 R13 and R16

GAIN SETTING
	12 dB	0 dB
R6	10k	0 Ω
R4	10k	20k
R16	0 Ω	10M
R13	DNP	301 Ω

Entstörfilter

Pure electrical circuit lines without any symbols

Technical diagram showing a drill bit assembly with labeled components and directional arrows indicating assembly steps.

Technical line drawing of a mechanical component with mounting holes and a curved internal structure (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and flange base (no text or symbols)

MX412SE/C, MX418SE/C: Niere

MX412SE/S, MX418SE/S: Superniere

Ausgangsimpedanz

11–52 V DC Phantomspeisung, 2,0 mA

Flansch 65B8264

Headquarters Europe, Middle East & Africa

D-74078 Heilbronn, Germany

Tel: [phone]

Fax: [phone]

Email: [e-mail]

MX400SE

Diagram showing a hand holding a cylindrical component with an arrow indicating rotation or assembly (no text or symbols present)

Cápsulas intercambiables

Diagram illustrating a mechanical or electrical process with directional arrows and a tool interacting with a component, possibly indicating movement or assembly.

Diagram showing a device with a magnified circular view and a vertical assembly, no text or symbols present.

R6 and R4 Q8 Q3 Q2 D1 Q9 B Q7 Q6 Q4 Q1 C Q5 C10 ① ② ③ ④ R13 and R16

GAIN SETTING
	12 dB	0 dB
R6	10k	0 Ω
R4	10k	20k
R16	0 Ω	10M
R13	DNP	301 Ω

Filtro de RFI

Pure mechanical diagram showing a shaft, spring, valve, and cable with no text or symbols

Technical diagram showing a mechanical assembly process with labeled components and directional arrows indicating assembly steps.

Soporte amortiguado

Technical line drawing of a mechanical component with mounting holes and a curved base (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and flange base (no text or symbols)

MX412SE/C, MX418SE/C: Cardioide

MX412SE/S, MX418SE/S: Supercardioide

D-74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

Email: [e-mail]

MX400SE

Microfoni a collo d'oca

Diagram showing a hand holding a cylindrical component with a separate cylindrical component, illustrating a process with an arrow indicating rotation (no text or symbols present)

Capsule intercambiabili

Diagram illustrating a mechanical or physical process with directional arrows and a tool, showing a component being cut or folded.

Preamplificatore

Diagram showing a device with a magnified view of its internal structure, including a hand gesture and directional arrows.

R6 and R4 C10 Q8 2 Q3 Q2 D1 Q9 3 Q7 Q6 Q5 C11 R13 and R16

GAIN SETTING
	12 dB	0 dB
R6	10k	0 Ω
R4	10k	20k
R16	0 Ω	10M
R13	DNP	301 Ω

Pure electrical circuit lines without any symbols

Technical diagram showing a drill bit being inserted into a base plate using a drill, with Chinese annotations indicating the process.

Technical line drawing of a mechanical component with mounting holes and a curved housing (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and flange base (no text or symbols)

11–52 V c.c. fantôme, 2,0 mA

Flangia 65B8264

Morsetto (MX202B ed MX202WP) 80A476

D-74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

Email: [e-mail]

MX400SE

グースネックマイクロ ホン

Diagram showing a hand inserting into a cylindrical component with an arrow indicating rotation (no text or symbols present)

交換可能カートリッジ

Diagram showing two mechanical components with directional arrows indicating movement or force (no text or symbols)

PREAMP (not translated)

プリアンプゲイン

GAIN SETTING
	12 dB	0 dB
R6	10k	0 Ω
R4	10k	20k
R16	0 Ω	10M
R13	DNP	301 Ω

RFIフィルタリング

Pure mechanical diagram showing a shaft, spring, and cable connection without any text or symbols

Technical diagram showing a drill bit being inserted into a workpiece, with labeled components and dashed-line assembly steps.

ショックマウント

Technical line drawing of a mechanical component with mounting holes and a curved internal structure (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and flange base (no text or symbols)

仕様 付属アクセサリー

型

D-74078 Heilbronn, Germany

Phone: [phone]

Fax: [phone]

Eメール：[e-mail]

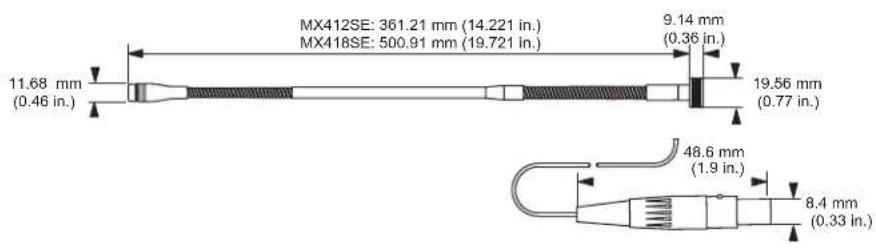

MX412SE: 361.21 mm (14.221 in.) MX418SE: 500.91 mm (19.721 in.) 9.14 mm (0.36 in.) 11.68 mm (0.46 in.) 19.56 mm (0.77 in.) 48.6 mm (1.9 in.) 8.4 mm (0.33 in.)

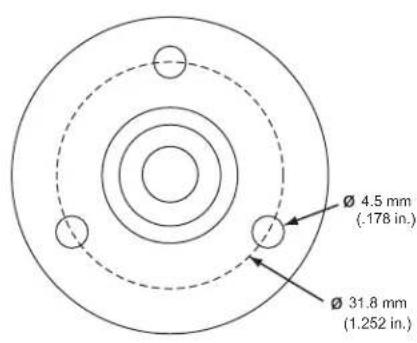

Ø 4.5 mm (.178 in.) Ø 31.8 mm (1.252 in.)
