USER MANUAL CTS 4050 DOMETIC

Table of contents4 General

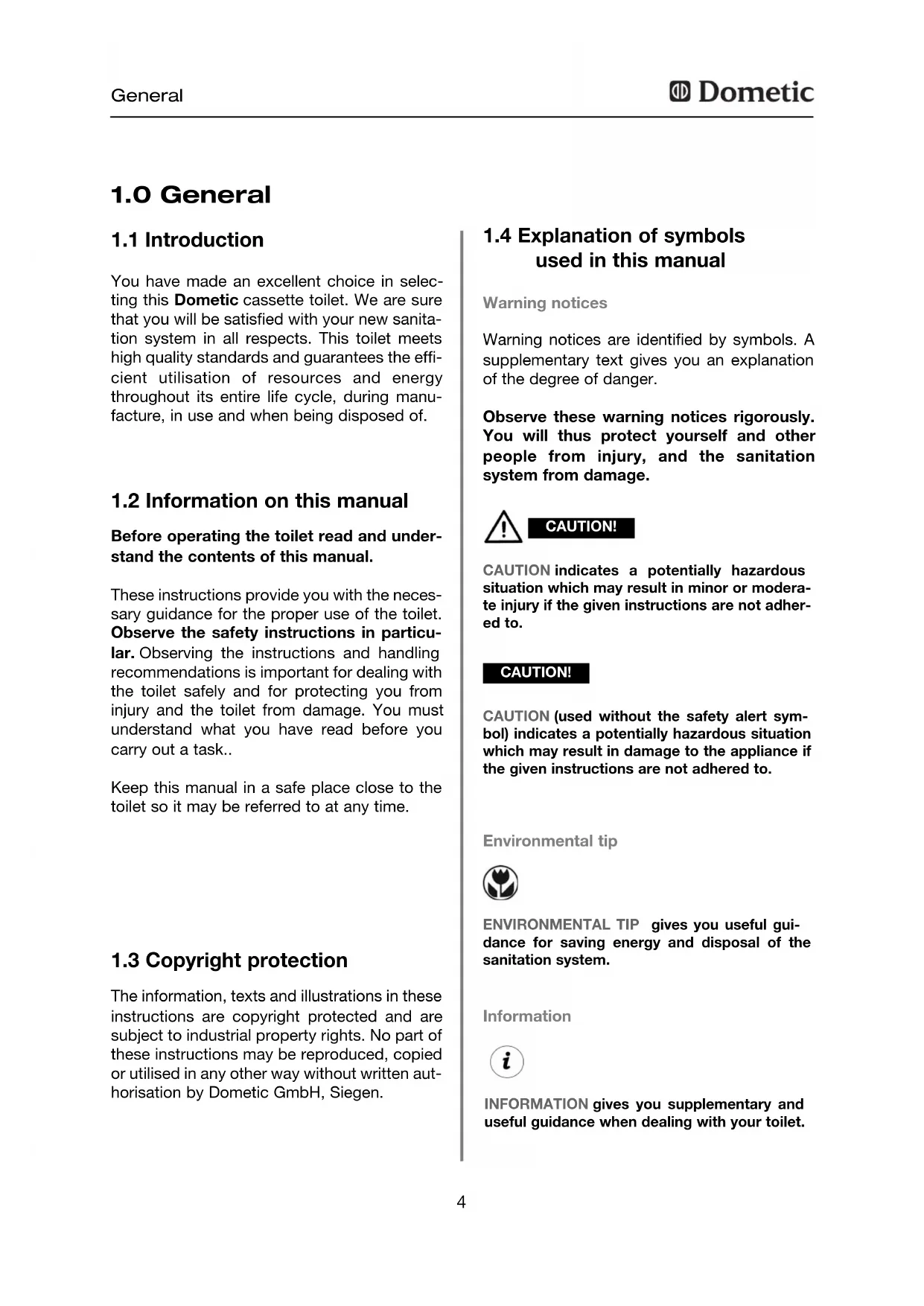

You have made an excellent choice in selec- ting this Dometic cassette toilet. We are sure that you will be satisfied with your new sanita- tion system in all respects. This toilet meets high quality standards and guarantees the effi- cient utilisation of resources and energy throughout its entire life cycle, during manu- facture, in use and when being disposed of.

The information, texts and illustrations in these instructions are copyright protected and are subject to industrial property rights. No part of these instructions may be reproduced, copied or utilised in any other way without written aut- horisation by Dometic GmbH, Siegen.

1.3 Copyright protection

Before operating the toilet read and under- stand the contents of this manual. These instructions provide you with the neces- sary guidance for the proper use of the toilet. Observe the safety instructions in particu- lar. Observing the instructions and handling recommendations is important for dealing with the toilet safely and for protecting you from injury and the toilet from damage. You must understand what you have read before you carry out a task.. Keep this manual in a safe place close to the toilet so it may be referred to at any time.

1.2 Information on this manual

1.4 Explanation of symbols

used in this manual Warning notices are identified by symbols. A supplementary text gives you an explanation of the degree of danger. Observe these warning notices rigorously. You will thus protect yourself and other people from injury, and the sanitation system from damage. Warning notices CAUTION indicates a potentially hazardous situation which may result in minor or modera- te injury if the given instructions are not adher- ed to. CAUTION! Environmental tip ENVIRONMENTAL TIP gives you useful gui- dance for saving energy and disposal of the sanitation system. CAUTION (used without the safety alert sym- bol) indicates a potentially hazardous situation which may result in damage to the appliance if the given instructions are not adhered to. CAUTION! Information INFORMATION gives you supplementary and useful guidance when dealing with your toilet.5 General Warranty arrangements are in accordance with EC Directive 44/1999/CE and the normal conditions applicable for the country concer- ned. For warranty or other maintenance, plea- se contact our customer services department. Any malfunction due to improper use is not covered by the warranty. The warranty does not cover any modifications to the appliance or the use of non-original Dometic parts. The warranty does not apply if the installation and operating instructions are not adhered to and no liability shall be entertained.

All information and guidance in these opera- ting instructions were prepared after taking into consideration the applicable standards and regulations as well as the current state of the art. Dometic reserves the right to make changes at any time which are deemed to be in the interest of improving the product and safety. Dometic will assume no liability for damage in the case of : non-observation of the operating instructi- ons application not in accordance with the regulations or provisions use of non-original spare parts modifications and interferences to the appliance

1.5 Limitation of liability

Dometic offers a customer services network throughout Europe. Find your authorised cus- tomer service centre by on the internet www.dometic.com.

1.7 Customer services

Spare parts can be ordered throughout Europe from our customer services depart- ment. Always state the model and product number when you contact customer services. You will find this information on the toilet identification label ( see section 3.2“ Toilet identification label“

When contacting Dometic Customer Services, please state the model, product number and serial number together with the MLC code, if applicable. You will find this information on the toilet identification label. We recommend that you note these details in the field provided on the front page of this operation manual. Please observe the usage notes on the packa- ging when using sanitary additives. In order to ensure that the recyclable packa- ging materials are re-used, they should be sent to the customary local collection system. The appliance should be transferred to a suit- able waste disposal company that will ensure re-use of the recyclable components and pro- per disposal of the rest.

1.9 Environmental notices

Disposal Use of sanitary additives6

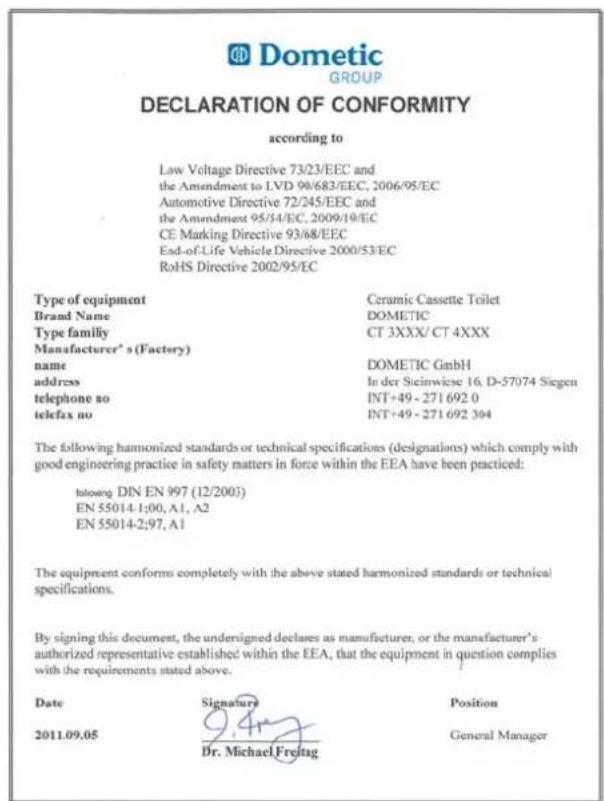

1.11 Declaration of conformity

1.10 Dometic sanitary additives

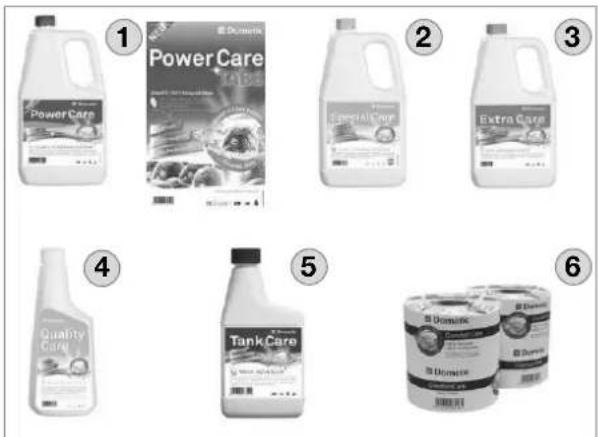

In the "Dometic CARE" series, Dometic offers premium sanitary additives for your toilet. These products help to make using the toilet more comfortable and hygienic and are availa- ble at specialist dealers. Dometic Power CARE Dometic Power CARE prevents the emergen- ce of gas and unpleasant odours in the hol- ding tank for up to four days. - Available in bottles or as tabs Dometic Special CARE Dometic Eco CARE is a green sanitary additi- ve which prevents the emergence of unplea- sant odours for up to four days and formation of sediments in the cassette tank. Dometic Extra CARE Dometic Extra CARE is a flush water additive which is suitable for all plastic surfaces. Dometic Extra CARE creates a smoother flush, makes cleaning the toilet bowl easier and pro- tects the rubber seals. In addition, it creates a pleasant odour after flushing. Dometic Quality CARE Dometic Quality CARE is a powerful cleaning agent for all toilets bowls, whether they are made from plastic or china. Dometic Quality CARE dissolves stains fast. Simply apply Dometic Quality CARE to the sides of the toi- let bowl and under the rim, let it rest for a short time and brush away. Dometic Tank CARE Highly efficient additive for regular cleaning of the waste holding tank. Removes organic and inorganic scale from the tank's inner walls and components. Dometic Comfort CARE Special toilet paper for mobile toilets with the comforts of home. - fast-soluble to prevent blockages - 2-ply - extra soft - facilitates the discharge of the waste holding tank

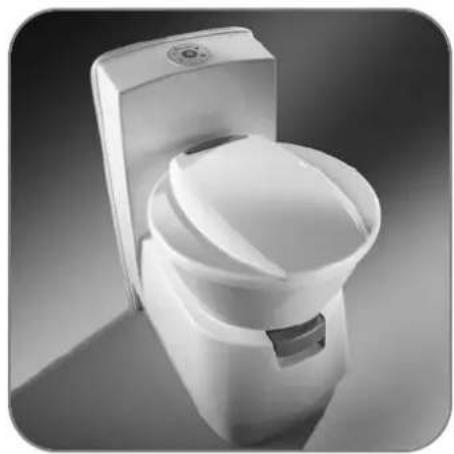

This toilet is designed for installation in recrea- tion vehicles such as caravans or motorho- mes.

2.3 Use of sanitary additives

Anyone operating the sanitation system must be familiar with the safe handling and under- stand the advice in these operating instructi- ons. Children may only operate the sanitation system if they have been made aware of how to operate it safely and the dangers attending incorrect operation.

2.2 User's responsibility

Before using sanitary means when using and cleaning the toilet, observe the usage notes on the packaging. Leave maintenance and service work to spe- cialist staff. Subj. 4.12.1. Dismantling the cassette seal Exception Store these sanitary additives so that they are out of the reach of children. CAUTION!8 Description of model

3.0 Description of model

3.1 Model identification

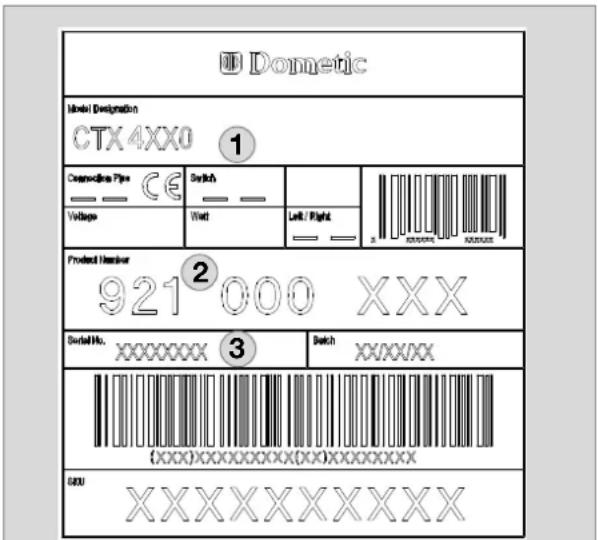

The identification label contains all importantdetails. You can read off from this the modelidentification, the product number and theserial number. You will need these details whe-never you contact the customer services cen-tre or when ordering spare parts. You will findthe identification label within the cassette hou-sing after removing the cassette.

3.2 Toilet identification label

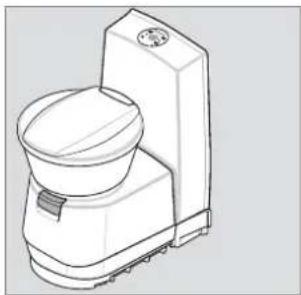

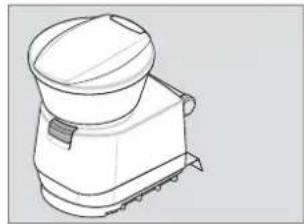

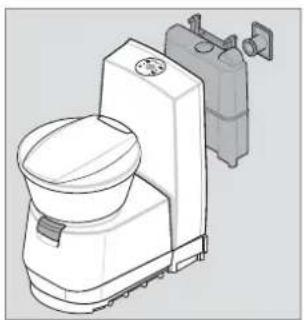

The CTx 4xxx cassette toilet consists of a toi-let which is installed fixed in the vehicle and aremovable, mobile cassette as a faeces tank.The cassette can be accessed from the outsi-de through a door. Depending on the model,the toilet receives the flush water from a tankintegrated in the model or from a fresh watertank installed in the vehicle.Four different models are available: CT 4xxx , free-standing, without water tank, without console CTS 4xxx , free-standing, without water tank, with console CTW 4xxx , free-standing, with water tankin console CTLP 4xxx , free-standing, without water tank, with low profile consoleSupply voltage : 12 V DCCurrent consumption : max. 2 A with internalwater pump, max. 5 A with external pump.Dimensions : s. details in installation manual Operating temperature : 0°C up to + 50°C

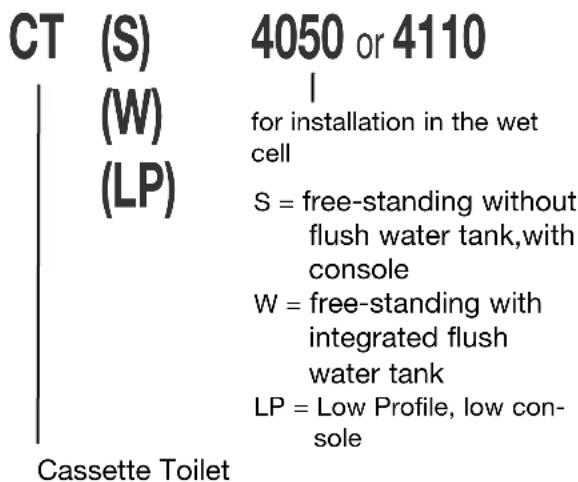

4050 or 4110 (S) (W) (LP) Cassette Toiletfor installation in the wet cell S = free-standing withoutflush water tank,withconsoleW = free-standing with integrated flush water tankLP = Low Profile, low con- sole Example :Fig. 2

33.4 Description of components

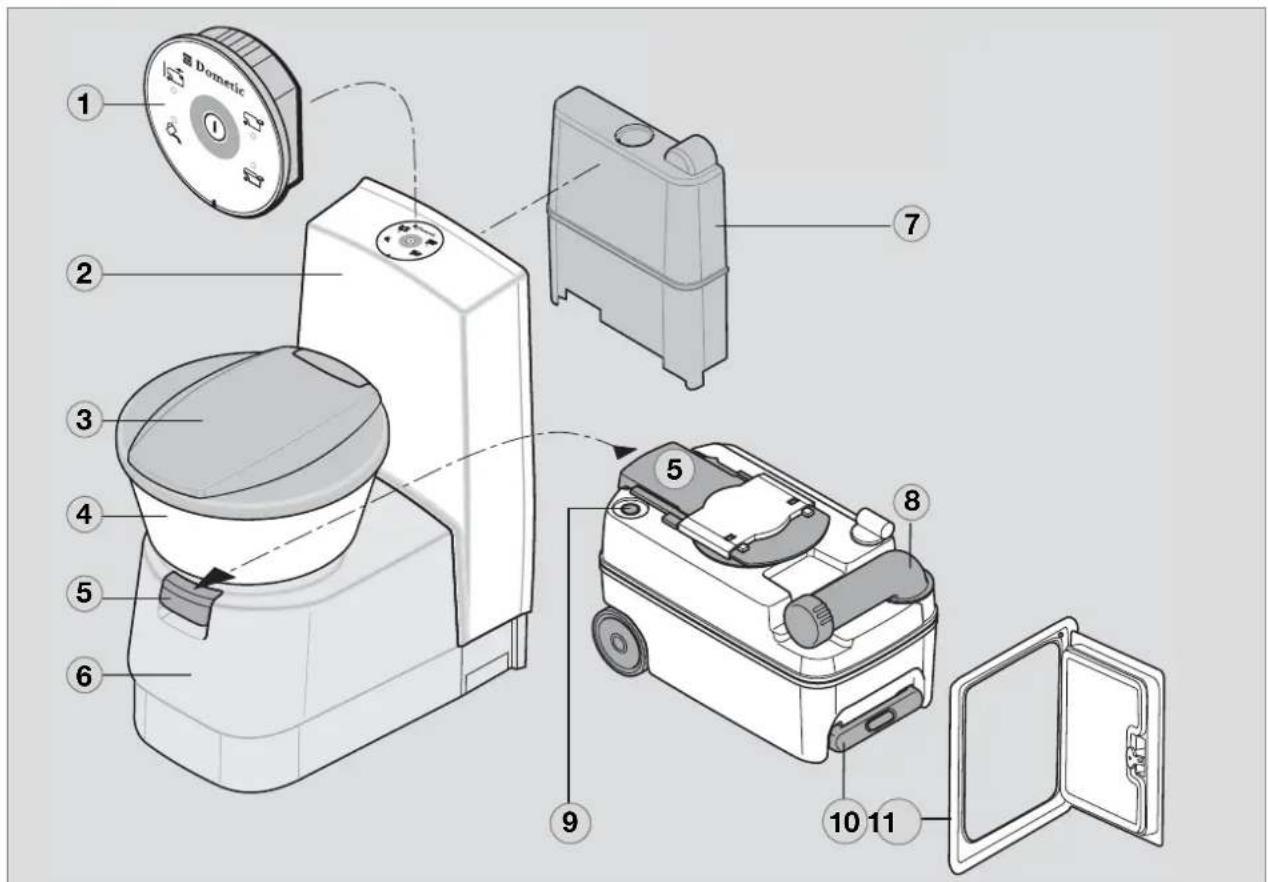

Description of model Level indicator / flush (control panel) Wall socket console Removable seat Ceramic toilet bowl Emptying blade for the toilet bowl Housing for cassette tank Fresh water tank (option) Pour out spout Vent button for emptying Pull-out handle (cassette tank movable on wheels) Service door

4.2 Preparing cassette tank

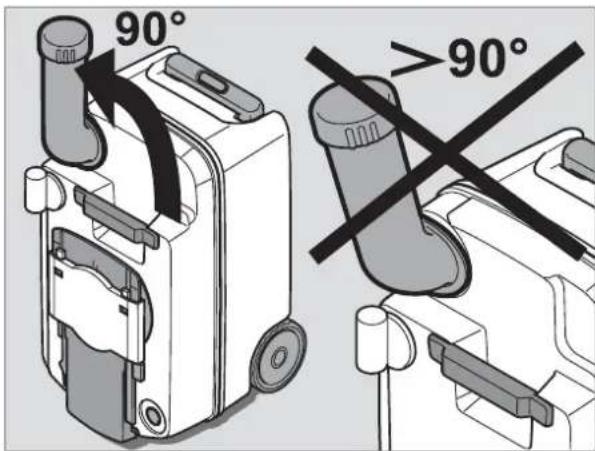

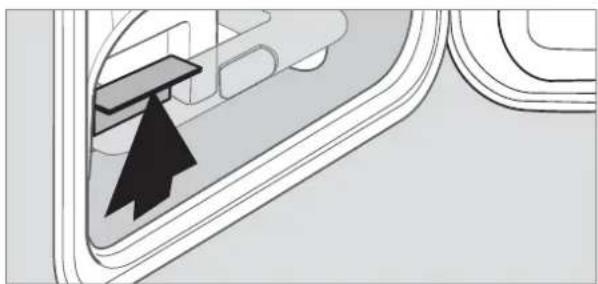

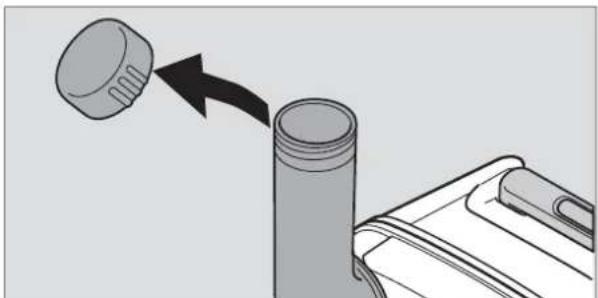

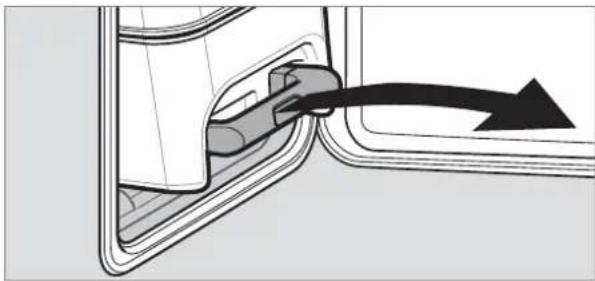

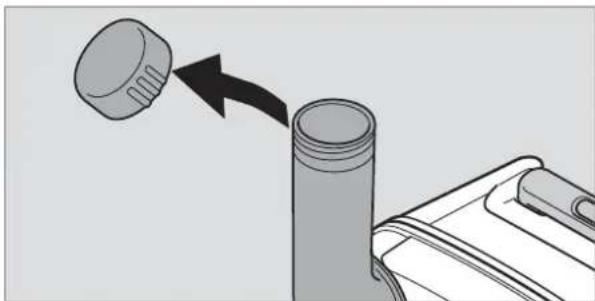

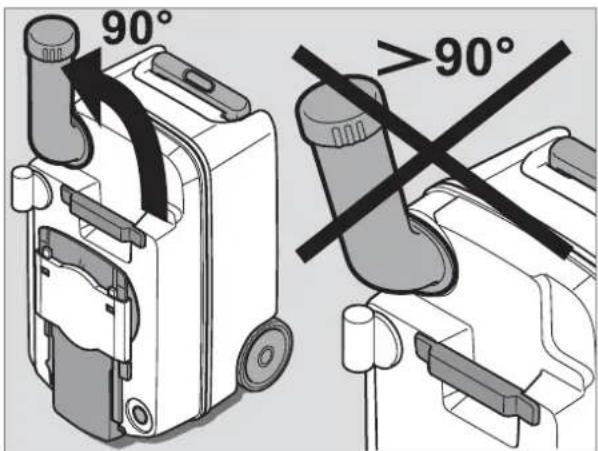

Before you use the toilette for the first time: Open the service door. Unlock the cassette tank by pushing the lock upwards. Pull the cassette out to the stop and remo- ve it completely. Place the cassette tank in an upright positi- on and turn the pour out spout upwards by approx. 90°. Remove the cap from the spout. Fig. 4Fig. 5Fig. 6Fig. 7 Avoid turning the spout by more than 90°, as it may otherwise come loose. CAUTION!

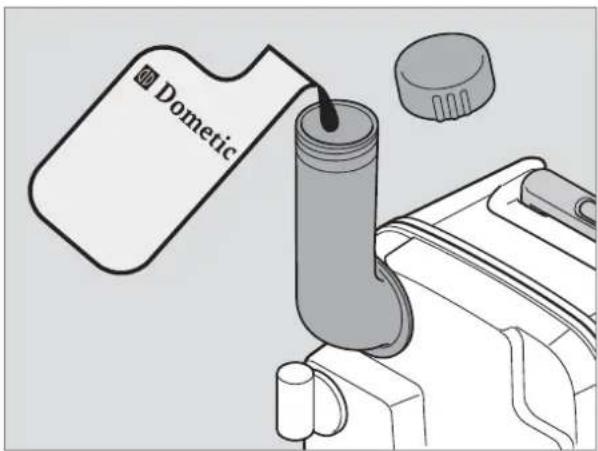

Before using the toilet for the first time, we recommend cleaning the toilet on the inside and outside. Use a soft cloth and lukewarm water with a mild detergent. Then rinse the surfaces with clear water. For regular cleaning, Dometic offers "Dometic Quality CARE", an effective toilet cleaning agent from the "Dometic CARE" range (see notes in Section 1.10) which is tailor-made for your toilet's surfaces. Cleaning agents for the toilet must not contain chlorine or alcohol! CAUTION!11 Using the toilet Fill a small amount of a Dometic sanitary additive (see notes in section 1.10) into the cassette tank via the spout. Put the cassette back in and push it in until it stops. Ensure that the tank can be smoothly inserted. Do not use force! The tank's lock shuts automatically when inserted. But check that the cassette tank is firmly attached. Close and lock the service door.

4.3 Filling fresh water tank

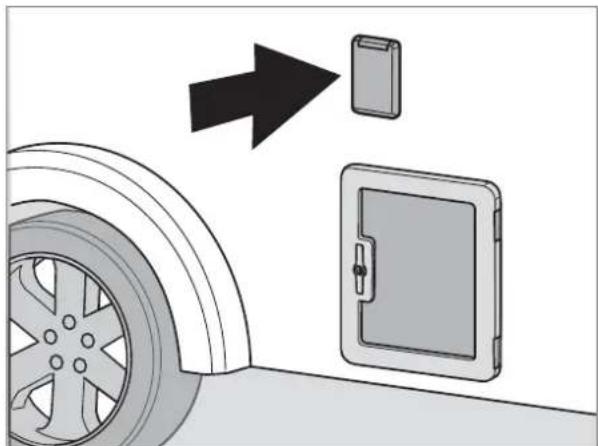

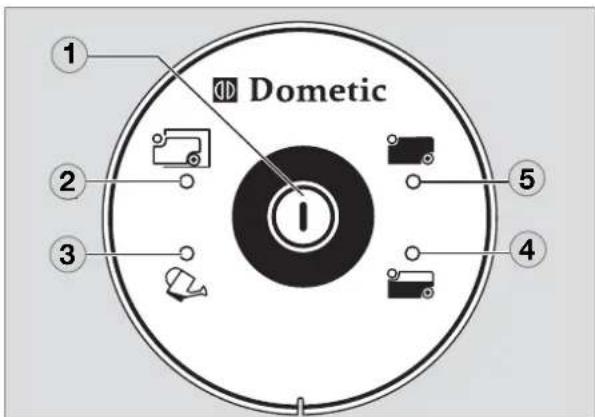

Fill the fresh water tank via the filling piece on the outside of the vehicle. The quantity depends on the tank used (on-board tank or integrated toilet tank with models CTW 4xxx, option with models CTS 4xxx and CTLP 4xxx). Fig. 9 "Flush" button "Cassette tank removed" display "Fill fresh water tank" display* "Cassette tank 3/4 full" display "Cassette tank full" display

• not connected as a rule when using the on-board tank.

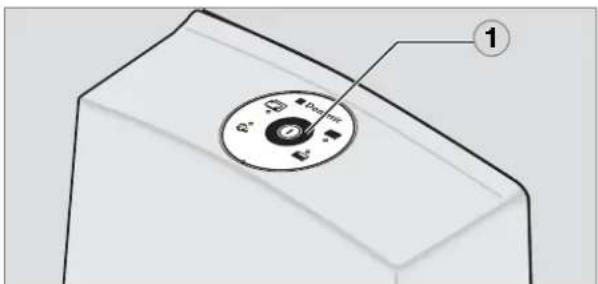

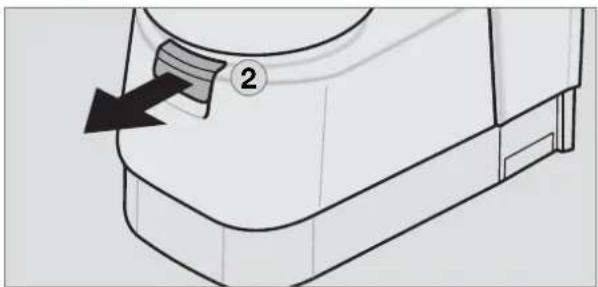

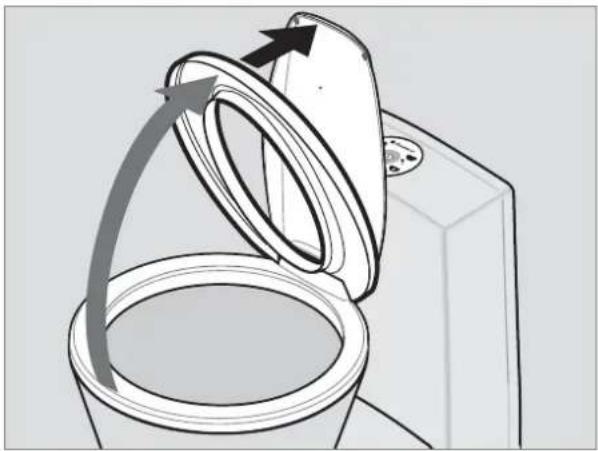

Pull the blade handle (2) forwards. Leave the blade open during use. Let some water run into the bowl before use. Operate the flush button (1) for this. Operate the flush button (1) again after use to flush the bowl. Close the blade handle (2) . When lifting the toilet seat, it locks in an approximately 2/3 position. Use a little more force if you want to open the seat fur- ther.

4.6 Emptying the cassette tank

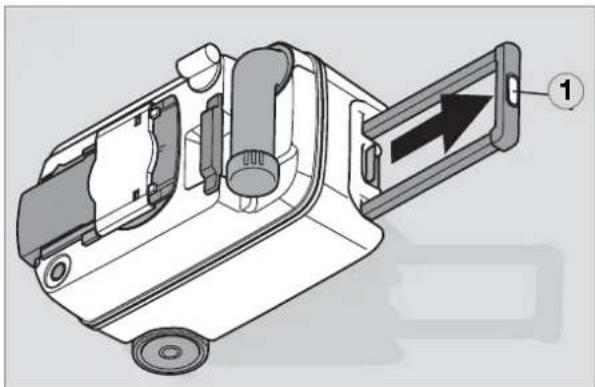

Empty the cassette tank when the level indica- tor LED lights up. The cassette tank has a capacity of 19 l. When LED (4) , Fig. 10, lights up, the tank is approx. 80 % full. This means that it can be used only a couple of times. Remove the cassette tank as described in section "4.3". Carry or wheel the holding tank to the nea- rest authorized waste disposal point. The cassette tank is provided with wheels and a pull-out handle. To unlock the hand le, push in the button (1) in middle of the handle. Pull out the handle until it stops. To bring the handle back into its original position, press the handle's unlock key and push the handle back into the cassette. Fig. 11 Fig. 12 Fig. 13

Using the toilet Place the cassette tank in an upright positi- on and turn the emptying spout upwards. Remove the cap from the spout. Hold the cassette tank with one hand by the handle (2) . With the other hand hold it at the blade handle (3) so that you can ope- rate the vent button (1) during emptying. The vent button should only be pressed once the emptying spout is pointing downwards. The tank empties evenly and without squirting. After emptying, flush the cassette tank tho- roughly with water. Then make the tank operational again as described in section "4.2", before inserting it in the toilet. Avoid turning the spout by more than 90°, as it may otherwise come loose. CAUTION! Do not shake the cassette tank violently. Do not clean the inside of the cassette tank with a high pressure cleaner. This can damage the float for the filling level indicator. CAUTION! Fig. 16 Fig. 1514 Using the toilet

If you wish to decommission the toilet for long periods of time, empty the fresh water tank and the water supply system fully. Clean the toilet with Dometic Quality Care. Press the flush button until there is no remaining water left in the pipes. Then empty the cassette tank and rinse it thoroughly. To allow the tank to dry, do not place the cap back on the emptying spout of the waste tank.

4.7 Exchanging the fuse on the

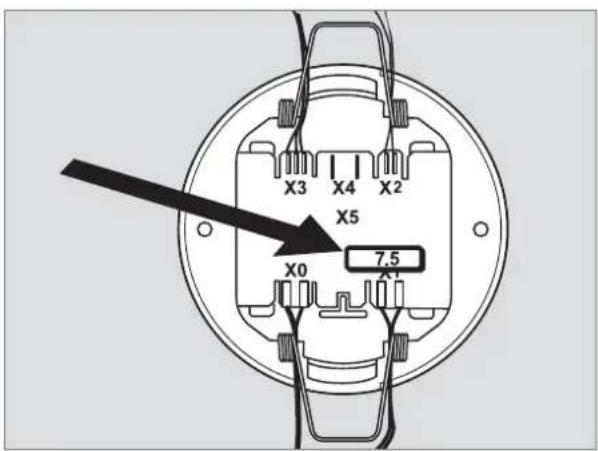

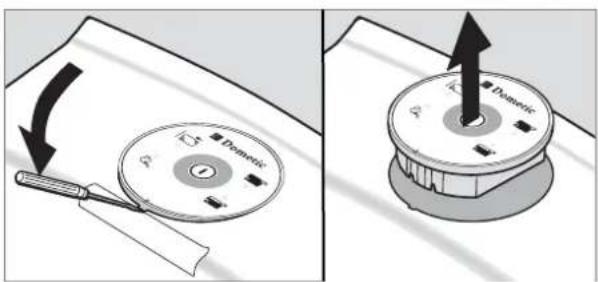

control panel Lift the control panel with a suitable tool and pull it out of the the tank case or the wall. The fuse (Fig. 19, automotive fuse : 7.5 A) is loca- ted on the bottom side of the control panel. You can continue to use the cassette also in winter, as long as the toilet and the cassette are situated in a frost-protected location. If this is not the case, empty the fresh water tank, the cassette tank and the water pipes of fresh water supply. This prevents damage due to frost (see "4.9 Decommissioning

4.8 Winter operation

Cut off power supply before starting to work! CAUTION! Do not use anti-freeze agents. Such agents can damage the sanitation system. CAUTION! Fig. 18Fig. 1915 Using the toilet

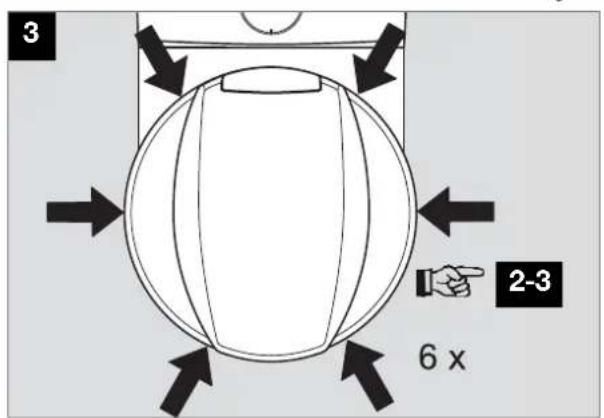

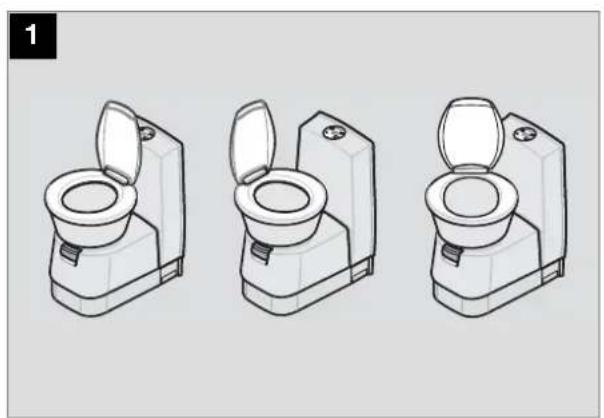

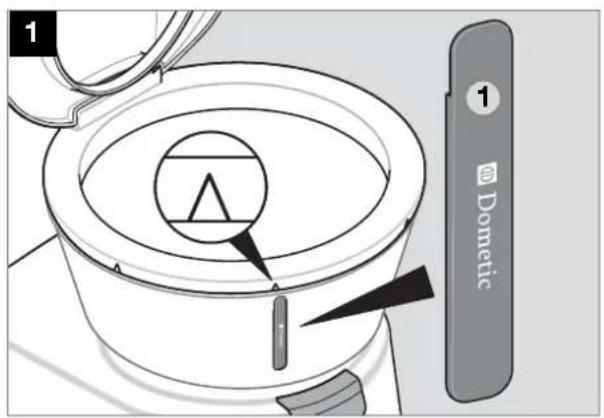

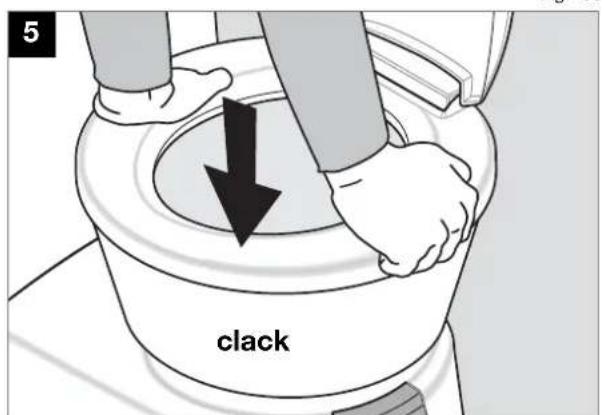

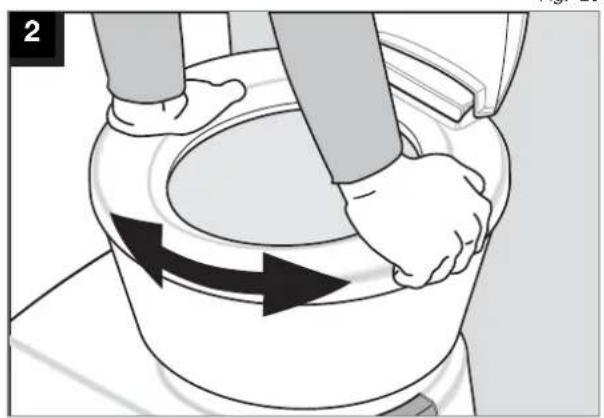

4.10 Positioning the toilet seat

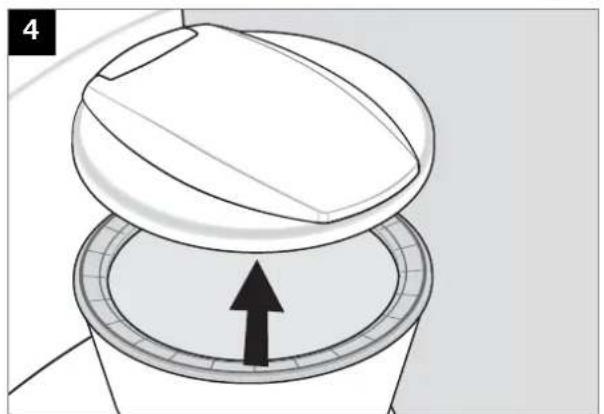

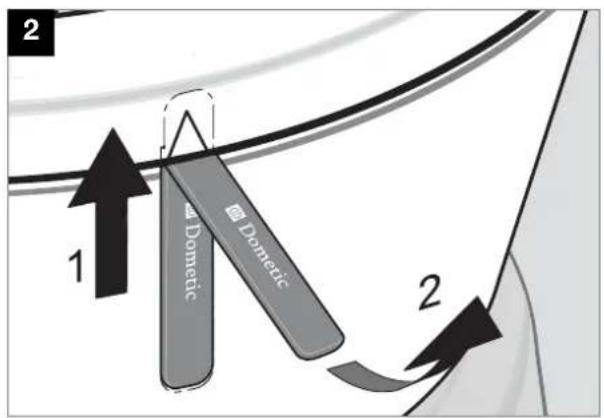

4.11 Removing the toilet seat

Regularly clean all seals on the toilet and cas- sette tank. Carry out this cleaning every month for fre- quent usage. Lubricate the seal (1) (Fig. 30) once or twice a year with silicon-based grease or spray. The slide remains movable. We recommend: : grease : OKS

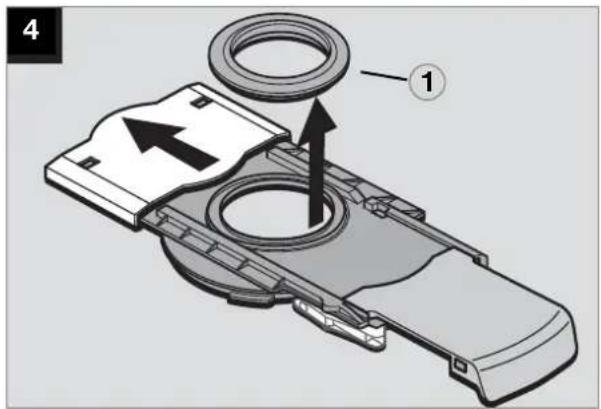

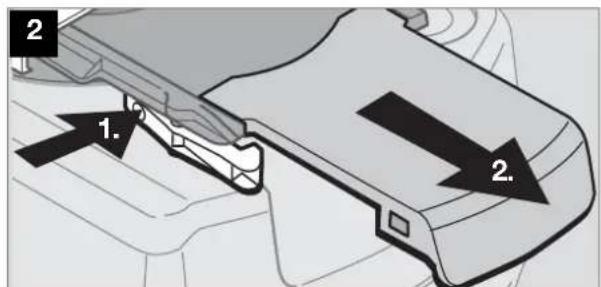

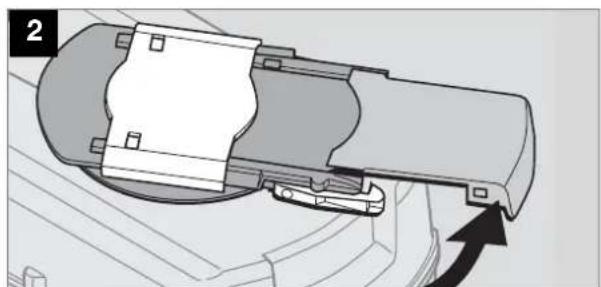

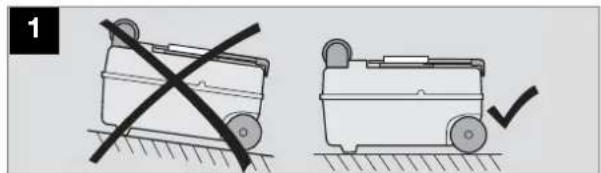

Remove the cassette tank and place it on a solid surface. Dismantle the entire blade, as illustrated in the following images. A seal can now be removed, cleaned or replaced.

4.12.1 Dismantling the cassette seal

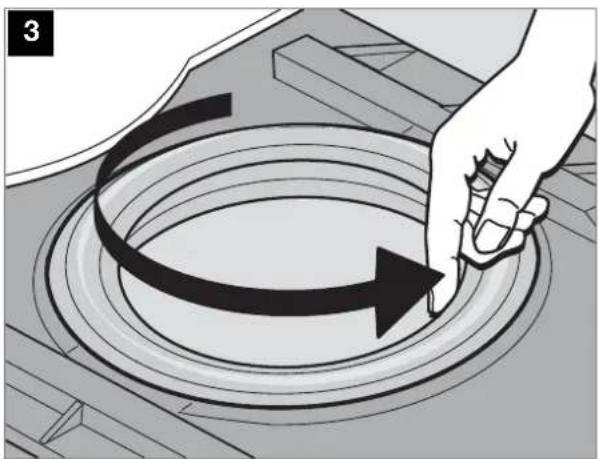

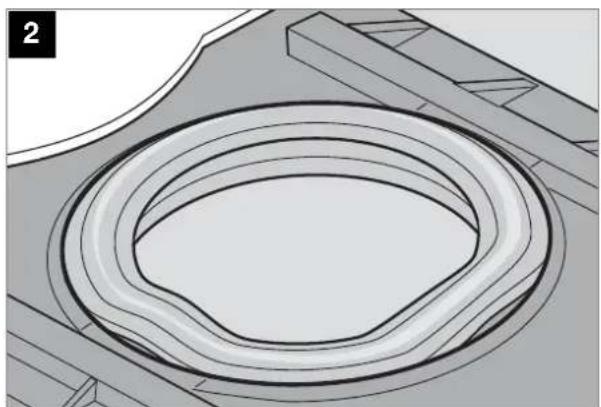

If it becomes necessary to replace the casset- te seal, pay attention to absolutely correct seating of the seal when installing the seal. The seal must contact evenly.

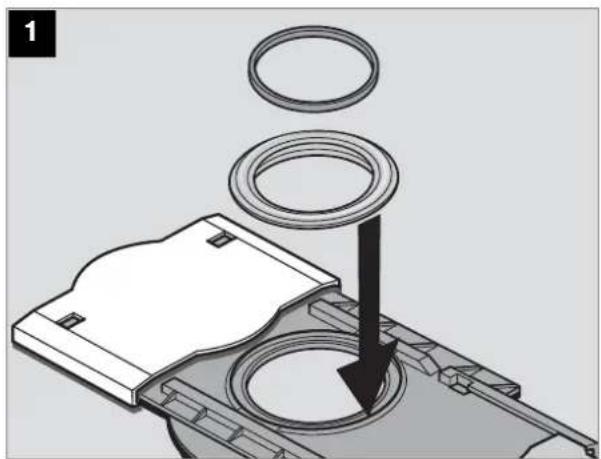

4.12.2 Installation of the cassette seal

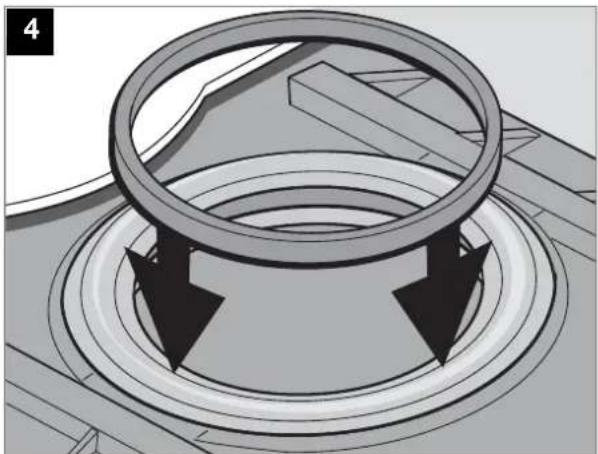

Using the toilet Close the blade handle. Finally, install the support ring. The seal must contact evenly in the ope- ning otherwise leaks and binding of the blade are possible. CAUTION! Fig. 34

Action you can takePossible cause Fault Flushing no longer functions Cassette leaking No filling level display Fuse defective Seal worn Float in the cassette has got stuck or is jammed by toilet paper Replace fuse (see chpt. 4.8) Check electrical terminals and con- nections in the case of repeated fai- lure. Replace seal on the blade (see chpt. 4.2.1) Clean float in the cassette (do not use any high-pressure cleaner)

4.9 " Mise hors service "
