HG01040 - Jack ULTIMATE SPEED - Free user manual and instructions

Product Type	Hydraulic Trolley Jack
Brand	Ultimate Speed
Model	HG01040
Maximum Load Capacity	2000 kg
Lifting Range (without adapter)	135 to 342 mm
Lifting Range (with adapter)	150 to 357 mm
Maximum Actuation Force	380 N
Hydraulic Oil Type	SAE 10
Hydraulic Oil Capacity	115 ml
Safety Standard	EN 1494/A1:2008
Intended Use	Lifting and lowering vehicles only
Required Surface	Solid and level
Safety Valve	Factory preset, do not adjust
Package Contents	1 jack, 1 adapter, 1 lifting bar, 1 instruction manual
Warranty	3 years (excluding normal wear)
Maintenance	Lubricate moving parts and clean with an oiled cloth
Repairability	Have repaired by a specialist, do not disassemble yourself

Frequently Asked Questions - HG01040 ULTIMATE SPEED

How to use the hydraulic jack HG01040?

To lift the vehicle, first close the release valve by turning the lifting bar clockwise. Position the jack under a lifting point as per the vehicle manual. Pump the lifting bar to raise the vehicle. To lower, slowly turn the valve counterclockwise. Always use jack stands before working under the vehicle.

What is the maximum load capacity of the jack?

The maximum load is 2000 kg. Never exceed this capacity to avoid risk of injury or damage.

How to maintain the hydraulic jack?

After each use, clean the jack with a cloth slightly dampened with oil. Regularly lubricate all external moving parts. For storage, fully lower the lifting arm and close the release valve.

What to do in case of hydraulic oil leak?

Stop using immediately. Wipe the leak with a cloth. Have the product repaired by a specialist or contact an authorized workshop. Do not attempt to repair yourself.

Can I use the jack on gravel or uneven ground?

No, use the jack only on a solid and level surface. Unfirm surfaces (like gravel) can cause the load to slip and lead to accidents.

How to install the included adapter?

Raise the jack to an intermediate height. Remove the hexagon head screw and nut, then remove the saddle. Place the adapter on the support cup, insert the screw, and tighten the nut with a wrench. Then lower the jack by slowly opening the release valve.

Which hydraulic oil should I use for refilling?

Use only hydraulic oil SAE 10. The maximum capacity is 115 ml. Fill to the lower edge of the filler opening. Have this done by qualified personnel.

How to bleed air from the hydraulic system?

After a long period of non-use, insert the lifting bar with the valve closed and pump firmly at least 6 times to distribute the hydraulic oil and bleed air. This ensures proper operation.

Does the warranty cover normal wear of parts?

No, the 3-year warranty covers material and manufacturing defects, but not wear parts (such as seals or oil). Keep your sales receipt as proof of purchase.

Where can I download the manual for the HG01040 jack?

You can download the manual for free in PDF format from notice-facile.com or from the manufacturer OWIM website (www.owim.com). The manual is available in several languages.

USER MANUAL HG01040 ULTIMATE SPEED

Operation and Safety Notes

Translation of original operation manual

NL BE

HYDRAULISCHERANGEERKRIK

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Properuse

The hydraulic vehicle jack is intended for raising and lowering motor vehicles. Other uses or modification of the hydraulic vehicle jack shall be considered as improper use and may lead to injury or damage. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.

Note: Reclose the release valve 5 after each use!

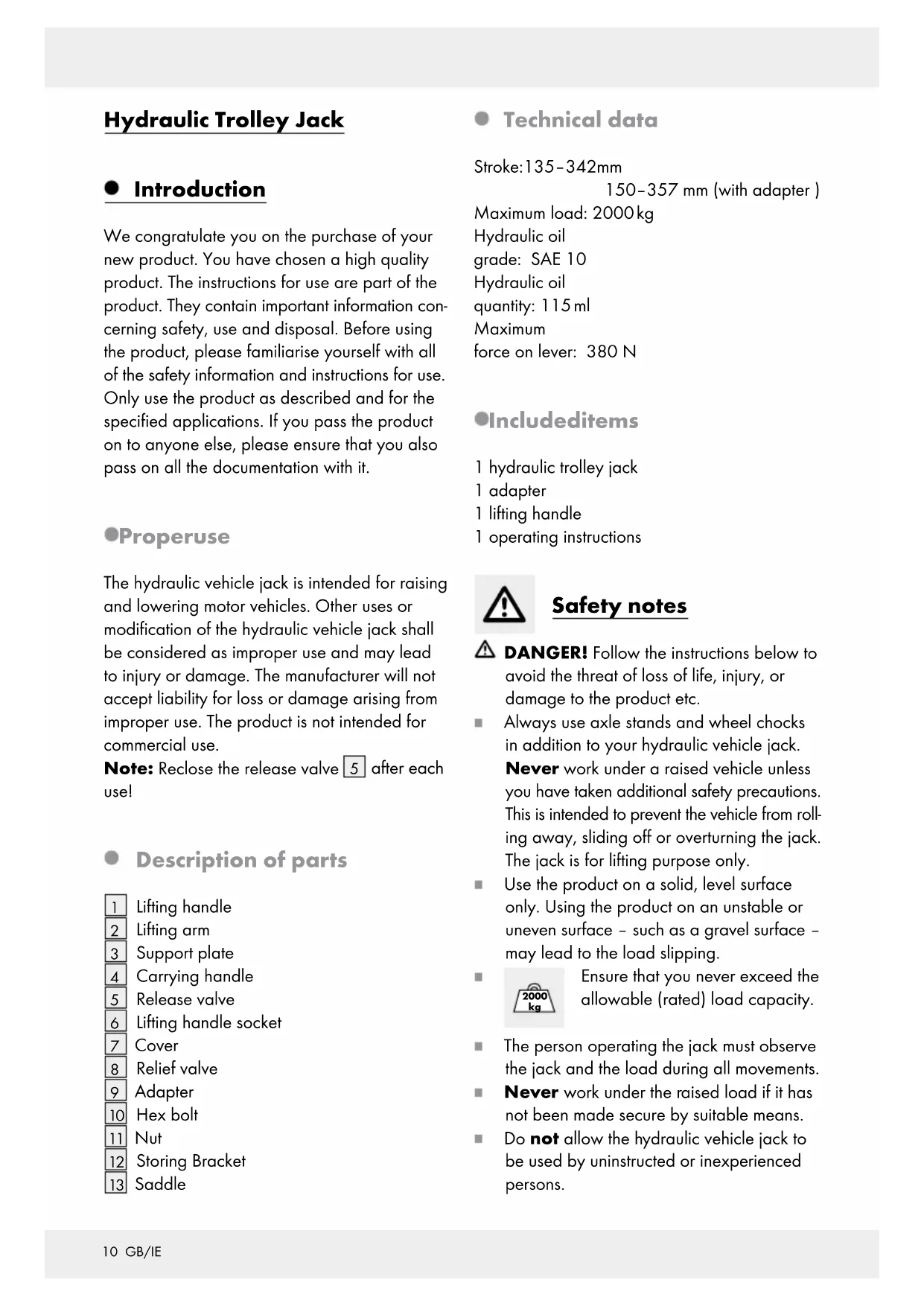

Description of parts

Lifting handle
Lifting arm
3 Support plate
4 Carrying handle
5 Release valve
6 Lifting handle socket
Cover
8 Relief valve
9 Adapter
10 Hex bolt
[11] Nut
12 Storing Bracket
13 Saddle

Technical data

Stroke:135-342mm

150-357 mm (with adapter)

Maximum load: 2000kg

Hydraulic oil

grade: SAE 10

Hydraulic oil

quantity: 115ml

Maximum

force on lever: 380 N

IncludedItems

1 hydraulic trolley jack
1 adapter
1 lifting handle
1 operating instructions

Safety notes

DANGER! Follow the instructions below to avoid the threat of loss of life, injury, or damage to the product etc.

Always use axle stands and wheel chocks in addition to your hydraulic vehicle jack.

Never work under a raised vehicle unless you have taken additional safety precautions. This is intended to prevent the vehicle from rolling away, sliding off or overturning the jack. The jack is for lifting purpose only.

Use the product on a solid, level surface only. Using the product on an unstable or uneven surface - such as a gravel surface - may lead to the load slipping.

Ensure that you never exceed the allowable (rated) load capacity.

The person operating the jack must observe the jack and the load during all movements.
Never work under the raised load if it has not been made secure by suitable means.
Do not allow the hydraulic vehicle jack to be used by uninstructed or inexperienced persons.

Before using the hydraulic vehicle jack take precautions to prevent the vehicle from rolling away. Put the handbrake on, place the vehicle in gear (with automatic gearboxes set to "P") and chock the wheels.
Even with safety measures in place always remain alert and make a visual check that the support plate 3 is firmly seated against the vehicle jacking point.
Make sure that no petrol, battery acid or any other dangerous substance can flow out of the vehicle when the vehicle is being lifted.
Check that no person or object is under the vehicle before you lower it.
Lower the vehicle slowly.
Check that all parts have been assembled and fitted properly and are undamaged.
Before each use check that the hydraulic vehicle jack is working properly. Check the screws and valves of the hydraulic vehicle jack for correct seating and look out for hydraulic oil leaks in particular.
Never use the hydraulic vehicle jack for moving or loading a vehicle. Never use it to lift a whole vehicle completely off the ground.
It's not allowed to lift up people with the hydraulic jack and make sure that near located people keep enough distance to the vehicle when the hydraulic jack is in use.
- Never change the setting of the safety valve 8. It has been set at the factory and must not be adjusted. Stop using the product if the safety valve setting is changed.
Before using the vehicle jack, the user must be made familiar with the device by an experienced person. The pump force and the transferred force are equal to approximately 380N.
If the markings on the product are damaged enough so as to be illegible then the vehicle jack must not be used until the markings are renewed.
No modifications may be carried out to the hydraulic trolley jack. Any physical modification of the device has an effect on the safety of the device and its compliance with EN 1494/A1:2008.

The applied force when using the vehicle jack must be lower 380N . The equates to a force on the lever of approximately 38kg
The operating temperature of the hydraulic oil of this equipment is between -20^ to +40^ .
Only use this device to lift and lower the vehicle, not to keep the vehicle in a lifted position. Do not move it whilst raising or lowering.
After use return all parts used into their original position. Have the hydraulic oil or oil pump replaced by a professional if the parts can no longer be moved.
If you notice a spillage of oil, stop using the product and absorb the oil on the floor with a cloth. Any reparation must be done by a professional.

Before first use

Distribution of the hydraulic oil

With the release valve closed, insert the lifting handle into the lifting handle socket. Use at least 6 firm pumping movements to charge the hydraulic system (move lifting handle up and down). This action distributes the hydraulic oil evenly.

Note: Check that the release valve 5 is closed by inserting the lifting handle 1 and trying to turn it clockwise (see Fig. A). DO NOT OVER

TIGHTENED! When you cannot turn it any further, the release valve is closed.

Using the jack

Raising the vehicle

With the release valve closed turn the lifting handle 1 into the lifting handle socket 6 (see Fig. B).

Place the hydraulic vehicle jack under one of the lifting positions as shown in the owner's manual supplied by the vehicle manufacturer.
Ensure that the support plate is centrally loaded. By moving the lifting handle up and down, raise the vehicle sufficiently to allow you to insert axle stands under the vehicle (see Fig. C).
- Allow the vehicle to come down on to the axle stands by slowly opening the release valve 5 by turning the lifting handle 1 anticlockwise.
The jack is NOT FOR HOLDING the vehicle.

Lowering the vehicle

DANGER TO LIFE! Check that no person or object is under the vehicle before you lower it.

First raise the vehicle slightly (as described earlier) in order to be able to remove the axle stands.
Turn the release valve anticlockwise until the vehicle lowers, but do not turn it to the extent that it detaches or hydraulic oil leaks from the release valve (see Fig. D).

CAUTION! Lower the vehicle slowly, otherwise there is the danger of injury and damage to the product or to the vehicle.

Pull the trolley jack out from under the vehicle and fully lower the lifting arm 2.
Close the release value by turning it clockwise.

- Attaching the adapter (optional)

From its original height (13.5cm) bring the vehicle jack to a height of 34~cm by moving the lifting handle up and down (see the section on "Using the jack").
Remove the hex bolt 10 from the nut 11 with a socket wrench plus socket (18 mm) and a ring spanner (19 mm) (see Fig. E).

Take out the saddle 13 first and place the adapter 9 on to the load plate 3. From above, guide the hex bolt 10 through the adapter 9 and load plate 3 (see Fig. F).
Place the nut 11 under the load plate 3 (see Fig. F).
Fix the hex bolt 10 and nut 11 in place together with a socket wrench plus socket (18 mm) and a ring spanner (19 mm) (see Fig. G).
Lower the vehicle jack back down to its original height by turning the release valve 5 anticlockwise. Ensure that the release valve 5 does not become detached and allows the hydraulic oil to escape (see the section on "Lowering the vehicle").
If you no longer need to use the adapter 9, remove it by releasing the hex bolt from the nut 11 with a socket wrench plus socket (18 mm) and a ring spanner (19 mm) (see Fig. E).
Then fix the hex bolt 10 and the nut 11 in place together inside the load plate 3 for safe keeping.

- Cleaning and care

Never use harsh or corrosive cleaning agents.

Liberally grease all external moving parts.
Clean the hydraulic trolley jack using a slightly oily cloth.
Fully lower the lifting a and lifting handle sleeve to be able to store the trolley jack in the smallest possible space.

Maintenance and service

Note: Refilling or topping up with hydraulic oil may only be carried out by specialist personnel! Always use hydraulic oil that fulfils the specification for SAE 10. Please note that filling with too much oil may adversely affect the functioning of the vehicle jack. Fill with a maximum of 115ml oil when all the oil has been used. Fill the hydraulic oil

reservoir up to the bottom edge of the filling opening (see Fig. H).

Note:The Lifetime of three years expires, if the car jack get not checked by qualified specialist.

Defective hydraulic vehicle jacks must be repaired by a specialist workshop only. Never attempt to repair the hydraulic vehicle jack yourself.
Never take the hydraulic vehicle jack to pieces. Taking the vehicle jack to pieces yourself may result in it not working properly.

- Disposal

The packaging and ancillary packing consist entirely of environmentally-friendly materials. They can be disposed of at your local recycling facility.

In the interest of the environment, do not throw out the product with your household refuse. Take it to a suitable centre where it can be disposed of properly. Your local council will be able to tell you where the collection centres are located and their opening times.

Dispose of the hydraulic oil in an environmentally compatible manner. Ask your local repair garage to see to its disposal or find your nearest waste materials collection centre.

Translation of the original Conformity Declaration

We, OWIM GmbH & Co. KG Stiftsbergstraße 1 DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: Hydraulic Trolley Jack, Model No.: HG01040, Version: 11 / 2016, to which this declaration refers, complies with the directive of 2006 / 42 / EC.

Related harmonised standard: EN 1494/A1:2008

Serial number: IAN 277730

Tobias Koenig
Division Manager
Neckarsulm, 5 Aug 2016

The complete declaration of conformity can be viewed at: www.owim.com

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

C
