USER MANUAL SBPL 15 A1 SILVERCREST

PDF online www.lidl-service.com

BLUETOOTH® SPEAKER

GB IE NI

BLUETOOTH® SPEAKER

Operation and Safety Notes

DK

BLUETOOTH®-H∅JTALER

GB/IE/NI Operation and Safety Notes Page 5

Warnings and symbols used ...... Page 7

Trademark notice......Page 8

Scope of delivery......Page 8

Parts Description......Page 9

Technical Data......Page 9

Safety Page 10

Warnings regarding the built-in rechargeable battery...... Page 13

Before use......Page 14

Charging Page 15

Using the Bluetooth®

speaker Page 16

Establishing a Bluetooth ^® connection.....Page 16

Functions of the buttons on

the Bluetooth ^® speaker......Page 17

Taking calls (hands-free mode)......Page 18

Storage when not in use......Page 19

Cleaning......Page 19

Troubleshooting...... Page 20

Disposal...... Page 21

Notes on EU Conformity ...... Page 22

Warranty Page 24

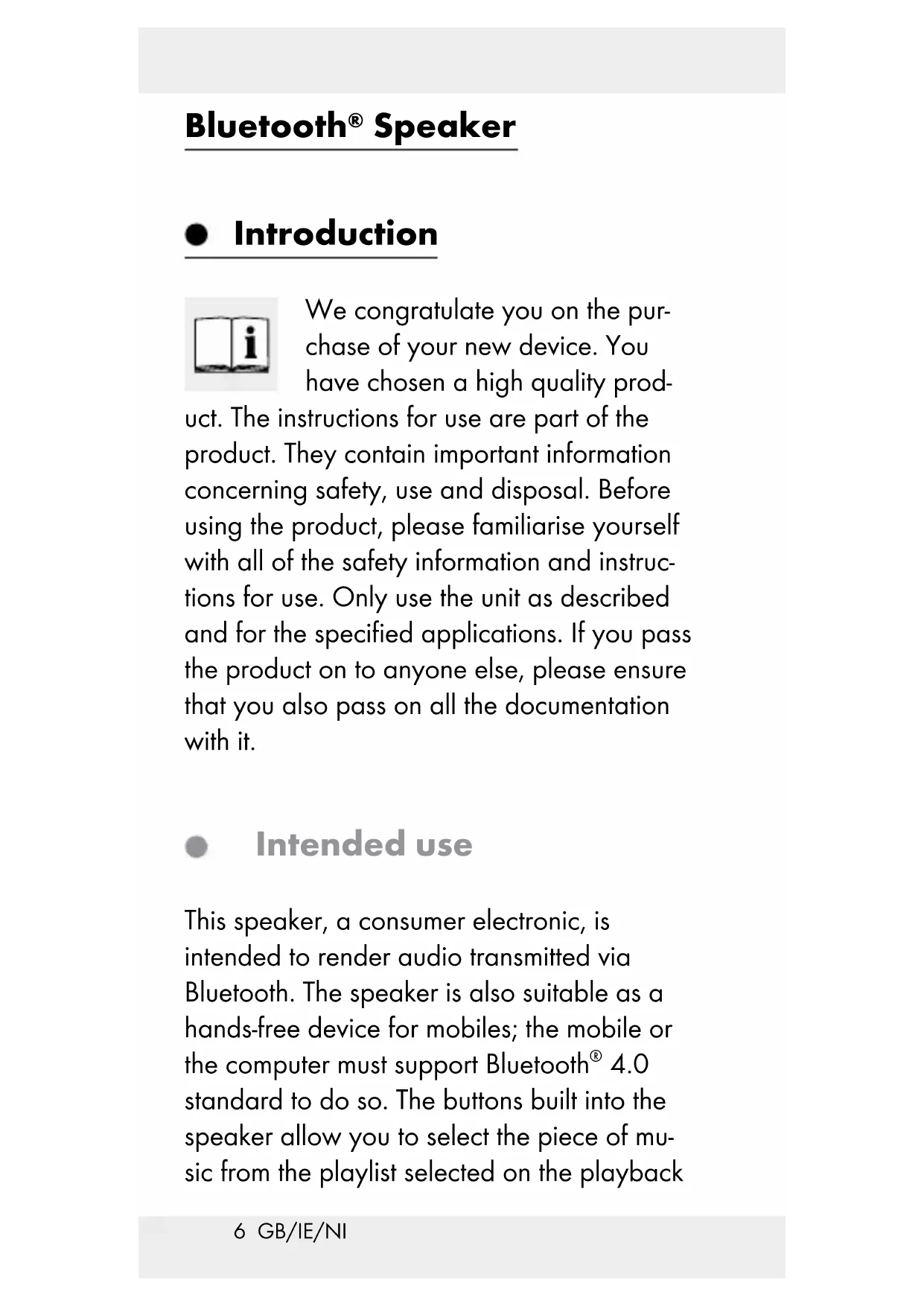

- Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This speaker, a consumer electronic, is intended to render audio transmitted via Bluetooth. The speaker is also suitable as a hands-free device for mobiles; the mobile or the computer must support Bluetooth ^® 4.0 standard to do so. The buttons built into the speaker allow you to select the piece of music from the playlist selected on the playback

device. They are further used to adjust the volume of the speaker.

The built-in rechargeable battery allows for cordless operation.

The product is designed for private use, and must not be used for commercial purposes.

Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the speaker will be considered unwarranted. Any such use is at your own risk.

- Warnings and symbols used

These instructions for use contain the following warnings:

DANGER

A warning with this sign indicates a life threatening situation.

Failure to observe this warning may result in fatal or serious injuries.

■ Follow the instructions in this warning to prevent a danger to life or serious injury!

ATTENTION

A warning with this sign indicates potential property damage.

Failure to observe this warning may result in property damage.

■ Follow the instructions in this warning to prevent property damage.

NOTE

☐ A note provides additional information to improve product use.

• Trademark notice

-USB ^® is a registered trademark of USB Implementers Forum, Inc.

- The Bluetooth ^® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and any use of such marks by OWIM GmbH & Co. KG is under license.

Any other names and products may be trademarks or registered trademarks of their respective owners.

- Scope of delivery

1 Bluetooth ^® Speaker
1 Charging cable (Micro USB / USB)
1 Instructions for use

Parts Description

1 Play/Pause button
2 Instructions for use
3 ←Button: reduce volume / previous song
4 Button: increase volume / next song
5 Charging cable (Micro USB / USB)
6 Speaker (2 pieces)
7 Microphone
8 ON/OFF button
9 Charging indicator LED
10 ON/OFF/CONNECTION indicator LED
11 Micro-USB socket (under the protective cover 12)
12 Protective cover

- Technical Data

Power supply: USB socket: 5 V, min. 500 mA (min. USB1 standard) Battery: 1 x 3.7 V re- chargeable lithium polymer battery with 2400 mAh (battery not replaceable.)

Music output: max. 2 x 4 W RMS

Wireless standard: Bluetooth ^® 4.0

Charging socket: micro-USB

Dimensions: approx. 19.9 x 6.7

$$ \times 8. 5 \mathrm{mm} (\mathrm{W} \times \mathrm{H} \times \mathrm{D}) $$

Weight: approx. 521 g

Operating conditions: 10 °C–40 °C,

40%-85% rel.

humidity

Storage temperature: -20 °C to +60 °C

Safety

Before using the product, please familiarise yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

DANGER

Risk of suffocation! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance should not be performed by children without supervision. This speaker is not a toy.

RISK OF PROPERTY DAMAGE

This product does not contain any parts which can be serviced by the user. The rechargeable battery cannot be replaced.

- Check the product before every use! Discontinue use if any damage to the device or the charging cable is detected!

If you notice anything unusual during use (e.g. unusual noise, strange odour or smoke), switch the device off immediately and disconnect all cables. Do not use the device anymore.

■ Sudden temperature changes may cause condensation inside the device. In this case, allow the device to acclimate for some time before using it again!

• Do not place burning candles or open fire on or near the speakers.
• Do not use the product near heat sources such as radiators or other devices emitting heat!
• Do not throw the speaker into fire and do not expose to high temperatures.
  ■ Protect the speaker from dripping and spray water. Only use the device in a dry environment!

DANGER

■ Repairs should only be performed by qualified personnel.

DANGER

Radio interface

Switch the device off on airplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics. Keep the device at least 20 cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers. The radio waves transmitted could cause interference in hearing aids. Do not place the device near flammable gasses or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire. The range

of the radio waves varies by environmental conditions. In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded. OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the device. OWIM GmbH & Co KG further assumes no liability for using or replacing cables and devices not distributed by OWIM. The user of the device is fully responsible for correcting interference caused by such unauthorised modification of the device, as well as replacement of such devices.

- Warnings regarding the built-in rechargeable battery

CAUTION! EXPLOSION HAZARD!

DANGER!

The speakers have a built-in rechargeable lithium polymer battery. Improper handling of rechargeable lithium polymer batteries may result in fire and explosion. Furthermore, hazardous substances may leak from the rechargeable battery.

• Do not throw the device into fire.
  Do not operate the device outside the operating conditions specified under „Technical Data“!

Risk of damage to the rechargeable battery

- Avoid extreme conditions and temperatures which may affect rechargeable batteries, e.g. on heaters or in direct sunlight!

■ Do not cover the device during use or charging!

■ Only charge the battery in a dry environment, as the device is not splash-proof.

A chemical released by a leaking battery may irritate the skin. If the chemical comes into contact with the skin, rinse the skin with plenty of water. If the chemicals come into contact with the eyes, rinse eyes with plenty of water, do not rub eyes, and seek medical attention. Be very careful when handling damaged or leaking batteries. Risk of injury! Wear gloves!

- Before use

Note: All parts have to be unpacked and the packaging material has to be removed completely.

Before use, verify the package contents are complete and undamaged!
Place the device on a level, even surface for operation.

Charging

☐ The battery must be charged prior to first use.

☐ When the battery is drained, a sound will be emitted every 30 seconds during operation. The battery should then be charged as soon as possible.

☐ Depending on the volume and the age of the battery, the operating time for the device is approx. 8 hours when fully charged.

Open the protective cover 12.

☐ Insert the micro-USB plug of the charging cable 5 into the micro-USB socket 11 of the Bluetooth® speaker. Insert the USB plug of the charging cable into the USB port on a PC or a USB adapter (not included in scope of delivery).

Note: The charging indicator LED 9 will light up orange whilst charging and goes out once charging is completed.

The charging time for a drained battery is approx. 6.5 hours.

Note: The speaker may be used whilst charging. However, doing so will at a minimum double the charging time.

☐ Once charging is complete, remove the micro-USB plug of the charging cable and close the protective cover.

- Using the Bluetooth® speaker

- Establishing a Bluetooth® connection

☐ Press and hold the 📊 button 8 until the ON/OFF/CONNECTION indicator LED 10 flashes blue and a beep sounds. The speaker will now attempt to connect to the playback device (e.g. smartphone or computer).

☐ Switch on the playback device and activate the Blue tooth® function. The speaker identification on the playback device will be HG01335. Then approve the connection with the Bluetooth® speaker. Please note the requirements of the software on the playback device. The signal LED will light up blue and a beep sound.

☐ The maximum range of the connection is approx. 10 m, but may be reduced to the geometry of the space (obstructing furniture, walls, etc.).
The playback device must support Bluetooth® standard 4.0. Otherwise you may not be able to use all the functions listed below.

Functions of the buttons on the Bluetooth® speaker

Start a playlist on your playback device. Set the volume on the playback device to Maximum. The volume on the Bluetooth ^® speaker can be adjusted as described below. Music is played back through the speakers 6.

The Bluetooth ^® speaker has 4 buttons. These control the following functions:

Button	Function
	- Hold approx. 3 seconds: switch on the device- Hold approx. 1 second: switch off the device
	- Press briefly during playback: pause or continue playing
	- Hold during playback: skip to next song in the playlist- Press briefly during playback: increase volume. One signal tone will sound when the maximum volume level has been reached
	- Hold during playback: replay song- Press briefly during playback: reduce volume- Press twice: go back to the previous song in the playlist.

• Taking calls (hands-free mode)

If the Bluetooth ^® speaker is connected to a smartphone supporting Bluetooth ^® Standard 4.0, you make also answer calls whilst the Bluetooth ^® speaker is playing music. Please refer to the instructions for your smartphone for the required smartphone settings.

The ringer and the caller's voice are rendered through the speaker 6.
☐ Music playback is automatically paused when a call is received.
☐ The microphone 7 receives your voice.

Briefly press the button 1 to answer the call.

At a longer pressing of the button the incoming call will be rejected.

Adjust the volume during the telephone call as described under „Functions of the buttons on the Bluetooth ^ speaker“ using the +» button 4 or the ← button 3.

Briefly press the ▶ button to end the call.

If music was stopped for the call, it will continue playing automatically after the call is ended. If it does not start automatically, press ▶ button 1 to start music playback manually.

● Storage when not in use

Store the device in a dry location from dusk, protected from direct sunlight.

☐ The rechargeable battery has to be charged periodically.

- Cleaning

■ Switch the device off, remove all plugs, and close the protective cover 12 before cleaning!

☐ Only clean the outside of the device using a soft, dry cloth!
☐ At persistent soiling, a mild cleaning agent can be used.
☐ No acid, chafing or solvent cleaning agents should be used or the device can be damaged.

- Troubleshooting

● = Fault
● = Possible cause
O = Action

No functions

Battery drained.
○ Recharge the battery as described in „Charging the battery“.

- No Bluetooth connection

Error operating the speaker.
- Switch the Bluetooth® speaker off and on again, increase the volume.
- Playback device error.
- Check if the Bluetooth® speaker was detected by the playback device.
- Check if the playback device detects other devices with Bluetooth® Standard 4.0.

The two devices may need to be reconnected.

No music playback via Bluetooth®

Error operating the speakers.

- Switch the Bluetooth® speaker off and on again.

Press the ▶ button 1 to check if it was pressed inadvertently.

Press the + button 4 to increase the volume.

Error operating the playback device

○ Increase the volume on the playback device.

- Disposal

Disposing of the device

The adjacent symbol of a crossed out dustbin on wheels indicates this device is subject to Directive

2012 / 19 / EU. This directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

The built-in rechargeable battery cannot be removed for disposal.

This disposal is free of charge to you. Protect the environment and dispose properly.

Please contact your local waste management company or the city / municipal administration for more information.

Disposing of the packaging

The packaging protects the device from transport damage.

The packaging materials were selected based on eco-friendly and waste management aspects and are therefore recyclable.

Returning the packaging to the material flow reduces the use of raw materials and waste. Dispose of

packaging materials which are no longer needed according to applicable local ordinances.

Notes on EU Conformity

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, D-74167 Neckarsulm, declare the product HG01335A, HG01335B, HG01335C Bluetooth® Speaker, to meet the fundamental requirements and other relevant

provisions of Low Voltage Directive 2014/35/EU, R&TTE Directive 1999/5/EC and RoHS Directive 2011/65/EU.

Identification number: IAN 279324

Harmonised standards applied: EN 60065: 2014 EN 300 328 V1.9.1:2015 EN 301 489-1 V1.9.2:2011 EN 301 489-17 V2.2.1:2012 EN 62479:2010 EN 55013: 2013 EN 55020:2007/ A11: 2011

Tobius Locen

Tobias Koenig Department Manager Neckarsulm, 30 April 2016

The complete EU declaration of conformity can be viewed at: www.owim.com

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
