Safety Information

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lighting flash and Arrowhead within the triangle is a warning sign alerting you of dangerous voltage inside the product.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product.

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Complies with 21CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

DANGER:

• VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)

CAUTION :

CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)
- THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KCLASS 1 LASER APPARAT

PRODUCTO LASER CLASE 1

Disc Storage & Management

• Holding Discs

• Fingerprints or scratches on a disc may reduce sound and picture quality or cause skipping.

• Avoid touching the surface of a disc where data has been recorded.
• Hold the disc by the edges so that fingerprints will not get on the surface.

• Do not stick paper or tape on the disc.

• Cleaning Discs

• If you get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

• When cleaning, wipe gently from the inside to the outside of the disc.

• Disc Storage

• Do not keep in direct sunlight.

• Keep in a cool ventilated area.
• Keep in a clean protection jacket and store vertically.

Handling Cautions

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases, on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.
• Do not touch the power plug with a wet hand. It can cause an electric shock.
• Do not plug multiple electric devices into the same wall socket. Ovedrloading a socket can cause it to overheat, resulting in a fire.

• Maintenance of the Cabinet

• Before connecting other components to this product, be sure to turn them off.

• If you move your product suddenly from a cold place to a warm place, condensation may occur on the operating parts and lens and cause abnormal disc playback. If this occurs, unplug the product, wait for two hours, and then connect the plug to the power outlet. Then, insert the disc, and try to play back again.

• If the product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service center for technical assistance. Do not use the product. Using the product as it is may cause a fire or an electric shock.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

Safety Information

Using the 3D Function

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES.

Read and understand the following safety information before using the 3D function.

• Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea, and headaches.
  If you experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses, and rest.
• Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses, and rest.
• A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest.
• Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.)
• Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may cause you to bump into objects, trip, and/or fall, and cause serious injury.
• If you want to enjoy 3D content, connect a 3D device (3D compliant AV receiver or TV) to the product's HDMI OUT port using a high-speed HDMI cable. Put on 3D glasses before playing the 3D content.
• The product outputs 3D signals only through HDMI cable connected to the HDMI OUT port.
• As the video resolution in 3D play mode is fixed according to the resolution of the original 3D video, you can not change the resolution to your preference.
• Some functions such as BD Wise, screen size adjustment, and resolution adjustment may not operate properly in 3D play mode.
• You must use a high-speed HDMI cable for proper output of the 3D signal.

• Stay at least three times the width of the screen from the TV when watching 3D images. For example, if you have a 46 inch screen, stay 3.5 meters from the screen.

• Place the 3D video screen at eye level for the best 3D picture.

• When the product is connected to some 3D devices, the 3D effect may not function properly.

• This product does not convert 2D content into 3D.
• "Blu-ray 3D" and "Blu-ray 3D" logo are trademarks of the Blu-ray Disc Association.

Copyright

© 2012 Samsung Electronics Co., Ltd.

All rights reserved; No part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co., Ltd.

License

• Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

DIVX HD

• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.
• ABOUT DIVXVIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
• DivX Certified® to play DivX® video up to HD 1080p, including premium content.
• DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
• Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274

HOMI

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.
• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
• Blu-ray Disc^TM , Blu - ray^TM , and the logos are trademarks of Blu-ray Disc Association.
• This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.
• More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138 USA."

This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

Contents

SAFETY INFORMATION

2 Warning
3 Disc Storage & Management
3 Handling Cautions
4 Using the 3D Function
4 Copyright
5 License

SETTINGS

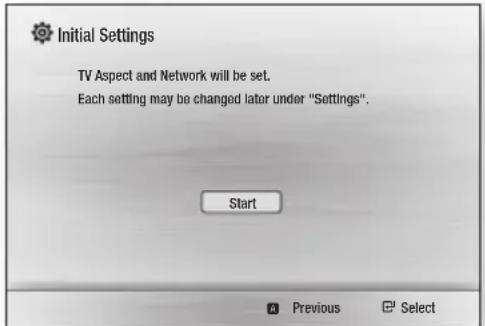

21 The Initial Settings Procedure
22 The Home Screen

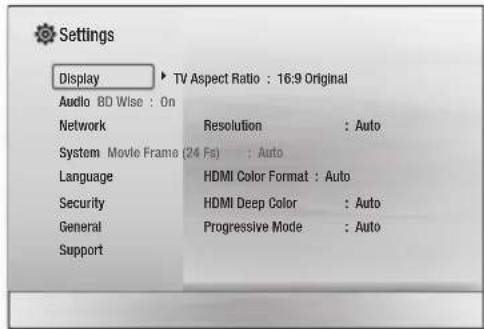

22 Accessing the Settings Screen
23 Settings Menu Functions

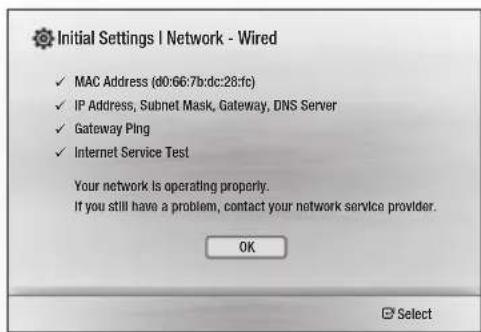

26 Networks and the Internet
28 Upgrading Software
29 Setting Up AllShare

GETTING STARTED

7 Disk and Format Compatibility
8 Logos of Discs the product can play

11 Accessories

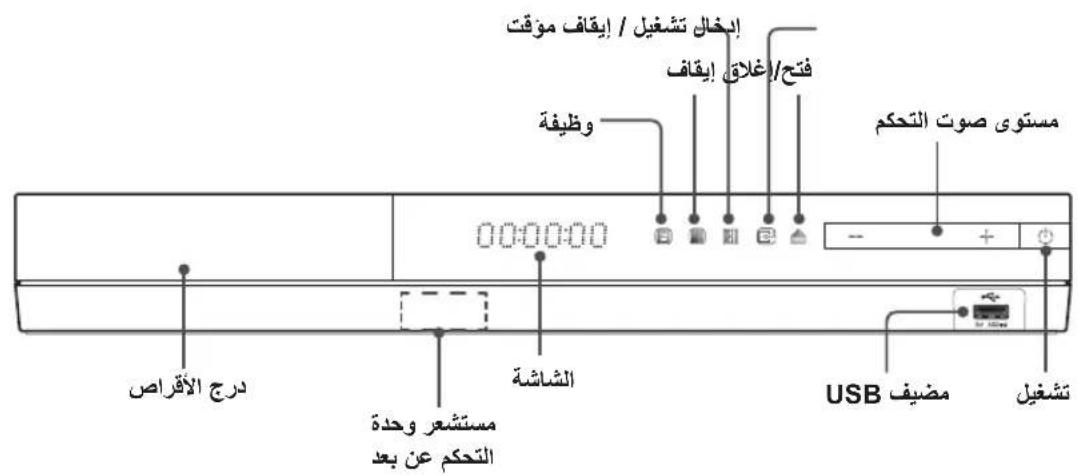

12 Front Panel

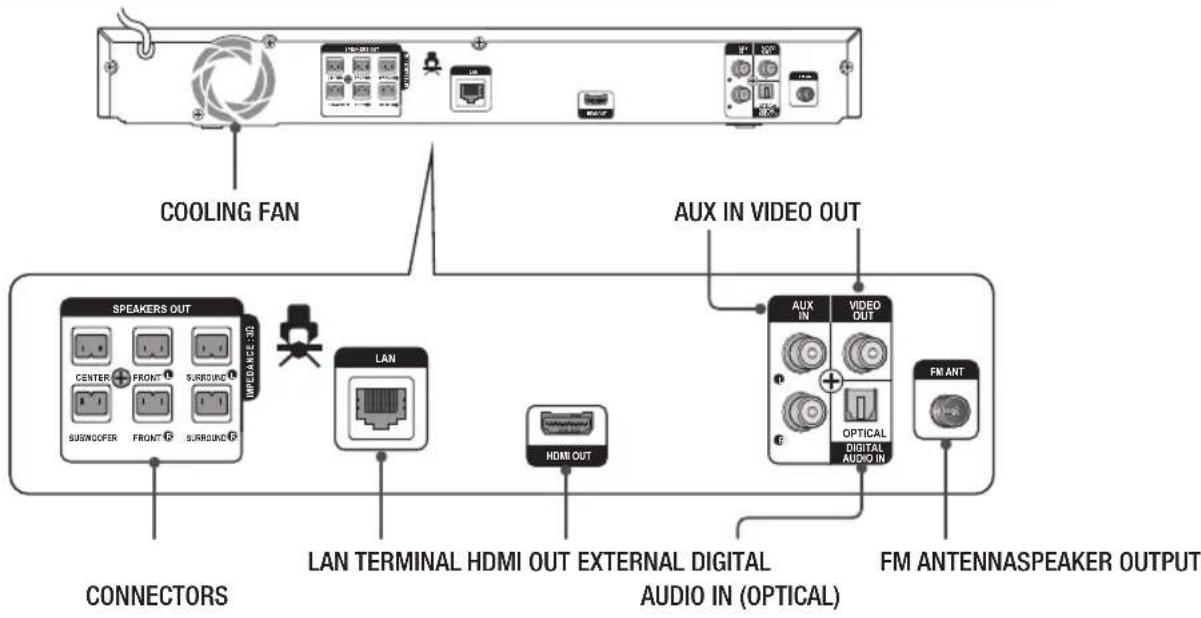

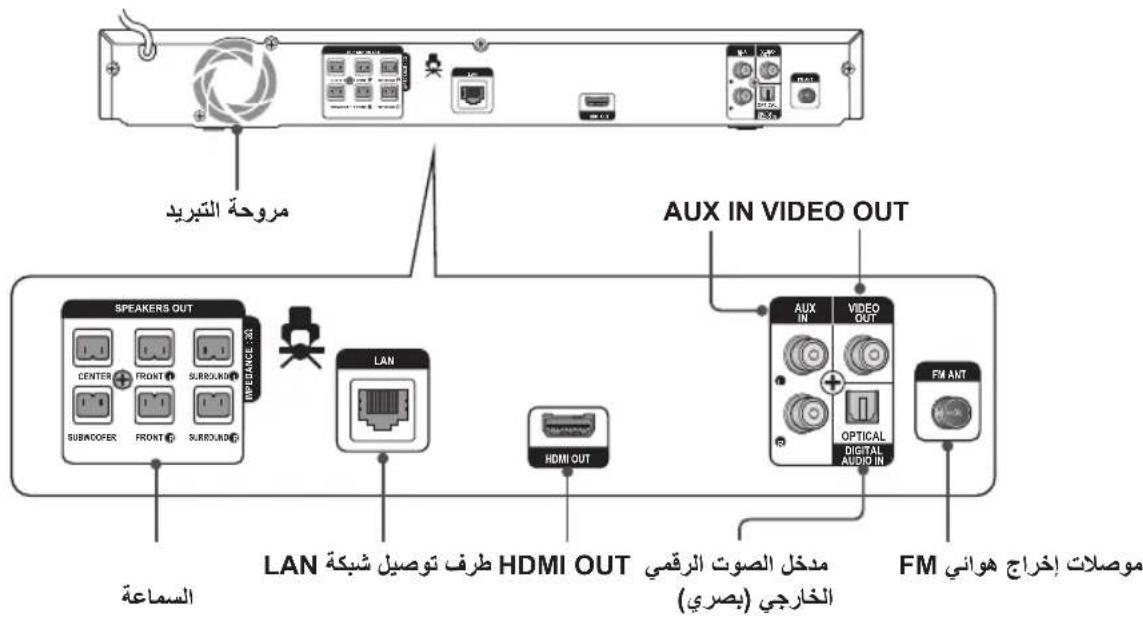

12 Rear Panel

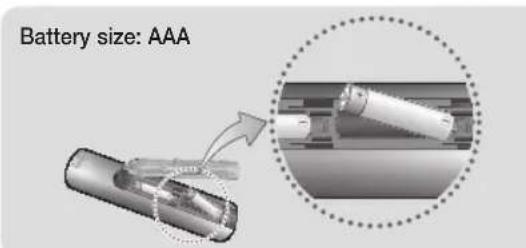

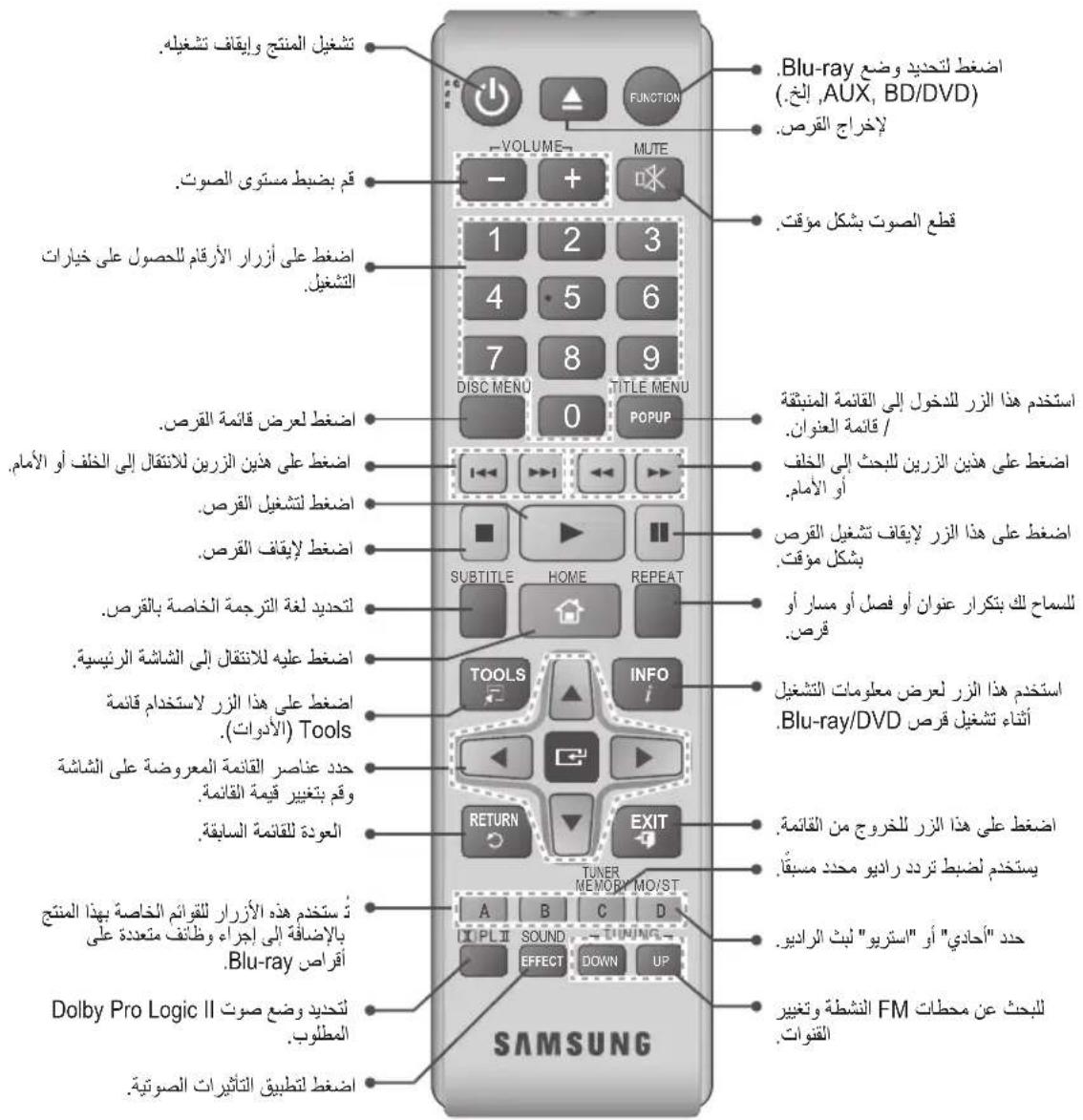

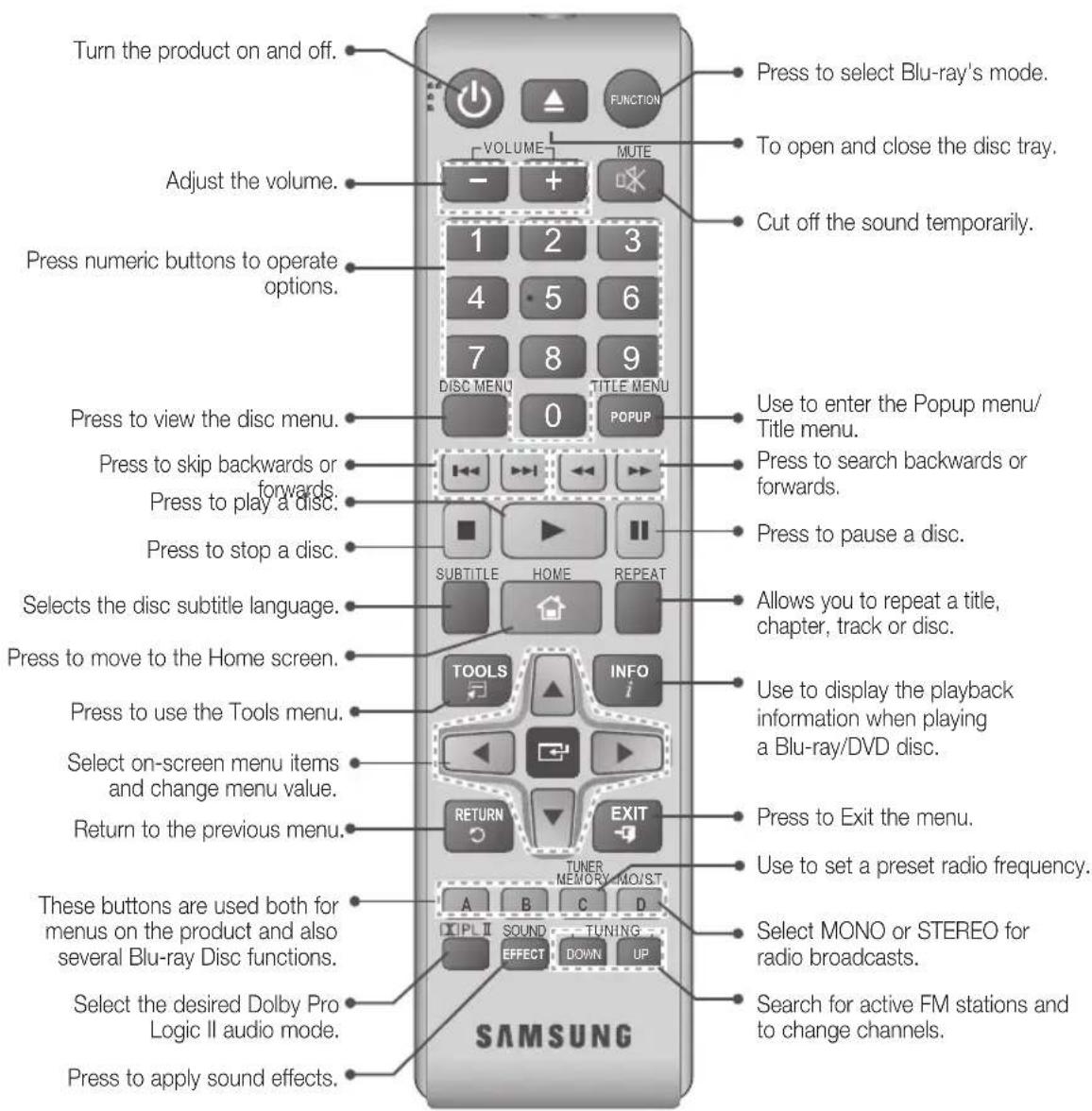

13 Remote Control

CONNECTIONS

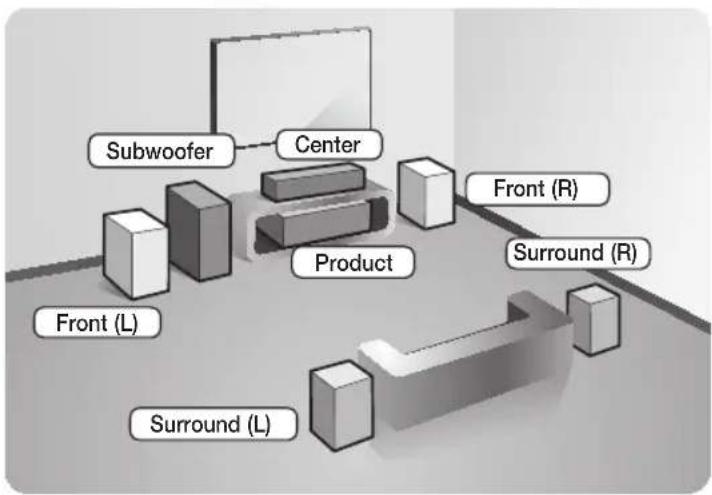

14 Connecting the Speakers

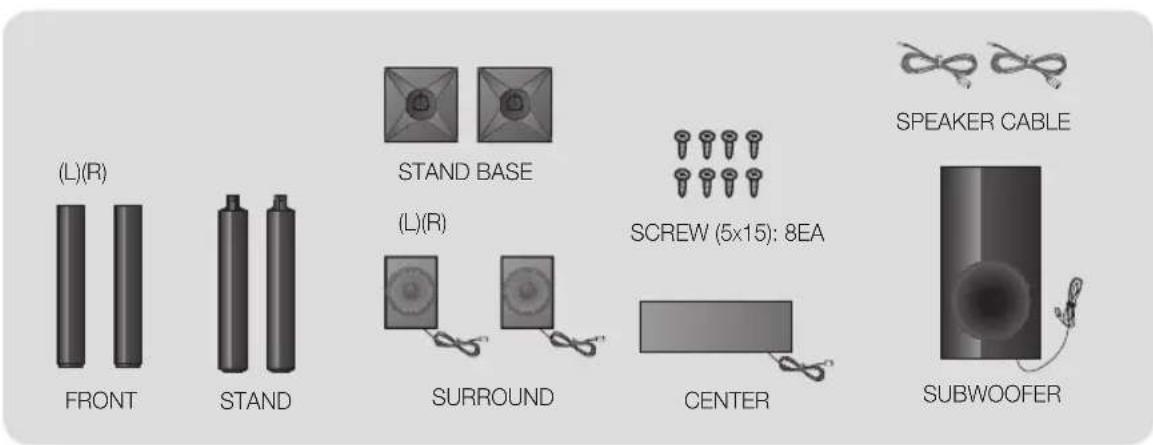

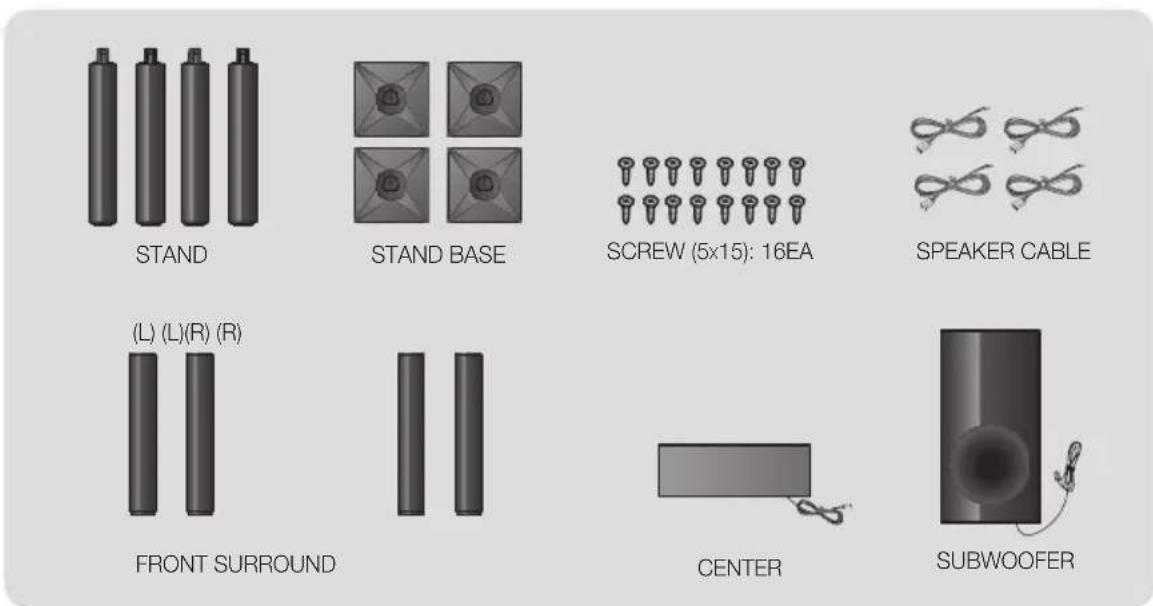

15 Speaker Components
16 Installing the Speakers on the Tallboy Stand
16 Connecting The Speakers
18 Connecting to a TV

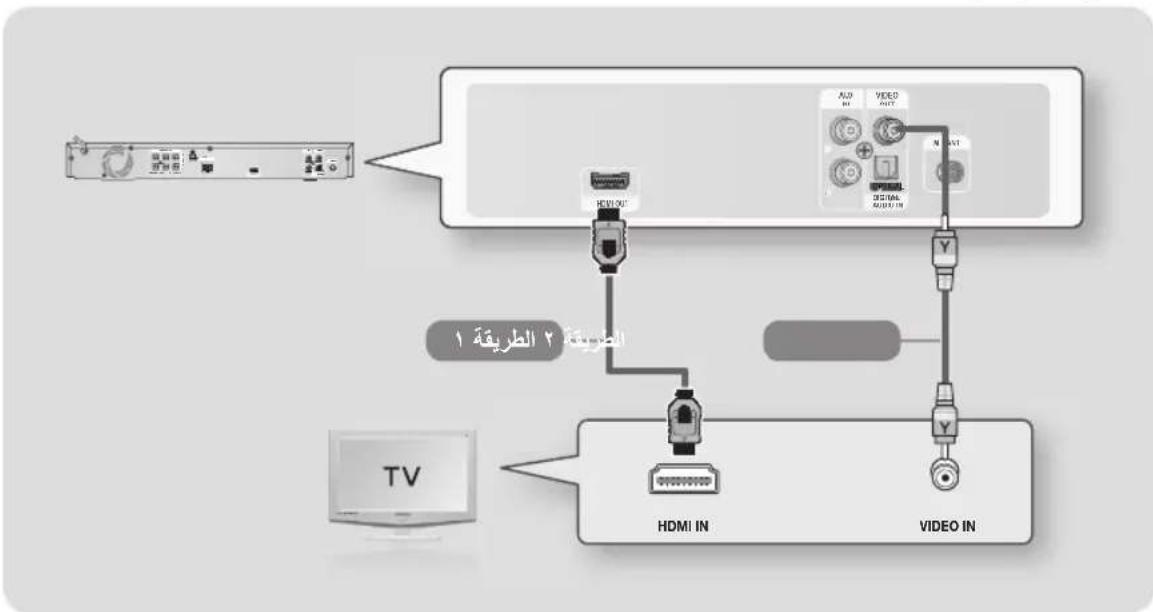

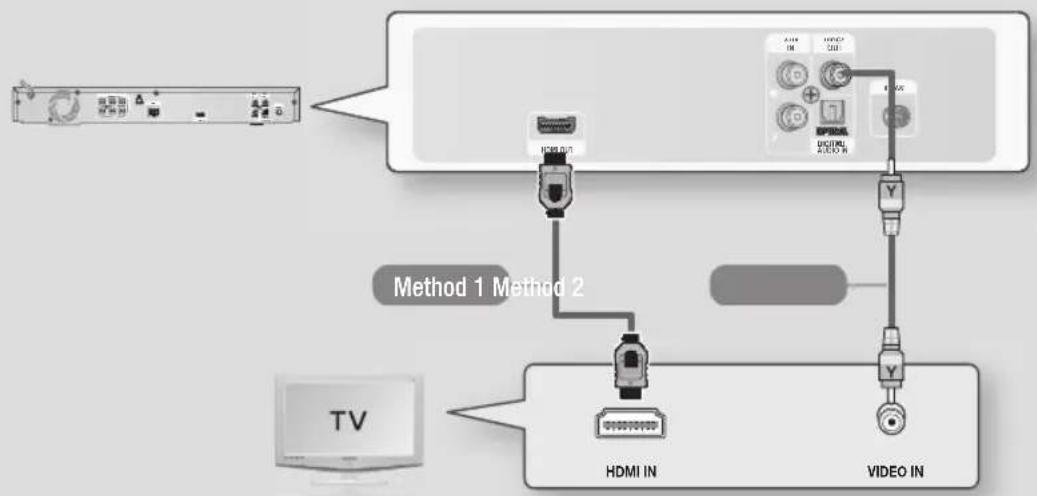

18 Method 1 Connecting to a TV with an HDMI Cable - Best Quality (Recommended)
18 Method 2 Connecting to a TV with an Video Cable - Good Quality
19 Connecting to External Devices

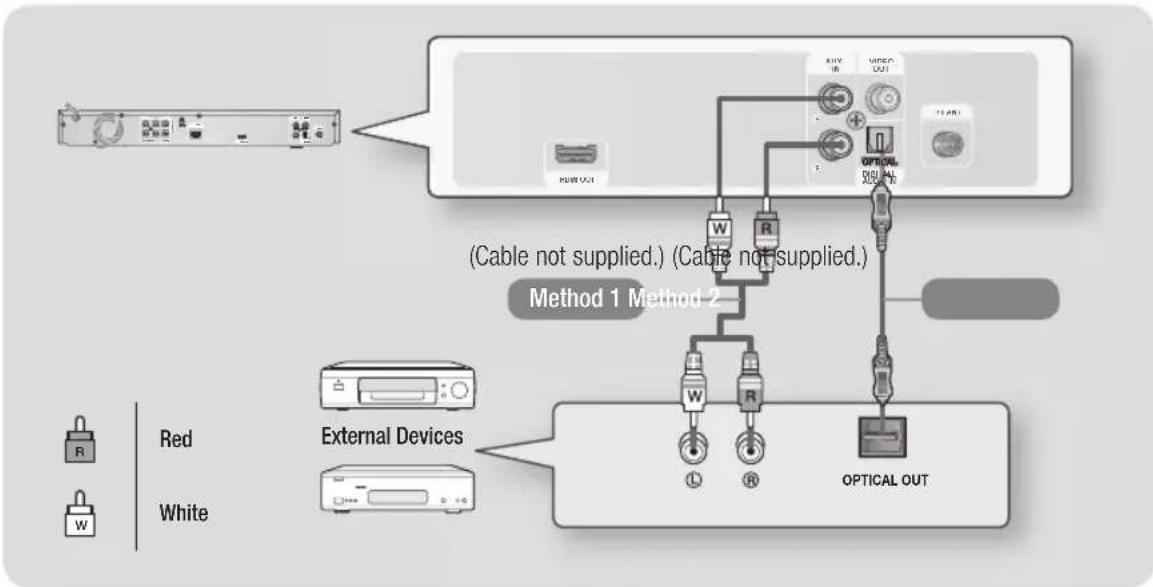

19 Method 1 AUX IN: Connecting an External Analog Component
19 Method 2 OPTICAL: Connecting an External Digital Audio Component

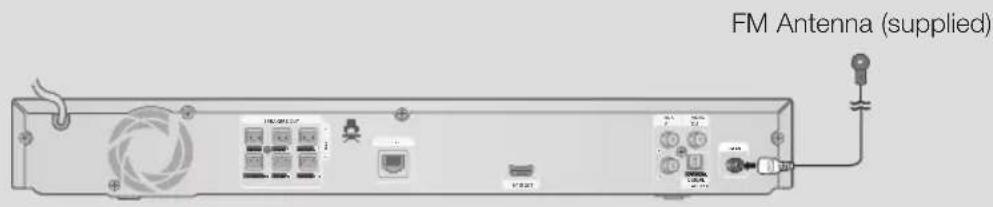

20 Connecting the FM Antenna
20 Connecting to a Network Router

MEDIA PLAY

30 Using the Streaming Media Services

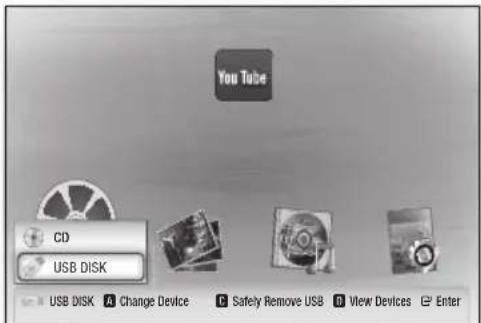

30 Playing Files on a USB Device
31 Playing a Disc with User Recorded Content
31 Playing a Commercial Video Disc

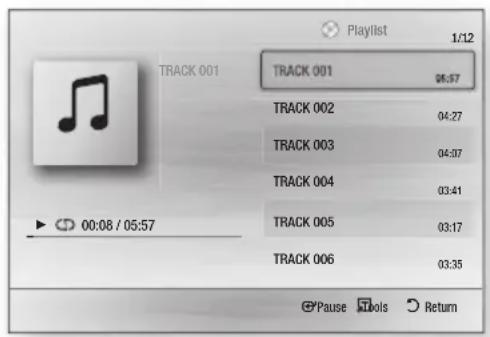

31 Playing a Pre-Recorded Commercial Audio Disc
32 Controlling Video Playback
34 Controlling Music Playback
35 Controlling Photo Playback
35 Listening to Radio
36 Using the Special Effects Remote Control Buttons
36 Using BD-LIVETM
37 Using AllShare

APPENDIX

38 Additional Information
43 Troubleshooting
46 Specifications

Disk and Format Compatibility

Disc types and contents your product can play

Media Disc	Type Details
VIDEO	Blu-ray Disc3D Blu-ray Disc	BD-ROM or BD-RE/-R disc recorded in the BD-RE format.
	DVD-VIDEO, DVD-RW, DVD-R, DVD+RW, DVD+R	DVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVDR/+R discs that have been recorded and finalized, or a USB storage media containing MKV, MP4 contents.
MUSIC	CD-RW/-R, DVD-RW/-R, BD-RE/-R	Music recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R discs or a USB storage media containing MP3 or WMA contents.
PHOTO	CD-RW/-R, DVD-RW/-R, BD-RE/-R	Photos recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R discs or a USB storage media containing JPEG contents.

NOTE

The product may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions.
If a DVD-RW/-R disc has not been recorded properly in DVD video format, it will not be playable.
- Your product will not play content that has been recorded on a DVD-R at a bitrate that exceeds 10 Mbps.
- Your product will not play content that has been recorded on a BD-R or USB device at a bitrate that exceeds 30 Mbps.
- Playback may not work for some types of discs, or when you use specific operations, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.
- When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly.

Disc types your product cannot play

HD DVD

DVD-RAM

DVD-RW(VR mode)

3.9 GB DVD-R Disc for Authoring.

DVD-ROM/PD/MV-Disc,etc

Super Audio CD (except CD layer)

CVD/CD-ROM/CDV/ CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)

NOTE

This product may not respond to all operating commands because some Blu-ray Disc, DVD, and CD discs allow specific or limited operation and provide only certain features during playback. Please note that this is not a defect in the product.
Samsung cannot guarantee that this product will play every disc bearing the Blu-ray Disc, DVD or CD logo because disc formats evolve, and problems and errors may occur during the creation of Blu-ray Disc, DVD, and CD software and/or the manufacture of discs.
Please contact the SAMSUNG Customer Care Center if you have questions or encounter difficulty when playing Blu-ray Disc, DVD, or CD discs in this product. Also, refer to rest of this user manual for additional information on playback restrictions.
- Some commercial discs and DVD discs purchased outside your region may not play on this product.

Getting Started

Region Code

Blu-ray players and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play.

The Region Number for this product is displayed on the rear panel of the product.

Disc Type	Region Code	Area
Blu-ray Disc	A	North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.
	B	Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.
	C	India, China, Russia, Central and South Asia.
DVD-VIDEO	1	The U.S., U.S. territories and Canada
	2	Europe, Japan, the Middle East, Egypt, South Africa, Greenland
	3	Taiwan, Korea, the Philippines, Indonesia, Hong Kong
	4	Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean
	5	Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia
	6	China

NOTE

If the Region number of a Blu-ray Disc/DVDs does not correspond to the Region number of this product, the product cannot play the disc.

Logos of Discs the product can play

Blu-rayDisc	Blu-ray 3D TM
Blu-ray Disc 3D Blu-ray Disc
BD-LIVE™	DOLBY TRUEJE DIGITAL PLUS
BD-LIVE Dolby
dts-hd Master Audio | Essential	PAL
DTS	PAL broadcast system in U.K, France, Germany, etc.
Java

Supported File Formats

Notes on the USB connection

• Your player supports USB storage media, MP3 players, digital cameras, and USB card readers.
• The player does not support folder or file names longer than 128 characters.
• Some USB/External HDD/digital camera devices may not be compatible with the player.
• Your player supports the FAT16, FAT32, and NTFS files systems.
• Connect USB devices directly to the player's USB port. Connecting through a USB cable may cause compatibility problems.
• Inserting more than one memory device into a multi-card reader may cause the reader to operate improperly.
• The player does not support the PTP protocol.

• Do not disconnect a USB device during a "loading" process.

• The bigger the image resolution, the longer the image takes to display.

• This player cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial sites.
• Your player only supports the video that is under 30fps (frame rate).
• You must remove the USB storage device safely (by performing the "Safely Remove USB" function) to prevent possible damage to the USB memory.

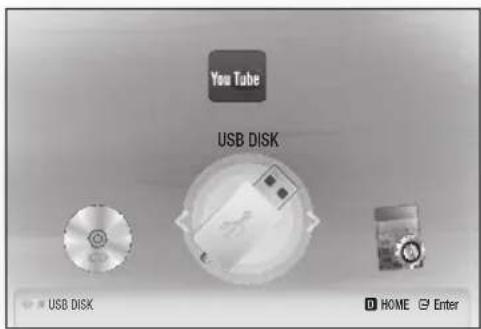

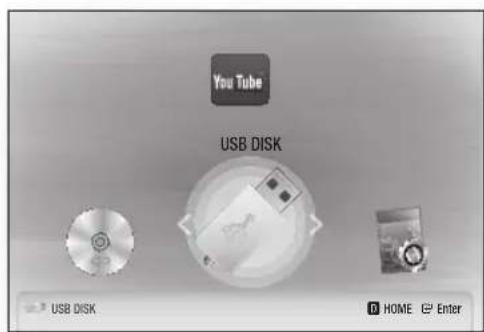

Press the HOME button to move to the home menu, press the YELLOW (C) button, and then press the C button.

SAMSUNG is not responsible for any data file damage or data loss.

Video File Support

File Extension Container Video Codec Audio Codec Resolution
*.avi	AVI	DivX 3.11/4.x/5.1/6.0	MP3	1920x1080
		MP4v3 1920x1080	AC3
			DTS
			WMA
			PCM	1920x1080
*.mkv	MKV	VC-1 AP	MP3	1920x1080
		DivX 5.1/6.0	AC3	1920x1080
		H.264 BP/MP/HP	DTS	1920x1080
*.wmv	WMV (wmv9)	VC-1 AP	WMA	1920x1080
		VC-1 SM		1920x1080
*.mp4	MP4	MP4 (mp4v)	AAC	1920x1080
		H.264 BP/MP/HP		1920x1080
*.mpg	PS	MPEG1	MP1, 2	1920x1080
*.mpeg		MPEG2	Dolby Digital	1920x1080
		H.264 BP/MP/HP	DTS	1920x1080

- Limitations

• Even when the file is encoded by a supported codec mentioned above, a file might not be played if its content has a problem.
• Normal playback is not guaranteed if the file's container information is wrong or the file itself is corrupted.
• Files having a higher Bitrate or frame rate than standard may stutter during sound/video playback.
• The Seek (skip) function is not available if the file's index table is damaged.

Video decoder

Supports up to H.264 Level 4.1 and AVCHD
- Does not support H.264 FMO/ASO/RS and VC1 SP/MP/AP L4

-MPEG4SP,ASP:

Below 1280 x 720 : 60 frames max

Above 1280× 720:30 frames max

Getting Started

• Does not support GMC 2 or higher

Audio decoder

• Supports WMA 7, 8, 9 and STD
• Does not support WMA sampling rate of 22050Hz mono.

Music File Support

File Extension Co	Container Audio Codec	Support Range
*.mp3	MP3 MP3 -
*.wma	WMA WMA		Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48 Bitrates - All bit-rates from 5kbps to 384kbps

AVCHD (Advanced Video Codec High Definition)

• This product can play back AVCHD format discs. These discs are normally recorded and used in camcorders.
• The AVCHD format is a high definition digital video camera format.
• The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the conventional image compressing format.
• Some AVCHD discs use the "x.v.Color" format. This product can play back AVCHD discs that use "x.v.Color" format.
• "x.v.Color" is a trademark of Sony Corporation.
  "AVCHD" and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd. and Sony Corporation.

NOTE

Some AVCHD format discs may not play, depending on the recording conditions.
AVCHD format discs need to be finalized.
"x.v.Color" offers a wider color range than normal DVD camcorder discs.
- Some MKV and MP4 format discs may not play, depending on their video resolution and frame rate.

Accessories

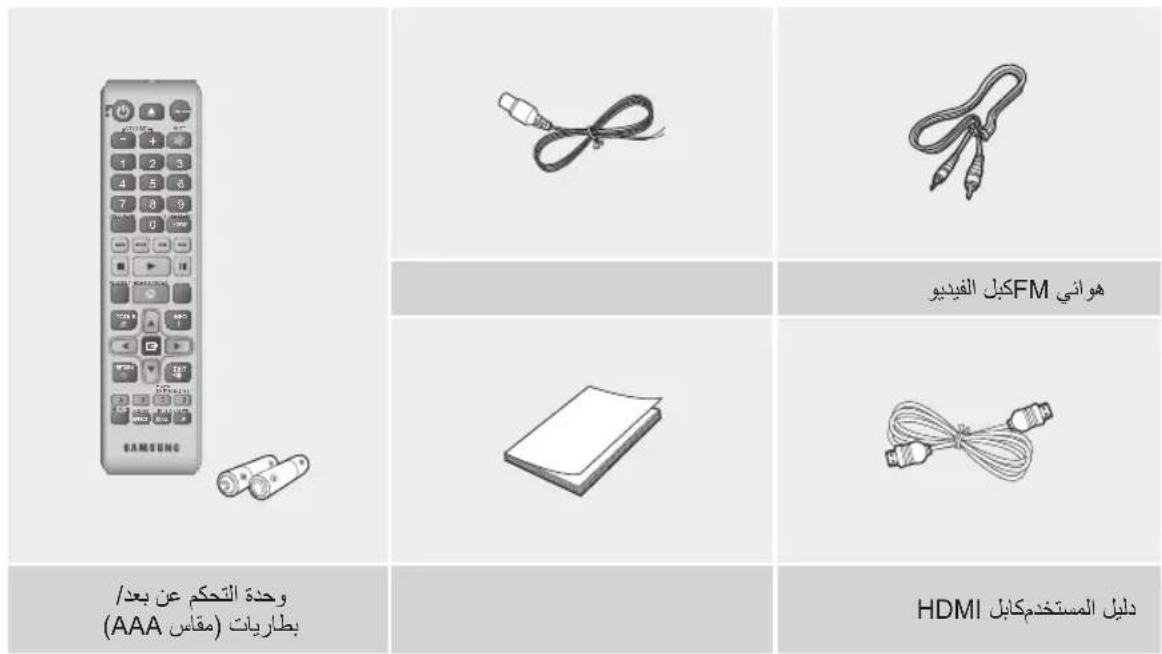

Check for the supplied accessories below.

Video Cable FM Antenna

HDMI Cable User Manual Remote Control / Batteries (AAA size)

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Getting Started

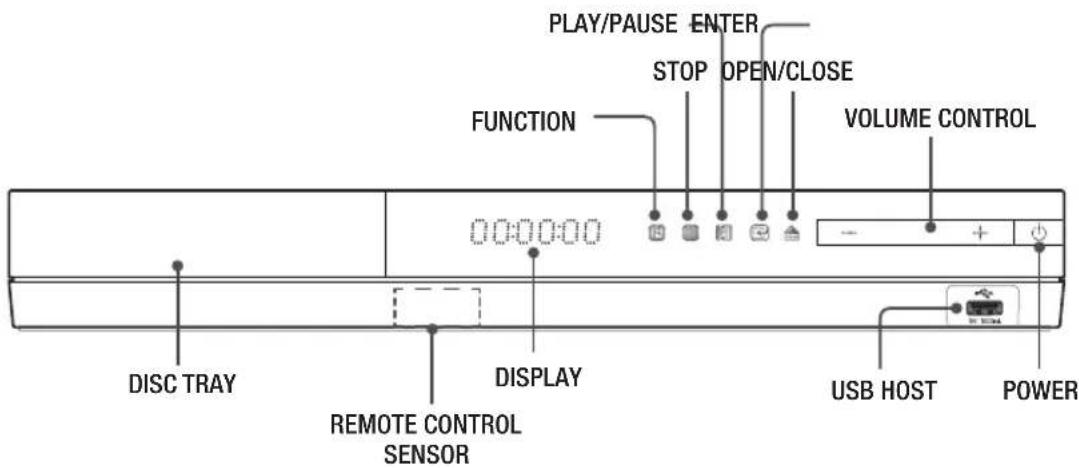

Front Panel

NOTE

To upgrade the product's software through the USB Host jack, you must use a USB memory stick.
- When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the button on the product or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the button.

Rear Panel

|NOTE|

• Ensure a minimum of 4 inches of clear space on all sides of the home theater to ensure adequate ventilation. Do not obstruct the cooling fan or ventilation holes.

12 English

Remote Control

Tour of the Remote Control

Installing batteries in the Remote Control

| NOTE |

Make sure to match the ^+ and - ends of the batteries with the diagram inside the compartment.
Assuming typical TV usage, the batteries last for about one year.
The remote control can be used up to approximately 23 feet (7 meters) from the product in a straight line.

Connections

This section describes various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers

Position of the product

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the size of the TV's screen from the TV. For example, if you have a 46 inch screen, locate the listening position 115 to 138 inches (9.6 to 11.5 feet) from the screen.

Front Speakers	Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the front speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.
Center Speaker	It is best to install the Center Speaker at the same height as the front speakers. You can also install it directly over or under the TV.
Surround Speakers	Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face each other. Position them about 2 to 3 feet (60 to 90cm) above your ear, facing slightly downward. • Unlike the front and center speakers, the surround speakers are used mainly for sound effects. Sound will not come from them all the time.
Subwoofer	The position of the subwoofer is not so critical. Place it anywhere you like.

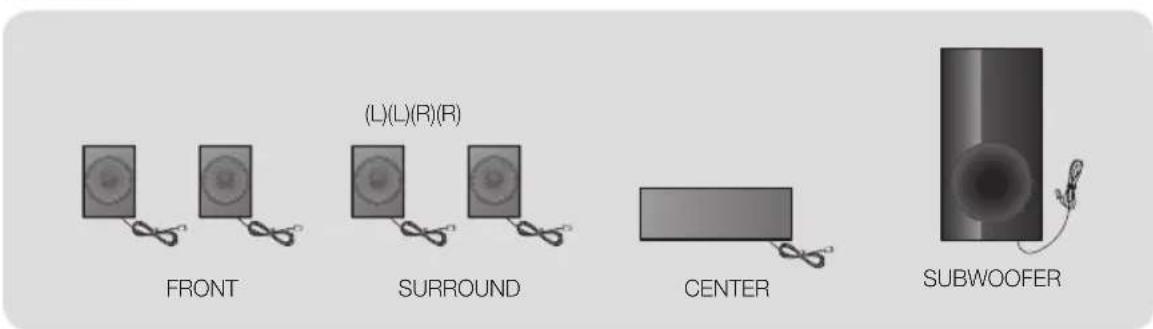

Speaker Components

HT-E3500

HT-E3530

HT-E3550

Connections

Installing the Speakers on the Tallboy Stand

• HT-E3530 only - Front Speakers

• HT-E3550 only - Front/Surround Speakers

• Turn the Stand Base upside-down and connect it to the Stand.

• Insert screws clockwise into the three holes marked using a screwdriver as shown in the illustration.

1

Stand Base

2

1. Straighten a supplied speaker wire and put in the hole on the Center of Stand Base.
2. Connect the upper Speaker to the assembled Stand.

3

4

1. Insert a screw clockwise into the hole on the rear of the speaker using a screwdriver. And then connect a speaker cable.
2. This is the appearance after the speaker is installed. Follow this steps to install other speaker.

5

6

Connecting The Speakers

1. Match the subwoofer cable bundle to the subwoofer by matching the color coded plug on bundle to the colored sticker on the bottom of the subwoofer.
2. To attach speaker wire to the subwoofer:

a. Press down the red tab on the back of the subwoofer, insert the red wire, and then release the tab.
b. Press down the black tab on the back of the subwoofer, insert the black wire, and then release the tab.

1. Connect the speaker wire plugs from each speaker to the back of the product by matching the colors of the speaker plugs to the colors of the speaker jacks.

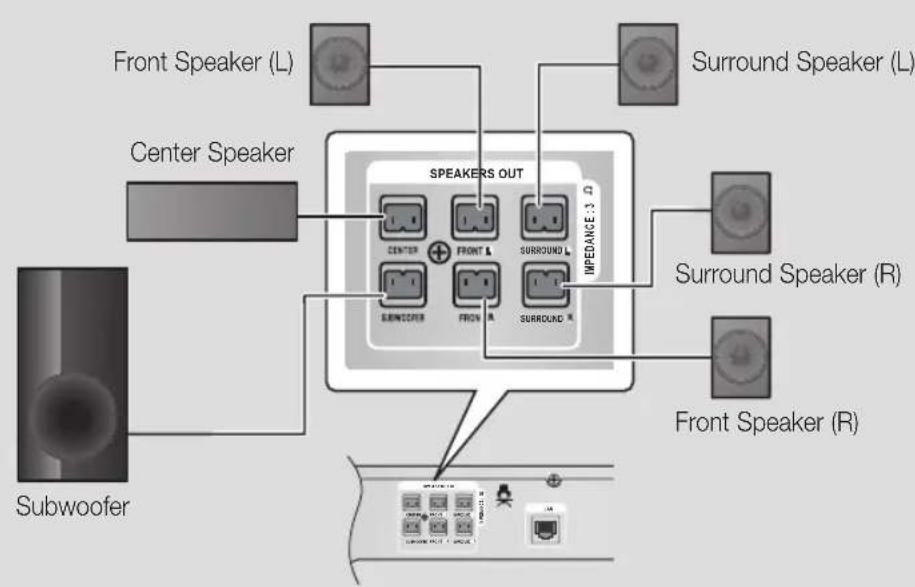

In case of HT-E3500

CAUTION

To mount your speakers on a wall, fix screws or nails on the desired wall securely and install the speaker using the stud hole on the rear side. Note that screws or nails for wall-mounted installation is not provided with the product.
Do not let children play with or near the speakers. They could get hurt if a speaker falls.
- When connecting the speaker wires to the speakers, make sure that the polarity (+ / - ) is correct.
- Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands or alien substances into the duct (hole) of the subwoofer speaker.
Do not hang the subwoofer on the wall through the duct (hole).

NOTE

If you place a speaker near your TV set, the screen color may be distorted because of the magnetic field.

Connections

Connecting to a TV

Select either Method 1 or Method 2.

Method 1 Connecting to a TV with an HDMI Cable - Best Quality (Recommended)

Connect an HDMI cable from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

If the TV supports ARC, you can hear TV sound from home theater with only connect this cable.

Method 2 Connecting to a TV with an Video Cable - Good Quality

Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack on your TV.

| NOTE |

The VIDc0ut jack always outputs in the 576i/480i resolution regardless of the resolution set in the Setup menu.
Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

Connecting to External Devices

To select the correct mode for an external device, press the FUNCTION button. Each time you press the button, the mode changes in this order: BD/DVD D.IN AUX FM

Method 1 AUX IN: Connecting an External Analog Component

Using an RCA audio cable (not supplied), connect the AUDIO In jack on the product to the AUDIO Out jack on the external analog component. Select the AUX mode.

• Be sure to match the colors on the cable plugs to the colors on the input and output jacks.

Method 2 OPTICAL: Connecting an External Digital Audio Component

To connect the digital audio output of digital signal components such as Cable Boxes and Satellite Receivers (Set-Top-Boxes).

Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack on the product to the Digital Optical Out jack of the external digital device using a digital optical cable.

Select the D.IN mode.

NOTE

To see video from your Cable Box/Satellite receiver, you must connect its video output directly to your TV.
This system supports Digital sampling frequencies of 32kHz or higher from external digital components.
This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not supported

Connections

Connecting the FM Antenna

1. Connect the FM antenna supplied to the FM ANTENNA Jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

NOTE

This product does not receive AM broadcasts.

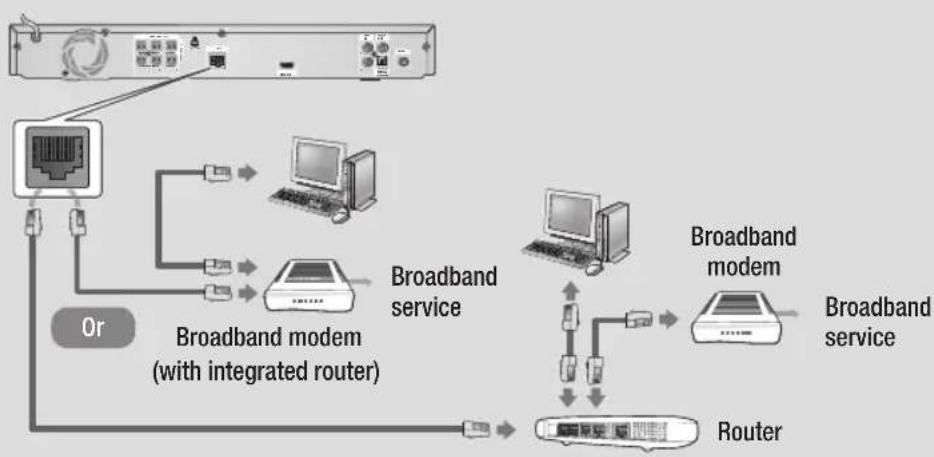

Connecting to a Network Router

You can connect your product to your network router using one of the methods illustrated below.

NOTE

• Internet access to Samsung's software update server may not be allowed, depending on the router you use or your ISP's policy. For more information, contact your ISP (Internet Service Provider).
• DSL users, please use a router to make a network connection.
  For the AllShare function, a PC must be connected in the network as shown in the figure.

The Initial Settings Procedure

• The Home menu will not appear if you do not configure the initial settings.
• The OSD (On Screen Display) may change in this product after you upgrade the software version.

• The access steps may differ depending on the menu you selected.

• Turn on your TV after connecting the product, and then turn on the product. When you turn on the product for the first time, the product automatically displays the Initial Settings Language screen.

• Press the buttons to select the desired language, and then press the button.
• Press the button to start function setup.

1. The TV Aspect screen appears. Press the buttons to select desired a TV Aspect ratio, and then press the button. You have four choices:

16:9 Original - For widescreen TVs. Displays widenscreen pictures in their original 16:9 format and 4:3 pictures (the old, standard format) in 4:3 pillar box format with black bars on the left and right.

16:9 Full - For widescreen TVs. Displays widenscreen pictures in their original 16:9 format and expands 4:3 pictures to fill the 16:9 screen.

4:3 Letter Box - For older, standard screen analog TVs. Displays 4:3 pictures in full screen and 16:9 pictures in letter box format that retains the 16:9 aspect ratio but puts black bars above and below the picture.

4:3 Pan-Scan - For older, standard screen analog TVs. Displays 4:3 pictures in full screen and 16:9 pictures in Pan-Scan format that fills the screen, but cuts off the left and right sides of the picture and enlarges the middle vertically.

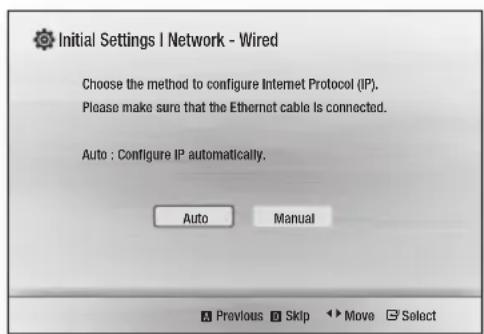

1. The Network - Wired screen appears.

2. If you have a network with dynamic IP addresses - and most people do - select Auto, press the button, and then go to Step 6.
   If you have a network with static IP addresses, we suggest you select Skip by pressing the BLUE (D) button, and then go to "Configuring Your Network Connection" on page 26 after you have completed the initial setup. "Configuring Your Network Connection" provides a full explanation of how to configure your network connection manually.

3. If you have no network, select Skip by pressing the BLUE (D) button. The Initial Settings Complete screen appears, and then the Home screen appears.

| NOTE |

If you skip network setup here or the setup does not work correctly, you can go to "Configuring Your Network Connection" on page 26 to set up the product's network connection later.

1. The product verifies the network connection and then connects to the network. When it is done, press the button. The Initial Settings Complete screen appears, and then the Home screen appears.

Settings

| NOTE |

If you want to display the Initial Setting screen again and make changes, select the Reset option. (See page 26)
If you use an HDMI cable to connect the product to an Anynet+(HDMI-CEC)-compliant Samsung TV and 1.) You have set the Anynet+(HDMI-CEC) feature to ON in both the TV and the product and 2.) You have set the TV to a language supported by the product, the product will select that language as the preferred language automatically.

The Home Screen

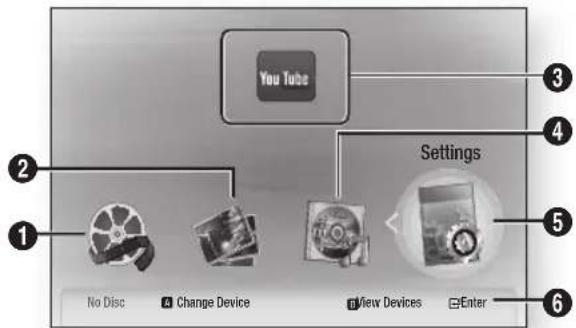

1	Videos. Play videos located on discs, USB devices, or your PC.
2	Photos. View photos located on discs, USB devices, or your PC.
3	Network Services. Select a network service: Vudu, CinemaNow or YouTube.
4	Music. Play music located on discs, USB devices, or your PC.
5	Settings. Set various functions to suit your personal preferences.
6	Displays the colored buttons on your remote that you can press to access or perform functions.

• Selecting an Option on the Home Screen

22 English

1. To select an option on the Home screen, move the cursor using the buttons until it highlights the option of your choice, and then press the button.

NOTE

To play or view video, music, or photo files located on your PC, you must connect your home theater and PC to a home network and you must download, install, and configure the AllShare software on your PC. (See page 29)

Accessing the Settings Screen

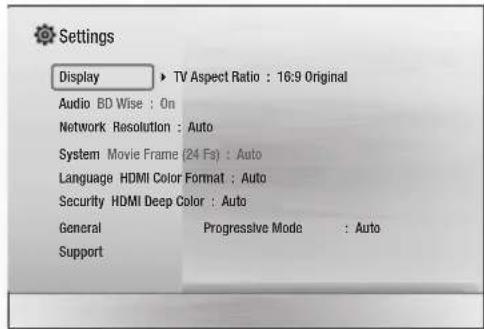

1. Select Settings on the Home screen, and then press . The Settings screen appears.

1. To access the menus, sub-menus, and options on the Settings screen, please refer to the remote control illustration below.

| NOTE |

If you leave the product in the stop mode for more than 5 minutes without using it, a screen saver will appear on your TV. If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off.

Buttons on the Remote Control Used for the Settings Menu

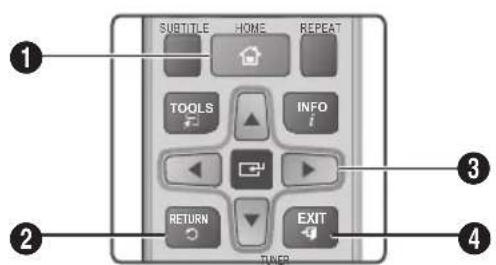

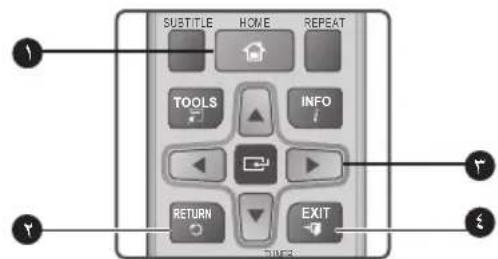

1	HOME Button:Press to move to the Home screen.
2	RETURN(∼)Button:Return to the previous menu.

3

(Enter) / DIRECTION Button :

• Press ▲▼▲▶ to move the cursor or select an item.
• Press the button to activate the currently selected item or confirm a setting.

EXIT Button : Press to exit the current menu.

NOTE

The button on the product's front panel can be used for same purpose as the button on the remote control.

Detailed Function Information

Each Settings function, menu item, and individual option is explained in detail on-screen. To view an explanation, use the buttons to select the function, menu item, or option.

The explanation will usually appear the bottom of the screen. A short description of each Settings function starts on this page. Additional information on some of the functions is also in the Appendix of this manual.

Settings Menu Functions

Display	3D Settings	Set up the 3D related functions. ✓ 3D Blu-rayPlayback Mode: Select whether to play a Blu-ray Disc with 3D contents in 3D Mode. If you move to the Home or Smart Hub Home menu while in 3D mode, the product will switch to 2D automatically. ✓ Screen Size: Enter the size of the TV attached to the product. The product will automatically adjust the 3D output to the screen size of the TV.
	TV Aspect Ratio	Lets you adjust the output of the product to the screen size of your TV. See page 21, Step 4 for a description of the screen size options.
	BD Wise	BD Wise is Samsung's latest inter-connectivity feature. When you connect a Samsung product and a Samsung TV with BD Wise to each other via HDMI, and BD Wise is on in both the product and TV, the product outputs video at the video resolution and frame rate of the Blu-ray/DVD Disc.
	Resolution	Lets you set the output resolution of the HDMI video signal to Auto, 1080p, 1080i, 720p, 576p/480p. If Composite is connected, the resolution supports only 576i/480i. The number indicates the number of lines of video per frame. The i and p indicate interlaced and progressive scan, respectively. The more lines, the higher quality.
	Movie Frame (24 Fs)	Setting the Movie Frame (24 Fs) feature to Auto lets the product adjust its HDMI output to 24 frames per second automatically for improved picture quality if attached to a 24Fs compatible TV. • You can enjoy the Movie Frame (24 Fs) feature only on a TV supporting this frame rate. • Movie Frame is only available when the product is in the HDMI 1080i or 1080p output resolution modes.

Settings

	HDMI Color Format	Lets you set the color space format for the HDMI output to match the capabilities of the connected device (TV, monitor, etc).
	HDMI Deep Color	Lets you set the product to output video from the HDMI OUT jack with Deep Color. Deep Color provides more accurate color reproduction with greater color depth.
	Progressive Mode	Lets you improve picture quality when viewing DVDs.
Audio	Speaker Setting	You can set the speaker options.
	Speaker Selection	Lets you select which speakers you want active, either the TV's speakers or the Home theatre's speakers.
	Audio Return Channel	Lets you direct the sound from the TV to the Home Theater speakers. Requires an HDMI connection and an Audio Return Channel (ARC) compatible TV. ·When Audio Return Channel is set to Auto, the home theater automatically selects either ARC or optical input as the audio source, depending on your connections. If Audio Return Channel is active, optical input does not work.
	Digital Output	Lets you set the Digital Output to match the capabilities of the AV receiver you've connected to the product. For more details, please refer to the digital output selection table. (See page 42)
	Dynamic Range Control	Lets you apply dynamic range control to Dolby Digital, Dolby Digital Plus, and Dolby True HD audio. ✓Auto: Automatically controls the dynamic range of Dolby TrueHD audio, based on information in the Dolby TrueHD soundtrack. Also turns dynamic range control on for Dolby Digital and Dolby Digital Plus. ✓Off: Leaves the dynamic range uncompressed, letting you hear the original sound. ✓On: Turns dynamic range control on for all three Dolby formats. Quieter sounds are made louder and the volume of loud sounds is reduced.
	Audio Sync	When the product is attached to a digital TV, lets you adjust the audio delay so that the audio syncs with the video. You can set the delay between 0 and 300 milliseconds.
Network	Wired Network Settings	For more information about Network Settings and network functions, see "Networks and the Internet" starting on page 26.
	Network Test	Lets you test the Internet Protocol setup to see if it is working correctly.
	Network Status	Lets you check whether a connection to the network and the Internet have been established.
	BD-Live Internet Connection	Lets you allow or prohibit an Internet connection for the BD-Live service.
System	Initial Settings	Lets you re-run the Initial Settings procedure. See page 20 for details.
	Anynet+ (HDMI-CEC)	Anynet+ is a convenient function that offers linked operations with other Samsung products that have the Anynet+ feature and lets you control those products with one Samsung TV remote. To operate this function, you must connect this product to an Anynet+ Samsung TV using an HDMI cable.
	BD Data Management	Lets you manage the contents you downloaded through a Blu-ray disc that supports the BD-Live service. You can view the information about the USB device you are using for BD Live data storage including the storage space. You can also delete BD Live data and change the device.
Language	You can select the language you prefer for the On-Screen Menu, disc menu, etc. • The selected language will only appear if it is supported on the disc.
Security	The default PIN is 0000. Enter the default PIN to access the security function if you haven't created your own PIN.
	BD Parental Rating	Prevents playback of Blu-ray Discs with a rating equal to or above a specific age ratings unless the PIN is entered.
	DVD Parental Rating	Prevents playback of DVDs with a rating above a specific numerical ratings unless the PIN is entered.
	YouTube Lock	If the lock set to On, you must enter the PIN to use the service.
	Change PIN	Change the 4-digit PIN used to access security functions.
General	Time Zone	You can specify the time zone that is applicable to your area.

Settings

Support	Software Upgrade	For more information about the Software Update function, see "Upgrading Software" on page 28.
	Contact Samsung	Provides contact information for assistance with your product.
	Terms of Service Agreement	View the general disclaimer regarding third party contents and services.
	Reset	All settings will revert to the default except for the network settings. The default security password is 0000.

Networks and the Internet

When you connect this product to a network, you can use network based applications and functions such as BD-LIVE and upgrade the product's software through the network connection.

Configuring Your Network Connection

Before you begin, contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, we recommend you use the Automatic procedure below. If it is static, you must use the Manual procedure that follows.

• Before you begin, confirm that the product is connected to your router with a network cable.

Automatic

To start the configuration process, follow these steps:

1. In the Home menu, select Settings, and then press the button.
2. Select Network, and then press the button.

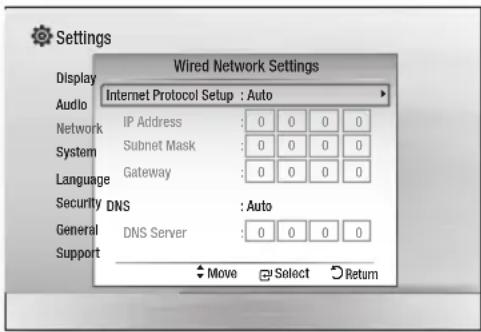

3. Select Wired Network Settings, and then press the button. The Wired Network Settings screen appears.
4. Press the button on the Internet Protocol Setup menu. Use button to select Auto and then press the button.

1. The Network function acquires and fills in the values for IP Address, Subnet Mask, etc., automatically.
2. After the Network function has acquired the network values, press the RETURN (O) button.
3. Select Network Test, and then press The home theater validates the network connection. When it is done, press the RETURN (5) button.

Manual

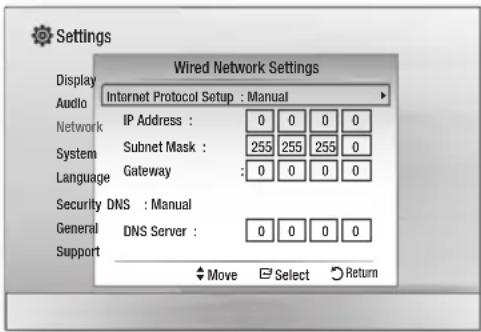

If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually.

1. Follow the first four steps in the Automatic procedure, but select Manual instead of Auto in Step 4.
2. Press the arrow button to go to the first entry field (IP Address).
3. Use the number buttons on your remote to enter numbers.
4. When done with each field, use the button to move successively to the next field. You can also use the other arrow buttons to move up, down, and back.
5. Enter the IP Address, Subnet Mask, and Gateway values.
6. Press the button to go to DNS.
7. Press the button to go to the first DNS entry field. Enter the numbers as above.
8. Press the RETURN (O) button on your remote.
9. Select Network Status, and then press
10. The Network Status screen appears. The product verifies the network connection and then connects to the network. When it is done, highlight OK, and then press .

NOTE

• You can get the Network values from your Internet provider. You can also view these values on most Windows computers. For instructions, see "Getting the Network Setting Values" on this page.

You can view your Network Settings values on most Windows computers. To view the Network Settings values, follow these steps:

• Windows XP
• Right click the Network icon on the bottom right of the Windows desktop.
• In the pop-up menu, click Status.
• On the dialog that appears, click the Support tab.
• On the Support tab, click the Details button. The Network settings are displayed.
  Windows 7
• Click the Network icon on the bottom right of the Windows desktop.
• In the pop-up menu, click Network and Sharing Center.
• On the dialog that appears, click the Local Area Connection.
• On the Support tab, click the Details button. The Network settings are displayed.

| NOTE |

Depending on your Windows version, the information may differ.

Settings

Upgrading Software

The Software Upgrade menu allows you to upgrade the product's software for performance improvements or additional services.

• Never turn the product off or back on manually during the update process.

• In the Home menu, select Settings, and then press the button.

• Select Support, and then press the button.
• Select Software Upgrade, and then press the button.

• Select one of the following methods:

• By Online

• By USB
• Auto Upgrade Notification

5·Press the button.

Directions for each method begin below.

| NOTE |

The update is complete when the product turns off after restarting. Press the POWER button to turn on the updated product for your use. Never turn the product on or off manually during the update process.
Samsung Electronics takes no legal responsibility for product malfunction caused by an unstable Internet connection or consumer negligence during a Software Update.
If you want to cancel the upgrade while the upgrade software is downloading, press the button.

By Online

Your product must be connected to the Internet to use the By Online function. Remove all discs before you begin.

1. Select By Online, and then press the button. The Connecting to Server message appears.
2. If an update is available, a popup message appears asking if you want to upgrade. If you select Yes, the product turns off automatically, turns on, and then begins the upgrade.

|IMPORTANT|
- Never turn the home theater on or off manually during a software upgrade.

28 English

1. The update progress popup appears. When the update is completed, the product turns off automatically again.
2. Press the POWER button to turn on the product.

| NOTE |

The update is complete when the product turns off after restarting. Press the POWER button to turn on the updated product for your use.
- Never turn the product off or on manually during the update process.
Samsung Electronics takes no legal responsibility for a product malfunction caused by an unstable internet connection or consumer negligence during software upgrade.

By USB

1. Visit www.samsung.com.
2. Click SUPPORT on the top right of the page.
3. Enter the product's model number into the search field, and then click Find Product.
4. Click Get downloads in the center of the page below the Downloads header.
5. Click Firmware in the center of the page.
6. Click the ZIP icon in the File column on the right side of the page.
7. Click OK in the pop-up that appears to download and save the firmware file to your PC.
8. Unzip the zip archive to your computer. You should have a single folder with the same name as the zip file.
9. Copy the folder to a USB flash drive.
10. Make sure no disc is inserted in the product, and then insert the USB flash drive into the USB port of the product.
11. In the product's menu, go to Settings > Support > Software Upgrade.
    12·Select By USB.

NOTE

There should be no disc in the product when you upgrade the software using the USB Host jack.
- Never turn the product off or on manually during the update process.
- When the Software Update is done, check the software details in the Software Upgrade menu.

Auto Upgrade Notification

If your product is connected to the network and you set Auto Upgrade Notification on, the product will notify you if a new software version is available with a pop-up message.

1·Turn on the product.
2. In the Software Update menu, set Auto Upgrade Notification to On. If there is a new software version available, the product will notify you with a pop-up message.
3. To upgrade the firmware, select Yes. The product turns off automatically, turns on, and then begins the upgrade.
4. The update progress popup will appear. When the update is complete, the product will turn off automatically again.
5. Press the POWER button to turn on the product.

NOTE

The update is complete when the product turns off after restarting. Press the POWER button to turn on the updated product for your use. Never turn the product on or off manually during the update process.
Samsung Electronics shall take no legal responsibility for product malfunction caused by unstable of internet connection or consumer negligence during Software Update.

Setting Up AllShare

AllShare enables you to play music, video and photo files in your PC using the product. To use AllShare, you must connect the product to your PC via the network (See page 20) and install the SAMSUNG PC Share Manager on the PC.

To Download the AllShare Software

To use AllShare with your PC, you must install AllShare software on your PC. You can download the PC software and get detailed instructions for using AllShare from the Samsung.com website.

1. Go to www.samsung.com.
2. Click SUPPORT at the top of the page.
3. On the Support page, enter the model number of your player into the Model Number field, and then press the button.
4. On the page that appears, click Get downloads on the left side under Downloads. The Download Center appears.
5. On the Download Center page, click the Software tab.
6. On the software tab, click the File icon on the right side of the AllShare line.
7. In the pop-up that appears, click Save File.
8. Find the AllShare install file on your disk, and then double click the file.
9. In the pop-up that appears, click Run, and then follow the directions that appear on your screen.

Download the AllShare Installation/Instruction manual from the same Software Tab by clicking the corresponding PDF file symbol in the File column on the right. The file, in PDF format, will download and open. Follow the directions to install and setup AllShare. You can view and/or save the file.

| NOTE |

To use allshare with your smartphone, you need to connect your set & smartphone to the same router.

Media Play

Using the Streaming Media Services

• To use the Streaming Media Services, your home theater must be connected to the Internet. You also may need a vendor account for some services.

Use the buttons in the Home menu to move to the desired service, and then press the button.

YouTube. You can view video streamed by YouTube.

Playing Files on a USB Device

You can play multimedia files located on a connected USB device.

1. Move to the Home menu.
2. In Stop mode, connect the USB storage device to the USB port on the front panel of the product. The message "Do you want to access the device?" will be displayed.
3. Press the button to select Yes, then press the button.
4. Press the RED (A) button.

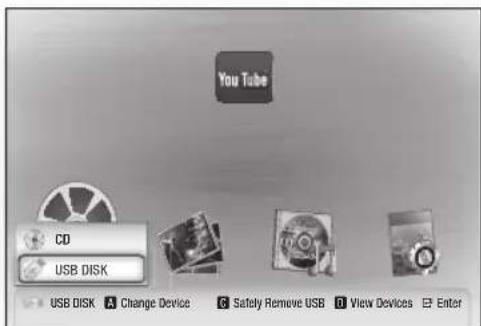

1. Press the buttons to select the USB Flash Mem or Disk then press the button.
2. Press the buttons to select Videos, Music or Photos, then press the button.
3. If files appear on the screen go to Step 8. If file folders appear on the screen, use the buttons to select a folder, press , and then go to Step 8.
4. Use the buttons to select a file to play or

view, and then press the button.

OR

1. Press the BLUE (D) button.

5-1. Press the buttons to select the USB Flash Mem or Disk then press the button.
6-1. Press the buttons to select Videos, Music or Photos, then press the button.
7. If files appear on the screen go to Step 8. If file folders appear on the screen, use the buttons to select a folder, press , and then go to Step 8.
8-1. Use the buttons to select a file to play or view, and then press the button.

NOTE

To prevent possible damage to the USB memory, you must remove the USB storage device safely using the "Safely Remove USB" function. Press the HOME button to move to the Home menu, select the YELLOW (C) button, and then press the button.
To listen to your music files with 5.1 channel sound, you must set the Dolby Pro Logic II mode to MATRIX. (See page 36)

Playing a Disc with User Recorded Content

You can play multimedia files you have recorded on DVD or CD discs.

1·Turn on the home theater.
2. Open the disc tray, place a user recorded disc into the disc tray with the disc's label facing up, and then close the tray.
3. After the disc loads, press the RED (A) button.
4. Press the buttons to select CD or DVD, and then press the button.
5. Press the buttons to select Videos, Music, or Photos, then press the button.
6. If files appear on the screen, go to Step 7. If file folders appear on the screen, use the buttons to select a folder, press , and then go to Step 7.
7. Use the buttons to select a file to play or view, and then press the button.

OR

3-1. After the disc loads, press the BLUE (D) button.
4. Press the buttons to select CD or DVD, and then press the button.
5. Press the buttons to select Videos, Music or Photos, and then press the button.
6-1. If files appear on the screen go to Step 7^-1 If file folders appear on the screen, use the buttons to select a folder, press , and then go to Step 7 ^ 一
7. Use the buttons to select a file to play or view, and then press the button.

Playing a Commercial Video Disc

Place a disc into the disc tray with the disc's label facing up and then close the disc tray. Playback starts automatically. If it does not playback automatically, move to Videos in the Home menu and press the button.

In most cases, commercial videos will display a disc menu. To play the movie on the disc, select Play on the disc menu, and then press .

| NOTE |

For more information about playing videos, go to "Controlling Video Playback" on page 32.

Playing a Pre-Recorded Commercial Audio Disc

1. Insert an Audio CD (CD-DA) or an MP3 Disc into the disc tray.

2. For an Audio CD (CD-DA), the first track will be played automatically. Tracks on a disc are played in the order in which they were recorded on the disc.

3. For an MP3 disc, press the buttons to select Music, then press the button.

1. To play a particular track, use the buttons on the remote to select the track, and then press the button.

| NOTE |

For more information about playing music, go to "Controlling Music Playback" on page 34.

Controlling Video Playback

You can control the playback of video files located on Blu-ray, DVD, and CD discs, and on USB storage devices. Depending on the media, some of the functions described in this manual may not be available.

Buttons on the Remote Control used for Video Playback

The product does not play sound in Search, Slow, or Step mode.
■	Starts playback.
■	Stops playback.
■	Pauses playback.
Fast Motion Play	During playback, press the < or > button. Each time you press the < or > button, the playback speed will change.
Slow Motion Play	In pause mode, press the < button. Each time you press the < button, the playback speed will change.
Step Motion Play	In pause mode, press the < button. Each time you press the < button, a new frame appears.
Skip Motion Play	During playback, press the < or > button. Each time you press < or > button, the disc moves to the previous or next chapter or file.

Using the TOOLS Menu

During playback, press the TOOLS button.

Title	If the movie or video have more than one title, move to or select a desired title.
Playing Time	Select to move to the specific playback point. Use the numeric buttons to input the playback point.
Full Screen	Select to set the desired full screen size. You can select Original, Mode1 (larger), and Mode2 (largest).
Picture Setting	Select to set the picture mode. - Picture Mode ·Normal: Choose this setting for most viewing applications. ·Movie: This is the best setting for watching movies. ·User: Lets you adjust the sharpness and noise reduction function respectively. ·Dynamic: Choose this setting to increase Sharpness.

Menu that appears only when a BD/DVD disc plays

Chapter	Select to move to a chapter that you desire to watch.
Repeat	Select to repeat a specific title, chapter (BD/DVD discs only) or marked section.
Audio	Select to set the desired audio language. -You can also operate this function by pressing the AUDIO button on the remote control.
Subtitle	Select to set the desired subtitle language. -You can also operate this function by pressing the SUBTITLE button on the remote control.
Angle	To view a scene from another angle. The Angle option displays the number of angles available to view (1/1, 1/2, 1/3, etc.).
BONUSVIEW Video / BONUSVIEW Audio (BD discs only)	Select to set the desired bonusview option.

| NOTE |

Depending on the disc or storage device, the Tools menu may differ. All options may not be displayed.

Creating a Video Playlist

You can create a playlist of video files in a way that is nearly identical to the way you create a playlist of music files. For instructions, see "Creating a Music Playlist" on page 34.

Media Play

Controlling MusicPlayback

You can control the playback of music content located on DVDs, CDs, and USB storage devices.

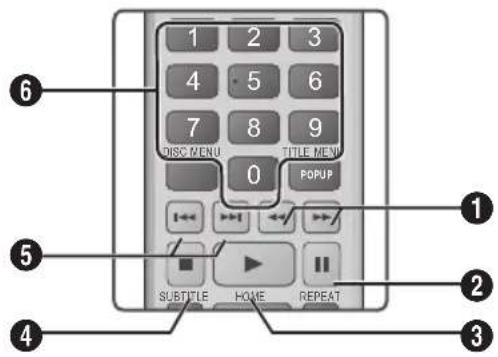

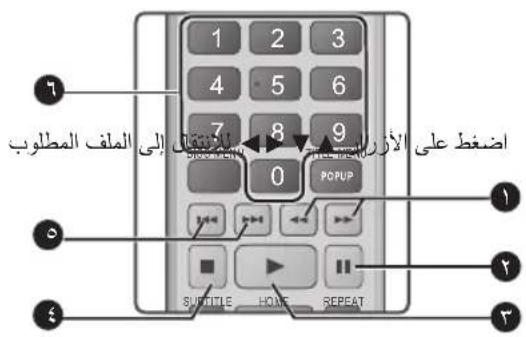

Buttons on the Remote Control used for Music Playback

1	Fast Play (Audio CD (CD-DA) only) During playback, press the ➔ or ➔ button. Each time you press the ➔ or ➔ button, the playback speed will change.
2	按钮: Pause a track.
3	按钮: Plays the currently selected track.
4	按钮: Stops a track.
5	Skip: During playback, press the ➔ or ➔ button to move to the previous or next music of listed.
6	NUMBER buttons: During Playlist playback, press the desired track number. The selected track is played.

Repeating Tracks

You can set the product to repeat tracks.

1. During the music playback, press the TOOLS button.
2. Use button to select Off, Track or One, All or Shuffle in Repeat Mode, and then press the button.

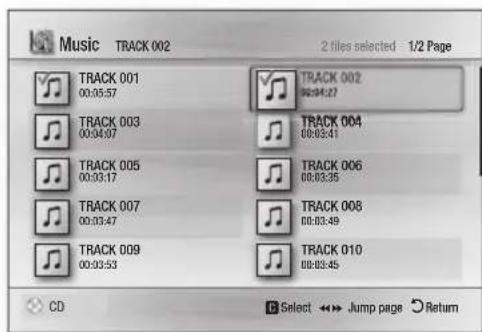

Creating a Music Playlist

1. If playing music from a commercial CD or DVD, press the or RETURN (O) button. The Music List Screen appears. If you are creating a playlist from music on a user created disk or USB device, access the Music list as described in "Playing Files on a USB Device" on page 29 or "Playing a Disc with User Recorded Content" on page 30.
2. Press the buttons to move to the desired file, and then press the YELLOW (C) button to select it. Repeat this procedure to select additional files.

1. To remove a file from the Playlist, move to the file, and then press the YELLOW(C) Button.
2. Press the button to play the selected files. The Playlist screen appears.
3. To go to the Music List, press the or RETURN (O) button.
4. To go back to the Playlist, press the button.

| NOTE |

• You can create a playlist with up to 99 tracks on Audio CDs (CD-DA).
  If you go to the Music List from the Playlist, and then return to the Playlist, the Playlist will start playing again from the beginning.

Controlling Photo Playback

You can control the playback of photos located on DVDs, CDs, and USB storage devices.

Using the Tools Menu

During playback, press the TOOLS button.

Start Slide Show	Select to start a slide show.
Slide Show Speed	Select to adjust the slide show speed.
Background Music	Select to listen to music while viewing a slide show.
Zoom	Select to enlarge the current picture. (Enlarge up to 4 times)
Rotate	Select to rotate a picture. (This will rotate the picture either clockwise or counterclockwise.)
Information	Shows the picture information including the name and size, etc.

| NOTE |

Depending on the disc or storage device, the Tools menu may differ. All options may not be displayed.
To enable the background music function, the photo file must be in the same storage media as the music file. However, the sound quality can be affected by the bitrate of the MP3 file, the size of the photo, and the encoding method.

Creating a Photo Playlist

You can create a playlist of photos in a way that is nearly identical to the way you create a playlist of music files. For instructions, see "Creating a Music Playlist" on page 34.

Listening to Radio

Using Buttons on the Remote Control

1. Press the FUNCTION button to select FM.

2·Tune in to the desired station.

• Preset Tuning 1: Press the button to select PRESET and then press the TUNING/CH (UP, DOWN) button to select the preset station.
• Before you can tune to preset stations, you must add preset stations to the product's memory.
• Manual Tuning: Press the button to select MANUAL and then press the TUNING/CH (UP, DOWN) button to tune in to a lower or higher frequency.
  Automatic Tuning: Press the button to select MANUAL and then press and hold the TUNING/CH (UP, DOWN) button to automatically search the band.

Setting Mono/Stereo

Press the MO/ST button.

Each time the button is pressed, the sound switches between STEREO and MONO.
- In a poor reception area, select MONO for a clear, interference-free broadcast.

Presetting Stations

Example : Presetting FM 89.10 into memory.

1. Press the FUNCTION button to select FM.

2. Press the TUNING/CH (UP, DOWN) button to select < 89.10> .
   3 Press the TUNER MEMORY button.

3. NUMBER flashes on the display.

4. Press the TUNER MEMORY button again.

5. Press the TUNER MEMORY button before NUMBER disappears from the display on its own.
   After you press the TUNER MEMORY button, NUMBER disappears from the display and the station is stored in memory.

6. To preset another station, repeat steps 2 to 4.

To tune in to a preset station, press the TUNING/CH (UP, DOWN) button.

Media Play

Using the Special Effects Remote Control Buttons

SOUND EFFECT Function

SOUND

EFFECT

Lets you select a mode that optimizes the sound.

MP3 ENHANCED SMART VOLUME POWER BASS OFF

• MP3 ENHANCER: Helps enhance your sound experience (ex. mp3 music). You can upscale your MP3 level sound (24 kHz, 8bit) to CD level sound (44.1 kHz, 16bit).
  SMART VOLUME: Regulates and stabilizes the volume level, preventing drastic volume changes when you change channels or during scene transitions.
• POWER BASS: Increases the volume level of bass tones and provides thudding sound effects.
• OFF: Select this for normal listening.

Dolby Pro Logic II Function

You can select the desired Dolby Pro Logic II audio mode.

MOVIE:Adds realism to a movie soundtrack.
- MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.
- MATRIX : Select to hear multi channel surround sound.
PROLOG: Select to listen to a 2CH sound source in 5.1CH surround sound with all speakers active.

• A specific speaker(s) may not output depending on the input signal.

Using BD-LIVE™

1. Connect the product to the network. (See page 19)
2. Configure the network settings. (See pages 26~27)

Once the product is connected to your network, you can enjoy various movie-related service contents available on BD-LIVE compliant discs.

1. Attach a USB memory stick to the USB jack on the front of the product, and then use BD Data Management to check its remaining memory. The memory device must have at least 1GB of free space to accommodate the BD-LIVE services.
2. Select Settings on the Home screen, and then press the button.
3. Select System, and then press the button.
4. Select BD Data management, and then press the button.
5. Select Change Device, and then press the button.
6. Select USB DISK, and then press the button.
7. Insert a Blu-ray Disc that supports BD-LIVE.
8. Select an item from the list of BD-LIVE service contents provided by the disc manufacturer.

NOTE

The way you use BD-LIVE and the provided contents may differ, depending on the disc manufacturer.

AllShare lets you access and play files located on your PC through your home theater. Follow the directions in the AllShare user's guide to setup AllShare on your PC and to tag folders and files you want to share with the home theater

To access and play files located on your PC after you have setup AllShare, follow these steps:

1. Turn on your PC, your TV, and the home theater.
2. Make sure the AllShare Shared server is running on your PC.
3. On your home theater, press the BLUE (D) button (View Devices).
4. Use the left or right arrow button to select your PC in the Device List.
5. Select the kind of file you want to view or play, Videos, Photos, or Music, and then press C.
6. Use the button to select the folder with the kind of files you selected, and then press . The File List is displayed.
7. Select the file you want to view or play, and then press

| NOTE |

• You can create Playlists from files on your PC in the same way you create playlists from files on USB devices and discs.
• With a few exceptions, you can control the playback of files on your PC in the same fashion you control the playback of files on USB devices and discs.
• You can also access files on you PC by first selecting Videos, Photos, or Music on the Home screen, and then selecting your PC from the device list that appears.

Additional Information

Note

Connections	HDMI OUT
	Certain HDMI output resolutions may not work, depending on your TV.You must have an HDMI connection to enjoy videos with 3D technology.A long HDMI cable may cause screen noise. If this occurs, set HDMI Deep Color to Off in the menu.
Settings	3D SettingsFor some 3D discs, to stop a movie during 3D playback, press the button once. The movie stops and the 3D mode option is de-activated.To change a 3D option selection when you are playing a 3D movie, press the button once.The Blu-ray menu appears. Press the button again, then select 3D Settings in the Blu-ray menu.Depending on the content and the position of the picture on your TV screen, you may see vertical black bars on the left side, right side, or both sides.
	TV AspectDepending on the disc type, some aspect ratios may not be available.If you select an aspect ratio and option which is different than the aspect ratio of your TV screen, then the picture might appear to be distorted.If you select the 16:9 Original, your TV may display 4:3 Pillarbox (black bars on sides of picture).
	BD Wise (Samsung Products only)When BD Wise is on, the Resolution setting automatically defaults to BD Wise and BD Wise appears in the Resolution menu.If the product is connected to a device that does not support BD Wise, you can not use the BD Wise function.For proper operation of BD Wise, set the BD Wise option in both the product and the TV to On.
	Digital OutputBe sure to select the correct Digital Output or you will hear no sound or just loud noise.If the HDMI device (AV receiver, TV) is not compatible with compressed formats (Dolby digital, DTS), the audio signal outputs as PCM.Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects.Some Blu-ray Discs do not have BONUSVIEW audio and Navigation Sound Effects.This Digital Output setup does not affect the analog (L/R) audio or HDMI audio output to your TV.It affects the optical and HDMI audio output when your product is connected to an AV receiver.If you play MPEG audio soundtracks, the audio signal outputs as PCM regardless of your Digital Output selections (PCM or Bitstream).
	BD-LIVE Internet ConnectionThe Internet connection may be restricted while you are using BD-LIVE contents.
Settings	Anynet+(HDMI-CEC)
	Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV. This function is not available if the HDMI cable does not support CEC. If your Samsung TV has an Anynet+ logo, then it supports the Anynet+ function.
	BD Data Management
	In the external memory mode, disc playback may be stopped if you disconnect the USB device in the middle of playback. Only those USB devices formatted in the FAT file system (DOS 8.3 volume label) are supported. We recommend you use USB devices that support USB 2.0 protocol with 4 MB/sec or faster read/write speed. The Resume Play function may not work after you format the storage device. The total memory available to BD Data Management may differ, depending on the conditions.
	DivX® Video On Demand
	For more information about DivX(R) VOD, visit "http://vod.divx.com".
	Speaker Settings
	When Speaker Selection is set to TV Speaker, audio is produced through the TV speakers.
	HDMI audio
	When HDMI audio is outputted to the TV speaker, it is automatically down-mixed to 2 channels.
	Audio Return Channel
	When Anynet+ (HDMI-CEC) is Off, the Audio Return Channel function is not available. Using an HDMI cable not certified for ARC (Audio Return Channel) may cause a compatibility problem. The ARC function is only available if an ARC-compliant TV is connected.
	Digital Output
	Digital Output can be activated when Speaker Selection is selected to TV Speaker.
Playback	Playing a Video files
	Video files with high bitrates of 20Mbps or more strain the product's capabilities and may stop playing during playback.
	Selecting the Audio Language
	The <▶ indicator will not appear on the screen if the BONUSVIEW section does not contain any BONUSVIEW audio settings. The languages available through the Audio Language function depend on the languages that are encoded on the disc. This function or certain languages may not be available. Some Blu-ray Discs may allow you to select either the PCM or Dolby digital audio soundtrack in English.

Appendix

Playback	Selecting the Subtitle Language
	Depending on the Blu-ray Disc / DVD, you may be able to change the subtitle language in the Disc Menu. Press the DISC MENU button. This function depends on the selection of subtitles that are encoded on the disc and may not be available on all Blu-ray Discs/DVDs. Information about the main feature BONUSVIEW mode will also appear if the Blu-ray Disc has a BONUSVIEW section. This function changes both the primary and secondary subtitles at the same time. The total number of primary and secondary subtitles are displayed respectively.
	Playing a JPEG files
	You can't enlarge the subtitle and PG graphic in the full screen mode.
Allshare Play	Dolby Pro Logic II Mode
	Before selecting Dolby Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the product. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.
	Using the TOOLS button while playing pictures
	If the system is connected to a BD Wise compliant TV that has set BD Wise to On, the Picture Settings menu will not appear. The Background Music function will not work unless the music file and the photo file are located on the same storage media. Also, sound quality can be impacted by the bitrate of the MP3 music file, the size of the photos, and the encoding method.
	Playing back a USB Storage Device
	You must remove the USB storage device safely (by performing the "Safely Remove USB" function) to prevent possible damage to the USB memory. Press the HOME button to move to the Home menu, select the YELLOW (C) button, and then press the button. If you insert a disc when playing a USB storage device, the Function mode is changed to "BD/DVD" automatically.

Resolution according to the output mode

Blu-ray Disc/E-contents/Digital Contents playback

Setup\Output	HDMI/connected			HDMI/not connected
	HDMI Mode		VIDEO Mode	VIDEO Mode
	Blu-ray Disc	E-contents/Digital contents
BD Wise Resolution of Blu-ray Disc 1080p@60F			576i/480i	-
Auto Max. Resolution of TV input Max. Resolution of TV input			576i/480i	-
1080p@60F 1080p@60F			576i/480i	-
Movie Frame : Auto(24Fs)	1080p@24F 1080p@24F		576i/480i	-
1080i 1080i 1080i			576i/480i 576i/480i
720p 720p 720p			576i/480i 576i/480i
576p/480p 576p/480p 576p/480p			576i/480i 576i/480i
576i/480i	-	-	-	576i/480i

DVD playback

Output Setup	HDMI/connected		HDMI/not connected
	HDMI Mode	VIDEO Mode	VIDEO Mode
BD Wise	480i	576i/480i	-
Auto Max. Resolution of TV input		576i/480i	-
1080p@60F	1080p@60F	576i/480i	-
1080i	1080i	576i/480i 576i/480i
720p	720p	576i/480i 576i/480i
576p/480p	576p/480p	576i/480i 576i/480i
576i/480i	-	-	576i/480i

Appendix

Digital Output Selection

Setup PCM			Bitstream (Unprocessed)	Bitstream (Re-encoded DTS)	Bitstream (Re-encoded Dolby D)
Connection		HDMI supported AV receiver	HDMI supported AV receiver	HDMI supported AV receiver	HDMI supported AV receiver
Audio Stream on Blu-ray Disc	PCM Up to	PCM 7.1ch PCM DTS re-encoded			Re-encoded Dolby Digital *
	Dolby Digital Up to	Up to PCM 7.1ch Dolby Digital DTS re-encoded			Re-encoded Dolby Digital *
	Dolby Digital Plus	Up to PCM 7.1ch Dolby Digital Plus DTS re-encoded			Re-encoded Dolby Digital *
	Dolby TrueHD	Up to PCM 7.1ch Dolby True HD DTS re-encoded			Re-encoded Dolby Digital *
	DTS Up to	PCM 6.1ch	DTS DTS re-encoded		Re-encoded Dolby Digital *
	DTS-HD High Resolution Audio	Up to PCM 7.1ch	DTS-HD High Resolution Audio	DTS re-encoded	Re-encoded Dolby Digital *
	DTS-HD Master Audio	Up to PCM 7.1ch	DTS-HD Master Audio	DTS re-encoded	Re-encoded Dolby Digital *
Audio Stream on DVD	PCM	PCM 2ch	PCM 2ch	PCM 2ch	PCM 2ch
	Dolby Digital	Up to PCM 5.1ch	Dolby Digital	Dolby Digital	Dolby Digital
	DTS Up to	PCM 6.1ch	DTS DTS $ DTS
Definition for Blu-ray Disc	Any	Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects.	Outputs only the main feature audio stream so that your AV receiver can decode the audio bitstream. You will not hear BONUSVIEW audio or Navigation Sound Effects.	Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects, then re-encodes the PCM audio into DTS bitstream.	Decodes the main feature audio and BONUSVIEW audio stream together into PCM audio and adds Navigation Sound Effects, then re-encodes the PCM audio into Dolby digital bitstream or PCM.

• If the Source Stream is 2ch or mono, "Re-encoded Dolby D" Setting are not applied. Output will be PCM 2ch.
  Blu-ray Discs may include three audio streams :
• Main Feature Audio : The audio soundtrack of the main feature.
• BONUSVIEW audio : An additional soundtrack such as the director or actor's commentary.
• Navigation Sound Effects: Sound effects that occur when you navigate the disc's or movie's menu. Navigation Sound Effects are different on each Blu-ray disc.

Troubleshooting

Refer to the table below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord and contact the nearest authorized dealer or Samsung Electronics Service Centre.

Symptom Check/Remedy
I cannot eject the disc.	· Is the power cord plugged securely into the outlet? · Turn off the power and then turn it back on.
Playback does not start.	· Check the region number of the Blu-ray/DVD disc. A Blu-ray/DVD disc purchased from abroad may not be playable. · CD-ROMs and DVD-ROMs cannot be played on this product. · Make sure that the rating level is correct.
Playback does not start immediately when the Play/Pause button is pressed.	· Are you using a deformed disc or a disc with scratches on the surface? · Wipe the disc clean.
Sound is not produced.	· The home theater does not play sound during fast playback, slow playback, and step motion playback. · Are the speakers connected properly? Is the speaker setup correctly customized? · Is the disc severely damaged?
Sound can be heard only from a few speakers and not all 6.	· On certain Blu-ray/DVD discs, sound is output from the front speakers only. · Check if the speakers are connected properly. · Adjust the volume. · When listening to a CD, radio or TV, sound is output to the front speakers only.
Dolby Digital 5.1 CH Surround Sound is not produced.	· Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound. · Is the audio language correctly set to Dolby Digital 5.1-CH in the information display?
The remote control does not work.	· Are you operating the remote within its operational range and within the proper angle relative to the sensor? · Are the batteries drained?
· The disc is rotating but no picture is produced. · Picture quality is poor and picture is shaking.	· Is the TV power on? · Are the video cables connected properly? · Is the disc dirty or damaged? · A poorly manufactured disc may not be playable.
Audio language and subtitles do not work.	· Audio language and subtitles will not work if the disc does not contain them.
The menu screen does not appear even when the menu function is selected.	· Are you using a disc that does not contain menus?
The aspect ratio cannot be changed.	· You can play 16:9 Blu-ray/DVD discs in 16:9 Full mode, 4:3 Letter Box mode, or 4:3 Pan-Scan mode, but 4:3 Blu-ray/DVD discs are played in 4:3 ratio only. Refer to the Blu-ray Disc jacket and then select the appropriate function.

Appendix

Symptom Check/Remedy
The product is not working.	Press and hold the remote control's button for 5 seconds in NO DISC mode. - Using the RESET function will erase all stored settings. Do not use this unless necessary.
You have forgotten the rating level password.	With no disc in the product, press and hold the product's button for longer than 5 seconds. INIT appears on the display and all settings will return to the default values. Then, press the POWER button. - Using the RESET function will erase all stored settings. Do not use this unless necessary.
Can't receive radio broadcasts.	Is the antenna connected properly? If the antenna's input signal is weak, install an external FM antenna in an area with good reception.
While listening to TV audio through the Product, no sound is heard.	If the OPEN/CLOSE button is pressed while listening to TV audio using the D. IN or AUX functions, the Blu-ray/DVD disc functions are turned on and the TV audio is muted.
"Not Available" appears on screen.	The features or action cannot be completed at this time because: 1. The Blu-ray/DVD disc's software restricts it. 2. The Blu-ray/DVD disc's software doesn't support the feature (e.g., angles) 3. The feature is not available at the moment. 4. You've requested a title or chapter number or search time that is out of range.
If the HDMI output is set to a resolution your TV cannot support (for example, 1080p), you may not see a picture on your TV.	Press and hold the button on front panel for more than 5 seconds with no disc in the product. All settings will revert to the factory settings.
No HDMI output.	Check the connection between the TV and the HDMI jack of the product. Check if your TV supports 576p/480p/720p/1080i/1080p HDMI input resolution.
Abnormal HDMI output screen.	If random noise appears on the screen, it means that TV does not support HDCP (High-bandwidth Digital Content Protection).
AllShare Play function
I can see folders shared through AllShare Play, but I cannot see the files.	AllShare Play shows only files corresponding to the Photo, Music, and Movie categories. Files that do not correspond to these categories may not be displayed.
Video is played intermittently.	Check if the network is stable. Check if the network cable is properly connected and if the network is not overloaded.
The AllShare Play connection between the TV and PC is unstable.	IP addresses under the same subnetwork should be unique, otherwise IP collision can results in such a phenomenon. Check if you have a firewall enabled. If so, disable the firewall function.
BD-LIVE
I cannot connect to the BD-LIVE server.	Test whether the network connection is active by using the Network Status function. Check whether a USB memory device is connected to the product. The memory device must have at least 1GB of free space to accommodate the BD-LIVE service. You can check the available size in BD Data Management. (See page 39) See if the BD-LIVE Internet Connection option is set to Allow(All). If all above fails, contact the contents provider or update to the latest firmware.
When using the BD-LIVE service, an error occurs.	The memory device must have at least 1GB of free space to accommodate the BD-LIVE service. You can check the available size in BD Data Management. (See page 39)

| NOTE |

• When the factory default settings are restored, all stored user BD data will be deleted.

Specifications

General	Weight 2.5 kg
	Dimensions 430 (W) x 50 (H) x 250 (D)	mm
	Operating Temperature Range +5°C to +35°C
	Operating Humidity Range 10 % to 75 %
FM Tuner	Signal/noise ratio	55 dB
	Usable sensitivity 12 dB
	Total harmonic distortion	0.5 %
Disc	BD (Blu-ray Disc) Reading Speed : 9.834 m/sec
	DVD (Digital Versatile Disc)	Reading Speed : 6.98 ~ 7.68 m/sec.
		Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
	CD : 5 inches (COMPACT DISC)	Reading Speed : 4.8 ~ 5.6 m/sec.
		Maximum Play Time : 74 min.
	CD : 3 1/2 inches (COMPACT DISC)	Reading Speed : 4.8 ~ 5.6 m/sec.
		Maximum Play Time : 20 min.
Video Output Composite Video		1 channel : 1.0 Vp-p (75 Ω load)
		Blu-ray Disc : 576i/480i DVD : 480i
Video/Audio HDMI		1080p, 1080i, 720p, 576p/480p
		PCM multichannel audio, Bitstream audio, PCM audio
Amplifier	Front speaker output	80W x 2(3Ω)
	Center speaker output	80W(3Ω)
	Surround speaker output	80W x 2(3Ω)
	Subwoofer speaker output	100W(3Ω)
	Frequency response	Analog input 20Hz~20kHz (±3dB)
		Digital input 20Hz~40kHz (±4dB)
	S/N Ratio 70dB
	Channel separation 60dB
	Input sensitivity (AUX)500mV

Speaker	Speaker system	5.1ch speaker system
		Front Surround Center	Subwoofer
	Impedance 3 Ω 3 Ω 3 Ω 3 Ω
	Frequency range 140Hz~20kHz 140Hz~20kHz 140Hz~20kHz 40Hz ~ 160Hz
	Output sound pressure level	87dB/W/M 87dB/W/M	87dB/W/M 88dB/W/M
	Rated input	80W 80W 80W 100W
	Maximum input	160W 160W	160W	200W
	Dimensions (W x H x D)	(Unit : mm)
		HT-E3500
		Front	Surround	Centre	Subwoofer
		77 x 107 x 68	77 x 107 x 68	228 x 77 x 70	155 x 300 x 285
		HT-E3530
		Front	Surround	Centre	Subwoofer
		89 x 1053 x 71* Stand base:230 x 25 x 230	77 x 107 x 68	228 x 77 x 70	155 x 300 x 285
		HT-E3550
		Front	Surround	Centre	Subwoofer
		89 x 1053 x 71* Stand base:230 x 25 x 230	89 x 1053 x 71* Stand base:230 x 25 x 230	228 x 77 x 70	155 x 300 x 285
	Weights	(Unit : kg)
		HT-E3500
		Front	Surround	Centre	Subwoofer
		0.4 kg	0.4 kg 0.5 kg	2.9 kg
		HT-E3530
		Front	Surround	Centre	Subwoofer
		2.9 kg	0.4 kg 0.5 kg	2.9 kg
		HT-E3550
		Front	Surround	Centre	Subwoofer
		2.9 kg	2.9 kg 0.5 kg	2.9 kg

Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- Design and specifications are subject to change without prior notice.
- For the power supply and Power Consumption, refer to the label attached to the product.
Network speeds equal to or below 10Mbps are not supported.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Area Contact Center		Web Site
■ Asia Pacific
AUSTRALIA 1300 362 603 www.samsing.com
NEW ZEALAND 0800 SAMSUNG [phone]) www.samsung.com
CHINA 400-810-5858 www.samsung.com
HONG KONG (852) 3698 4698		www.samsung.com/hkwww.samsung.com/hk/en/
INDIA	1800 1100 113030 82821800 3000 82821800 266 8282		www.samsung.com
INDONESIA	0800-112-8888021-5699-7777		www.samsung.com
MALAYSIA 1800-88-9999 www.samsung.com
PHILIPPINES	1-800-10-SAMSUNG(726-7864) for PLDT1-800-3-SAMSUNG(726-7864) for Digitel1-800-8-SAMSUNG(726-7864) for Globe02-5805777		www.samsung.com
SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com
THAILAND	1800-29-323202-689-3232		www.samsung.com
TAIWAN	0800-329-9990266-026-066		www.samsung.com
VIETNAM 1 800 588 889 www.samsung.com
■ Middle East
U.A.E 800-SAMSUNG (726-7864) www.samsung.com
OMAN 800-SAMSUNG(726-7864)	www.samsung.com
KUWAIT	183-2255		www.samsung.com
BAHRAIN 8000-4726	www.samsung.com
Egypt 08000-726786	www.samsung.com
JORDAN	800-22273		www.samsung.com
IRAN	021-8255		www.samsung.com
Morocco	080 100 2255 www.samsung.com
Saudi Arabia	9200-21230		www.samsung.com
■ Africa
NIGERIA	0800-726-7864		www.samsung.com
Ghana	0800-100770302-200077		www.samsung.com
Cote D' Ivoire	8000 0077		www.samsung.com
Senegal	800-00-0077		www.samsung.com
CAMEROON	7095- 0077		www.samsung.com
KENYA	0800 724 000 www.samsung.com
UGANDA	0800 300 300 www.samsung.com
TANZANIA	0685 88 99 00 www.samsung.com
SOUTH AFRICA 0860-SAMSUNG(726-7864)		www.samsung.com

HT-E3500

HT-E3530

HT-E3550

i jll jil p

^TM5.1CH Blu-ray

pia wall

LilS

J

Samsung

Jus Jus 1

gall

www.samsung.com/register

#

(ajll jj) 1111 all jy yjll aowll jy jn lill


\( \left( {{a}_{1} + {a}_{2} + {a}_{3}}\right) \left( {{a}_{1} + {a}_{2} + {a}_{3}}\right) = {a}_{1}{a}_{2} + {a}_{1}{a}_{3} \) . \( \left( {{a}_{1} + {a}_{2}}\right) \left( {{a}_{1} + {a}_{3}}\right) = {a}_{1}{a}_{3} \) .	\( \left( {{a}_{1} + {a}_{2}}\right) \left( {{a}_{1} + {a}_{3}}\right) = {a}_{1}{a}_{3} \cdot \left( {{a}_{1} + {a}_{3}}\right) \) .	\( \left( {{a}_{1} + {a}_{2}}\right) \left( {{a}_{1} + {a}_{3}}\right) = {a}_{1}{a}_{3} \cdot \left( {{a}_{1} + {a}_{3}}\right) \) .

gjzaiiai jn jzai

jia jiall lal lal lal lal lal lal

1.

jLs y 21CFR 1040.10

2.2007 246 50

：

(FDA 21 CFR)

jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

jglg 1

LASER PRODUKT KLASSE 1

LASER LAITE LUOKAN 1

LASER APPARAT KLASS 1

LASER CLASE 1 PRODUCTO

iiaai jaoaiil cibaiin

L

Jgallge Jall jall 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

e 1

aaiy 100000000000000000000000000000000000000000000000000000

• 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
• 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
• 15 jall le jjill
  .3 jullall wailll aai ai aS
  .4 gail s2g s2 jiaiaia
  Ji liy jiy jy y

J 1

Jae 2 aee

J 1

1

"Blu-ray 3D" , "Blu-ray 3D"

. Blu-ray Disc Association

山

Samsung 2012

Electronics Co., Ltd

j 1

a

Samsung Electronics Co., Ltd

#

aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1 aaiy 1

aaii aaiii iiaai" 1 "daiy

y

1

a 1

a

jie jie jie jie jie jie jie jie jie jie jie

HDMI OUT (a)

HDMI

aai

HDMI 5

.HDMI OUT

a

sill

BDWise J

y

HDMI

J

Cis 1 Jai 1

3.5 46

HDMI

High-Definition, HDMI, HDMI, Multimedia Interface HDMI Licencing LLC

Jrnnnnae JanaOracle 10000000000000000000000000000000000000000000000000

S
RovCorporation 2
.
Blu-rayDisc Association

dts-HD Master Audio | Essential

C

5,974,380 5,956,674:
7,272,567 7,392,195 6,487,535 6,226,616

J 7212372333929
J G DTTI J I J
TDS-HD J J DTS-HD
DTS-HD Master, J J J
DTS, J J J Audio|Essential
@ jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

Rovl 4523102222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222222 DivX 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 1080 108

1

4.4.2.1 4.4.2.1

A

1

C

Cui jin gui kui

aai

AllShare

aeshwull cloggs

j

gjglg jyjzr

gaiiiaaii iaiy

2

山

biilwgl j

iiil bllg clls pssr

USB jiee clia Juii r.

Jaa aiaa aayaae aeg yaa Jaa

y

Jus Jusu

yjai jai jai jai jai

Jgss

jaii 10

y

y 1

TM BD-LIVE

AllShare plssivr

aolal

aLilai Clogaleal 1

1,2,3,4 , 1,2,3,4

Culalgall 27

#

y

aaii i aai

C

aalal 15

4.15.11 4.15.11

S_ ACD = S_ COD + S_ CDA

Clelll Jnagj 13

acland Clics 10

17

clawll jyj 11

jai jai gii 1

HDMI 1

（）

1

21 + u + 4q = 1 + uq dH

a j 6j 6j 6j 6j 19

AUXIN 19

19

FM

a

#

1

dts-hd Master Audio |Essential

25laalpalPALpali
yLALAL,LaJIg,ssalal

DTS

Java

aoge aol laiy

USB

128 128 MP3 USB USB USB

NTFS,FAT32,FAT16 100000000000000000000000000000000000000000000000000000000000

Jill Joll Joa

abial jao

jllle baiol (c) jaii jilie baiia i aaiii jilai jaii jilie baiia

.

ydi

				الترجمة الحرفية الحرفية
1920x1080	MP3	DivX 3.11/4.x	1080 AVI	avi.*
	AC3	5.1/6.0/
	DTS	MP4v31920x
	WMA	H.264 BP/MP/HP1	920x1080
	PCM	H.264 BP/MP/HP1
1920x1080	MP3	VC-1 AP	0x1080 MKV	mkv.*
	AC3	DivX 5.1/6.0192
	DTS	H.264 BP/MP/HP1	920x1080
1920x1080	WMA	VC-1 AP	WMV (wmv9)	wmv.*
		VC-1 SM
1920x1080	AAC	MP4 (mp4v)	MP4	mp4.*
		H.264 BP/MP/HP1	920x1080
1920x1080	MP1, 2 Dolby Digital DTS	MPEG1	1080 PS	mpg.* MPEG.*
		MPEG21920x
		H.264 BP/MP/HP1	920x1080

jusjjus

Sony . Matsushita Electronic Industrial Co., Ltd AVCHD "AVCHD"

Corporation

| ab| = 12

JH

AVCHD

a aae aee eae eae ae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae

J 10

#

aill sssll aall lall

aaii iiai jie g aiee e gaaiaea aiaa aiaa aiaa aiaa

aalaa

| ab| = 1

.USB 3512000000000000000000000000000000000000000

Jillie biaally pllll 12 Jbiy Blu-ray jaii aiala jay lae i jilal, yj e

| - | = | x2 - x1| - | - |

1 1

4

4

20 1

| d - k| = 1 - 1k

y

1bll 1y jll "l" + "jll aal
AAA
aal
1 + u7 = 40
A

aaiia aiee eae ee ie jia 1

1

y jll yjll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll

Clealw (s) Cbea la l jy yay wie gio wjly j Caleauy qally Jabu

（-1+）aaiia aie 15s iieauiy aeaiui duii jaojie

e aee eae ae eae

（）

| a + b| = 1

y

jL

4 1 1

（）HDMI 1

(1) Initial Settings Complete

A

21_2^121_2^121_2^121_2^1

i 1

y

e 1

jilie lai

Initial Settings

TV Aspect and Network will be set.

Each setting may be changed later under "Settings".

m = 311

Previous

Select

1.

1

e biai.（）TVAspecta

G

jj( c - b) a + 1

：

jolal jlll lglj 16:9

（）4:3 16:9 （）4:3

.

Jus jusjus Jus jusjus 16:9

4:3 16:9

.16:9 aai

4:3

4:3

16:9

08 16:9

1

4:3

4:3 4

Pan-Scan 16:9

y

aai 1

| 2( 202) | = 1

j jlll jlll j l j j j j j j j j j j j j j j j j j (29 aall)

1

j 1 (C) Settings

a 1

J 1

aiaiunllg 100000000000000000000000000000000000000000000000000000000000000000000000000

Eli, IP 1sie (A) Network A, J.

（）Network

Network Test V
e iie jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jil jili

Cui jiu li yu

aillgll glll lalil 150 aiee eae 120 100 100 100 100 100 100 100

#

IP jie 15 la aed yaiy aia jay Jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15 jai 15

-

( 出) Automata

1

1

C

C) Network 1

C)Wired Network Settings

Internet Protocol 品 15.2
.（）Setup
(）Auto △ j

< 150011111111111111111111111111

jssll jssl jgsaegs sll lal 1 g aes .Windows

Windows XP

J 1 .Windows

"pcd" 10000000000000000000000000000000000000000000000000000000000000000000000000000

Windows 7

Subnet, (IP) IP Address 品 Gateway

.DNS

DNS JJ JJI 12345678900000000000000000000000000000000000000000000000000000000000000000000000000

le baiol (a) Network Status 4

.

(Asll) Network Status 1.1

i#y jay yssll Jn jgill

G 0k

Jgno (aS) Network 1e Jssll sS
0jao 1e pall oae yce ellis elay Ls jy
le Jssll. Windows jbi bji jai jy
clac! e Jssll" e E3bI jy RjLkill

y. 1111111111111111111111

a

J (j) POWER 1

| A( 2,0) | = 1.

pi jll (j) POWER jll

a

.

Samsung Electronics 1

Jusil jaiuuiie 1i iitally Jbc s yjc a

aai jll aai joi oai iai ai

(USB pdu) By USB

. www.samsung.com 3

jssy jg jg (p) SUPPORT

aann

Find jai jai jai jai jai jai jai

(2) Product

Get downloads

Downloads jlll l aal all

（）

J 1

aillj

(1) File .

aall jj51 cjjll

j（）OK

aJolil jgssll jessll gali jll eia

j 1 j 1 1 1 1 1 1 1 1 1 1 1 1 1

a

USB j 1

Jal jai jao Jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai

USB

a<0<1

.

f..By USB

| a5 - x0|

（）Yes

A 1

.USB

1

gai jia jao gao jaoe gai jaoe

（20

calil

J 1

Aeglaal colaoaal golal

1

Support

f.

F

2.

• (USB) By I
  (aj) By Dis
  Auto I

(2)

a

| AB| = 1;

A

P 1111 (J) POWER JJIe biai

alaiy

a

Samsung Electronics

y j 1

gaiy jia jui eli dllgannl Jaa!

C

A

e) By Online a, 1

Ji j Jn Jn Jn Jn Jn Jn

jllle baiol

Connecting to Server

1.

1. 由 BE = 25,AD = 8

4.4.1.1

Pn

alilai j

y

A

AllShare

yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall yall

AllShare

) Auto Upgrade Notification (a

Auto Upgrade 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

JbI (jol) Software Update aIa .r
Auta Uplage Nolication
(On 1e (a)
Ll jy Bnll l, golal yd jy d.
ww.samsung.com qgall yd jay
Jz (p) Yes cblg Jy d.
Jz (p)

s rj 1 j 1000

P 1111111111111111111111111111111111

Samsung Electronics 2 S
Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus

biIomega

g

.(D) (20) BLUE

USB Flash Mem ▲ 10

G

(yllll) Videos 1 20000000000000000000000000000000000000000000000000000000000000000000000

G jll 1

1y.

1

a aae 1 1 1 1 1 1 1 1 1 1 1 1 1

C

S OBC = S COD + S_ BOC

j j 1J J USB sI Jua Jg d Jie biai. "Jabl USB J" aip, piaa Jla USB

jll bciaai jai jil jil jil

USB jie gao gao gao jia jia jia jia jia jia

Jia

1. (a) Hon

USB 10000000000000000000000000000000000000000000000000000000000

Do you want to access the"

("device

le baii (paj) Yes juij 1e baii.

G

(A) RED jill bial

USB Flash Mem ▲urjglbul .

1 (u) Disk (USB Flash )

G

(1) Videos

bni (sall) Photos j (saasall) Music

C. jj 16

8 8

V A

8.8aill jaiil p 10

A. · = | | · | |

( xt^2 + x) ( xt^2 - x) = 0 ( xt^2 + x) ( xt^2 - x) = 0

y

e 1000000000000000000000000000000000000000000000000000000000000000000000000000000

a a a a a a a a a a a a a a a a a a

Je Ie JyI 10000000000000000000000000000000000000000000000000000000000

1
(A) RED la bai 14 (B) (a) CD a
DVD (ylll) Videos 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789
.7
A
7.85aill 111

• (CD-DA)
  D) (gj) BLUE 100 p8 jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy

Muc List (J) Playlist

gall

J 1000000000000000000000000000000000000000000000000000000000000000

aannnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

(Re) Repeating Tracks

alwll algall jkij gill bia kay
(1)TOOLS 1baii, yssyessyessyessy.
(2)Track (a) Off 1r jll p
Shuffle (J) All (d) One (a)
(3)(j) Repeat Mode (j)

1

a 1

FM 1

1. 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

1

.MO/ST jilie bi

.

a a

.8JFM 89.10

FM 1

u (UP, DOWN) 1

<89.10>

aillgai jjil jilbcjai .

Aaillilie"

s jy a yllgai yjil gbciai.

"ajlll jlll llllllll jll

i

aill jisii 1ll gai jslj jil bciaall

3.511 2

.

jllgbcbiol,glusabguo aiboo gbc bailll

.(UP,DOWN)

J 1

DVD 1

.USB 1

1g81

Culal jilie lai 1

aaln jaaaii aaiiie iiaii

1 1 USB j j j j j j j

e 1

JUUB

1 2

S OBC = S AOB + S_ BOC

(2011) Photos (2011) Videos

(aj) Home (g) Music

y

aolal

Date

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KCLASS 1 LASER APPARAT

PRODUCTO LASER CLASE 1

Disc Storage & Management
