| Product Type | Wireless Keyboard |
| Brand | SilverCrest |
| Model | SFT 2.4 A1 |
| Dimensions (L x W x H) | 478 × 174 × 28 mm |
| Weight | Approx. 630 g |
| Power Supply | 2 AAA 1.5 V batteries (included) |
| Operating Distance | Up to 8 meters |
| Operating Frequency | 2.405 - 2.470 GHz |
| Maximum Transmitted Power | 4 dBm |
| Compatible Operating Systems | Microsoft Windows 7/8/10, XP, Vista |
| Connection Type | Wireless (RF 2.4 GHz) |
| Special Keys | Media playback, volume, mute, browser, email, search, favorites folder |
| Sleep Mode | Automatic after 3 minutes |
| Power Saving Mode | Yes, dedicated key |
| Battery Life | 3 to 6 months (alkaline batteries) |
| Package Contents | Keyboard, 2 AAA batteries, nano receiver, instruction manual |
| Cleaning | Soft dry cloth, no abrasive products |
| Safety | Do not open, do not expose to moisture, observe battery polarity |
| Repairability | No user-serviceable parts, repair by qualified personnel |
| Certifications | CE, EU compliance (Directives 2014/53/EU and 2011/65/EU) |
Frequently Asked Questions - SFT 2.4 A1 SILVERCREST
User questions about SFT 2.4 A1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Keyboard in PDF format for free! Find your manual SFT 2.4 A1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SFT 2.4 A1 by SILVERCREST.
USER MANUAL SFT 2.4 A1 SILVERCREST
Operation and safety notes
FR BE
CLAVIER SANS FIL
DRAADLOOSTOETSENBORD
Bedienings- en
GB/IE Operation and safety notes Page 20
TRAGEN SIE SCHUTZHANDSCHUHE!
Warnings and symbols used 21
Trademark notices. 23
Scope of delivery. 23
Safety instructions. 23
Description of parts 28
Technical data 29
Before use. 29
Operation 30
Storage when not in use 32
Cleaning 32
Troubleshooting 33
Disposal. 34
Simplified EU declaration of conformity 35
WIRELESS KEYBOARD
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
This product is a consumer electronics device.
This product may only be used privately and not for industrial or commercial purposes. Furthermore, this product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered un-warranted. Any such use is at your own risk.
-Warnings and symbols used
These instructions for use contain the following warnings:
DANGER!
This symbol with the signal word indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.
WARNING!
This symbol with the signal word indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.
CAUTION!
This symbol with the signal word indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.
NOTE:
A note provides additional information to improve product use.
CAUTION! EXPLOSION HAZARD!
A warning with this symbol and word "CAUTION!
EXPLOSION HAZARD" indicates the potential
threat of explosion. Failure to observe this warning may result in serious or fatal injuries and potential property damage. Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage!
This action sign indicates to wear suitable protective gloves! Follow the instructions to avoid hands striking or being struck by objects or being in contact with thermal or chemical materials!
Trademark notices
registered trademark of USB Implementers Forum, Inc.
Windiswasregistered trademark of Microsoft Corporation in the United States and other countries.
The SilverCrest trademark and trade name is the property of their respective owners.
Any other names and products may be trademarks or registered trademarks of their respective owners.
Scope of delivery
1 x Wireless keyboard
2 × 1.5 ~V batteries (type AAA)
1 x Nano receiver
1 x Instructions for use
Safety instructions
Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!
WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!
DANGER! RISK OF SUFFOCATION! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.
This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. The product is not a toy.
RISK OF PROPERTY DAMAGE
This product does not contain any parts which can be serviced by the user.
- Keep the product away from moisture, dripping and splash water!
- Do not place burning candles or other open fire on or next to the product.
Check the product before every use! Discontinue use if any damage to the product is detected!
Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!
- Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!
- Do not throw the product into fire and do not expose to high temperatures.
- Do not try to open the product! It has no internal parts requiring maintenance.
DANGER! Radio interference
- Switch the product off on aeroplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics.
- Keep the product at least 20~cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers.
The radio waves transmitted could cause interference in hearing aids. - Do not place the product near flammable gases or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire.
The range of the radio waves varies by environmental conditions. In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded.
The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product. The OWIM GmbH & Co KG further assumes no liability for using or replacing cables and products not distributed by OWIM. The user of the product is fully responsible for correcting interference caused by such unauthorised modification of the product, as well as replacement of such products.
WARNING! Ensure that
no direct heat sources (e.g. heating) can affect the product.
the product is not exposed to bright artificial light.
- any contact with splashed and dripping water and corrosive liquids is avoided and the product is not operated in the vicinity of water. In particular, the product should never be submerged in liquid; do not place any vessels filled with liquid, for example, vases or drinks, on or near the product.
the product is not used in the immediate vicinity of magnetic fields (e.g. speakers).
- no fire sources (e.g. burning candles) are placed on or near the product.
no foreign objects penetrate the product.
the product is never subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the product were subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the product has reached ambient temperature before use.
the product is never subjected to excessive shocks and vibrations.
CAUTION! EXPLOSION HAZARD!
Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result. Never throw batteries / rechargeable batteries into fire or water. Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of batteries / rechargeable batteries leakage
Avoid extreme environmental conditions and temperatures, which could affect batteries /rechargeable batteries, e.g. radiators / direct sunlight.
Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.
WEAR PROTECTIVE GLOVES!
Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. This product has a built-in rechargeable battery which cannot be replaced by the user.
DANGER!
Insert the batteries with the correct polarity.
Never try to recharge the batteries and under no circumstances throw them into fire.
- Do not mix battery types (old and new or carbon and alkaline etc.).
Remove the batteries when the product is not to be used for a long time.
Improper use may cause explosions and danger to life.

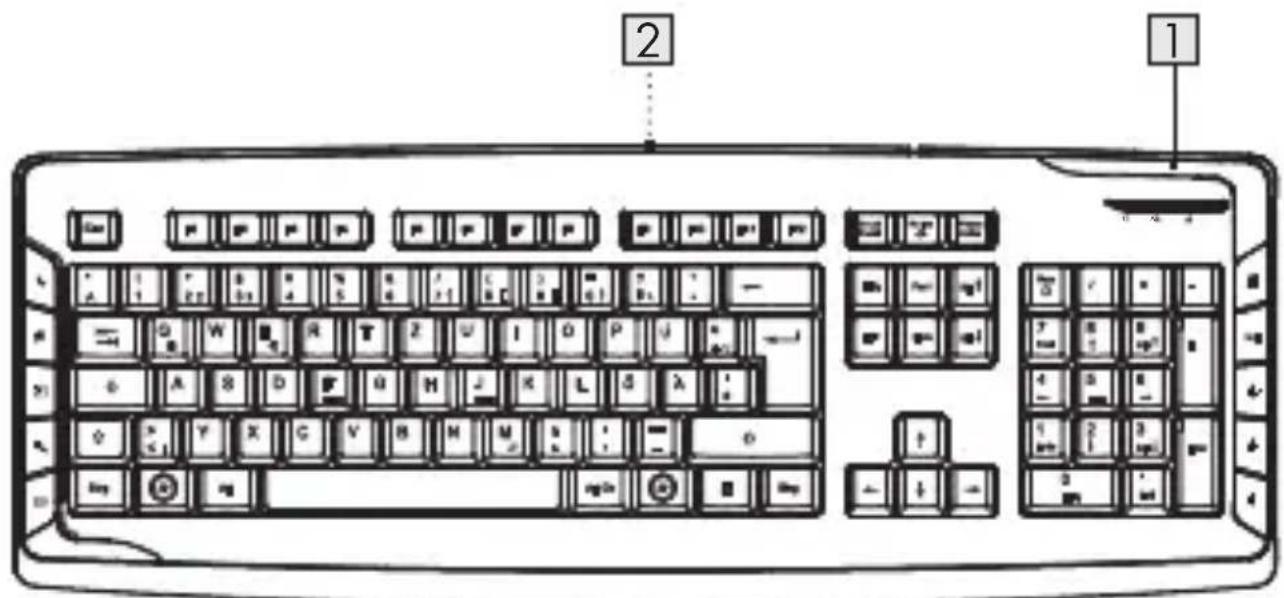

Description of parts
Keyboard

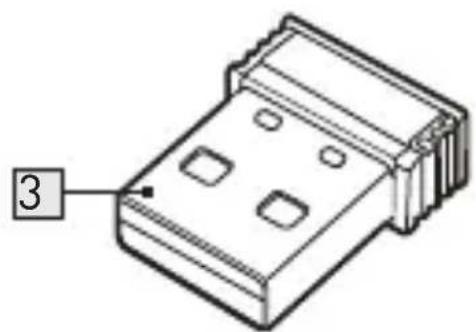

3 Nano receiver
2 Battery compartment (at the back of keyboard)
4 Batteries (AAA)
5 Instructions for use
- Regional keyboard layouts may differ
Technical data
Operationsystems:Microsoft
Windows 7 / 8 / 10
WIN / XP / VISTA
Dimension (L× W× H) .. 478× 174× 28mm
Operation time: 3 to 6 months (Alkaline battery)
Operation voltage: 2 × 1.5V batteries (type AAA)
Working distance: 8 metres
Maximum power transmitted: 4 dbm
Frequency range: 2405 - 2470 GHz
Weight: approx. 630 g
The specification and design may be changed without notification.
Before use
NOTES:
All parts have to be unpacked and the packaging material has to be removed completely.
Before use, verify the package contents are complete and undamaged!

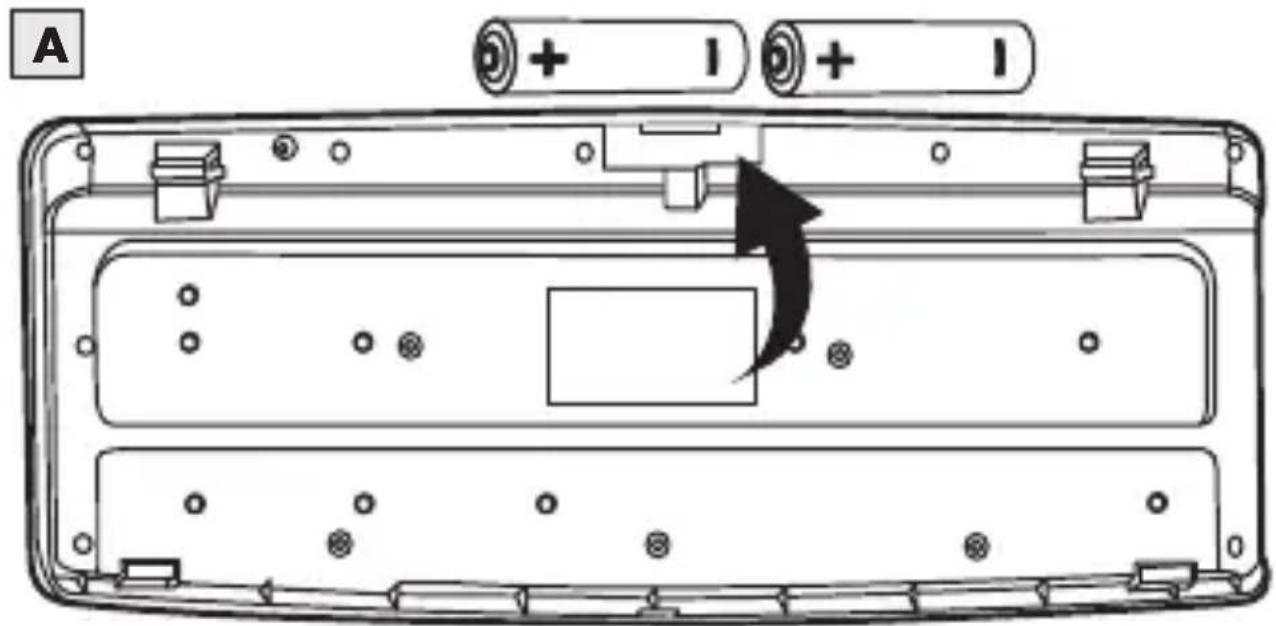

Inserting / replacing the batteries
Open the battery compartment on the underside of the product.
Insert 2 × 1.5 ~V batteries (type AAA) with correct polarity into the battery compartment [2] (fig. A).
Close the battery compartment
Operation
The keys on the left and right side are reserved for special functions. Corresponding to the symbols used, they can be used to directly control program features such as media playback or volume. Depending on the operating system used, the keys may have slightly different functions. Note that depending on the version of the operating system, some special keys may not work with the described function.
NOTE:
The keyboard will enter standby mode after 3 minutes.
Key Functions
Activating the power saving mode.
Starting the default web browser and load the home web page.
Opening the favourite folder.
Opening Search.
Starting the default e-mail programme.
Turning on the media player programme.
Key Functions
Play / Pause.
Increasing volume.
Decreasing volume.
Mute.
Storage when not in use
Store the appliance in a dry indoor location protected from direct sunlight, preferably in its original packaging.
Cleaning
No acid, chafing or solvent cleaning agents should be used or the product can be damaged.
Only clean the outside of the product using a soft, dry cloth!
At persistent soiling, a mild cleaning agent can be used.
It is necessary to repair the product if they have been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the device or if the product has been exposed to rain or moisture.
Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, turn the product off immediately. In such cases, the product should not be used until they have been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the product.
Only use a clean, dry cloth for cleaning the product and never use any corrosive liquids. Use a slightly moistened cloth and a mild cleaning agent to remove stubborn dirt.
Troubleshooting
Problem Solution
The
appliance does not
respond
after
installation.
Option 1: Make sure that the batteries are installed with the correct + / - polarities.
Option 2: Make sure that the nano receiver 3 is properly connected to your computer.
Option 3: Try a different USB port on your system.
Option 4: Insert new batteries.
Disposal
The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.
Contact your municipality for information on how to dispose of your worn-out product.
The adjacent symbol of a crossed out dustbin on wheels indicates this device is subject to Directive 2012/19/EU. This directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.
This disposal is free of charge to you. Protect the environment and dispose properly.
Please contact your local waste management company or the city / municipal administration for more information.
Think about the environment and your personal health. Dispense empty batteries in separate collecting boxes. These can be found in many public buildings or in shops where batteries are sold.
Improper disposal of batteries can harm the environment!
Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are:
Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.
- Simplified EU declaration of conformity
Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declares that the product WIRELESS KEYBOARD HG03075 is in compliance with Directives 2014/53/EU and 2011/65/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.owim.com
