DR 435 - Food Dehydrator BOMANN - Free user manual and instructions

USER MANUAL DR 435 BOMANN

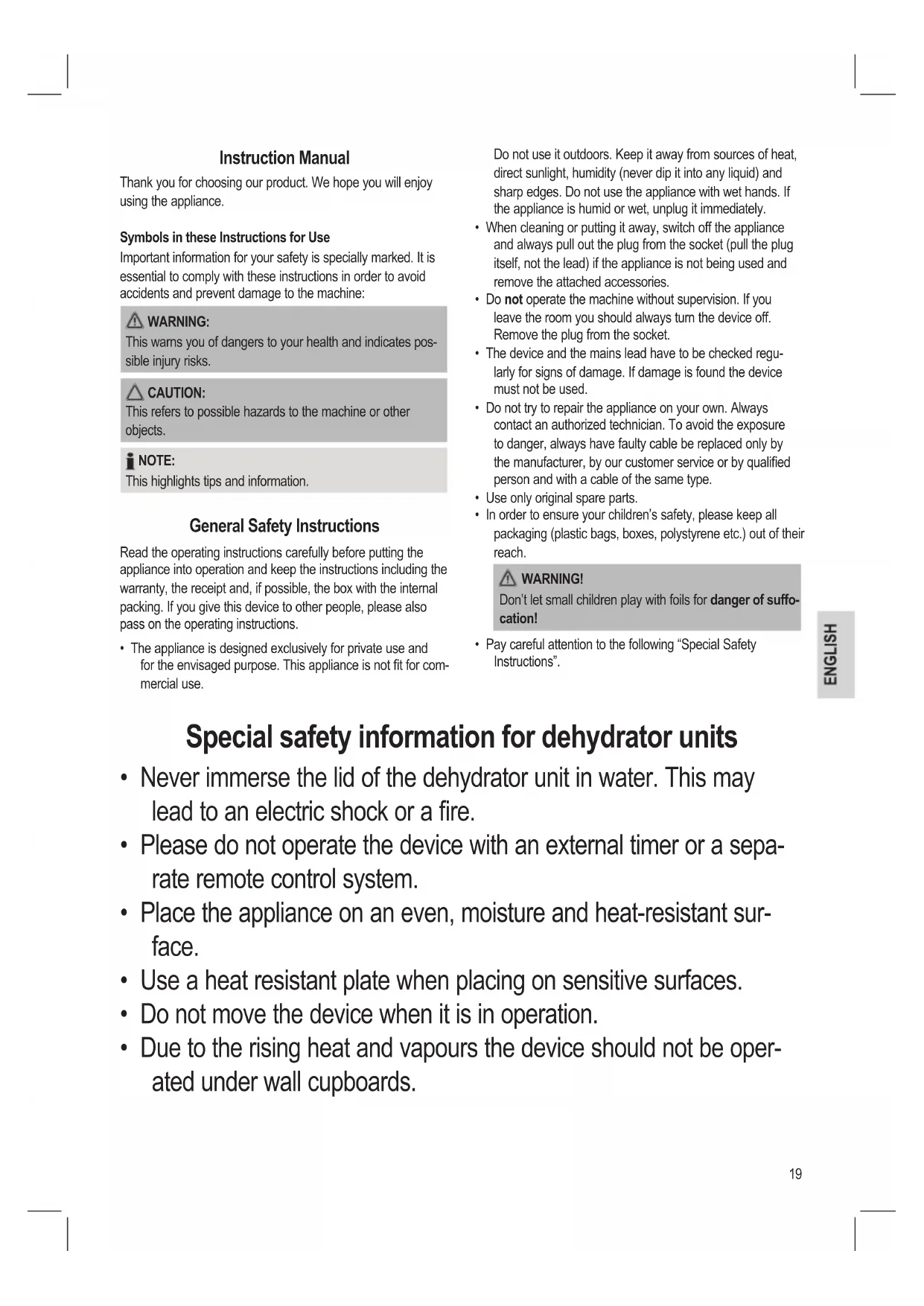

This warns you of dangers to your health and indicates pos- sible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for com- mercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.

• The device and the mains lead have to be checked regu- larly for signs of damage. If damage is found the device must not be used.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualied person and with a cable of the same type.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Don’t let small children play with foils for danger of suffo- cation!

• Pay careful attention to the following “Special Safety Instructions”. Special safety information for dehydrator units

• Never immerse the lid of the dehydrator unit in water. This may lead to an electric shock or a re.

• Please do not operate the device with an external timer or a sepa- rate remote control system.

• Place the appliance on an even, moisture and heat-resistant sur- face.

• Use a heat resistant plate when placing on sensitive surfaces.

• Do not move the device when it is in operation.

• Due to the rising heat and vapours the device should not be oper- ated under wall cupboards.20

• Keep the unit at a safe distance from easily inammable objects such as furniture, curtains, etc. (30 cm). Under no circumstances should the device be installed in cupboards.

• Keep a safety distance of 10 cm to the walls.

• Ventilation: Always keep the ventilation slots free from any ob- structions and dirt.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years. Before Initial Use

• Remove any packaging and transport safety equipment from the device, if present. All parts should be rubbed down with a damp cloth. This will remove dust which might have collected during transport. Re-insert the parts in the reverse order.

• Insert the mains plug into a correctly installed 230 V, 50 Hz safety power socket. For the relevant information please see the type plate on the device.

• Ensure that the machine is switched off.

• Place the machine on the dry, non-slip surface. Drying Food Drying food is an ef cient method of preserving fruit, vegeta- bles, herbs, meat, etc. Storing dried foods is easy and requires little storage space. The shelf-life can be further extended by storage in airtight containers. Please note that food which you have produced at home in your food dehydrator may have a different appearance to convenience foods that you buy in the supermarket or organic food shop. The reason for this is that no arti cial colourings or preservatives are used in your food dehydrator. You can also (partially) reverse the drying process by simply soaking the dried fruit or vegetables in cold water or cooking them with other foods. Drying Fruit and Vegetables

1. Please wash the fruit or vegetables thoroughly.

2. If necessary, remove any pips, stones and damaged parts.

3. Cut and grate the food which you would like to dry into

pieces of the required size (e.g. cut apricots in half).

4. If required, you can pre-blanch the vegetables and sprinkle

the fruit with a little lemon, sugar, cinnamon, honey or grated coconut.

5. Fruit with a naturally waxy skin (e.g. grapes and gs) and

long cooking times should be blanched.

6. Place the fruits on the grid(s) in such a way that the fruits

do not touch one another. Each grid can hold approx. three small sliced apples.

7. Up to ve grids can be used at the same time.

8. Replace the lid and then close the machine.

9. Switch on the food dehydrator with the ON/OFF switch.

Please note that the drying times also depend on the ambient temperature. Some foods require up to 12 hours.21 Drying Meat

1. Remove any fat and gristle from the meat. Then cut the

meat into narrow strips.

2. Marinate the meat for 6 to 8 hours.

3. Place the strips on the grid(s).

4. Here too it is possible to use ve grids at the same time.

5. Replace the lid and close the machine.

6. Switch on the machine using the ON/OFF switch.

Here too the drying time depends on the ambient temperature. Meat requires approx. 8 to 10 hours. Before checking whether your food has dried sufciently, you should store it in a cool place for a short time. Dried foods should be solid to the touch. Please ensure that there are no soft areas. Drying Petals and Herbs

1. Cut the owers/herbs in the late afternoon if possible and

not early in the morning as there is then too much moisture (dew) on them.

2. Please select owers or herbs which feel solid and have

not completely opened. Flowers which have opened completely lose their petals during the drying process. In the case of herbs you can use both complete stems and individual leaves.

3. Spread the owers thinly over the grid(s).

4. Now proceed as described under points 7 to 8 (“Drying

Fruit and Vegetables”).

5. In order to produce a potpourri from your dry petals, store

the dried owers or petals in an airtight, sealable container (preferably made of glass). Cleaning

• Always remove the mains lead before cleaning!

• Wait until the machine has cooled down completely!

• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or re. CAUTION:

• Clean the housing after use using a slightly moist cloth.

• Make sure that no uid matter gets into any of the openings of the housing. This might damage the device or result in an electric shock.
