USER MANUAL Findoo ProfiLine Plus dnt

Line drawing of an endoscopic medical device with a coiled tube and three inserted tubes (no text or symbols)

Inhalt

Two curved lines with arrows, one straight and one dotted, intersecting at the center (no text or symbols)

Haken,
Magnet, Spiegel

USB-Kabel

Video-Kabel

Close-up of a black electronic device with wires and a small plug (no visible text or symbols)

Diagram illustrating the step-by-step assembly of a handheld device, showing component positioning and internal structure changes.

Line drawing of a mechanical assembly with a lever and shaft (no text or symbols)

Simple line drawing of a cylindrical object with a looped end (no text or symbols)

Simple line drawing of a cylindrical object with a horizontal rod and an arrow, no text or symbols present.

Pure mechanical diagram showing a shaft and housing assembly without any text, numbers, or symbols

Line drawing of a device with ports and a handle, showing no text or symbols

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Betrieb

Betrieb

Line drawing of a smartphone with a pointing hand (no text or symbols)

ON OFF

Diagram of a device panel with three buttons and directional arrows indicating movement (no text or symbols)

Auswahl Foto oder

Videoaufnahme

Mehrfach drücken um

Kanal 4 auszuwählen

Line drawing of a smartphone with an arrow pointing to it, showing no text or symbols on the device itself.

Language OK: ✓ English

Sprache auswählen:

Video system NTSC OK: ✓ NTSC PAL NTSC NTSC

Videoformat:

Security instructions ....19

delivery content 20

Appliance description

Appliance description 21

Getting started

Insert batteries ....22

Installing imager head cable 22

Installing the accessories ....23

Charging the battery in the monitor 23

Mounting the monitor 23

Operation

Hand grip 24

Monitor functions 24

Recording Videos and Photos ....25

Videos and Photos playback 26

Videos and Photos deleting ....28

Settings, Menu 29

Connect the monitor to the computer ....31

Technical specification 32

Disposal of electrical and electronic equipment ....33

Service information 33

Declaration of Conformity 33,66

Warranty regulations 67

Please read this information carefully before you use the product.

General instructions

• Don't place the unit on unstable location, if it falls down, people may be injured.
  ● The unit is not a toy, please beware of small children.
• If you connect the unit to other electronic devices, please study also the security instruction of this device.
• If you have any question regarding the unit, how it works, the safety or the correct connection please contact our technical support or ask any specialist.
  ● The seller will not be liable for any damages caused by misuse of the product and any claim from third parties.

Environmental conditions

• Don't drop or shake the unit, it might be damaged.
• Avoid too high pressure to the LC-display, it might be damaged.
• Don't leave the unit where the temperature is higher than 60^ , e.g. in cars with closed windows in the summertime, near heaters or any other type of heat source.
• Don't use the unit in rooms with high humidity e.g. bathrooms. Parts of the apparatus, tube and mini camera, are water proofed See technical specifications for details
• Don't use the unit at dusty places.

Technical problems

• In case any foreign material or liquid gets into the product, please immediately remove the power cord. Before you use it again, ask your authorised dealer to check the product carefully.
• Please do not hesitate to contact our service center.

Packaging material

- Please don't keep any packaging material within reach of small children. It can become a dangerous toy.

Maintenance

• Please remove the battery in case you don't use the product for a longer period of time. Leaking batteries can damage the product. Store the product at a clean and dry place.
• For cleaning use dry and soft cloth.

Delivery content

Interference by radio

- The apparatus operates on a frequency, which is also used by other devices, that transmits video by radio. In some cases this may cause interferences.

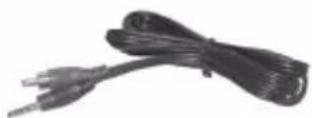

Delivery content

Two simple curved lines with arrows, resembling abstract or schematic forms (no text or symbols)

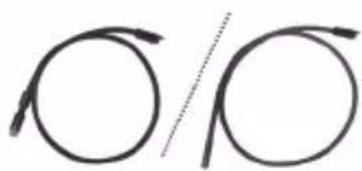

Hand grip 9mm/16mm Tube with mini camera TFT monitor

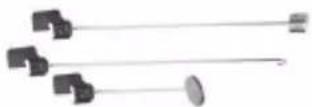

Hook, Magnet, Mirror

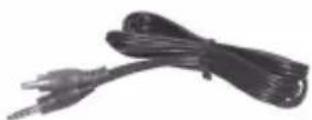

USB

cable

Video

cable

Close-up of a black electronic device with wires and a small plug (no visible text or symbols)

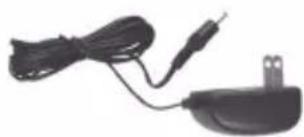

CD Charger/Power supply for the monitor 4 x AA Batteries

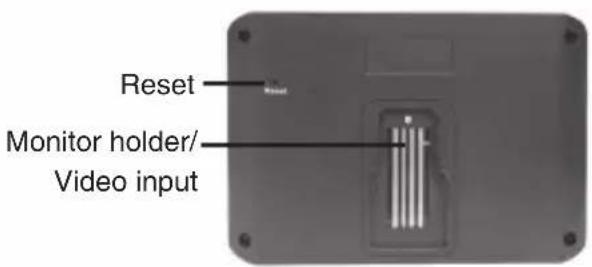

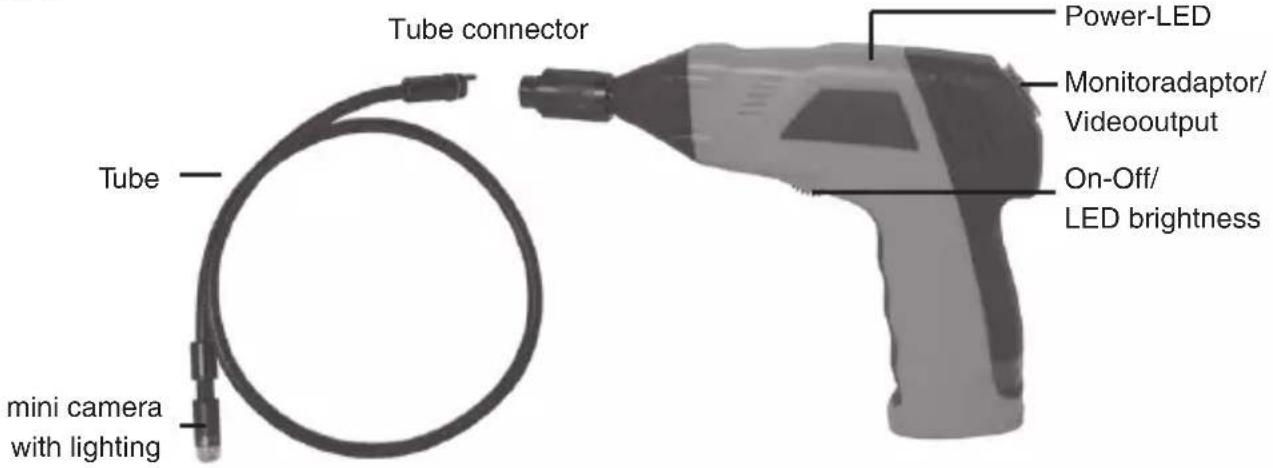

Appliance description

Hand grip

Tube connector Power-LED Monitoradaptor/ Videoutput On-Off/ LED brightness Tube mini camera with lighting

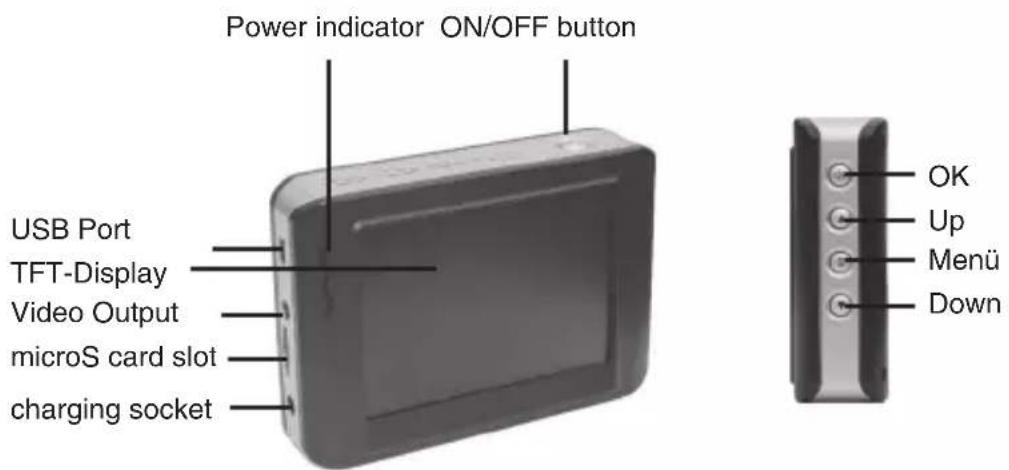

Monitor

Power indicator ON/OFF button USB Port TFT-Display Video Output microS card slot charging socket OK Up Menü Down

Reset Monitor holder/ Video input

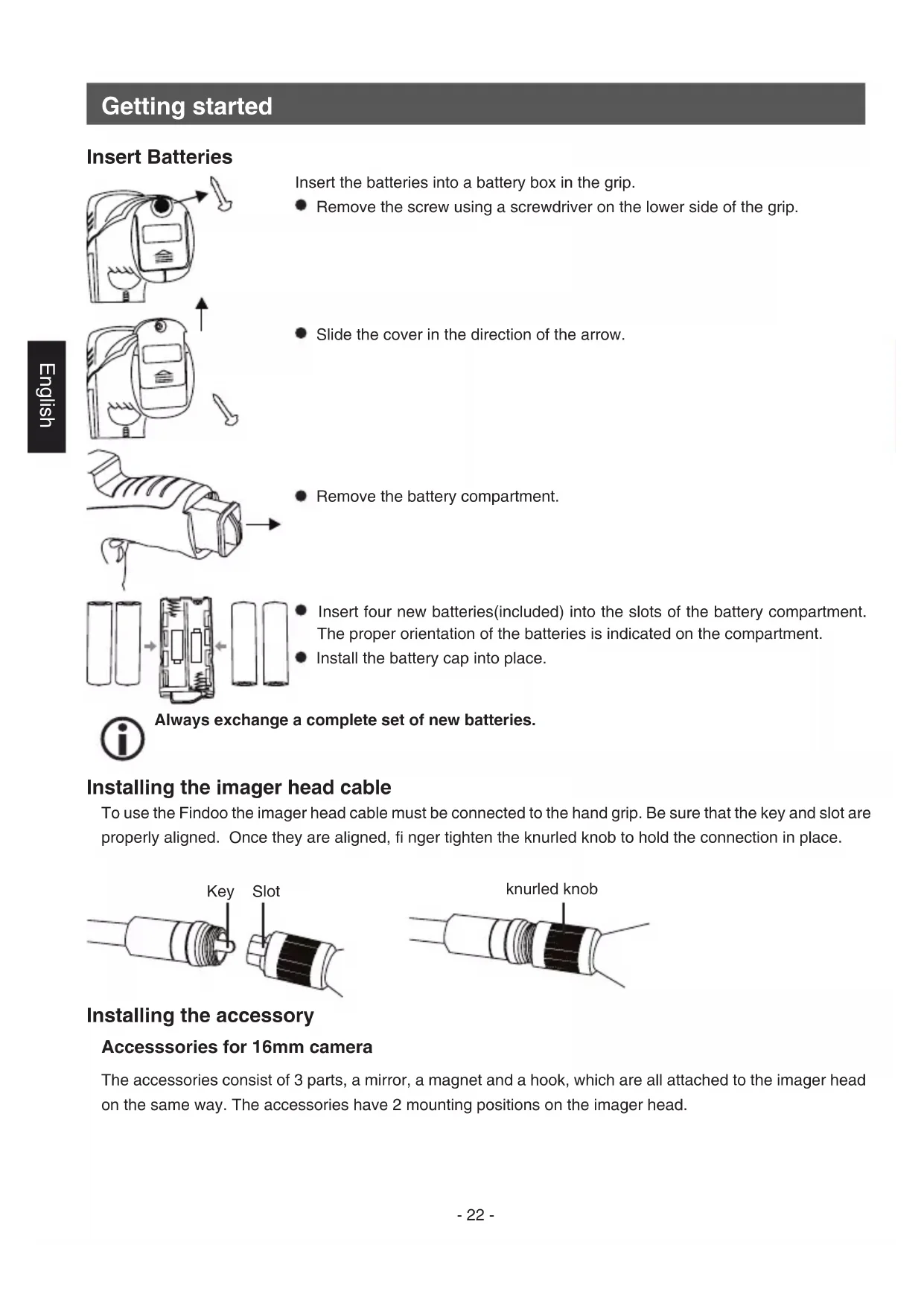

Getting started

Insert Batteries

Simple line drawing of a medical device with an arrow pointing to a screwdriver (no text or symbols)

Insert the batteries into a battery box in the grip.

- Remove the screw using a screwdriver on the lower side of the grip.

Simple line drawing of a mobile phone with a screen and a wrench, no text or symbols present

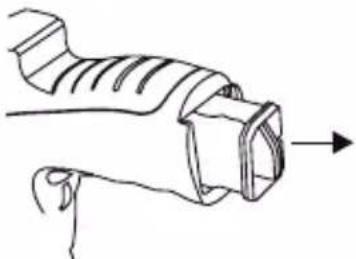

- Slide the cover in the direction of the arrow.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

- Remove the battery compartment.

Diagram showing a battery pack with three cylindrical cells arranged in a cross-sectional view, illustrating internal structure and assembly (no text or symbols)

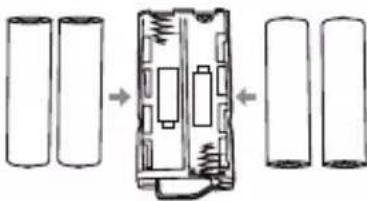

- Insert four new batteries(included) into the slots of the battery compartment. The proper orientation of the batteries is indicated on the compartment.

• Install the battery cap into place.

Always exchange a complete set of new batteries.

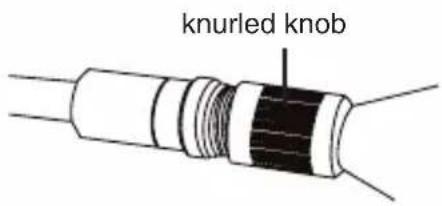

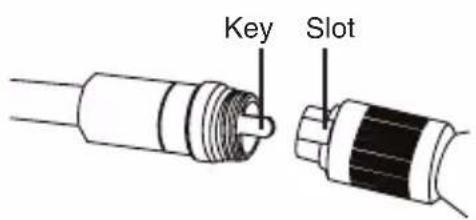

Installing the imager head cable

To use the Findoo the imager head cable must be connected to the hand grip. Be sure that the key and slot are properly aligned. Once they are aligned, fi nger tighten the knurled knob to hold the connection in place.

Key Slot

knurled knob

Installing the accessory

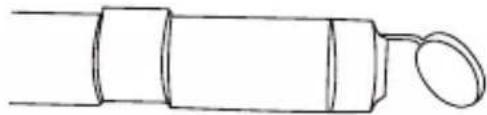

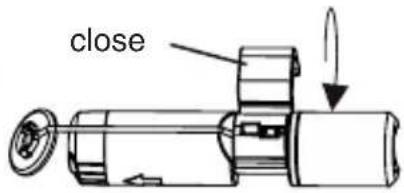

Accessories for 16mm camera

The accessories consist of 3 parts, a mirror, a magnet and a hook, which are all attached to the imager head on the same way. The accessories have 2 mounting positions on the imager head.

Technical line drawing of a mechanical assembly with no visible text or symbols

close

Simple line drawing of a cylindrical object with a looped end, resembling a fuse or mechanical component (no text or symbols)

Accessories for 9mm camera

The accessory increases the diameter of the camera.

The accessories consist of 3 parts, a mirror, a magnet and a hook, which are all attached to the imager head on the same way. The accessories have 1 mounting positions on the imager head.

Pure mechanical diagram showing a shaft and housing with an arrow indicating direction (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

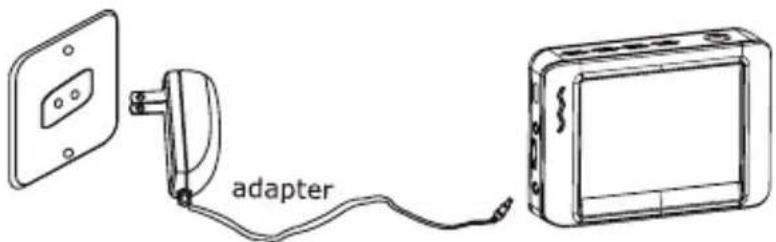

Charging battery in the monitor

The monitor has a built-in Li-Ion battery. A fully charged battery is enough for approx. 2 hours.

Recharging the battery takes about 3 hours.

● During charging the power LED indicates red.
● The monitor can be used during charging.

Inspect the inspection camera before use and correct any problems to reduce the risk of serious injury from electric shock and other causes and prevents tool damage.

adapter

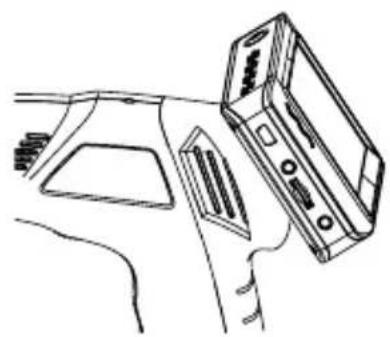

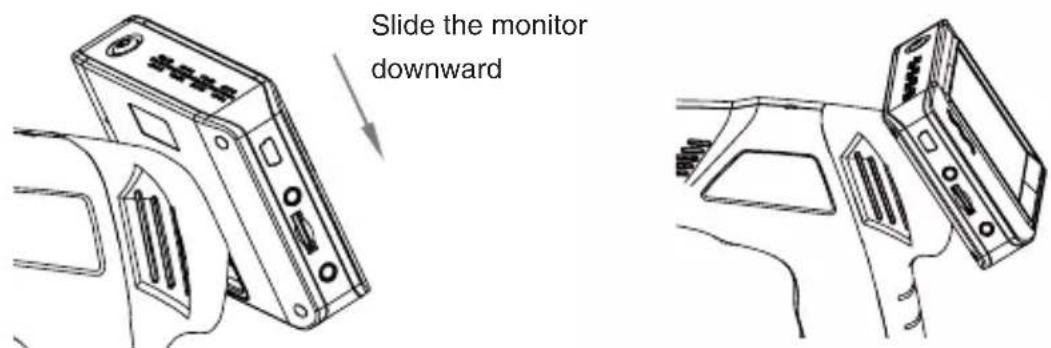

Mounting the monitor

The monitor can be operated wireless or fi xed on the hand grip. On the rear side of the hand grip are 4 connectors and a fi tting, where the monitor can be mounted.

Slide the monitor downward

Operation

Operation

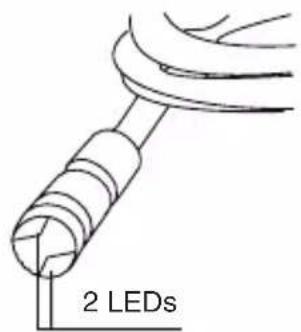

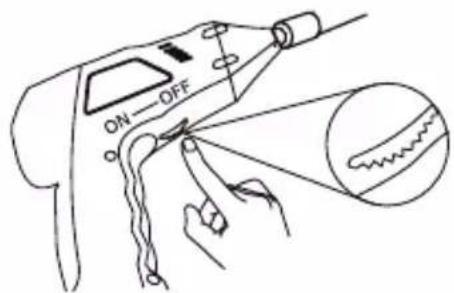

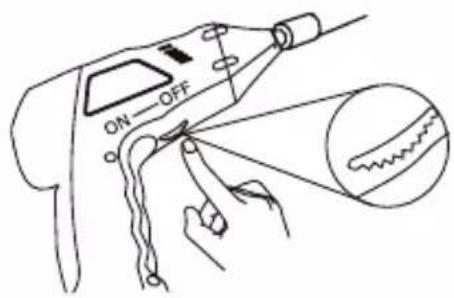

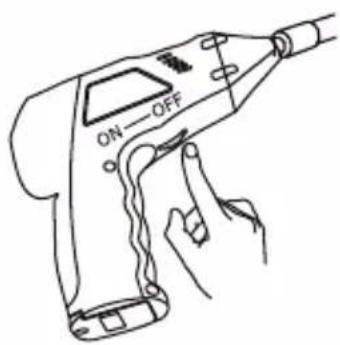

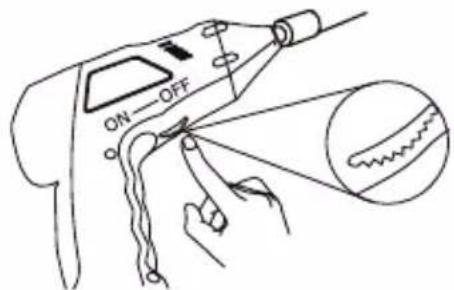

Turn on the power at the bottom side of the hand grip. The power indicator lights. The switch acts also as a dimmer for the twin LEDs at the imager head.

Don't buckle the tube. The min. inside radius of the 16mm camera tube should not go below 11 cm . The min. inside radius of the 9mm camera tube should not go below 7 cm. This depends on the environmental temperature.

ON—OFF

2 LEDs

ON OFF

Monitor

Turn the monitor on with the Power ON/OFF button. The power indicator lights. Setup a suitable lighting on the hand grip. In the next step setup channel 4 (CH4) for the transmission. Press and hold the Power ON/OFF button to turn the monitor off.

Line drawing of a hand pointing at a smartphone screen (no text or symbols)

ON-OFF

Diagram of a device panel with four circular buttons and directional arrows indicating movement (no text or symbols)

Selection photo or video recording

Pressing repeatedly to select channel 4

The signal transmission from hand grip to monitor uses the connector if the monitor is mounted on the hand grip. If not, the transmission is wireless via radio.

The range between monitor and hand grip is up to about 5m. In some cases the range can be up to 10m. The transmission range may vary according to the weather, location, interference and building construction.

Monitor, Setup and Operation

The monitor can act as a video recorder. You can make sapshots and videos, which are stored on the microSD card. The internal memory can not be used for records.

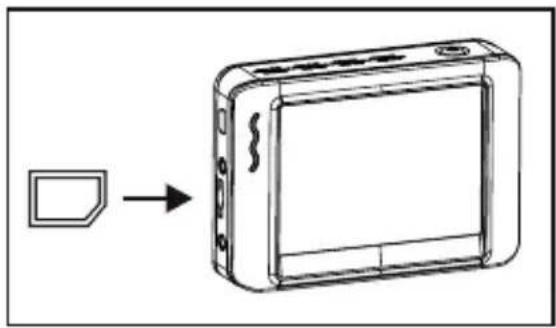

Insert SD Card (the SD card is optional)

Diagram showing a device with a square outline transforming into a rectangular panel (no text or symbols)

The microSD card slot has a built-in spring mechanism. After pushing the card it locks in place. If you have not pushed it in completely, it might jump away because of the power of the spring and low weight.

A microSD card is in the slot.
F The memory in the SD card is full
No SD card in the slot

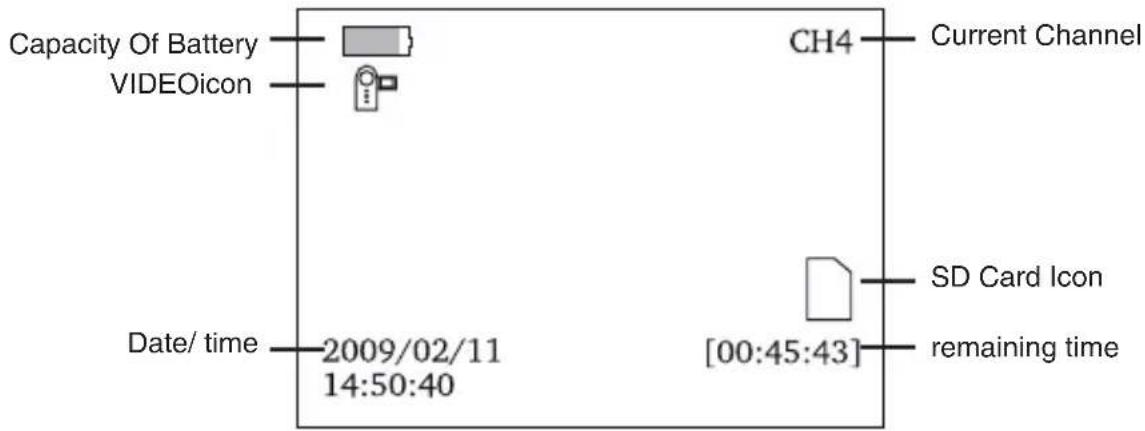

To record a video

In the realtime monitoring status, press 🔊 button to enter VIDEO status as follows:

- Press OK button to start the record.

Capacity Of Battery VIDEOicon Date/ time 2009/02/11 14:50:40 CH4 Current Channel SD Card Icon [00:45:43] remaining time

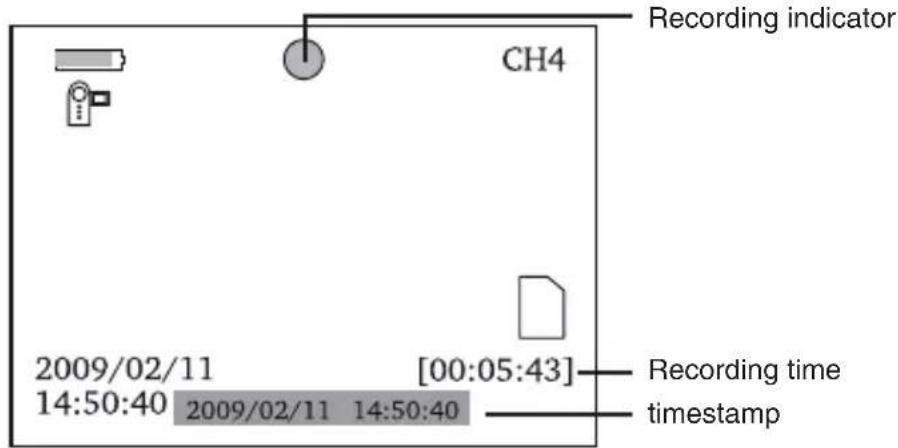

After the recording is started the display shows:

CH4 Recording indicator 2009/02/11 [00:05:43] 14:50:40 2009/02/11 14:50:40 Recording time timestamp

To stop recording press OK button again.

The video is automatically saved in a fi le every 30 minutes.

Operation

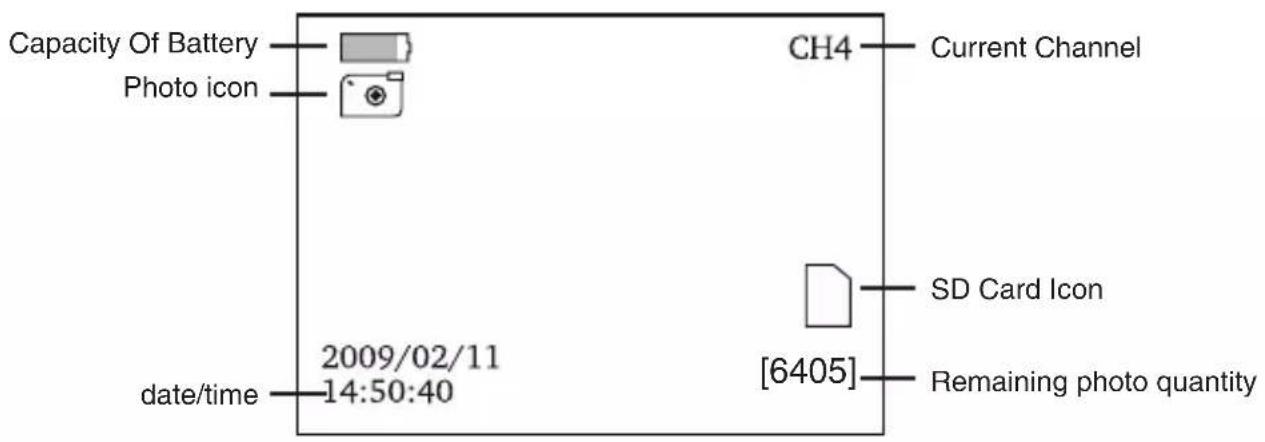

To take a photo

In the realtime monitoring status, press ⬆ button to enter the photo mode as follows:

• Take a photo with the OK button.

Capacity Of Battery Photo icon CH4 Current Channel SD Card Icon [6405] Remaining photo quantity date/time 2009/02/11 14:50:40

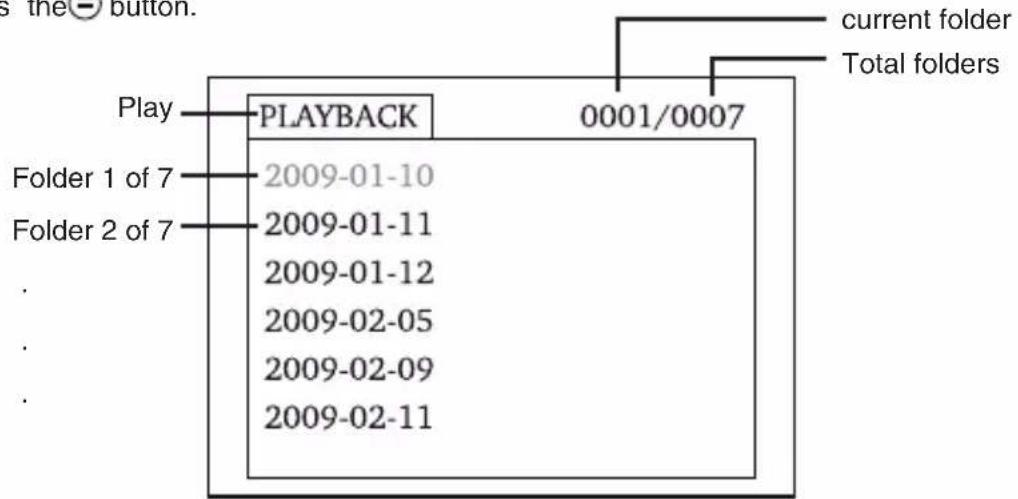

Playback of photos and videos

- Press the= button.

play PLAYBACK 0001/0007 current folder Total folders Folder 1 of 7 2009-01-10 2009-01-11 2009-01-12 2009-02-05 2009-02-09 2009-02-11

• The first layer show the folders, which are created by the unit. The date, where the records are created, is the name of the folder.
• Select a folder with the ▲▼buttons and press the OK button.

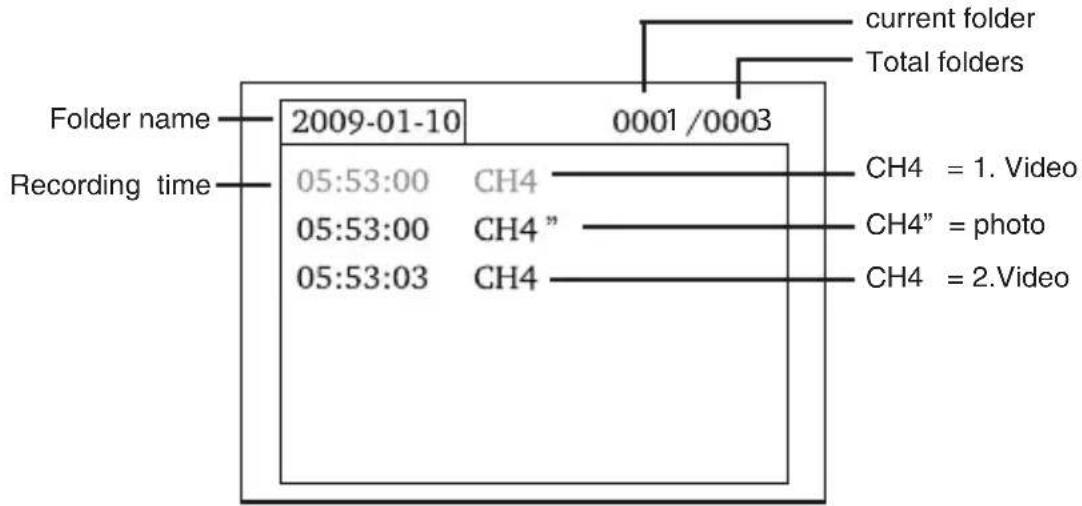

  ● The second layer shows a list of records.

Folder name 2009-01-10 05:53:00 CH4 05:53:00 CH4" 05:53:03 CH4 0001 /0003 current folder Total folders Recording time CH4 = 1. Video CH4" = photo CH4 = 2. Video

The “ character with CH4 indicates, that the fi le is a photo.

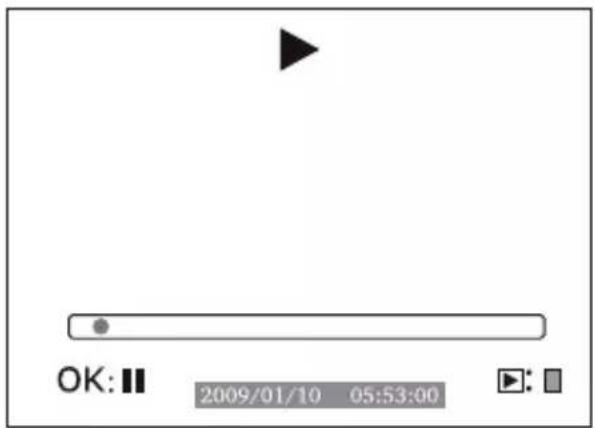

Playback a video:

• Select a video with ▲buttons and press OK button to confirm.
• For pause press OK button
• For fast forward press and hold the button.
• For fast backward press and hold the button.
• To exit press≡ button.

OK: 2009/01/10 05:53:00

Playback photos:

• Select a photo with ▲ button and press OK button to confirm.
• To exit press OK button.

Operation

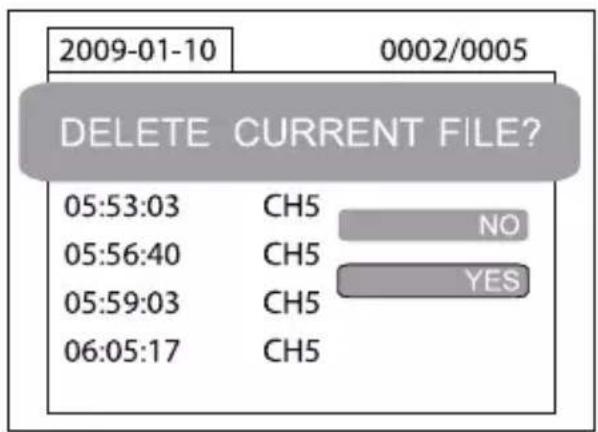

To delete videos and photos

• Choose a video or a photo as described previously.
• Press the ≡ key for approx. 2 seconds.

2009-01-10 0002/0005 DELETE CURRENT FILE? 05:53:03 CH5 NO 05:56:40 CH5 YES 05:59:03 CH5 06:05:17 CH5

• Choose YES with the ⬆▼ key and confirm with the OK key.
  ● To cancel, choose NO and confirm with OK key.

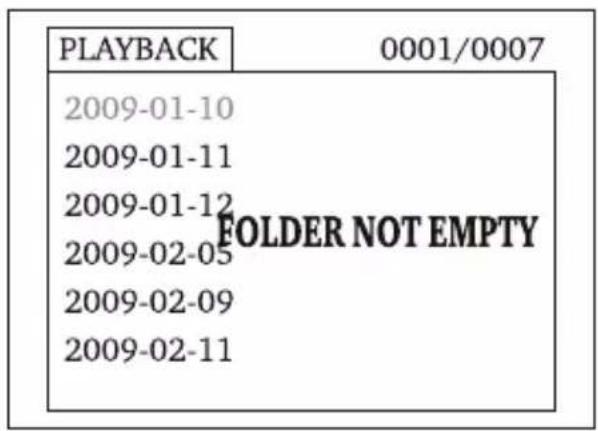

Delete folder

• Choose a folder as described just now.
• Press the ≡ key for approx 2 seconds in order to delete the folder.
• If the folder is not empty, you receive the following message: NOT EMPTY

PLAYBACK 0001/0007 2009-01-10 2009-01-11 2009-01-12 2009-02-05 2009-02-09 2009-02-11

- Delete the file in the folder

Only an empty folder can be deleted.

Settings

The monitor has a menu where various adjustments can be done, like the language, the framerate, format of the memory etc.

- In order to reach the adjustments, press the Ⓔ key for approx. 2 seconds..

Operation

• For further procedure it makes sense to check, whether the right OSD language is selected.
• If the monitor language is set wrong, press the OK key twice to reach the selection menu. There the country flags are shown.
• Choose the correct flag and confirm with OK key

Menu navigation:

eys: Choice of a menu entry

OK-key:

Confi

rm

choice

key: back in menu, interruption, leave the menu

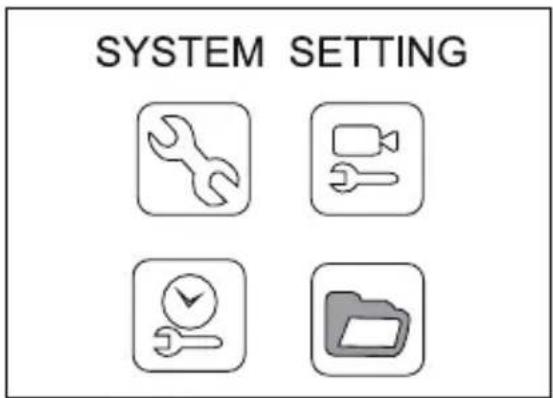

- The main menu is set up as follows:

SYSTEM SETTING

System setting: choose language, video system, format of the memory, favorite adjustments (factory adjustments) software version of the monitor

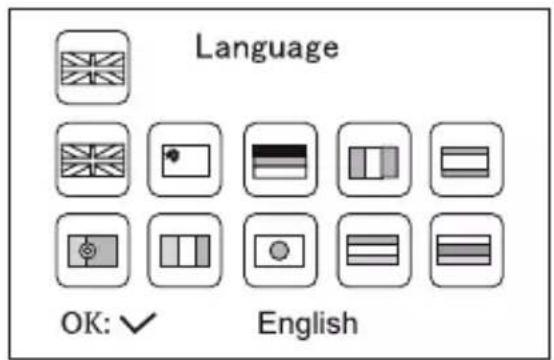

Language OK: ✓ English

Choose language:

Following languages are implemented english, easy chinese, german, french, spanish, portugiese, italian, japanese, dutch and russian.

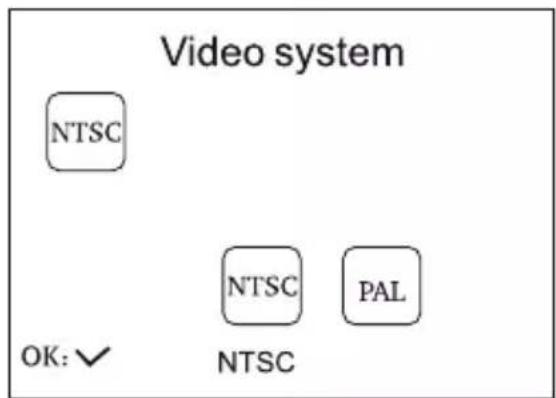

Video system NTSC OK: ✓ NTSC PAL NTSC NTSC

Video system:

PAL and NTSC are available as video system

Operation

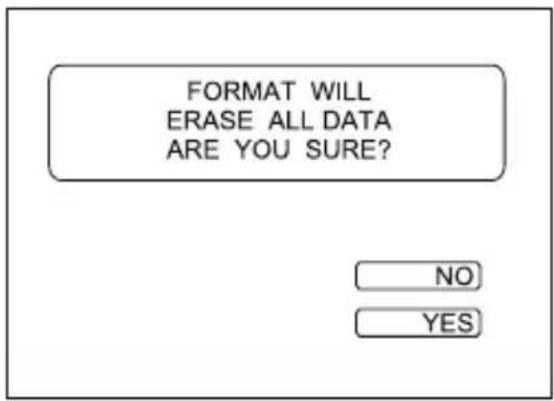

FORMAT WILL ERASE ALL DATA ARE YOU SURE? NO YES

Format:

By formatting, the content of the complete card is erased. For this reason an additional confirmation prompt appears.

To format choose YES, for program termination choose NO.

Confir rm with OK key.

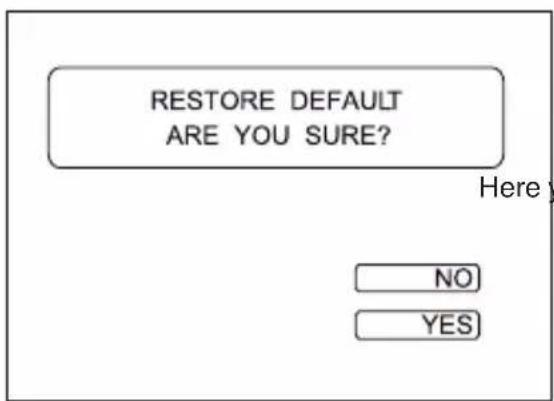

RESTORE DEFAULT ARE YOU SURE? Here NO YES

Factory reset:

You can restore all setups of the monitor to factory setting.

Here you receive a confirmation prompt on the monitor. To reset choose YES, for termination choose NO, confirm with OK key

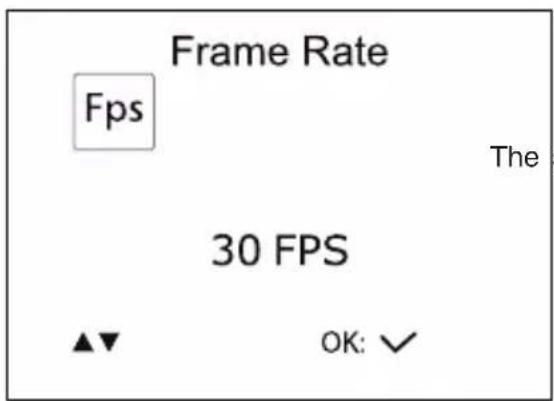

Frame Rate Fps The s 30 FPS ▲▼ OK: ✓

Recorder settings:

FPS, time stamp on/off, Preset Video or photo mode

The setting of picture rate per sec. affects the quality of the video. The more photos are taken per second, the better is the playback. However, the memory usage increases with higher picture rate.

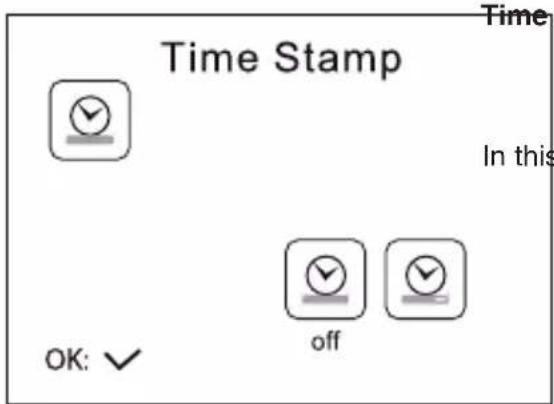

Time Stamp Time In this OK: ✓ off

Time stamp: In many cases it makes sense to document the date and time for documentation in order to see date and time on the video upon viewing on the computer.

In this menu it can be defined, whether photos and videos must be marked with a time stamp. Choose OFF for time stamp off or ON for time stamp on.

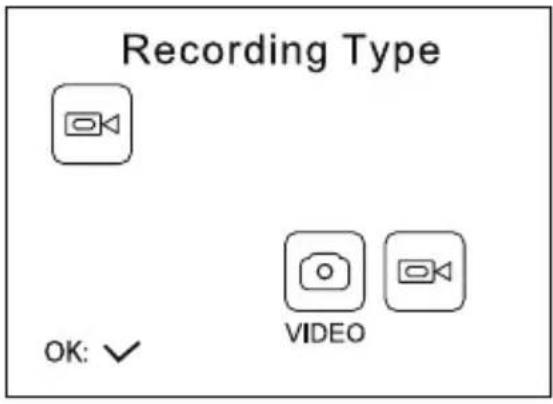

Recording Type OK: ✓ VIDEO

Recording photos or videos

Type:

Select the favorite mode of

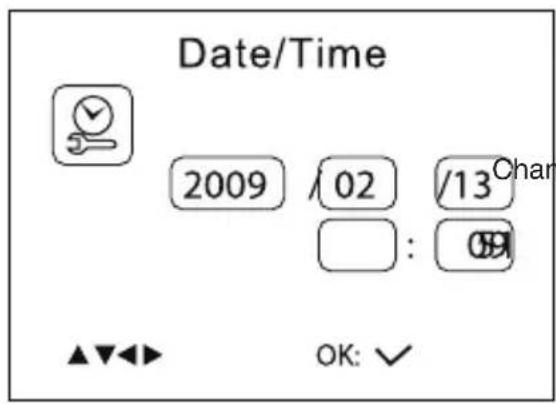

Date/Time 2009 /02 /13 Chan : 059 OK: ✓

Date/Time: Date and time must be adjusted correctly so the correct time and date is marked on the video

the input position with the OK key. Adjust the value with the ▲ keys. Exit the menu with the key.

Playback: Choose this menu when you want to start playback on the monitor. The selection occurs as described on page 10

software and connection to the computer

As soon as the monitor is connected to the computer via USB cable, it is set up as USB device. A corresponding symbol appears on the computer. The hardware installation can take a few minutes, depending on the operation system.

After the unit is set up on the computer, you can copy and delete videos or photos, like a harddisk. Should you have problems to play the videos, pls. install the video-player with the CD from the delivery content.

Technical data

hand grip with 16mm Kamera with 9mm Kamera

Imaging Sensor CMOS CMOS

Total Pixels 704 x 576 (PAL) 640 x 480

Horizontal View Angle 50° 45°

Transmission Frequency 2468 MHz 2468 MHz

Minimum Illumination 0 Lux 0 Lux

Modulation Type FM FM

Bandwidth	18 MHz	18 MHz
Unobstructed Effective Range	10 m	10 m
Power Supply	4xAA Batteries	4xAA Batteries
Handle Dimensions(WDXH)	186 x 145 x 41(mm) (without tube)	186 x 145 x 41(mm)
Weight(camera and handle)	450 g	450 g
camera diameter	16 mm	9 mm

monitor

LCD Screen Type	3,5" colour TFT
Resolution 320 x 240
Videosystem	PAL/NTSC
Transmission Frequency 2414, 2432, 2450, 2468 MHz
Supply Voltage	built-in Li-Ion-Akku
Exterior Supply Voltage	5V/500mA
Videopegel	0,9-1,3Vpp / 75Ohm
Picture/Video Pixels	640 x 480
Video Size 27MB /minute
Frame Rate	30 frame/second
Dimensions(W x D x H)	100x70x25mm
Weight(About)	140g
Operating Temperature -10°C~+50°C/+14°F~+122°F
Operating Humidity	15~85%RH

If the monitor is in an operating condition, which deviates from the function mode described here, it can be necessary to do a reset. Bend a paper clip upward in a 90° position and press with the paper clip carefully the RESET key, which is absorbedly inserted on the back of the monitor.

Declaration of conformity

Hereby, dnt GmbH, declares that this Findoo Profi line is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity for this product can be downloaded

from:

http://www.dnt.de/conformity

Disposal of electrical and electronic equipment

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Batteries do not belong into the domestic refuse. Empty batteries must be delivered to the specially arranged collecting points.

Service information

In case of complaints your device shows a defect, please consult your dealer or contact the service department of dnt to agree a servicing.

Service time: Monday until Thursday from 8.00-17.00h

Friday from 8.00-16.00h

Hotline/service: [phone]

E-mail: [e-mail]

Please do not send your device to our address without request by our service team. The expense and the risk of loss are for debits of the sender. We reserve to refuse the unrequested shipment or return corresponding goods to the sender at buyer's risk and expense.

Contenu

Two curved lines with arrows, one straight and one with a diagonal line (no text or symbols)

Close-up of a black electronic device with wires and a small plug (no visible text or symbols)

CD

Diagram showing two views of a device with labeled parts and directional arrows indicating movement or assembly.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram illustrating the assembly of cylindrical components, showing a cross-section with internal compartments and directional arrows.

Pure mechanical diagram showing a shaft and housing with an arrow indicating direction (no text or symbols)

Pure mechanical diagram showing a shaft and housing assembly without any text, numbers, or symbols

Line drawing of a device with ports and connectors, no text or symbols present

Line drawing of a car interior showing dashboard and rearview compartments (no text or symbols)

Fonctionnement

Fonctionnement

Line drawing of a hand pointing at a smartphone screen (no text or symbols)

ON-OFF

Diagram of a device panel with three circular buttons and directional arrows indicating input/output (no text or symbols)

Two curved lines with arrows, one solid and one dotted, resembling abstract or schematic symbols (no text or labels)

Haak, magneet, spiegel

Close-up of a black electronic device with wires and a small plug (no visible text or symbols)

CD

Diagram illustrating the step-by-step assembly of a handheld device, showing component insertion and packaging process.

Pure mechanical diagram showing a shaft and lever assembly without any text, numbers, or symbols

Pure mechanical diagram showing a shaft and housing assembly without any text, numbers, or symbols

Accu laden in de monitor

Line drawing of a device with ports and connectors, showing a cable or connector assembly (no text or symbols)

Line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

Bedrijf

Bedrijf

Taal OK: ✓ English

Taal selecteren:

EC-Declaration of Conformity

marking

We, Manufacturer/Importer

D-63128 Dietzenbach, Germany

Declare that the product Findoo Profi line is in conformity with

Council Directive 1999/5/EC (R&TTE Directive)

EN 300 440-2 V1.1.2 (2004-07)

EN 301 489-3 V1.4.1 (2002-08)

EN 301 489-1 V1.6.1 (2005-09)

EN 60065:2002+A1:2006

EN 50371:2002

2005/32/EC 2005(EC Regulation 1275/2008)

2005/32/EC 2005(EC Regulation 278/2009)

C€1313

Contact person: Reinhold Bauer

Tel. [phone]

Dietzenbach October 28th, 2009

R.Bauer

Raingoldfawed

Garantiebedingungen

Warranty regulations

1. In general the European warranty regulations are valid. Warranty starts with receipt of unit. In a warranty case, please submit the unit together with invoice, unit pass and error description. Without these documentary evidence we are not obliged to a warranty performance.
2. During warranty period we repair all constructional or material defects which are caused by a manufacturing fault. It is in the decision of the manufacturer to change or replace defective parts/units. Further claims are excluded. Changed parts will automatically go over into our property. We will not be held responsible for future damages.
3. Manipulation on the unit through non-authorized companies/persons automatically leads to an end of warranty period.
4. Excluded of warranty claims are damages due to improper treatment, not following the manual, oxidation of batteries, permanent usage.
5. The initial warranty period is not extended because of repair or replacement of parts.
6. These warranty regulations are valid in the Federal Republik of Germany.

Application de la garantie

Stamp and signature of the dealer
