Product type	B-flat clarinet
Brand	Jupiter
Model	JCL1100DS
Body material	Wood (grenadilla)
Number of sections	2 (upper and lower joints)
Included accessories	Mouthpiece, barrel, bell, ligature, swab, case
Maintenance	Clean with swab and soft cloth after each use; oil pivots with key oil
Precautions	Avoid sudden temperature changes and humidity; do not force when assembling/disassembling; use a case or stand for storage
Repairability	Entrust any repairs to a dealer or qualified technician
Manual pages	38
Available languages	FR, DE, EN, ES, ZH

Frequently Asked Questions - JCL1100DS Jupiter

How to assemble the Jupiter JCL1100DS clarinet?

Apply grease to the cork of the tenons. Join the two sections without pressing strongly on the keys. Attach the barrel to the upper section and the bell to the lower section. Align the mouthpiece table with the thumb key. Place the reed on the mouthpiece and secure the ligature.

How to disassemble the clarinet after use?

Remove the reed, ligature, and mouthpiece from the barrel. Gently press the upper keys while separating the two sections. Remove the barrel and bell.

What maintenance is necessary after each play?

Use a swab to remove moisture from inside the parts. Wipe the body and keys with a soft cloth. Clean and dry the mouthpiece and reed.

How to store the reed correctly?

After cleaning and drying, store the reed in its protective case to prevent damage.

How to oil the clarinet keys?

Use very little key oil on all pivot parts. Do not apply excess.

What precautions to take to avoid damaging the clarinet?

Do not expose the instrument to sudden temperature changes or humidity. Always store it in its case or on a stand. Do not attempt to repair it yourself.

Why should you not force during assembly?

Excessive pressure on the keys can misalign the mechanism and damage the instrument.

Where to find a qualified technician for repair?

Contact your dealer or a technician specialized in wind instruments.

What are the risks of exposure to excessive temperatures?

This can cause cracks in the wood and damage the mechanism.

How to clean the mouthpiece and reed?

Clean with a soft cloth and warm water if necessary. Dry thoroughly before storing. Do not use abrasive products.

USER MANUAL JCL1100DS Jupiter

Thank you for purchasing a Jupiter series clarinet. This manual provides you with basic care and maintenance instructions so you can get the most out of your instrument. We hope you will read this carefully to help alleviate any problems with your instrument and to get more enjoyment from your music.

1. Assembly
   2.Disassembly 5
2. Inspection & Maintenance 6
3. Caution 7

German

Liberally apply cork grease to the tenon corks on all joints.

Step 2.

(1.) Bb Clarinet – Connect the barrel and the upper joint.
(2.) Bb Bass Clarinet - Connect the neck and the upper joint.

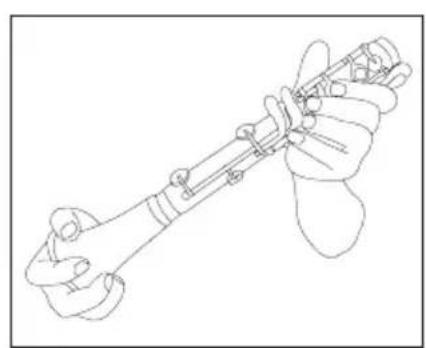

Step 3.

Connect the lower joint and bell.

Step 4.

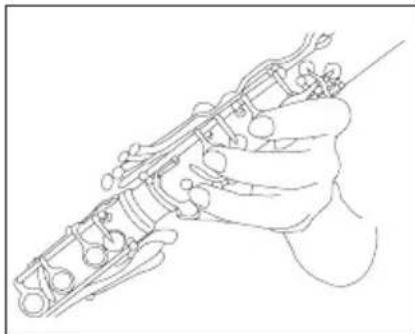

Connect the upper joint from Step 2 to the lower joint from Step 3 while depressing the ring keys of the upper joint. This prevents damage to the bridge key mechanism.

Step 5.

Attach the mouthpiece to the barrel. Align the ramp surface of the mouthpiece with the thumb register key.

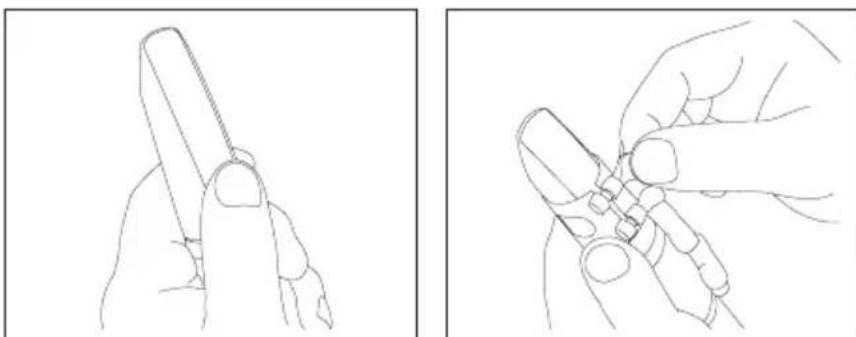

Step 6.

Properly position the reed on the mouthpiece. Slide the ligature over the reed being careful not to damage the reed tip. After the ligature is properly positioned, hand tighten the ligature screws.

2 Disassembly

Step 1.

Remove the reed, ligature, and mouthpiece from the barrel.

Step 2.

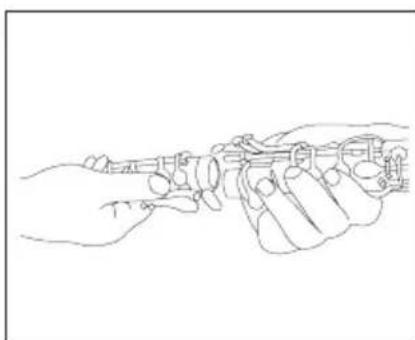

Press the ring keys on the upper joint while separating the upper and lower joints.

Step 3.

Detach the upper joint from the barrel.

Step 4.

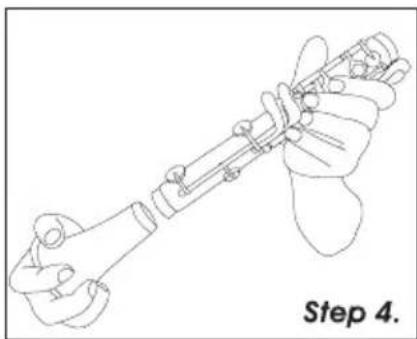

Detach the lower joint from the bell.

3 Inspection & Maintenance

Step 1.

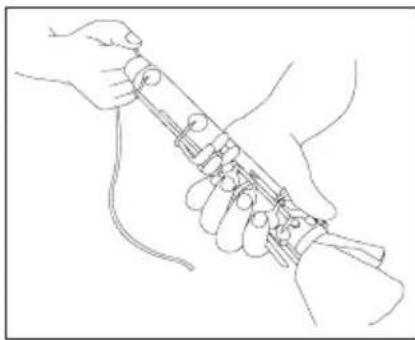

After playing and before returning to the case, draw the cleaning swab through the body sections to remove any moisture.

Step 2.

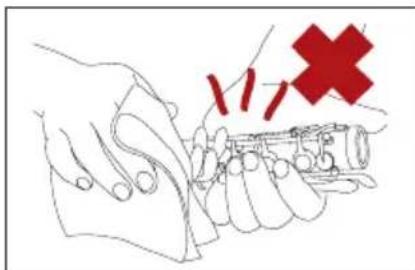

Wipe the body and the keys gently with the supplied cleaning cloth. Take care not to scratch or damage the body or keys by improper handling.

Step 3.

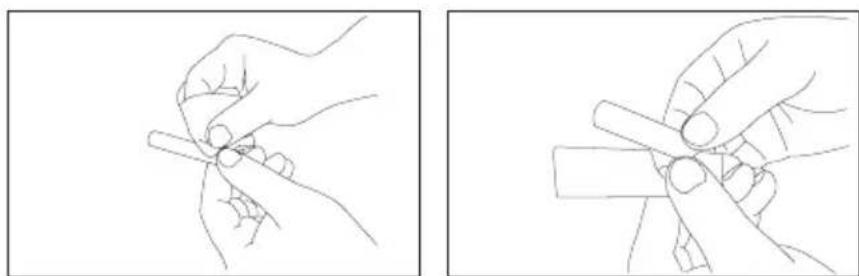

Clean and dry the mouthpiece and reed. To lengthen the life of the reed, store the reed in a reed protector.

4 Caution

1. Use key oil sparingly to all pivot points to keep the keys operating smoothly.

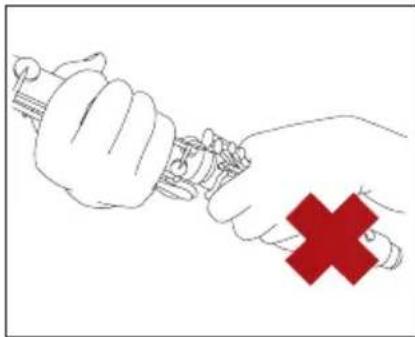

2. To avoid damaging the key mechanism, do not exert excess pressure on the keys during assembly and disassembly.

1. Remove any excess moisture from the body and keys to prolong the instrument's finish.

2. Do not expose any instrument to excessive temperature or humidity.

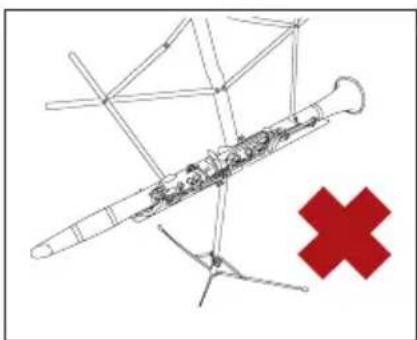

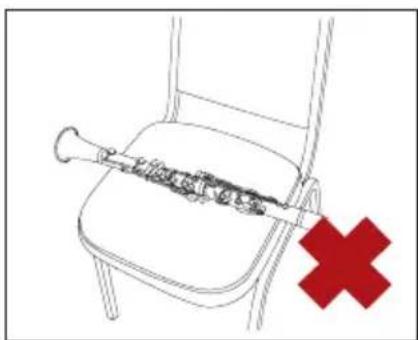

3. To avoid possible damage after playing, put the clarinet in a safe place such as an instrument case or a suitable instrument stand. Do not put it on a chair, desk, or anywhere else where it could easily fall.

1. For adjustment or repair, take your instrument to a qualified technician or dealer. Don't attempt to adjust the clarinet yourself.

Specifications subject to change without notice www.jupitermusic.com
