JP1039SQ - Musical instrument Jupiter - Free user manual and instructions

Product Type	Clarinet
Brand	Jupiter
Model	JP1039SQ
Category	Woodwind instrument
Body Material	Wood (prone to cracking if not maintained)
Key Material	Metal with nickel finish
Approximate Length	67 cm (B-flat clarinet)
Approximate Weight	700 g
Mouthpiece	Ebonite mouthpiece
Number of Joints	Two (upper and lower joint) + barrel + bell
Assembly	Grease the cork tenons, assemble without forcing the keys
Disassembly	Remove reed, ligature, mouthpiece; separate joints by lightly pressing the keys
Routine Maintenance	Wipe the inside with a swab and the outside with a soft cloth
Mouthpiece and Reed Care	Clean and dry; store the reed in its protective case
Lubrication	Use a small amount of key oil on the pivots
Precautions	Avoid sudden temperature changes and humidity; do not place on a chair
Safety	Do not attempt to repair yourself; entrust to a dealer or qualified technician
Recommended Use	Beginner or advanced musician
Included Accessories	Not specified (often case, swab, grease)

Frequently Asked Questions - JP1039SQ Jupiter

How to correctly assemble the clarinet?

First apply grease to the cork of the tenons. Join the upper and lower joints without pressing hard on the keys. Attach the barrel to the upper joint and the bell to the lower joint. Align the mouthpiece table with the thumb key, then position the reed and tighten the ligature.

How to apply grease on the cork?

Use the provided special cork grease. Apply a thin layer to the cork tenons of the joints. This facilitates assembly and protects the cork from drying out.

How to clean the instrument after playing?

Run a swab through the inside of each part to remove moisture. Wipe the outside with a soft cloth, avoiding scratching the keys. Clean and dry the mouthpiece and reed separately.

How to store the reed correctly?

After cleaning and drying the reed, place it in its protective case to prevent deformation or damage.

What to do if a key sticks or does not work well?

Do not try to force or repair it yourself. Apply very little key oil to the pivots if necessary. If the problem persists, entrust the instrument to a qualified technician.

Why avoid sudden temperature changes?

The clarinet's wood can crack due to rapid changes in temperature or humidity. Let the instrument gradually acclimate to a new environment.

Can I oil the keys myself?

Yes, but sparingly. Use a special key oil applied in very small amounts to the pivots. Avoid any excess that could drip onto the wood.

How to align the mouthpiece table with the thumb key?

During assembly, turn the mouthpiece so that its table (flat part where the reed rests) is aligned with the thumb key of the upper joint. This ensures optimal playing comfort.

Does the manual mention two types of clarinets?

Yes, the manual provides instructions for the B-flat clarinet and the bass clarinet. For the bass clarinet, attach the lower part of the neck to the upper joint. Check the exact model of your instrument.

When should I consult a technician?

If you encounter a persistent mechanical problem (sticking keys, air leaks, etc.) or need to adjust the mechanism, contact an authorized dealer or a qualified technician to avoid damaging the instrument.

USER MANUAL JP1039SQ Jupiter

Thank you for purchasing a Jupiter series clarinet. This manual provides you with basic care and maintenance instructions so you can get the most out of your instrument. We hope you will read this carefully to help alleviate any problems with your instrument and to get more enjoyment from your music.

1. Assembly
   2.Disassembly 5
2. Inspection & Maintenance 6
3. Caution 7

German

Liberally apply cork grease to the tenon corks on all joints.

Step 2.

(1.) Bb Clarinet – Connect the barrel and the upper joint.
(2.) Bb Bass Clarinet - Connect the neck and the upper joint.

Step 3.

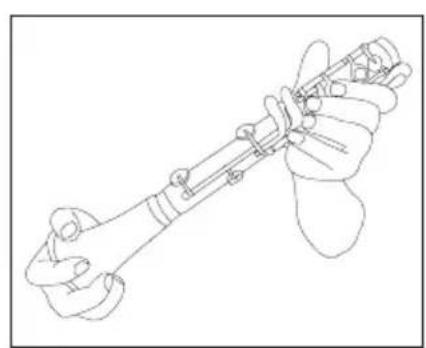

Connect the lower joint and bell.

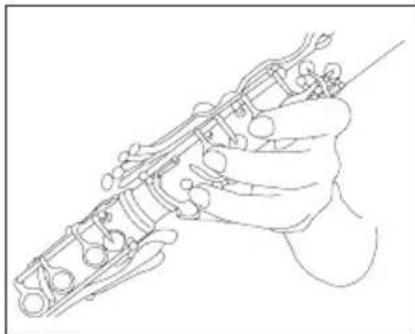

Step 4.

Connect the upper joint from Step 2 to the lower joint from Step 3 while depressing the ring keys of the upper joint. This prevents damage to the bridge key mechanism.

Step 5.

Attach the mouthpiece to the barrel. Align the ramp surface of the mouthpiece with the thumb register key.

Step 6.

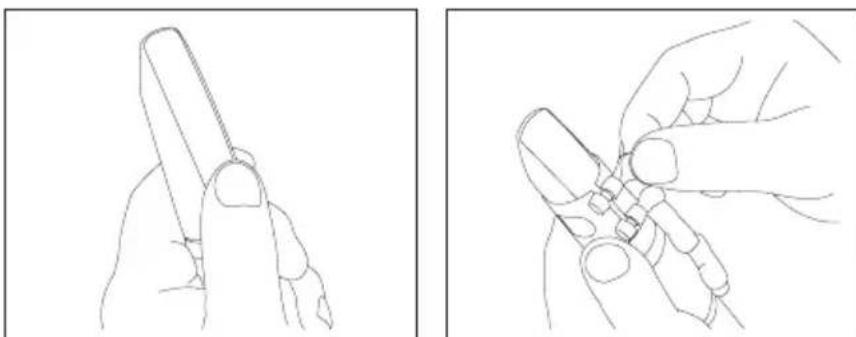

Properly position the reed on the mouthpiece. Slide the ligature over the reed being careful not to damage the reed tip. After the ligature is properly positioned, hand tighten the ligature screws.

2 Disassembly

Step 1.

Remove the reed, ligature, and mouthpiece from the barrel.

Step 2.

Press the ring keys on the upper joint while separating the upper and lower joints.

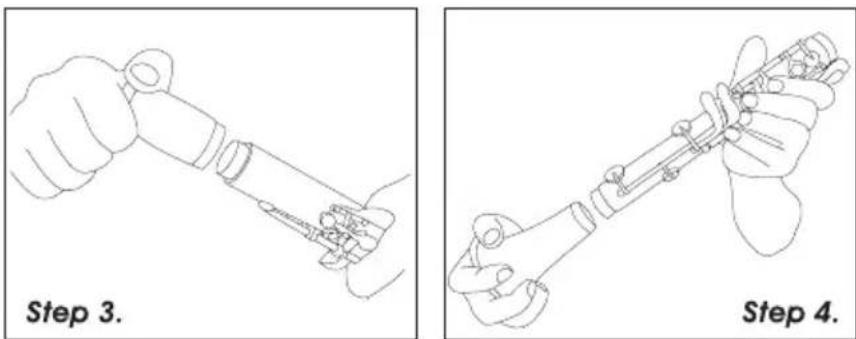

Step 3.

Detach the upper joint from the barrel.

Step 4.

Detach the lower joint from the bell.

3 Inspection & Maintenance

Step 1.

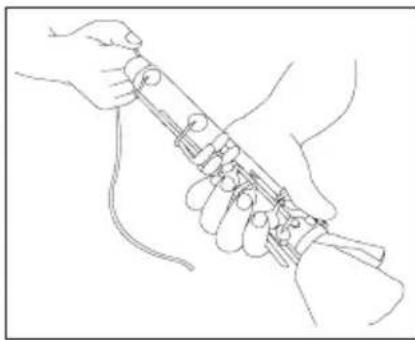

After playing and before returning to the case, draw the cleaning swab through the body sections to remove any moisture.

Step 2.

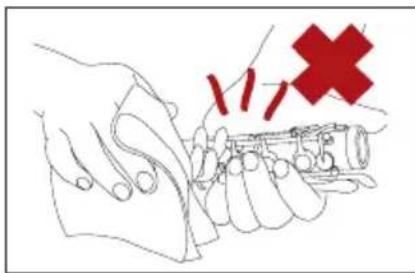

Wipe the body and the keys gently with the supplied cleaning cloth. Take care not to scratch or damage the body or keys by improper handling.

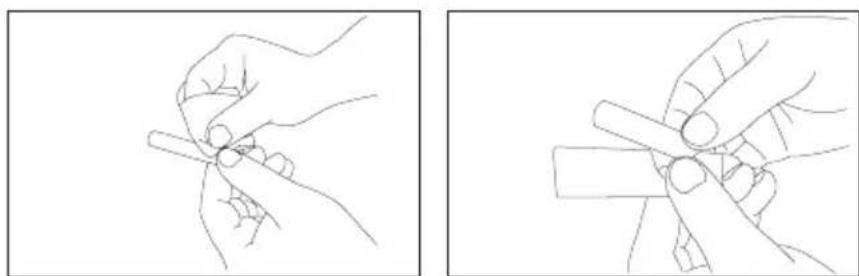

Step 3.

Clean and dry the mouthpiece and reed. To lengthen the life of the reed, store the reed in a reed protector.

4 Caution

1. Use key oil sparingly to all pivot points to keep the keys operating smoothly.

2. To avoid damaging the key mechanism, do not exert excess pressure on the keys during assembly and disassembly.

1. Remove any excess moisture from the body and keys to prolong the instrument's finish.

2. Do not expose any instrument to excessive temperature or humidity.

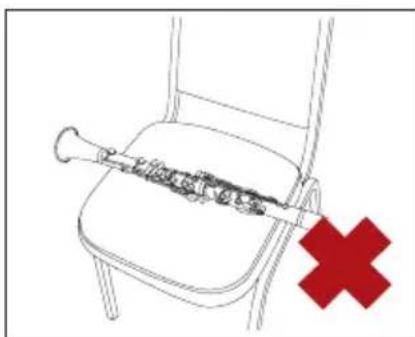

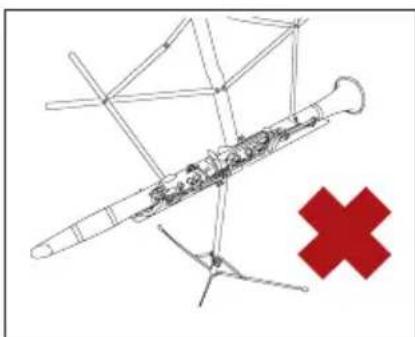

3. To avoid possible damage after playing, put the clarinet in a safe place such as an instrument case or a suitable instrument stand. Do not put it on a chair, desk, or anywhere else where it could easily fall.

1. For adjustment or repair, take your instrument to a qualified technician or dealer. Don't attempt to adjust the clarinet yourself.

Specifications subject to change without notice www.jupitermusic.com
