Product type	Clarinet
Brand	Jupiter
Model	JCL700SQ
Key	Bb
Body material	Grenadilla wood
Key material	Nickel silver (alloy)
Finish	Lacquer
Number of keys	17
Number of pads	12
Length	67 cm
Weight	0.8 kg
Mouthpiece	Ebonite mouthpiece
Reed	Single reed (not included)
Ligature	Metal ligature
Cork grease	Used to lubricate the cork tenons
Key oil	Used sparingly on the pivots
Case included	Yes, rigid case
Included accessories	Swab, cork grease, soft cloth
Maintenance	Wipe after use, clean mouthpiece and reed, store in case
Repairability	Entrust to a qualified dealer or technician

Frequently Asked Questions - JCL700SQ Jupiter

How to correctly assemble the Jupiter JCL700SQ clarinet?

Apply cork grease to the cork tenons, fit the joints together without forcing the keys, align the mouthpiece table with the thumb key, then position the reed and tighten the ligature.

How to disassemble the clarinet after use?

First remove the reed, ligature, and mouthpiece. Separate the joints by gently pressing on the upper keys. Remove the barrel and bell.

What daily maintenance is recommended?

After playing, remove interior moisture with the swab, wipe the body and keys with a soft cloth, clean and dry the mouthpiece and reed, then store everything in the case.

Where to apply key oil?

Use very little key oil on all pivot parts. Avoid excess application.

What precautions to take to avoid damaging the mechanism?

Do not apply excessive force during assembly/disassembly to avoid misaligning the keys.

How to prevent cracking of the wood on the clarinet?

Do not expose the clarinet to sudden temperature changes, extreme temperatures, or humidity.

Where to store the clarinet to avoid falls?

Always store the clarinet in its case or place it on a stand. Do not place it on a chair or any place from which it could roll or fall.

Can I repair my clarinet myself?

No, do not attempt to adjust or repair it yourself. Contact your dealer or a qualified technician.

How to clean the mouthpiece and reed?

Clean and dry the mouthpiece and reed thoroughly after each use. Store the reed in its protective case to prevent damage.

What to do if the clarinet is difficult to assemble?

Check that the cork tenons are properly greased. If the problem persists, consult a technician.

USER MANUAL JCL700SQ Jupiter

Thank you for purchasing a Jupiter series clarinet. This manual provides you with basic care and maintenance instructions so you can get the most out of your instrument. We hope you will read this carefully to help alleviate any problems with your instrument and to get more enjoyment from your music.

1. Assembly
   2.Disassembly 5
2. Inspection & Maintenance 6
3. Caution 7

German

Liberally apply cork grease to the tenon corks on all joints.

Step 2.

(1.) Bb Clarinet – Connect the barrel and the upper joint.
(2.) Bb Bass Clarinet - Connect the neck and the upper joint.

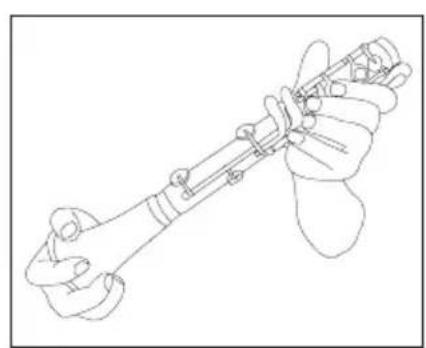

Step 3.

Connect the lower joint and bell.

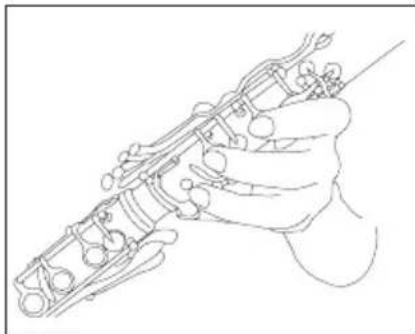

Step 4.

Connect the upper joint from Step 2 to the lower joint from Step 3 while depressing the ring keys of the upper joint. This prevents damage to the bridge key mechanism.

Step 5.

Attach the mouthpiece to the barrel. Align the ramp surface of the mouthpiece with the thumb register key.

Step 6.

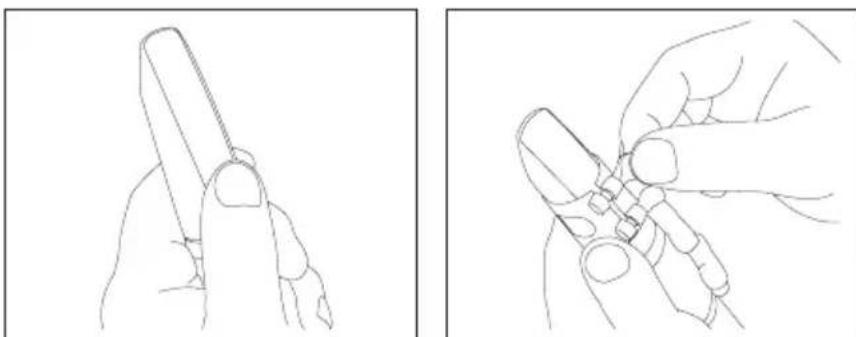

Properly position the reed on the mouthpiece. Slide the ligature over the reed being careful not to damage the reed tip. After the ligature is properly positioned, hand tighten the ligature screws.

2 Disassembly

Step 1.

Remove the reed, ligature, and mouthpiece from the barrel.

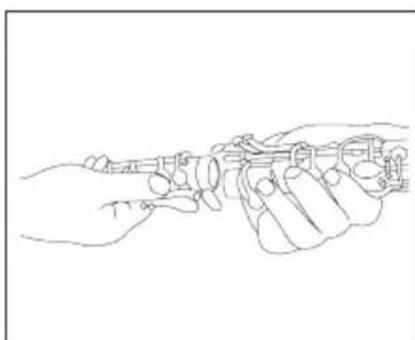

Step 2.

Press the ring keys on the upper joint while separating the upper and lower joints.

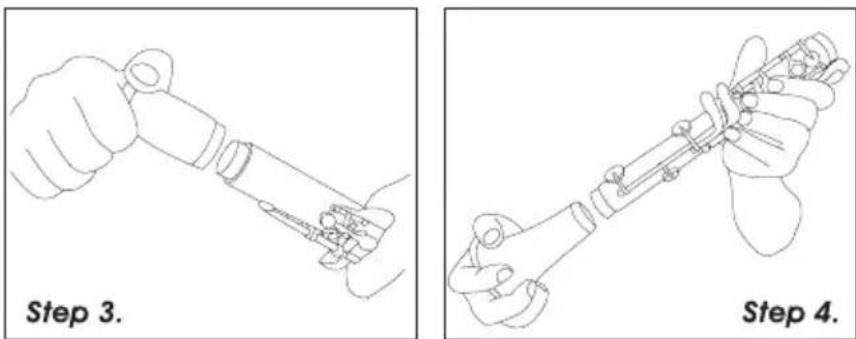

Step 3.

Detach the upper joint from the barrel.

Step 4.

Detach the lower joint from the bell.

3 Inspection & Maintenance

Step 1.

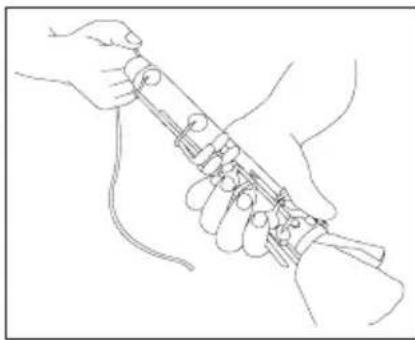

After playing and before returning to the case, draw the cleaning swab through the body sections to remove any moisture.

Step 2.

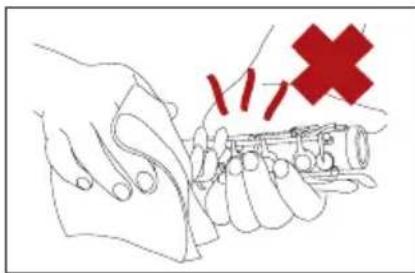

Wipe the body and the keys gently with the supplied cleaning cloth. Take care not to scratch or damage the body or keys by improper handling.

Step 3.

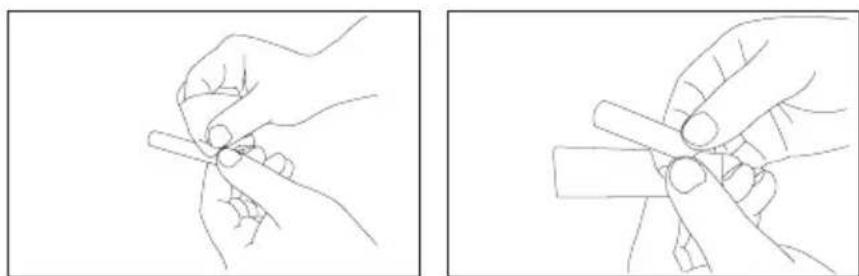

Clean and dry the mouthpiece and reed. To lengthen the life of the reed, store the reed in a reed protector.

4 Caution

1. Use key oil sparingly to all pivot points to keep the keys operating smoothly.

2. To avoid damaging the key mechanism, do not exert excess pressure on the keys during assembly and disassembly.

1. Remove any excess moisture from the body and keys to prolong the instrument's finish.

2. Do not expose any instrument to excessive temperature or humidity.

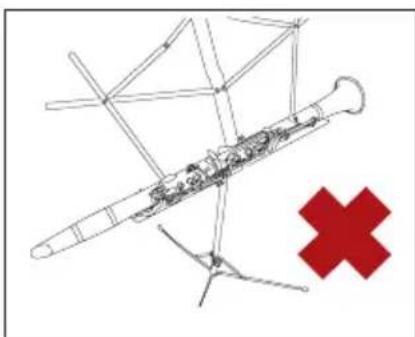

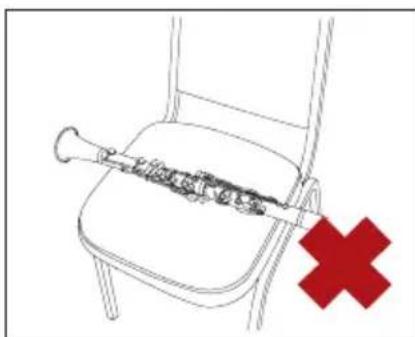

3. To avoid possible damage after playing, put the clarinet in a safe place such as an instrument case or a suitable instrument stand. Do not put it on a chair, desk, or anywhere else where it could easily fall.

1. For adjustment or repair, take your instrument to a qualified technician or dealer. Don't attempt to adjust the clarinet yourself.
