Baby 300 - Bottle warmer Rimax - Free user manual and instructions

Brand	Rimax
Model	Baby 300
Product type	Bottle warmer
Power supply (home)	220-240 V ~ 50 Hz
Power supply (car)	12 V DC
Power (home)	100 W
Power (car)	60 W
Heating element	PTC (efficient, safe, economical)
Functions	Warm milk, prepare cereals, heat food, sterilize, boil water (100°C), citrus press
Heating temperature (milk)	40-47 °C (automatic shut-off)
Heating temperature (food)	65-85 °C (automatic shut-off)
Recommended water capacity	150 ml for warming milk / as needed
Accessories included	Rack, lid, food cup, citrus press
Compatibility	Bottles, cups, bowls, nipples, spoons
Safety	Automatic shut-off, built-in thermostat, do not immerse base unit, adult use only
Care and cleaning	Unplug before cleaning; rack and container washable with warm soapy water; external surface with a soft damp cloth; do not use abrasive products
Car use	Cigarette lighter adapter; do not use while driving, engine on
Warranty / Compliance	Directive 1999/5/EC (declaration on flamagas.com)

Frequently Asked Questions - Baby 300 Rimax

What type of bottle can I use with the Baby 300?

The bottle warmer is compatible with most standard bottles, cups, bowls, as well as accessories like nipples and spoons. Place them on the supplied rack.

How much water should I pour into the device to warm a bottle?

To warm a bottle, pour 150 ml of water into the bottle warmer before turning it on.

Is the heating temperature adjustable?

Yes, thanks to the thermostat. For milk, the temperature automatically reaches 40-47 °C. For food or cereals, set to the 65-85 °C position. To boil water, turn the thermostat to 100 °C.

Can I sterilize bottles with this device?

Yes, sterilization function: place the bottle upside down on the rack with the accessories, add water, close the lid, and set the thermostat. The device automatically turns off when sterilization is complete.

What to do if the indicator light does not turn on?

First check the power outlet and that the adapter is properly connected. Make sure there is water in the device. If the problem persists, do not disassemble the device but contact your supplier.

How to clean the bottle warmer?

Unplug the device. Remove the rack and container, wash them with warm soapy water then rinse. Clean the external surface with a soft damp cloth. Never immerse the base unit in water.

Can I use the device in the car?

Yes, with the cigarette lighter adapter (12V). Caution: do not use while driving, leave the engine running to avoid draining the battery. Wait 5 minutes if the cigarette lighter is hot.

Is it safe to leave food in the device after heating?

No, it is not recommended to leave food in the device for too long, as it may spoil. Remove the bottle or container as soon as the indicator light turns off.

What type of power cord is used?

The cord is a specific adapter for the Baby 300. Do not use it with other devices. If the cord is damaged, have it replaced by a professional.

What to do if the device does not turn off automatically?

The automatic shut-off is controlled by the thermostat. If the temperature does not stop, immediately unplug the device and contact customer service. Do not attempt to repair it yourself.

USER MANUAL Baby 300 Rimax

Elemento calefactor: PTC

ADVERTENCIAS

Please read instructions carefully before using the Babyfood Warmer and retain for future reference.

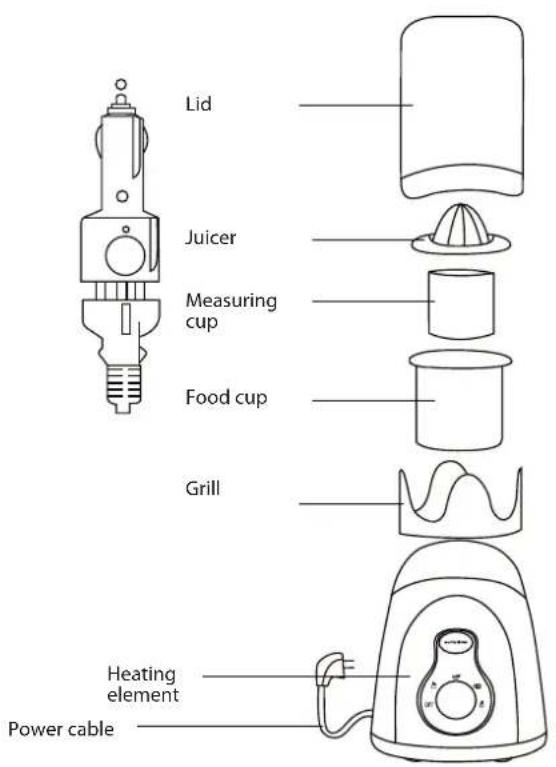

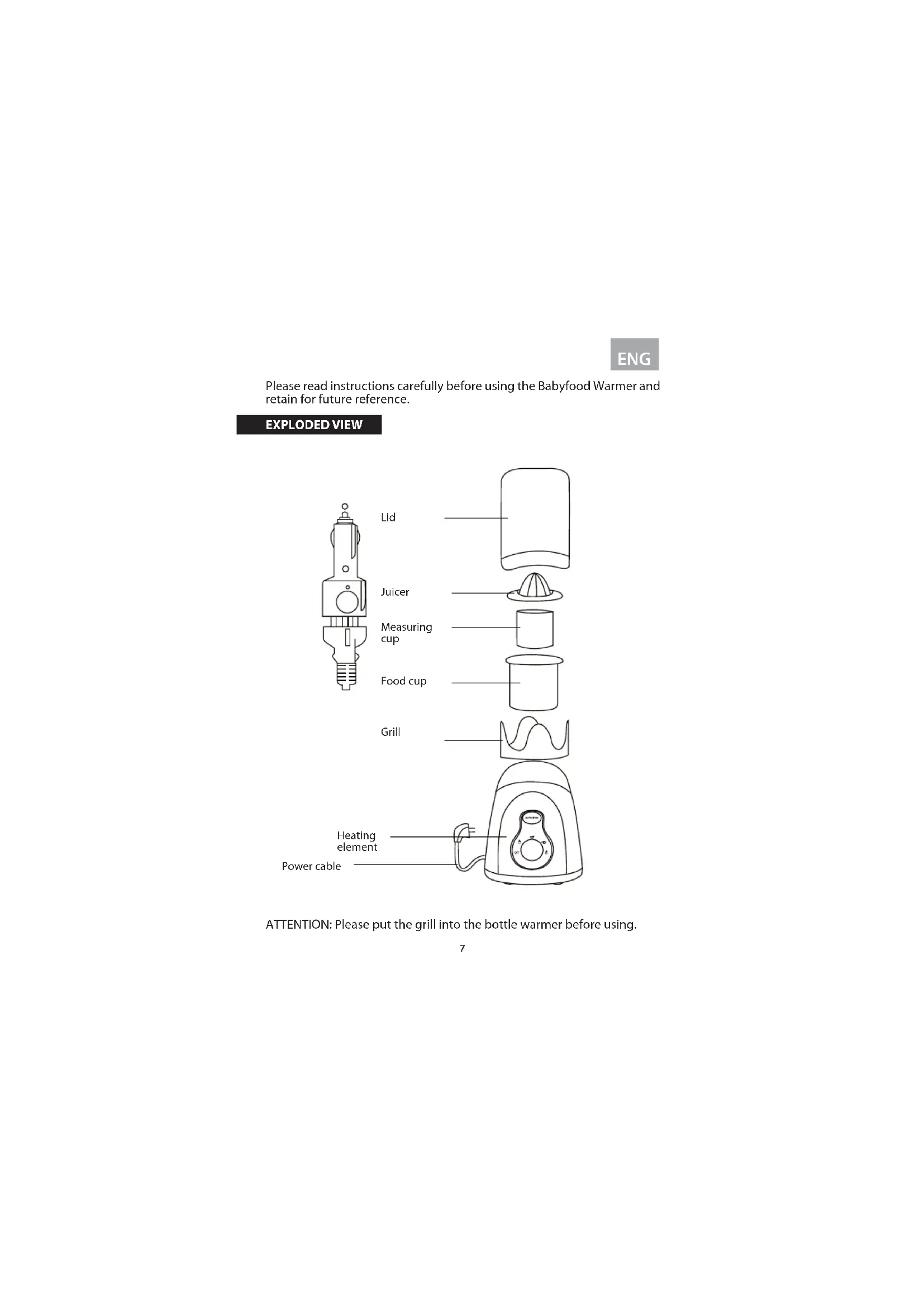

EXPLODED VIEW

ATTENTION: Please put the grill into the bottle warmer before using.

INSTRUCTION

ENG

Scientific Research: Most favorable temperature for baby is 42^ Infant Health Expert: Overheated or overcooled food cause stomach diseases or belly trouble, effecting postnatal growth.

Psychologist: Character and temper shaping depend on the happy enviroment and timely content to necessity in infant and childhood in great extent.

The Baby Bottle & Baby Food Warmer adopts effi cient, safe, economic, durable PTC heating element. It is ti be used for keeping even temperature for milk or water, heating baby food such as gruel, porridge, soup and beverage etc, and sterilization for baby tableware e. g. teats, spoon, baby bottle. Thermostat allows keeping food warm at a constant temperature which satis fi es baby's desire for any time.

SPECIFICATION

Rated Voltage:

Car use: 12V DC

Home use: 220-240V

Rated Frequency: 50 Hz

Rated Power:

Car use: 60W

Home use: 100W

Heating element: PTC

WARNING

1. For adult use only, kkeep out of reach of children.

2. Confirm the amount of water in the bottle warmer, then turn the power switch.

3. Unplug the bottle warmer after using.

4. Ensure the baby warmer with water during operation.

5. Be sure pour out the water after using and clean the bottle warmer.

6. DO NOT keep food in the bottle warmer for a long time to avoid being sour.

7. DO NOT immerse the unit in water or other liquid.

8. Be sure taste the milk first after heating to avoid scalding your baby

9. If the bottle warmer could not work, please do not disassemble the unit by yourself. Please contact with your distributor for replacement.

10. If the electric cord is damaged, it must be replaced by technical staff or other professional staff in order to avoid an electric shock.

ENG

Scope of application: Home Use Only. Do not use outdoors, adn do 11. not let children, disabled, mental illness people use alone.

Function 1: Milk warmer

Pour 150ml water into the warmer before use.1.

1. Method 1: warm the water first. Put the bottle (with purified water) into teh bottle warmer, cover the lid and turn thermostat to A. Indicator light will turn on while heating, and turn off automatically while constant temperature reach to 40 - 47^ . After that, you can take the milk feed your baby whenever you need.

Method 2: warm the milk directly. Put the bottle (with milk) into the 3. bottle warmer, cover the lid and turn thermostat to . Indicator light will turn on while heating, and turn off automatically while constat temperature reach to 40 - 47^ . After that, you can take the milk and feed your baby whenever you need.

Function 2: Heating

Pour 150~ml water into the warmer before use.1.

1. For making baby rice: Pour purified water into the food cup. Put the cup into the bottle wamer, cover the lid. Turn thermostat to 忍 . Indicator light will turn on while heating and turn off automatically while constatin temperature reach to 65 - 85^ . After that, you could pour baby rice into the cup and mix them.

For heatign baby food: Put the bottle, cup or bowl with baby food 3. into the warmer, cover the lid, turn thermostat to 水 . Indicator light will turn on while heating, and turn off automatically while constant temperature reach to 65 - 85^ Ypu could take the food whenever you need.

Function 3: Juicer

Put the juicer on the top of food cup.1.

Cut the orange (or other fruit) into 2 pieces and put one piece on the 2. juicer and screw it. Then the juice will flow into the food cup. If need to heat the juice, just put the cup into the bottle warmer and 3. turn thermostat to

Function 4: Sterilize

Pour 40ml water into the warmer before use (The time sterilizing 1.

ENG

depends on the amount of water, you could adjust the water amount by yourself).

Could sterilizing 1 baby bottle. Put the bottle on the grid on the grid 2. in opposite side (you also can put the accessories, like: nipple, scoop and other baby spare parts into the warmer), cover the lid. Turn thermostat to . Indicator light will turn on while heating. You coluld take the bottle and use when the light turn off .

Function 5: 100^

Pour water into the warmer before use (The time of boiling depends 1. on the amount of water, you could adjust the water amount by yourself).

Cover the lid. Turn thermostat to 100^ . Indicator light will turn on 2 while heating. The machine will turn off while without water.

Car use

Do not use the baby bottle warmer when the vehicle is in motion. Leave the engine on while using the baby bottle warmer, to avoid discharging the battery.

The adaptor cable has been specially designed for this baby 1. bottle warmer. DO NOT use it with other appliance, nor with other adapters.

Check the car cigarette lighter plug regularly. Clean if necessary.2. If the cigarette lighter plug has been used, wait for 5 minutes to 3. allow it to cool down, removing the cigarette lighter. Once this time has elapsed, you can insert the baby bottle warmer adapter.

INSTRUCTION FOR USE

Stop the car and leave the engine on.1.

1. Place the baby bottle warmer on a firm horizontal surface. Insert the car adapter in the plug of the baby bottle warmer. Plug in the car cigarette lighter socket.3.

Follow points from FUNCTION 1, 2, 3, 4, 5 of the "INSTRUCTIONS FOR 4. USE".

MAINTENANCE

ENG

IMPORTANT

PLEASE CLEAN THE HEATING ELEMENT REGULARLY

Unplug the unit from mains supply before cleaning

The Base Unit must not be immersed in water

Do not use abrasive materials or chemicals on any part of the sterilizer

HOW TO CLEAN THE OUTSIDE, GIRD AND BOTLLE CONTAINER:

Take out the bottle container, gird after unplugging the unit. 1.

The inner face of the unit and bottle container, gird can be cleaned 2. by warm soapy water and then washerd by clean water.

The outside surface can be wiped with a soft, damp, non-abrasive 3. cloth.

NOTICE

All content of this manual has been checked carefully and, if any printing errors or omissions or the content of misunderstanding, we reserves the right to make explanation. If there's any technical improvements, we will not make any further notice.

STATEMENT OF COMPLIANCE

Flamagas, S.A. declares product Rimax Baby RB330 complies with the essential protective requirements and objectives of 1999/5/EC.

To check the entirely declaration of conformity of this model, visit:

www.electronicaflamagas.com
