USER MANUAL Pinkteron Duramaxx

Green circuit board pattern with white traces and connectors (no text or symbols)

Geldscheinprüfer

50 50 EURO EU 2019 EUR EUR 50 50

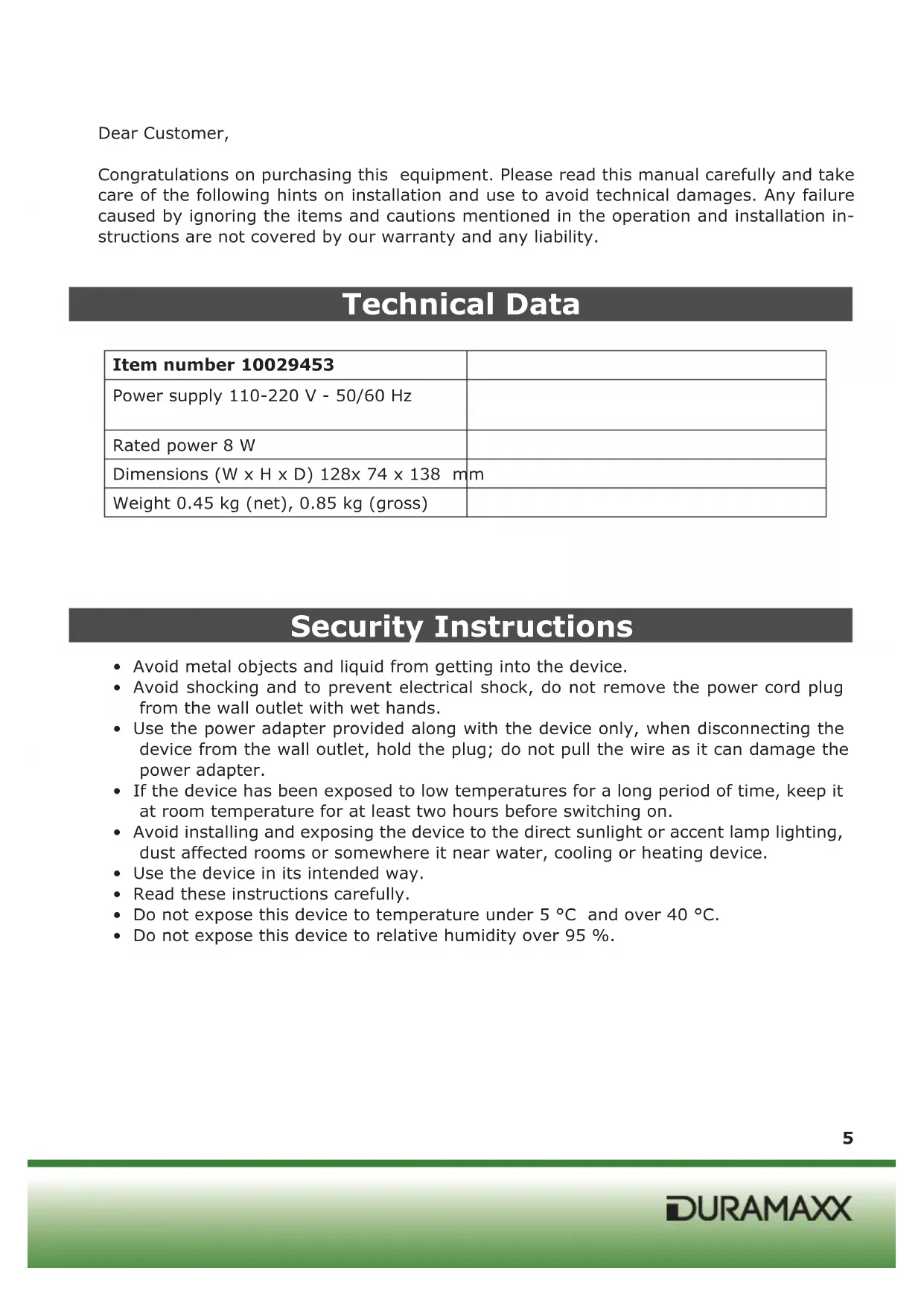

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Technical Data

Item number 10029453
Power supply 110-220 V - 50/60 Hz
Rated power 8 W
Dimensions (W x H x D) 128x 74 x 138 mm
Weight 0.45 kg (net), 0.85 kg (gross)

Security Instructions

• Avoid metal objects and liquid from getting into the device.
• Avoid shocking and to prevent electrical shock, do not remove the power cord plug from the wall outlet with wet hands.
• Use the power adapter provided along with the device only, when disconnecting the device from the wall outlet, hold the plug; do not pull the wire as it can damage the power adapter.
• If the device has been exposed to low temperatures for a long period of time, keep it at room temperature for at least two hours before switching on.
• Avoid installing and exposing the device to the direct sunlight or accent lamp lighting, dust affected rooms or somewhere it near water, cooling or heating device.
• Use the device in its intended way.
• Read these instructions carefully.
• Do not expose this device to temperature under 5^ and over 40^ .
• Do not expose this device to relative humidity over 95%.

Device

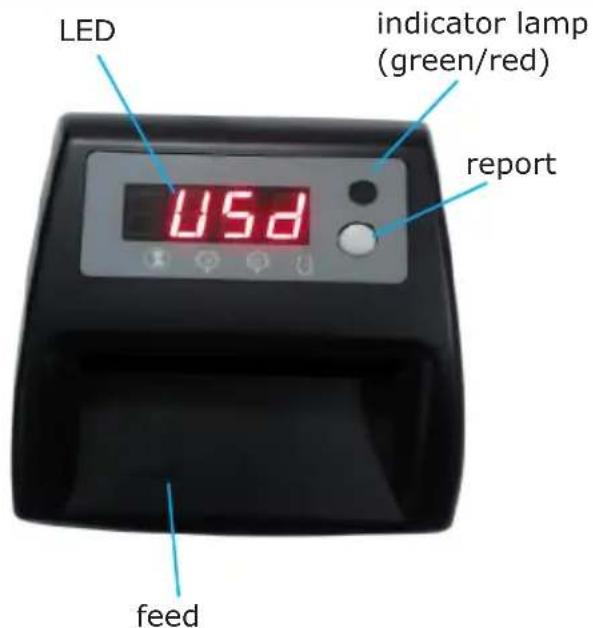

LED indicator lamp (green/red) report USD feed

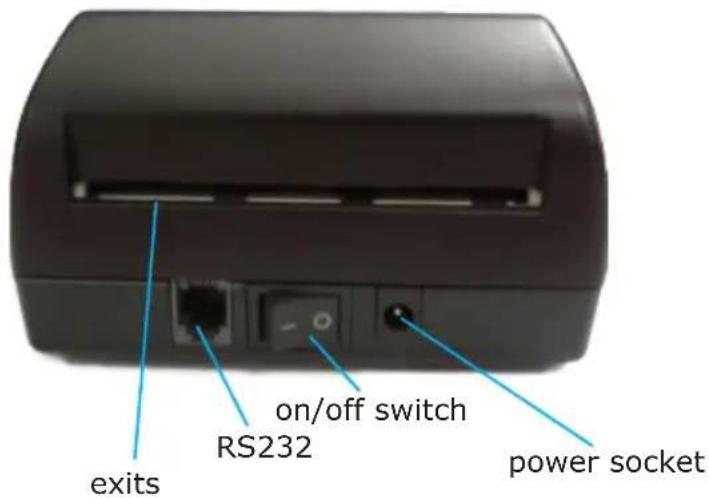

exits RS232 on/off switch power socket

Operation

Start up

Plug the power adapter into the socket and turn on the switch. The machine will make a self-test. At first, the screen shows 8888. UE-R. Seconds later, the screen shows USD or the currency needing detection.

Banknote detection

a. Put banknotes in specified direction into the machine through the inlet for detection.
b. Genuine notes will pass with the green indicator lit and a beep sound. On the screen displays the face value of the notes, and currency can be displayed 2 seconds later.
c. Possible fake notes will be sent back with the red indicator lit and three beep sounds.
d. The machine can identify Euro banknotes.

Counterfeit note entry (optional)

In normal detection, if one counterfeit note has passed, choose "0" as the face value, and input the counterfeit note three times successively as per the said method for genuine notes.

Error codes

When the note is recognized to be suspicious, the Error identification label will blink to remind you and the data of that paper banknotes will not be recorded in the device.

	Picture error
	Infrared spectrum checking error
	UV spectrum checking error
	Magnetic picture checking error

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin.

This product is conform to the following European Directives:

2004/108/EG (EMV)

2011/65/EU (RoHS)

2006/95/EG (LVD)
