USER MANUAL ISCR61 Ices

Technical line drawing of a portable radio with hexagonal grille and control panel (no text or symbols)

ISCR-61

OPGELET

TENEINDE HET BRAND- EN ELEKTROCUTIEGEVAAR TE BEPERKEN, STEL DIT TOESTEL NIET BLOOT AAN REGEN OF VOCHT.

OPGELET

ELEKTROCUTIEGEVAAR - NIET OPENEN

WARNING : SHOCK HAZARD-DO NOT OPEN

CLASS 1 LASER PRODUCT

KLASS 1 LASER APPA RAT

LUOKEN 1 LAISERLA ITE

KLASSE 1 LASER PROD UKT

LASERPRODUCT VAN KLASSE 1 LABEL

Diagram of a portable radio with a rotating stand and antenna, showing no text or symbols

Technical line drawing of a mechanical device with directional arrows indicating rotation or movement (no text or symbols)

WERKING VAN DE CASSETTESPELER

ALGEMENE WERKING

PAUSE

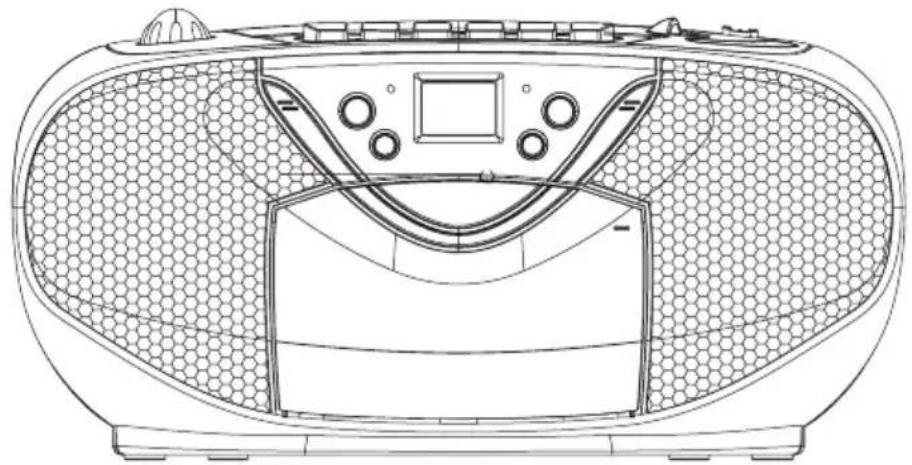

Technical line drawing of a portable radio with hexagonal grille and control panel (no text or symbols)

ISCR-61

WARNING

1. WARNING : Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.
2. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus.
3. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
4. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.

1. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2. No naked flame sources, such as lighted candles, should be placed on the apparatus.

3. Attention should be drawn to environmental aspects of battery disposal.

4. Use of the apparatus in moderate climates.

5. The rating and marking information are located at the bottom of the unit.

6. Excessive sound pressure from earphone and headphones can cause hearing loss.

7. The mains plug of unit should be obstructed or should be easily accessed during intended use.

8. To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type

WARNING

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : SHOCK HAZARD-DO NOT OPEN

LIGHTING FLASH WITH ARROWHEAD SYMBOL -

within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

EXCLAMATION POINT - within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason.

The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS 1 LASER PRODUCT KLASS 1 LASER APPARAT LUOKEN 1 LAISERLAITE KLASSE 1 LASER PRODUKT

CLASS 1 LASER PRODUCT LABEL -

This label is attached to the place as illustrated to inform that the apparatus contains a laser component.

WARNING LABEL INFORMING OF RADIATION -

This label is placed inside the unit. As shown in the illustration. To warn against further measures on the unit. The equipment contains a laser radiating laser rays according to the limit of laser product of class 1.

SAFETY INSTRUCTIONS

1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instruction should be retained for future reference.
3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be used near water, for example, near a bathtub, washbowl, .tnemesab tew a ni ro loop gnimmiws ,butyrdnual ,knis nehctil
6. VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
8. POWER SOURCE - The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
9. POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
10. POWER LINES - An outdoor antenna should be located away from power lines.
11. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
12. ESD WARNING - The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds.
13. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:

a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally.

1. SERVICING - The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.

Notes:

a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD.
b. If an error display or malfunction occurs, disconnect the AC cord and remove all the batteries. Then turn the power back on.

BEFORE OPERATION

Notes: CONCERNING COMPACT DISCS.

Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:

a. Usable compact discs. Use only compact disc with the mark shown below.
b. CD compact disc only with digital audio signals.

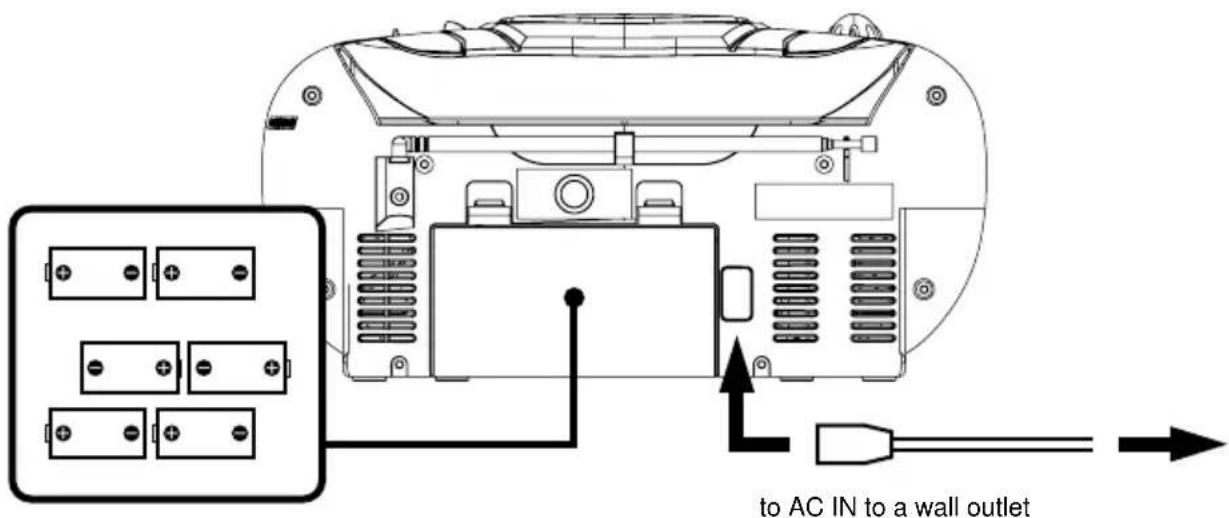

POWER SOURCES

to AC IN to a wall outlet

Insert 6 x "C" size batteries into the battery compartment

AC POWER

You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER

Insert 6 x "C" size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the AC power cord from it.

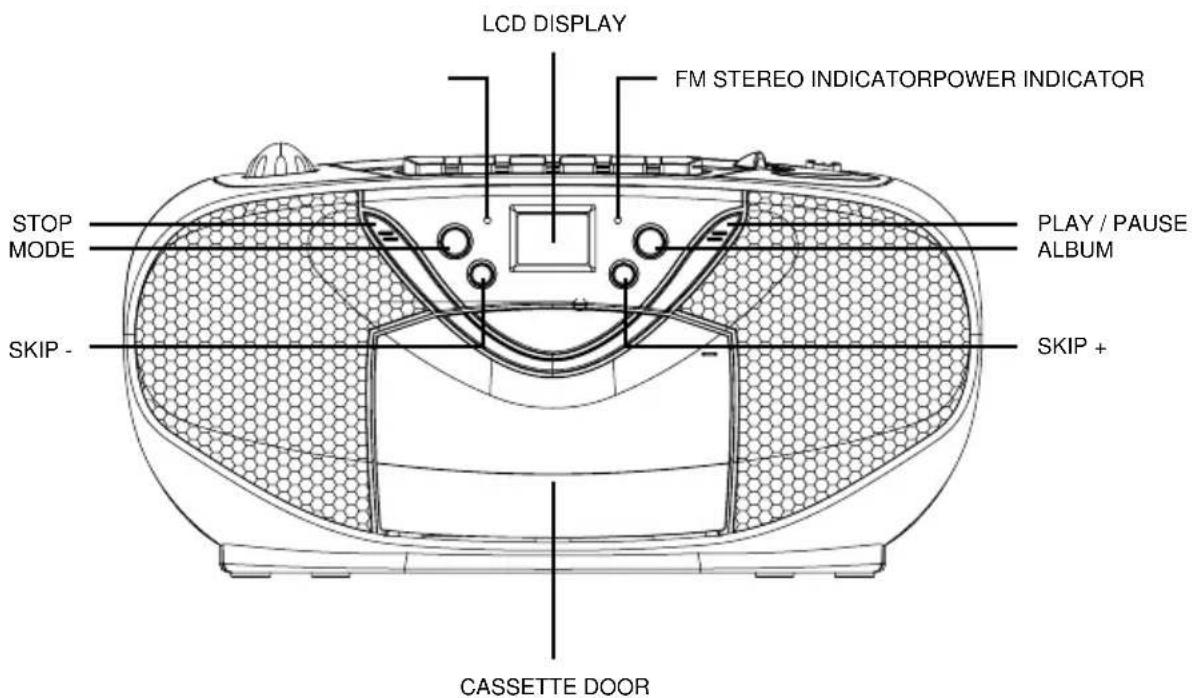

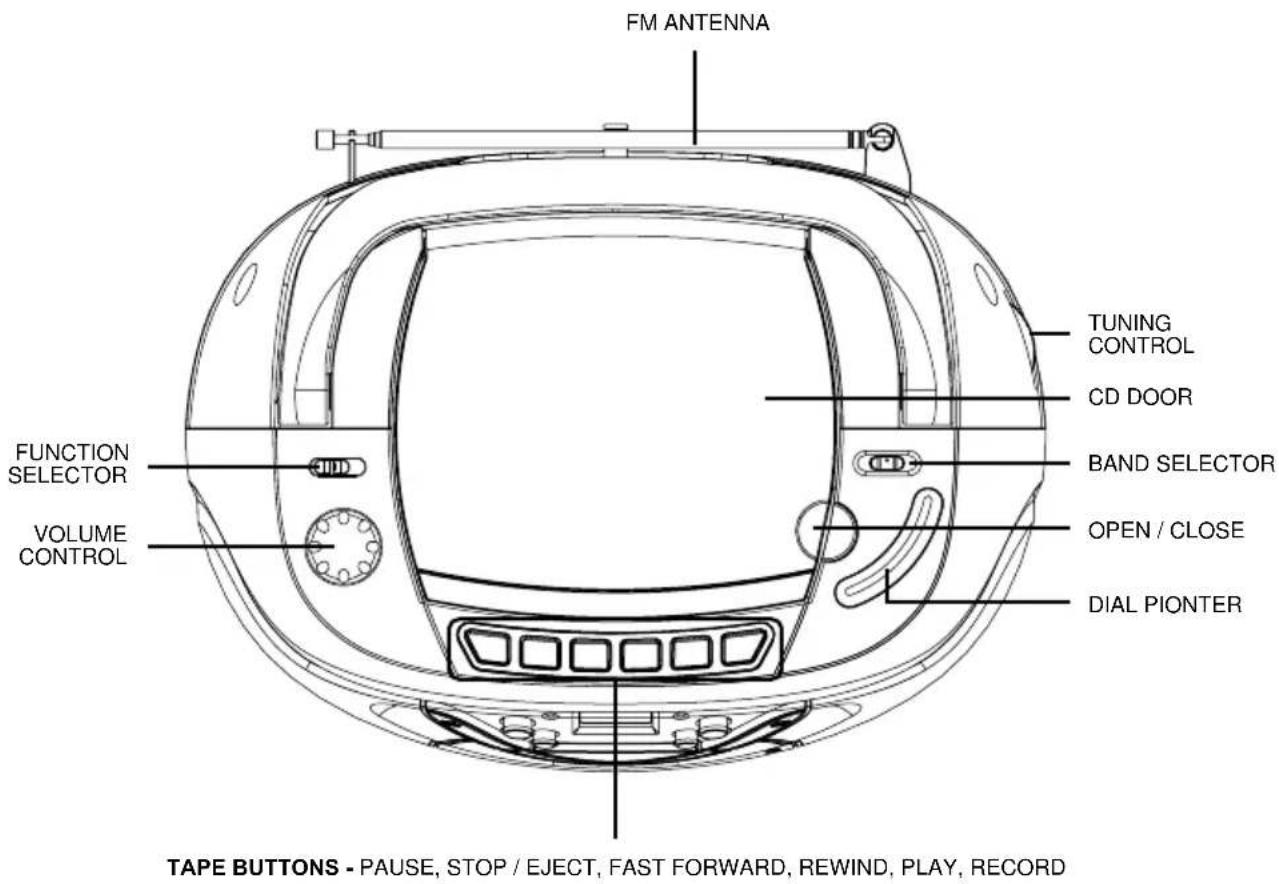

LOCATION OF CONTROL

FM ANTENNA TUNING CONTROL CD DOOR FUNCTION SELECTOR BAND SELECTOR VOLUME CONTROL OPEN / CLOSE DIAL PIONTER TAPE BUTTONS - PAUSE, STOP / EJECT, FAST FORWARD, REWIND, PLAY, RECORD

LCD DISPLAY FM STEREO INDICATORPOWER INDICATOR STOP MODE PLAY / PAUSE ALBUM SKIP - SKIP + CASSETTE DOOR

RADIO OPERATION

GENERAL OPERATION

1. Set the "FUNCTION" selector to "RADIO" mode.
2. Select desired band by using the "BAND" selector.
3. Adjust radio frequency to your desired station by using the "TUNING" control.
4. Adjust the "VOLUME" control to the desired level.

FM / FM-STEREO RECEPTION

• Set the "BAND" selector to FM mode for MONO reception.
• Set the "BAND" selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode.

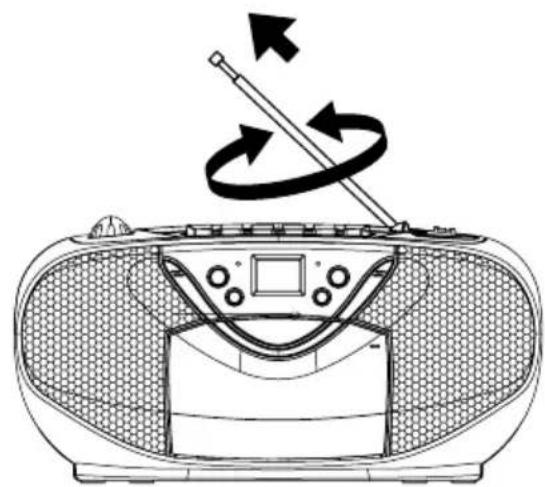

FOR BETTER RECEPTION

- Reorient the antenna for better reception.

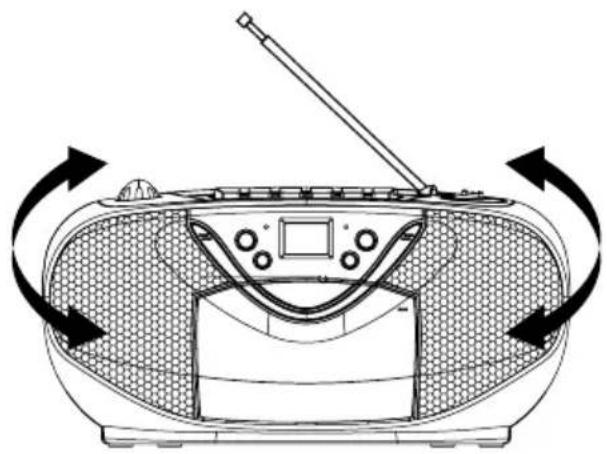

Diagram of a portable radio with antenna and circular motion arrows indicating rotation (no text or symbols)

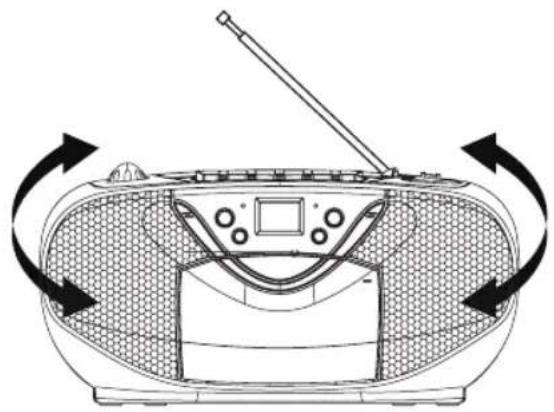

- Reorient the appliance to get better AM reception.

Line drawing of a portable radio with antenna and control panel, showing rotational arrows (no text or symbols)

TAPE OPERATION

GENERAL OPERATION

PAUSE II Press to stop playing tape operation temporarily.

Press again to resume tape operation.

STOP / EJECT ■Press to stop tape operations.

Press again to open the cassette door after the tape spools stop turning.

FAST FORWARD ◀◀ & Press to start rapid tape winding either forward or reverse direction.

REWIND ▶

PLAY ◀Press to start playing tape.

RECORD ● Press it together with "PLAY" button to start recording.

PLAYBACK

1. Set the "FUNCTION" selector to "TAPE" mode.
2. Press the "STOP / EJECT" button to open the cassette door and insert your tape.
3. Close the cassette door.
4. Press the "PLAY" button to start playing tape.
5. Adjust the "VOLUME" control to the desired level.
6. Press the "PAUSE" button when you want to stop playing tape operation temporarily.
7. Press the "STOP / EJECT" button when finished.

RECORDING

1. Press the "STOP / EJECT" button to open the cassette door and insert a blank tape.
2. Select the source you want to record.
   To record from radio - Set the "FUNCTION" selector to "RADIO" mode and adjust the desired station. To record from CD / MP3 - Place a disc on the CD compartment. Set the "FUNCTION" selector to "CD / MP3" mode and select the desired track.
3. Press the "RECORD" button together with the "PLAY" button to start recording.
4. Press the "STOP / EJECT" button when finished.

CD / MP3 OPERATION

GENERAL OPERATION

PLAY / PAUSE Press to start playing CD / MP3 disc.

Press again to stop playing CD / MP3 operation temporarily.

Press again to resume playback.

SKIP + ▶▶▶& Press to go to the next track or back to the previous track.

SKIP - Press and hold while playing until you find the point of the sound.

STOP ■ Press to stop all CD / MP3 operation.

PLAYBACK

1. Set the "FUNCTION" selector to "CD / MP3" mode.
2. Open the CD door and place a CD / MP3 disc with the label up on the CD compartment.
3. Close the CD door.
4. Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.
5. Playback will start automatically from the first track.
6. Adjust the "VOLUME" control to the desired level.
7. Press the "PLAY / PAUSE" button again when you want to stop playback temporarily.
8. Press the "STOP" button when finished.

CD / MP3 OPERATION

PROGRAM

Upto20trackscanbeprogrammedfordiscplayinanyorder.

Besuretopress the "STOP" button beforeuse.

1. Press the "MODE" button, the display will show "P01" and flash.
2. Select desired track by using the "SKIP +" or "SKIP -" button. (You may select a desired album by pressing the "ALBUM" button).
3. Press the "MODE" button again to confirm desired track into the program memory.
4. Repeat step 2 and 3 to enter additional tracks into the program memory.
5. When all the desired tracks have been programmed, press the "PLAY / PAUSE" button to play the disc in the order you have programmed.
6. Press the "STOP" button twice to terminate programmed playback.

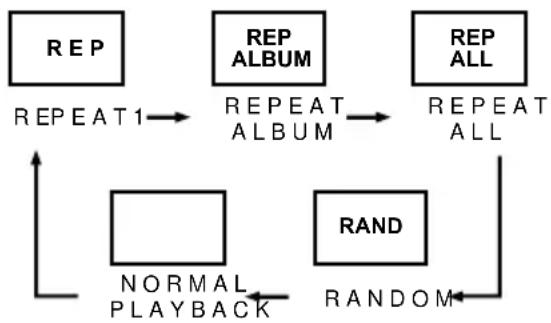

MODE

Press the "MODE" button before ordering playing CD / MP3 disc, each press switch the mode function as follows:

1 - REPEAT 1

2 - REPEAT ALBUM (*MP3ONLY)

3 - REPEA TALL

4-RANDOM

5-NORMALPLAYBACK

This product's packing materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

This product consists of materials which can be recycled and reused if disassembled by a specialized company.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

iCoes®

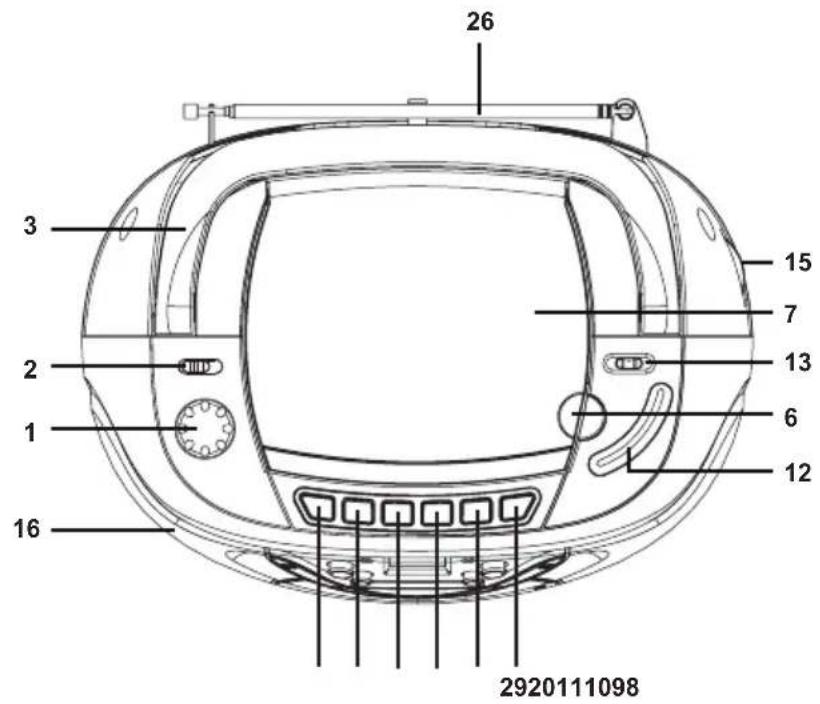

Technical line drawing of a portable radio or electronic device with hexagonal grille and control panel (no text or symbols)

ISCR-61

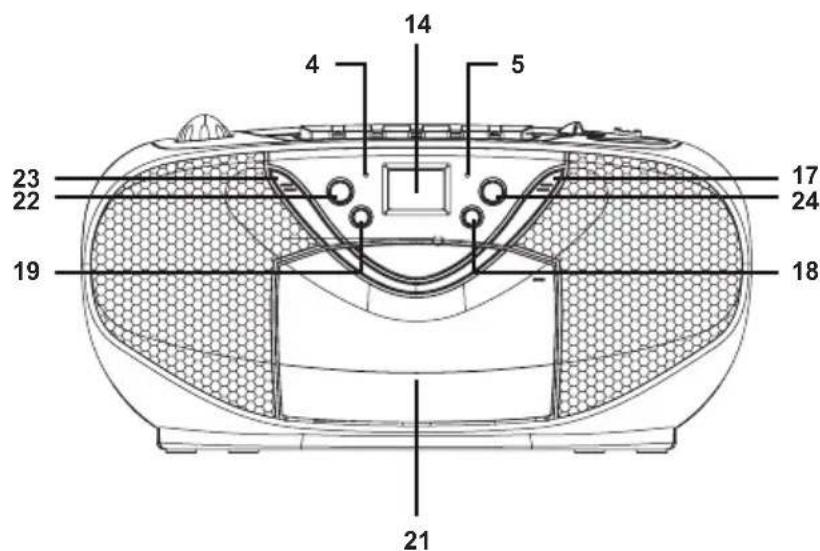

26 3 15 7 2 13 6 12 1 2 16 2920111098

14 5 4 23 22 19 17 24 18 21

25 27 28

VOLTAGE DANGEREUX

Technical line drawing of a portable radio with hexagonal grille and control panel (no text or symbols)

ISCR-61

SICHERHEITSHINWEISE

Technical diagram of a vehicle head panel with numbered component labels

Vorderansicht

Technical diagram of a device with numbered components, likely a display or control panel.

STROMVERSORGUNG

Diagram of a device rear panel with connectors and wiring, showing internal components and connections (no text or symbols)

Diagram of a portable radio with a scroll and directional arrows indicating rotation (no text or symbols)

Technical line drawing of a portable radio receiver with directional arrows indicating rotation (no text or symbols)

KASSETTENDECK

Allgemein

Illustration of a hand holding a piece of paper or cloth, with an arrow indicating motion (no text or symbols present)

RICHTIG FALSCH

STÖRUNGSBEHEBUNG
