USER MANUAL LEC24B3320 HAIER

LED LEC24B3320loading-circle-1SAFETY AND WARNINGS To reduce the risk of fire or electric shock, do not expose this Television to rain or moisture.

CAUTION The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this Television near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in

accordance with the instructions.

8) Do not install near any heat sources such as radiations,

heat registers, stoves, or other Television (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized plug.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the Television.

11) Only use attachments/accessories specified by the

12) Unplug this Television during lighting storms or

when unused for long periods of time.

13) Refer all servicing to qualified service personnel.

Servicing is required when the Television has been damaged in any way, such as; power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the Television, the Television has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the

disconnect device shall remain readily operable.

15) The ventilation should not be impeded by covering

the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles,

should be placed on the Television.

17) Attention should be drawn to the environmental

aspects of battery disposal.

18) The use of Television in moderate climate.

19) The Television shall not be exposed to dripping or

splashing and that no objects filled with liquids, such as vases, shall be placed on the Television. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

The excessive sound pressure from earphones and headphones can cause hearing loss.

Haier is committed to safely recycling electronic products and product materials. Please check for a local recycling location in the United States at: 1800RECYCLING.COM or call 1.800.RECYCLING. ENERGY STAR is a joint program of the U.S. Environmetal Protection Agency and the U.S. Department of Energy helping us all save money and protect the environmetal through energy efficient practices. This product default mode (standard mode) already pass the Energy star test. If TV set in other mode, may increase energy consumption beyond the limits required for ENERGY STAR qualification.-3-

High voltages are used in the operation of this television receiver. Do not the cabinet. Refer servicing to qualified service personnel. open

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver. Do not block the ventilation holes on the back cover . Adequate ventilation is essential to prevent failure of electrical components. of the TV Do not trap the power supply cord under the television receiver s .' stand Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls. Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual and damage to the television may result if it falls. /or When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet. Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television. or near Dim:51 5*320 mm(不包 括底座） If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the life of your television, and can also be dangerous.-4- INTRODUCTION Main features Accessories Infrared Remote Control....................

■ Integrated ATSC TV tuner for HDTV broadcast reception ■ High brightness provides a vivid and brilliant picture ■ Deeper blacks and brighter whites with high contrast ■ Wide Screen aspect ratio (16:9) for a complete home theater experience ■ HDMI input for true digital connection ■ VGA port for connection to PC ■ Built-in stereo speaker system ■ Full-function Remote Control HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Main Specifications x 2 Resolution: TV System: Video Signal System: Receiving Channel: 1366 x 768 16:9 NTSC Cable :1-135/ Air: 2-69 (ATV&DTV) x 1 High-Definition Multimedia Interface (HDMI) Input Audio Input x 2 x 1 Horizontal definition (TV line) Composite Video Input >=350 Component (YPbPr) >=400 Video Input >=400 x 1 AC 100-240V 50/60Hz 2x3W ATSC Digital system and NTSC Analog system Headphone Output x 1 x 1 Coaxial Output Aspect Ratio: Viewing Picture Size (diagonal) Power supply Audio Output Power (THD 7%): Component (YPbPr) Input Composite Video Input Analog RGB (VGA) Input Power consumption x 1 USB Input 24 inches 40W-5- Base Stand Assembly Instruction

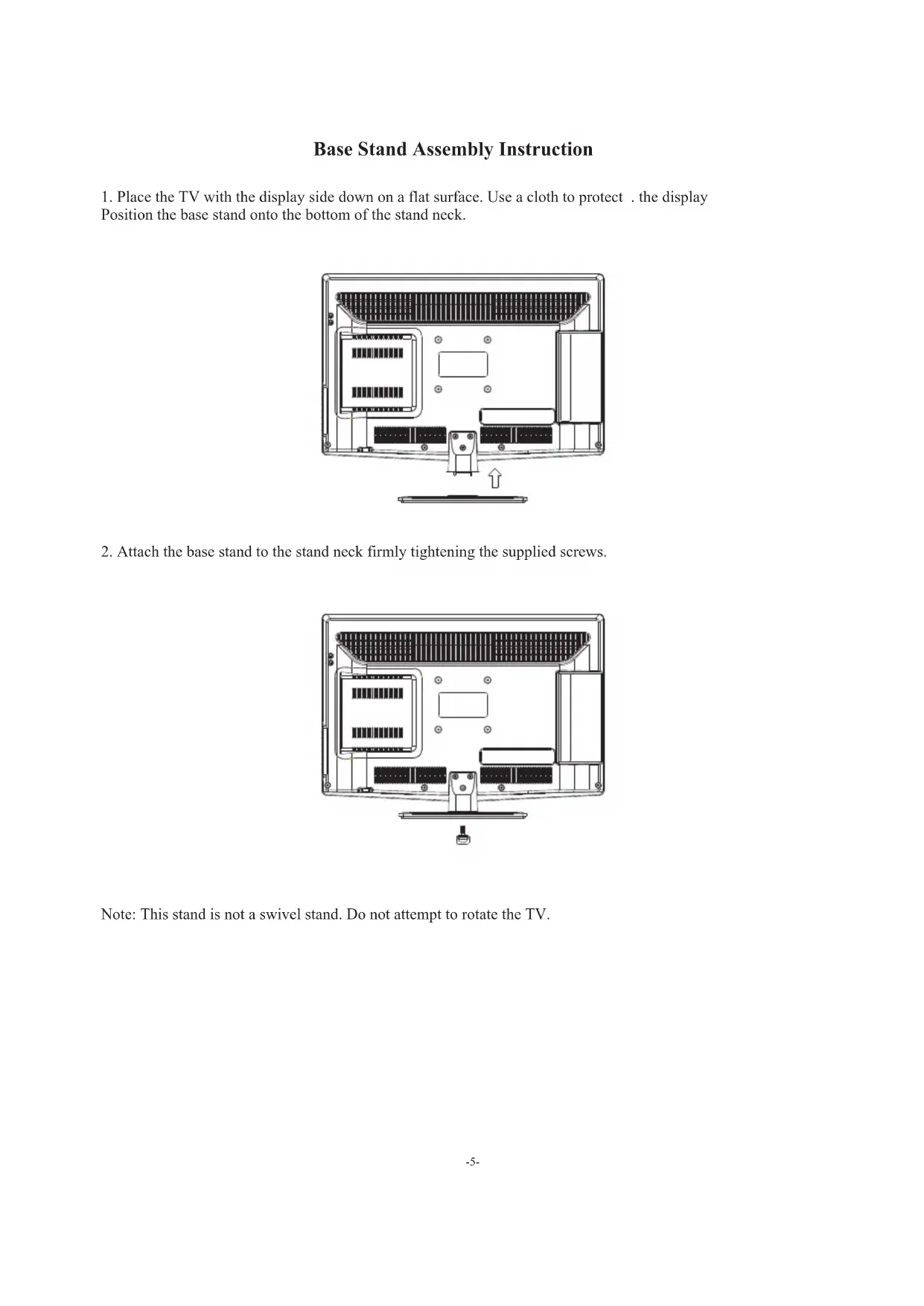

1. Place the TV with the display side down on a flat surface. Use a cloth to protect . the display

Position the base stand onto the bottom of the stand neck.

2. Attach the base stand to the stand neck firmly tightening the supplied screws.

Note: This stand is not a swivel stand. Do not attempt to rotate the TV.-6- INSTALLATION Front panel Side panel REAR Connections SIDE Connections All the terminals are (from left to right): , HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL(audio output), RF. Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be connected to the PC audio input. HDMI1 All the terminals are (from left to right): POWER SOCKET, VIDEO, AUDIO INPUT, . Note: AV and component (YPbPr) share the R and L audio inputs. YPbPr INPUT(COMPONENT) 1: Remote control sensor. 2: Indicator LED: BLUE POWER ON. RED STANDBY.

3. CH+/CH-: In TV mode, press "CH+" or "CH-" to

change the channel up and down. In MENU mode, press "CH+" or "CH-" to select items; In standby mode, press "CH+" or "CH-" to turn on the TV.

4. VOL+/VOL-: Adjust sound level. In MENU mode,

press "VOL+ " or "VOL- " to adjust the item that you selected.

5. STANDBY: Press this button to turn the unit ON

from STANDBY mode. Press it again to turn the set back to STANDBY. 30 30YPbPr CC MTS VGA DTV

STRENGTHTV AV HDMIEPGCH LIST FAV

5ANTENNA INSTALLATION Note: Aerial connections: IEC (female). Input impendance: 75 unbalanced. STEPS:

Be sure both the TV and computer are powered off. 1.Connect a VGA and audio cable. 2.Connect the power cord. 3.Turn on the TV, switch to PC mode. 4.Turn on the PC. -7-PC

AV EQUIPMENT There are two HDMI ports located on the back of your TV. You can connect a Blu-ray player, DVD player, or other video equipment through these ports. There is one component (Y, Pb, Pr) and one composite (AV) video input located on the back of your TV. You can connect a VCR, cable box, or other video equipment to these jacks. Please see the diagram below. You may also need to refer to the owner's manual of the device that you are trying to connect. The television's inputs can be connected to the following types of equipment: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc..... YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i, 1080p. Yellow (video)White(audio L)Red(audio R or Pr)

Press to display and select the available video sources. 9: MUTE To disable or enable the sound. 10: RECALL To access the previously viewed program. 11: ENTER Confirms selection. 12: TV DISPLAY Displays/removes the program Information 13: 14: CH+/CH- To access the next or previous Program. 15: ASPECT To change picture aspect . 16: CH LIST / Used to display the channel list / Eject or Insert the disc. 17: EPG Display all the information of DTV programs. 18: FAV Used to access your favorite channels in digital TV mode. 19: CC Enable or disable the CC function. 20: MTS Switch the sound stereo. P.M Press repeatedly to select a picture mode: Vivid, Standard, Sports, Movie, or Custom. S.M Press repeatedly to switch audio modes: Standard, News, Music,Theater, Sports or Custom.

For a description of the DVD player function buttons on the remote, please refer to page 18 of this manual.-11- OPERATION CC Mode CC OnBasic Selection CC1Advanced Selection ServicelOption

In this menu, you can adjust the picture options, such as contrast, brightness, etc. Press to select, press OK to adjust.

When a PC is connected, you can adjust the VGA settings.

4) Phase: Fine tune the phase of the screen. Usually you

don't adjust this item.

1) If you want to adjust contrast, brightness, color, and

sharpness, the picture mode be set to .will user

2) Cool to give the white colors

a blue tint, Normal to give the white colors a neutral tint, Warm to give the white colors a red tint. picture Adjust the color tempertaure to Energy Saving mode is the default setting, if you select some other options, the power consumption may change. 2.AUDIO menu In this menu, you can ajust the sound options. Press to select, press to adjust.OK

In this menu, you can adjust the Menu language, Closed Caption, Press to select, press to adjust. SETUP menu adjust the sleep timer, time zone, Restore Default, etc.

Audio language is available in ATSC/TVmode only. Auto volume is available only when the input signal volume is too large or there is distortion.

1) CC Mode: Switch the closed caption mode.

2) Advanced selection: only available in ATSC.

2) MPAA: Switching the movie-rating control level;

N/A, G, PG, PG-13, R, NC-17, X. Rating Description Age G General audiences, All Ages admitted

Parental Guidance suggested. Some material may not be Suitable for children. PG-13 Parents strongly cautioned. Some material .may be Inappropriate for children under 13.

Restrict. Under 17 requires accompanying parent or adult guardian(age varies in some jurisdictions) No one 17 and under admitted. X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

1) Canada English: Switching the English rating control

level: EXEMPT, C, C8+, G, PG, 14+, 18+. 4.LOCK MENU In this menu, you can change the password and adjust the vchip settings. Enter the password, to enter the lock menu. The factory default password is 0000.

1) old password: Input the old password.

2) new password: Input the new password.

3)Confirm password: Input the new password again. Enter Enter

When the System Lock switch is ON, the options listed below can be adjusted.

Press to display the following screen.OK

1) TV: Press display the following screen.OK

Press , to display the following screen.OK

ALL TV RATING MENU Canada Canada EngCanada Fre MENU-13- OPERATION Rating Description Age E Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming.C Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being. C8+ Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on the screen .G General: Considered acceptable for all age groups, Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional.PG Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues.14+ Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline But it must be integral to the devel opment of plot or character. Language usage could be profane and nudity , present within the context of theme.18+ Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of secretary and nudity.

2) Canada French: Switching the French-rating control

level: E, G, 8ANS+, 13 ANS+, 16ANS+, 18ANS+. Rating Description Age E Exempt programmingG General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner. 8ans+ General but inadvisable for young children :May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with paren. 13ans+ Over 13 years: Could contain scenes of frequent violent scenes and in tense violence.16ans+ Over 16 years: Could contain frequent violent scenes and violence.18ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

ATSC digital TV mode, it can be adjusted

In this menu, you can adjust digital and analog TV Channels. Press to select, press to adjust.

Select Air TV signal cable TV signal.

If it's the first time you use the TV, you should scan all the TV channels first. Press to confirm to display the following screen.

Press to choose/delete favorite channels.

Press to display/ hide the current channel.

Display DTV signal . It can't be selected or adjusted.

You can display the Music and Photo fil s by using the USB port that is located on the rear panel:

PHOTO MUSIC Haier Innovation Life USB 2.0 Bac k EXI T Mov e Sel ect OKTROUBLE SHOOTING The LCD TV panel is built with very high precision technology giving you fine picture details in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, black or white. Please note this does not affect the performance of the product. Component (Y Pb Pr) connections microwave, electronic equipment, car/motorcycle, fluorescent light -14-Dolby Digital Subtitle choices Audio choicesMP3 files on CD-R/CD-RW 16:9

TV Aspect Ratio modesDVD video

RESTRICTED Parental Lock This product incorporates copyright protection technology that is protected by method claims of certain U.S.patents and other intellectual property rights owned by Macro vision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macro vision Corporation, and is intended for home and other limited viewing uses only. Unless otherwise authorized by Macro vision Corporation. Reverse engineering or disassembly is prohibited. Manufactured under license from Dolby Laboratories."Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Multi-angle DVD OPERATION Caution This DVD Player has a Class 1 laser which may be harmful to your eyes. Do not attempt to disassemble the cabinet or make any adjustments. Refer all servicing to a qualified professional. Features Disc formats supported by this player: CH LIST/ How to play a DVD disc

1. Change TV input source to "DVD" mode by pressing

button on remote or Source button on the side of the TV.

2. Place DVD disc in player with the content side

(shiny side) facing the front of the unit.

3. DVD disc will automatically be loaded in to the player

button on remote or the button on the side of the unit.

SOURCE OPEN/CLOSE PLAY/PAUSE OPEN/CLOSE PLAY/PAUSE Disc with its content side (shiny side) facing the front of the unit, insert vertically into the disc tray OPEN/CLOSE PLAY/PAUSE Disc with its content side (shiny side) facing the front of the unit, insert vertically into the disc tray

-15-MENU OPERATION Press the SETUP button on the remote control, the SETUP MENU will be displayed. After accessing the setup menu, press to select an item, and press to select the SUBMENU item. Then press the ENTER/OK button to confirm. Press to return to the previous menu. To exit the setup, press the SETUP button again. In the SETUP MENU, you may choose adjust any of the following options. LANGUAGE SETUP Select Language in the setup menu, and display the Language submenu: OSD Language Use this item to select the language for the setup menu and screen display. Subtitle This option provides the preset subtitle language. Audio Select the built-in disc dubbing language options. DVD Menu This option provides the film's menu language options. VIDEO SETUP Select Video in the setup menu, and display the Video submenu: desired SYSTEM SETUP Aspect Ratio Select the aspect ratio. Notes: TV System Select the TV system. For more information on output format, refer to the instructions or your TV set. RATING SETUP Select Rating in the setup menu, and display the Rating submenu: The image display ratio is related to the recorded disc format. Somes discs can not display images in the aspect ratio you choose. If you play a disc recorded in 4:3 format on a wide screen TV, black bars will appear on the left and right side of the screen. You must adjust the screen setting depending on the type of the television you have. Note: The DVD player setting should be matched to your TV set. Parental Control Set the parental control feature of the player Note: Th e password is needed to set up the Parental Control. Set Password Input four digits (password), then press ENTER /Ok to confirm. Note: If you forget your password, please use the universal password 6666 to unlock. MISC SETUP Select MISC in the setup menu, and display the submenu:

The PICTURE CD disc has such a directory structure structure as shown in the following picture. Press Direction key to choose the root directory and then press ENTER/OK button to enter into the sub directory. Press Direction key to choose the desired picture and then press ENTER/OK or PLAY to enjoy the picture. If you want to return to the upper menu, press Direction key to choose the icon and press ENTER/OK button. Image rotation In picture play state, press Direction key to rotate the picture. The MP3 disc has a directory structure as shown picture above. Press to choose the root directory and then press ENTER/OK button to enter into the sub directory. Press to choose the desired track and then press ENTER/OK or PLAY to enjoy the music or movie. If you want to return to the previous menu, press to choose the icon and press the ENTER/OK button. Filter: Select the categories of files that are displayed in the browser list. Repeat: Change the repeat playing mode Mode: Select different play modes: Normal: Play chapters/tracks in normal order. Shuffle: Play tracks/chapters in a random order until all tracks/chapters have been played. Edit Mode: Program tracks/chapters to play. When you select the mode, press to directory and press ENTER/OK to choose the desired track. Select Add to program. Select Program view and select Edit mode to cancel the edit mode. Press to display the programmed tracks and press ENTER/OK to start playback. Program view: Display the programmed tracks. Browser view: Display the track directory. Add to program: Choose the track select Add to program to add the track to the program play list. Clear program: In the complete stop state (press the STOP button twice), select Edit mode to enable the edit mode. Press to program track and press ENTER/OK to cancel the desired track. Select Clear program to delete all tracks in the program play list. DVD OPERATION -17-DVD OPERATION INSERT/EJECT Press INSERT/EJECT to insert or eject the disc. Note: When inserting the disc, the side with the label must face the rear of the TV (shiny side facing you). SUBTITLE Press SUBTITLE to choose different captions(Requires support from disc) GOTO For DVD discs, press to choose the desired title and chapter and search the desired title time and chapter time. For Super VCD, VCD, CD discs, press this button to search the desired disc time and track time and choose the desired track. Note: During VCD playback, the PBC mode must be set to OFF. 0-9 keys These keys are used to input the time, as well as title, chapter and track numbers.When a numeric item is displayed on the screen, press the 0-9 keys to select the desired entry, and press ENTER/OK to confirm. When a VCD is playing(with PBC off), press the 0-9 keys to select a track directly. MENU During DVD playback, press MENU to display the disc menu of the current title. During VCD/SVCD playback, press MENU to control PBC ON/OFF. SETUP Press SETUP to enter the system setting menu. Press the button again to exit the menu. RETURN When a DVD/SVCD/VCD playing, press the RETURN button to return to the menu(PBC ON only). DISPLAY Press DISPLAY to show the information of the current playing disc. ENTER Press ENTER to confirm your choice on the screen. REV During DVD, CD MP3 or VCD playback, press REV to scan in reverse. Press PLAY/PAUSE to resume normal playback. FWD During DVD, CD,MP3, or VCD playback, press FWD to scan forward. Press PLAY/PAUSE to resume normal playback. PREV During DVD, CD,MP3, or VCD playback, press PREV to play the previous chapter, title or track. NEXT During DVD,CD,MP3, or VCD playback, press NEXT toplay the next chapter, title or track. STOP Press the button once and the player will be in the memory stop state. Press this button again and the player will be in the complete stop state. Play/Pause Press Play/Pause to play or pause playback. REPEAT Press to select between different repeat modes — Repeat Chapter / Repeat Title / Repeat Off（for DVD discs）, Repeat Single/ Repeat Folder/All/ Repeat Off (for VCD/CD/MP3 discs) AUDIO Changes the audio language or audio channel. Function Buttons

-18-DVD TROUBLE SHOOTING

Ensure you have set the player s AUDIO settings correctly. If you have any questions, please consult the troubleshooting guide below:

Ensure the power button is on. Ensure the power outlet is operational. Ensure the power cord is not damaged. Ensure the power plug is connected firmly to the outlet.

PICTURE BUT NO SOUND

Ensure the audio is not set to mute.

POOR PICTURE OR SOUND

Ensure you have set the player s AUDIO settings correctly Ensure the disc is not scratched or stained.

Ensure the disc is not warped, damaged or deformed. Ensure the disc is not badly scratched or damaged. Ensure the disc format is compatible with the player. Please check whether you have tried to play a software CD. If so, please restart the player.

Make sure the Main unit s POWER button is on Ensure the remote batteries are working. Point the remote control directly at the player s IRsensor. Remove any obstacles between the remote and theIR sensor.

Turn off the power, and then turn it on again.

Ensure you have inserted a disc. Ensure the disc is inserted properly (label side facing away from you). Ensure the disc is not damaged, stained or scratched. -19-WARRANTY 90 days labor, 1 year parts. -20-5 6-9
