USER MANUAL LE50M600CF HAIER

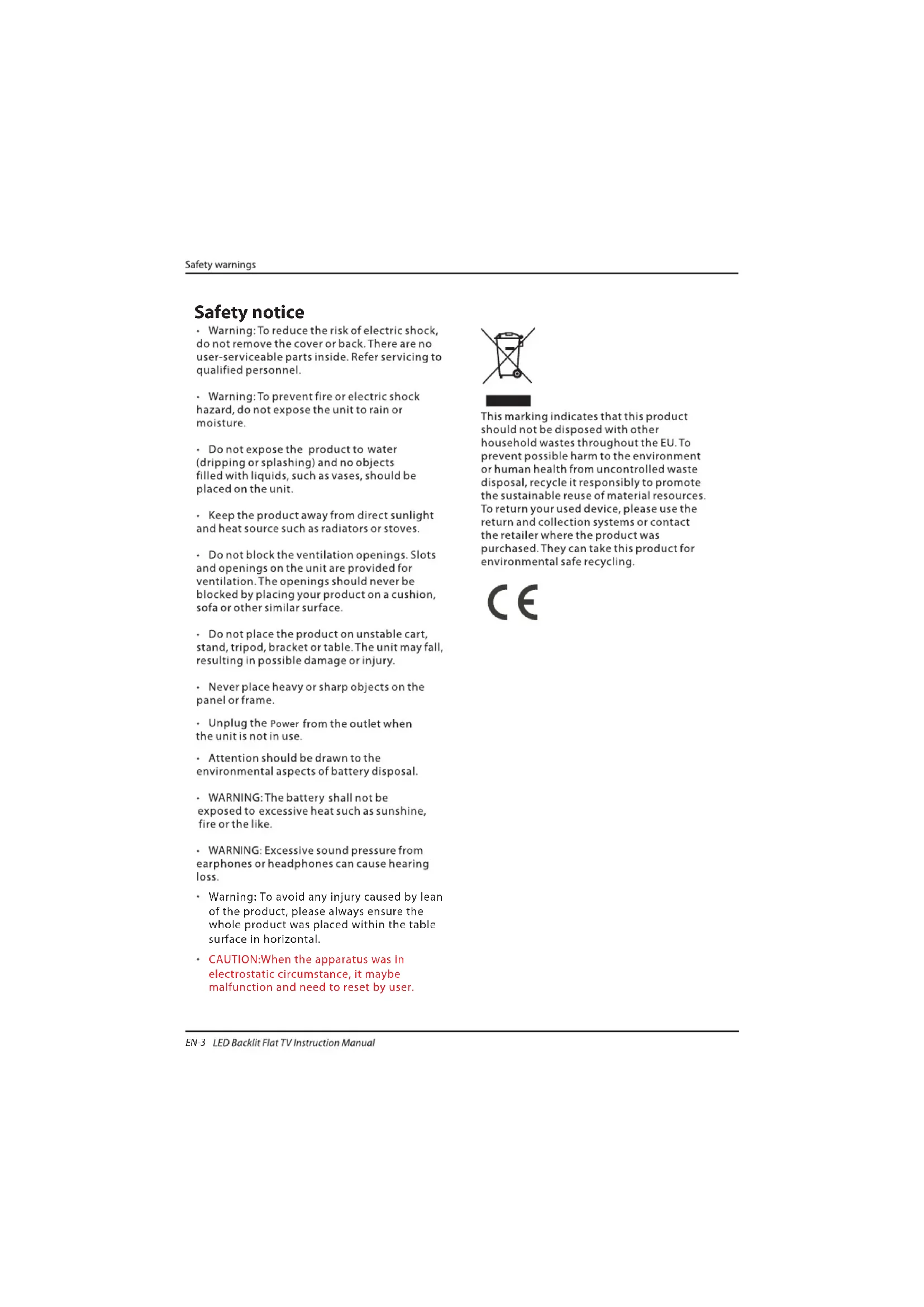

Safety notice Warning and cautions

Wall Mounting Installation Guidelines Front Control Panel

Connecting to your Haier TV Common Interface

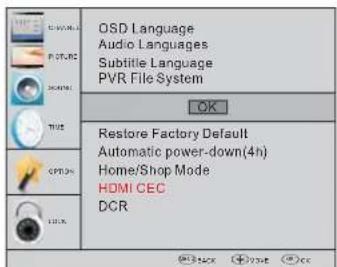

Prepare to record the program

Prepare to record the program

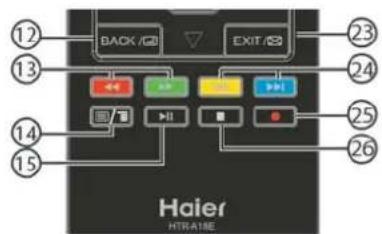

Record a paused DTV program to USB storage device

Trouble shooting 05 Trouble shooting

06 SpecificationThanks for buying this 39"/46"/50"LED LCD TV . This guide will help you set up and begin using your TV. IMPOR TANT INFORMATION

Warning: To avoid any injury caused by lean

of the product, please always ensure the whole product was placed within the table surface in horizontal. CAUTION:When the apparatus was in electrostatic circumstance, it maybe malfunction and need to reset by user.Dim:515*320mm(不包括底座） Warning High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel. Warning To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture. Warning Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver. Caution Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components. Caution Do not trap the power supply cord under the television receiver. Caution Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall. Caution Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual , and damage to the television, may result if it should fall. Caution When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet. Caution If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

WARNING AND CAUTIONS

EN-4PanelPAL-B/G ,I , D/KPAL/SECAM/MPEG2/MPEG4/H.264AC 100 240V 50/60HzAnalog RGB(PC) x1; PC audio x1High-Definition Multimedia Interface (HDMI) x 3/MHLx1Composite Input x 1YPbPr x 1SCART Inputx 1 70W

CI x 1USB x 1RF Co-Ax x 1Composite video input >=350YPbPr >=400Headphone x 1 TV SystemVideo Signal SystemInput Power VoltagePower consumptionStandby Power consumptionAudio Output Power Signal InputSignal output Horizontal definition (TV line) SECAM-B/G , D/K , L , ≤0.50WDVB-T, DVB-C INSTALLATIONCAUTION *Locate the TV in the room where light does not strike the screen directly.*Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.*Allow enough space between the TV and the wall to permit ventilation.*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.*Do not cover the ventilation openings when using theTV. Main parameter Main features 4 NICAM； 5 T ；ime-shift3 HDMI interface and SCART Interface；High luminance, wide viewing angle；2 Used as Television, display terminal, PC display；1 Never tamper with any components inside the TV, or any other adjustment controls not described in this manual. All LED-TV's are high voltage electrical equipment. When you clean dust or any water drops off the SCREEN or CABINET or around any of the buttons or connectors, the power cabled should be removed from the power socket. Wipe the TV with a soft, dry, dust free cloth. During thunderstorms, unplug the power cable and aerial / antenna cable to prevent damage to your TV and any other devices connected to it. All repairs to this TV should only be performed by qualified TV servicepersonnel. 02 Introdution Introduction EN-5 510(DTV);100(ATV)Storage channel numberSCART Output x 1 COAXIAL Output x 1

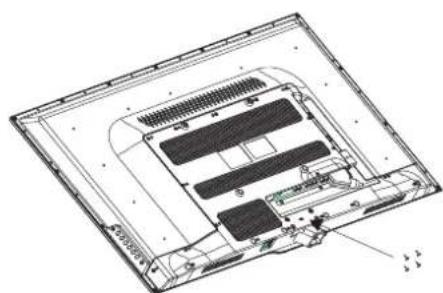

66.64Base Stand Assembly Instruction

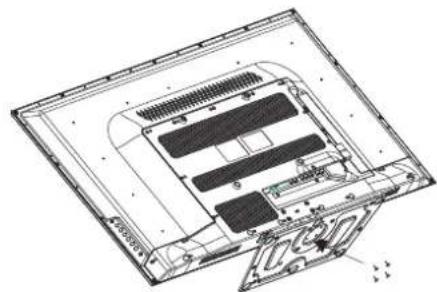

1. Place the TV with the display side down on a

flat surface. Use a cloth to protect the display.Position the stand base pillar onto the bottom of the TV.

2. Attach the stand base plate to the stand pole

by firmly tightening the supplied screws. INSTALLATION NOTES Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. Allow enough space between the TV and the wall to permit ventilation. Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure. Please do not attempt to rotate the TV on the stand. Introduction

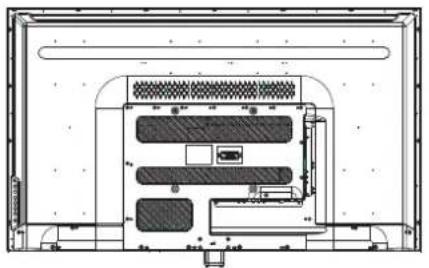

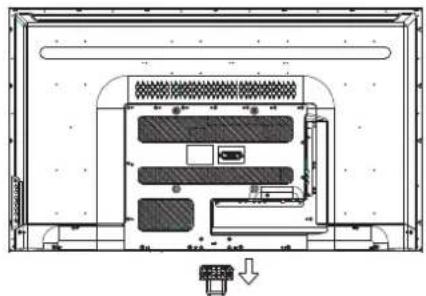

EN-7WALL MOUNTING INSTALLATION GUIDELINES

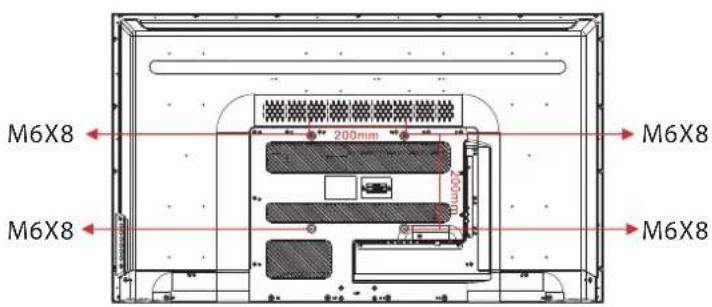

2.Remove the screws from the lower part of the television, where the base joins to the TV, and take away the stand (put the stand somewhere safe for future use). 1.Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage. 3.Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the four VESA standard holes on the back of the television. Introduction EN-8 This television can be wall mounted as follows: M6X8 M6X8 M6X8 M6X8Rear/Side Sockets

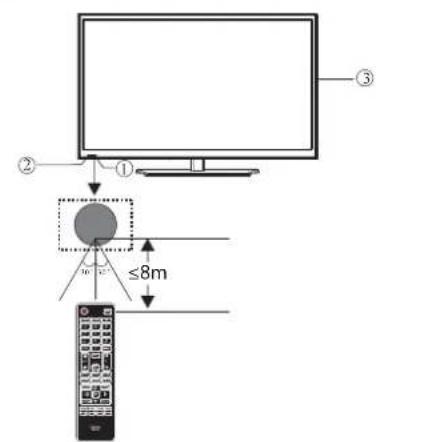

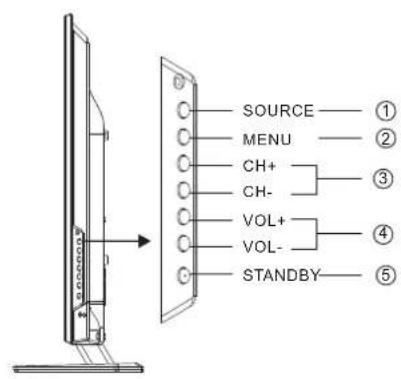

Remote control sensor. Indicator LED: RED: STANDBY. Key board.

CH+/CH-In TV mode,press CH+ or CH- to change the channel up and down.In MENU, press CH+ or CH- to select items .STANDBY VOL+/VOL-Adjust sound level.In MENU,adjust the item that you selected.

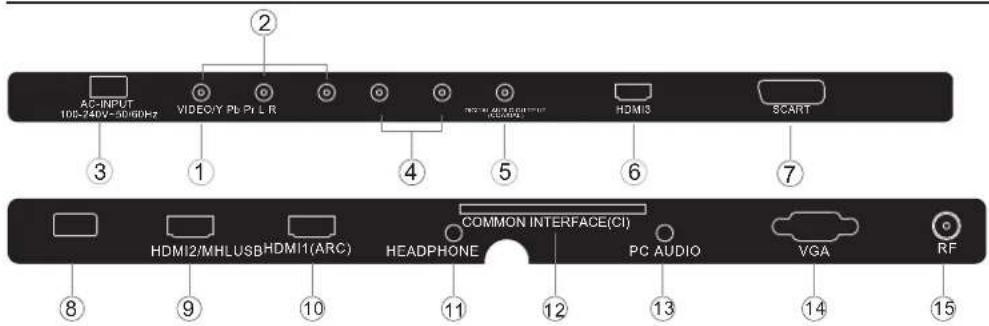

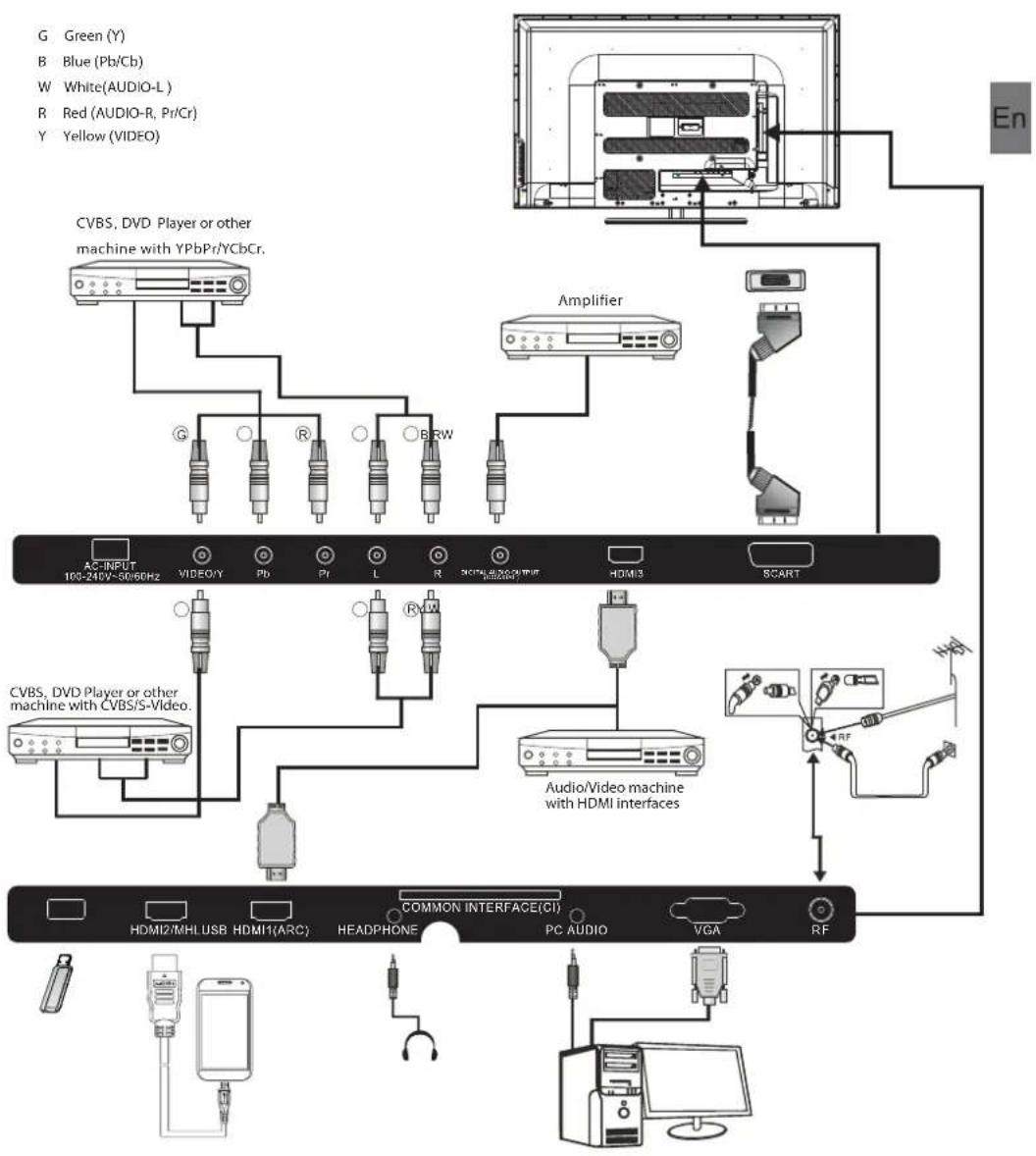

inputHDMI2/MHLIntroduction Connecting to your Haier TV EN-10 RY W Audio/Video machine with HDMI interfaces CVBS, DVD Player or other machine with CVBS/S-Video. G Green (Y) B Blue (Pb/Cb) W White(AUDIO-L ) R Red (AUDIO-R, Pr/Cr) Y Yellow (VIDEO) CVBS, DVD Player or other machine with YPbPr/YCbCr. CAUTION RISK

DIGITAL AUDI O OU TP UT

(COAXIAL) SCART HDMI3EN-11 Introduction Connecting a DVD player / Satellite / cable set top box receiver / games console / PC or Laptop There are several options to connecting a DVD player / Satellite or Cable set top box receiver / games console / PC or Laptop to your TV. Option 1 SCART Connect a SCART cable (not supplied) from the SCART socket on the TV to the DVD player cable set top box receiver or games consol. To select the device connected with the SCART cable press the SOURCE button on the remote and use the▼▲keys to select SCART and press the OK button. Note: The TV will default to the SCART connection when the TV is switched on. Option 2 HDMI If the device you want to connect to the is switched on, switch off the device first. Connect a HDMI cable (not supplied) from the HDMI socket on the TV to the DVD player cable receiver or games consol. Switch on the device you have just connected to the TV To select the device connected with the HDMI cable press the SOURCE button on the remote and use the▼▲keys to select HDMI and press the OK button. Option 3 AV Audio Visual (Yellow/White/Red) Make sure that both TV and the device are switched off before connecting. Connect the AV cables (not supplied) from the Video (yellow) and Audio (white, red) sockets on the TV to the DVD player or games console etc. To select the device connected with the AV cable press the SOURCE button on the remote and use the▼▲keys to select AV and press the OK button. Option 4 COMPONENT (Green/Blue/Red)+(White/Red) Make sure that both TV and the device are switched off before connecting.

Connect the cables (not supplied) from the COMPONENT IN sockets Y, Pb, Pr (green, blue, red) and L-Audio-R (white, red) on the TV to the DVD player or games console etc. To select the device connected with the COMPONENT cable press the SOURCE button on the remote and use the keys to select and press the OK button. Option 5 VGA (15pin Sub-D) Connect a VGA cable (not supplied) from the VGA socket on the TV to the PC / Laptop. To select the PC / Laptop connected with the VGA cable press the SOURCE button on the remote and use the keys to select PC and press the OK button. Note VGA is video only. For audio from your PC/Laptop you need to connect a separate cable from the PC Audio (3.5mm jack) to the headphone socket on you PC/Laptop (3.5mm jack) Option 6 USB Most USB sticks can be connected to your TV and some digital cameras may also work. Connect USB stick (not supplied) or a USB cable (not supplied) to the TV. To select the USB device connected to the TV, press the SOURCE button on the remote and use the keys to select USB and press the OK button. Note1:Only *.jpg and *.mp3 files will work, other file types are not guaranteed and may not. Note 2. Apple iPhones and iPods are not compatible with your TV. Note 3. When connecting any device to the USB connection, keep the USB cable length as short as possible. Option 7 Option 8

YPbPr DIGITAL AUDIO OUTPUT(COAXIAL) HEADPHONE OUTPUT is a digital audio connection used to connect audio equipment, for example home theatres and other digital HiFi systems over short distances. The signal is transmitted over either a coaxial cable with RCA connectors. Make sure that both TV and the device are switched off before connecting. Connect the AV cables (not supplied) from the socket on the TV to the Home Theater sound system or digital HiFi system etc. Insert the plug of the earphone into the headphone socket on the TV. The TV speakers are now muted. Alternatively you can also plug in external speakers if required. COAXIAL COAXIAL Connecting to your Haier TV Option 9 MHL INPUT Connect the devices which can support MHL function; also function as HDMI input socket.EN-12 The common interface (CI) slot is designed to accept the conditional Access (CA) Module and Smart card in order to view the pay TV programmes and additional services. Contact your Common Interface service provider to get more information about the modules and subscription. Please noted that CA modules and smart cards are neither supplied nor optional accessories from us. COMMON INTERFACE Introduction CHANNELPICTURESOUND TIME OPTION LOCK Auto Tuning ATV Manual Tuning Programme Edit Signal Information DTV Manual Tuning Software Update(USB) CI Information

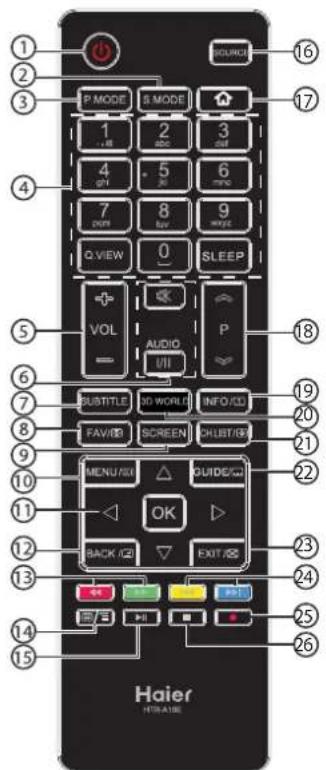

MENUPress to turn the TV on or off.(Power)S.MODEPress to select the sound mode.P.MODEPress to select the picture mode. 0-9 Press to enter a channel numberor password.Q.VIEWPress to switch to the last viewedchannel.SLEEPPress to set the sleep timer.VOL +/-Press to adjust the volume level.(Mute)Press to turn the sound on or off.AUDIO(I/II)Press to select Mono,Nicam stereo for ATV channel.Select Audio language for DTV channel.SUBTITLEPress to turn the subtitle on or off.Press to open a favorite channel list.In teletext mode,press to hold a page. 03 Remote Control Remote Control EN-13 SCREENPress to change picture aspect ratio.Press to open the on-screen menu.In teletext mode,press to open the INDEX page.Press to navigate the on-screen menu.Press to confirm a selection.OKPress to return to the previous screen.In teletext mode,press to enter mix mode.(reverse)(forward)Press to fast forward or reverseplaybadk in multimedia mode.In teletext mode,press to open or close teletext page.Press to display main menu in the MHL mode,for example the APP menu.SOURCEPress to open the input source list.Press to launch HDMI2/MHL mode. Press to change the channel.Press to display the channel information.In teletext mode,press to revealthe hidden information. Press to open the channel list.In teletext mode,press to switch the image to top,bottom or full.3D WORLDThese models do not support 3D feature.Press to close the on-screen menu.In teletext mode,press to hide the text.

Press to select previous or next file.(previous)(next)Press to stop multimedia playback.GUIDEPress to display electronic programme guide in TV mode. Press to enter the teletext subpage.(REC)Press to record the TV program you are watching in DTV mode.Press to play/pause in multimedia mode.(play/pause) Insert Batteries into the Remote Contol

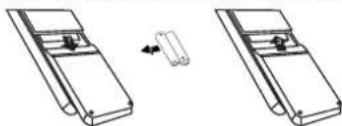

1. Remove the battery cover.

2. Inserting the 2 AAA 1.5V batteries making sure the polarity

(+ or -) of the batteries matches the polarity marks inside the unit.

3. Mount the battery cover. Replace with new batteries when the

TV set begins to show the following symptoms:Operation is unsteady or erratic. Sometimes the TV set does not function with Remote Control Unit. Remark:

1) Alkaline Battery Recommeded.

2) Remove batteries when they are exhausted or if the remote

control is not to be used for long time.EN-14

INDEX SUB PAGE HOLD REVEAL Press: You will obtain : TELETEXT Enter the number of the page required using the 0 to 9 up/down. Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number. Coloured are as are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages. The coloured areas flash when the item or the page is not yet available. This returns to the contents page (usually page 100). Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume sub-page acquisition. The indication appears top left. To freeze the page. To display or hide the concealed information (games solutions). This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corresponding 3 digit page number. If the channel selected does not broadcast teletext, the indication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel). Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.) Remote Control Teletext,program,image are displayed together. MIX Exit the teletext. EXIT Switch the image to top,bottom,full. SIZEOperation 04 OPERATION Password Please enter old password Please enter new password Confirm new password The installation guide only appear when the TV first time turn on or reset to factory set. Installation Guide 1).Press the ▲▼ buttons to navigate the menu and change the settings. Press the OK button to confirm.Select your desired language to be displayed on the menu. 2). Press the buttons to select DVB-T/DVB-C and then press the OK button to confirm. a. If you select DVB-T, the next step is to select the Tune type and country then press the OK button to start tuning.b. If you select DVB-C, the next step is to config the DVB-C system like (scan type / Frequency/ Network ID/Symbol(KS/S) then press OK button to into the tune type and country select menu, this step is the same as DVB-T, select the tune type (DTV/ATV). Choose the right country, press OK button to start tuning. Note: The default password is 0000. EN-15 OK GreeceNederlands GermanyPortugalPolandItalyHungaryLuxembourgNorwayHOME or Shop modes1.When the unit is turn on for the very first time, it will show Initialization set-up menu. After the OSD language is set, the user can choose between "shop mode" and "home mode". When the screen shows the following setting menu and the cursor stays on the "home mode" choice, press ◀▶ to adjust, and "OK" to enter the menu.Select the usage mode?shop mode is for shop usage only.Shop modeHome modeIf "Shop mode" is choosen, the following menu will displayed. Are you sure to change to Shop mode? CancelPress "OK" to enter the next prompt menu Home mode is the most energy mode.

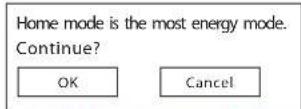

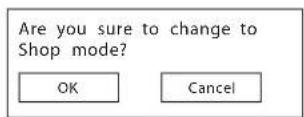

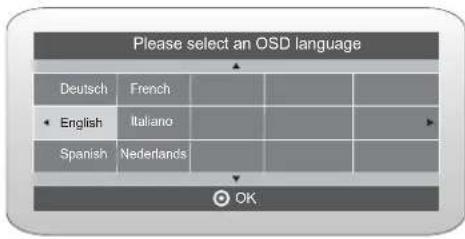

CancelContinue?Choose "Cancel" to go back to the Initialization set-upmenu, and the cursor will stay at the "home mode"choice. choose it to go the next menu to choose the country. Please select an OSD language

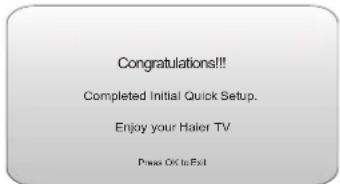

Congratulations!!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit 3). Press the buttons to select DVB-T/DVB-C Press select DVB-T and then press the OK button to confirm.

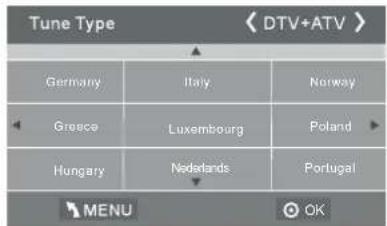

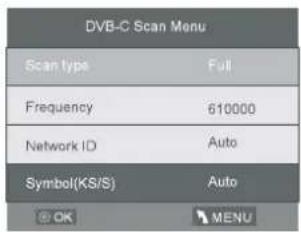

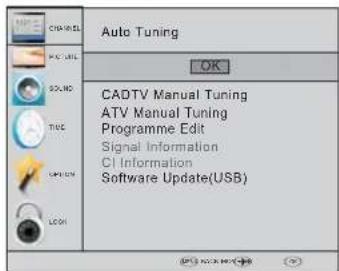

4). In the Tune Type menu, press the buttons to select ATV / DTV / DTV + ATV. Press the button and then press the buttons to select the country where you will operate the TV. Press the OK button to confirm

Operation EN-16 5). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the Channel menu.

Greece Nederlands Germany Portugal Poland Italy Hungary Luxembourg Norway 5). Channel tuning will commence. This operation may take up to minutes. The display will show the progress of the tuning and the number of channels found. 6). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the◀button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV. 7). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select P rogramme Edit under the channel menu. some Programme(s) Programme(s) Programme(s) Programme(s)

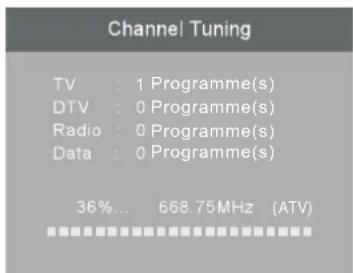

ATV 3). Channel tuning will commence. This operation may take up to . The display will show the progress of the tuning and the number of channels found. 4). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV. some minutes ◀1.2 )Auto Tuning (DVB-C) 2). Press the▼▲buttons to select Auto Tuning and then press the OK button. 3). Press the▼▲buttons to select DVB-T/DVB-C .Press select DVB-C and then press the OK button to confirm. 4). Press buttons to select Scan type/Symbol (Ks/S) press the OK button to confirm. 5). In the Tune Type menu, press the buttons to select ATV / DTV / DTV + ATV. Press the button and then press the buttons to select the country where you will operate the TV. Press the OK button to confirm.

Greece Nederlands Germany Portugal Poland Italy Hungary Luxembourg Norway 6). Channel tuning will commence. This operation may take up to The display will show the progress of the tuning and the number of channels found. 7). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the◀button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV. 8). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select P rogramme Edit under the channel menu. some minutes.

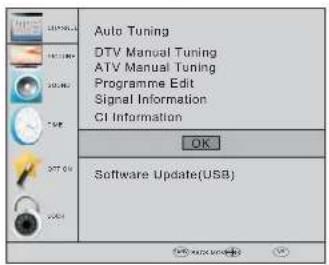

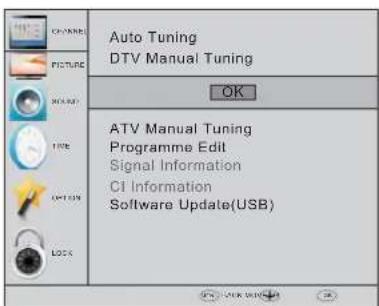

2. 1 ) DTV Manual Tuning (DVB-T)

All the channels including ATV, DTV and Radio can be tuning by one time,if the Tune Type is DTV+ATV . All the stored channels will be disappear after auto tuning . After auto tuning , the channel will skip to the first DTV channel. 1). Press the MENU button and then press the▼▲ buttons to select the CHANNEL menu and then press the OK button. Programme(s) Programme(s) Programme(s) Programme(s)

3). The DTV Manual Tuning screen will pop up. Press the◀▶buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen. 1). Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button. 2). Press the buttons to select CADTV Manual Tuning and then press the OK button.

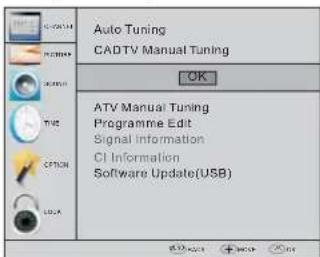

MENU EN-18 2). Press the▼▲buttons to select DTV Manual Tuning and then press the OK button. 3). The CADTV Manual Tuning screen will pop up. Press the▼▲buttons to select(Frequency /Symbol (ks/s/QAM Type QAM) press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen. 4). Press the MENU button to return back to the main menu. 5). Press the EXIT button to exit the menu. Rename: Only can rename ATV programs . Move the cursor to the program, press teletext green button to rename the program. Press▼▲ to choose the character. Press◀▶to move the cursor . Press MENU button to exit edit , Press EXIT to exit the menu. Note: ATV programs name only can be 5 character. Press teletext red button to storage to channels after manual tuning . 4). Program edit: You can Delete ,Rename ,Move, Skip , FAV any programs. Press teletext red button , the program in cursor will delete. Delete

3) ATV Manual tuning :

You can change the sound system to search the analog TV channels and fine tune the channels , then storage the channels you selected. ATV Manual Tuning Storage To 1 System BG Current CH 1 Search Fine-Tune Frequency 424.25 MHz Save MENU5). CI information: (optional) This menu can display the CI card' s information. Use the Arrow Buttons to select the channel you wish to move. Then press the Yellow Button to select Move function. Once active use the Arrow Buttons to move and then press OK to confirm. Press to choose the program , press teletext blue button to skip this program, The will show on the right side of the program .Choose the skipped program, press blue button again , you can cancel the skip ,The will disappear .

Favourite: Press to choose the program , press FAV button , it will show on the right side of the program.Choose the FAV program , press FAV button again , you can cancel the FAV, the will disappear .

Once your favorite group is created, you can press the FAV key to quickly access your favorite channel. 1).Tint is available in NTSC system only. 2).There are four colors temperature modes can be selected medium, warm, cool,user 3).Screen is available in PC mode only which can adjust Horizontal position, vertical position, size and phase. 3.SOUND MENU The third item of the MENU is the SOUND MENU. You can adjust the sound effect here such as treble, bass, balance etc. Auto volume: only available when the input signal volume is too large or distortion. 4.TIME MENU The fourth item of the menu is the TIME MENU. You can adjust the clock, power on/off time,sleep timer etc. The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc.

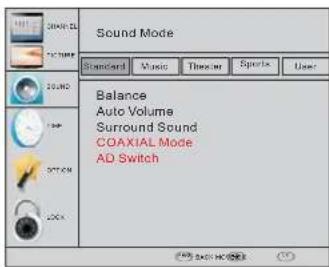

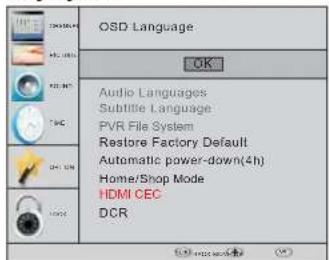

MENU COAXIAL Mode AD Switch EN-19 5.OPTION MENU The fifth item of the MENU is the OPTION MENU. You can adjust the OSD language,Audio language,Subtitle language etc. Within 15 minutes there is no signal, the TV will auto sleep , if Auto Sleep is set ON. The clock time can get from the DTV system auto. CHANNEL PICTURE SOUND TIME OPTION LOCK Clock Off Time Sleep Timer Auto Sleep Time Zone On Time

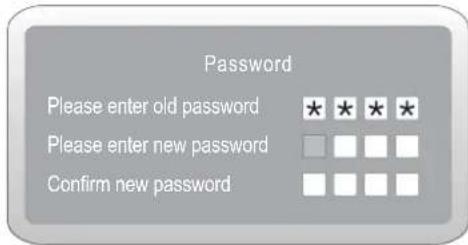

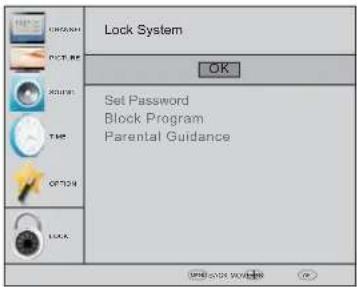

MENU Vivid6.LOCK MENU The sixth item of the menu is the LOCK MENU. You can lock system, set password, block program and set parental guidance Once you set the lock system on you can not search the channels or change any programs. The default pass word is 0000, If you forget thepassword, you can use the super password:9443.Block program: Press▼▲ to choose the program ,press teletext green button to block the program. If you want unblock the program, pls enter the main menu , input the password,then press green button again.Parental guidance: Press◀▶to choose rating. 7.EPG Menu(Electronic Program Guide). The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day.To access the EPG menu, press the ,the following menu will be displayed:GUIDE button1. Use to choose the programs , Press INFO key, you can display the highlight program's information. INFO 2. Press the teletext yellow key, It can list all the reminder schedule, press to choose the list, press red key to delete the schedule list.

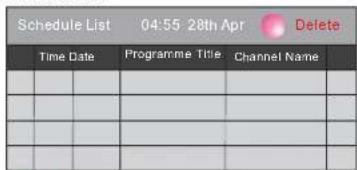

Schedule DELETE Schedule List 04:55 28th Apr Delete Time DateProgramme TitleChannel Name Restore factory default will clear all the programs and password. In PVR File system menu you can set up USB disk for PVR. Automatic Power-down1.If after 4 hours from switch on and no changes have been made to the TV, for example no channel or volume changes,the TV will start the automatic power down sequence. And pop-up window will appear on screen. After 150 seconds the TV will automatically switch to standby. To override the automatic shutdown press any button on the remote control.2. To cancel the automatic power-downOn the Option Menu select Automatic power-down(4H)Press left/right A pop-up message will appear “Are you sure you want to disable automatic power-down?”Use the left arrow key to select YESThe TV screen returns to the Option Menu and the Automatic power-down(4H) option will display.Automatic power-down(4H) OFFTo return to auto shutdown after 4 hours repeat the above except use the right arrow key to select NO.Seconds to Automatic power-downPlease press any Key to Cancel 26/Jan 11:40 1 TV3 Club/Super3-Naturalmen.. No Information No Information PROGRAMME GUIDE Schedule Record Info Reminder TIME 2 3/24 3 TVC HD

MENU EN-20 3. Record Press the red key ,It can set the program to be recorded.4. Press the blue key to choose one program and set up one reminder time, the TV screen will skip to the choosed program in the reminder time automatically. Reminder1 TV337 Minute11 HourJan Month26 DateOnce ModeReminder BACK OKPVR File System Type Hi Speed FSPVR File System Size AllSD 104 MinsHD 29 Mins File System SizePVR File System Type FAT32SD 104 MinsHD 29 Mins File System SizeOK OK Select Disk USB 0 Disk C: OK USB DiskTime Shift SizeSpeedSelect Disk C:Check PVR File System StartFormatFree Record Limit 6 Hr.OK MENU Check PVR File System: check if the PVR File System set up in the USB device or not. Format: Select Disk:select which disc to save the record file. 8.PVR function Operation 1.Prepare to record the program PVR function only works in DTV. From OPTION MENU enter into PVR File System In “OPTION MENU”, please choose “check PVR File System”. Click “OK”, until “checking”change into “Success”. Note: please check the term “speed”. If it is “HD support”, that means the speed of USB device is available for time shift and record. If not, please format the device, to make sure the device available. The default “Free Record Limit” is 6 hour, if the space on the disk is big enough. If the space is not big enough, the record time should be shorter, depends on the room on the device. During the “check PVR File System” checking, please do not take any other operation until it finished. The recordings must be done with the TV PVR system. It can only be played in the same TV, not in any other kind of device (computer, DVD, etc.) which is not compatible with . TS. file format. Please note that in order to carry out any kind of recording, the TV will require you to format the connected USB device to store the recording.

STORAGE ON THE DEVICE. The USB file system will limit the size of the storage size. File system: NTFS up to 2TB FAT32 with up to 192GB FAT16 with up to 2GB From OPTION MENU enter into PVR File System as below: CHANNEL PICTURE SOUND TIME OPTION LOCK OSD Language Subtitle Language PVR File System Restore Factory Default Automatic power-down(4h) Home/Shop Mode HDMI CEC DCR Audio Languages

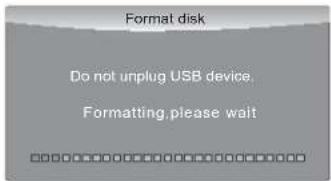

MENU EN-21USB Disk Time Shift Size Select Disk C: Check PVR File System SUCCESS Format Pass Pass All Speed HD Support 2730KB/S Free Record Limit 6 Hr. USB Disk Time Shift Size Select Disk C: Check PVR File System Checking Format Pass Pass All Speed Checking Free Record Limit 6 Hr. MENU MENU below menu appear after Format finish: If you select the “Hi Speed FS ”format mode, then you can change the time shift size: Operation Time Shift SizeTime Shift Disk Size 512 MBSD 14 MinsHD 4 MinsOK 2.Record the program 3.Play the record As playing the DTV source, choose the channel and click “ record”, the record frame will pop up. Click ” record” again, the record frame will disappear and the “REC” icon still on the left top. It will disappear until you click “stop”.

The program recorded on the “USB”will be saved in the folder “_MSTPVR” on the device. 1.The USB storage size can be between 128MB and 500GB in size, but for practical use 2GB to 500GB is recommended.

2. Video may become pixelated when Video

bit rate is too low. This can be caused by connecting a USB extension cable instead of plugging the USB directly into the TV

3. Not all USB devices are compatible.

Below is a list of recommended USB drives. Models that are not listed may be compatible, but it is not guaranteed to work. The USB support list are the same as Timeshift function,see the following pages for details. Format disk Do not unplug USB device. Formatting,please wait Format disk Start Exit Format disk Warning! All data will be lost. (Suggest to format the device by “High Speed Fs...”, which can speed up the record.) EN-22Operation Please do not unplug the USB storage device when the Time Shift function is activated. Approximately 4GB of memory buffers about offer 140 minutes. Prepare to record the program This TV allows you to pause and record the currently watched digital program to a USB storage device, and to resume to the point where it was paused. Formatting a USB 2.0 storage device will be needed. Save your original data before formatting. All the data stored in the USB device will be erased after formatting. USB Drive Storage Format Select to format the USB device and allocate the amount of space for the Time Shift function. The format process will take at least 2 minutes. Please do not turn off the power or remove the USB device during formatting. During formatting, a speed test will be done on the USB device. If it fails, it means the USB device may not support the Time Shift function. Record a paused DTV program to USB storage device

1. While in the DTV input source, insert

USB storage device to the USB port on the side of your TV.

2. Press Play/Pause 15 to start Time Shift

function. The TV program paused. The Time Shift OSD appears, and starts recording.

3. Press STOP 26 to stop Time Shift

function and stop recording program. 9.Timeshift function EN-23Operation Time Shift limitations:

1. When the Time Shift feature is activated, only

the PLAY/PAUSE/STOP/FWD/REV/ VOL+/VOL-/MUTE keys and some basic operation keys (OK/EXIT/navigation keys) are available.

2. Video playback may not be smooth and skip if

USB recording speed does not meet the minimum requirements .

3. Do Not remove USB disk or switch off the

power during Time Shift operations. It will abort once the signal is lost.

4. Do Not remove the signal source during Time

5. Do Not quickly and repeatedly change

operations between PLAY/PAUSE/FWD/REV.

6. Video may become pixelated when Video bit

7. Not all USB devices are compatible, The USB

hard disk drive electricty should be < 500MA. Below is a list of recommended USB drvies. Models that are not listed may be compatible, but it is not guaranteed to work.

8. This feature is not available for all digital

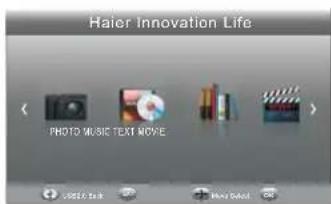

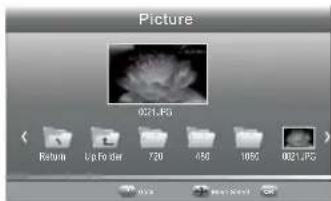

Press the to select the right disk and press OK to display media files and folder list or choose Return to back to the media type selection menu.

Select the media file by pressing or , then the preview frame will pop up.Press the button to play the media file in full screen.When the media file (photo, Movie, or text type) is playing, press the OK or Info button can display the control bar.

Press to select the function icon, press OK button to confirm the function. Press or EXIT button to exit the control bar except for music. You can adjust the audio track, or program in the Info menu while Playing the video file.Choose the Info icon and press OK can display the Info MENU.

USB playback is supported for the following photo file formats: -JPEG(JPEG format, files with the extension ".jpg" ) -BMP (files with the extension ".bmp") -PNG (files with the extension ".png") USB playback is supported for the following music file formats: -MP3 (files with the extension ".mp3") USB playback is supported for the following text file formats: -TXT (files with the extension ".txt") USB playback is supported for the following movie file formats: -TS (MPEG2 & H.264) Pause FF Prev. NextFB StopRepeat ALL00:04:22Set A

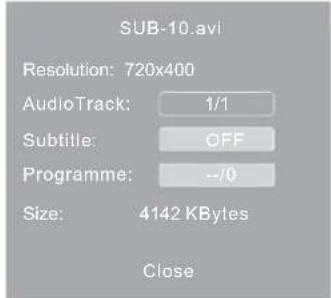

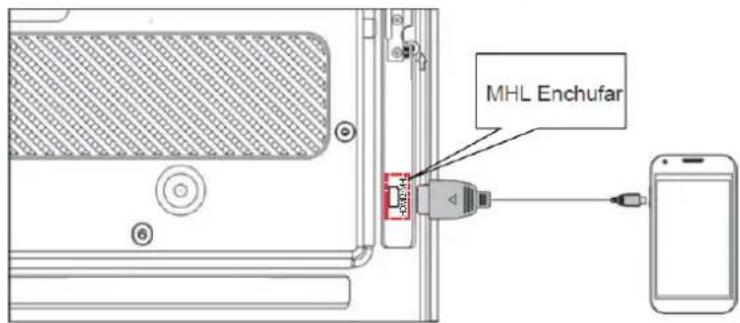

Return 720 480 1080U p Fo lder 0021.JPG 0021.JPG SUB-10.avi Resolution: 720x400 Subtitle: Programme: Size: 4142 KBytes Close AudioTrack: 1/1 OFF --/0 EN-2511.MHL user guide: 1: Turn on the TV, and unlock the phone screen. 2: Connect one end of the MHL cable to the TV "MHL" port. 3: Connect other end of MHL cable to Mini USB interface of mobile phone If your mobile phone is Samsung GALAXY SIII or GALAXY NOTE II, please use inverter from the attachment to connect MHL cable and mobile phone. Other brand can connect with MHL cable directly. 4: Press “ ” on the remote control to switch the TV to the MHL mode. If your phone supports MHL function, the TV will simultaneously display screen of the phone; otherwise, TV will be prompted to not connected to an external device or external devices do not support MHL. After MHL successfully connected, you can remote control the phone through the TV remote control, specific remote function associated with your phone specification. At this point, you can enjoy a wealth of Internet resources by phone. 5: For MHL official certified mobile phone models, please see the following links: http://www.mhlconsortium.org/productlist/mobile-devices/ 6: Support other devices with MHL-function. 7: The product has been officially certified by the MHL. If MHL functionality encounters any problems, please contact the manufacturer of mobile devices. Operation HDMI2/MHL EN-26Picture Audio Snow Noise antenna position, direction or connection Inspection Check Interference Noise electronic equipment,car/motorcycle,fluorescent light Normal Picture Mute Volume(check if mute is activated or if the audio system connections are not correct) No picture Mute Power cord is not insertedPower switch is not openedContrast and brightness/volume setupPress standby key on the remote control for inspecting No colour Normal audio Colour control Picture breaking up Normal audio or weak retune channel No colour Noise TVsystem Normal audio antenna position, direction or connection Trouble phenomenon Symptom Ghost Normal audio Change aspect to zoom There is black baron top and bottom 05 Trouble shooting Trouble Shooting EN-27Trouble Shooting My TV does not display the picture on my laptop / PC when connected. Most PC's and laptops when connected with a VGA Plug (the blue 15 pin plug on your PC or laptop) require you to press some buttons on your key board to get a picture on a TV or other external display. This is usually the F7 (Dell) or F4 (HP / Samsung) or F5 (Toshiba). On laptops, you have to press the “Fn” key at the same time as the “F” key. I have connected my PC/Laptop to the TV and get a picture but no sound. Why ? The VGA cable only carries the video or picture information. You need to connect a separate cable connected to the earphone socket (3.5mm jack) on you PC/Laptop to the 3.5m (PC Audio IN) socket on your TV. You will need to select “PC” using the Source button on your remote. Alternatively connect your PC/Laptop using a HDMI cable if you PC/Laptop has a HDMI connector. HDMI is both audio and video. The picture is not auto resizing when changing channels. Check that the TV picture Aspect Ratio is set to 'Auto' on all inputs ATV, DTV, SCART, HDMI 1, 2 etc. To set the aspect ratio, (Auto, 4:3 or 16:9). Press Source button start at ATV and repeat the sequence below for all input sources ATV, DTV, SCART, HDMI 1 and 2 as each input source is controlled separately. Press TV Menu button Press Right Arrow to access Picture sub menu Press Down Arrow to select Aspect Ratio Select Auto Press Exit Repeat for all input sources. I have just plugged in a DVD player or another item into my TV and it doesn't work. This is applicable to any item of equipment plugged to the TV

1. Turn both TV & DVD player off (plugs out of the wall socket,

2. Turn off any equipment connected to the SCART socket.

3. Disconnect the SCART plug from the TV.

4. Plug in and turn TV on

5. Plug in and turn DVD player on

6. Select HDMI from Source Menu

7. Press play on DVD player and check movie plays ok

NOTE: The SCART socket has priority over HDMI and it is important that the equipment connected to the SCART socket on the TV is switched OFF (not in standby). Please follow this information. If the advice works and the DVD player works, the TV is OK it is just a bit confused. Probably HDMI plugs have been removed and plugged back in when the TV is switched on. Never remove or plug in HDMI cables or any digital equipment with the equipment switched on. Always switch off all equipment when unplugging or connecting any digital equipment. Trouble Shooting EN-28Trouble Shooting Picture Breaks into Pixels A typical example of a reception problem includes the break up of pictures (pixilation) or the picture freezing, sometimes there are clicking or squeaking sounds or the sound drops out or there is NO reception at all. Your picture may break into pixels due to the digital video signal dropping. The signal dropping may occur because of either problems with weak signals (see TV Aerials) or if you are connected by cable a weak cable signal. If the problem is weak signals, use an amplifier to strengthen the signal. A cable technician can help you install an inline amplifier or a pre-amplifier. This will boost your signal strength and fix the pixel problem. If you are receiving your TV signal by satellite, check your dish has not moved following high winds, or that the signal is blocked by trees. Trees can be a problem as the TV signal can change depending if a tree between the satellite dish and satellite is in bare or in full leaf. Missing channels It may be that you find that there are channels missing, or you're receiving channels from the wrong region. Sometimes the interactive services (red button) doesn't work. This is usually caused by weak signal, see TV Aerials TV Aerials Digital terrestrial television (Freeview) comes to your TV via an aerial, The old aerial that was good for analogue TV may not work well for digital so may need upgrading. If you are getting some but not all of the digital channels on DTV (Freeview) for example you get BBC1, BBC2, Channel 4 ,but not ITV or Channel 5, this is usually because your aerial is a narrow band type, and needs to be changed to a wide band type. Faulty Leads and Cables Check your TV. Are the leads at the back - to the mains, the aerial, the set-top box, the video or DVD player or recorder properly connected? SCART leads are known to work loose over time and can result in both audio and video (picture) problems. Either left or right or both audio is missing and the colours are poor or muddy looking. Push the SCART plugs firmly in, this should fix the problem. HDMI plugs need to be pushed in firmly; it's only the last millimetre that the contacts make. Typically the black plastic part of the HDMI plug should be very close or touching the body of the TV or component. When plugging in any HDMI cables you may experience problems if the HDMI cables are plugged in when the TV or the other component is switched on. Always switch off both the TV and the component you are plugging in. If you have checked the plugs and sockets, switch off the TV and whatever you have plugged in to the TV and then switch them on again. I have connected my PC to the TV. There is no sound. If you connect your PC or Laptop to the TV using a VGA (15 pin Sub D) cable there is no audio, you need to connect a separate audio cable to the TV from the PC or laptop. Unnatural Colours and Flesh Tones Unnatural flesh tones and other colours could present another problem even in a new HDTV. This is due to the TV picture settings, which are optimized for a showroom environment. Fix this by changing the picture mode to natural in the picture menu. For more precision, try manually setting the colour, contrast and brightness options in the picture menu. White Outlines White outlines around objects and people generally appear either if the TV sharpness is set to very high, or if your television set uses some edge-enhancement processing technology. Go to the picture menu and adjust the sharpness till the white outline disappears. If edge-enhancement is enabled, try to disable it using the service menu. Choppy Video At times the video might become choppy. When this happens, check whether the signal is strong enough. If the signal is strong the problem is with the cable operator. If the signal strength is weak, try boosting the signal strength with the help of an amplifier. The picture does not fill the screen When connecting PC's or laptops to the TV, the picture may not fill the screen. Check the display settings on your PC or laptop (Windows > Start > Control Panel > Appearance and Personalization > Display settings) and select the best resolution. On your TV select:- TV Menu > Picture > Settings and then try AUTO, ZOOM1 or ZOOM2 for the best display. USB Connection The USB connection will work with *.jpg (photo) and *.mp3 (music) files. Please note the TV does not recognize Apple iPhone, or iPod's connected to the USB connector on the TV. The TV may play other files, but due to the multiple different file formats, there is no guarantee that these other file formats will work. Trouble Shooting Digital TV Problems and possible Solutions. EN-29Television picture quality:FULL HDIntegrated digital.Screen Size: 99cmResolution 1920x1080 pixels 50Hz. 39" FULL HD 1080P Digital LED LCD TV Additional features:NICAM stereo sound system.2 x 10watts RMS power output.Digitally interactive.Digital text.Digital video broadcasting (DVB) subtitles available.Auto setup.Auto scan for new channels.Now and next programme guide.7 day electronic programme guide (EPG).Top up TV compatible.CI slot.Audio description compatible.Sound quality:Digital features:Standby Power consumption ≤0.50W

• The part specifications of this TV set provided here are for reference only. Difierences may occur as product technology is updated. Design and specifications are subject to change without notice. Scart Output description :1. When current source is ATV/AV/SCART, scart output signal is AT V.2. When current source is DTV, scart output signal is DTV.3. Other source have no SCART output signal.UHF/VHF tuner;Sleep timer; ;Picture and textParental GuidanceRemote control batteries required 2 x AAA (included).VESA Mount Size: 200 x 200 mmPackage Size (WxHxD): 1070x170x680mm Set Size (WxHxD) with Stand: 892.4x210x574 mmSet Size (WxHxD) without Stand: 892.4x63x529mmPackage weight : 11.6kgSet weight without stand: 7.9 kgSet weight with stand: 8.8kgConnectivity:DTV Tuner DecorderDVB-T, DVB-C16/32/64/128/256 QAM modulationMPEG2,MPEG4,H.264 Specification EN-30 06 Specification 3 HDMI sockets/1MHL sockets.1 SCART socket.PC input socket.Component video socket.Composite.1 USB port.1 Headphone port.Supported Systems:PAL+SECAM Storage channel number: 510(DTV),100(ATV) TV(RF):75Ω Imbalance AV Video-Input:75Ω,1V-P,RCAAV Audio-Input:20KΩ, RMS500mV YPbPr/HDMI Video Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080pTelevision picture quality: FULL HD Integrated digital. Screen Size: 117cm Resolution 1920x1080 pixels 50Hz. 46" FULL HD 1080P Digital LED LCD TV Additional features: NICAM stereo sound system. 2 x 10watts RMS power output. Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). Top up TV compatible. CI slot. Audio description compatible. Sound quality: Digital features: Standby Power consumption ≤0.50W

• The part specifications of this TV set provided here are for reference only. Difierences may occur as product technology is updated. Design and specifications are subject to change without notice. Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is AT V.

2. When current source is DTV, scart output signal is DTV.

3. Other source have no SCART output signal.

• The part specifications of this TV set provided here are for reference only. Difierences may occur as product technology is updated. Design and specifications are subject to change without notice. Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is AT V.

2. When current source is DTV, scart output signal is DTV.

3. Other source have no SCART output signal.

D'INCENDIE OU D'ELECTROCUTION, N'EXPOSEZ

V. Freq. (KHz) H. Freq. (KHz)

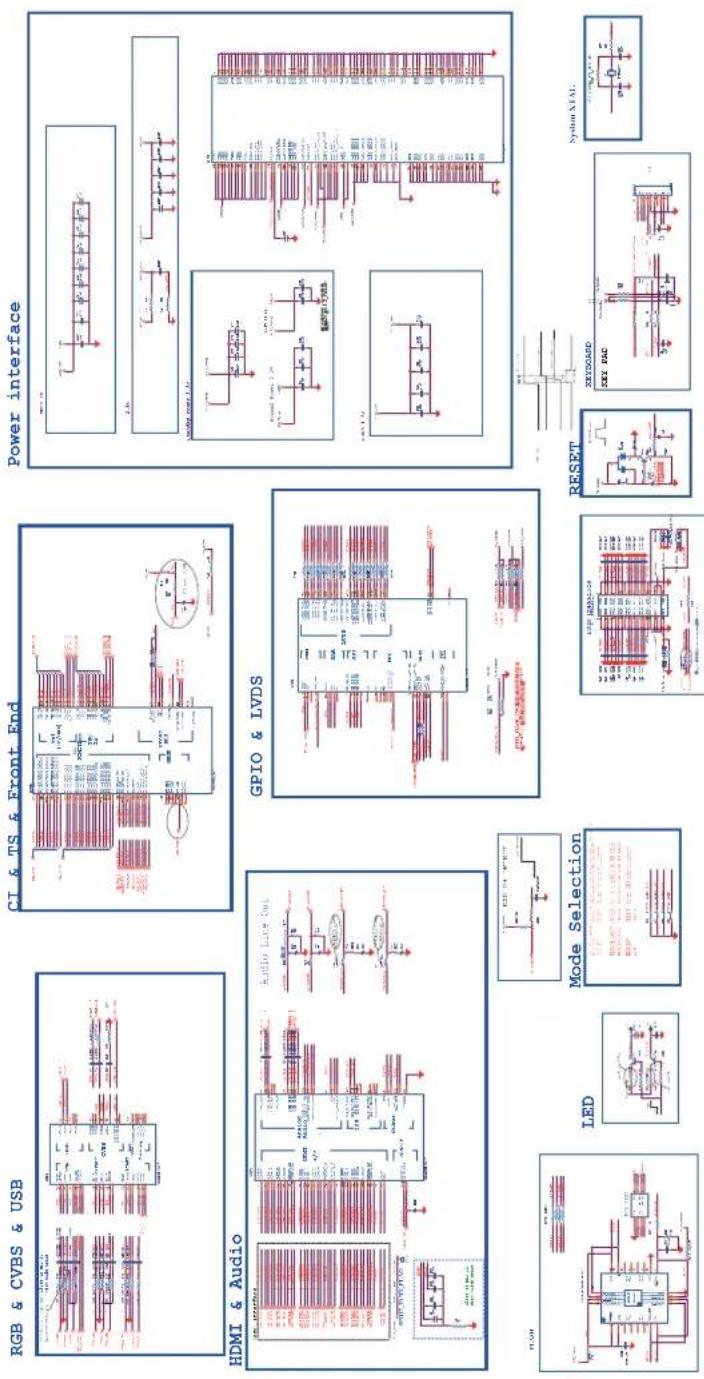

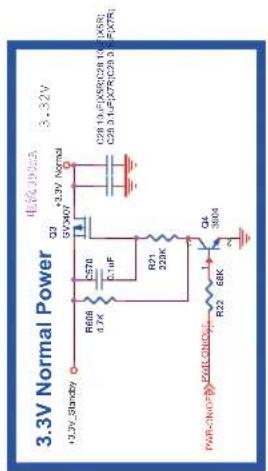

R19 12K R19 12K C32 1nF C32 1nF

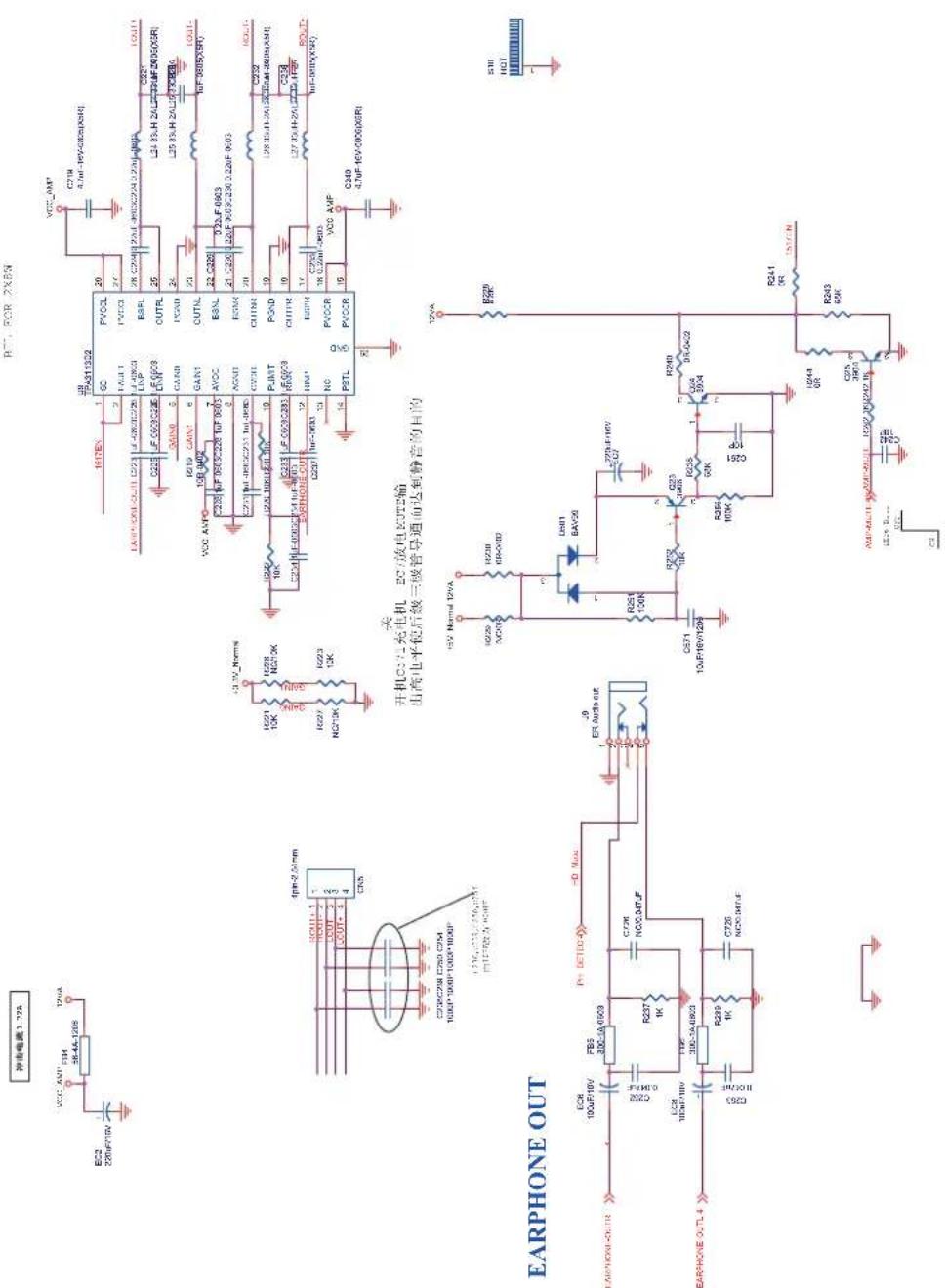

WITH EARPHONEWITHOUTClose to MST ICwith wide traceR82 Close to MST ICḍ᥂ᅲ䰙⬉⑤Ϟ⬉ᯊᑣ䇗ᭈ RESET System XTAL

BIN1 GIN1 RIN1 GIN1NSC1_FSSC1_FBCVBS1_OUTSPDIF_OUTSPDIF_OUT RIN2 GIN2 BIN2

4.7K/NCR37180R R37180R

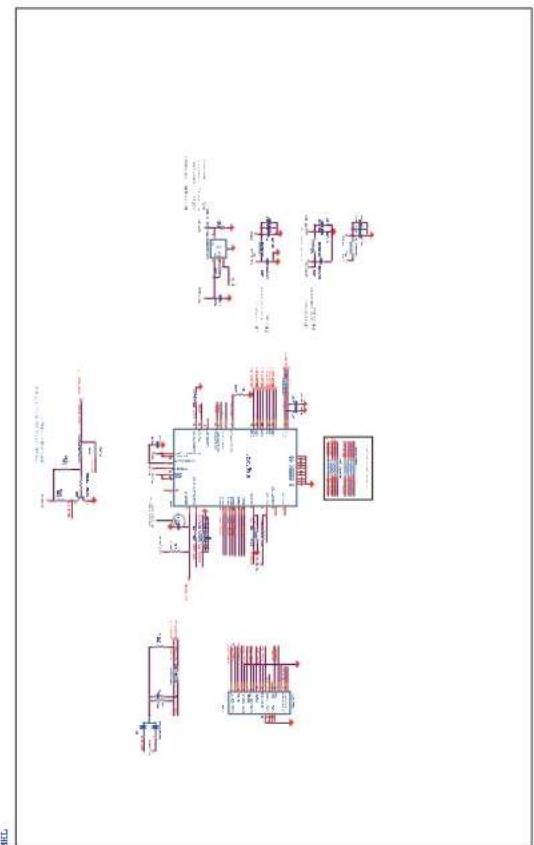

RESET XTAL_IN XTAL_OUT AA4 TESTPIN

I2S_IN_WS(NC) I2S_IN_BCK(NC) I2S_IN_SD(NC)

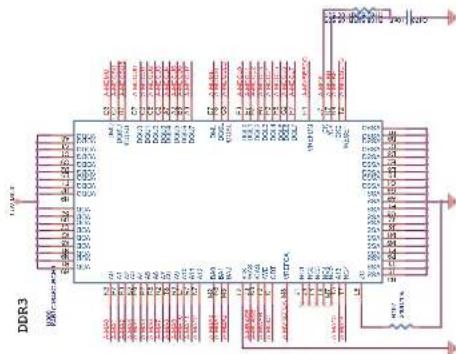

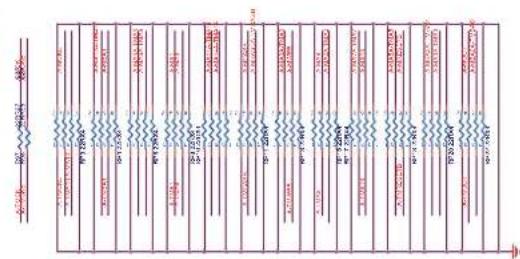

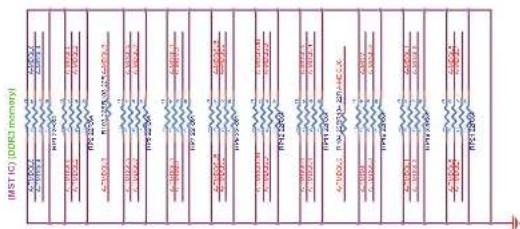

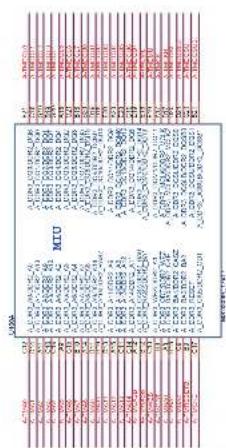

DM_P0 DP_P0 DM_P1 DP_P1 RIN0P BIN0P RIN1P GIN1M GIN2P BIN2P BIN1P CVBS_OUT1 HSYNC2 VSYNC2 CVBS_OUT2 SPI1_CK K21 VSYNC_LIKE K20 SPI2_DI K19 SPI2_CK L19 SPI1_DI J21 C5247nF C5247nF L12

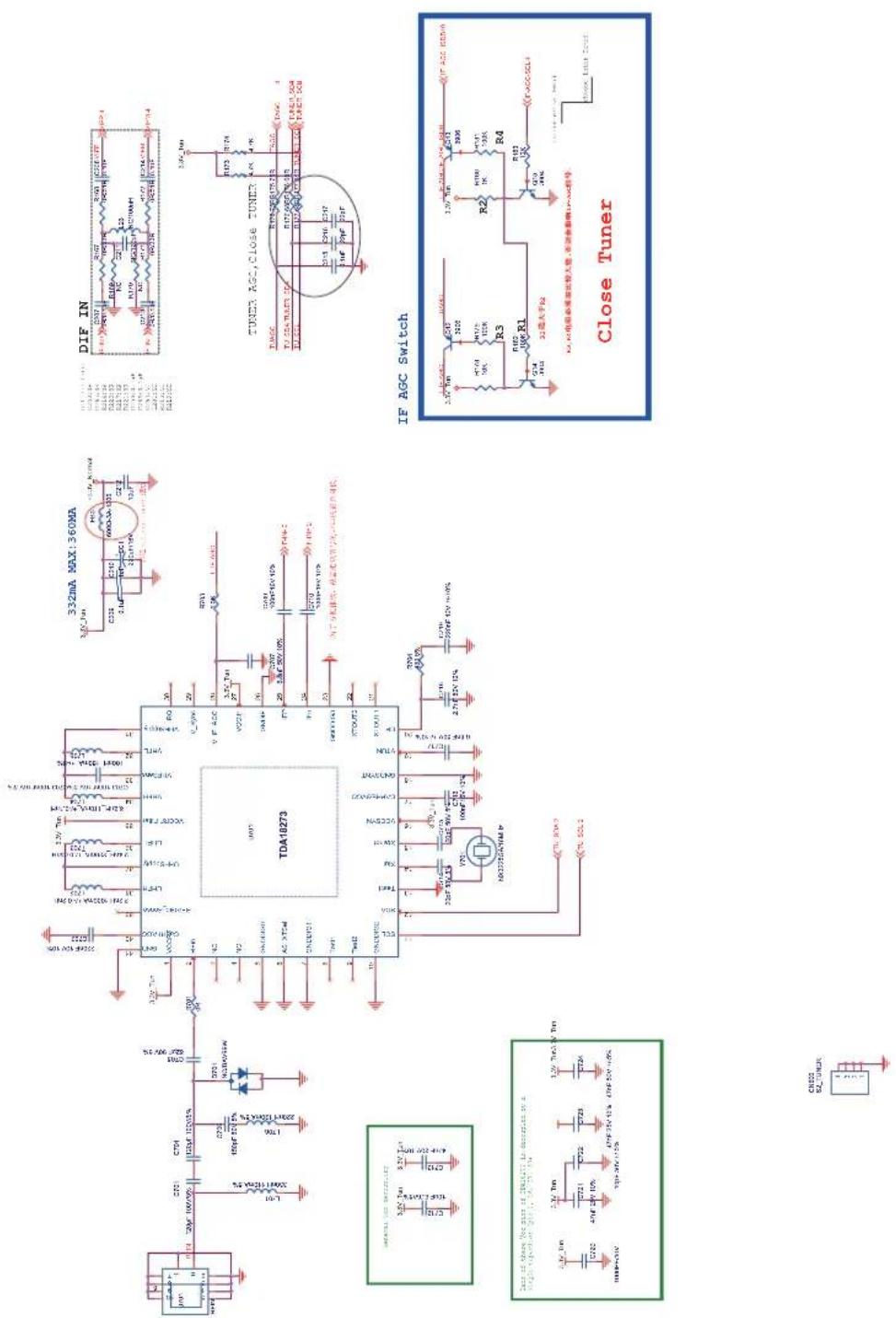

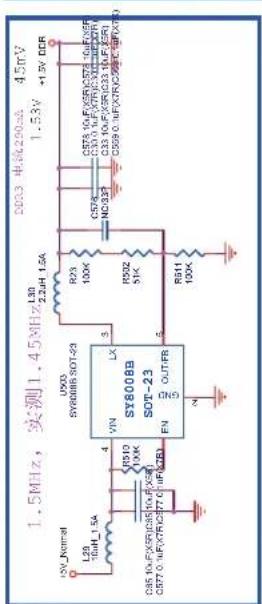

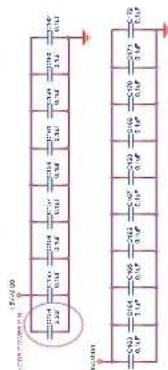

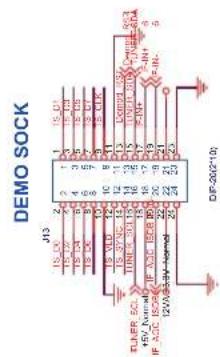

C17General Vcc decoupling Each of these Vcc pins of TDA18273 is decoupled by a single capacitor (pin 1, 16, 27, 35) DIF IN silicon tuner C258:0R C265:0R R216:0R R220:0R R217:0R R221:0R C259:0.1F C266:0.1F C260:NC L201:NC R218:NC R219:NC

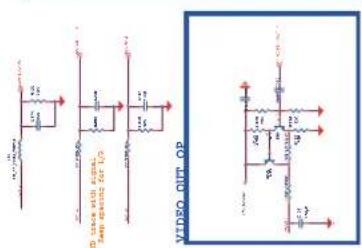

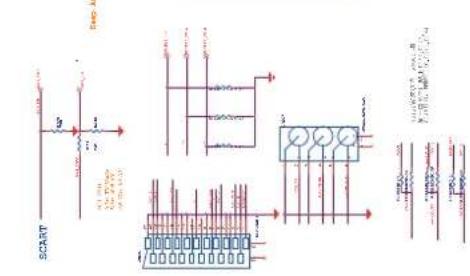

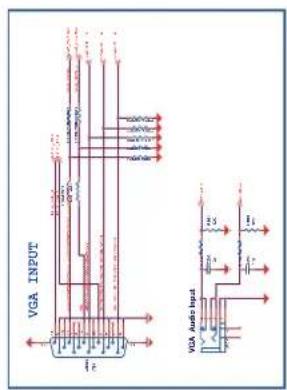

SC1_FSO 0-2v: TV Mode 5-8v: 16:9 AV 9.5-12v: 4:3 AV SCART Keep AGND trace with signal Keep spacing for L/R AV1/YPbPr VGA INPUT AUDIO_OUTPUT Near MST.IC Ground in the middle of the L/R

CN500NC/SCARTCN500NC/SCART

C20433pFC20433pF C194 10P C194 10P R12675R R12675R 20K R116 20K R116 R142 NC/0RR142 NC/0R C174 100p C174 100p C190 NC/10P C190 NC/10P

C20633pFC20633pF0R-0805 R110 0R-0805 R110 C184

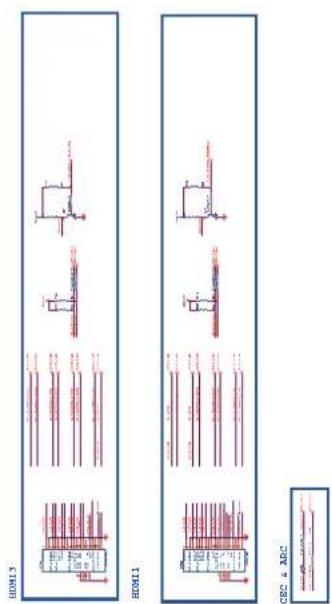

R15410K R15410KCEC & ARC

:72mA(MHL) 93mA(HDMI1080P)

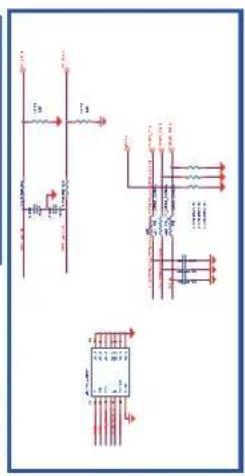

R198 1.5K R198 1.5K R197 NC/0R-0402R197 NC/0R-0402 MR12 4.7K MR12 4.7K R196 NC/4.7K R196 NC/4.7K C218 1uF C218 1uF MC35 0.1uF MC35 0.1uF

R192 NC/4.7K R192 NC/4.7K R201

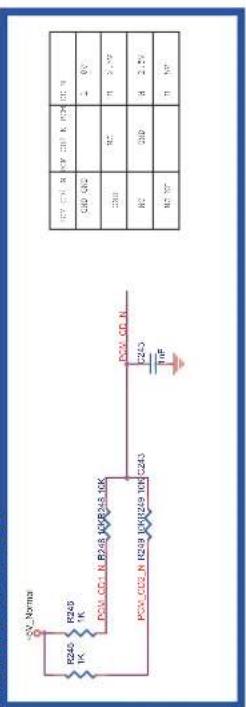

R226 NC/10K R226 NC/10K

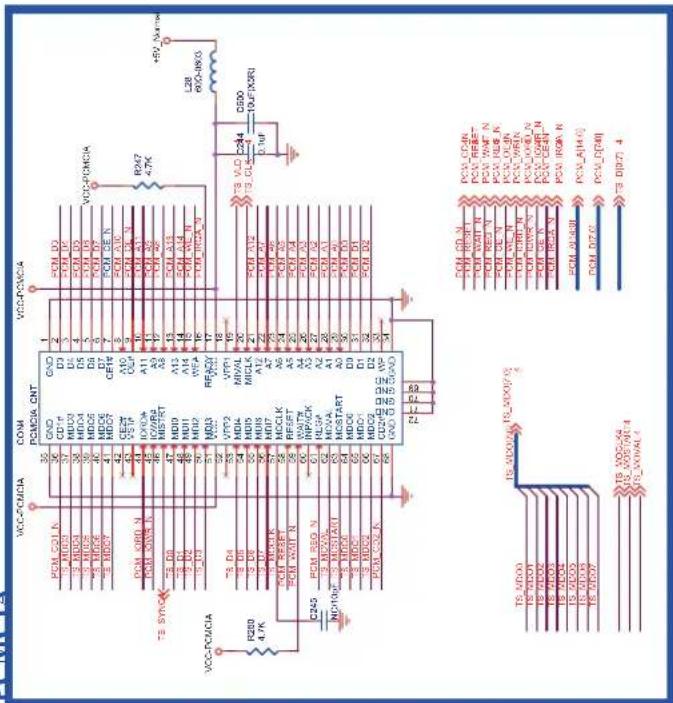

PCM_A13 PCM_A14 PCM_A12 PCM_A7 PCM_A6 PCM_A5 PCM_A4 PCM_A3 PCM_A2 PCM_A1 PCM_A0 PCM_D0 PCM_D1 PCM_D2 PCM_D7 PCM_D4 PCM_D5 PCM_D6 PCM_D3

EC106 4.7uF/50V R130

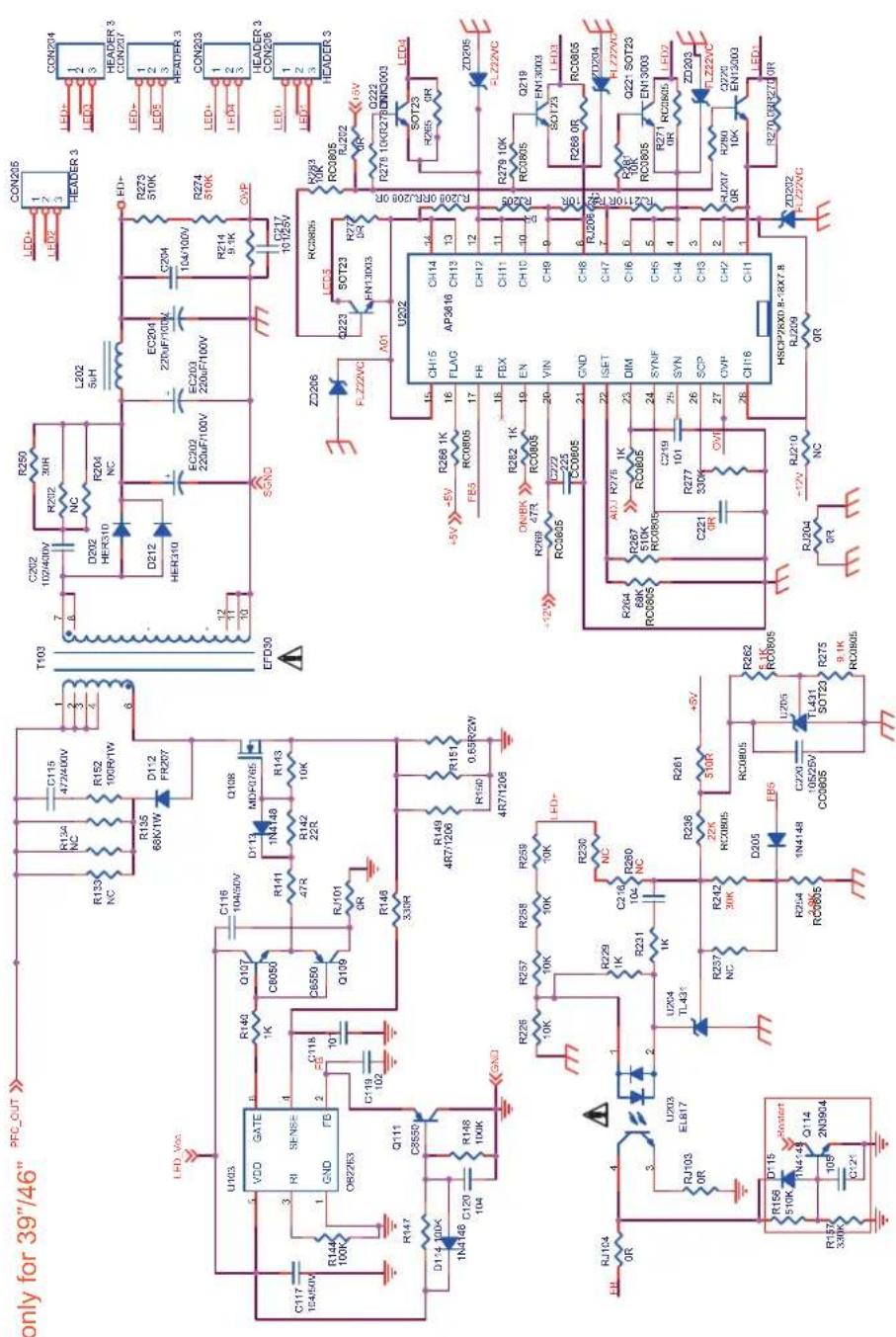

Q222 EN13003 SOT23 Q222 EN13003 SOT23 R214 9.1K R214 9.1K C216

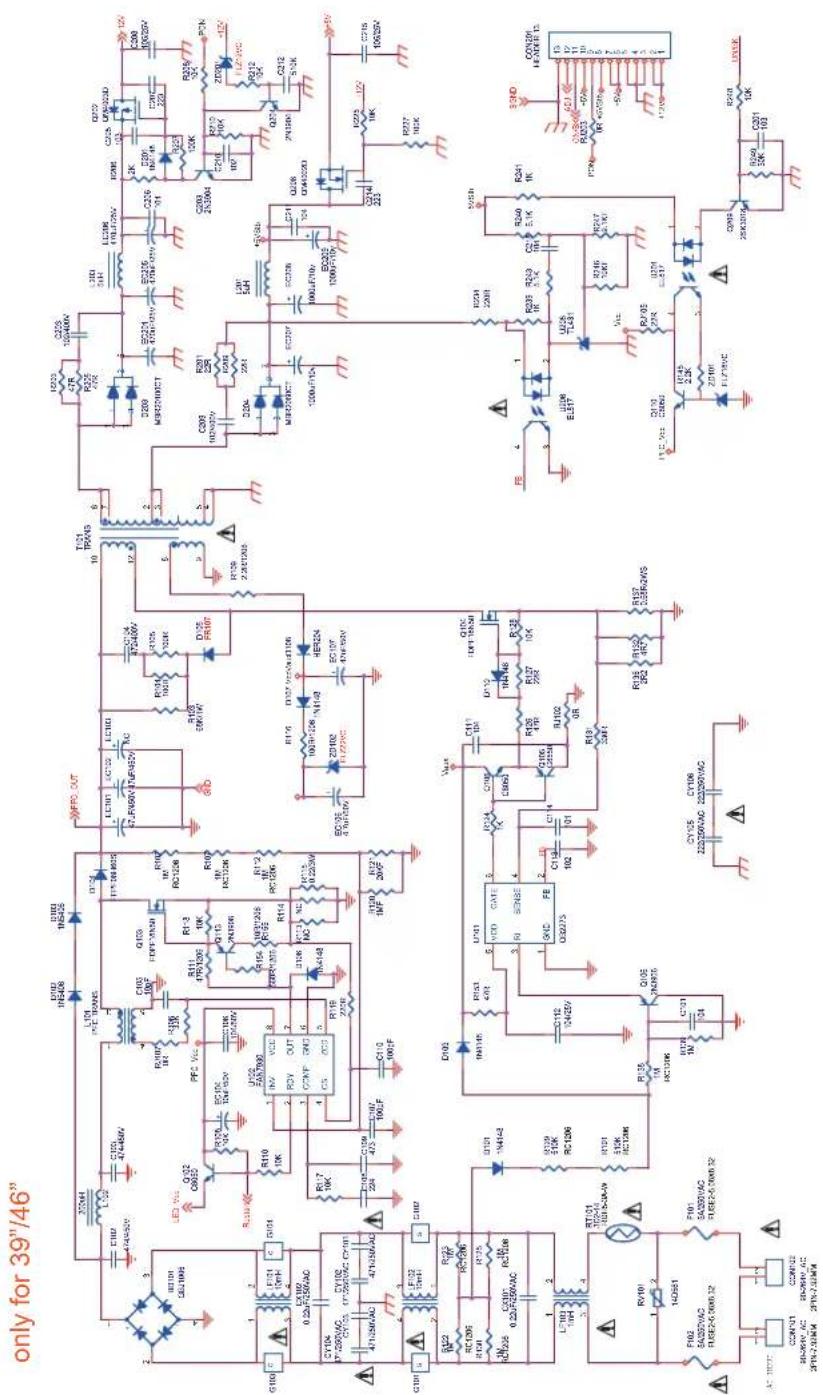

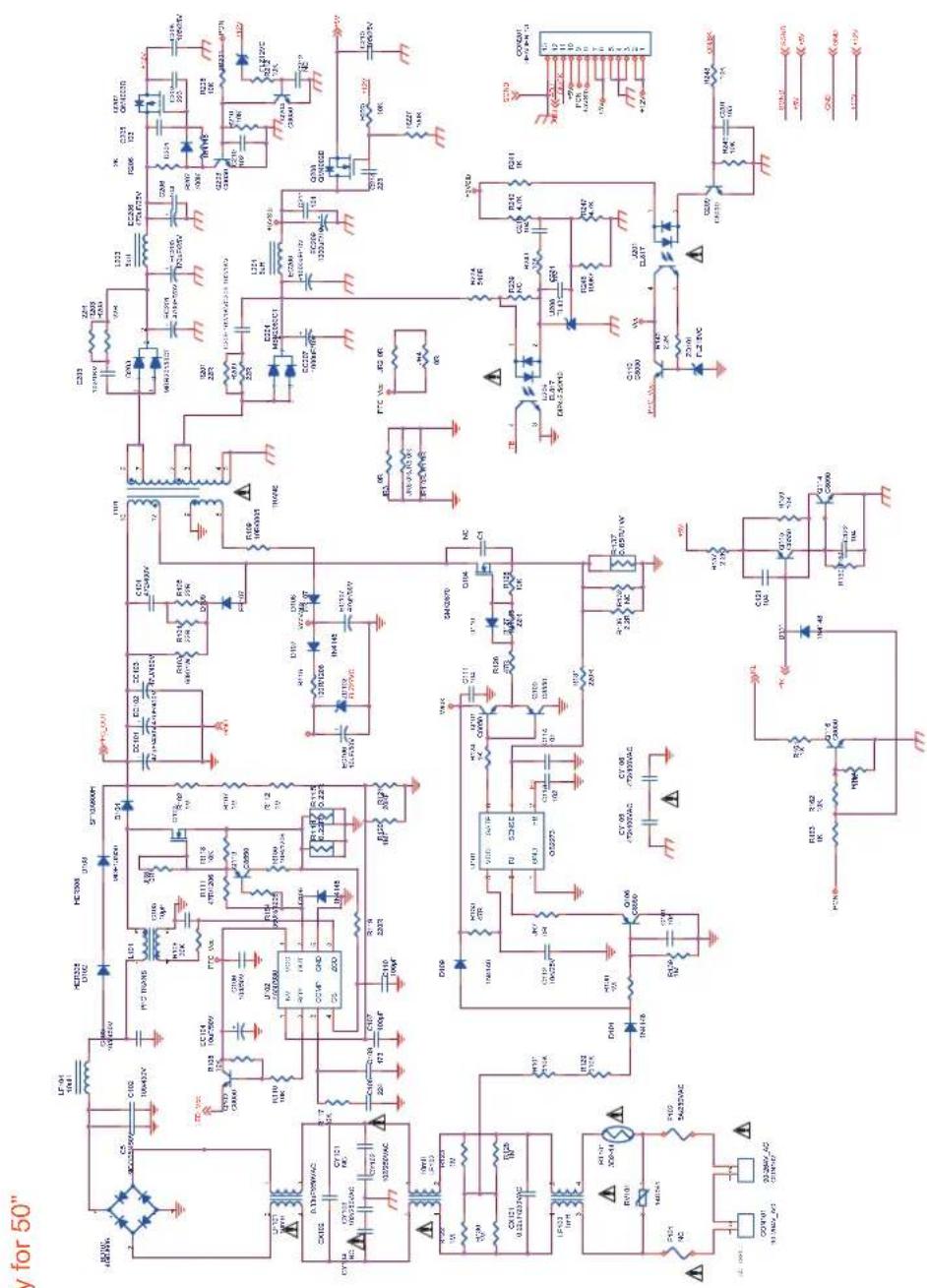

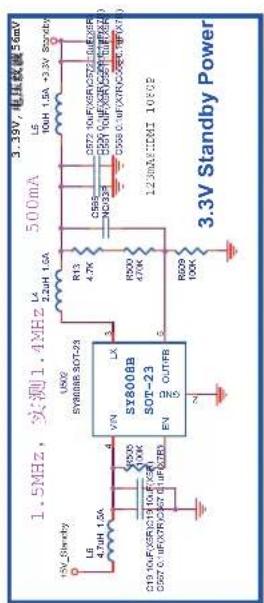

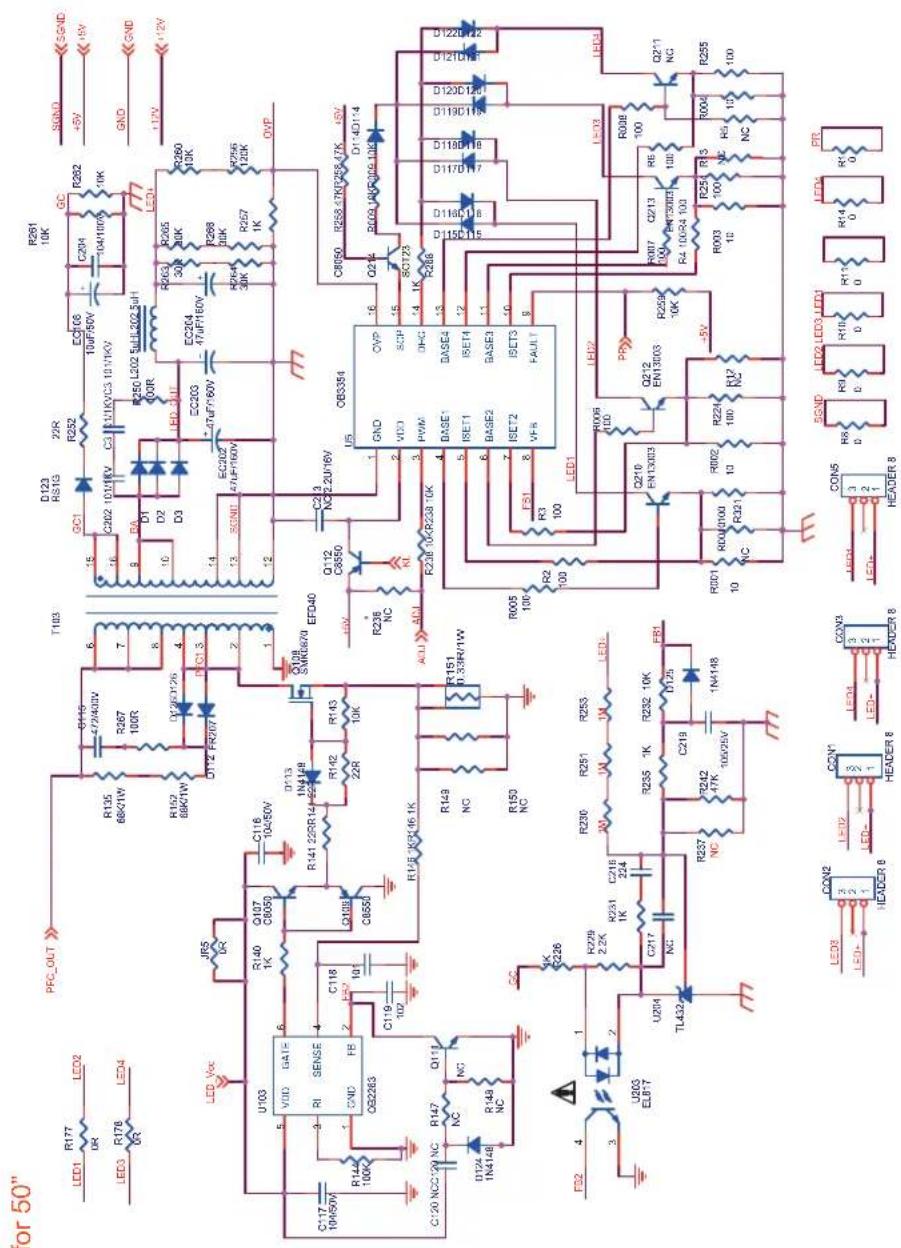

R151 0.33R/1W R151 0.33R/1W R261 10K R261 10K D120D120
