USER MANUAL WRAITH 1.9 Axial

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

SAFETY PRECAUTIONS AND WARNINGS

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or property of others.

This model is controlled by a radio signal subject to interference from many sources outside your control. This interference can cause momentary loss of control, so it is advisable to always keep a safe distance in all directions around your model as this margin will help avoid collisions or injury.

• Never operate your model with low transmitter batteries.
• Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Never operate the model in the street or in populated areas for any reason.
• Carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) you
• Keep all chemicals, small parts and anything electrical out of the reach of children.

• Never lick or place any portion of the model in your mouth as it could cause serious injury or even death.
  Exercise caution when using tools and sharp instruments.

• Take care during maintenance as some parts may have sharp edges.

• Immediately after using your model, do NOT touch equipment such as the motor, electronic speed control and battery, because they generate high temperatures. You may burn yourself seriously touching them.
• Do not put fingers or any objects inside rotating and moving parts, as this may cause damage or serious injury.
• Always turn on your transmitter before you turn on the receiver in the car. Always turn off the receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the operation of the radio equipment.

WARNING AGAINST COUNTERFEIT PRODUCTS: Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM^® or Spektrum technology.

TABLE OF CONTENTS

Water-resistant Vehicle with Waterproof Electronics 3

box Contents 4

Required Equipment 4

recommended tools 4

Getting started checklist. 5

Vehicle parts. 5

Charge the vehicle battery 6

Install the transmitter batteries 6

Transmitter functions 6

Install the vehicle battery 7

Binding. 8

Range-checking the radio system 8

vehicle maintenance 9

Adjusting the battery tray 10

AE-5L Forward/reverse ESC with drag brake 10

Gear Ratios. 11

Troubleshooting 11

Notes 11

Limited Warranty 12

Warranty and Service Contact Information 12

FCC Information 13

IC Information 13

Compliance Information for the European Union 13

Parts reference 50

Exploded views. 55

Parts lists. 59

Electronics 61

WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS

Your new Horizon Hobby vehicle has been designed and built with a combination of waterproof and water-resistant components to allow you to operate the product in many "wet conditions," including puddles, creeks, wet grass, snow and even rain.

While the entire vehicle is highly water-resistant, it is not completely waterproof and your vehicle should NOT be treated like a submarine. The various electronic components used in the vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, however, most of the mechanical components are water-resistant and should not be submerged.

Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts in the electrical cables, will be susceptible to corrosion if additional maintenance is not performed after running in wet conditions. To maximize the long-term performance of your vehicle and to keep the warranty intact, the procedures described in the "Wet Conditions Maintenance" section below must be performed regularly if you choose to run in wet conditions. If you are not willing to perform the additional care and maintenance required, then you should not operate the vehicle in those conditions.

CAUTION: Failure to exercise caution while using this product and complying with the following precautions could result in product malfunction and/or void the warranty.

GENERAL PRECAUTIONS

• Read through the wet conditions maintenance procedures and make sure that you have all the tools you will need to properly maintain your vehicle.
• Not all batteries can be used in wet conditions. Consult the battery manufacturer before use. Caution should be taken when using Li-Po batteries in wet conditions.
• Most transmitters are not water-resistant. Consult your transmitter's manual or the manufacturer before operation.
• Never operate your transmitter or vehicle where lightning may be present.
• Do not operate your vehicle where it could come in contact with salt water (ocean water or water on salt-covered roads), contaminated or polluted water. Salt water is very conductive and highly corrosive, so use caution.
• Even minimal water contact can reduce the life of your motor if it has not been certified as water-resistant or waterproof. If the motor becomes excessively wet, apply very light throttle until the water is mostly removed from the motor. Running a wet motor at high speeds may rapidly damage the motor.
• Driving in wet conditions can reduce the life of the motor. The additional resistance of operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or larger spur gear. This will increase torque (and motor life) when running in mud, deeper puddles, or any wet conditions that will increase the load on the motor for an extended period of time.

WET CONDITIONS MAINTENANCE

• Drain any water that has collected in the tires by spinning them at high speed. With the body removed, place the vehicle upside down and pull full throttle for a few short bursts until the water has been removed.

CAUTION: Always keep hands, fingers, tools and any loose or hanging objects away from rotating parts when performing the above drying technique.

• Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can of compressed air, blow out any water that may be inside the recessed connector housing.
• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt off with a garden hose. Avoid rinsing the bearings and transmission.

NOTICE: Never use a pressure washer to clean your vehicle.

• Use an air compressor or a can of compressed air to dry the vehicle and help remove any water that may have gotten into small crevices or corners.
• Spray the bearings, drive train, fasteners and other metal parts with a water-displacing light oil. Do not spray the motor.
• Let the vehicle air dry before you store it. Water (and oil) may continue to drip for a few hours.
• Increase the frequency of disassembly, inspection and lubrication of the following:

-Front and rear axle hub assembly bearings.

-All transmission cases, gears and differentials.

-Motor clean with an aerosol motor cleaner and re-oil the bushings with lightweight motor oil.

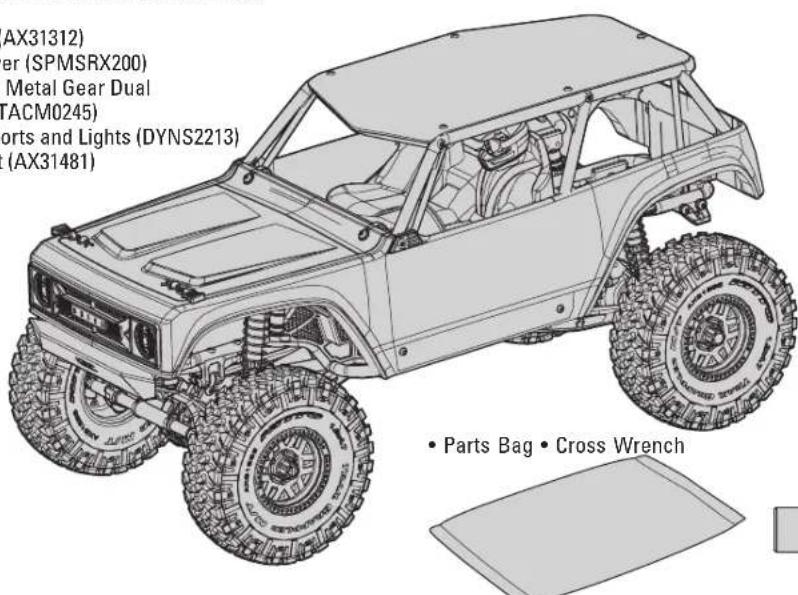

BOX CONTENTS

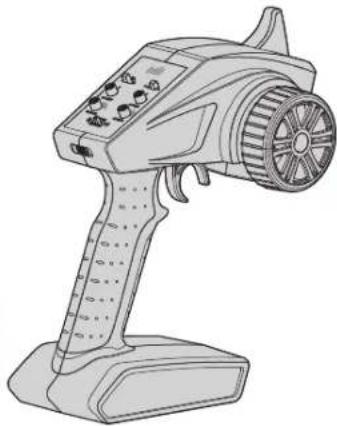

• Spektrum™ STX2® 2.4GHz Transmitter (SPMSTX200)
  Wraith 1.9 RTR

35T Electric Motor (AX31312)

• SRX200 2CH Receiver (SPMSRX200)
  -TSX45 High-Torque Metal Gear Dual

Ball Bearing Servo (TACM0245)

• AE-5L ESC w/LED Ports and Lights (DYNS2213)
  -AE-5L LED Light Set (AX31481)

- Parts Bag - Cross Wrench

REQUIRED EQUIPMENT

(4) AA Alkaline batteries · 2-3S LiPo Battery

OR

• 5-9 Cell NiMH/NiCd battery

(IC3TM Connector Required)

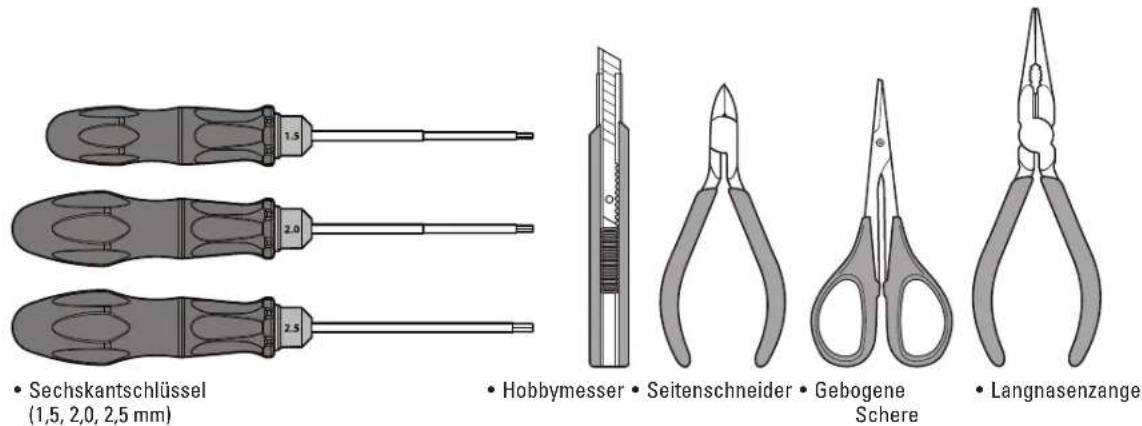

RECOMMENDED TOOLS

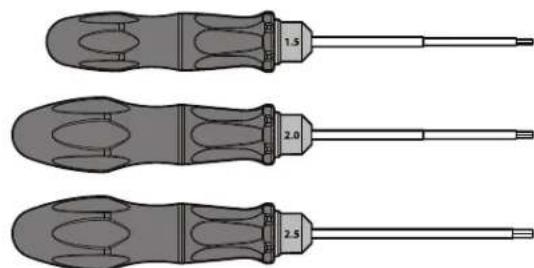

- Hex Drivers
(1.5, 2.0, 2.5mm)

Hobby
Knife

Side Cutter · Cu

Scissors

- Long-nose Plier

GETTING STARTED CHECKLIST

	Read the manual
	Familiarize yourself with the vehicle and its components
	Check all screws, especially the driveshaft setscrews, for tightness from the factory
	Charge the vehicle battery
	Install 4 AA batteries in the transmitter

	Power on the transmitter
	Install the vehicle battery in the vehicle
	Check for proper function of the throttle and steering
	Range check the radio system
	Drive the vehicle, challenge yourself and have FUN!
	Perform any necessary vehicle maintenance

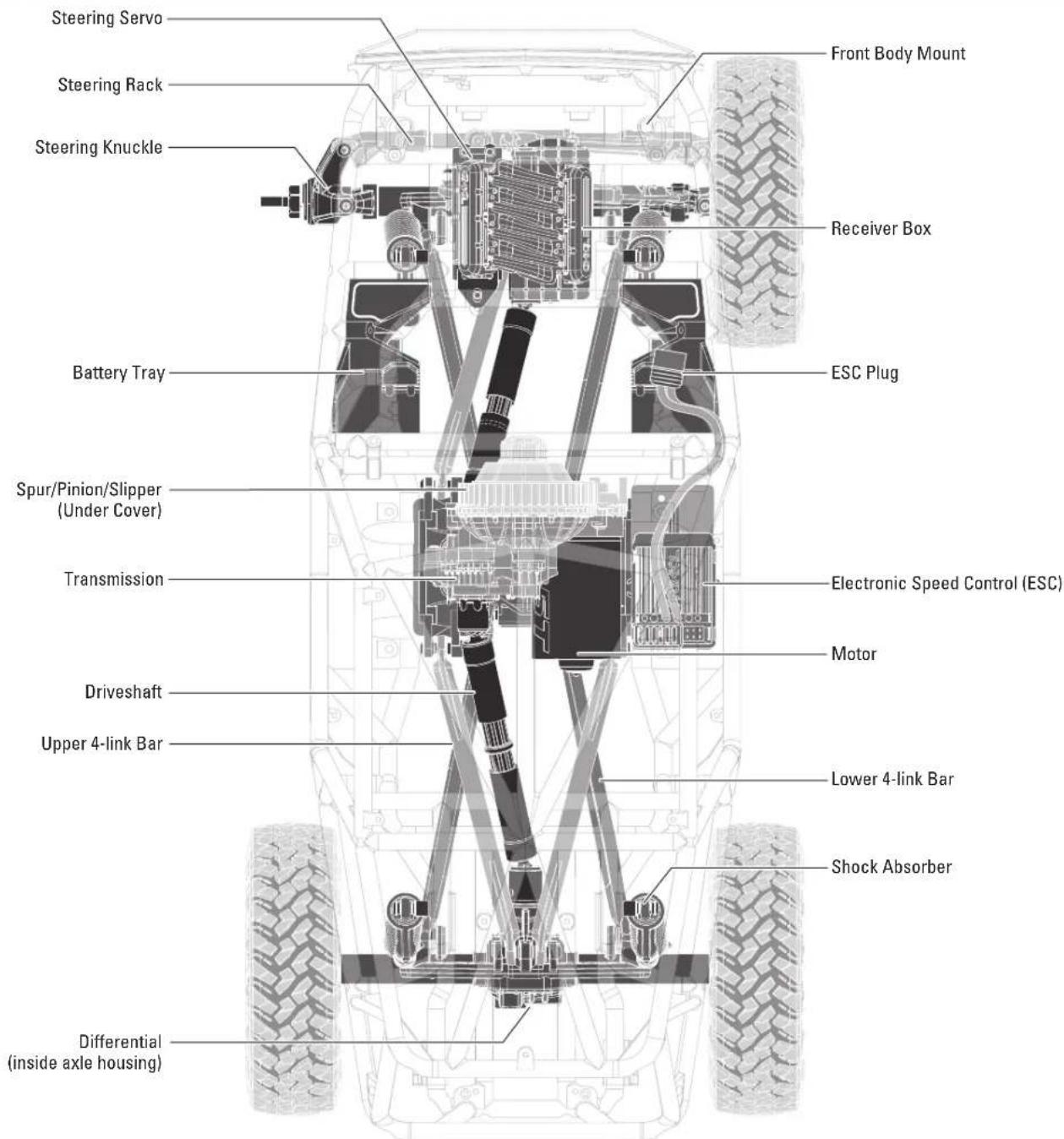

VEHICLE PARTS

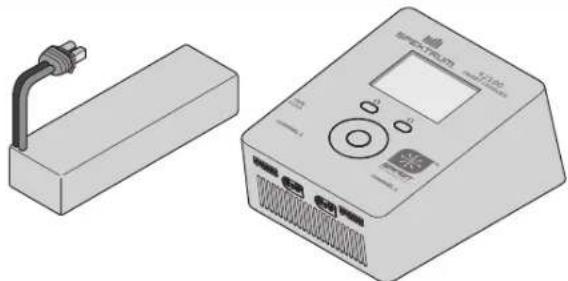

CHARGETHEVEHICLE BATTERY

Follow the manufacturer's directions for your charger to properly charge the vehicle battery.

CAUTION: Only use chargers designed to charge the chosen battery type. Using an incorrect charger or incorrect charger settings could cause the battery to catch fire or explode.

INSTALL THE TRANSMITTER BATTERIES

This transmitter requires 4 AA batteries.

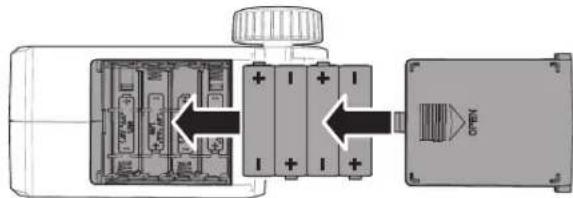

1. Remove the battery cover from the transmitter.
2. Install the batteries as shown.
3. Install the battery cover

CAUTION: NEVER remove the transmitter batteries while the model is powered on. Loss of model control, damage, or injury may occur.

CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non-rechargeable batteries may the batteries to burst, resulting in injury to persons and/or damage perty.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Disposethe used batteries according to national regulations.

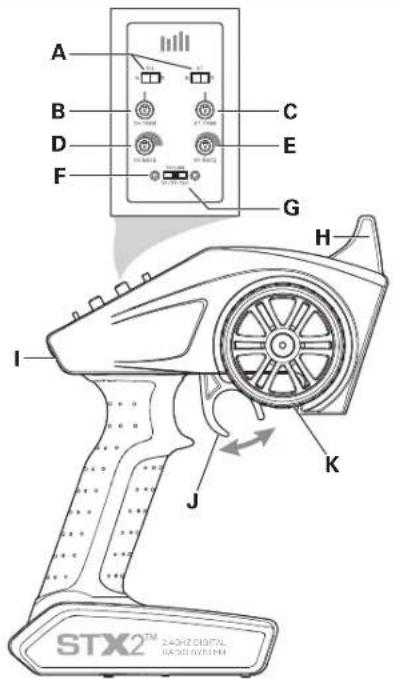

TRANSMITTER FUNCTIONS

A. Servo Reversing

To reverse the Throttle (TH) or Steering (ST) channel, switch the position of the correlating switch—"N" is for normal, "R" is for reverse.

B. Throttle Trim

Adjusts the throttle neutral point

C. Steering Trim

Adjusts the steering center point. Normally, the steering trim is adjusted until the vehicle tracks straight.

D. Throttle Rate

Adjusts the end point of the throttle

E. Steering Rate

Adjusts the end point of the steering

F. Indicator Lights

Solid red lights: Indicates radio connectivity and adequate battery power
- Flashing red lights: Indicates the battery voltage is critically low. Replace batteries

G.Throttle Limit

Limits throttle output to 50/75/100%
Select 50% or 75% for less experienced drivers or when you are driving the vehicle in a small area.

H.Antenna

I. Power Button
J. Throttle/Brake
K. Steering Wheel

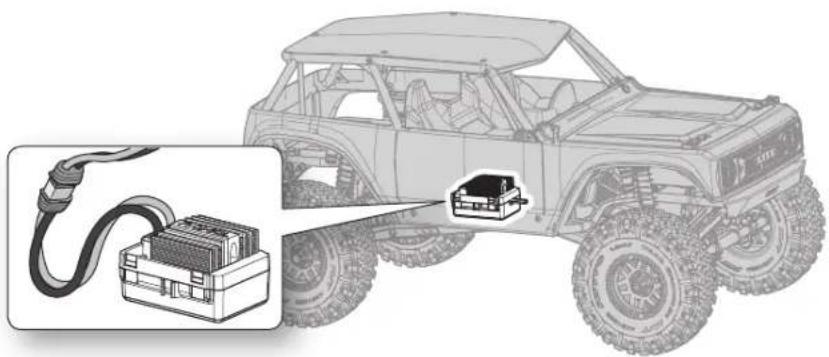

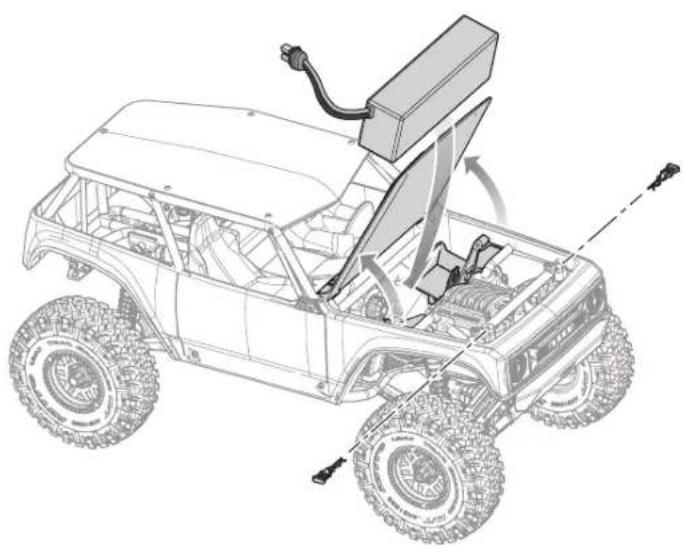

INSTALL THE VEHICLE BATTERY

NOTICE: Power to the vehicle is controlled by connecting and disconnecting the battery from the ESC. Always power on the transmitter fi rst before connecting the vehicle battery. Always disconnect the battery from the ESC when not in use.

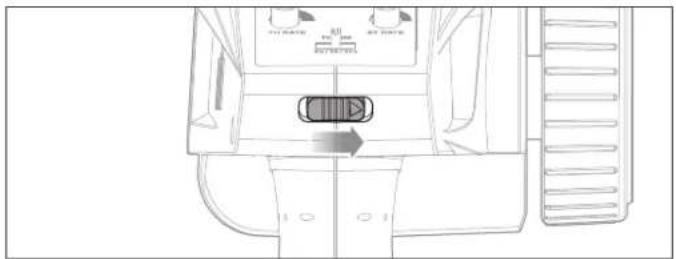

1. Power on the transmitter.

1. Remove the body clips and open the hood.

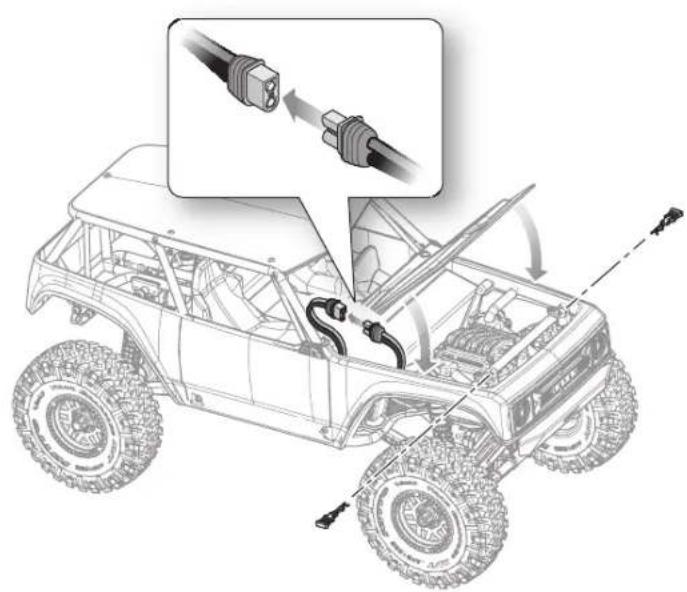

1. Connect the battery to the ESC. Close the hood and replace the body clips.

NOTICE: Always disconnect the battery from the ESC before powering off the transmitter. Loss of vehicle control may result.

BINDING

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifiers) code of a single specific transmitter. The STX2 transmitter and SPMSRX200 receiver are bound at the factory. If you need to rebind, follow the instructions below.

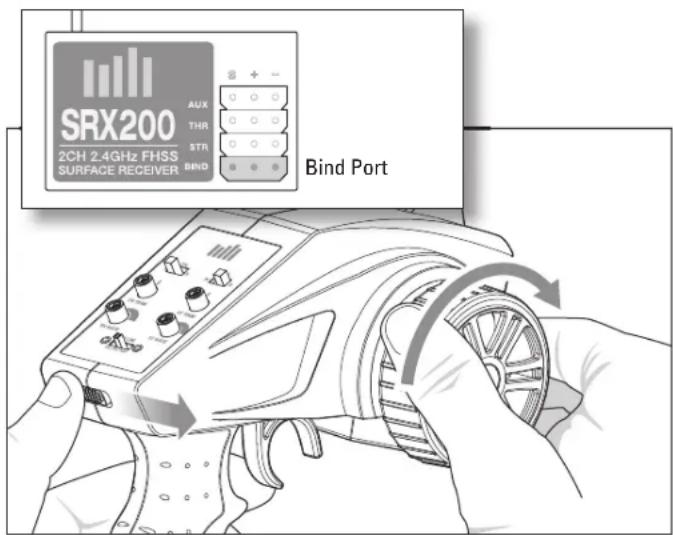

1. Insert the Bind Plug in the BIND port on the receiver.
2. Connect a fully charged battery pack to the ESC.
3. Power on the ESC. The red LED fl ashes, indicating the receiver is in bind mode.
4. Center the ST TRIM and TH TRIM dials on the transmitter.
5. Turn the steering wheel to Full Right. Power the transmitter on while holding the steering wheel to the Right.
6. Release the steering wheel when the receiver LED stops flashing.
7. Remove the Bind Plug, then power off the receiver to save the settings.
8. Power off the transmitter.
9. Remove the bind plug and store it in a convenient place.

You must rebind when:

• Different failsafe positions are desired e.g., when throttle or steering reversing has been changed.
• Binding the receiver to a different transmitter.

RANGE-CHECKING THE RADIO SYSTEM

The radio system should be checked before operating the vehicle to ensure proper operation and adequate range.

1. Turn on the transmitter.
2. Connect the battery in the vehicle.
3. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts.
4. Walk away until you are at the maximum planned operating distance from the vehicle.
5. Turn the steering wheel side to side and operate the throttle, both forward and reverse, checking for any erratic behavior.
6. If any erratic behavior is exhibited, DO NOT operate the vehicle. Call customer service for assistance.

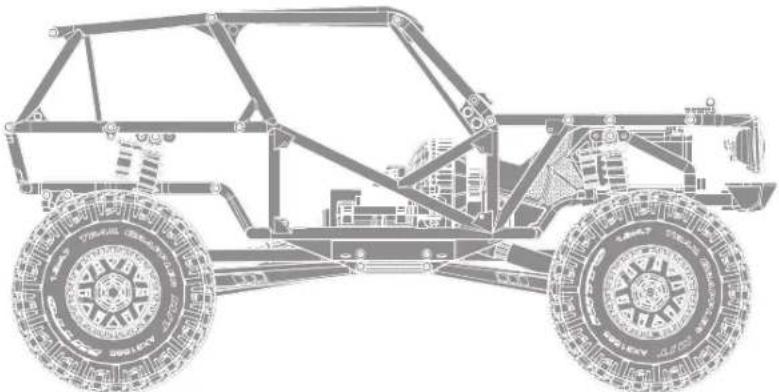

VEHICLE MAINTENANCE

Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak performance. Preventative maintenance will also help avoid needless breakages which could result in costly repairs. Below are some suggestions to properly maintain your vehicle.

Replace any noticeable bent or broken parts

Check for wear on the ball joints in the steering and suspension links (replace if necessary)

Check driveshaft set screws and apply thread locking compound if necessary

Inspect shock absorbers for smooth dampened operation

Check for any loose connections or frayed wiring

Check the wheel nuts for tightness

Ensure the wheel beads are still firmly bonded around the entire circumference of the rim

Keep the chassis free of dirt and debris

Check for loose screws on the chassis, especially the knuckle, C-hub and axle lockout screws

Check the driveline for smooth, bind free operation

If applicable, check the slipper clutch for proper operation

Check the receiver antenna for damage

Check the steering operation for any binding

Inspect the spur and pinion gears for damage

Replace the transmitter batteries when indicated by the transmitter, as described in the Transmitter Functions section

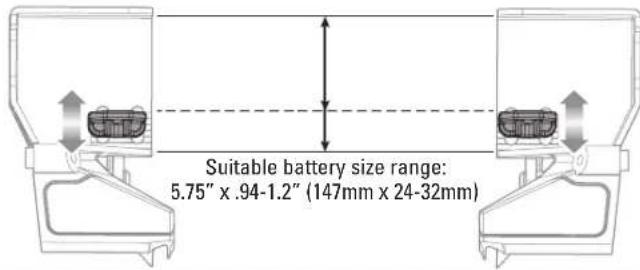

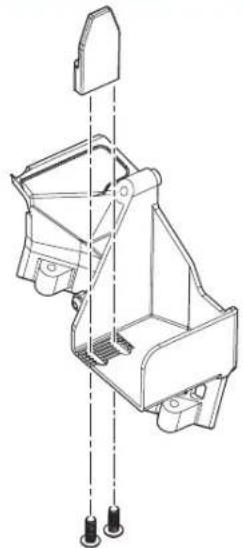

ADJUSTING THE BATTERY TRAY

M3x8mm (x4)

Adjust the tray to the appropriate size to fit the vehicle battery.

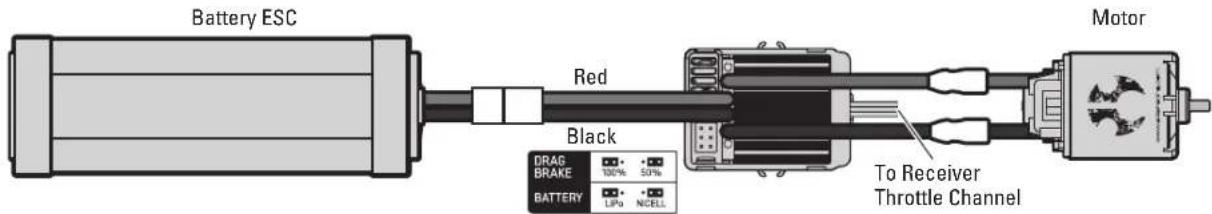

AE-5L FORWARD/REVERSE ESC WITH DRAG BRAKE

SETUP

Throttle calibration should not be needed out of the box. However, in order to make the throttle range of different transmitters, the calibration of the ESC is necessary:

• Mount the ESC in an area that is well ventilated and isolated from vibration and shock.
• Connect the ESC motor wires to the motor red-to-red and black-to-black.
• Plug the receiver into the throttle channel of the receiver.
• Before plugging the battery into the ESC, make sure your transmitter is on and the throttle trim is set to zero.
• Connect the battery to the ESC. The vehicle will be powered on when the battery is connected.

CAUTION: Keep all body parts and loose clothing away from any moving parts while the battery is connected to the ESC.

CAUTION: Always connect the ESC only to a proper power source that has the correct voltage and polarity. Incorrect

voltages or reversed polarity will damage the ESC. Damage to the ESC caused by improper voltage or polarity is not covered under warranty.

• Test forward and reverse control using the transmitter.

To calibrate the ESC:

• Power the transmitter on and set the throttle control to neutral.
• Connect the battery to the ESC and wait 3 seconds to let the ESC initiate a self-test and automatic throttle calibration.
• The ESC is ready to run when a long beep sound is emitted from the motor.
• Always disconnect the battery when the vehicle is not in use.

NOTES

The drag brake is set to 100% from the factory.
The LiPo cut-off is set to "ON" from the factory.

ESC SPECIFICATIONS

Input Voltage 2-3S LiPo, 5-9 Cells NiMH/NiCd
Size 46.5mm x 34mm x 28.5mm
Weight 70g
Motor Limit 12T 2S/18T 3S
On-Resistance FET .002
Rated/Peak Current	80A
Braking Current 90A
BEC Voltage/A	6.0V 3.0A Peak
PWM Frequency	1KHz

ESC SOUND STATUS

1 Short Beep	Battery is NiMH/NiCd
2 Short Beeps	Battery is 2S LiPo
3 Short Beeps	Battery is 3S LiPo
1 Long Beep	Self-test and throttle calibration is OK and ESC is ready to run

GEAR RATIOS

Spur/Pinion Gear Ration Chart - LCX Transmission
	12 13 14	15 16 17 18
56 45.50 42.00 39.00 36.40 34.13	32.12 30.33
60 48.75 45.00 41.79 39.00 36.56

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle does not move	Batteries are not installed properly in the transmitter	Ensure the transmitter batteries are properly installed
	Weak or no battery in the vehicle Install a freshly charged vehicle battery
	Damaged motor Replace the motor
	Frayed or broken wiring Replace any damaged wiring
	ESC is shut down by heat protection circuit Allow the ESC to cool down completely
Loss of vehicle control	Improper antenna placement	Ensure the transmitter antenna is not blocked and the receiver antenna is located properly
	Weak or no batteries in the transmitter or vehicle	Install a freshly charged vehicle battery and new transmitter batteries
	Neutral or trim position is incorrect Adjust the steering trim
	Receiver and/or battery not connected properly	Check all receiver and battery connections
Steering and/or throttle function is reversed	Servo travel is reversed at the transmitter	Set the transmitter servo reversing switch to the correct position
	Motor wires are not connected properly	Check all motor wires for correct polarity and secure connection

NOTES

LIMITED WARRANTY

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the "Product") will be free from defects in materials and workmanship at the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modifi cation of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations or (vii) use that violates any applicable laws, rules, or regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO
OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTY, INCLUDING, WITHOUT
LIMITATION, THE IMPLIED WARRANTY OF NON-INFRINGEMENT,
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER'S INTENDED USE.

Purchaser's Remedy

Horizon's sole obligation and purchaser's sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, fi nal assembly, modifi cation or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance,

please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship Li-Po batteries to Horizon. If you have any issue with a Li-Po battery, please contact the appropriate Horizon Product Support office.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notifi cation or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notifi cation. Service estimates are available upon request. You must include this request with your item submitted for service. Nonwarranty service estimates will be billed a minimum of 1/2 hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier's checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon's Terms and Conditions found on our website http:// www.horizonhobby.com/content/service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender's choice and at the sender's expense. Horizon will hold noncompliant Product for a period of 60 days from notification, after which it will be discarded.

10/15

WARRANTY AND SERVICE CONTACT INFORMATION

Country of Purchase Horizon Hobby Contact Information Address

United States of America	Horizon Service Center (Repairs and Repair Requests)	servicecenter.horizonhobby.com/RequestForm/	2904 Research Rd Champaign, IL 61822
	Horizon Product Support (Product Technical Assistance)	[e-mail]
		877-504-0233
	Sales	[e-mail]
		800-338-4639
European Union	Horizon Technischer Service [e-mail]		Hanskampring 9 D 22885 Barsbüttel, Germany
	Sales: Horizon Hobby GmbH +49 (0)	4121 2655 100

FCC INFORMATION

FCC ID: 2A13D-SS0001

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.

SUPPLIER'S DECLARATION OF CONFORMITY

Axial Wraith 1.9 (AXI90074)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Horizon Hobby, LLC

4105 Fieldstone Rd.

Champaign, IL 61822

Email: [e-mail]

Web: HorizonHobby.com

IC INFORMATION

CAN ICES-3 (B)/NMB-3(B)

IC: 21682-SSTC9202

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

COMPLIANCE INFORMATION FOR THE EUROPEAN UNION

EU COMPLIANCE STATEMENT:

Axial Wraith 1.9 (AXI90074)

Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED and EMC Directives.

A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance.

INSTRUCTIONS FOR DISPOSAL OF WEEE BY USERS IN THE EUROPEAN UNION

This product must not be disposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product.

HINWIES

ERFORDDERLICHES ZUBEHÖR

(4) AA-Alkali-Batterien · 2-3S >LiPo-Akku

ODER

EMPFOHLENE WERKZEUGE

ERSTE-SCHRITTE-CHECKLISTE

D 22885 Barsbittel, Germany

KONFORMITÄTSHINWEISE FÜR DIE EUROPÄISCHE UNION

GARANTIE ET REPARATIONS

B. Trim del throttle

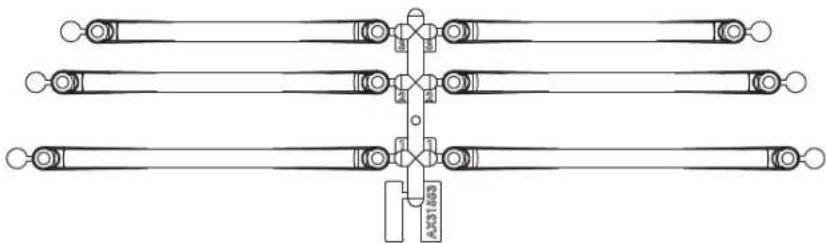

AX31533 (x1)
SCX10 II Upper links set

SCX10 II oberes Verbindungsgliedset Ensemble de timonerie supérieure SCX10 II Set leveraggi, superfiore SCX10 II

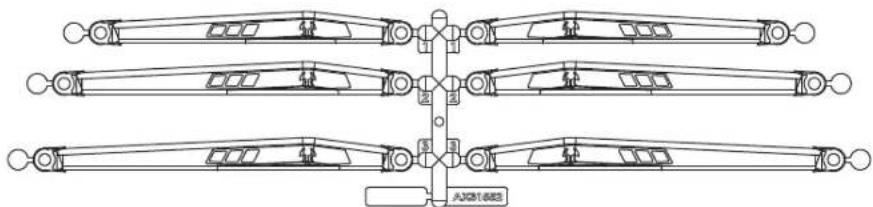

AX31552 (x1)
SCX10 II Lower links set
SCX10 II unteres Verbindungsgliedset
Ensemble de timonerie inférieure SCX10 II
Set leveraggi, inferiore SCX10 II

AX30724 (x2)
Pinion gear, 13T, 32P
Zahnradgetriebe, 13T, 32P
Engrenage à pignons, 13T, 32P
Pignone, 13T, 32P

AX30394 (x1)
Drive gear, 20T
Antriebszahnrad, 20T
Engrenage d'entrainement, 20T
Ingranaggio trasmissione, 20T

AX30427 (x4)
Narrow 12mm aluminum hub hmale Aluminium-Nabe, 12 mm ne etroit en aluminium de 12 mm zozo in alluminio streto. 12 mm

AX30413(x1)

Slipper spring, 8.5 × 12 Gleitfeder, 8.5 × 12 Ressort de sabot, 8.5 × 12 Molla pattino, 8.5 × 12
AX31441 (x4)
Spring, 12.5 x 60mm, 1.13 lbs, white
Feder, 12.5 x 60 mm, 0.5 kg, weil

Ressort, 12.5× 60mm 0,12 Nm (1,13 Ib-pol), blanc
Molla, 12.5 x 60 mm, 512 gr (1,13 libbre), bianco
AX31026 (x2)
Slipper plate washer, 33 × 5 × 1.5 ~mm Gleitplattenunterlegscheibe, 33 × 5 × 1.5 ~mm delles de plaque de sabot, 33 × 5 × 1.5 ~mm ondella piastra pattino, 33 × 5 × 1.5 ~mm

AX31068 (x2)
Slipper pad, 32.8 × 15.2 × 1mm Gleitkissen 32.8 × 15.2 × 1mm Sabot de piston, 32.8 × 15.2 × 1mm Pattino scorrevole, 32.8 × 15.2 × 1mm

AX31083 (x1)
Radio box seals
Funkbox-Dichtungen
points du boitier de radio
nizioni vano radiocommando

AX30435(x1)
Steel outdrive shaft
Stahl-Flexwelle
Arbre de transmission extérieur en acier Albero outrivate acciao

AX31148 (x4)
WB8-HD Driveshaft coupler set WB8-HD-Antriebswellenkupplungssatz Ensemble de couplage d'arbre de transmission W8B-HD Set accopjamento albero trasmissione WB8-HD

AX31530 (x2)
AR44 Locker bevel gear set, 30T/8T
AR44 Kegelradgetriebesatz, 30T/8T
Ensemble d'engrenage conique de blocage AR44, 30T/8T
Set coppa conica blocco AR44, 30T/8T

AX31471 (x2)
Axle, 12 x 36mm
Achse, 12× 36mm
Essieu, 12× 36mm
Assale,12x36mm

AX30146 (x4)
Shock shaft, 3× 50mm Kolbenstance, 3× 50mm
Bras d'amortisseur, 3 × 50 ~mm Albero ammortizzatore, 3 × 50 ~mm

AX31539 (x1)
Slipper drive gear shaft
Gleitantriebswelle
ngrenage d'entrainment du sabot
ilbero trasmissione pattino

AX31472 (x2)
Solid Axle Dogbone, 6 x 73.5 mm Solid Axle Dogbone, 6 x 73.5 mm Dogbone d'essieu solide, 6 x 73.5 mm Dogbone assale solido, 6 x 73.5 mm

AX31408 (x2)
AR44 Straight axle shaft, 5 × 106mm AR44 Gerade Achswelle, 5 × 106mm Arbre d'essieu droit AR44, 5 × 106mm Semiaisse lineage AR44, 5 × 106mm

AX31027(x1)

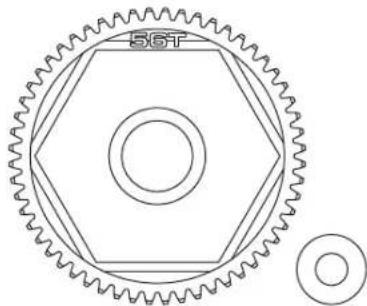

Spur gear 56T 32P
Stirnad 56T,32P

Engrenage cylindrique, 56T, 32P
Corona, 56T, 32P

AX31585 (x1)
48P Gear set, 28T, 52T
48P Gettriebesatz, 28T, 52T
Ensemble d'engrenage 48P, 28T, 52T
Set inganaggi 48P, 28T, 52T

AXA1059 (x2)

AXA1163 (x4)

AXA0286(x6)

AX30162 (x1)

AXA180 (x4)

AX30163 (x4)

AXA291 (x1)

AX31283 (x4)

AXA0109(x6)

AX30190 (x1)

AX31403 (x4)

AXA1070 (x1)

AXA063 (x4)

AXA1392 (x8)

AXA065{x4}

AXA1218(x4)

AXA0113(x1)

AXA1221 (x8)

AXA114 (x12)

AXA1225 (x2)

AXA115 (x8)

AXA1230 (x2)

AXA116(x9)

AX31406 (x4)

AXA117 (x12)

AX31407(x2)

AXA119 (x1)

AXA120(x2)

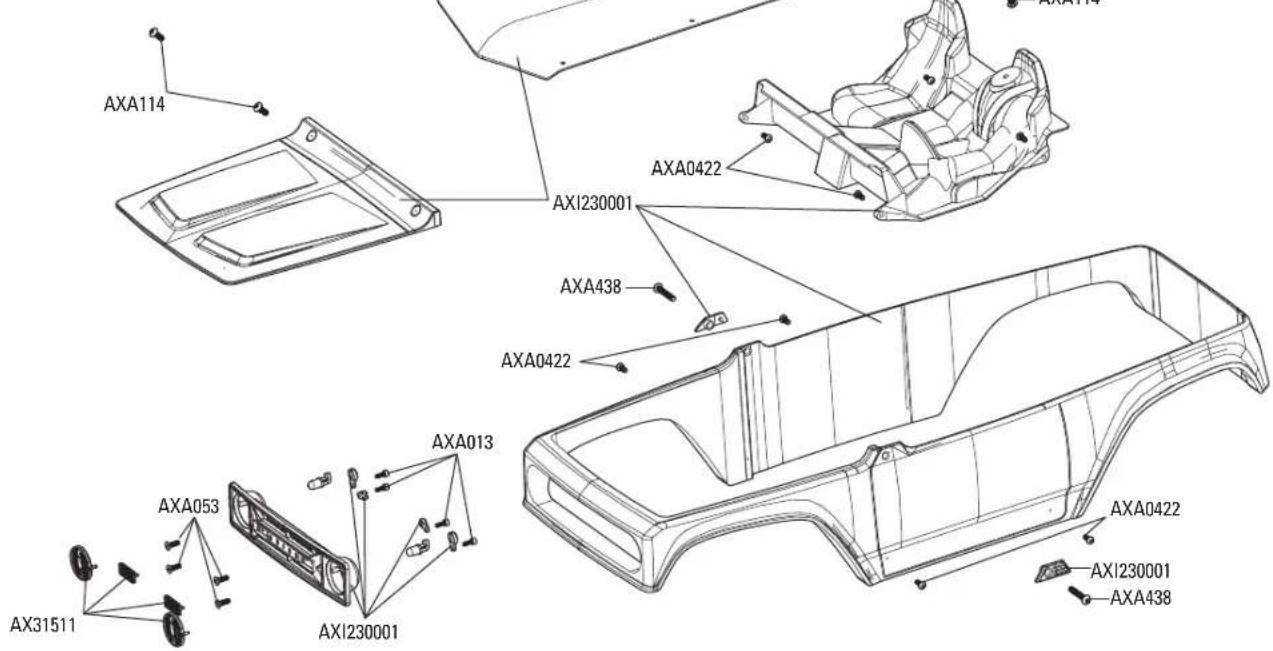

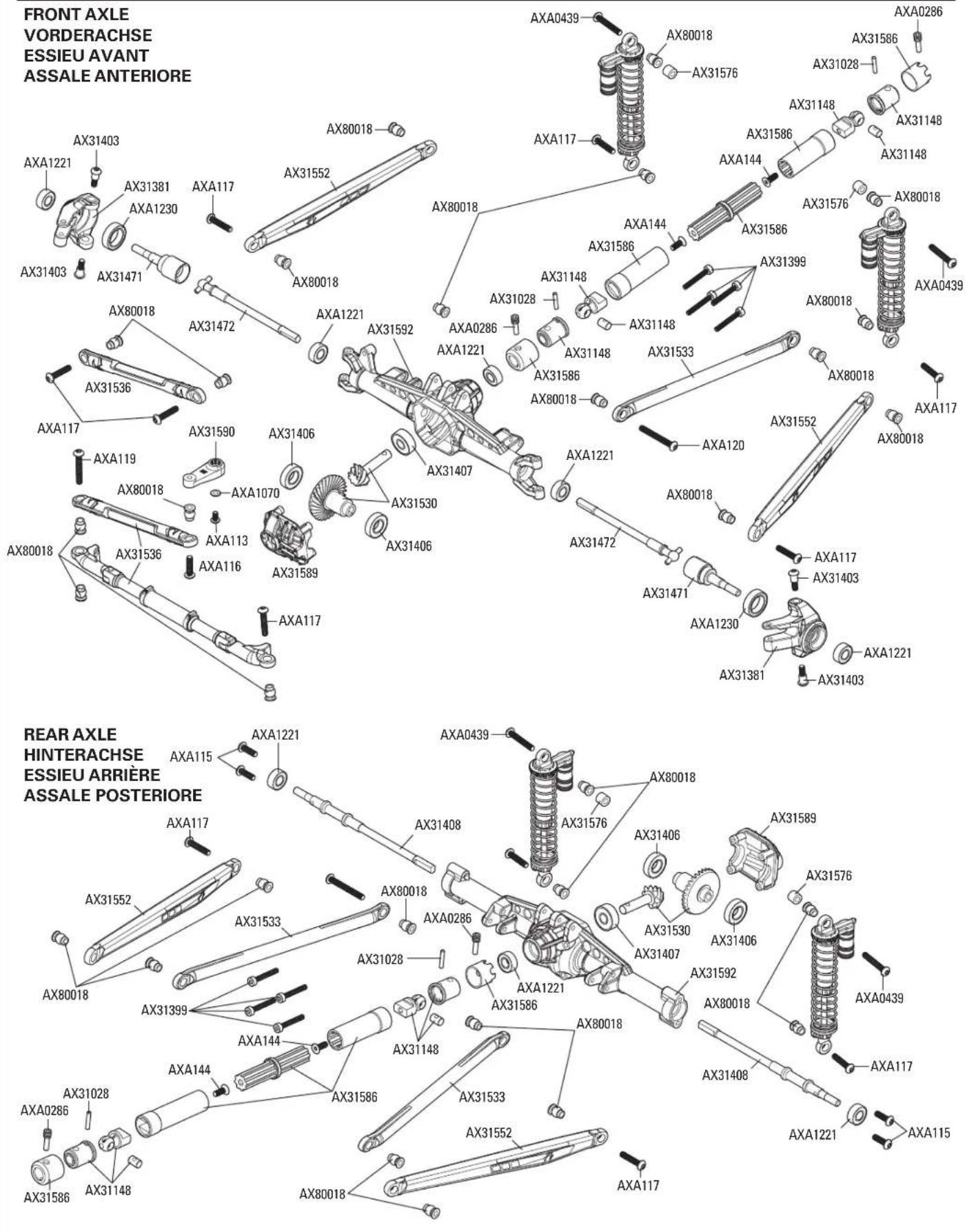

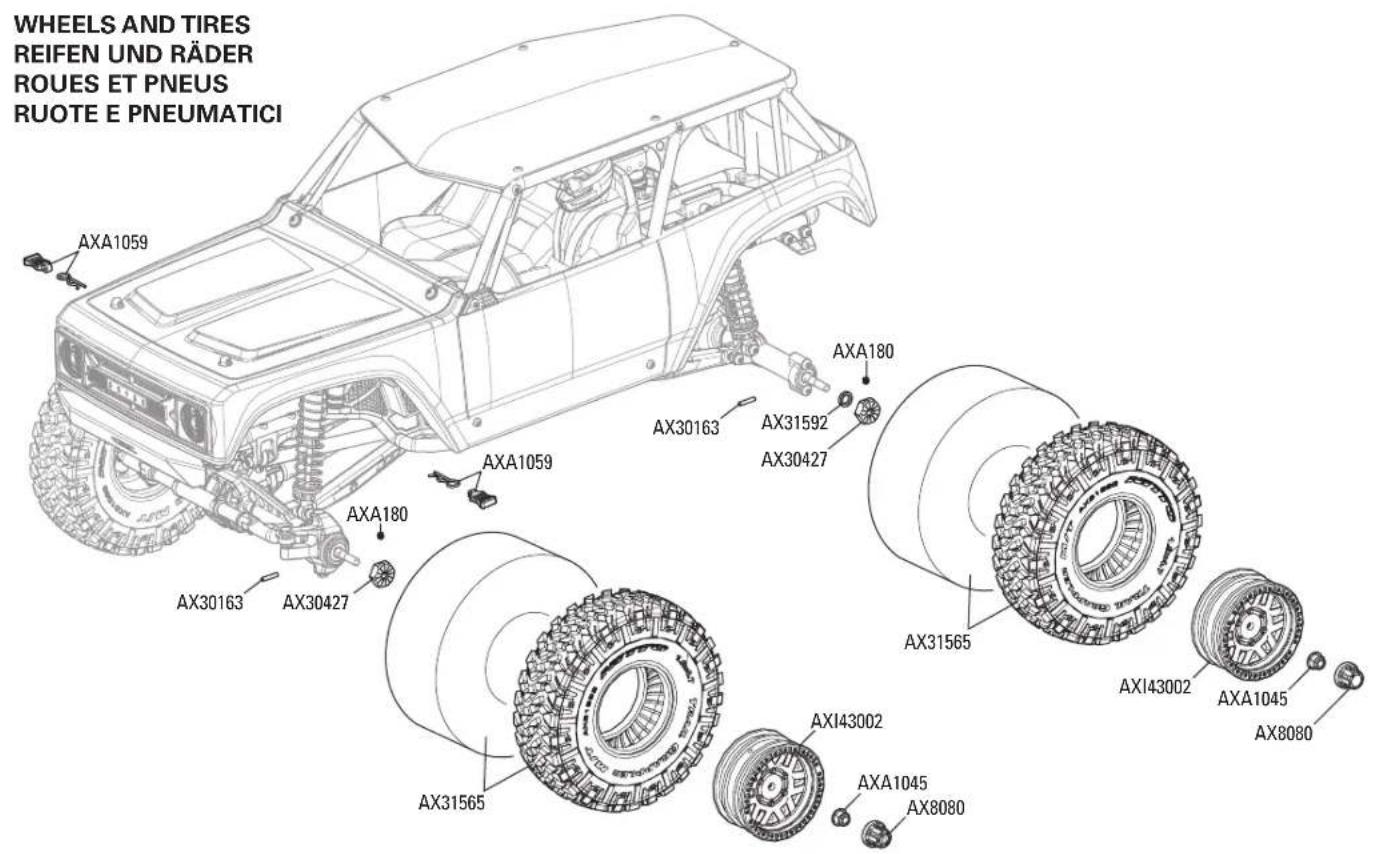

EXPLODED VIEWS // EXPLOSIONSZEICHNUGEN // VUES ÉCLATÉES // VISTE ESPLOSE

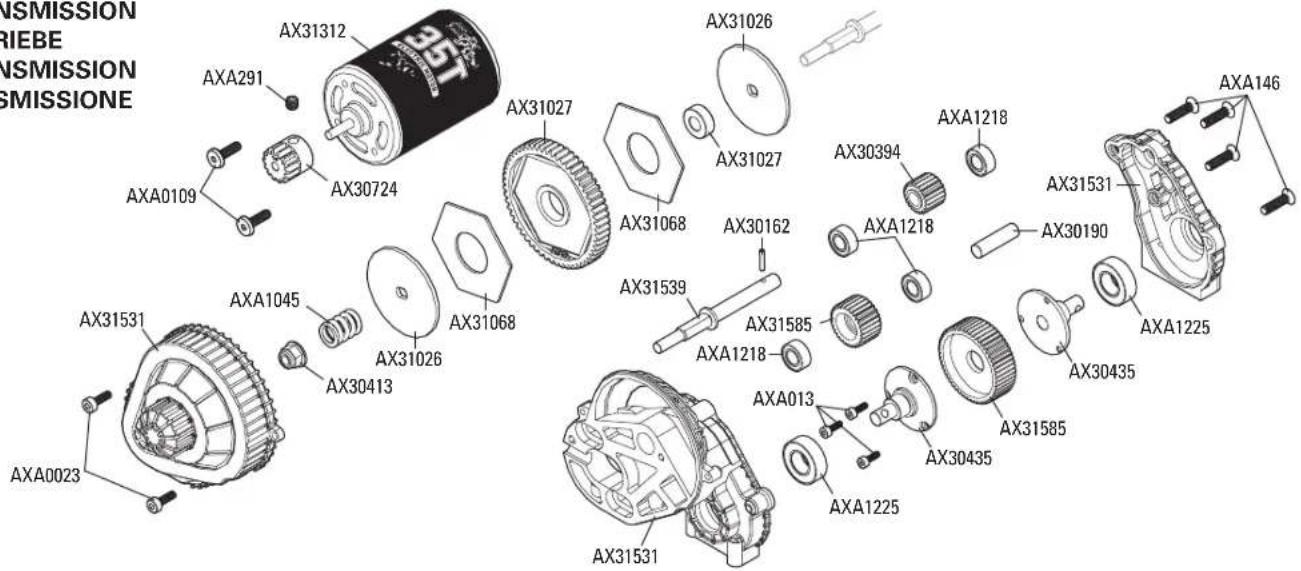

TRANSMISSION GETRIEBE TRANSMISSION TRASMISSIONE

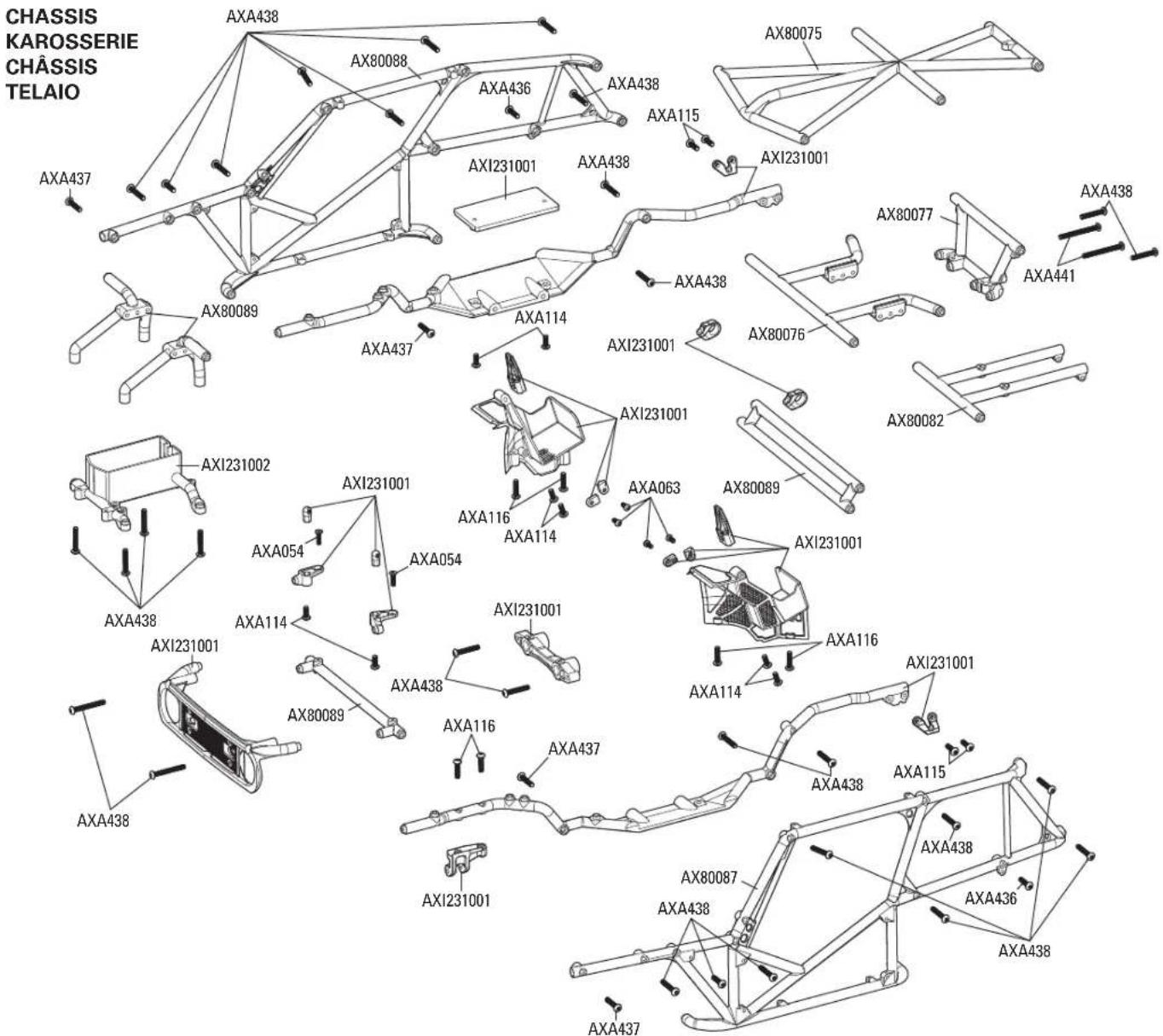

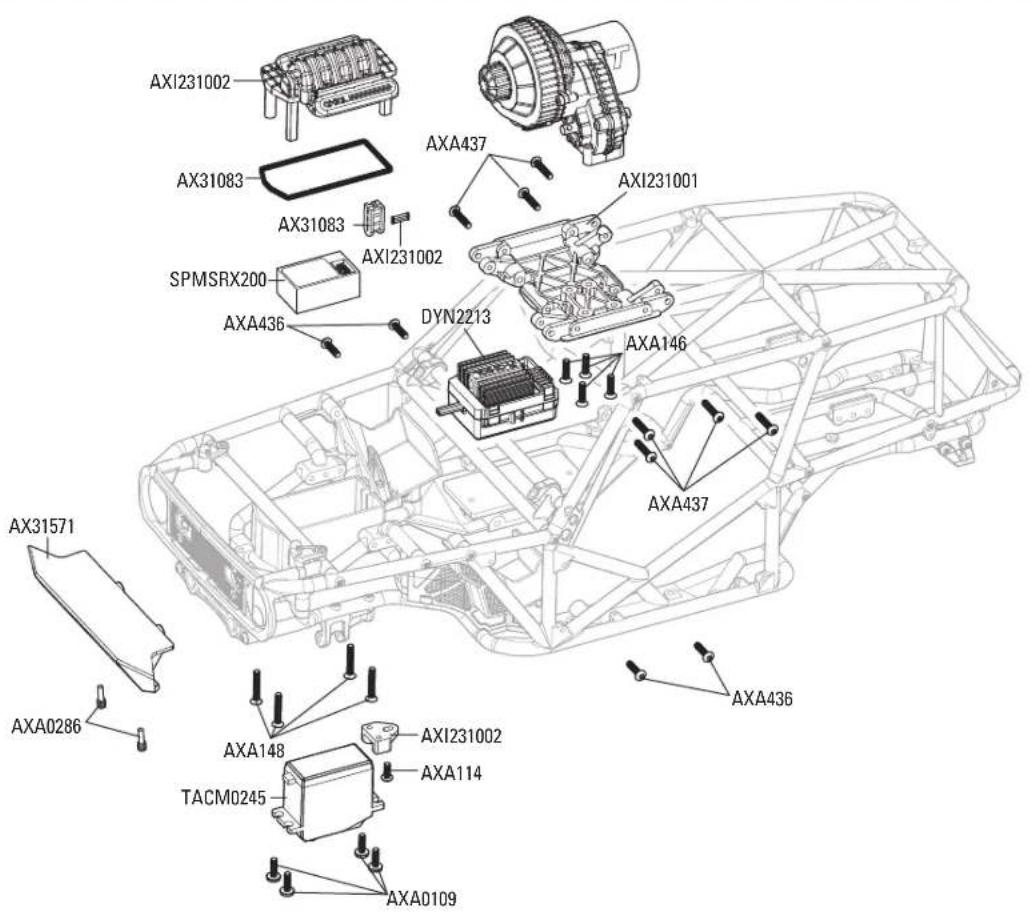

CHASSIS
KAROSSERIE
CHÄSSIS
TELAIO
BODY ASSEMBLY
KAROSSEMIEMONTAGE
ENSEMBLE DE CARROSSEIRE
GRUPPO CARROZZERIA

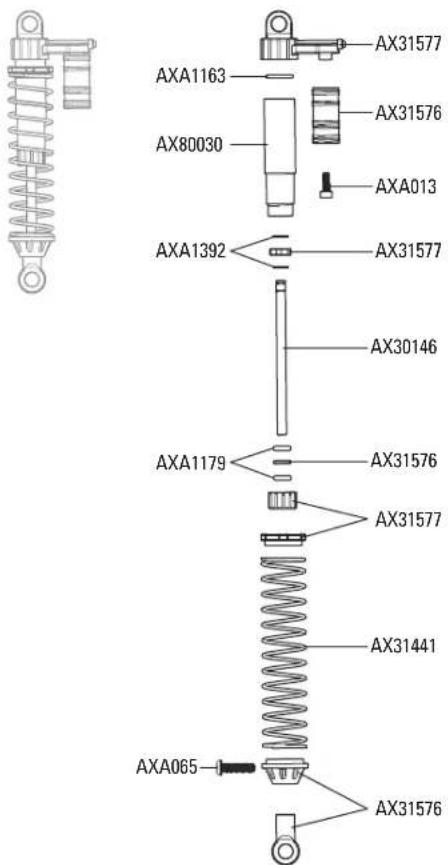

SHOCK ABSORBERS
STOSSDAMPFER
AMORTISSEURS
AMMORTIZZATORI

PARTS LIST // TEILELISTEN // LIST DES PIECES // ELENCO COMPONENTI

Part # Description		Beschreibung	Description	Descrizione
AX30146 Shock Shaft 3x50 (2pcs) Kolbenstange, 3x50 (2 Stck.)		Bras d'amortisseur 3x50 (2 pièces) Albero a mmortizzatore 3x50 (2 pz)
AX30162 Pin 1.5x8mm (6pcs.) Stift 1.5 x 8 mm (6 Stck.)		Goupille 1,5x8 mm (6 pièces) Perno 1,5 x 8 mm (6 pz)
AX30163 Pin 2.0x10mm (6pcs.) Stift 2.0 x 10 mm (6 Stck.)		Goupille 2,0x10 mm (6 pièces) Perno 2,0 x 10 mm (6 pz)
AX30190 Shaft 5x18 (2pcs.) Stange 5 x 18 (2 Stck.)		Arbre 5x18 (2 pièces) Albero 5x18 (2 pz)
AX30394 20T Drive Gear 20T Antriebszahnrad		Engrenage d'entrainment 20T	Ingranaggio trasmissione 20T
AX30413 Slipper spring 8.5x12 165 lbs/in - Black (2pcs)		Gleifeder 8.5 x 12 75 kg - schwarz (2 Stck.)	Ressort de sabot 8.5x12, 18,6 Nm (165 lb/po) - Noir (2 pièces)	Molla patti 8.5x12 190 kg/cm (165 libbre/police) - nero (2 pz)
AX30427 Axial Narrow 12mm Aluminum Hub - Black (4pcs)		Schmale Aluminium-Achasnabe, 12 mm - schwarz (4 Stck.)	Moyeu axial étroit en aluminium 12 mm - Noir (4 pièces)	Mozzo assale in alluminio stretto, 12 mm - nero (4 pz)
AX30435 Steel Outdrive Shaft Set (2pcs)		Stahl-Flexwellenet (2 Stck.)	Ensemble d'arbre de transmission extérieur en acier (2 pièces)	Set albero outdrive acciaio (2 pz)
AX30724 Pinion Gear 32P 13T (3mm shaft)		Zahnradgetriebe32P 13T (3mm Welle)	Engrenage à pignons 32P 13T (arbre de 3 mm)	Pignone 32P 13T (albero 3 mm)
AX30810 EXTMM Universal Joint Rebuild Set (Front or Rear) (2pcs)		Nachbausatz EXO-Kardangelenk (vorne oder hinten) (2 Stck.)	Ensemble de reconstruction de joint universel EXO (avant ou arrêté) (2 pièces)	Set ricocruzione giunto cardanico EXO (anteriori o posteriori) (2 pz)
AX31026 Slipper Plate Washer 33x5x1.5mm (2pcs)		Gleitplattenunterlegscheibe 33 x 5 x 1.5mm (2 Stck.)	Rondelle de plaque de sabot 33x5x1.5 mm (2 pièces)	Rondella piatra patti 33 x 5 x 1.5 mm (2 pz)
AX31027 Spur Gear 32P 56T		Stirnrad 32P 56T	Engrenage cylindrique 32P 56T	Corona 32P 56T
AX31028 Pin 2.0x11mm (6pcs)		Stift 2.0 x 11 mm (6 Stck.)	Goupille 2,0x11 mm (6 pièces) Perno 2,0 x 11 mm (6 pz)
AX31049 Helmet Set (Black)		Helm-Set (schwarz)	Ensemble de casque (noir)	Set elmetti (nero)
AX31068 Slipper Pad 32.8x15.2x1mm (2pcs)		Gleitkissen 32.8 x 15.2 x 1 mm (2 Stck.)	Sabot de piston 32.8x15.2x1 mm (2 pièces)	Pattiolo correvoile 32.8 x 15.2 x 1 mm (2 pz)
AX31083 Radio Box Seals		Funkbox-Dichtungen	Joints du boîter de radio	Guarnizioni vano radiocomando
AX31148 WB8-HD Driveshaft Coupler Set		WB8-HD-Antriebswellenkupplungssatz	Ensemble de couplage d'arbre de transmission WB8-HD	Set accoppiamento albero trasmissione WB8-HD
AX31148 WB8-HD Driveshaft Coupler Set		WB8-HD-Antriebswellenkupplungssatz	Ensemble de couplage d'arbre de transmission WB8-HD	Set accoppiamento albero trasmissione WB8-HD
AX31280 M2.6x6mm Hex Socket Button Head (Black) (10pcs)		M 2.6 x 6 mm Sechskant-Rundkopf (Schwarz) (10 Stck.)	Douille à six pans à tête bombée M2.6x6 mm (Noir) (10 pièces)	Viti testa tonda con esagono incassato M2.6 x 6 mm (nero) (10 pz)
AX31372 M2.6x8mm Hex Socket Flat Head (Black) (10pcs)		M 2.6 x 8 mm Sechskant-Flachkopf (Schwarz) (10 Stck.)	Douille à six pans à tête plate M2.6x8 mm (Noir) (10 pièces)	Viti testa piana con esagono incassato M2.6 x 8 mm (nero) (10 pz)
AX31381 AR44 Steering Knuckles AR44 Lenkrollen		Rotules de direction AR44 Fuso a snodo AR44	AR44
AX31399 M2.6x18mm Cap Head (Black) (10pcs)		M 2.6 x 18 mm Inbusschraube (schwarz) (10 Stck.)	Vis d'assemblage creuse M2.6x18 mm (Noir) (10 pièces)	Viti testa cilindrica M2.6 x 18 mm (nero) (10 pz)
AX31403 M3x4x10mm Hex Socket Button Head Shoulder Screw (Black) (6pcs)		M 3 x 4 x 10 mm Sechskant-Pass-Schulterschraube (schwarz) (6 Stck.)	Vis à epaulement à six pans creuse à tête bombée M3x4x10 mm (Noir) (6 pièces)	Viti perno a testa tonda con esagono incassato M3 x 4 x 10 mm (nero) (6 pz)
AX31406 Bearing 7x14x3.5mm (2pcs)		Lager 7 x 14 x 3.5 mm (2 Stck.)	Roulement 7x14x3.5 mm (2 pièces)	Cuscinetto 7 x 14 x 3.5 mm (2 pz)
AX31407 Bearing 5x14x5mm (2pcs)		Lager 5 x 14 x 5 mm (2 Stck.)	Roulement 5x14x5 mm (2 pièces)	Cuscinetto 5 x 14 x 5 mm (2 pz)
AX31408 AR44 Straight Axle Shaft 5x106mm (2pcs)		AR44 Gerade Achswelle 5 x 106 mm (2 Stck.)	Arbre d'essieu droit AR44x106 mm (2 pièces)	Semiasse lineare AR44 x 5 x 106 mm (2 pz)
AX31441 Spring 12.5x60mm 1.13 lbs/in - (White) (2pcs)		Feder 12.5 x 60 mm 0.5 kg - (weiß) (2 Stck.)	Ressort 12.5x60 mm, 0.12 Nm (1.13 Ib-po) - (Blanc) (2 pièces)	Molla 12.5 x 60 mm 1.3 kg/cm (1.13 libbre/police) - (blanc) (2 pz)
AX31471 Axle 12x36mm (2pcs)		Achse 12 x 36 mm (2 Stck.)	Essieu 12x36 mm (2 pièces)	Assale 12 x 36 mm (2 pz)
AX31472 Solid Axle Dogbone 6x73.5mm (2pcs)		Solid Axle Dogbone 6 x 73.5 mm (2 Stck.)	Dogbone d'essieu solide 6x73.5mm (2 pièces)	Dogbone asse salido 6 x 73.5 mm (2 pz)
AX31530 AR44 Locker Bevel Gear Set 30T/8T		AR44 Kegelradgatbiebesatz 30T/8T	Ensemble d'engrenage conique de blocage AR44, 30T/8T	Set copbia conica blocco AR44 30T/8T
AX31531 LCX Transmission Case (Silver)		LCX Getriebeabdeckung (silber)	Boîter de transmission LCX (Argenté)	Scatola del cambio LCX (argenté)
AX31536 SCX10 II Steering Link SCX10 II-Lenkstange		Tringlerie de direction SCX10 II	Collegamento sterzo SCX10 II
AX31538 M2.6x10mm Hex Socket Button Head (Black) (10pcs)		M 2.6 x 10 mm Sechskant-Rundkopf (Schwarz) (10 Stck.)	Douille à six pans à tête bombée M2.6x10 mm (Noir) (10 pièces)	Viti testa tonda con esagono incassato M2.6 x 10 mm (nero) (10 pz)
AX31539 Slipper Drive Gear Shaft 5x56.5mm		Gleitantriebswelle 5 x 56.5 mm	Arbre d'engrenage d'entrainement du sabot 5x56.5 mm	Albero trasmissione pattino 5 x 56.5 mm
AX31551 Chevrolet K5/C10 Lens Set (Clear)		Chevrolet K5/C10 Linsenset (transparent)	Ensemble de lentille Chevrolet K5/C10 (Transparent)	Set lenti Chevrolet K5/C10 (Transparent)
AX31552 SCX10 IITM Lower Links Set		SCX10 IITM unteres Verbindungsgliedset	Ensemble de timonerie inférieure SCX10 IITM	Set leveraggi, inferiore SCX10 IITM
AX31553 SCX10 IITM Upper Links Set		SCX10 Ilobere Verbindungsgliedset	Ensemble de timonerie supérieure SCX10 IITM	Set leveraggi, superiore SCX10 IITM
AX31565 1.9 Nitto Trail Grappler M/T - R35 Compound (2pcs)		1.9 Nitto Trail Grappler M/T - R35 Compound Reifen (2 Stck.)	1.9 Nitto Trail Grappler M/T - R35 Compound (2 pièces)	1.9 Nitto Trail Grappler M/T - composto R35 (2 pz)
AX31571 CRC JK Front Bumper CRC JK FrontstoBstange		Pare-chocs avant CRC JK Paraurti anterore CRC JK	Alloggiamento solido assealle AR44 (anteriori e posteriore)
AX31576 Shock Parts Stoßdampferteile		Pièces d'amortisseur	Ricambi ammortizzatore
AX31577 Shock Caps Stößdampferekappen		Capuchons d'amortisseurs	Tappi amortizzatore
AX31586 WB8-HD Standard Driveshaft WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelle WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebsw Twelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebsw twelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswvenze WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswventa WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswete WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswive WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswele WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswiele WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswicate WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswavia WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswerve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswove WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswave WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswelve WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswagen WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswaged WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswages WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-AntriebswAGE WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswage WB8-HD Standard-Antriebswight WB8-HD Standard-Antriebswight WB8-HD Standard-Antriebswight WB8-HD Standard-Antriebswight WB8-HD Standard-Antriebswight WB8-HD Standard-Antriebswight WB8-HD Standard-Antriebswight WB8-HD Standard-Antriebswight WB8-HD Standard-Antriebswight WB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HDStandard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWB8-HD Standard-AntrieBSWKB-1		10 mm (200 mm)
Part # Description		Beschreibung	Description	Descrizione
AX80010 Gear Set Getriebesatz			Ensemble de train Set ingranaggi
AX80018 Hardware Parts Tree Hardware-Teilebaum			Arbre des pièces de quincaillerie Set bulioneria
AX80030 6-90 Schock Body Set 61-90 Stößdampfertset		Wraith Tube Frame Top Wraith Rohrgestell abern	Ensemble de corps d'amortisseur 61-90	Set scocca ammortizzatore 61-90
AX80075 Wraith Tube Frame Top Wraith Rohrgestell abern		Wraith Tube Frame Top Wraith Rohrgestell abern	Haut du chãssis tubulaire Wraith Telaio	tubolare Wraith, parte superiore
AX80076 Wraith Tube Frame Shock Mount (Rear)		Wraith Rohrgestell-Stoßdampfalterhaltung (hinten)	Support d'amortisseurs du chãssis tubulaire Wraith (arrière)	Supporto ammortizzatore telaio tubolare Wraith (posteriori)
AX80077 Wraith Tube Frame Bumper Wraith Rohrgestell-Stoßdampfertner		Wraith Rohrgestell-Stoßdampfertner	Pare-chocs du chãssis tubulaire Wraith	Paraurti telaio tubolare Wraith
AX80082 Wraith Tube Frame Brace Set		Wraith Rohrgestellhalterungset	Ensemble de support du chãssis tubulaire Wraith	Set bretella telaio tubolare Wraith
AX80087 Wraith Tube Frame Side (Left)		Wraith seitliches Rohrgestell (links)	Côté du chãssis tubulaire Wraith (gauche)	Telaio tubolare laterale Wraith (sinistro)
AX80088 Wraith Tube Frame Side (Right)		Wraith seitliches Rohrgestell (rechts)	Côté du chãssis tubulaire Wraith (droite)	Telaio tubolare laterale Wraith (deestro)
AX80089 Wraith Tube Frame Shock Mount (Front)		Wraith Rohrgestell-Stoßdampfalterhaltung (vorne)	Support d'amortisseurs du chãssis tubulaire Wraith (avant)	Supporto ammortizzatore telaio tubolare Wraith (anteriori)
AX8080 Hub Cover Set - Satin Chrome (4pcs)		Nabenabdeckungsset - matt verchromnt (4 Stck.)	Ensemble de caches de moyeu - Chrome satiné (4 pièces)	Set coprimozzo - cromo satinato (4 pz)
AXA0023 M2.6x8mm Cap Head (Black) (10pcs)		M 2,6 x 8 mm Inbusschraube (schwarz) (10 Stck.)	Vis d'assemblage creuse M2,6x8 mm (Noir) (10 pieces)	Viti testa cilindrica M2,6 x 8 mm (nero) (10 pz)
AXA0055 M2.6x12mm Flat Head (Black) (10pcs)		M 2,6 x 12 mm Inbusschraube (schwarz) (10 Stck.)	Vis à tête plate M2,6x12 mm (Noir) (10 pieces)	Viti testa piana M2,6 x 12 mm (nero) (10 pz)
AXA0109 M3x10mm Oversized Flat Hex Socket (Black) (10pcs)		M 3 x 10 mm übergroßer Sechskant- Flachkopf (schwarz) (10 Stck.)	Douille à six pans à tête plate autotaraudée M3x10 mm (Noir) (10 pieces)	Viti oversize a testa piana con incasso esagonaile M3 x 10 mm (néro) (10 pz)
AXA0113 M3x6mm Hex Socket Button Head (Black) (10pcs)		M 3 x 6 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée M3x6 mm (Noir) (10 pieces)	Viti testa tonda con esagono incassato M3 x 6 mm (néro) (10 pz)
AXA013 M2x6 mm Cap Head (Black) (10pcs)		M 2 x 6 mm Inbusschraube (schwarz) (10 Stck.)	Vis d'assemblage creuse M2x6 mm (Noir) (10 pieces)	Viti testa cilindrica M2 x 6 mm (nero) (10 pz)
AXA0286 Screw Shaft M4x2.5x12mm (6pcs)		Gewindeschaft M 4 x 2,5 x 12 mm (6 Stck.)	Tige de vis M4x2,5x12 mm (6 pieces)	Albero filettato M4 x 2,5 x 12 mm (6 pz)
AXA0414 M2x6mm Hex Socket Tapping Flat Head (Black) (10pcs)		M 2,6 x 10 mm Sechskant-Flachkopf (schwarz) (10 Stck.)	Douille à six pans à tête plate autotaraudée M2x6x10 mm (Noir) (10 pieces)	Viti autoflettanti a testa piana con esagono incassato M2,6 x 10 mm (néro) (10 pz)
AXA0422 M2x6mm Hex Socket Tapping Button Head (Black) (10pcs)		M 2,6 x 6 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée autotaraudée M2x6x6 mm (Noir) (10 pieces)	Viti autoflettanti a testa tonda con esagono incassato M2,6 x 6 mm (néro) (10 pz)
AXA0437 M3x15mm Hex Socket Tapping Button Head (Black) (10pcs)		M 3 x 15 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée autotaraudée M3x15 mm (Noir) (10 pieces)	Viti autoflettanti a testa tonda con esagono incassato M3 x 15 mm (néro) (10 pz)
AXA0439 M3x20mm Hex Socket Tapping Button Head (Black) (10pcs)		M 3 x 20 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée autotaraudée M3x20 mm (Noir) (10 pieces)	Viti autoflettanti a testa tonda con esagono incassato M3 x 20 mm (néro) (10 pz)
AXA1045 M4 Nylon Lock Nut (Black) (10pcs)		M4 Nylon-Feststellimutter (schwarz) (10 Stck.)	Contré-écrou en nylon M4 (Noir) (10 pieces)	Controdo nylon M4 (néro) (10 pz)
AXA1059 6mm Body clip (Black) (10pcs)		6 mm Gehäuseklemmen (schwarz) (10 Stck.)	Clip de carroserie 6 mm (Noir) (10 pieces)	Clip carrozieria 6 mm (néro) (10 pz)
AXA1070 Washer 3x6x0.5 (10pcs)		Unterlegscheibe 3 x 6 x 0.5 (10 Stck.)	Rondelle 3x6x0.5 (10 pieces)	Rondella 3 x 6 x 0.5 (10 pz)
AXA114 M3x8mm Hex Socket Button Head (Black) (10pcs)		M 3 x 8 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée M3x8 mm (Noir) (10 pieces)	Viti testa tonda con esagono incassato M3 x 8 mm (néro) (10 pz)
AXA115 M3x10mm Hex Socket Button Head (Black) (10pcs)		M 3 x 10 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée M3x10 mm (Noir) (10 pieces)	Viti testa tonda con esagono incassato M3 x 10 mm (néro) (10 pz)
AXA116 M3x12mm Hex Socket Button Head - Black (10pcs)		M 3 x 12 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée M3x12 mm - Noir (10 pieces)	Viti testa tonda con esagono incassato M3 x 12 mm (néro) (10 pz)
AXA1163 O-Ring 7x1mm (10pcs)		O-Ring 7 x 1 mm (10 Stck.)	Joint torque 7x1 mm (10 pieces)	O-Ring 7 x 1 mm (10 pz)
AXA117 M3x15mm Hex Socket Button Head (Black) (10pcs)		M 3 x 15 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée M3x15 mm (Noir) (10 pieces)	Viti testa tonda con esagono incassato M3 x 15 mm (néro) (10 pz)
AXA117 O-Ring 2.5x1.5mm (10pcs)		O-Ring 2.5 x 1.5 mm (10 Stck.)	Joint torque 2.5x1.5 mm (10 pieces)	O-Ring 2.5 x 1.5 mm (10 pz)
AXA119 M3x20mm Hex Socket Button Head (Black) (10pcs)		M 3 x 20 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée M3x20 mm (Noir) (10 pieces)	Viti testa tonda con esagono incassato M3 x 20 mm (néro) (10 pz)
AXA120 M3x25mm Hex Socket Button Head (Black) (10pcs)		M 3 x 25 mm Sechskant-Rundkopf (schwarz) (10 Stck.)	Douille à six pans à tête bombée M3x25 mm (Noir) (10 pieces)	Viti testa tonda con esagono incassato M3 x 25 mm (néro) (10 pz)
AXA1218 Bearing 5x10x4mm (2pcs)		Lager 5 x 10 x 4 mm (2 Stck.)	Roulement 5x10x4 mm (2 pieces)	Cuscinotto 5 x 10 x 4 mm (2 pz)
AXA1221 Bearing 5x11x4mm (2pcs)		Lager 5 x 11 x 4 mm (2 Stck.)	Roulement 5x11x4 mm (2 pieces)	Cuscinotto 5 x 11 x 4 mm (2 pz)
AXA1225 Bearing 8x16x5mm (2pcs)		Lager 8 x 16 x 5 mm (2 Stck.)	Roulement 8x16x5 mm (2 pieces)	Cuscinotto 8 x 16 x 5 mm (2 pz)
AXA1230 Bearing 10x15x4mm		Lager 10 x 15 x 4 mm	Roulement 10x15x4 mm	Cuscinotto 10 x 15 x 4 mm
AXA1392 E2 e-clip (10pcs)		E2 E-clip (10 Stck.)	E-clip E2 (10 pieces)	E-clip E2 (10 pz)
AXA144 M3x8mm Hex Socket Flat Head (Black) (10pcs)		M 3 x 8 mm Sechskant-Flachkopf (schwarz) (10 Stck.)	Douille à six pans à tête plate M3x8 mm (Noir) (10 pieces)	Viti testa piana con esagono incassato M3 x 8 mm (néro) (10 pz)
AXA146 M3x12mm Hex Socket Flat Head - Black (10pcs)		M 3 x 12 mm Sechskant-Flachkopf (schwarz) (10 Stck.)	Douille à six pans à tête plate M3x12 mm - Noir (10 pieces)	Viti testa piana con esagono incassato M3 x 12 mm (néro) (10 pz)
AXA148 M3x18mm Hex Socket Flat Head (Black) (10pcs)		M 3 x 18 mm Sechskant-Flachkopf (schwarz) (10 Stck.)	Douille à six pans à tête plate M3x18 mm (Noir) (10 pieces)	Viti testa piana con esagono incassato M3 x 18 mm (néro) (10 pz)
AXA180 M3x3mm Set Screw (Black) (10pcs)		M 3 x 3 mm Schaubenset (schwarz) (10 Stck.)	Vis de fixation M3x3 mm (Noir) (10 pieces)	Viti di arresto M3 x 3 mm (néro) (10 pz)
AXA291 M4x4mm Set Screw (Black) (6pcs.)		M 4 x 4 mm Schaubenset (schwarz) (6 Stck.)	Vis de fixation M4x4 mm (Noir) (6 pieces)	Viti di arresto M4 x 4 mm (néro) (6 pz)
Part# Description		Beschreibung	Description	Descrizione
AXA436	M3x12mm Hex Socket Tapping Button Head (Black) (10pcs)	M 3 x 12 mm Sechskant-Rundkopf-Blechschraube (schwarz) (10 Stck.)	Douille à six pans à tête bombée autotaraudeau M3x12 mm (Noir) (10 pieces)	Viti autopilettanti a testa tonda con esagono incassato M3 x 12 mm (nero) (10 pz)
AXA438	M3x18mm Hex Socket Tapping Button Head (Black) (10pcs)	M 3 x 18 mm Sechskant-Rundkopf-Blechschraube (schwarz) (10 Stck.)	Douille à six pans à tête bombée autotaraudeau M3x18 mm (Noir) (10 pieces)	Viti autopilettanti a testa tonda con esagono incassato M3 x 18 mm (nero) (10 pz)
AXA440	M3x25mm Hex Socket Tapping Button Head (Black) (10pcs)	M 3 x 25 mm Sechskant-Rundkopf-Blechschraube (schwarz) (10 Stck.)	Douille à six pans à tête bombée autotaraudeau M3x25 mm (Noir) (10 pieces)	Viti autopilettanti a testa tonda con esagono incassato M3 x 25 mm (nero) (10 pz)
AXA441	M3x30mm Hex Socket Tapping Button Head (Black) (10pcs)	M 3 x 30 mm Sechskant-Rundkopf-Blechschraube (schwarz) (10 Stck.)	Douille à six pans à tête bombée autotaraudeau M3x30 mm (Noir) (10 pieces)	Viti autopilettanti a testa tonda con esagono incassato M3 x 30 mm (nero) (10 pz)
AXI43001	1.9 KMC Machete Wheel - 26mm wide (satin Chrome)	1.9 KMC Macheten-Rad - 26 mm (matt verchromt)	Roue Machete 1.9 KMC - 26 mm de large (chrome satiné)	Ruota 1.9 KMC Machete - larg. 26 mm (cromo satinato)
AXI230001	Wraith 1.9 Body & Interior Set: Clear	Wraith 1.9 Gehäuse- und Interieurset: Transparent	Ensemble de carrosserie et d'intérieur Wraith 1.9 : Transparent	Set carrozzeria e interni Wraith 1.9: transparente
AXI231001	Wraith 1.9 Lower Rail/Skid Plate/Battery Tray	Wraith 1.9 untere Schiene/Gleitbrett/Akkuhalterung	Rail inférieur/Plaque de protection/Support de batterie Wraith 1.9	Guide inferiori/piastra protezione/vassoio portabatteria Wraith 1.9
AXI231002	Wraith 1.9 Receiver Box Parts Tree	Wraith 1.9 Empfängerbox Teilebaum	Arbre des pièces du boîtier de récepteur Wraith 1.9	Set ricambi vano ricevitore Wraith 1.9
AXI43001	1.9 KMC Machete Wheel - Satin Silver (2pcs)	1.9 KMC Macheten-Rad - Satinsilber (2 Stck.)	Roue Machete 1.9 KMC - Argent satiné (2 pieces)	Ruota 1.9 KMC Machete - argentosatinato (2 pz)

ELECTRONICS // ELECTRONIK // COMPOSANTS ÉLECTRONIQUES // ELETTRONICA

Part # Description Beschreibung Description Descrizione
AX31312 35T	Electric Motor	35T Elektromotor Moteur électrique 35T	Motore elettrico 35T
SPMSTX200	STX2 2CH Radio	STX2 2CH Funk Radio 2 canaux STX2 Radio	diocomando STX2 2 canali
SPMSRX200	SRX200 2CH Receiver	SRX200 2CH Empfänger Récepteur 2 canaux SRX200 Ricevitore SRX200 2 canali
TACM0245	TSX45 High-Torque Metal Gear Dual Ball Bearing Servo	TSX45 Metallgetriebeservo mit hohem Drehmoment und doppeltem Kugellager	Servo à deux roulements à billes à engrenages metalliques à couple élevé TSX45	Servo TSX45 a coppia elevata, ingranaggio metallico e doppio cuscinetto a sfera
DYNS2213	AE-5L ESC w/LED Ports and Lights (2 White, 4 White, 2 Red)	AE-5L Geschwindigkeitsregler mit LED-Anschlüssen und -Leuchten (2 x weiß, 4 x weiß, 2 x rot)	Variateur ESC AE-5L avec ports et témoins DEL (2 blancs, 4 blancs, 2 rouges)	ESC AE-5L con porte e lui LED (2 bianche, 4 bianche, 2 rosse)
AX31481	AE-5L LED Light Se (2 White, 4 White, 2 Red)	AE-5L LED-Leuchten (2 x weiß, 4 x weiß, 2 x rot)	Ensemble de témoins DEL AE-5L (2 blancs, 4 blancs, 2 rouges)	Set lui LED AE-5L (2 bianche, 4 bianche, 2 rosse)

新

EXPLOR

facebook.com/axialinc | instagram.com/axialracing | twitter.com/axialrc
youtube.com/axialvideos | flickr.com/axialrc

axial

www AXIALRACING.com
