USER MANUAL RR10 Bomber Axial

All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product.

MEANING OF SPECIAL LANGUAGE

The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:

WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.

CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.

NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury.

This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

SAFETY PRECAUTIONS AND WARNINGS

As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or property of others.

This model is controlled by a radio signal subject to interference from many sources outside your control. This interference can cause momentary loss of control, so it is advisable to always keep a safe distance in all directions around your model as this margin will help avoid collisions or injury.

• Never operate your model with low transmitter batteries.
• Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Never operate the model in the street or in populated areas for any reason.
• Carefully follow the directions and warnings for this and any optional support equipment (chargers, rechargeable battery packs, etc.) you use.
• Keep all chemicals, small parts and anything electrical out of the reach of children.

• Never lick or place any portion of the model in your mouth as it could cause serious injury or even death.
  Exercise caution when using tools and sharp instruments.

• Take care during maintenance as some parts may have sharp edges.

• Immediately after using your model, do NOT touch equipment such as the motor, electronic speed control and battery, because they generate high temperatures. You may burn yourself seriously touching them.
• Do not put fingers or any objects inside rotating and moving parts, as this may cause damage or serious injury.
• Always turn on your transmitter before you turn on the receiver in the car. Always turn off the receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the operation of the radio equipment.

WARNING AGAINST COUNTERFEIT PRODUCTS: Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and mance of counterfeit products or products claiming compatibility with DSM® or Spektrum technology.

TABLE OF CONTENTS

Water-resistant Vehicle with Waterproof Electronics 3

box Contents 4

Required Equipment 4

recommended tools 4

Getting started checklist. 5

Vehicle parts 5

Charge the vehicle battery 6

Install the transmitter batteries 6

Transmitter functions 6

Adjusting the battery tray. 7

Install the vehicle battery 7

Binding 8

Range-checking the radio system 8

vehicle maintenance 9

DYNS2210 WP 60A FWD/REV Brushed ESC. 10

Gear Ratios 11

Troubleshooting 11

Notes 11

Limited Warranty. 12

Warranty and Service Contact Information 12

FCC Information 13

IC Information 13

Compliance Information for the European Union 13

Parts reference 50

Exploded views. 55

Parts lists 59

Electronics 61

WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS

Your new Horizon Hobby vehicle has been designed and built with a combination of waterproof and water-resistant components to allow you to operate the product in many "wet conditions," including puddles, creeks, wet grass, snow and even rain.

While the entire vehicle is highly water-resistant, it is not completely waterproof and your vehicle should NOT be treated like a submarine. The various electronic components used in the vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, however, most of the mechanical components are water-resistant and should not be submerged.

Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts in the electrical cables, will be susceptible to corrosion if additional maintenance is not performed after running in wet conditions. To maximize the long-term performance of your vehicle and to keep the warranty intact, the procedures described in the "Wet Conditions Maintenance" section below must be performed regularly if you choose to run in wet conditions. If you are not willing to perform the additional care and maintenance required, then you should not operate the vehicle in those conditions.

CAUTION: Failure to exercise caution while using this product and complying with the following precautions could result in product malfunction and/or void the warranty.

GENERAL PRECAUTIONS

• Read through the wet conditions maintenance procedures and make sure that you have all the tools you will need to properly maintain your vehicle.
• Not all batteries can be used in wet conditions. Consult the battery manufacturer before use. Caution should be taken when using Li-Po batteries in wet conditions.
• Most transmitters are not water-resistant. Consult your transmitter's manual or the manufacturer before operation.
• Never operate your transmitter or vehicle where lightning may be present.
• Do not operate your vehicle where it could come in contact with salt water (ocean water or water on salt-covered roads), contaminated or polluted water. Salt water is very conductive and highly corrosive, so use caution.
• Even minimal water contact can reduce the life of your motor if it has not been certified as water-resistant or waterproof. If the motor becomes excessively wet, apply very light throttle until the water is mostly removed from the motor. Running a wet motor at high speeds may rapidly damage the motor.
• Driving in wet conditions can reduce the life of the motor. The additional resistance of operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or larger spur gear. This will increase torque (and motor life) when running in mud, deeper puddles, or any wet conditions that will increase the load on the motor for an extended period of time.

WET CONDITIONS MAINTENANCE

• Drain any water that has collected in the tires by spinning them at high speed. With the body removed, place the vehicle upside down and pull full throttle for a few short bursts until the water has been removed.

CAUTION: Always keep hands, fingers, tools and any loose or hanging objects away from rotating parts when performing the above drying technique.

• Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can of compressed air, blow out any water that may be inside the recessed connector housing.
• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt off with a garden hose. Avoid rinsing the bearings and transmission.

NOTICE: Never use a pressure washer to clean your vehicle.

• Use an air compressor or a can of compressed air to dry the vehicle and help remove any water that may have gotten into small crevices or corners.
• Spray the bearings, drive train, fasteners and other metal parts with a water-displacing light oil. Do not spray the motor.
• Let the vehicle air dry before you store it. Water (and oil) may continue to drip for a few hours.
• Increase the frequency of disassembly, inspection and lubrication of the following:

-Front and rear axle hub assembly bearings.
-All transmission cases, gears and differentials.
-Motor-clean with an aerosol motor cleaner and re-oil the bushings with lightweight motor oil.

EN

BOX CONTENTS

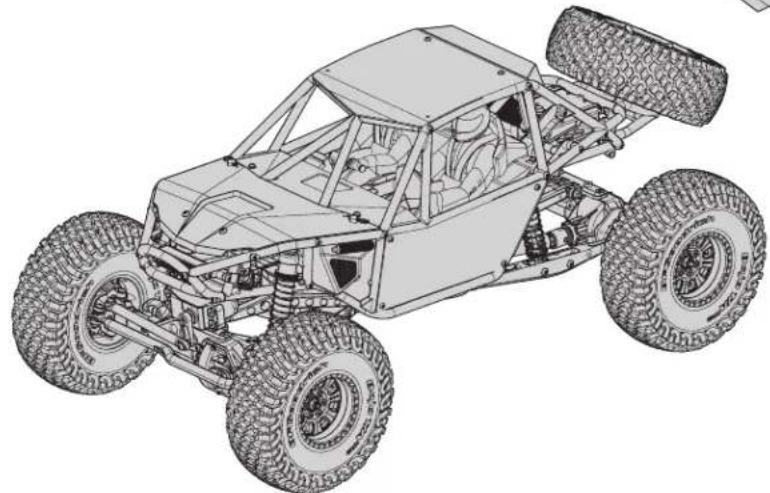

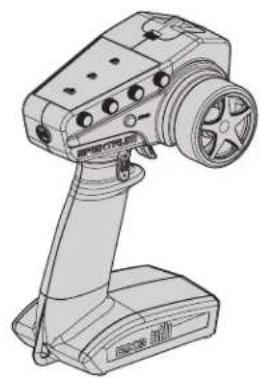

• Spektrum™ DX3™ 2.4GHz Transmitter (SPMS2340T)
  AXI03016 - RR10TM Bomber 1/10th 4WD RTR
• SR315 3CH Receiver (SPMSR315)
  S614 15KG Servo (SPMS614)

• 35T Brushed Motor (AX31312)
  -AE-5L ESC w/LED (DYNS2213)

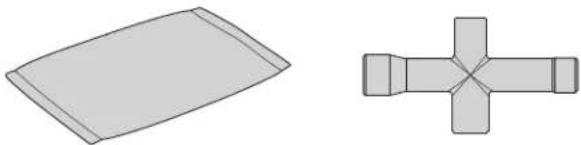

• Parts Bag - Cross Wrench

REQUIRED EQUIPMENT

(4) AA Alkaline batteries · 3s LiPo Battery

• 5-9 Cell NiMH/NiCd battery

(IC3TM Connector Required)

• Battery charger compatible with the chosen vehicle battery type

OR

RECOMMENDED TOOLS

- Hex Drivers (1.5, 2.0, 2.5mm)

Hobby Knife

- Curved Scissors

Side Cutter

- Long-nose Plier

GETTING STARTED CHECKLIST

	Read the manual
	Familiarize yourself with the vehicle and its components
	Check all screws, especially the driveshaft setscrews, for tightness from the factory
	Charge the vehicle battery
	Install 4 AA batteries in the transmitter

	Power on the transmitter
	Install the vehicle battery in the vehicle
	Check for proper function of the throttle and steering
	Range check the radio system
	Drive the vehicle, challenge yourself and have FUN!
	Perform any necessary vehicle maintenance

EN

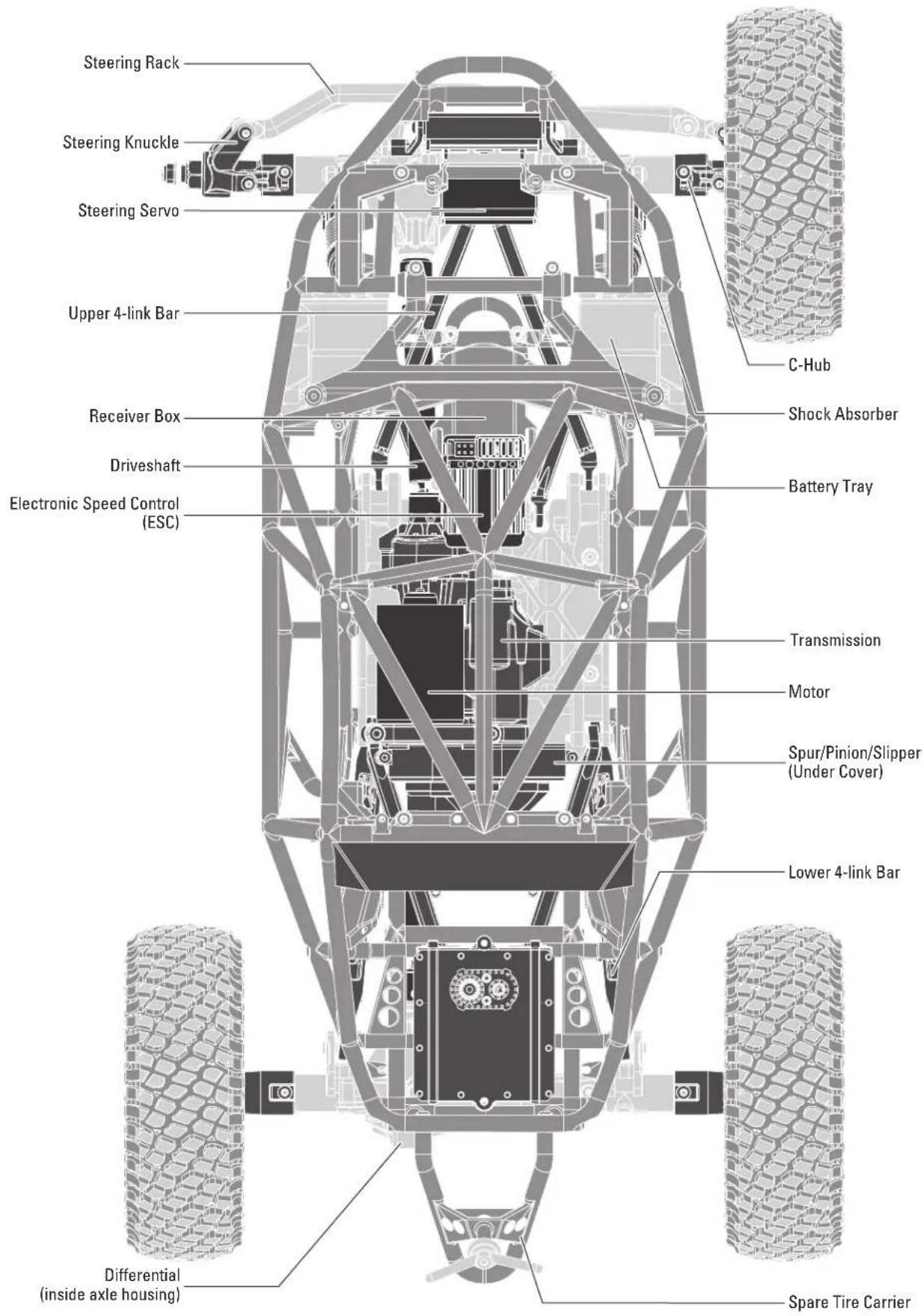

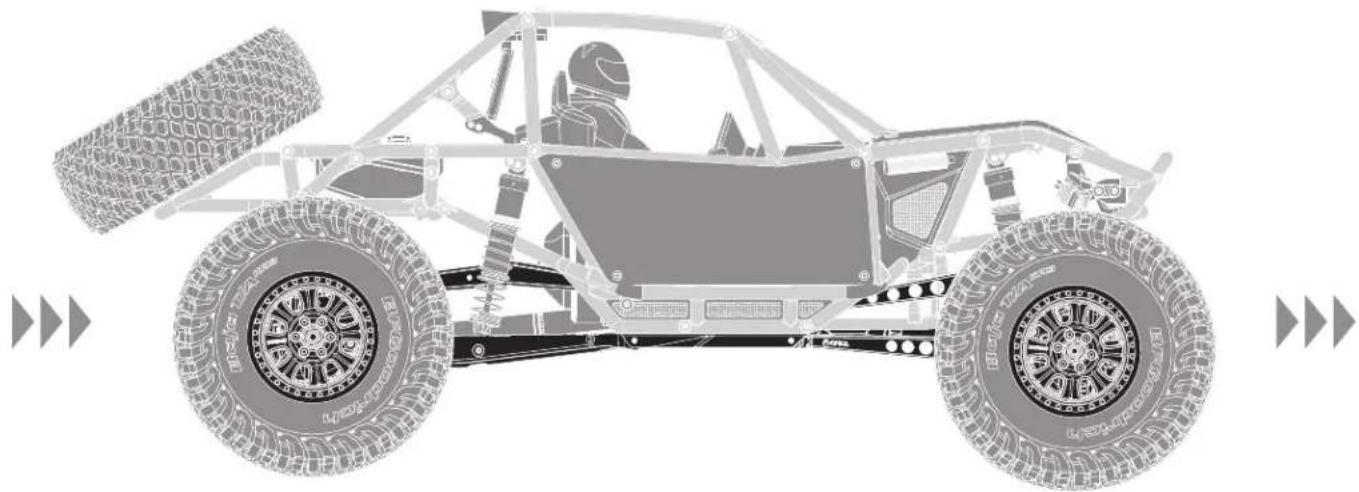

VEHICLE PARTS

EN

CHARGE THE VEHICLE BATTERY

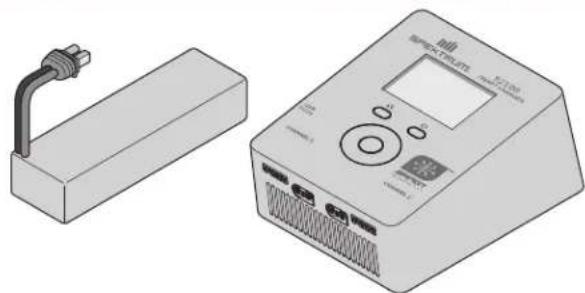

Follow the manufacturer's directions for your charger to properly charge the vehicle battery.

CAUTION: Only use chargers designed to charge the chosen battery type. Using an incorrect charger or incorrect charger could result in a fire causing personal injury or damage to property.

INSTALL THE TRANSMITTER BATTERIES

This transmitter requires 4 AA batteries.

1. Remove the battery cover from the transmitter.

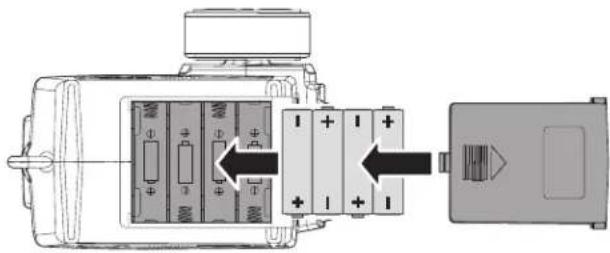

2. Install the batteries as shown
3. Install the battery cover.

CAUTION: NEVER remove the transmitter batteries while the model is powered on. Loss of model control, damage, or injury may occur.

CAUTION: If using rechargeable batteries, charge only rechargeable batteries. Charging non-rechargeable batteries may be the batteries to burst, resulting in injury to persons and/or damage property.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispos of used batteries according to national regulations.

TRANSMITTER FUNCTIONS

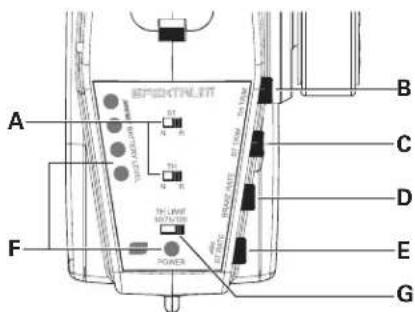

A. Servo Reversing
To reverse the Throttle (TH) or Steering (ST) channel, switch the position of the correlating switch—"N" is for normal, "R" is for reverse.
B. Throttle Trim
Adjusts the throttle neutral point
C. Steering Trim
Adjusts the steering center point. Normally, the steering trim is adjusted until the vehicle tracks straight.
D. Brake Rate
Adjust Brake rate.(For use with AVC Rx's)
E. Steering Rate
Adjusts the end point of the steering
F. Indicator Lights
Solid red lights: Indicates radio connectivity and adequate battery power
- Flashing red lights: Indicates the battery voltage is critically low. Replace batteries
G. Throttle Limit
Limits throttle output to 50/75/100%
Select 50% or 75% for less experienced drivers or when you are driving the vehicle in a small area.

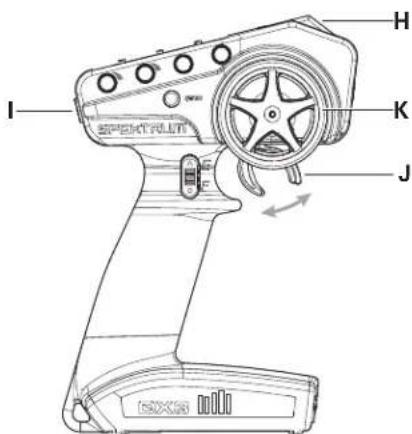

H. Antenna

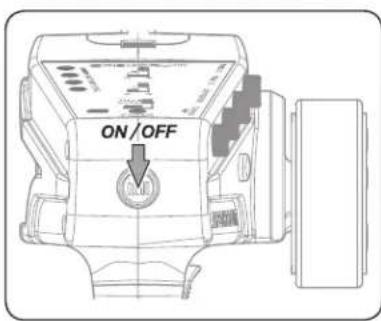

I. Power Button
J. Throttle/Brake
K. Steering Wheel

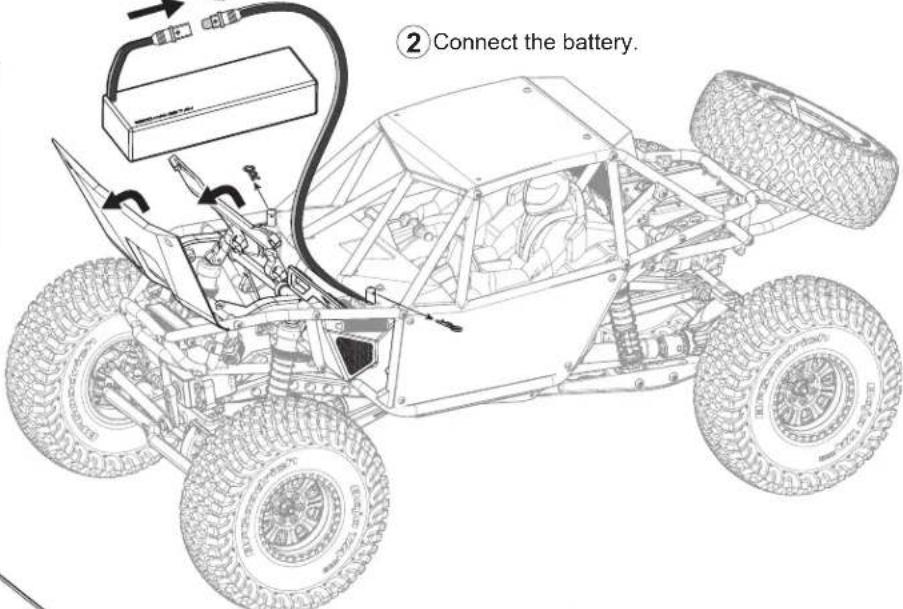

INSTALLARE LA BATTERIA DEL VEICOLO

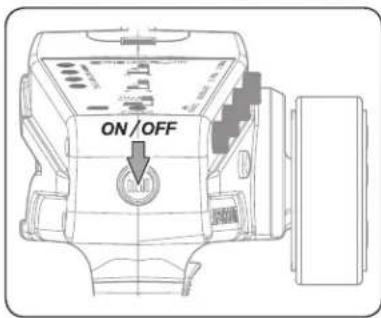

Turn on the transmitter.

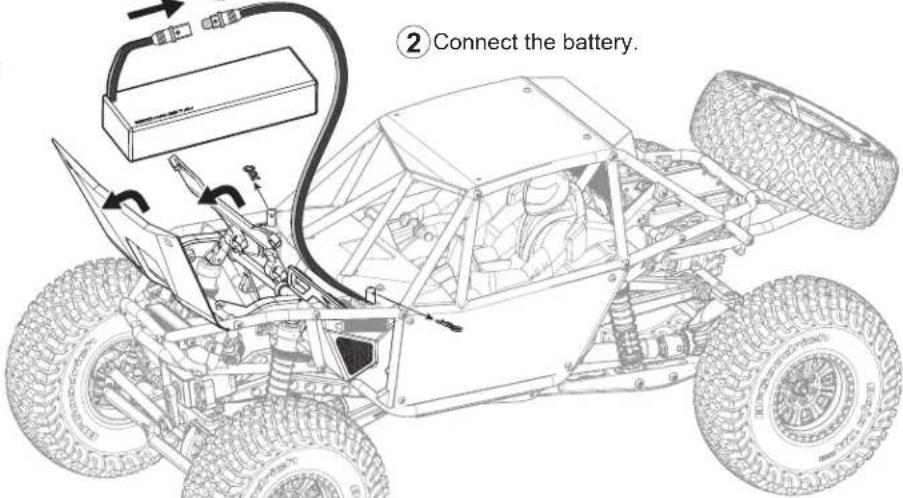

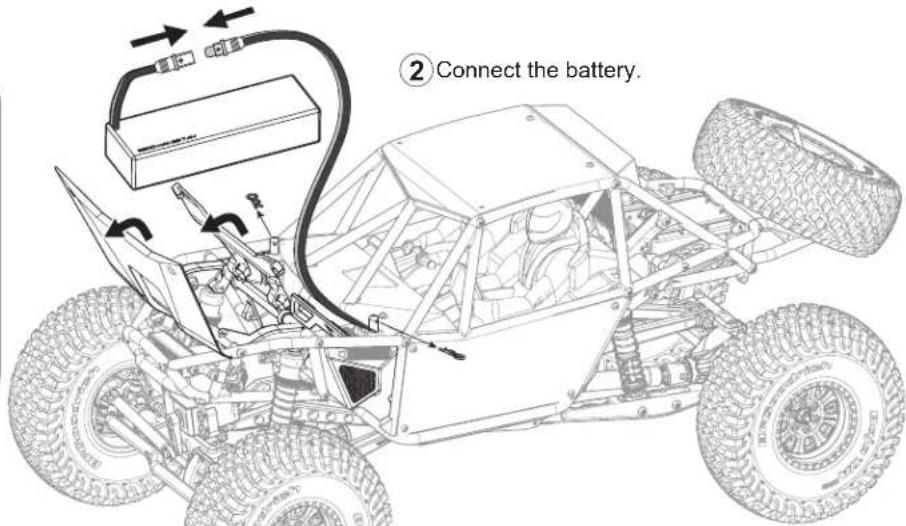

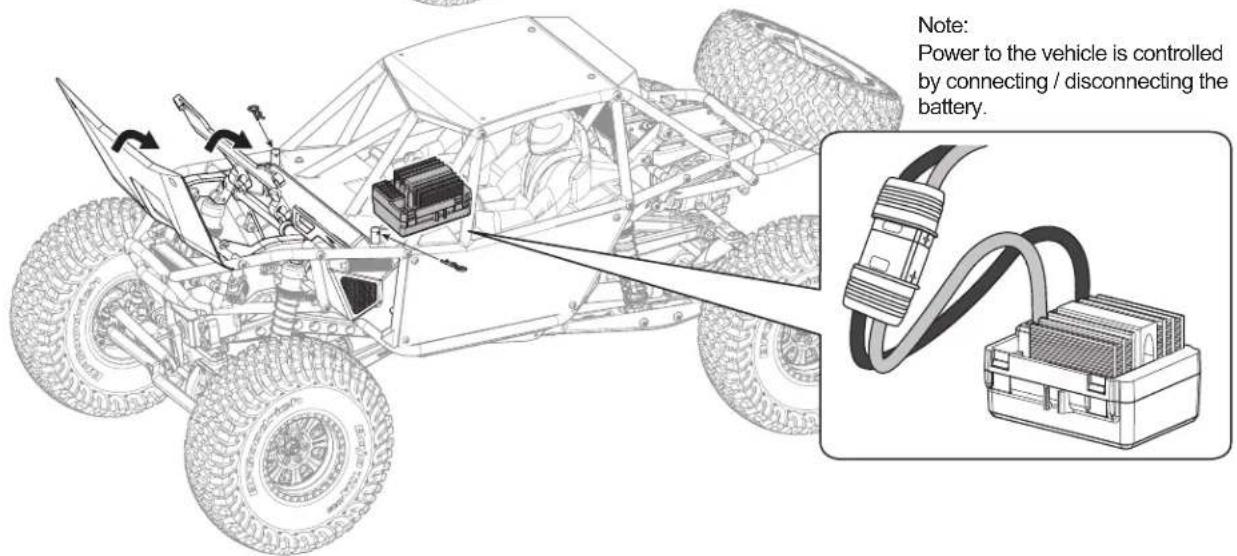

2 Connect the battery.

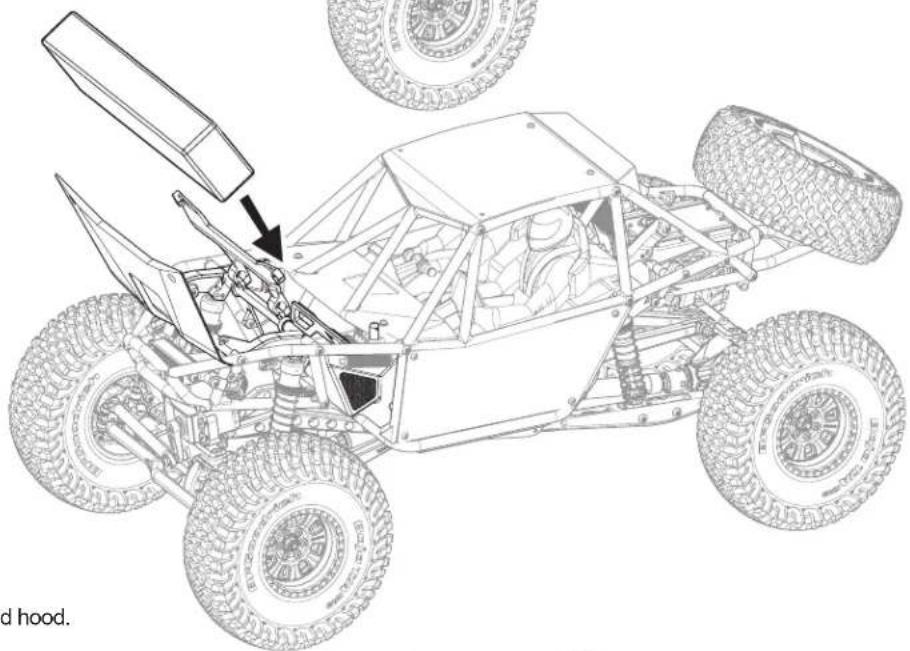

Install the battery

Close the battery tray and hood.

EN

BINDING

Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. The SPM2340 transmitter and SR315 receiver are bound from the factory. If you need to rebind, follow the instructions below.

1. Connect a fully charged battery pack to the ESC.
2. Center ST Trim and TH TRIM dials on the transmitter.
3. Power on the ESC.

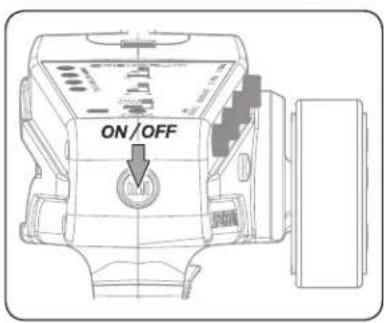

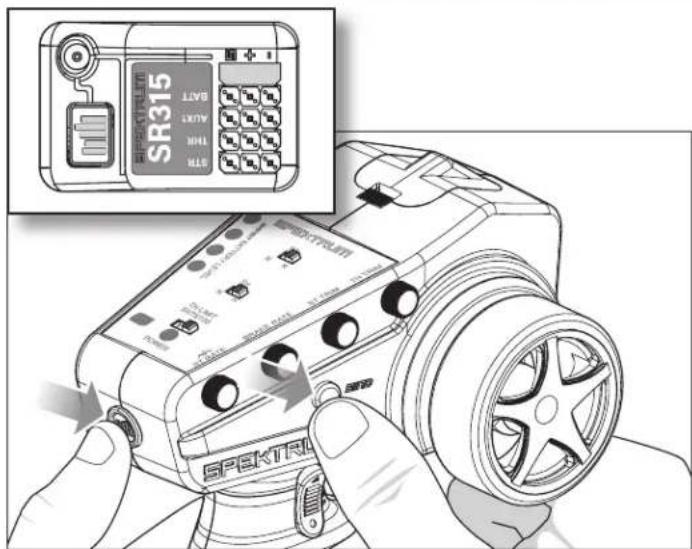

4. Press the button on the SR315 to start bind mode. LED on SR315 will flash.
5. While holding Bind button on the Transmitter, press Power Button to power on the Transmitter. Release bind button when LED on SR315 stops flashing.
6. Vehicle is ready to operate.

You must rebind when:

• Different failsafe positions are desired e.g., when throttle or steering reversing has been changed.
• Binding the receiver to a different transmitter.

RANGE-CHECKING THE RADIO SYSTEM

The radio system should be checked before operating the vehicle to ensure proper operation and adequate range.

1. Turn on the transmitter.
2. Connect the battery in the vehicle.

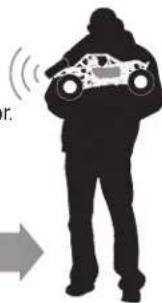

3. Have a friend hold the vehicle while keeping hands and loose clothing away from moving parts.
4. Walk away until you are at the maximum planned operating distance from the vehicle.
5. Turn the steering wheel side to side and operate the throttle, both forward and reverse, checking for any erratic behavior.
6. If any erratic behavior is exhibited, DO NOT operate the vehicle. Call customer service for assistance.

MAINTAINING YOUR VEHICLE

Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance. Preventative maintenance will also help avoid needless breakages which could result in costly repairs. Below are some sugge stions to properly maintain your vehicle.

Replace any noticeable bent or broken parts

Check for wear on the ball joints in the steering and suspension links (replace if necessary)

Check driveshaft set screws and apply thread locking compound if necessary

Inspect shock absorbers for smooth dampened operation

Check for any loose connections or frayed wiring

Check the wheel nuts for tightness

Ensure the wheel beads are still firmly bonded around the entire circumference of the rim

Keep the chassis free of dirt and debris

Check for loose screws on the chassis, especially the knuckle, C-hub and axle lockout screws

Check the driveline for smooth, bind free operation

If applicable, check the slipper clutch for proper operation

Check the receiver antenna for damage

Check the steering operation for any binding

Inspect the spur and pinion gears for damage

Replace the transmitter batteries when indicated by the transmitter, as described in the Transmitter Functions section

DYNS2213 FORWARD/REVERSE ESC WITH DRAG BRAKE

SETUP

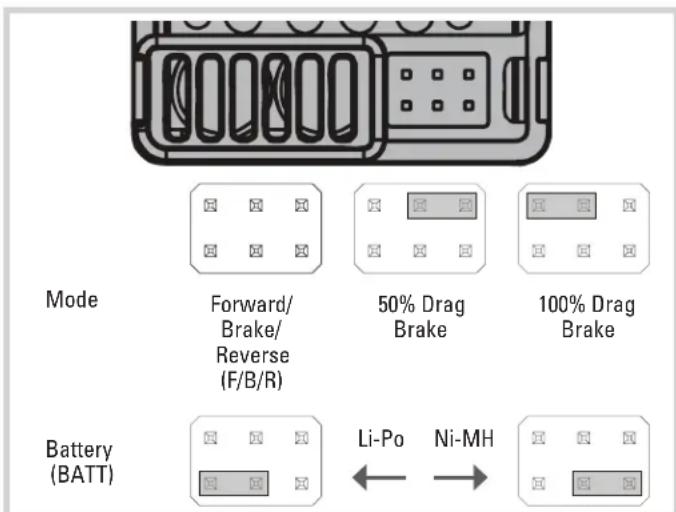

Throttle calibration should not be needed out of the box. However, in order to make the throttle range of different transmitters, the calibration of the ESC is necessary:

• Mount the ESC in an area that is well ventilated and isolated from vibration and shock.

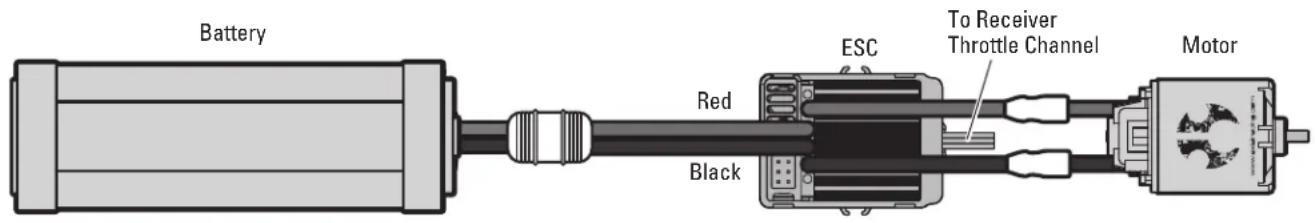

• Connect the ESC motor wires to the motor red-to-red and black-to-black.
• Plug the receiver into the throttle channel of the receiver.
• Before plugging the battery into the ESC, make sure your transmitter is on and the throttle trim is set to zero.
• Connect the battery to the ESC. The vehicle will be powered on when the battery is connected.

CAUTION: Keep all body parts and loose clothing away from any moving parts while the battery is connected to the ESC.

CAUTION: Always connect the ESC only to a proper power source that has the correct voltage and polarity. Incorrect times or reversed polarity will damage the ESCng. Damage to the ESC may be caused by improper voltage or polarity is not covered under warranty.

• Test forward and reverse control using the transmitter.

To calibrate the ESC:

• Power the transmitter on and set the throttle control to neutral.
• Connect the battery to the ESC and wait 3 seconds to let the ESC initiate a self-test and automatic throttle calibration.
• The ESC is ready to run when a long beep sound is emitted from the motor.
• Always disconnect the battery when the vehicle is not in use.

NOTES

• The LiPo cut-off is set to "ON" from the factory.

SPECIFICATIONS
Type	Brushed
Constant/Peak	0A/360A
Resistance	.0008 Ohms
Function	Forward/Brake/Reverse, Forward/Brake, Forward/Reverse (Crawler Mode)
Vehicle Type	1/10 on-road and off-road; 1/10 rock crawler
Operation	Proportional forward, proportional reverse with braking delay, Crawler Mode
Battery Type/Input Voltage	2-3 cell Li-Po/Li-Fe; 5-7 cell Ni-MH/Ni-Cd
Motor Type	540-/550-size closed endbell motors: 2S Li-Po down to 12T;3S Li-Po down to 35T
BEC Output	V/3A
Overload Protection	Thermal
Dimensions	35.6mm x 34mm x 18mm (1.40 in x 1.34 in x 0.71 in)
Weigh	40 g(1.41 oz) with wires
Battery Connector	EC3TM connector
Motor Connector	3.5mm Tamiya-style Bullet

LED INDICATOR
OPERATION LED STATUS SOUND
Stop OFF
Forward partial throttle Blinks
Full Throttle Solid
Reverse Blinks
Partial Brake Blinks
Full Brake Blinks
Ni-MH/Ni-CD Battery 1 Short Beep
2S Li-Po Battery		2 Short Beeps
3S Li-Po Battery		3 Short Beeps
ESC Ready		1 Long Beep
Battery Low Voltage	Blinks
Overheat	Blinks

GEAR RATIO

Use this equation to calculate the final drive ratio. Final Drive Gear Ratio = (Spur/Pinion)x5.67

PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle does not move	Batteries are not installed properly in the transmitter	Ensure the transmitter batteries are properly installed
	Weak or no battery in the vehicle Install a freshly charged vehicle battery
	Damaged motor Replace the motor
	Frayed or broken wiring Replace any damaged wiring
	ESC is shut down by heat protection circuit Allow the ESC to cool down completely
Loss of vehicle control	Improper antenna placement	Ensure the transmitter antenna is not blocked and the receiver antenna is located properly
	Weak or no batteries in the transmitter or vehicle	Install a freshly charged vehicle battery and new transmitter batteries
	Neutral or trim position is incorrect Adjust the steering trim
	Receiver and/or battery not connected properly	Check all receiver and battery connections
Steering and/or throttle function is reversed	Servo travel is reversed at the transmitter Set the transmitter servo reversing switch to the correct position
	Motor wires are not connected properly Check all motor wires for correct polarity and secure connection

LIMITED WARRANTY

What this Warranty Covers

Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the "Product") will be free from defects in materials and workmanship for a period of 2 years from the date of purchase.

What is Not Covered

This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations or (vii) use that violates any applicable laws, rules, or regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTYES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTYES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER'S INTENDED USE.

Purchaser's Remedy

Horizon's sole obligation and purchaser's sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability

HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law

These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services

Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance,

please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.

Inspection or Services

If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship Li-Po batteries to Horizon. If you have any issue with a Li-Po battery, please contact the appropriate Horizon Product Support office.

Warranty Requirements

For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service

Should your service not be covered by warranty, service will be completed and payment will be required without notification or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notification. Service estimates are available upon request. You must include this request with your item submitted for service. Nonwarranty service estimates will be billed a minimum of 1/2 hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier's checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon's Terms and Conditions found on our website http:// www.horizonhobby.com/content/service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender's choice and at the sender's expense. Horizon will hold noncompliant Product for a period of 60 days from notification, after which it will be discarded.

10/15

WARRANTY AND SERVICE CONTACT INFORMATION

Country of Purchase Horizon Hobby Contact Information Address

United States of America	Horizon Service Center (Repairs and Repair Requests)	servicecenter.horizonhobby.com/RequestForm/	2904 Research Rd Champaign, IL 61822
	Horizon Product Support (Product Technical Assistance)	[e-mail]
		877-504-0233
	Sales	[e-mail]
		800-338-4639
European Union	Horizon Technischer Service [e-mail]		Hanskampring 9 D 22885 Barsbüttel, Germany
	Sales: Horizon Hobby GmbH [phone]

FCC INFORMATION

FCC ID: BRWKATY1T / FCC ID: BRWSRIRVINGV1

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range.

SUPPLIER'S DECLARATION OF CONFORMITY

AXI03016 - RR10 Bomber 1/10th 4WD RTR

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Horizon Hobby, LLC

2904 Research Rd.,

Champaign, IL 61822

Email: [e-mail]

Web: HorizonHobby.com

IC INFORMATION

CANICES-3(B)/NMB-3(B)

IC: 6157A-KATY1T / IC: 6157A-SRIRVINGV1

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

COMPLIANCE INFORMATION FOR THE EUROPEAN UNION

EU COMPLIANCE STATEMENT:

AXI03016 - RR10 Bomber 1/10th 4WD RTR

Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED and EMC Directives.

A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance.

OPERATING FREQUENCY: 2402.0 - 2478.0 MHZ, MAX EIRP: 17.5DBM

INSTRUCTIONS FOR DISPOSAL OF WEEE BY USERS IN THE EUROPEAN UNION

This product must not be disposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product.

E328

HINWIES

ERFORDERLICHES ZUBEHÖR

(4) AA-Alkali-Batterien 3S > LiP_o -Akuku

EMPFOHLENE WERKZEUGE

① Turn on the transmitter.

2 Connect the battery.

3 Install the battery

4 Close the battery tray and hood.

DE

BINDEN

Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance. Preventative maintenance will also help avoid needless breakages which could result in costly repairs. Below are some sugge stions to properly maintain your vehicle.

Use this equation to calculate the final drive ratio. Final Drive Gear Ratio = (Spur/Pinion)x5.67

① Turn on the transmitter.

2 Connect the battery.

3 Install the battery

4 Close the battery tray and hood.

FR

Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance. Preventative maintenance will also help avoid needless breakages which could result in costly repairs. Below are some sugge stions to properly maintain your vehicle.

INDICATIONS DES DELS

Use this equation to calculate the final drive ratio. Final Drive Gear Ratio = (Spur/Pinion)x5.67

D 22885 Barsbittel, Germany

INFORMATION IC

CANICES-3B/NMB-3(B)

IC: 6157A-KATY1T / IC: 6157A-SRIRVINGV1

① Turn on the transmitter.

2 Connect the battery.

3 Install the battery

4 Close the battery tray and hood.

IT

CONNECTION (BINDING)

Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak running performance. Preventative maintenance will also help avoid needless breakages which could result in costly repairs. Below are some sugge stions to properly maintain your vehicle.

Use this equation to calculate the final drive ratio. Final Drive Gear Ratio = (Spur/Pinion)x5.67

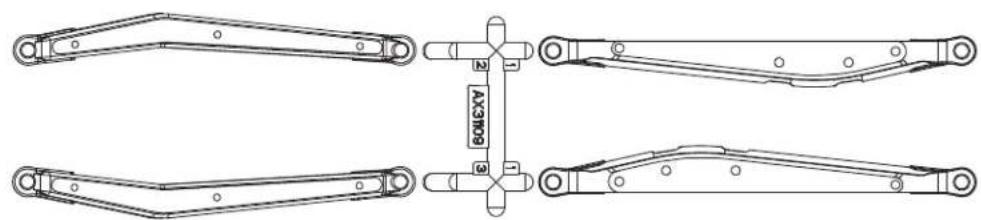

AX31109 (x1)
YetTM Rear 4 Link Set

YetiTM 4- gluedriger Gelenksatz hinten
Ensemble de 4 bras arrirée YetiTM
Set 4 braccetti YetiTM posterior
AX80083 (x1)
Wraith Links Set
Wraith-Gestangsesatz
Ensemble de bras Wraith

Set leveraggi Wraith

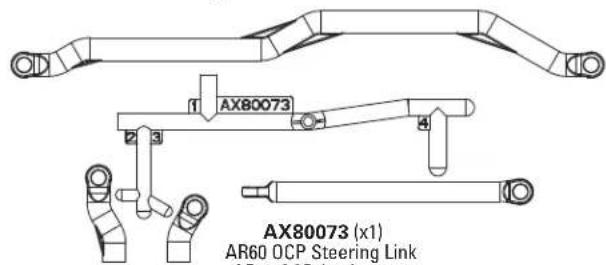

AR60 UCP-Lenkstange
Tringlerie de direction AR60 OCP
Braccetto sterzo AR60 OCP

AX80002 (x2)
Diff Case - Small
Differentialgehaue-Klein

Boitier de différentiel - Petit
Scatola diff. - Piccola
AX31107(x1)
2-Speed Hi/Lo Transmission Spur Gear Cover
2-Geschwindigkeiten Hi/Lo Getriebe Stirnadabdeckung

Cache de l'engrenage cylindrique de la transmission elevé/faible 2 vitesses
Carter ingranaggi transmissione 2 velocità alta/bassa (HI/LO)

AXI43006 (x4)
2.2 Trail Ready HD Beadlock Wheel (Satin)
2.2 Trail Ready HD Beadlock-Rad (Satin)
Roue a verrou de talon 2,2 Trail Ready HD (satinée)
Cerchione Beadlock Trail Ready HD 2.2 (Satinato)

AX80072 (x1)
Offset Axle 4 Link Mount

Achse mit viergliedrigem Gestänge und Versatz
Support d'essieu déported à 4 bras
Supporto braccetti 4-link offset assale
Offset Axle Housing
Achsgehause mit Versatz
Carter d'essieu deporté
Carcassa assale offset

AXI43007 (x4)
2.2 Raceline Monster Beadlock Wheel (Satin)
2.2 Raceline Monster Beadlock-Rad (Satin)
Roue à verrou de talon 2,2 Raceline Monster (satinée)
Cerchione Beadlock Raceline Monster 2.2 (Satinato)

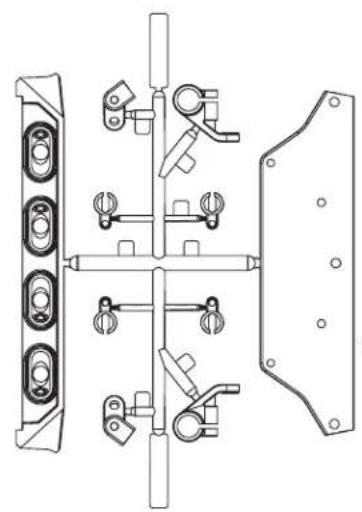

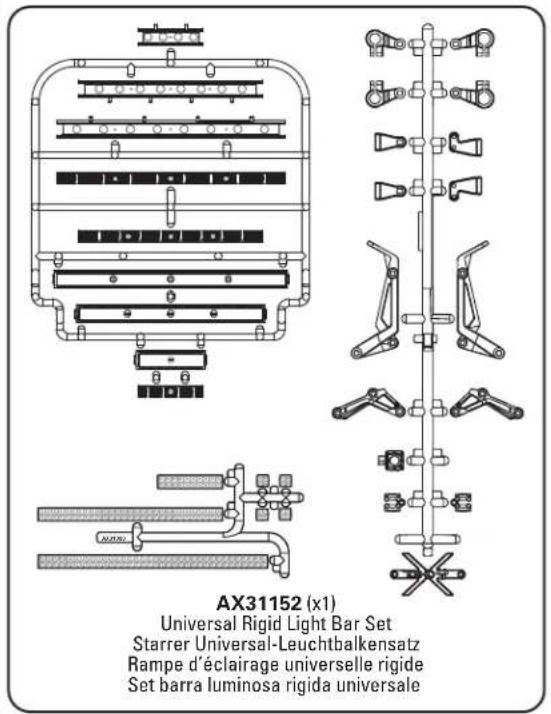

AXI230014 (x1) RR10 Rear Light Bar Mount RR10 Hintere Leuchtbalkenhalterung Support de rampe d'éclavage arriere RR10 Supporto barra luminosa posterior RR10

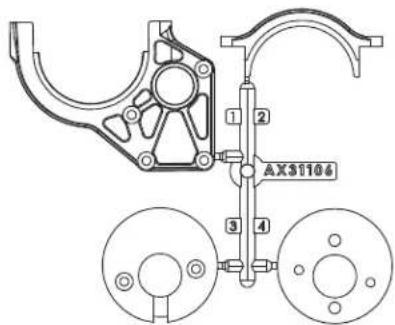

AX31106 (x1)

2-Speed Hi/Lo Transmission Motor Mount 2-Geschwindigkeiten Hi/Lo Getriebe Motorhalterung Support moteur de la transmission eleve/taible 2 vitesses Supporto motore transmissione 2 velocita alta/bassa (HI/LO)

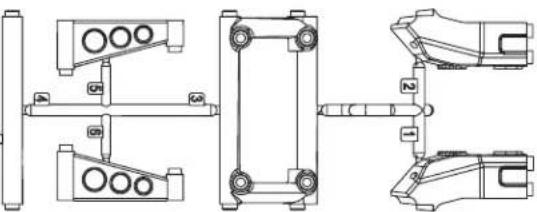

AX31320 (x1)

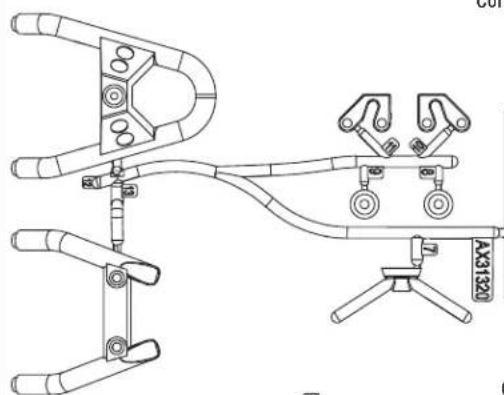

RR10 Rear Cage Components RR10 Hintere Gehäusebauteile Composants de la cage arriere RR10 Componenti custodia posteriore RR10

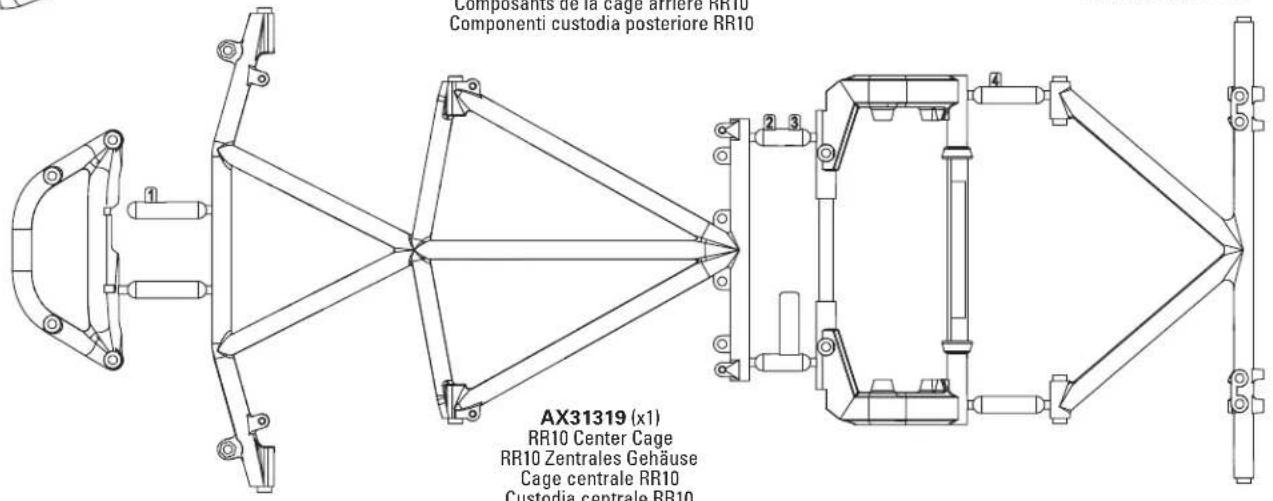

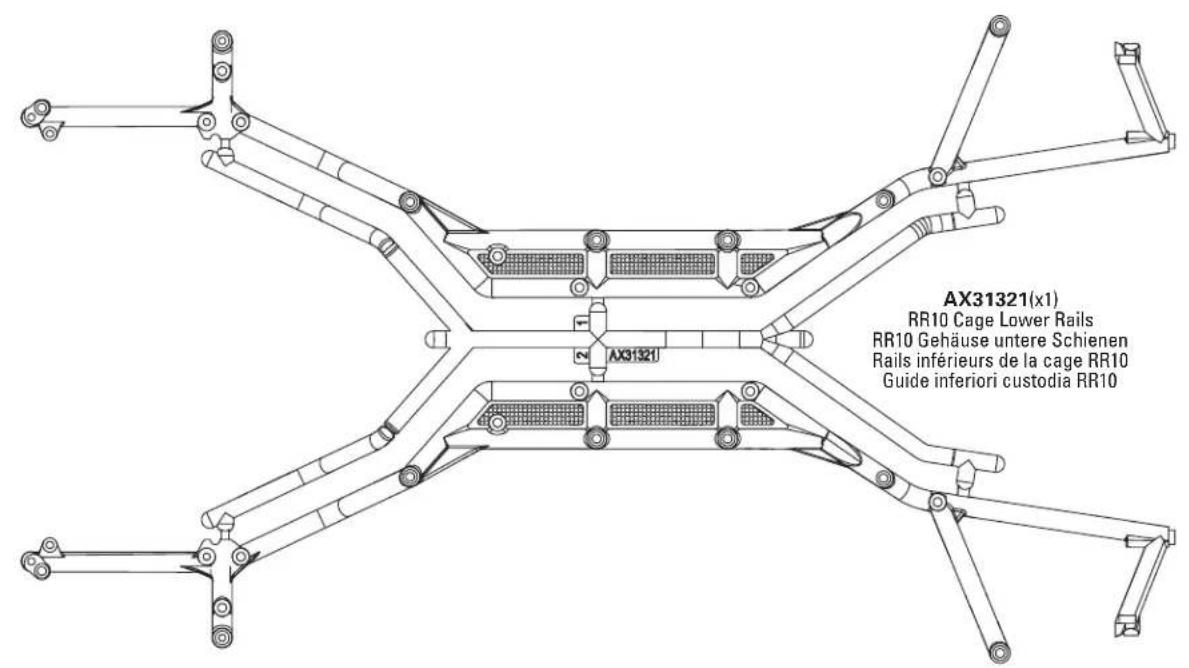

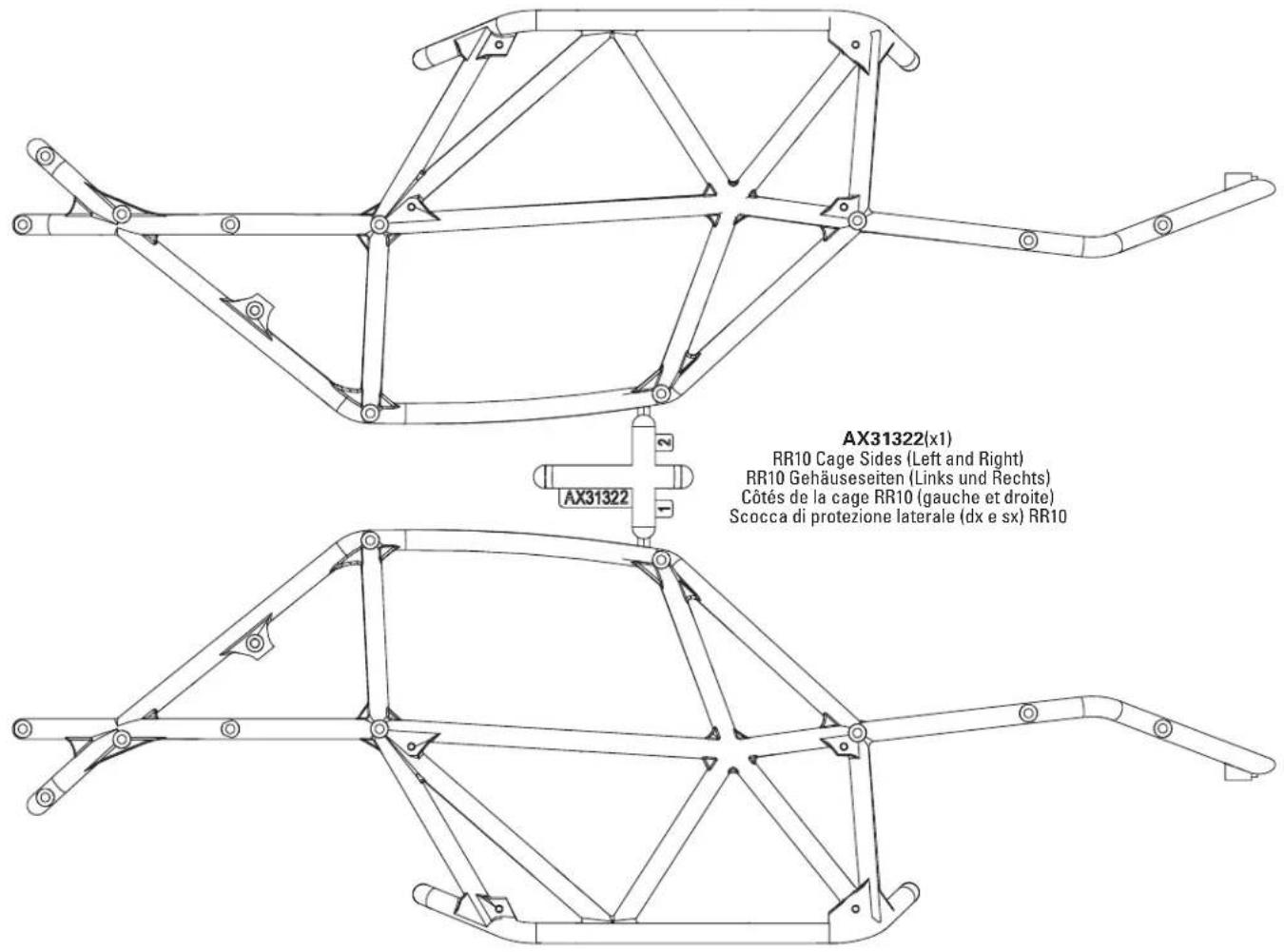

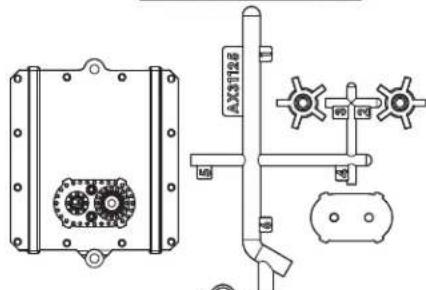

AX31125 (x1) YetiTM Fuel Cell YetiTM Treibstoffank Reservoir de carburant YetiTM Cella carburante YetiTM

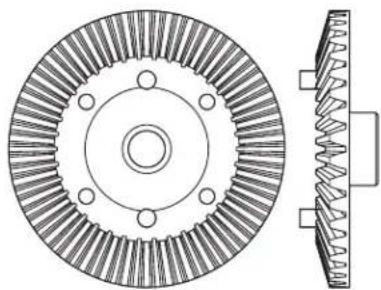

AX31148 (x4)

WB8-HD Driveshaft coupler set WB8-HD-Antriebswellenkupplungssatz Ensemble de couplage d'arbre de transmission WB8-HD Set accoppiamento albero trasmissione WB8-HD

AX30392 (x2)

Aluminum Shock Body 12x47.5mm

Aluminium Stoßdampfergehause 12 x 47,5 mmAluminum Carrosserie d'amortisseurs en aluminium 12 x 47,5 mm Corpo ammortizzatore in alluminio 12x47,5 mm

AX30500(x2)

Heavy Duty Locker

Robuste Sicherung

Bubber Bump Stop 3.6x7x4mm

Gummianschlag 3.6× 7× 4 mm

Transfer Case Output Shaft (5x69mm)

Transfergehause Antriebswelle (5× 69mm) are de sortie de la boite de transfert (5× 69mm) pero uscita scatola di trasfertoamento (5× 69mm)

AX30155 (x4)

Shock Shaft 3x59.5mm

Kolbenstange, 3× 59.5mm tras d'amortisseur, 3× 59.5mm eroa ammortizzatore, 3x59.5mm

AX31129 (x1)

2-Speed Hi/Lo Transmission Bottom Shaft (5x75mm) 2-Geschwindigkeiten Hi/Lo untere Getriebewelle (5 x 75 mm)
Bore inférieure de la transmission eleve/faible 2 vitesses (5 x 75 mm)
pero inferiore trasmissione 2 velocita alta/bassa (HI/LO) (5x75 mm)

AX31127 (x1)

2-Speed Hi/Lo Transmission Top Shaft (5x91mm) 2-Geschwindigkeiten Hi/Lo obere Getriebewelle (5 x 91 mm) Arbre supérieur de la transmission eleve/faible 2 vitesses (5 x 91 mm) Albero superiore trasmissione 2 velocita alta/bassa (HI/LO) (5x91 mm)

AX30419 (x1)

AR60 OCP Front Dogbone 7x69mm AR60 OCP Vorderes Dogbone 7x69 mm Dogbone avant AR60 OCP 7x69 mm Cardano anteriore AR60 OCP 7x69 mm

AX30419 (x1)

AR60 OCP Front Dogbone 7x125mm AR60 OCP Vorderes Dogbone 7 x 125 mm Dogbone avant AR60 OCP 7 x 125 mm Cardano anterio AR60 OCP 7x125 mm

AX30776 (x1)

AR60 OCP Rear Axle 6x104.2mm AR60 OCP Hinterachse 6 x 104,2 mm Essieu arriere AR60 OCP 6 x 104,2 mm Assale posteriore AR60 OCP 6x104,2mm

AX30776 (x1)

AR60 OCP Rear Axle 6x160.2mm AR60 OCP Hinterachse 6 x 160,2 mm Essieu arriere AR60 OCP 6 x 160,2 mm Assale postoriere AR60 OCP 6x160,2mm

AX30224 (x2) / AX31315 (Blue) (x2)

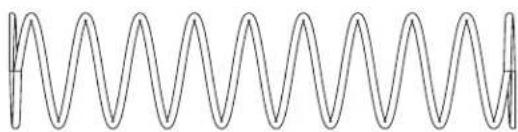

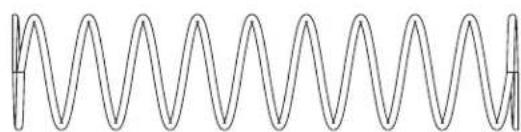

Spring 14x70mm 1.43 lbs/in Feder 14 x 70 mm 1,43 lbs/in Ressort 14 x 70 mm 1,43 lb/po Molla 14x70mm 1,43 lbs/in

AX30221 (x2) / AX31336 (Blue) (x2) Spring 14x70mm 3.27 lbs/in Feder 14 x 70 mm 3.27 lbs/in Ressort 14 x 70 mm 3.27 lb/po

Molla 14x70 mm 3,27 lbs/in
AX31067 (x1)

Slipper Plate
Gleipplatte
Plaque de sabot
Piastra patti

AX31026 (x2)

Slipper plate washer, 33 × 5 × 1.5 ~mm Gleitplattenunterlegscheibe, 33 × 5 × 1.5 ~mm Rondelle de plaque de sabot, 33 × 5 × 1.5 ~mm Rondella piatra pattino, 33 × 5 × 1.5 ~mm

AX31068(x2)

Slipper pad, 32.8 × 15.2 × 1mm Gleitkissen 32.8 × 15.2 × 1mm Sabot de piston, 32.8 × 15.2 × 1mm Piastra guida, 32.8 × 15.2 × 1mm

AX30163 (x5)
Pin 2x10mm
Stift 2 x 10 mm
Goupille 2 x 10 mm
Perno 2 x 10 mm

Stift 2 x 11 mm
Goupille 2 x 11 mm
Perno 2 x 11 mm

AXA1393 (x2)
E2.5 e-clip
E2.5 E-Clip
E-clip E2.5
E-clip E2.5

AXA1391 (x2)
E4 e-clip
E4 E-Clip
E-clip E4
E-clip E4

AXA1045 (x1) M4 Nylon Lock Nut M4 Nylon-Feststellmutter Contre-ecrou en nylon M4 Contradado nylon M4

AX31250 (x4)
M4 Serrated Nylon Lock Nut
Feststellflanschmutter (schwarz)
Contre-écrou en nylon strié (noir) M4
Controdado dentato nylon (nero) M4

AXA1041 (x4) M2.5 Nylon Lock Nut M2.5 Nylon-Feststellmutter Contre-ecrou en nylon M2.5 Controdado nylon M2.5

AXA1052 (x6)
M3 Thin Nylon Locking Hex Nut
M3 dūnne Nylon-Feststellmutter
Contre-écrou à six pans fin en nylon M3
Controdado esagonale nylon sottile M3

AXA1053 (x3)
M3 Nylon Lock Nut
M3 Nylon-Feststellmutter
Contre-écrou en nylon M3
Controdado nylon M3

AXA1070 (x1)
Washer 3 × 6 × 0.5mm Unterlegescheibe 3 × 6 × 0.5mm Rondelle 3 × 6 × 0.5mm Rondella 3 × 6 × 0.5mm

AXA1069 (x8)
Washer 2.7x6.7x0.5mm
Unterlegscheibe 2.7x6.7x0.5mm
Rondelle 2.7x6.7x0.5mm
Rondella 2.7x6.7x0.5mm

AXA1071 (x2)
Washer 4x8x0.5mm
Unterlegscheibe 4x 8 x 0,5mm
Rondelle 4x8x0.5mm
Rondella 4x 8 x 0,5mm

AXA1202 (x8)
0-Ring 3.5 × 2mm 0-Ring 3.5 × 2mm Joint torque 3.5 × 2mm 0-Ring 3.5 × 2mm

AXA1184 (x4)
0-Ring 7.5 x 1.5mm
0-Ring 7.5 x 1.5mm
Joint torque 7.5 x 1.5mm
0-Ring 7.5 x 1.5mm

AXA1221 (x20) Bearing 5x11x4mm Lager 5× 11× 4mm Roulement 5× 11× 4mm Cuscinetto 5× 11× 4mm

AXA1230 (x6) Bearing 10x15x4mm Lager 10 x 15 x 4 mm Roulement 10 x 15 x 4 mm Cuscinetto 10x15x4mm

AXA180 (x12)
M3x3mm Set Screw
M3 x 3 mm Schraubensatz
Vis de fixation M3 x 3 mm
Vite di arresto M3x3 mm

AXA291 (x1)
M4x4mm Set Screw
M4 x 4 mm Schraubensatz
Vis de fixation M4 x 4 mm
Vite di arresto M4x4 mm

Vite de fixation M3 x 16 mm
Vite de arresto M3x16 mm

AXA291 (x1)

M4x4mm Set Screw M4 x 4 mm Schraubensatz Vis de fixation M4 x 4 mm Vite di arresto M4x4 mm

M3 x 20 mm Schraubensatz Vis de fixation M3 x 20 mm Vite di arresto M3x20 mm

AXA0286 (x4)

Screw Shaft M4x2.5x12mm Gewindeschaft M4 x 2,5 x 12 mm Tige de vis M4 x 2,5 x 12 mm Albero fillettato M4 x 2,5 x 12 mm

Vis de fixation M3 x 16 mm
Vite di arresto M3x16 mm

AXA0187 (x4)

M3x20mm Set Screw M3 x 20 mm Schraubensatz Vis de fixation M3 x 20 mm Vite di arresto M3x20 mm

AXA013 (x5)
M2x6mm Hex Socket Cap Head
M2 x 6 mm Sechskant-Inbusschr
Douille a six pans d'assemblage e
Vite testa cilindrica con esagono

AXA015{x16}

M2x10mm Hex Socket Cap Head

M3x25mm Hex Socket Flat Head

M3x30mm Hex Socket Button Head

©2020 Horizon Hobby, LLC. Axial, the Axial logo, RR10, DX3, DSM, IC3, EC3, the Smart Technology logo, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Bomber Fabrication and associated logos and designs are property of Randy Slawson, used under license. BFGoodrich® Tires and Baja T/A® KR3 Trademarks are used under License from Michelin. Savvy, King, Odyssey, Raceline, Baja Designs, Falken, PSC, Sleinjager, Fox, and associated logos are property of their respective owners and are used under license. All other trademarks, service marks and logos are property of their respective owners.

EXPLOR

facebook.com/axialinc | instagram.com/axialracing | twitter.com/axialrc

youtube.com/axialvideos | flickr.com/axialrc
