Important Safety Information and Warnings

1. Safety Information and Warnings

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.

When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.

1.1. Instructions

Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

DO NOT connect your loudspeaker terminals to the mains supply.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.

Only use attachments/accessories specified by the manufacturer.

Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Unpacking your loudspeakers

Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.

When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.

Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.

Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.

3. Installation

• Only use the accessories supplied with the product.
• To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
• Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
• If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage.
• DO NOT dismantle the loudspeaker. You will invalidate the warranty.
• Do not connect your loudspeaker terminals to the mains supply.
• Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
• The use of this apparatus is indicated for tropical and/or moderate climates.

3.1. Moisture

• To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
• Do not use this apparatus near water.

3.2. Servicing

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4.0. Symbols used on this product Hazard Warning Symbol

The ‘exclamation mark’ calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Waste Electrical and Electronic Equipment Symbol

This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.

Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.

Introduction

Thank you for purchasing Q Acoustics.

This manual is intended to take you through setup and installation and will help provide optimum performance from the product.

Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.

The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.

The range comprises:

3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.
3050i: Floorstander with 2 x 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200 mm (8.0 inches) driver.
3090Ci: Centre channel with 2 x 100 mm (4.0 inches) bass drivers.

In the carton you will find: The loudspeaker/s and this product manual.

In addition the packing for the following models contains:

3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.

3060S: A mains power cord or cords, spikes and spike covers.

Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.

We hope you enjoy the Q Acoustics experience.

Preparation

Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.

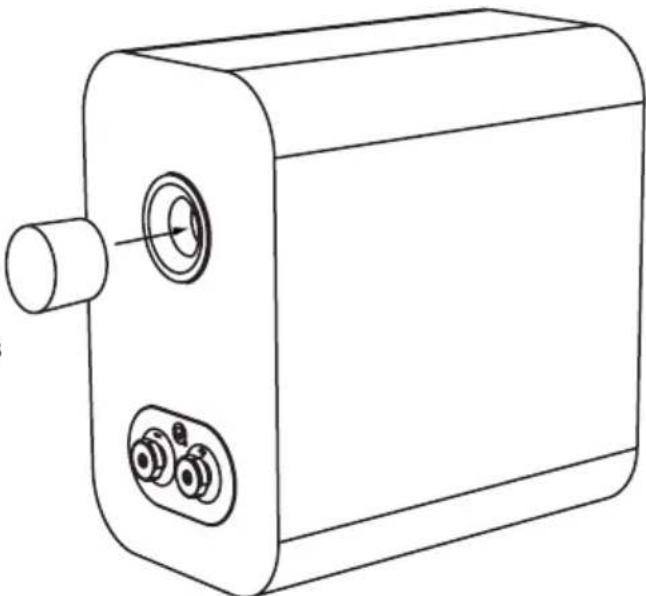

Foam Bung

The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.

Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Spikes are sharp. Exercise care! Never place a spiked loudspeaker where it can cause damage! Always move your loudspeakers by lifting them - never drag them!

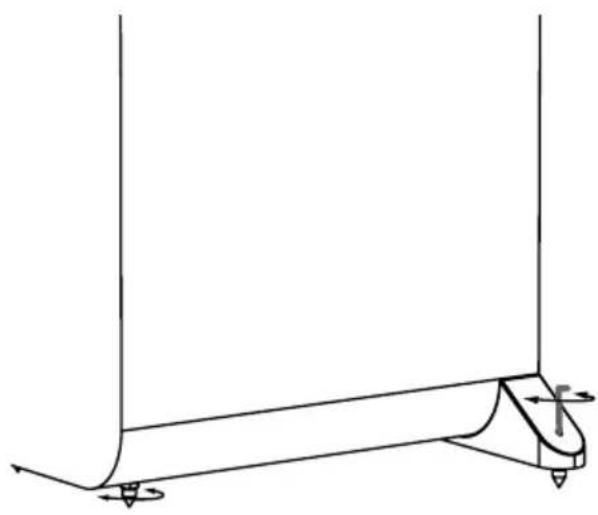

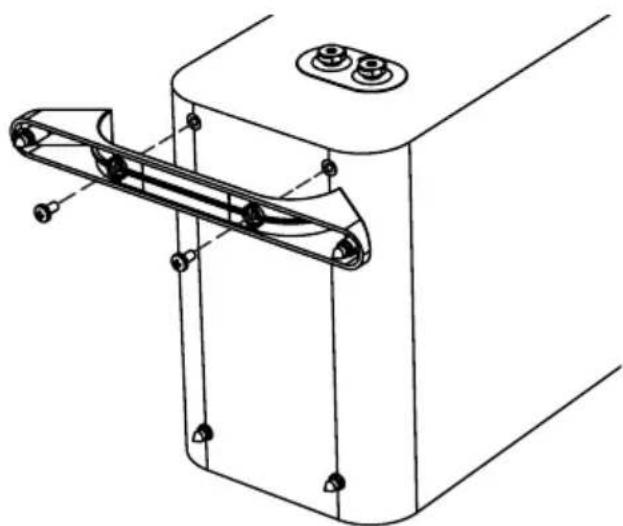

3050i - Attach the rear stabiliser

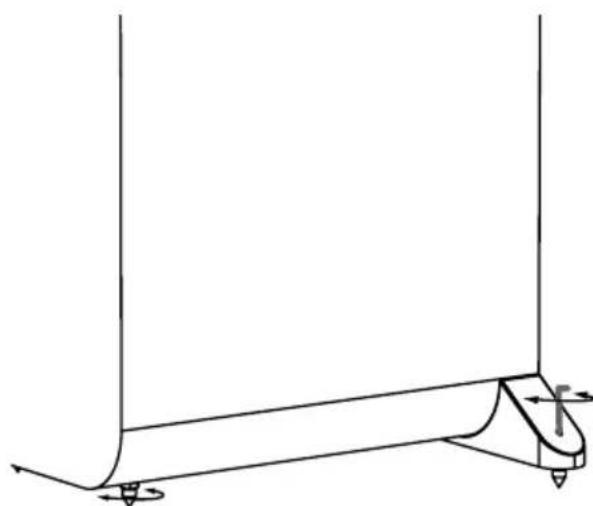

Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Use screws provided to secure feet as shown.

Positioning

All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.

3010i and 3020i

The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.

An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.

3050i

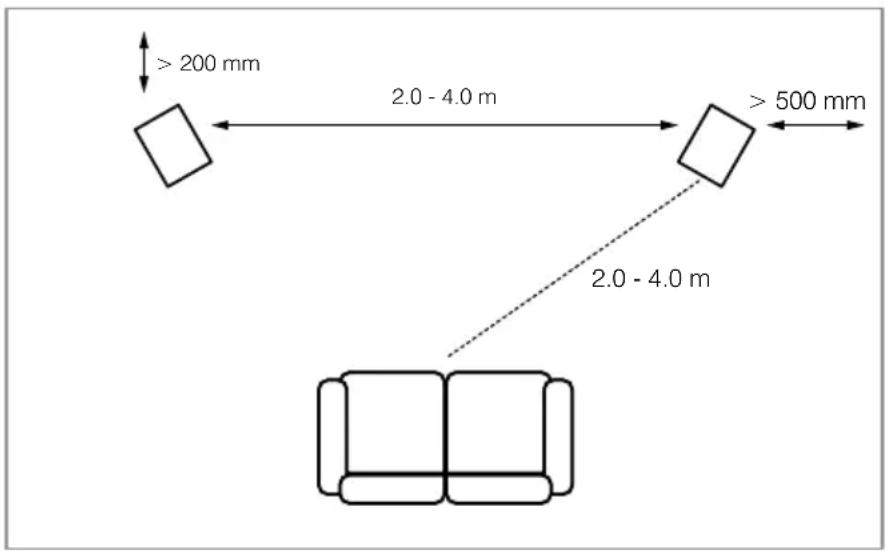

The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.

>200 mm 2.0 - 4.0 m >500 mm 2.0 - 4.0 m

Subwoofer

Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.

Effects loudspeakers

3090Ci

The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.

Dolby and the double-D symbol are trade marks of Dolby Laboratories.

Surround Speakers

There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.

For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.

400 mm

Connections

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

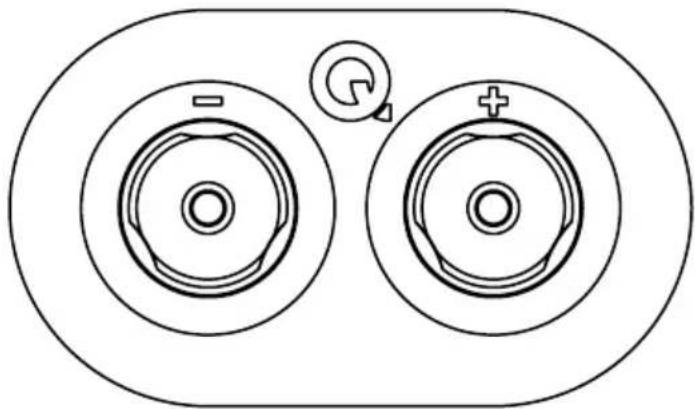

Terminals and Connectors

The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i & 3050i & 3090Ci

Loudspeaker Cables

Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose ‘bell’ or ‘zip’ wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.

Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.

Preparing Cables

Split the cable to a depth of about 40 mm. Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.

7 mm 30 mm

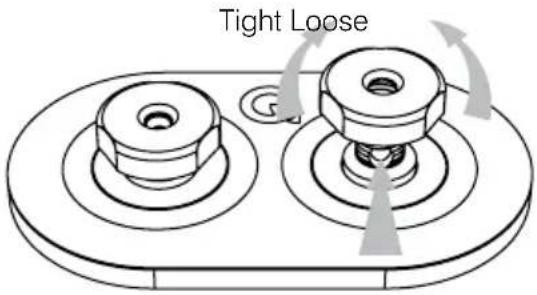

Connecting a Terminal

Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.

Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.

Tight Loose

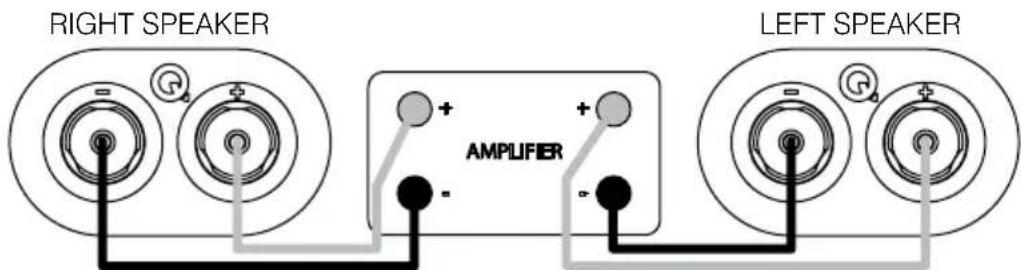

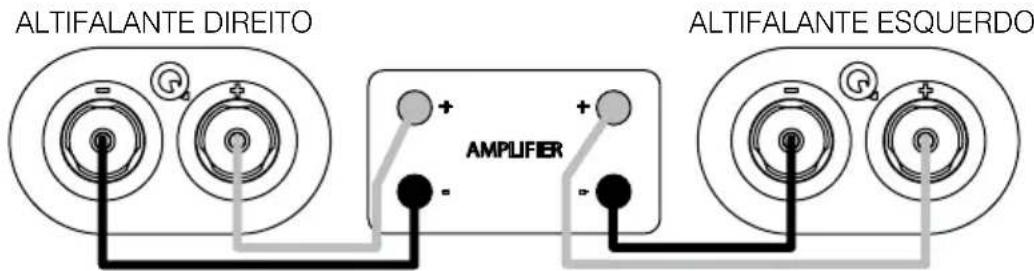

Stereo Connections

Standard Connections

Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (−) terminal of the loudspeaker to the matching BLACK, Negative (−) terminal of the amplifier. Repeat this procedure for the LEFT channel.

Standard Wiring:

RIGHT SPEAKER AMPLIFIER LEFT SPEAKER

Aftercare

Cabinet Care

Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.

The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.

Grilles

Grilles should only be cleaned using a soft brush when necessary.

If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.

Drive Units

Do not touch the drive units as they are easily damaged when exposed.

Warranty

Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.

Misuse and fair wear and tear are not covered by warranty.

Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.

Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.

For service information contact: [e-mail]

Q Acoustics

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Accessories

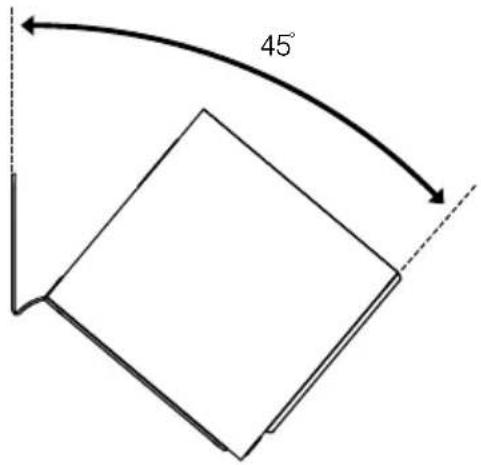

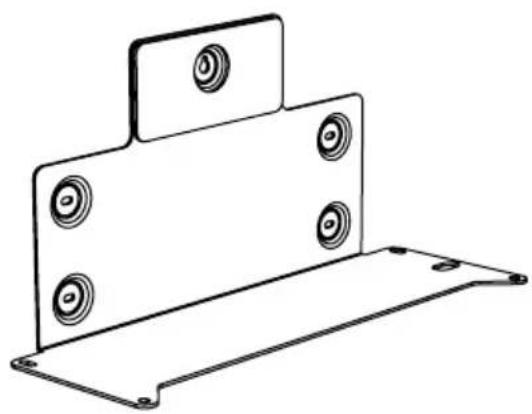

Wall Bracket (Single)

3010i / 3020i / 3090Ci

Black and White

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Dimensions (WxHxD): 70 x 159 x 99 mm

45°

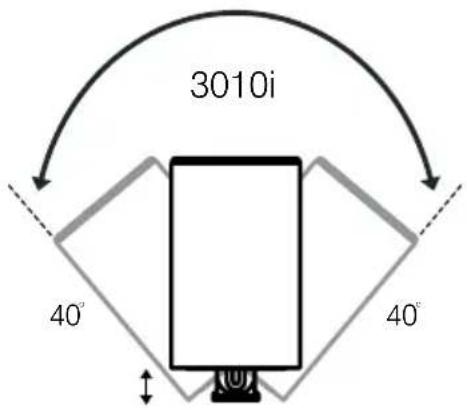

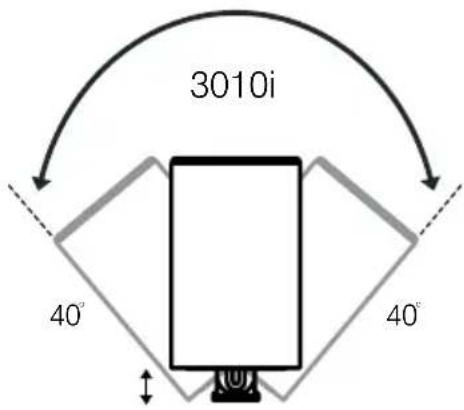

3010i 40° 40°

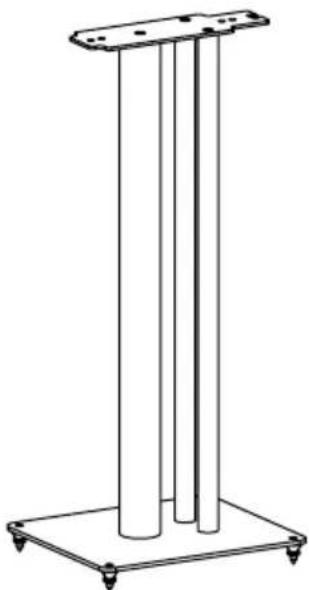

Speaker Stand (Pair)

3010i / 3020i

Black and White

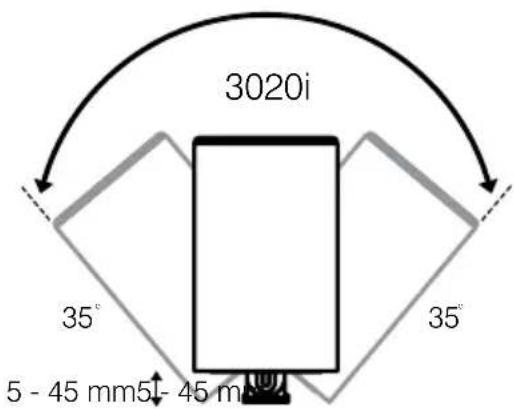

3020i 35° 35° 5 - 45 mm5t - 45 m

Subwoofer Wall Bracket

3060S

Black

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm

Passive Loudspeakers

Enclosure type:

Bass unit:

Treble unit:

Frequency response (+3 dB, -6 dB):

Average impedance:

Minimum impedance:

Sensitivity (2.83v@1m):

Stereo amplifier power:

AV receiver power (2 ch. driven):

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

(inc. grille, terminal and feet)

Enclosure width:

Weight (per speaker):

3010i

2-way reflex

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6 Ω

4 Ω

86 dB

15 - 75 W

50 - 125 W

2.6 kHz

4.0 L (244 cu in)

150 x 253 x 252 mm

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-way reflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

Active Subwoofer

Enclosure type:

Bass unit:

Amplifier power:

Frequency response (+3 dB, -6 dB):

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

Weight:

3060S

Infinite baffle

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inc. spikes

8.5 kg (18.7 lbs)

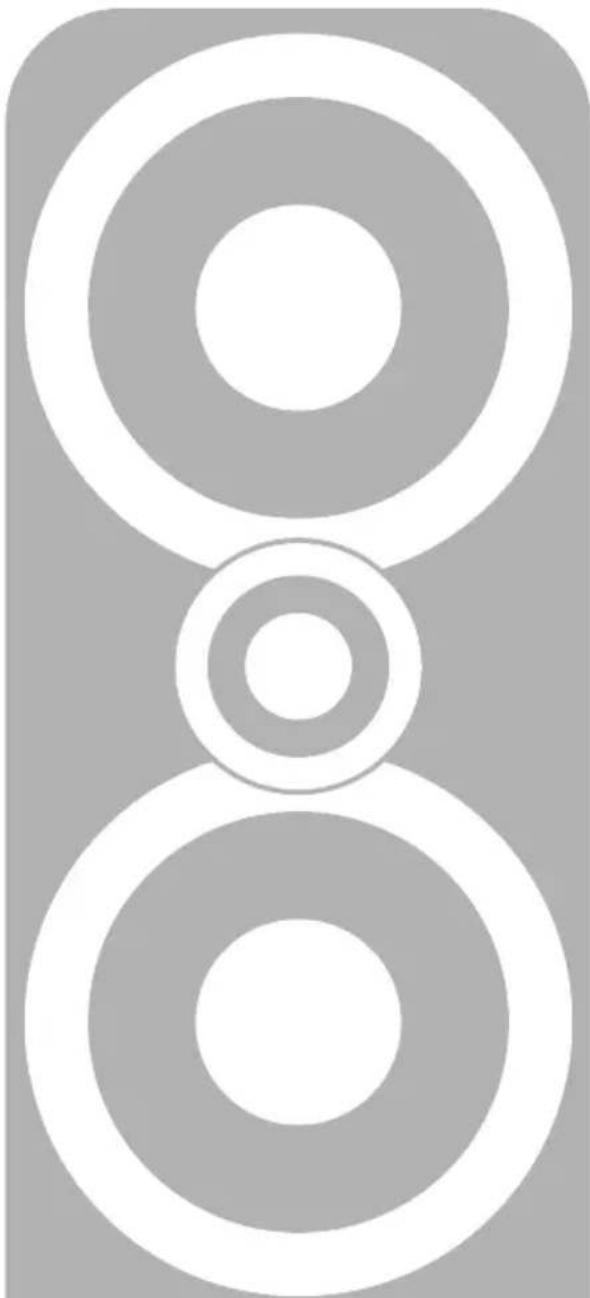

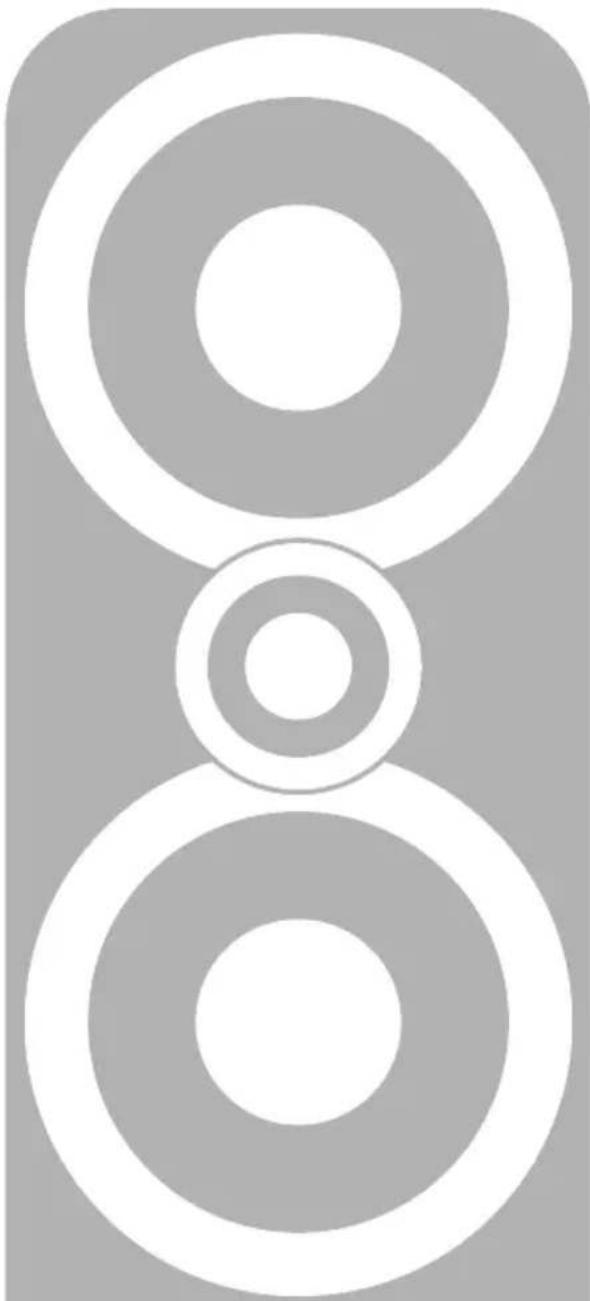

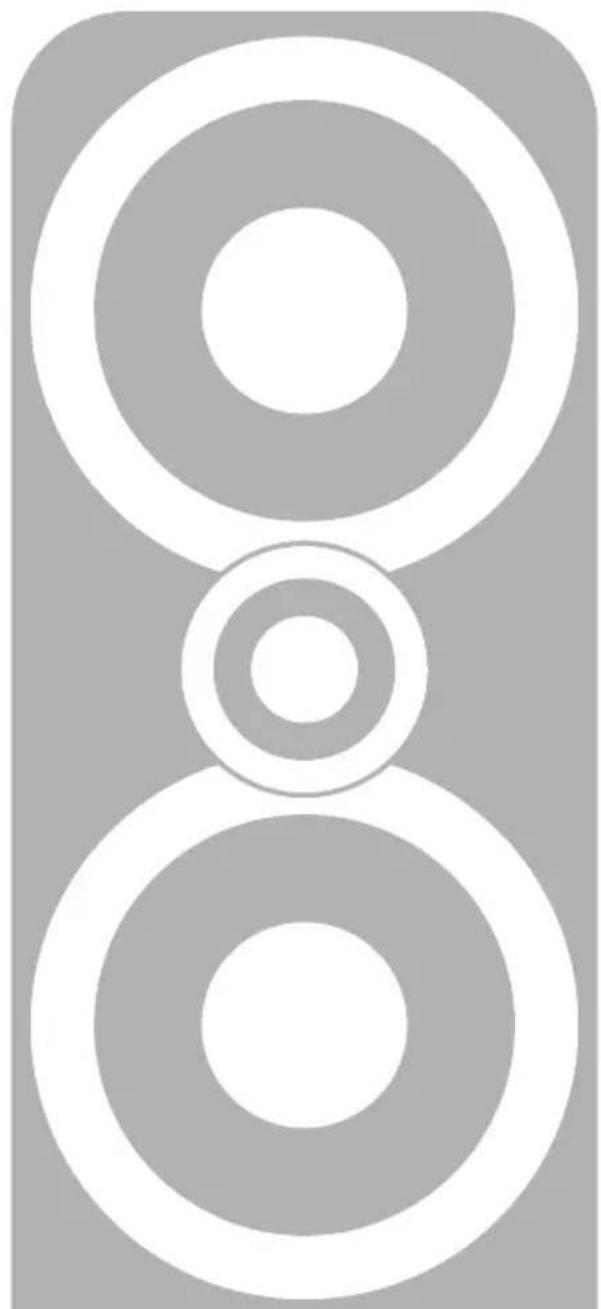

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

2-way reflex

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310 mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-way reflex

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

Abstract geometric pattern of concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i, 3050i y 3090Ci

Cables de altavoz

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Reino Unido

CM23 5GZ

Accesorios

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Dimensiones (A×A×P): 70 x 159 x 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Dimensiones (A×A×P): 250 x 682 x 290 mm Dimensiones (A×A×P): 422 x 222 x 163 mm

Altavoces pasivos

Tipo de caja:

Unidad de graves:

Unidad de agudos:

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflejo de 2 vías

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present

Subwoofer activo:

Tipo de caja:

Unidad de graves:

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

Reflejo de 2 vías

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Reflejo de 2 vías

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

Abstract geometric pattern of concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a belt mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i & 3050i et 3090Ci

Câbles d'enceinte

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Support mural (simple)

3010i / 3020i / 3090Ci

Noir et blanc

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Dimensions (L×H×P): 70 × 159 × 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Dimensions (L×H×P): 250 × 682 × 290 mm Dimensions (L×H×P): 422 × 222 × 163 mm

Enceintes passives

Type de caisson:

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex 2 voies

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

Reflex 2 voies

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Reflex 2 voies

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430×152×216mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' (no text or symbols)

ACOUSTICS

Serie 3000i

MANUALE UTENTE

Abstract geometric pattern of concentric circles in grayscale (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a belt mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i e 3050i e 3090Ci

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Regno Unito

CM23 5GZ

Accessori

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Dimensioni (L×A×P): 70 x 159 x 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Dimensioni (L×A×P): 250 x 682 x 290 mm Dimensioni (L×A×P): 422 x 222 x 163 mm

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex a 2 vie

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

Subwoofer attivo

Tipo involucro:

Unità bassi (mm):

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

Reflex a 2 vie

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Reflex a 2 vie

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' (no text or symbols)

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' (no text or symbols)

ACOUSTICS

Abstract geometric pattern with concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a belt mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i, 3050i en 3090Ci

Luidsprekerkabels

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, GB

CM23 5GZ

Accessoires

Wandbeugel (1 stuk)

3010i / 3020i / 3090Ci

Zwart en wit

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Afmetingen (B×H×D): 70 x 159 x 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Afmetingen (B×H×D): 250 x 682 x 290 mm Afmetingen (B×H×D): 422 x 222 x 163 mm

Specifications

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-wegsreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170×278×282mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle and two corner markers (no text or symbols)

Actieve subwoofer

Behuizingstype:

Baseenheid:

Versterkervermogen:

Frequentierespons (+3 dB, -6 dB):

Crossover-frequentie:

Effectief volume:

Gray vertical tower with three speakers (no text or symbols visible)

3050i

2-wegsreflex

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310 x 1020 x 310 mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-wegsreflex

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' (no text or symbols)

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' (no text or symbols)

ACOUSTICS

Abstract geometric pattern of concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i i 3050i i 3090Ci

Kable głośnikowe

Technical line drawing of a mechanical component with two washers and a central hub (no text or symbols)

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Wielka Brytania

CM23 5GZ

Akcesoria

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

45°

3020i 35° 35° 5 - 45 mm5l - 45 m

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' (no text or symbols)

ACOUSTICS

Abstract geometric pattern of concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a belt mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i, 3050i e 3090Ci

Cabos de altifalantes

Technical line drawing of a mechanical component with two washers and a central hub (no text or symbols)

Cablagem padrão:

ALTIFALANTE DIREITO AMPLIFIER ALTIFALANTE ESQUERDO

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Acessórios

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

3010i 40° 40°

Suporte de altifalante (par)

3010i / 3020i

Preto e branco

3020i 35° 35° 5 - 45 mm5t - 45 m

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflexo de 2 vias

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

Subwoofer ativo

Tipo de alojamento:

Unidade de graves:

Gray vertical tower with three speakers (no text or symbols visible)

3050i

Reflexo de 2 vias

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310 × 1020 × 310 mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Reflexo de 2 vias

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

EN ENGLISH 01

DE GERMAN 19

ES ESPAÑOL 37

FR FRENCH 55

IT ITALIAN 73

NL DUTCH 91

PL POLISH 109

PT PORTUGUESE 127

RU RUSSIAN 145

SV SWEDISH 16

ZH CHINESE 181

Abstract geometric pattern with concentric circles and a vertical bar (no text or symbols)

Important Safety Information and Warnings

1. Safety Information and Warnings

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains.

When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

NEVER play your sound system at full volume. The position of the volume control is deceptive and does not indicate the power level of the system. Using very high volume settings may damage your hearing.

1.1. Instructions

Read and understand these instructions before you use your loudspeakers. If damage is caused by failure to follow these instructions, the warranty will not apply. Please keep these instructions in a safe place.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

DO NOT connect your loudspeaker terminals to the mains supply.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers that produce heat.

Only use attachments/accessories specified by the manufacturer.

Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Unpacking your loudspeakers

Unpack the speakers fully. Lift the speakers from the cartons by holding the cabinets. Do not use the protective bags to lift them.

When manoeuvring loudspeakers, do not drag them across the floor as this may cause damage - lift each speaker before moving it.

Check the loudspeaker carefully. If any items are damaged or missing, report this to your retailer as soon as possible.

Retain the packaging for future transport. If you dispose of the packaging, please do so following all recycling regulations in your area.

3. Installation

• Only use the accessories supplied with the product.
• To prevent injury, this apparatus must be securely mounted onto the floor in accordance with the installation instructions.
• Do not use makeshift stands. Fit the Q Acoustics dedicated stand according to the instructions and using any fixings provided. Your dealer will advise you.
• If you play your loudspeakers without their grilles fitted, be careful to protect the drive units from damage.
• DO NOT dismantle the loudspeaker. You will invalidate the warranty.
• Do not connect your loudspeaker terminals to the mains supply.
• Do not expose your loudspeakers to excessive cold, heat, humidity or sunlight.
• The use of this apparatus is indicated for tropical and/or moderate climates.

3.1. Moisture

• To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain, moisture, dripping or splashing.
• Do not use this apparatus near water.

3.2. Servicing

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4.0. Symbols used on this product Hazard Warning Symbol

The ‘exclamation mark’ calls attention to features for which you should read this manual closely to prevent operation and maintenance problems.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Waste Electrical and Electronic Equipment Symbol

This symbol indicates that when the unit is to be discarded, it must be separated from other household-type waste and sent to separate collection facilities for recovery and recycling of electrical and electronic equipment.

Please make sure you are familiar with your local rules on the separate collection of electrical and electronic products.

Introduction

Thank you for purchasing Q Acoustics.

This manual is intended to take you through setup and installation and will help provide optimum performance from the product.

Please read the instructions, important safety information and warnings carefully before installation and use, to ensure the safe and satisfactory operation of this product.

The Q Acoustics 3000i series is a range of loudspeakers designed to meet the highest expectations of dedicated 2-channel audiophiles and discerning movie enthusiasts.

The range comprises:

3010i: Compact bookshelf speaker with a 100 mm (4.0 inches) bass driver.
3020i: Bookshelf speaker with a 125 mm (5.0 inches) bass driver.
3050i: Floorstander with 2 x 165 mm (6.5 inches) bass drivers.
3060S: 150 Watt active subwoofer with a 200 mm (8.0 inches) driver.
3090Ci: Centre channel with 2 x 100 mm (4.0 inches) bass drivers.

In the carton you will find: The loudspeaker/s and this product manual.

In addition the packing for the following models contains:

3050i: Rear stabiliser, spikes and spike covers for each speaker. An Allen key to adjust the spikes once fitted.

3060S: A mains power cord or cords, spikes and spike covers.

Check the product carefully. If any items are damaged or missing, report this to your dealer as soon as possible.

We hope you enjoy the Q Acoustics experience.

Preparation

Lift the speakers from the cartons by holding the cabinets. Do not touch the driver units or use the protective bags to lift them. The 3050i and 3060S are heavy - get assistance to lift them if necessary.

Foam Bung

The 3000i series speakers are rear ported and designed to work best with some space behind them i.e. 200mm or so away from a wall. If you position your speakers close to a wall / corner then the foam bungs should be inserted into the rear ports or there could be too much bass.

Ensure the bungs are fitted snugly into the port without inserting them too far. You will find the level of bass is reduced but definition and bass extension is increased. Experiment to see what you prefer and try making small changes to the position of the speaker to optimise the final result.

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Spikes are sharp. Exercise care! Never place a spiked loudspeaker where it can cause damage! Always move your loudspeakers by lifting them - never drag them!

3050i - Attach the rear stabiliser

Thread the spikes fitted with locking nuts half way into the base and return the loudspeaker to the upright position. (If you have a wood or stone floor push a spike protector over each spike before turning the speaker upright) When the speaker is the right way up, insert the Allen key into each rear spike from the top and adjust all the spikes in and out until the loudspeaker is level and stable.

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Use screws provided to secure feet as shown.

Positioning

All the loudspeakers may be operated close to TV monitors with no ill-effects with the exception of the 3060S which should not be operated within 500mm of TV screens monitors or other magnetically sensitive equipment. Plasma and LCD screens are unaffected.

3010i and 3020i

The 3010i and 3020i are ideally mounted on Q Acoustics floor stands or wall mounted. If you are stand mounting, a simple guide is that the treble unit should be at ear level to a seated listener. Wall mounted speakers may be mounted slighter higher with the speaker angled down. Stand mounted speakers should be treated as floorstanding speakers except that the speaker may be placed a little closer to the back wall. Shelf mounting is also possible.

An optional bracket designed specifically to wall mount the Q Acoustics 3010i, 3020i and 3090Ci is available from your dealer. Floor stands for the 3010i and 3020i are also available. Be prepared to experiment to find the best setup for your taste in your particular listening room.

3050i

The 3050i loudspeakers should be positioned at least 200mm from a back wall and 500mm from the side walls. Placing the speakers closer to the wall will increase bass but could cause the sound to boom and lack precision and detail. The speakers should be 2m - 4m apart and central to the seated listener. Turning the speakers slightly inwards will sharpen a stereo image but may cause narrowing of the sound source.

>200 mm 2.0 - 4.0 m >500 mm 2.0 - 4.0 m

Subwoofer

Bass frequencies are substantially omni directional. Although this means that you can position the subwoofer almost anywhere, the stereo image will still benefit by positioning the subwoofer level with the front loudspeakers and as central to the listening position as possible. This may not be feasible in a multichannel system. If you place the subwoofer close to a wall the bass will be re-enforced therefore in some locations the bass may be boomy and indistinct.

Effects loudspeakers

3090Ci

The 3090Ci is designed to be operated close to a TV screen and central to it. It should be placed immediately above or below the screen. If you have a Plasma or LCD monitor, mount the 3090Ci to the wall or other suitable surface immediately above or below the screen using the Q Acoustics Wall Bracket. If not, consider placing the TV on a cabinet with the 3090Ci on a secure shelf immediately below the TV.

Dolby and the double-D symbol are trade marks of Dolby Laboratories.

Surround Speakers

There are recommendations from Dolby labs for 5.1 effects speakers. Surround speakers should be mounted on either side of the listener, slightly behind the listening position. The speakers should be sited facing inward either mounted on the side walls of the room or if the room is large, on high stands and with their centres above ear level to a seated listener.

For overhead speakers used in multi-channel installations we recommend the Q Acoustics Install range.

400 mm

Connections

Before making any connections to your loudspeakers make sure that all active units in your system are switched off at the mains. When switching on your sound system or changing input sources, set the main volume control at a low level. Turn up the level gradually.

Terminals and Connectors

The 3010i, 3020i, 3050i and 3090Ci have standard two terminal crossovers.

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i & 3050i & 3090Ci

Loudspeaker Cables

Specialist loudspeaker cables will offer a higher standard of reproduction than general purpose ‘bell’ or ‘zip’ wire. Use cable with generous amounts of copper for the front and centre channels. Thin cables reduce the bass and restrict the dynamic range. Surround (rear) channels are less critical.

Speaker cable has a stripe or tracer along one core. By convention this is connected to the positive terminals. The cables connecting the amplifier to the front loudspeakers should ideally be the same length. Never join cables - use complete lengths.

Preparing Cables

Split the cable to a depth of about 40 mm. Bare the wire to a depth of 10mm and twist the ends to gather any stray wires. Crop the cable leaving 7mm of bare wire exposed.

7 mm 30 mm

Connecting a Terminal

Unscrew the terminal anticlockwise to expose the mounting hole in the base of the terminal column.

Insert the bare end of the cable into the hole. Retighten the terminal fully hand tight. Make sure there are no stray wires which could touch adjacent terminals. In the EU it is against safety regulations to use 4mm loudspeaker plugs.

Tight Loose

Stereo Connections

Standard Connections

Connect the RED (+) terminal of the RIGHT loudspeaker to the RED, Positive (+) terminal on the RIGHT channel of the amplifier. Connect the BLACK (−) terminal of the loudspeaker to the matching BLACK, Negative (−) terminal of the amplifier. Repeat this procedure for the LEFT channel.

Standard Wiring:

RIGHT SPEAKER AMPLIFIER LEFT SPEAKER

Aftercare

Cabinet Care

Clean cabinets only with a lightly dampened cloth. Do not use solvent based cleaning materials. Never use abrasives of any kind.

The cabinet surfaces will usually only require light dusting. Should an aerosol or other cleaner be used, apply the cleaner onto the cloth first and not directly onto the product. Test a small area first, as some cleaning products may damage the finish. Avoid products that are abrasive, or contain acid or alkaline agents. Do not use any cleaning materials on the drive units and avoid touching them as damage may result.

Grilles

Grilles should only be cleaned using a soft brush when necessary.

If using the Q Acoustics speaker with the grilles removed, remember to replace them if pets or children are present.

Drive Units

Do not touch the drive units as they are easily damaged when exposed.

Warranty

Q Acoustics passive loudspeaker products are warranted free of defects in materials and workmanship for a period of 4 years (1 year for subwoofer) from the date of purchase. During the warranty period Q Acoustics will, at its option, repair or replace any product found to be faulty after inspection by the company or its appointed distributor or agent.

Misuse and fair wear and tear are not covered by warranty.

Goods for repair should in the first instance be returned to the supplying dealer. If this is not possible contact Q Acoustics or their appointed distributor for your area to determine the correct warranty procedure. If possible the original packaging should be used to return the product as damage sustained during transit to the repair centre is not covered by the warranty. The warranty does not in any way affect your legal rights.

Warranty can be extended to 5 years (2 years for subwoofer) by registering your product at www.qacoustics.co.uk/register.

For service information contact: [e-mail]

Q Acoustics

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Accessories

Wall Bracket (Single)

3010i / 3020i / 3090Ci

Black and White

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Dimensions (WxHxD): 70 x 159 x 99 mm

45°

3010i 40° 40°

Speaker Stand (Pair)

3010i / 3020i

Black and White

3020i 35° 35° 5 - 45 mm5t - 45 m

Subwoofer Wall Bracket

3060S

Black

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Dimensions (WxHxD): 250 x 682 x 290 mm Dimensions (WxHxD): 422 x 222 x 163 mm

Passive Loudspeakers

Enclosure type:

Bass unit:

Treble unit:

Frequency response (+3 dB, -6 dB):

Average impedance:

Minimum impedance:

Sensitivity (2.83v@1m):

Stereo amplifier power:

AV receiver power (2 ch. driven):

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

(inc. grille, terminal and feet)

Enclosure width:

Weight (per speaker):

3010i

2-way reflex

100 mm (4.0 in)

22 mm (0.9 in)

65 Hz - 30 kHz

6 Ω

4 Ω

86 dB

15 - 75 W

50 - 125 W

2.6 kHz

4.0 L (244 cu in)

150 x 253 x 252 mm

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-way reflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present

Active Subwoofer

Enclosure type:

Bass unit:

Amplifier power:

Frequency response (+3 dB, -6 dB):

Crossover frequency:

Effective volume:

Enclosure dimensions (WxHxD):

Weight:

3060S

Infinite baffle

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 × 300 × 150 mm (18.9 × 11.8 × 5.9 in)

324 mm (12.7 in) inc. spikes

8.5 kg (18.7 lbs)

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

2-way reflex

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-way reflex

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

EN ENGLISH 01

DE DEUTSCH 19

ES ESPAÑOL 37

FR FRENCH 55

IT ITALIAN 73

NL DUTCH 91

PL POLISH 109

PT PORTUGUESE 127

RU RUSSIAN 145

SV SWEDISH 16

ZH CHINESE 181

Abstract geometric pattern with concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

fest lose

Stereoanschlüsse

Standardanschlüsse

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Zubehör

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present

Aktiv-Subwoofer

Gehäusetyp:

Tieftöner:

Verstärkerleistung:

Frequenzgang (+3 dB, -6 dB):

Übergangsfrequenz:

Effektives Volumen:

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

EN ENGLISH 01

DE GERMAN 19

ES ESPAÑOL 37

FR FRENCH 55

IT ITALIAN 73

NL DUTCH 91

PL POLISH 109

PT PORTUGUESE 127

RU RUSSIAN 145

SV SWEDISH 16

ZH CHINESE 181

Abstract geometric pattern with concentric circles and a vertical bar (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i, 3050i y 3090Ci

Cables de altavoz

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Reino Unido

CM23 5GZ

Accesorios

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Dimensiones (A×A×P): 70 x 159 x 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Dimensiones (A×A×P): 250 x 682 x 290 mm Dimensiones (A×A×P): 422 x 222 x 163 mm

Altavoces pasivos

Tipo de caja:

Unidad de graves:

Unidad de agudos:

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflejo de 2 vías

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

Subwoofer activo:

Tipo de caja:

Unidad de graves:

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

Reflejo de 2 vías

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Reflejo de 2 vías

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

FR FRANÇAIS
DE ALLEMAND
ES ESPAGNOL
FR FRANÇAIS 5
IT ITALIEN 73
NL NÉERLANDAIS 91
PL POLONAIS
PT PORTUGAIS 127
RU RUSSE 145
SV SUÉDOIS 163
ZH CHINOIS 181

Abstract geometric pattern with concentric circles and a vertical bar (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a central shaft (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i & 3050i et 3090Ci

Câbles d'enceinte

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Support mural (simple)

3010i / 3020i / 3090Ci

Noir et blanc

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Dimensions (L×H×P): 70 × 159 × 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Dimensions (L×H×P): 250 × 682 × 290 mm Dimensions (L×H×P): 422 × 222 × 163 mm

Enceintes passives

Type de caisson:

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex 2 voies

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

Reflex 2 voies

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Reflex 2 voies

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430×152×216mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

Serie 3000i

MANUALE UTENTE

EN ENGLISH 01

DE GERMAN 19

ES ESPAÑOL 37

FR FRENCH 55

IT ITALIANO 73

NL DUTCH 91

PL POLISH 109

PT PORTUGUESE 127

RU RUSSIAN 145

SV SWEDISH 163

ZH CHINESE 181

Abstract geometric pattern with concentric circles and a vertical bar (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i e 3050i e 3090Ci

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Regno Unito

CM23 5GZ

Accessori

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Dimensioni (L×A×P): 70 x 159 x 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Dimensioni (L×A×P): 250 x 682 x 290 mm Dimensioni (L×A×P): 422 x 222 x 163 mm

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflex a 2 vie

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

Subwoofer attivo

Tipo involucro:

Unità bassi (mm):

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

Reflex a 2 vie

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Reflex a 2 vie

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

EN ENGLISH 01

DE DUITS 19

ES SPAANS 37

FR FRANS 55

IT ITALIAANS

NL NEDERLANDS 91

PL POOLS 109

PT PORTUGEES

RU RUSSISCH 1

SV ZWEEDS 163

ZH CHINEES 181

Abstract geometric pattern with concentric circles and a vertical bar (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i, 3050i en 3090Ci

Luidsprekerkabels

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, GB

CM23 5GZ

Accessoires

Wandbeugel (1 stuk)

3010i / 3020i / 3090Ci

Zwart en wit

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Afmetingen (B×H×D): 70 x 159 x 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Afmetingen (B×H×D): 250 × 682 × 290 mm Afmetingen (B×H×D): 422 × 222 × 163 mm

Specifications

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-wegsreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170×278×282mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle and corner markers (no text or symbols)

Actieve subwoofer

Behuizingstype:

Baseenheid:

Versterkervermogen:

Frequentierespons (+3 dB, -6 dB):

Crossover-frequentie:

Effectief volume:

Gray vertical tower with three speakers (no text or symbols visible)

3050i

2-wegsreflex

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310 x 1020 x 310 mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-wegsreflex

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

EN ENGLISH 01

DE NIEMIECKI 1

ES HISZPAŃSKI 37

FR FRANCUSKI

IT WŁOSKI 73

NL HOLENDERSKI 91

PL POLSKI 109

PT PORTUGALSKI 127

RU ROSYJSKI 14

SV SZWEDZKI

ZH CHIŃSKI 181

Abstract geometric pattern with concentric circles and a vertical bar (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i i 3050i i 3090Ci

Kable głośnikowe

Technical line drawing of a mechanical component with two washers and a central hub (no text or symbols)

www.qacoustics.co.uk/register.

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, Wielka Brytania

CM23 5GZ

Akcesoria

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

45°

3020i 35° 35° 5 - 45 mm5l - 45 m

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

EN	INGLÊS	01
DE	ALEMÃO	19
ES	ESPANHOL
FR	FRANCÊS	5
IT	ITALIANO 73
NL	HOLANDÊS
PL	POLACO	109
PT	PORTUGUÊS
RU	RUSSO	145
SV	SUECO	163
ZH	CHINÊS	181

Abstract geometric pattern with concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i, 3050i e 3090Ci

Cabos de altifalantes

Technical line drawing of a mechanical component with two washers and a central hub (no text or symbols)

Cablagem padrão:

ALTIFALANTE DIREITO AMPLIFIER ALTIFALANTE ESQUERDO

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Acessórios

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

3010i 40° 40°

Suporte de altifalante (par)

3010i / 3020i

Preto e branco

3020i 35° 35° 5 - 45 mm5t - 45 m

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

Reflexo de 2 vias

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present

Subwoofer ativo

Tipo de alojamento:

Unidade de graves:

Gray vertical tower with three speakers (no text or symbols visible)

3050i

Reflexo de 2 vias

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310 x 1020 x 310 mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

Reflexo de 2 vias

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

RU РУССКИЙ 01

DE НЕМЕЦКИЙ 19

ES ИСПАНСКИЙ 37

FR ФРАНЦУЗСКИЙ 55

IT ИТАЛЬЯНСКИЙ 73

NL НИДЕРЛАНДСКИЙ 91

PL ПОЛЬСКИЙ 109

Abstract geometric pattern with concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a central shaft (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

>200 MM 2,0-4,0 M >500 MM 2,0-4,0 M

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i, 3050i, 3090Ci

Акустические кабели

Stortford Hall Industrial Park

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-полосные с

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present

Активный сабвуфер

Тип корпуса:

Блок нижних частот:

Мощность усилителя:

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

2-полосные с

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310 x 1020 x 310 mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-полосные с

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 x 152 x 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

3000i-serien

ÄGARMANUAL

EN ENGELSKA
DE TYSKA 19
ESSPANSKA37
FR FRANSKA 59
IT ITALIENSKA
NL HOLLÄNDSKA 91
PL POLSKA 109
PT PORTUGISISKA 127
RU RYSKA 145
SV SVENSKA 16
ZH KINESISKA

Abstract geometric pattern with concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a handle (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

HÖGER HÖGTALARE AMPLIFIER VÄNSTER HÖGTALARE

Efterskötsel

Skötsel av kabinett

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Tillbehör

Väggfäste (enkel)

3010i/3020i/3090Ci

Svart och vitt

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Mått (BxHxD mm): 70 x 159 x 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Mått (BxHxD mm): 250 x 682 x 290 mm Mått (BxHxD mm): 422 x 222 x 163 mm

Passiva högtalare

Chassityp:

Basenhet:

Diskantenhet:

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-vägsreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

Aktiv subwoofer

Chassityp:

Basenhet :

Förstärkareffekt:

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

2-vägsreflex

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310 mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-vägsreflex

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

EN 英文 01

DE 德语 19

ES 西班牙语 37

FR 法语 55

IT 意大利语 73

NL 荷兰语 91

PL 波兰语 109

PT 葡萄牙语 127

RU 俄语 145

SV 瑞典语 163

ZH 中文 181

Abstract geometric pattern with concentric circles and a vertical bar (no text or symbols)

重要安全信息和警告

1. 安全信息和警告

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

螺钉锋利。请小心操作！

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

如图所示，使用随附的螺钉固定支脚。

定位

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i、3020i与3050i和3090Ci

音箱线缆

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

配件

壁架（单个）

3010i / 3020i / 3090Ci

黑与白

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

尺寸（宽x高x长）: 70 x 159 x 99 mm

45°

3010i 40° 40°

音箱支架（对）

3010i / 3020i

黑色

3020i 35° 35° 5 - 45 mm5l - 45 m

低音炮壁架

3060S

黑色

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting feet (no text or symbols)

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

2 路反射式

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 x 11.0 x 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

有源低音炮

箱体类型：

低音单元：

放大器功率：

频率响应 (+3 dB, -6 dB):

交叉频率：

有效体积：

箱体尺寸（宽x高x长）

重量：

3060S

无限障板

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 x 300 x 150 mm (18.9 x 11.8 x 5.9 in)

Gray vertical tower with three speakers (no text or symbols visible)

3050i

2 路反射式

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310 x 1020 x 310 mm

(12.2 x 40.1 x 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2 路反射式

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 x 152 x 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

Abstract geometric pattern of concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a central shaft (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

>200 MM 2,0-4,0 M >500 MM 2,0-4,0 M

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i, 3020i, 3050i, 3090Ci

Акустические кабели

Stortford Hall Industrial Park

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-полосные с

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle and corner markers (no text or symbols)

Активный сабвуфер

Тип корпуса:

Блок нижних частот:

Мощность усилителя:

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

2-полосные с

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6Ω

4Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310 x 1020 x 310 mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-полосные с

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 x 152 x 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

3000i-serien

ÄGARMANUAL

Abstract geometric pattern of concentric circles in white and gray tones (no text or symbols)

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

HÖGER HÖGTALARE AMPLIFIER VÄNSTER HÖGTALARE

Efterskötsel

Skötsel av kabinett

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

Tillbehör

Väggfäste (enkel)

3010i/3020i/3090Ci

Svart och vitt

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Mått (BxHxD mm): 70 x 159 x 99 mm

45°

3010i 40° 40°

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

Mått (BxHxD mm): 250 x 682 x 290 mm Mått (BxHxD mm): 422 x 222 x 163 mm

Passiva högtalare

Chassityp:

Basenhet:

Diskantenhet:

(5.9 × 10.0 × 10.0 in)

4.1 kg (9.0 lbs)

3020i

2-vägsreflex

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 × 278 × 282 mm

(6.7 × 11.0 × 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

Aktiv subwoofer

Chassityp:

Basenhet :

Förstärkareffekt:

Vertical gray speaker tower with three circular cutouts (no text or symbols visible)

3050i

2-vägsreflex

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310×1020×310 mm

(12.2 × 40.1 × 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2-vägsreflex

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 × 152 × 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

Abstract geometric pattern of concentric circles in white and gray tones (no text or symbols)

重要安全信息和警告

1. 安全信息和警告

Line drawing of a rectangular electronic device with ports and a cylindrical connector (no text or symbols)

螺钉锋利。请小心操作！

Technical line drawing of a mechanical device with mounting holes and a lever mechanism (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

如图所示，使用随附的螺钉固定支脚。

定位

Diagram of two circular components with a plus sign and a small circular symbol, no text or labels present.

3010i、3020i与3050i和3090Ci

音箱线缆

Stortford Hall Industrial Park

Bishops Stortford, Hertfordshire, UK

CM23 5GZ

配件

壁架（单个）

3010i / 3020i / 3090Ci

黑与白

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

尺寸（宽x高x长）: 70 x 159 x 99 mm

45°

3010i 40° 40°

音箱支架（对）

3010i / 3020i

黑色

3020i 35° 35° 5 - 45 mm5l - 45 m

低音炮壁架

3060S

黑色

Line drawing of a three vertical cylindrical stand with mounting feet (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and mounting holes (no text or symbols)

(5.9 x 10.0 x 10.0 in)

4.1 kg (9.0 lbs)

3020i

2 路反射式

125 mm (5.0 in)

22 mm (0.9 in)

64 Hz - 30 kHz

6 Ω

4 Ω

88 dB

25 - 75 W

50 - 125 W

2.4 kHz

6.1 L (372 cu in)

170 x 278 x 282 mm

(6.7 x 11.0 x 11.1 in)

5.5 kg (12.1 lbs)

Simple geometric diagram with concentric circles inside a rectangle, no text or symbols present.

有源低音炮

箱体类型：

低音单元：

放大器功率：

频率响应 (+3 dB, -6 dB):

交叉频率：

有效体积：

箱体尺寸（宽x高x长）

重量：

3060S

无限障板

200 mm (8.0 in)

150 W Class-D

35 Hz - 250 Hz

35 Hz - 250 Hz (var.)

10.6 L (647 cu in)

480 x 300 x 150 mm (18.9 x 11.8 x 5.9 in)

Gray vertical tower with three speakers (no text or symbols visible)

3050i

2 路反射式

2 x 165 mm (6.5 in)

22 mm (0.9 in)

44 Hz - 30 kHz

6 Ω

4 Ω

91 dB

25 - 180 W

50 - 165 W

2.5 kHz

32.4 L (1977 cu in)

310 x 1020 x 310 mm

(12.2 x 40.1 x 12.2 in)

200 mm (7.9 in)

17.8 kg (39.2 lbs)

3090Ci

2 路反射式

2 x 100 mm (4.0 in)

22 mm (0.9 in)

75 Hz - 30 kHz

6 Ω

4 Ω

89 dB

25 - 100 W

50 - 165 W

2.7 kHz

6.6 L (403 cu in)

430 x 152 x 216 mm

(16.9 × 6.0 × 8.5 in)

6.0 kg (13.2 lbs)

Abstract black logo design resembling a stylized letter 'Q' with no text or symbols

ACOUSTICS

QACOUSTICS.CO.UK
