USER MANUAL Zero N Winix
Please read and follow all safety rules and instructions in this manual before operating.
The product warranty is printed on the back of this guide, so please keep it in a safe place for future use.
This product is suitable for 220 - 240V only.

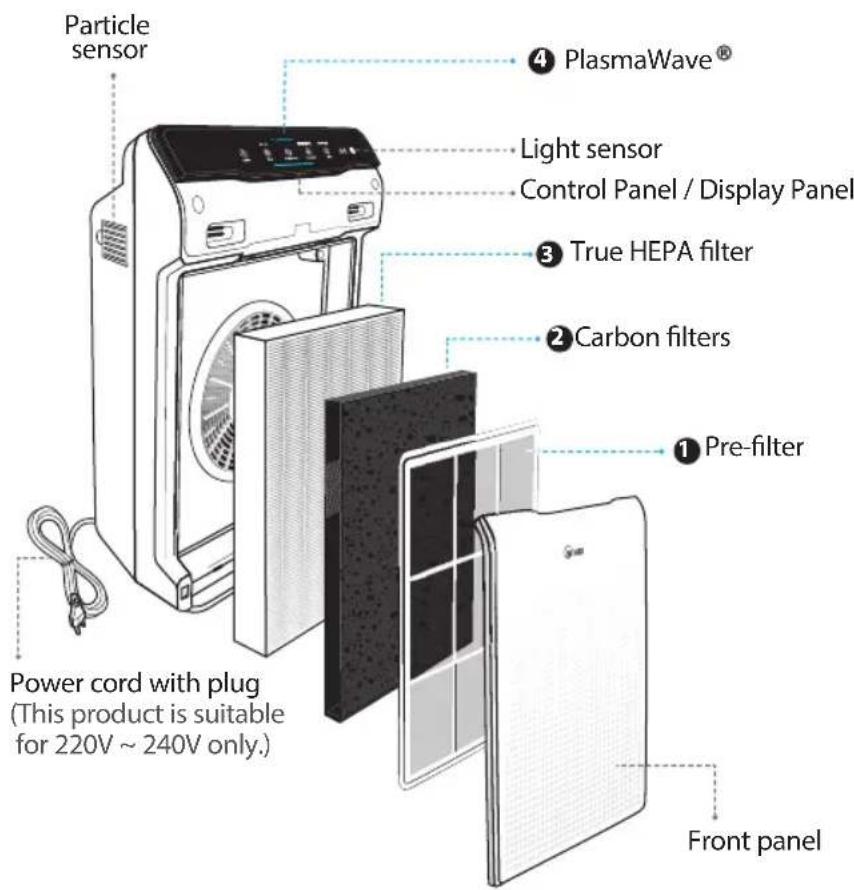

Light sensor Carbon lters PlasmaWave Control Panel / Display Panel True HEPA lter Particle sensor Front panel Pre-lter Power cord with plug (This product is suitable for 220V ~ 240V only.)

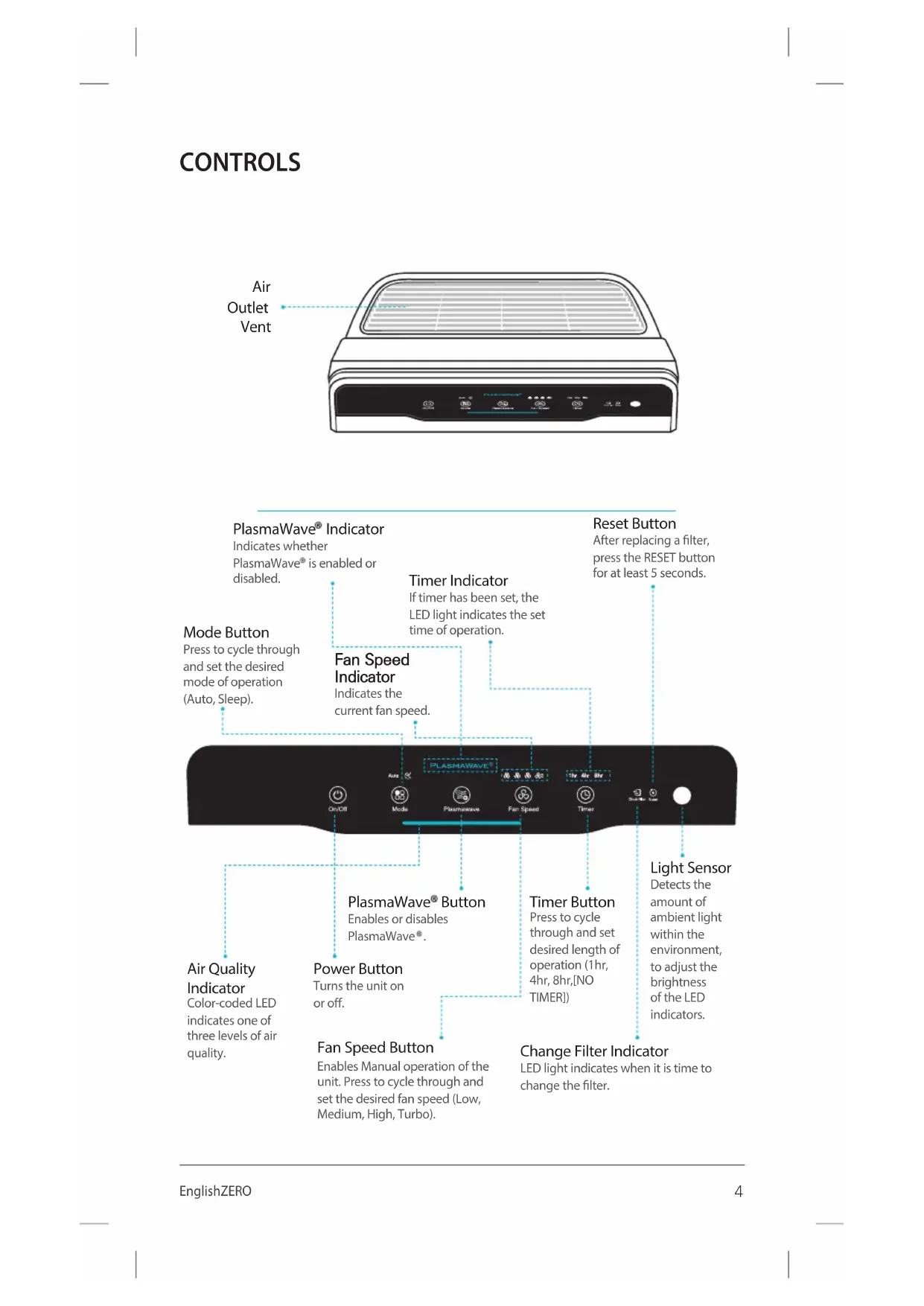

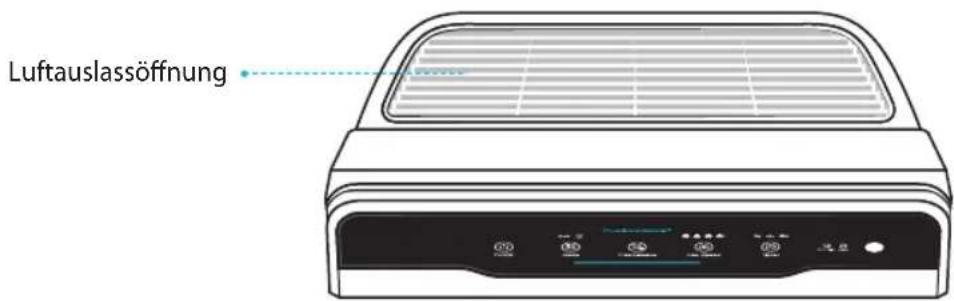

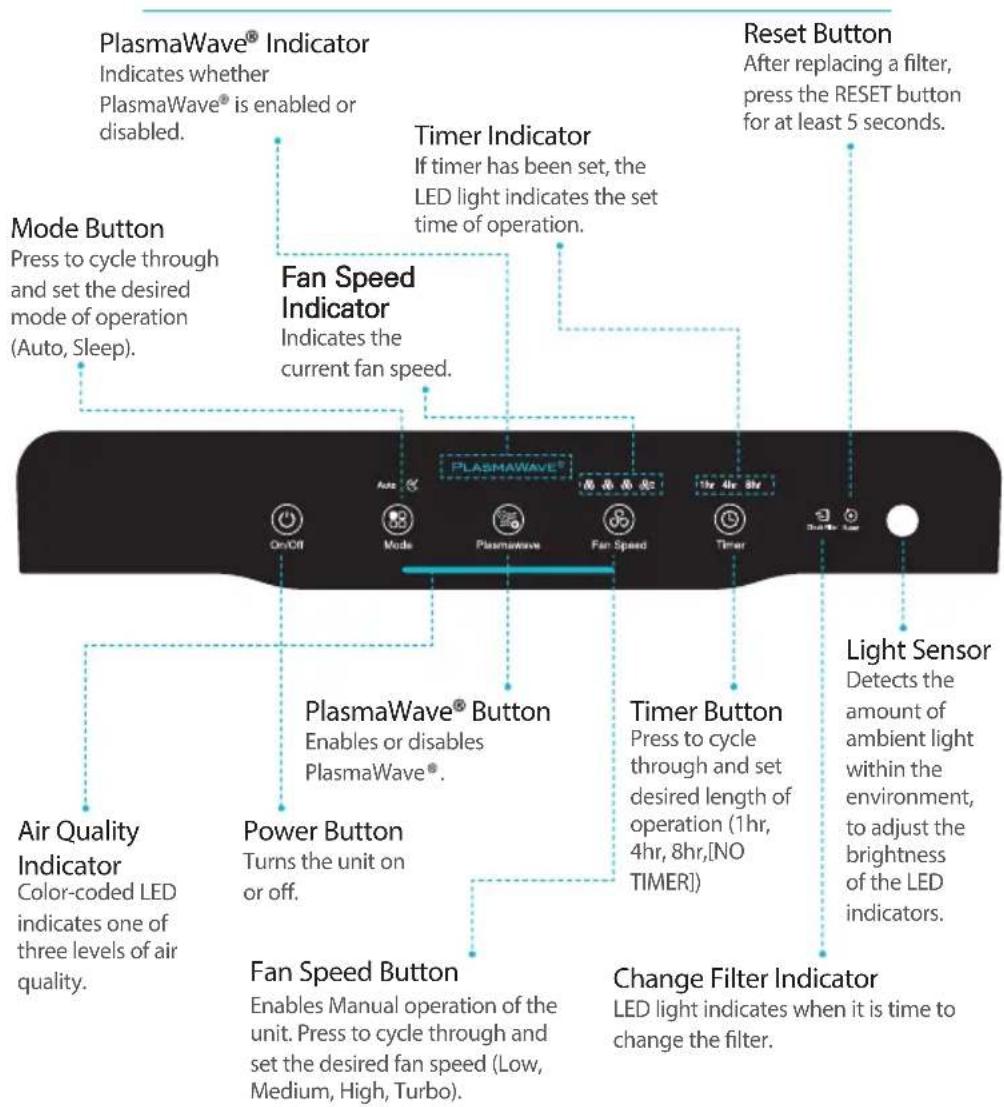

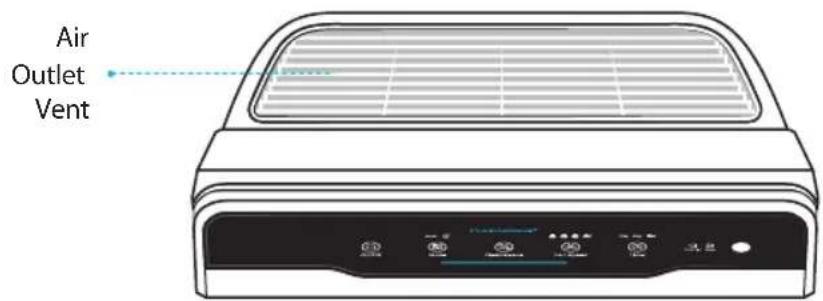

Unit Pre-lter/ (8) Carbon Filters/(2) True HEPA FilterUser Manual4 English ZERO CONTROLS 소피아 1 Air Outlet Vent 소피아 2 영문소피아 1 Reset Button After replacing a lter, press the RESET button for at least 5 seconds. Fan Speed Indicator Indicates the current fan speed. Timer Indicator If timer has been set, the LED light indicates the set time of operation. PlasmaWave Indicator Indicates whether PlasmaWave is enabled or disabled. Air Quality Indicator Color-coded LED indicates one of three levels of air quality. Mode Button Press to cycle through and set the desired mode of operation (Auto, Sleep). Power Button Turns the unit on or o. Fan Speed Button Enables Manual operation of the unit. Press to cycle through and set the desired fan speed (Low, Medium, High, Turbo). PlasmaWave Button Enables or disables PlasmaWave . Light Sensor Detects the amount of ambient light within the environment, to adjust the brightness of the LED indicators. Timer Button Press to cycle through and set desired length of operation (1hr, 4hr, 8hr,[NO TIMER]) Change Filter Indicator LED light indicates when it is time to change the lter.5 English ZERO

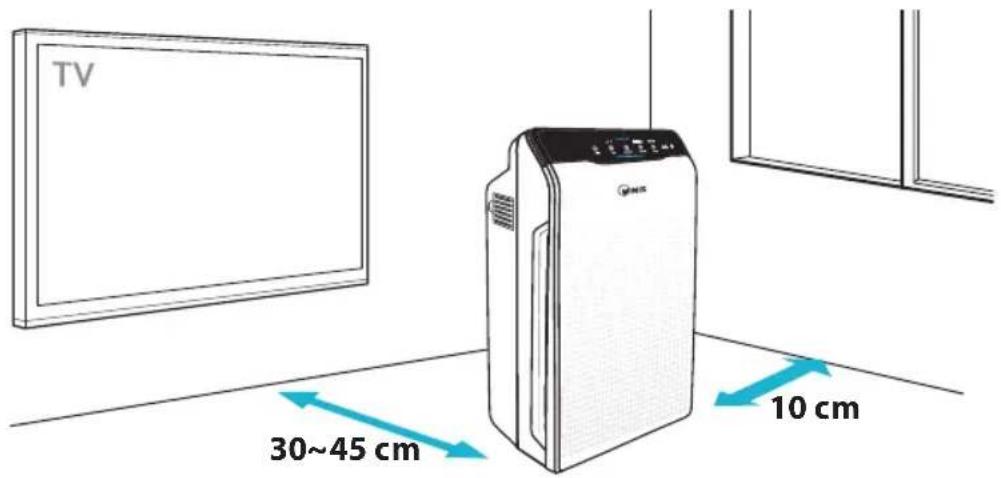

Allow 30 - 45cm. of space between TVs, radios, and other electronic products electromagnetic interference from certain electronics may cause product malfunction. Place indoors away from direct sun light direct exposure may cause product malfunction or failure. Only place on hard, flat surfaces flimsy or slanted surfaces may result in abnormal noise and vibrations. 30~45 cm 10 cm WARNING Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit. Do not use around mist or fumes from industrial oil or around large quantities of metallic dust.Do not place around heating elements.Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.).Do not place in an area with excessive amounts of noxious gases.Do not place near any flammable materials (aerosols, fuel, gases etc.).Do not have unit facing into wind or draft.Do not place below any electrical outlet. Do not place in excessively humid areas where unit may become wet.
This unit is not intended to be used to preserve documents or in art conservation.6 English ZERO This product comes with all required filters. The protective plastic wrap must be removed from the filter before use.
Operating the unit without removing the plastic wrap may result in product failure.
Unplug and make sure the unit is turned off before installing filter.

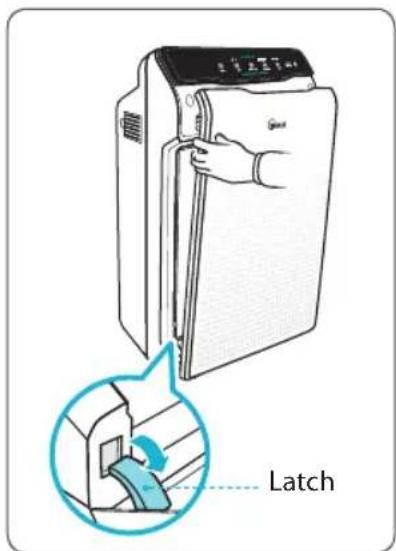

Remove the front panel by grasping its upper edge and gently pulling forward. Latch

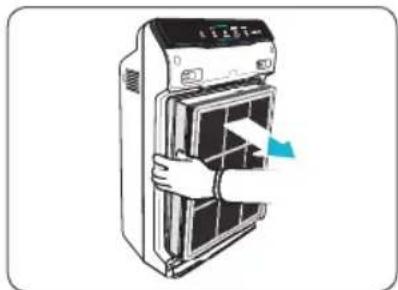

Remove the filters from the unit, they are protected inside a plastic wrap

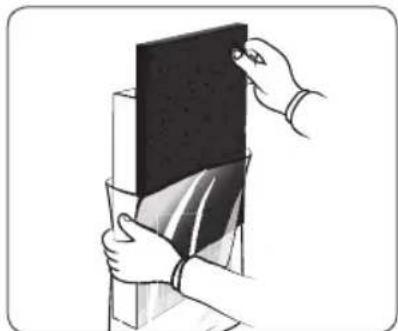

Remove filters from protective plastic wrap.
Operating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating. Note

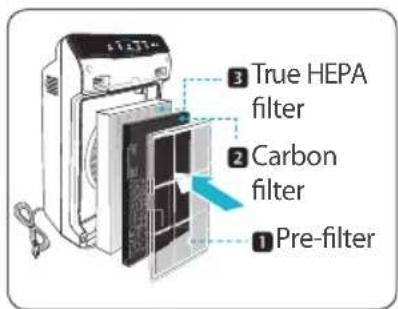

Install the filters until they fit securely in place. Filters must be installed in this order: 3 True HEPA Filter (rear) 2 Carbon filter (middle) 1 Pre-filter (front)
To install the Pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until sides audibly click into place.
True HEPA lter Carbon lter Pre-lter
Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until the magnets pull the lid closed. Latch
When to service and replace filter: Filter Indicator Light When to service When to replace 1 Pre-filter none Clean once every 14days Permanent 2 Carbon filter none Can NOT be WASHED Replace every 3 months 3 True HEPA filter Lasts up to 6~12 months
Intervals between filter replacement may vary depending on environment.
For optimal use, Pre-filter can be cleaned once every 14days which can extend the life of other filters. To purchase replacement Winix filters: contact your local dealer this unitis compatiblewith this filterFILTER
item: 1151158 English ZERO
Before operating this equipment, carefully read and follow these safety cautions Ensure filters are inserted before running unit running unit without filters can shorten the units life and cause electric shock or injury. Be sure foreign objects are NOT inserted into the vents on the unit objects can include pins, rods, and coins. Do not touch any part of the interior of the unit with wet hands the high voltage may cause electric shock. Ensure unit intake and outlet vents do not become blocked blockage may lead to increased internal termperatures causing product failure and derformation. Do not use the unit as a step stool or place heavy objects on it personal injury may occur or product failure and deformation. WARNING Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit. Do not pull on the power cord when unplugging the unitDo not tie or knot power cord when unit is in operationIf the unit becomes submerged in water, unplug it and contact customer serviceDo not unplug or move the unit while in operationDo not plug additional appliances into the same outlet or power supplyDo not touch the plug with wet handsUnplug unit when not in operation for extended periods of timeCord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. This appliance is not intended for use by a person (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.9 English ZERO INITIAL OPERATION
Insert the power cord into an electrical outlet.
During the first 30seconds of power up, the Air Quality Indicator will cycle through Blue, Yellow and Red colors. The Particle Sensors take approximately 30seconds to gauge the air quality in the environment, after which normal operation will begin.
By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave
When in Auto mode, the fan speed will be automatically adjusted according to the environments air quality.
In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.
When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave
, it is normal and does not signify product failure. To disable PlasmaWave
Enables auto operation based on the unit's air quality Particle Sensor.
The LED ‘Auto’ light will indicate when Auto mode is activated, and operation will begin. Note
When in Auto mode the fan speed is automatically adjusted according to the indoor air quality. As the indoor air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases, the fan speed will automatically increase.
The LED "Sleep" light will indicate when Sleep mode is activated, and operation will begin. Note
When Sleep mode is selected, the fan speed is automatically set to Low. The fan speed can be manually changed by pressing the Fan Speed button, changing the unit into manual mode.
When Sleep Mode is activated, the Air Quality Indicator LED light is disabled.11 English ZERO MANUAL & TIMER
3. Manual Mode (setting fan speed)
Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.
Press the Fan Speed button to set the desired fan speed. Note
When Manual Mode is selected, Auto Mode is automatically disabled.
The timer can be set to let the unit run for a specified period of time.
Press the Timer button to select the desired length of time.
When the Timer LED light will indicate the selected length of operation.
Every time the Timer button is pressed, The Timer LED light will cycle through the settings, (1hr, 4hr, 8hr, [NO TIMER]).12 English ZERO PLASMAWAVE
is enabled whenever the unit is powered on.

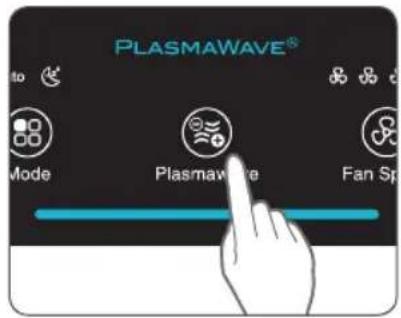

Press the Plasmawave button, when the unit is on, to enable or disable this feature. Note
In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.
When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave
, it is normal and does not signify product failure.

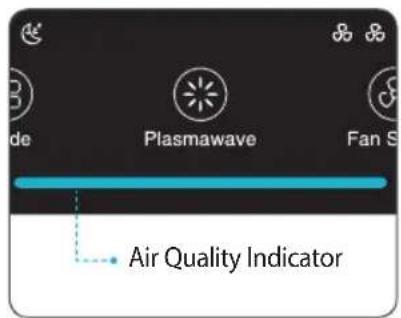

6. Air Quality Indicator
When on, the LED light will indicate the current indoor air quality according to three levels: BLUE (good), AMBER (fair), RED (poor). Air Quality Indicator
Air quality level is displayed on the indicator, based on the Particle Sensors. Depending on the immediate environment, the indicator may change frequently in color or stay the same for lengthy periods of time.13 English ZERO FILTER CARE
When the Check Filter indicator LED is on, it is time to replace both the True HEPA and Carbon Filters. Filter Indicator Light When to service When to replace 1 Pre-filter none Clean once every 14days Permanent 2 Carbon filter none Can NOT be WASHED Replace every 3 months 3 True HEPA filter Lasts up to 6~12 months
Intervals between filter replacement may vary depending on environment.
For optimal use, Pre-filter can be cleaned once every 14days which can extend the life of other filters. To purchase replacement Winix filters: contact your local dealer this unitis compatiblewith this filterFILTER item: 115115 Carbon lter/ True HEPA lter Note
The filters’ life varies depending on the level of pollutants in the air. The more dust present in the environment, the more dust accumulates in the filters, shortening the life.
If the filters are heavily soiled or have a bad odour, or if the fan strength is significantly weakened, replace filters even if the Change Filter indicator has not yet turned on.14 English ZERO FILTER CARE
Turn the unit power off before removing filters.

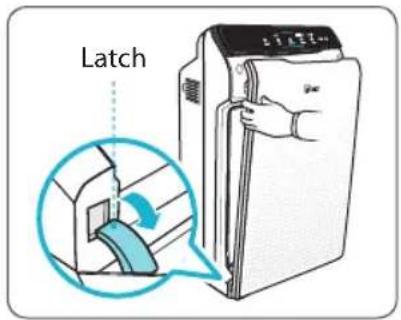

Remove the front panel by grasping its upper edge and gently pulling forward. Latch

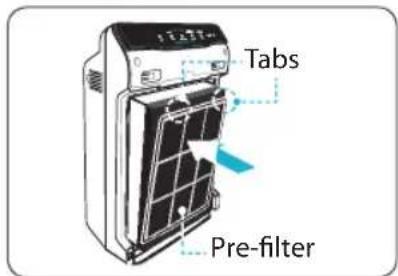

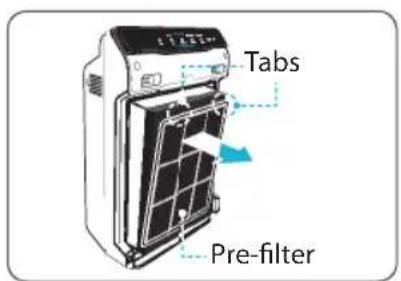

Press on the Pre-filter tabs near the top of the filter, release and remove. Tabs Pre-lter

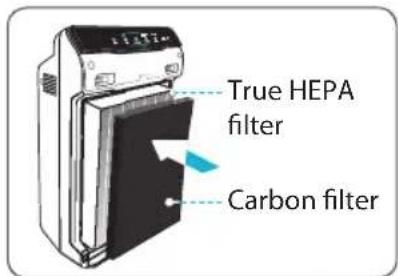

Pull out the Carbon filter and True HEPA Filter.
Remove replacement filters from protective plastic wrap.
Operating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating. NOTICE
For optimal performance, only Winix filters should be used with this unit.15 English ZERO FILTER CARE
Insert the Pre-filter.
Insert bottom tabs of the Pre-filter into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until sides audibly click into place. Tabs Pre-lter

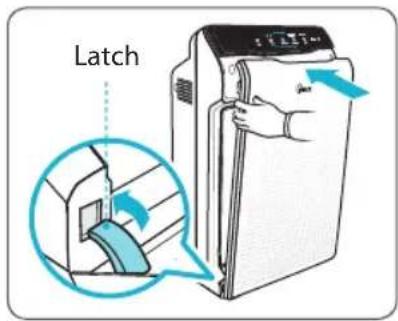

Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until the magnets pull the lid closed. Latch
5. Resetting The Unit
After replacing the filters, turn the power back on and then use a thin object, such as a paper clip, to press the RESET switch for 5seconds.16 English ZERO FILTER CARE
6. Cleaning the filter
Intervals between filter cleaning may vary depending on the air quality.

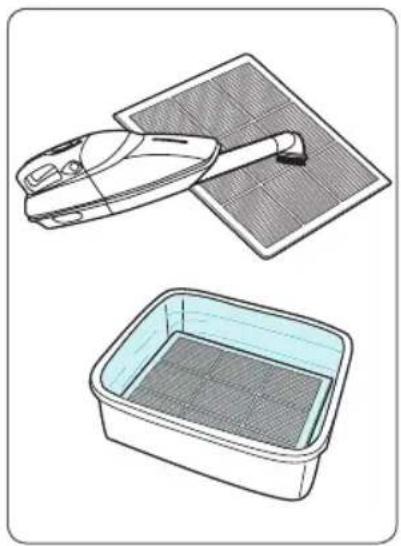

Use a vacuum cleaner or soft brush to clean the Pre-filter. If it is excessively soiled, rinse in room temperature water.
Allow the filter to dry for 24hours or more before using
If the pre-filter becomes damaged or in any way needs replacement: Please contact your local dealer NOTICE
Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
The Pre-filter is reusable after cleaning, ensuring it is completely dry.
Do not use hot water over 40
C or volatile fluids such as paint thinner.
After washing the filter, allow it to dry completely in a well ventilated area. Otherwise, it may develop a bad odour.17 English ZERO
PARTICLE SENSOR CARE
Particle Sensors Care For optimal performance of the Particle Sensor, which detects airborne dust and ultrafine particles, clean it every two months. Clean it more frequently when the unit is running in a place with high dust levels.

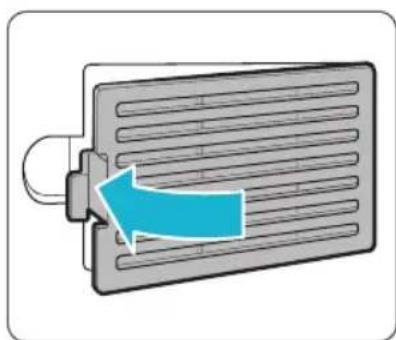

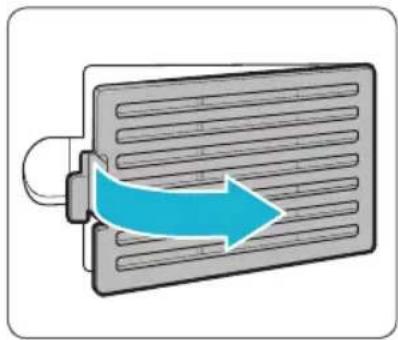

Open the Particle Sensor cover.

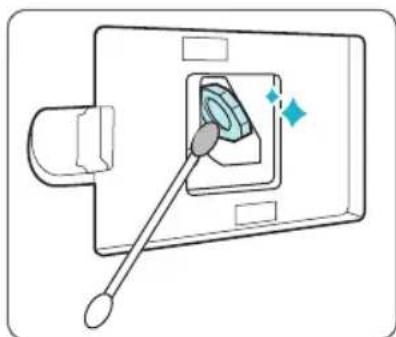

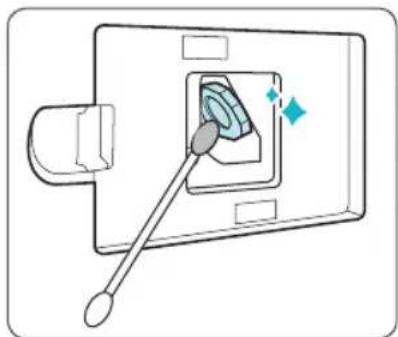

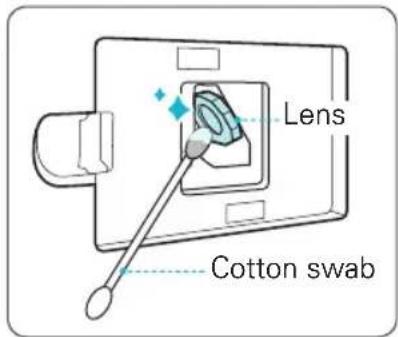

Use a damp cotton swab to wipe the lens and intake area of the Particle Sensor.

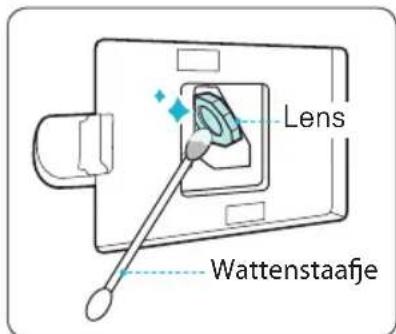

To clean the sensor area, use only water. Do not use volatile substances such as alcohol or acetone Lens Cotton swab
Wipe away any remaining moisture with a dry cotton swab.

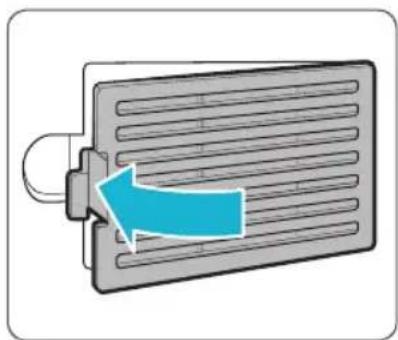

Close the Particle Sensor cover.
The Particle Sensors cover may be cleaned using a vacuum cleaner18 English ZERO CLEANING CARE

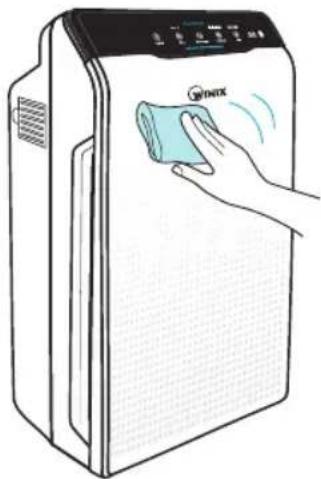

Wipe with a soft damp cloth using room temperature water. Afterwards, wipe it down with a clean dry cloth.
To keep unit in peak condition, clean every 1-2months.

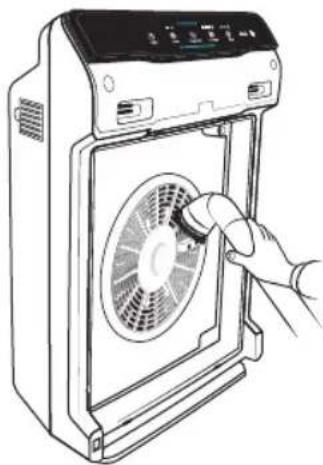

Open the front panel and clean the interior with a vacuum cleaner.
For optimal performance, clean every 1-2months. NOTICE
When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down.
Never disassemble, repair, or modify this unit yourself.
Do not allow children to clean or maintain the unit.
Before cleaning or maintaining, ensure unit is unplugged.19 English ZERO
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take It does not turn on at all.
Is the plug securely attached to the outlet?
Make sure the outlet has power going to it, and ensure the plug is secured.
Is there a power outage?
Check to see if other lights and electrical equipment are working and try again. It doesn’t work in Auto Mode.
Has Auto Mode been selected?
Press the Mode button until Auto Mode is selected.
Is the sensor blocked or clogged?
Wipe Odour Sensor with wet cloth, then dry. It vibrates and makes a lot of noise.
Is it running on a slanted or uneven surface?
Move the unit to a hard, flat, even area of the floor.20 English ZERO
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take The power plug and outlet feel hot.
Is the plug securely plugged in?
Make sure the plug is properly plugged into the outlet. There is a strange smell.
Is it being used in a place with a lot of smoke, dust, or odours?
Clean the air intakes on either side and clean the pre-filter.
Clean or change the filter. The fan strength is weak. The unit is not purifying the air.
Change the filters as required. The display panel is dim.
Is the Light Sensor blocked by debris?
When Auto Mode is on, Sleep Mode is automatically activated when the Light Sensor detects that the room is dark.21 English ZERO UNIT SPECIFICATIONS Model Name ZERO (AZBU330-HWE) Power Voltage AC220-240V, 50 / 60Hz Power Rate 70W Max Room Capacity 99 m
The exterior, design, and product specifications may be changed without prior notice to improve product performance.Contact your local dealer for productrelated inquiries andcustomer service
English ZERO PRODUCT WARRANTY The terms of the warranty are as follows.
This product is manufactured under stringent quality control and inspections.
Warranty void if product failure is a result of negligence or misuse by the consumer, shipping and service fees may be incurred even during the warranty period.
The warranty must be presented upon bringing the product for service.
Store the warranty in a safe place, as it cannot be reissued.
This warranty is valid only in the Europe. Product Name Air Purifier Model Name ZERO Purchase DateWarranty period Two (2) years Place of purchasePlace of purchase Tel.CustomerAddress Name Tel.
After purchase, be sure to complete all of the above information.Contact your local dealer for product related inquiries and customer service WWW.WINIX.COM/EUManuel d'utilisation
