KF3700 - Coffee machine AEG - Free user manual and instructions

Product type	Drip coffee machine
Brand	AEG
Model	KF3700
Water tank capacity	Level indicator with cup markings (graduated carafe)
Filter type	Paper filter size #4
Main functions	Coffee brewing, keep warm, automatic safety shut-off (40 min)
Anti-drip system	Yes (anti-drip valve in the filter holder)
Heating plate	Yes, keeps coffee warm after brewing
Carafe	Graduated on both sides, with lid, dishwasher safe
Power supply	220-240 V, 50/60 Hz (standard estimate)
Power	Approximately 1000 W (estimate for drip coffee machine)
Dimensions (W x D x H)	Approximately 25 x 20 x 30 cm (estimate)
Weight	Approximately 2 kg (estimate)
Maintenance and cleaning	Exterior cleaning with damp cloth; carafe and lid in dishwasher; filter holder and anti-drip system cleaned under running water
Descaling	Recommended regularly depending on water hardness; use descaling solution, let act for 15 minutes, rinse twice with fresh water
Safety	Automatic shut-off after 40 min, heating element surface hot after use (residual heat), do not immerse, household use only
Use	Household, also for shop/office employees, farms, hotels

Frequently Asked Questions - KF3700 AEG

How to use the AEG KF3700 coffee machine for the first time?

Place the machine on a flat surface. Fill the tank with cold water, then turn it on using the power switch. Let a full tank of water run through without a filter or coffee, repeat once or twice to clean the appliance.

What type of filter to use?

Use a size #4 (1x4) paper filter placed in the filter holder.

How much ground coffee per cup?

For medium-strength coffee, one scoop (about 6 to 7 g) per cup is sufficient.

What to do if coffee does not flow or filter overflows?

Check that the carafe is properly placed on the heating plate. During brewing, do not remove the carafe for more than 30 seconds, otherwise the filter may overflow due to the anti-drip system.

How does the automatic safety shut-off work?

If the coffee machine is not manually turned off, it automatically switches off after 40 minutes. The power indicator light goes out.

How to clean the anti-drip system?

Remove the filter holder by lifting the handle. To clean the anti-drip valve, activate it several times under running water by pressing on it.

Can I put the carafe in the dishwasher?

Yes, the carafe and its lid can be cleaned in the dishwasher. However, never immerse the body of the coffee machine.

How to descale the AEG KF3700 coffee machine?

Fill the tank with water and descaling solution according to product instructions. Place the carafe on the heating plate, let it sit for 15 minutes, then turn on the machine. Turn it off when the solution has flowed through. Rinse by running at least two full tanks of fresh water.

What to do if the coffee machine does not turn on?

Check that the appliance is plugged into a functioning electrical outlet. If the cord is damaged, it must be replaced by a qualified professional. Do not use the appliance if the body is damaged.

Does the heating plate stay hot after use?

Yes, the heating element surface remains hot after use (residual heat). Let it cool down before cleaning or storing.

USER MANUAL KF3700 AEG

GB Instruction book. 17-22

Before using the appliance for the first time, please read the safety advice on page 18-19 carefully.

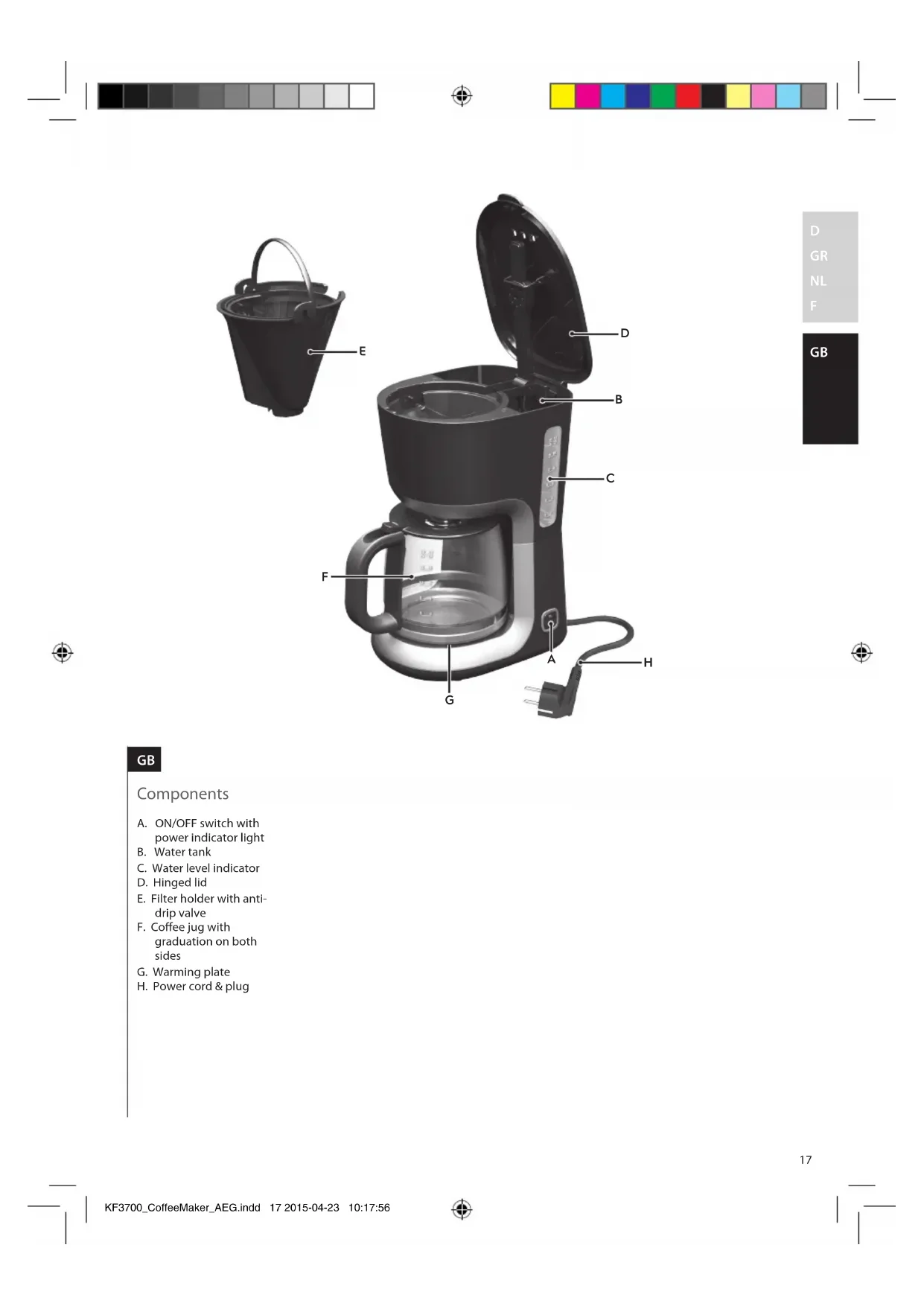

DG

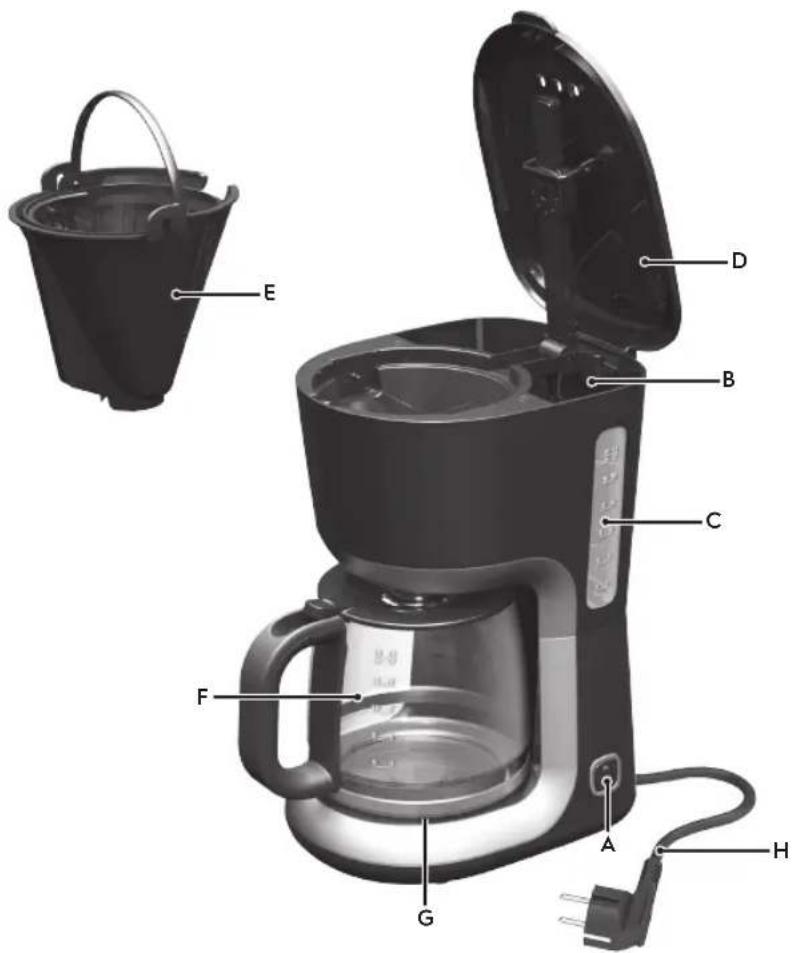

Teile

A. ON/OFF switch with power indicator light
B. Water tank
C. Water level indicator
D. Hinged lid
E. Filter holder with antidrip valve
F. Coffee jug with graduation on both sides
G. Warming plate
H. Power cord & plug

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged.
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
• Always place the appliance on a flat, level surface.
• Never leave the appliance unattended while connected to the supply mains.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.

• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.

• Do not immerse the appliance in water or any other liquid.

• Do not use or place the appliance on a hot surface or near source of heat.
• Warning: Avoid spillage on the connector.
• Attention: The heating element surface is subject to residual heat after use.
• The mains cable must not come into contact with any hot parts of the appliance.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• Never operate appliance with open lid.

This appliances is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and others working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Getting started

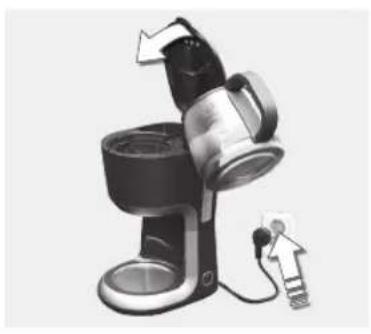

1. Place the machine on a flat surface. When starting the machine for the first time, fill the tank with cold water. Start the machine with the ON/OFF switch. Let a full tank of water pass through the machine once or twice to clean it, without using paper filter or coffee.

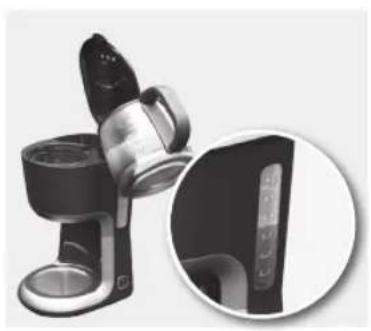

1. Making coffee: open the lid and fill the water tank with fresh cold water up to the desired level. There is a gauge for cups on the water tank and on the coffee jug.

(The machine must not be used with empty tank!)

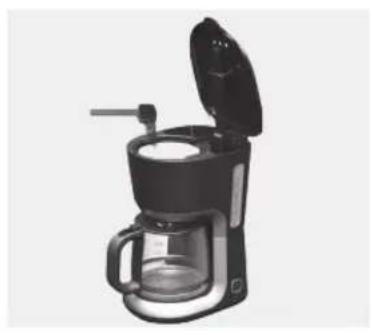

1. Insert a size 1x4 paper filter in the filter holder and fill it with ground coffee. For average strong coffee one measuring spoon (approx. 6-7 g) per cup is sufficient. Close the water tank lid and place the jug (complete with lid) onto the warming plate.

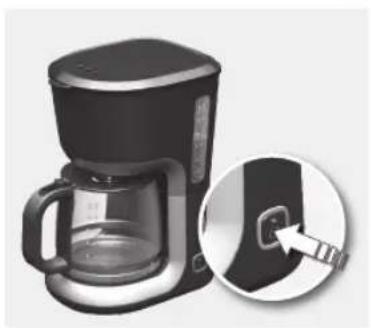

1. Start the machine with the ON/OFF switch. The power indicator light will come on and hot water will flow into the filter. When water has stopped flowing, the warming plate keeps the coffee hot until the machine is turned off with the ON/OFF switch. If the machine is not turned off manually, the Safety Auto-Off function turns it off after 40 minutes.

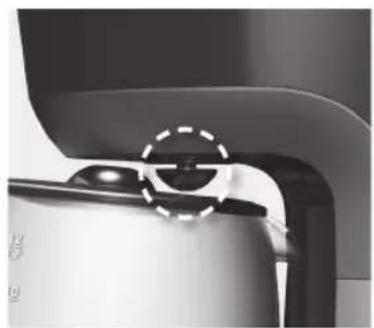

1. If the jug is removed, the filter valve prevents coffee from dripping onto the warming plate. (While boiling, the jug must not be removed for longer than 30 seconds or the filter will overflow.)

Cleaning and care

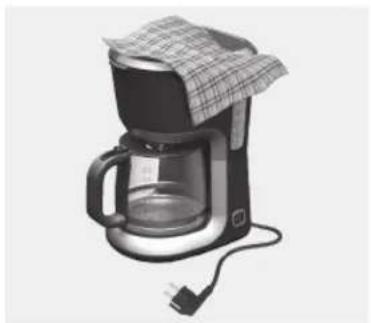

1. Turn the machine off and unplug the power cord. Wipe all outer surfaces with a damp cloth. Coffee jug and jug lid are dishwasher proof. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!

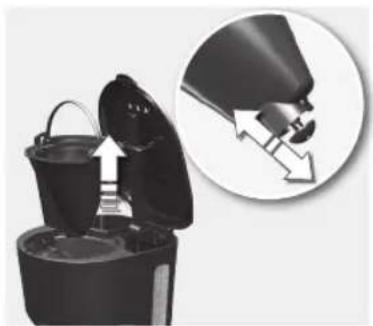

1. To clean the filter holder, lift up the handle and remove the filter holder. To clean the filter valve thoroughly, rotate it several times while it is being rinsed.

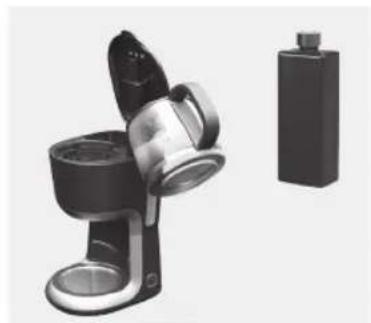

1. Decalcifying is recommended regularly, depending on water hardness. Fill the tank with water and decalcifier according to product instructions, then follow steps 4 and 5.

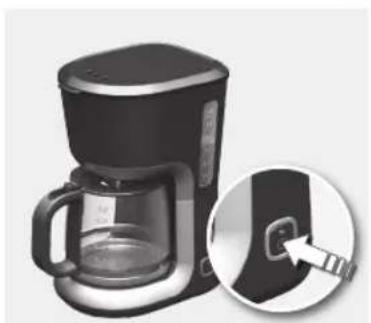

1. Place the coffee jug with its lid onto the warming plate. Allow the decalcifier to take effect for about 15 minutes, then switch the machine on. Switch it off when the solution has finished flowing through. If necessary repeat the decalcifying process.

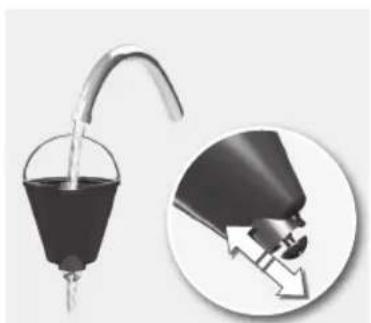

1. Allow the machine to run at least twice with plain water. Then thoroughly rinse the coffee jug, lid and filter holder under running water, activate the filter valve repeatedly during the rinse process.

Disposal

Recycle the materials with the symbol

Put the packaging in applicable con- s to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with

the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

www.aeg-home.com

With Electrolux, the choice of professionals.
