USER MANUAL Charlie T7034 Topmark

Exterior view of a modern baby crib with mesh backrest and adjustable legs (no text or symbols visible)

CHARLIE

0-48

15 kg

T7034

Gebruiksaanwijzing

Instrucon for use

Gebrauchsanleitung

Mode d'emploi

Diagram illustrating human walking and deflection rules with labeled figures and directional arrows

Illustration of a human leg and foot with mechanical components, no text or symbols present

Simple line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

Simple line drawing of a person sitting in a chair with arms extended upward (no text or symbols)

2

Line drawing of a person handling a large object on a cart (no text or symbols)

Illustration of a person working on a baby crib with a child lying on the floor (no text or symbols)

IN GEBRUIK NEMEN

INKLAPPEN

Illustration of hands using a tool to cut or break a piece of material (no text or symbols visible)

1

NL

Simple line drawing of a person sitting on a bench with legs and hands (no text or symbols)

Abstract line drawing of intersecting geometric shapes (no text or symbols)

Simple line drawing of two hands holding a piece of food, no text or symbols present

Diagram of a mechanical assembly with arrows indicating force direction (no text or labels)

Illustration of hands holding a tool with tools, no text or symbols visible

Illustration of two hands holding a bag, one open and one closed, both without any text or symbols

VERZORING EN ONDERHOUD

Five abstract geometric symbols arranged horizontally (three squares, two triangles, one cross, one square) with no text or labels.

GARANTIE

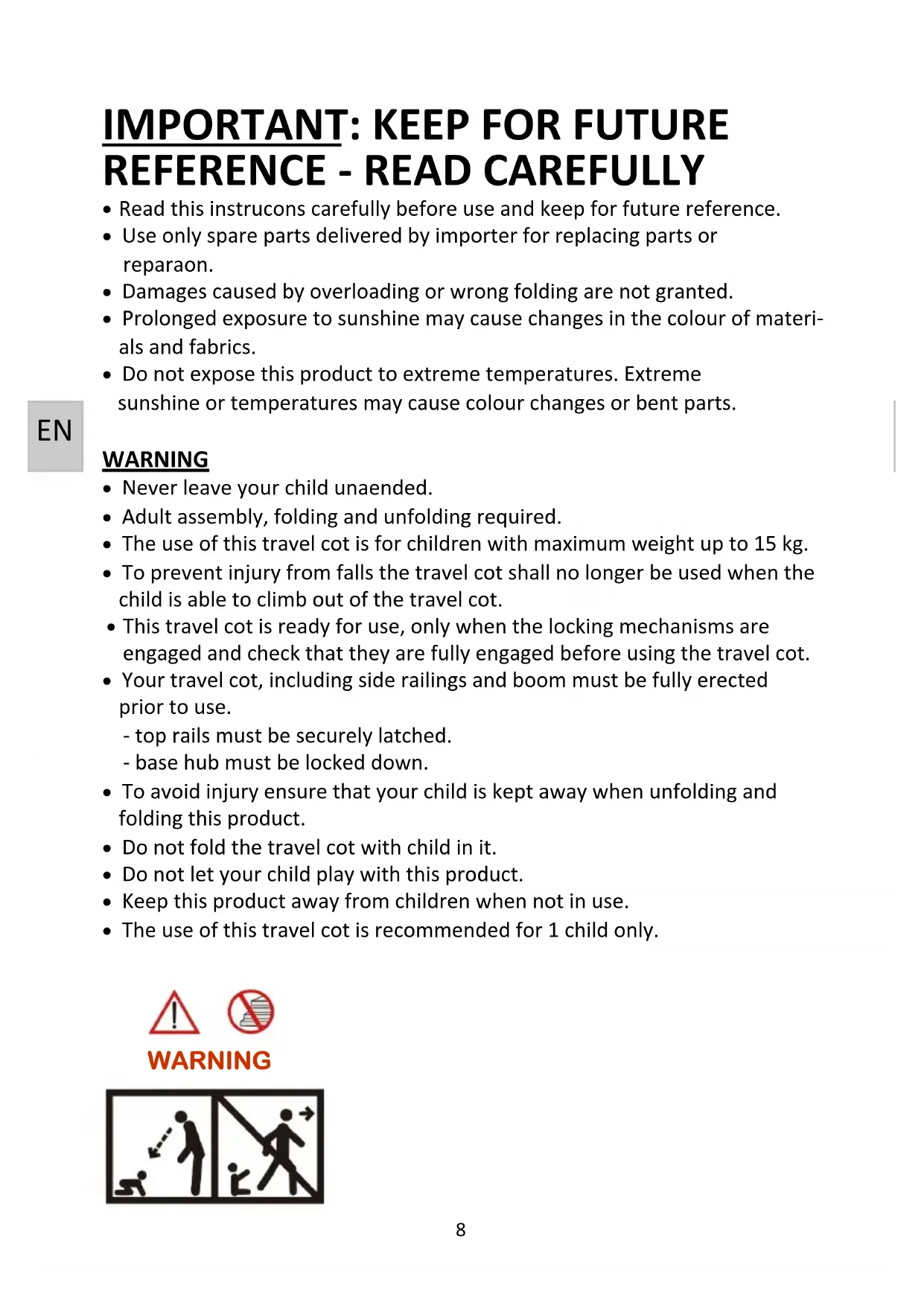

IMPORTANT: KEEP FOR FUTURE REFERENCE - READ CAREFULLY

• Read this instrucons carefully before use and keep for future reference.
• Use only spare parts delivered by importer for replacing parts or reparaon.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures. Extreme sunshine or temperatures may cause colour changes or bent parts.

WARNING

• Never leave your child unaended.
• Adult assembly, folding and unfolding required.
• The use of this travel cot is for children with maximum weight up to 15 kg.
• To prevent injury from falls the travel cot shall no longer be used when the child is able to climb out of the travel cot.
• This travel cot is ready for use, only when the locking mechanisms are engaged and check that they are fully engaged before using the travel cot.

• Your travel cot, including side railings and boom must be fully erected prior to use.

• top rails must be securely latched.

• base hub must be locked down.

- To avoid injury ensure that your child is kept away when unfolding and folding this product.

- Do not fold the travel cot with child in it.

- Do not let your child play with this product.

- Keep this product away from children when not in use.

- The use of this travel cot is recommended for 1 child only.

WARNING

Safety warning illustration showing pictograms of human and child walking with directional arrows indicating movement.

• Never move travel cot while child is in it.
• Only use travel cot on a rm and horizontal level.
• Never put travel cot near steps or stairs.
• Do not allow any children, animals or other objects to be placed under or near the travel cot while child is in the travel cot.
• Be aware of the risk of open re and other sources of strong heat, such as electric bar res, gas res etc. in the near vicinity of the cot.
• Avoid hot liquids, power cables and other possible dangers may come within range of a child.
• Do not add padding or other object inside your travel cot which will permit a child to climb out of the travel cot.
• Do not place items with a string around child's neck (pacier cords, hood strings etc.).
• Do not leave anything in the travel cot or place the travel cot close to another product which could provide a foothold or present a danger of suocaon or strangulaon, e.g. strings, blind/curtain cords, etc.
• The travel cot shall not be used without the maress base.
• Do not use more than one extra maress in the travel cot.
• The thickness of the maress shall be such that the internal height (surface of the maress to the upper edge of the travel cot frame) is at least 500 mm.
• The mark on the small side of the travel cot indicates the maximum thickness of the maress to be used with the travel cot.
• When maress is used with the travel cot the length and width of maress shall be such that the gap between the maress and the sides and ends does not exceed 30 mm.
• For correct and safe ng, additional maresses should be not less than 119 cm in length and 60 cm in width nor more than 122 cm in length or more than 63 cm in width.
• To avoid suocaon, do not use extra padding such as a water maress, maress, or pillow inside the travel cot.
• All assembly ngs should always be ghtened properly and ngs should be checked regularly and reghtened as necessary.
• Do not connue using travel cot if parts are broken or if fabric is ripped or torn. Only use replacement parts approved by manufacturer.
• Replace any damaged parts immediately.

ASSEMBLING/USING

Check if following spare parts are in the box:

• Carry bag
• Travel cot
• Maress base

Note that the fabric paerns, colour pictures and stroller accessories on this product in this instrucon manual may vary from that of the product that you have purchased.

If one or more of the above menoned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING

Please keep all packaging material away from babies and children, to prevent suocaon.

TO OPEN

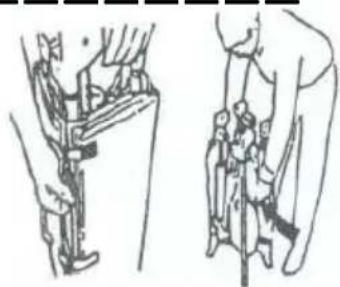

1. Unzip and remove carry bag play from travel cot, release Velcro buon away and take maress base.

1

Illustration of a human leg and foot with mechanical components, no text or symbols present

1. Stand travel cot up, spreading corners. Locate top rail locks. Li locks to 180° unl top rails are fully locked. Repeat for all four sides. (Note: locks are inside fabric covering).

Simple line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

Simple line drawing of a person sitting in a chair with arms extended upward (no text or symbols)

Keep boom pad strap above half height of travel cot unl all top rails are fully spread and secured.

2

Line drawing of a person handling a large sheet of paper on a small cart (no text or symbols)

1. Push rmly on centre of boom pad strap unl boom is at and travel cot is rigid.

3

Line drawing of a person working on a wooden crate with tools, no text or symbols present

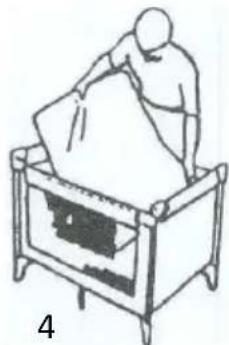

1. Spread maress base onto boom pad. Put Velcro through the boom holes and each Velcro.

USING

TO FOLD

1. Take out maress base. Reach into travel cot and pull strap above half height of travel cot.

Illustration of hands using a tool to cut or mark a piece of material, no text or symbols present

1

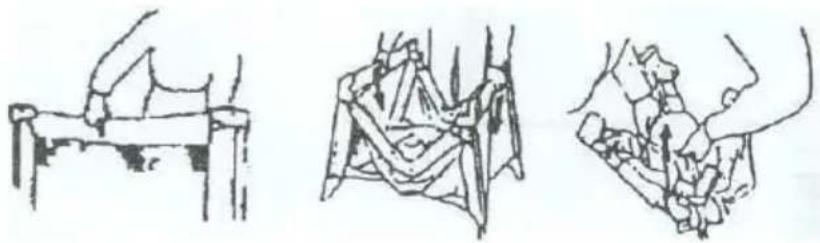

1. Press top rail locks to make them release and fold.

2

Three hand-drawn sketches showing mechanical assembly or folding process (no text or symbols)

1. Pull fully boom strap and gather four stands to centre.

Anatomical sketch of a human foot and ankle joint with directional arrows indicating movement or force (no text or labels)

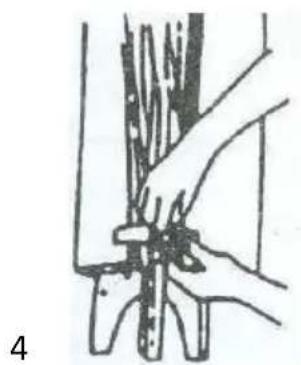

1. Wrap travel cot with maress base. Fasten Velcro buon.

Illustration of hands holding a tool or tool with a small object near the base (no text or symbols visible)

1. Put travel cot into carry bag.

Illustration of two hands holding a bag, one open and one closed, with no text or symbols present.

CARE AND MAINTENANCE

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Do not use abrasive cleaners. Do not soak in water.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Always store your product in a clean dry place.

Do not leave in the boot of car.

EN

Do not allow this product to come in contact with sand or salt water, sand causes corrosion and salt water the formaon of rust.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry. Fabric and frame may be cleaned using a damp sponge with soap or mild detergent. The maress can be washed by hand (see washing label). Allow it to dry completely before folding or storing it away.

In some climates the parts may be aected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well venlated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only parts and accessories approved by the supplier.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the product.

Damages caused by overloading or wrong folding are not granted.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the rst owner and is not transferable.

Top Mark B.V.

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 716-1/2

Diagram illustrating human walking and deflection rules with labeled figures and directional arrows

Line drawings of two mechanical components, one showing a handle and the other a tool inserted into a bracket (no text or symbols)

Simple line drawing of a mechanical structure with no text or symbols

Simple line drawing of a person sitting in a chair with arms extended upward (no text or symbols)

2

Line drawing of a person handling a large sheet of paper on a cart (no text or symbols)

Line drawing of a person working on a wooden crate with a cloth (no text or symbols)

GEBRAUCH

ZUSAMMENKLAPPEN

Illustration of hands using a tool to cut or mark a piece of material, no text or symbols present

1

Simple line drawing of a person sitting on a bench with legs and hands (no text or symbols)

Abstract line drawing of intersecting geometric shapes (no text or symbols)

Simple line drawing of two hands holding a piece of wood or stone (no text or symbols)

Diagram of a mechanical assembly with arrows indicating force direction (no text or labels)

3

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

4

Illustration of a person holding a bag and pouring liquid into a bottle (no text or symbols)

5

PFLEGE

Five abstract geometric symbols in black on white background, no text or labels present

GARANTIE

Diagram illustrating human walking and climbing motion with labeled actions and directional arrows

Illustration of two human figures in different positions, one holding a device and the other standing (no text or symbols)

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Simple line drawing of a person sitting in a chair with arms raised, no text or symbols present

2

Line drawing of a person handling a large sheet of paper inside a metal crate (no text or symbols)

Line drawing of a person working on a baby crib with a blanket (no text or symbols)

UTILISATION

FERMETURE

Illustration of hands using a tool to cut or mark a piece of material, no text or symbols present

1

Simple line drawing of a person sitting on a bench with legs and hands placed (no text or symbols)

Abstract line drawing of intersecting geometric shapes (no text or symbols)

Simple line drawing of two hands holding a piece of material, with an arrow indicating direction (no text or symbols)

Diagram of a mechanical or anatomical structure with directional arrows indicating movement or force (no text or labels)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a person holding a bag and pouring liquid into a bottle (no text or symbols)

SOIN ET ENTRETIEN

Diagram illustrating human behavior with labeled actions: walking, avoiding a person, and using a tool to avoid crossing.

Illustration of a robotic arm and hand positioning (no text or symbols)

Two technical line drawings showing mechanical components and a human figure in a chair with arrows indicating motion (no text or symbols)

Line drawing of a person operating a large wooden box (no text or symbols)

Line drawing of a person handling a large sheet of paper inside a rectangular frame (no text or symbols)

3

Illustration of hands using a tool to cut or spread material, no text or symbols present

1

Three hand-drawn diagrams showing mechanical assembly steps (no text or symbols)

Diagram of a mechanical or anatomical structure with directional arrows, no visible text or symbols

Illustration of hands holding a tool or tool with a bracket, no visible text or symbols

Line drawing of two hands holding a bag, one open and one closed, both without any text or symbols
