Product Type	Baby table chair (table attachment)
Brand	Topmark
Model	Smart T8060
Category	Baby products
Recommended age	From 6 months
Maximum child weight	15 kg
Compatible table thickness	20 to 38 mm
Materials	Metal frame, fabric and faux leather cover
Fixation system	Mounting hooks and suction cups
Safety belt	Yes, with press buckle
Removable cover	Yes
Cover cleaning	Hand wash in cold water with mild soap, no bleach or machine
General maintenance	Regularly check and tighten screws, nuts and fastenings
Safety	Never leave child unattended; use only on compatible tables
Warranty	2 years
After-sales service	Contact the store of purchase or the manufacturer
Manufacturer	Top Mark BV, P.O. Box 308, 8200 AH Lelystad, Netherlands
Box contents	1 table chair with padding and belt, 2 mounting hooks
Usage	Place the chair on the table, adjust the belt
Storage	Store in a dry, ventilated place after complete drying

Frequently Asked Questions - Smart T8060 Topmark

From what age can I use the Smart T8060 chair?

The chair is intended for children from 6 months when they can sit without assistance.

What is the maximum weight supported by the chair?

The maximum child weight is 15 kg. Do not use beyond that.

How do I install the chair on the table?

Mount the chair, insert the tubes until the pins are fixed, then place the chair on the table and secure the mounting hooks. Ensure the suction cups adhere well.

How do I clean the chair cover?

The removable cover can be hand washed in cold water with a mild soap. Do not use bleach, do not machine wash or tumble dry.

Can I machine wash the cover?

No, unless stated otherwise on the product. It is recommended to hand wash in cold water to preserve the materials.

What types of tables are compatible with the chair?

Use the chair only on tables with a thickness between 20 and 38 mm. Do not use on glass tables, drop-leaf tables, single-pedestal tables, card tables, or camping tables.

How do I unfasten the safety belt?

To unfasten the belt, simply press the buckle buttons.

What should I do if a part is missing or damaged?

Contact the store where you purchased the item before use. Use only manufacturer-approved spare parts.

Where can I find spare parts?

Spare parts must be provided or approved by the manufacturer. Contact consumer service at [e-mail].

What is the warranty duration?

The warranty is 2 years from the date of purchase, covering manufacturing defects. It does not cover normal wear or damage from improper use.

USER MANUAL Smart T8060 Topmark

IMPORTANT: KEEP FOR FUTURE REFERENCE.

• Read this instrucons carefully before use and keep for future reference.
• Your child's safety may be affected if you do not follow these instrucons.
• Use only spare parts delivered by importer for replacing or reparaon.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures. Extreme sunshine or temperatures may cause colour changes or bent parts.

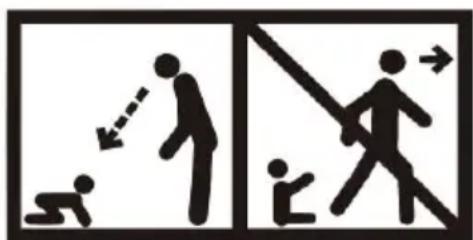

WARNING

• Never leave your child unaended.
• The use of this table chair is recommended for children from 6 months. The maximum weight is up to 15kg .
• The table chair shall not be used by children weighing more than 15 kg .
• Check that the table will not p when the table chair aached to it, is in use.
• Only to be used for a child that is able to sit in an upright posion.
  Always use the safety belt.
• Make sure that the belt is correctly ed.
• Do not use the table chair if any parts are broken, torn or missing.
• Do not use the table chair unless all components are correctly ed and adjusted.

WARNING

• Be aware of the risk of open re and other sources of strong heat, such as electric bar res, gas res, etc. in the near vicinity of the chair.
• Keep away from the re to avoid the danger.
• Avoid hot liquids, power cables and other possible dangers may come within range of a child.

• Do not let your child play with this product.

• Do not allow child to stand on seat.

• Do not allow more children, as chair may become unstable.
• Do not use accessories or replacement parts other than the ones recommended by instrucon manual.
• Accessories which are not approved by the manufacturer shall not be used.
• Only replacement parts supplied or recommend by the manufacturer/distributor shall be used.
• Do not allow any children, animals or other object to be placed under or near the chair while child is seated in the table chair.
• The product must be assembled by an adult.
• Keep this product away from children when not in use.
• Do not use tablecloths or other objects on the support surface which might interfere with the proper functioning of the anchoring elements. Keep the table structure and surface clean and dry.
• Do not aach the table chair where the child might use its feet to push against a part of the table, another chair or any other structure as this could cause the table chair to come off the table.
• This product is not suitable for use on all tables.
• Do not use on glass topped tables, tables with loose table tops, table leaves, single pedestal tables, card tables or camping tables.
• Maximum thickness of the table is 38mm /minimum thickness of the table 20mm .
• Rounely check any clamping screws and reghten them, if required. Check also the sucon parts.
• To make sure 4 snap buons xed well before using.

Check if following spare parts are in the box:

• 1x Seat with inlay and safety belt
• 2x mounng hook

Note that the fabric paerns, colour pictures and stroller accessories on this product in this instrucon manual may vary from that of the product that you have purchased.

If one or more of the above menoned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING

Please keep all packaging material away from babies and children, to prevent suocacon.

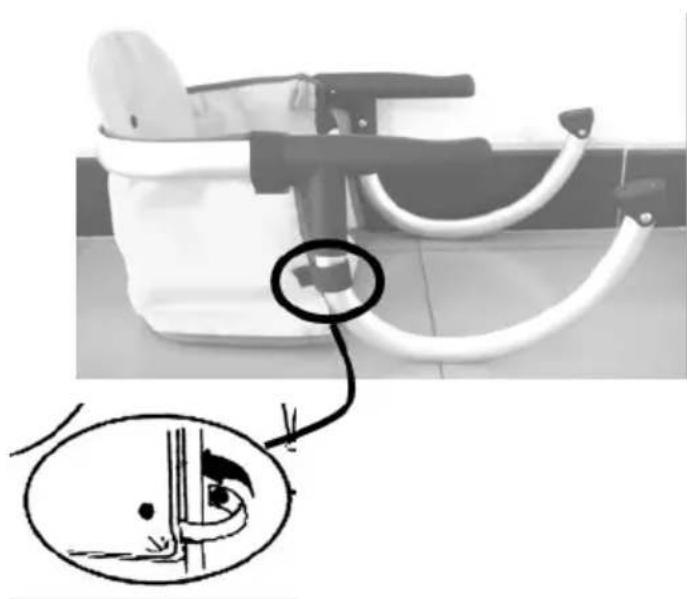

ASSEMBLING

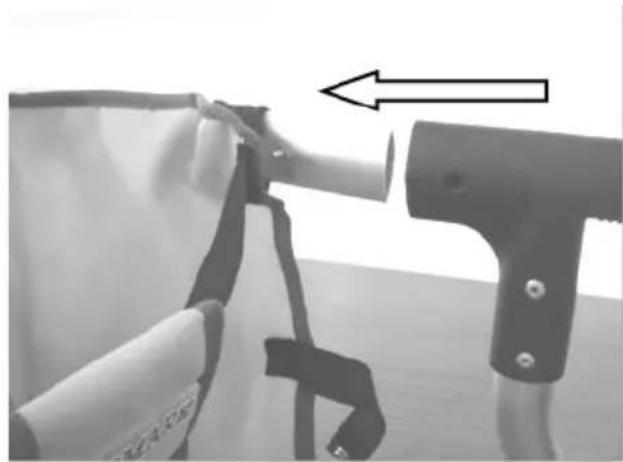

1. Assembly the chair. Insert and push into tube unl the pins are xed.

EN

1. Fix the belt to the tube with press buon.

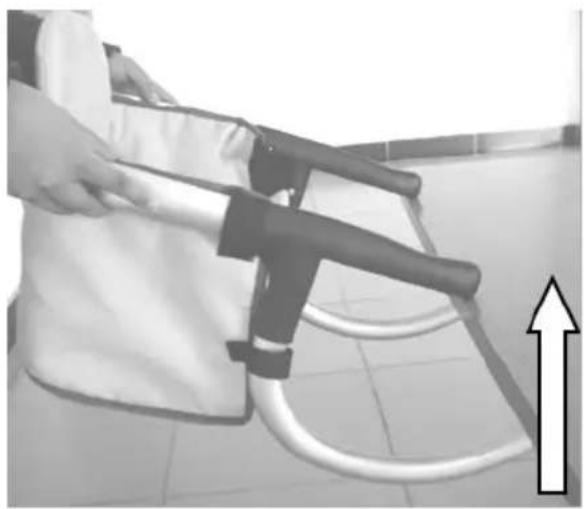

USING

1. Put the table chair on the table.

EN

1. Adapt the security belt.

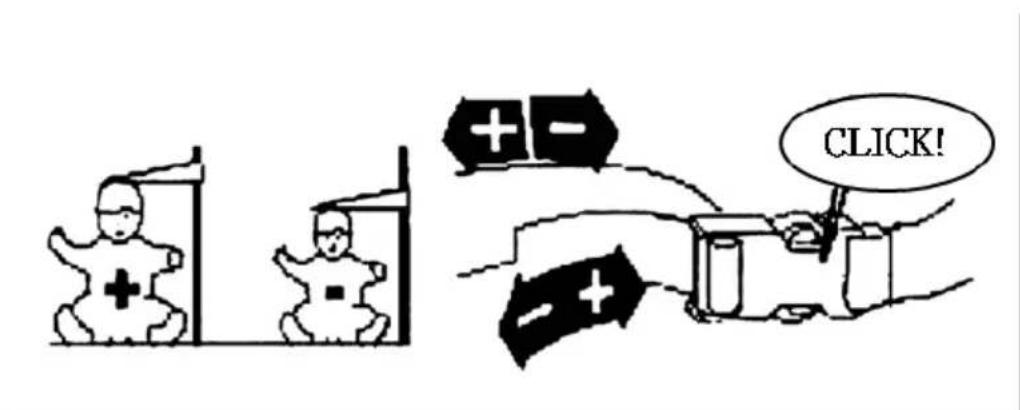

WARNING: ALWAYS USE THE SAFETY BELTS.

Adjust belt in right length to t your child.

To release belt just squeeze the buckle.

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry, unless the care labeling on the product permits these methods.

Press the metallic pins in order to release the tubes.

Remove the metallic pins in order to release the tubes.

Remove the fabric of the metallic structure.

Remove from the inside of the fabric the two rigid plackets.

The fabric can now be washed: hand wash in cold water.

Aer washing, the fabric must be assembled again with the metallic arms, taking special aenon with the xaon and assembling procedure in order to guarantee the chair is perfectly secure, before sing the child.

Non removable fabric covers and trims may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away. In some climates the covers and trims may be aected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well ventilated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only part and accessories approved by the supplier.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible eect on the value or operaon of the product.

Damages caused by overloading or wrong folding are not granted.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the rst owner and is not transferable.

Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 1272
