Product type	Baby bouncer
Brand	Topmark
Model	Toby T7031
Category	Baby products
Maximum supported weight	9 kg
Recommended age	From birth to 6 months (until the child can sit up alone)
Backrest position	Adjustable (multi-position via safety buttons and levers)
Footrest	Adjustable (plastic handles)
Play arch	Included with removable toys
Restraint system	3-point safety harness with crotch strap
Frame material	Metal
Cover material	Fabric (removable and hand washable)
Cleaning	Damp cloth and mild detergent for the frame; cover washable with warm water and mild soap, air dry
Safety standard	EN 12790
Warranty	2 years (manufacturing defects)
Assembly required	Yes (assembly of the play arch)
Usage	Do not use as a car seat, do not leave unattended, do not place on elevated surfaces
Maintenance	Regularly check screws and components, use only approved parts
Dimensions (approximate)	Not provided in the manual
Product weight	Not provided

Frequently Asked Questions - Toby T7031 Topmark

From what age can I use the Toby T7031 bouncer?

The bouncer is designed for children from birth until they reach 9 kg (up to about 6 months), or until they are able to sit up, turn over, or push themselves up without assistance. Stop using the product if the child can roll over on their own.

What is the maximum weight supported by the bouncer?

The maximum supported weight is 9 kg.

How to assemble the play arch?

The play arch must be assembled by an adult as shown in figure 4 of the manual. Make sure it is correctly mounted on both sides of the bouncer. To avoid injury, remove the toys from the arch when the child can grab them with hands or feet.

How to adjust the backrest position?

Press the two safety buttons located under the seat, then pull the levers backward to adjust the position. Once the desired position is reached, push the levers forward to a vertical position to lock.

How to clean the bouncer?

Clean the frame with a damp cloth and mild detergent. The removable fabric covers can be washed in warm water with mild soap, then air dried. Do not machine wash, do not use bleach or abrasive cleaners.

Can I use the bouncer as a car seat?

No, never use the bouncer as a car seat. It does not protect the child in case of an accident.

What to do if the bouncer is damaged?

Do not use the bouncer if it is bent, broken, or if the cover is torn. Immediately replace any damaged parts. Contact the store or after-sales service to obtain approved replacement parts.

How to properly fasten the safety harness?

Thread the belt through the crotch strap and fasten the buckle until you hear a 'click'. To open, press both protruding hooks simultaneously. Always use the crotch strap with the harness.

Can I let my child sleep in the bouncer?

This bouncer is not intended for prolonged periods of sleep. If your child needs to sleep, place them in a baby crib or a suitable bed.

What is the warranty period?

The warranty is 2 years from the date of purchase, covering manufacturing defects. It does not cover damage due to improper use or normal wear.

USER MANUAL Toby T7031 Topmark

Gray baby boom chair with colorful plush toys hanging on the backrest (no text or symbols visible)

TOBY

0-6M

9 kg

T7031

Gebruiksaanwijzing

Instrucon for use

Gebrauchsanleitung

Mode d'emploi

Diagram illustrating human behavior with stick figures and directional arrows, possibly indicating movement or safety instructions.

Line drawing of a mechanical device with a handle and base plate, labeled with number 1 (no text or symbols on the diagram itself)

NL

Diagram showing a hand holding a baby's seat with labeled parts and directional arrows indicating motion or movement.

Diagram showing a hand holding a flexible hose with labeled parts and directional arrows indicating movement or force.

Product photo of a baby boom chair with adjustable arm and star-shaped decoration (no text or symbols visible)

White baby boom chair with adjustable arm and star-shaped decoration (no text or symbols visible)

IN GEBRUIK NEMEN

Technical line drawing showing two views of a mechanical component with a handle and spring (no text or symbols)

Technical line drawing showing two mechanical assembly steps: left for a hand holding a clip, right for a handle with a hook and lever (no text or symbols)

Diagram of a baby seat with labeled parts and directional arrows indicating motion or movement

Line drawing of a belt buckle assembly with arrows indicating movement (no text or symbols)

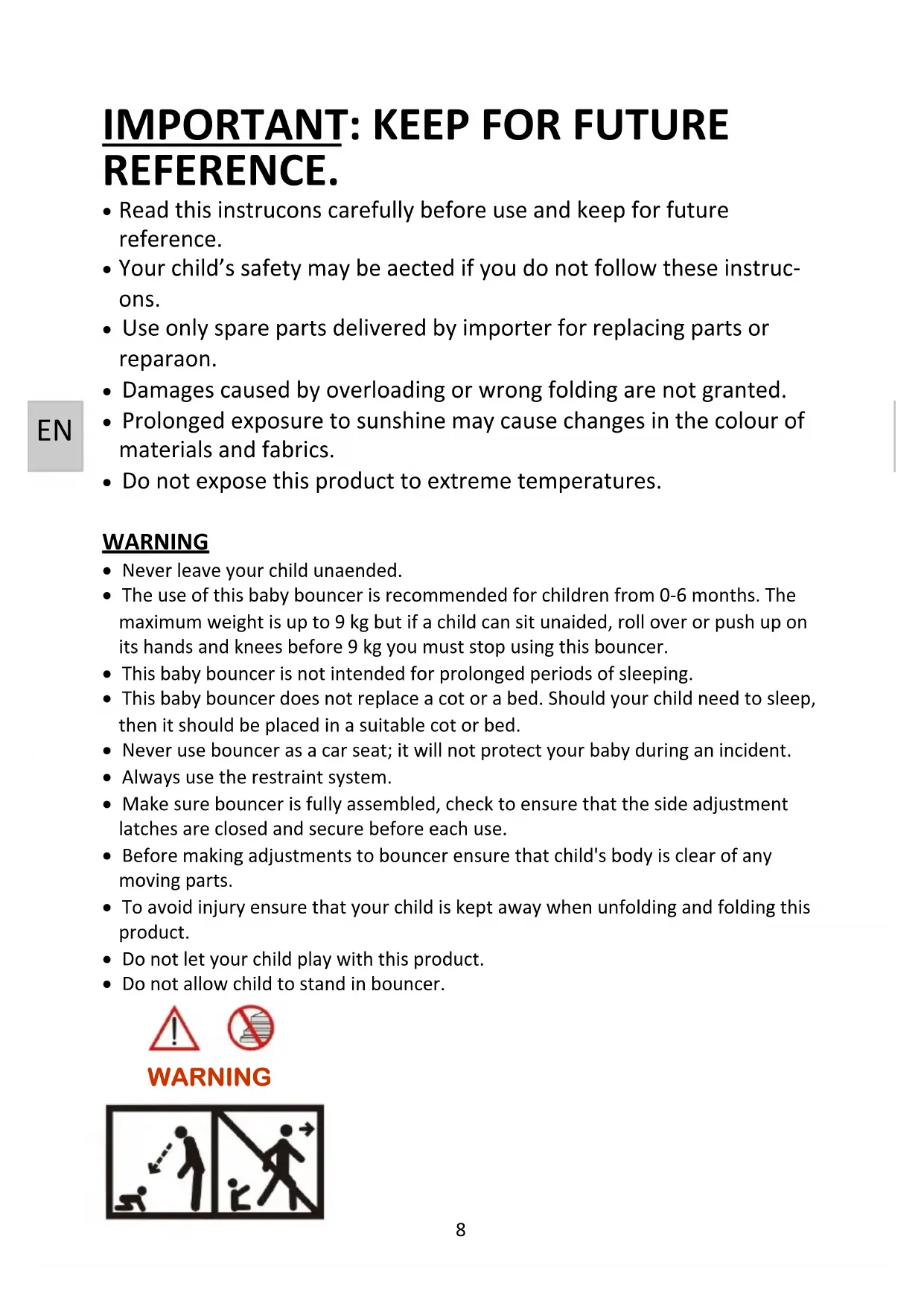

IMPORTANT: KEEP FOR FUTURE REFERENCE.

• Read this instrucons carefully before use and keep for future reference.
• Your child's safety may be aected if you do not follow these instruc- ons.
• Use only spare parts delivered by importer for replacing parts or reparaon.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures.

WARNING

• Never leave your child unaended.
• The use of this baby bouncer is recommended for children from 0-6 months. The maximum weight is up to 9 kg but if a child can sit unaided, roll over or push up on its hands and knees before 9 kg you must stop using this bouncer.
• This baby bouncer is not intended for prolonged periods of sleeping.
• This baby bouncer does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
• Never use bouncer as a car seat; it will not protect your baby during an incident.
  • Always use the restraint system.
• Make sure bouncer is fully assembled, check to ensure that the side adjustment latches are closed and secure before each use.
• Before making adjustments to bouncer ensure that child's body is clear of any moving parts.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
• Do not allow child to stand in bouncer.

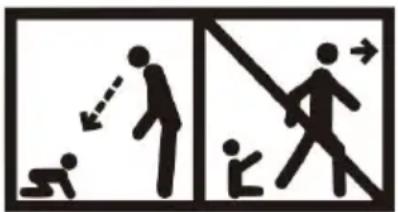

WARNING

Safety warning illustration showing pictograms of human walking and deflection with directional arrows

• Only use bouncer on a rm horizontal level.
• The use of this bouncer is recommended for 1 child only.
• Do not use the bouncer on an elevated area, like tables etc.
• Place the bouncer on a rm horizontal and rough surface.
• Do not allow any children, animals or other object to be placed under or near the chair while child is seated in the bouncer.
• Do not use bouncer near open re, exposed ame, BBQ or heater.
• Avoid hot liquids, power cables and other possible dangers may come within range of a child.
• Do not place items with a string around child's neck (pacier cords, hood strings etc).
• Do not allow strings to hang into bouncer, including blind cords or suspended toys other than what is eventually provided with this product.
• Do not use accessories or replacement parts other than the ones recommended by instrucon manual.
• Never li bouncer while child is seated.
• Keep the carrying handles out of reach of children.
• Do not connue using bouncer if it becomes bent, broken or if the clothe cover is ripped or torn.
• Replace any damaged parts immediately.
• Never put bouncer near steps or stairs.
• Never use the toy bar to carry the baby bouncer.
• Adult assembly of toy bar required.
• Assure the toy bar is correctly assembled on both sides of the bouncer.
• To avoid injury, please remove the toys when the child is able to grab them with hands and/or feet.

Check if following spare parts are in the box:

• Chassis
  • Inlay with safety belt
  • Toy bar with 3 pcs. of so toys

Note that the fabric paerns, colour pictures and stroller accessories on this product in this instrucon manual may vary from that of the product that you have purchased.

If one or more of the above menoned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING

Please keep all packaging material away from baby's and children, to prevent suocaon.

ASSEMBLING/USING

Open the baby bouncer (g. 1)

Open the carton to take out the bouncer.

Line drawing of a mechanical device with a handle and base plate, labeled with number 1 (no text or symbols on the diagram itself)

EN

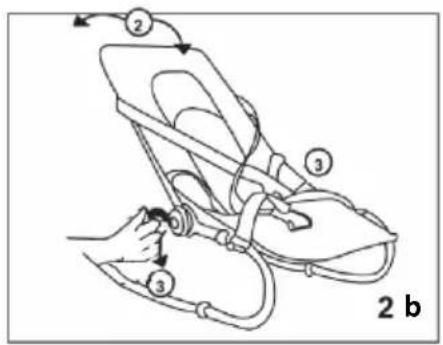

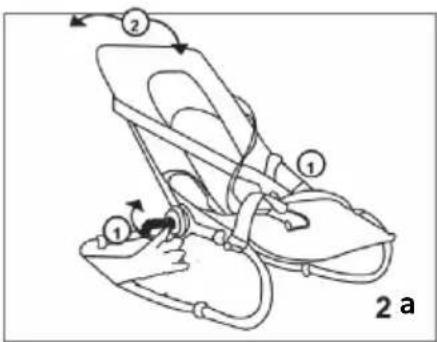

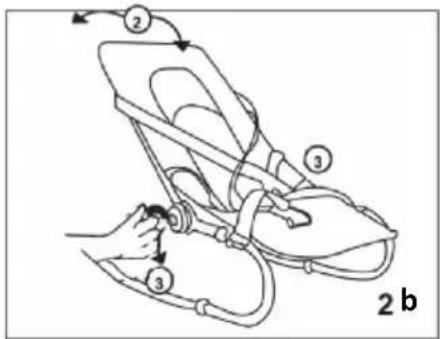

Adjusng the backrest (g.2a/2b)

Press the second safety buons rst and pull backwards the levers of the jointer at middle le and right side to adjust the seat back posions (2a)

When it reaches the desired posion, pull forward the levers to maximal vercal posion to x it (2b).

2 1 1 2 a

Diagram of a baby car seat with numbered parts and directional arrows indicating motion or movement

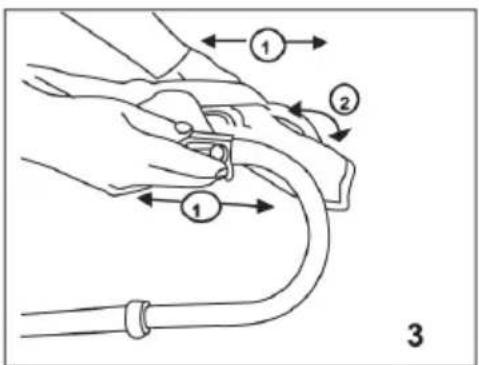

Adjusng the footrest (g. 3)

Pull backwards the plasc adjustable grips at front le and right side at the same me to adjust the footrest posions.

Diagram showing a hand holding a flexible hose with labeled parts and directional arrows indicating movement or force.

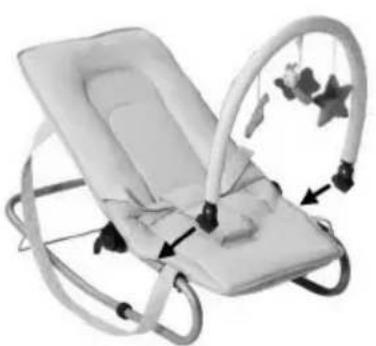

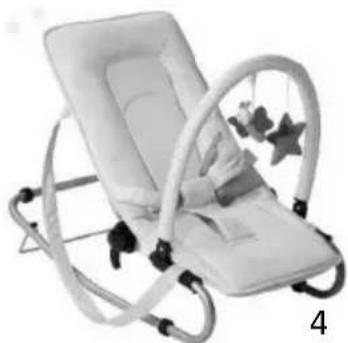

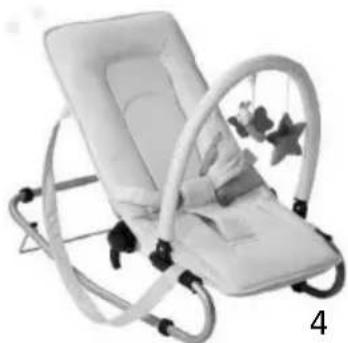

Assembling the toybar (g. 4)

Assemble toybar as shown on the picture.

Product photo of a baby boom chair with curved arm and star-shaped decoration (no text or symbols visible)

White baby boom chair with adjustable arm and star-shaped decoration (no text or symbols visible)

USING

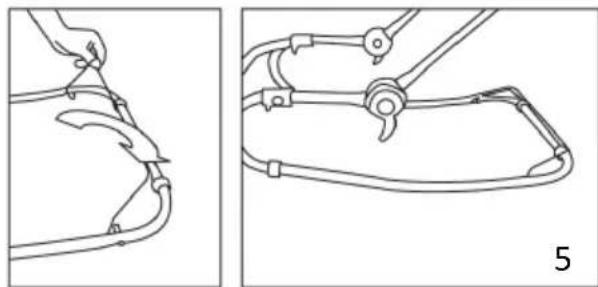

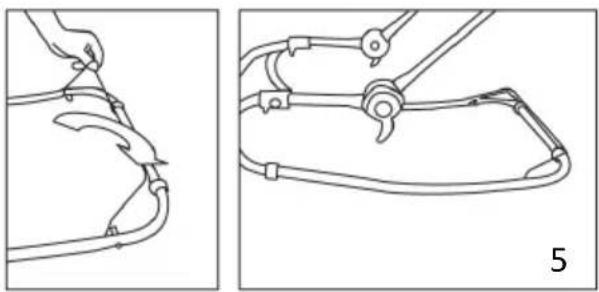

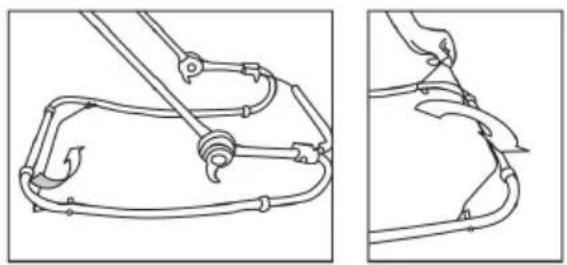

Swinging movement of the baby bouncer (g. 4)

Low down the support wire to let it bounce up and down. Do remember to li up the support wire before rocking.

Technical line drawing showing two views of a mechanical component with no visible text or symbols

Technical line drawing showing two mechanical assembly steps: one with a tool, the other with a handle and lever mechanism (no text or symbols)

Packing the baby bouncer (g.5)

Before packing the bouncer, press the second safety buon to adjust the set back to the lowest posion. posion.

Diagram of a baby seat with labeled parts and directional arrows indicating motion or movement

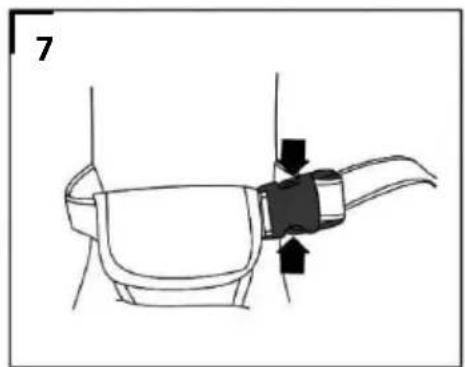

Safety belt (g. 6)

Pass the safety belt through the crotch strap and t the buckle in place unl you hear "click" making sure that it is correctly anchored.

To open the buckle, press on the two hooks that overhang at the same me and pull on them.

WARNING: Always use the crotch strap along with the safety belt.

Line drawing of a belt buckle assembly with arrows indicating movement (no text or symbols)

CARE AND MAINTENANCE

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Do not use abrasive cleaners. Do not soak in water.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Always store your product in a clean dry place.

Do not leave in the boot of car.

EN

Avoid exposure to salt water, as this may encourage the formaon of rust. If bouncer is used in this environment completely clean your bouncer aerward to remove sand an salt from mechanisms.

Should parts become s, squeak or dicult to operate ensure dirt is not the cause.

When storing bouncer, never stack other items on top of it, this may damage the bouncer.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry. Inlay and chair may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away.

In some climates the parts may be aected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well venlated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only parts and accessories approved by the supplier.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the product.

Damages caused by overloading or wrong folding are not granted.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the rst owner and is not transferable.

Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 12790

Safety warning illustration showing pictograms of a person using a tool to avoid injuries and take place, with arrows indicating movement direction.

Line drawing of a mechanical device with a handle and base plate, labeled with number 1 (no text or symbols on the diagram itself)

DE

① ② ① 2 a

2 3 3 2 b

Diagram showing a hand holding a car seatbelt with labeled parts and directional arrows indicating movement or force.

Product photo of a baby boom chair with adjustable arms and decorative elements (no text or symbols visible)

White baby boom chair with adjustable arm and star-shaped decoration (no text or symbols visible)

GEBRAUCH

Technical line drawing showing two views of a mechanical component with a handle and spring (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a handle and angle, the other with a handle and curved component (no text or symbols)

Diagram of a baby seat with labeled parts and directional arrows indicating motion or movement

Line drawing of a belt buckle assembly with arrows indicating movement (no text or symbols)

PFLEGE

Diagram illustrating human walking and climbing motion with labeled actions and directional arrows

posants mobiles.

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

FR

RÉGLAGE DU DOS- SIER (g. 2a/2b)

Product photo of a baby boom chair with adjustable arms and star-shaped accessories (no text or symbols visible)

White baby boom chair with adjustable arm and star-shaped decoration (no text or symbols visible)

UTILISATION

MOUVEMENT DU TRANSAT (g. 5)

Diagram of a baby seat with labeled parts and directional arrows indicating motion or movement

CEINTURE DE SÉCURITÉ (g. 6)

Line drawing of a belt buckle assembly with arrows indicating movement (no text or symbols)

Diagram illustrating human behavior with labeled actions: walking, avoiding a person, and using a tool to avoid crossing.

Line drawing of a mechanical device with a handle and base plate (no text or symbols)

AJUSTE DEL

RESPALDO (g. 2)

Diagram showing a hand holding a flexible hose with labeled parts and directional arrows indicating movement or force.

MONTAJE DE LA BARRA DE JUEGOS (g. 4)

White baby boom chair with adjustable arm and star-shaped decoration (no text or symbols visible)

White baby boom chair with adjustable arm and star-shaped decoration (no text or symbols visible)

USO

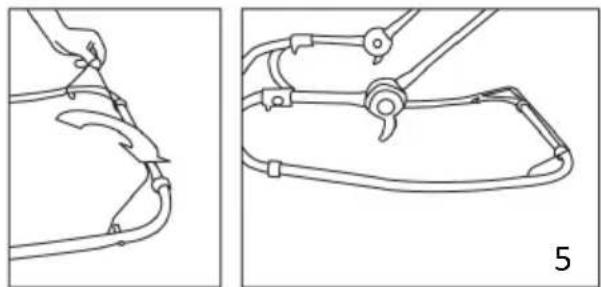

MOVIMIENTO OSCILANTE DE LA HAMAQUITA (g. 5)
