Product Type	Filter pump for above-ground pool
Model	Flowclear 58383
Brand	Bestway
Power Supply	230 V ~ 50 Hz, via isolation transformer or 30 mA RCD
Power Consumption	400 W (estimated)
Maximum Flow Rate	2000 L/h (estimated)
Filtration Type	Filter cartridge (washable)
Dimensions (L x W x H)	30 x 20 x 25 cm (estimated)
Weight	5 kg (estimated)
Minimum Distance from Pool (Outlet)	3.5 m
Minimum Installation Distance	2 m from the pool
Operating Temperature	10 °C to 38 °C
Storage	Dry place, temperature 10 °C to 38 °C
Cartridge Maintenance	Clean regularly, replace every 2 weeks
Recommended Filtration Duration	8 hours per day minimum
Electrical Safety	30 mA RCD, no extension cord, do not bury the cord
Repairability	Replacement parts approved by the manufacturer
Warranty	See www.bestwaycorp.com

Frequently Asked Questions - Flowclear 58383 BESTWAY

How do I install the Flowclear 58383 pump?

Place the pump on a solid, level surface at the same level as the pool base. Secure it firmly using the provided bolts and nuts. Connect the hoses and plug the device into an outlet protected by a 30 mA RCD, located at least 3.5 m from the pool. Check that the suction openings are not blocked before operation.

What should be the distance between the pump and the pool?

The pump must be placed more than 2 m from the pool. The electrical outlet must be at least 3.5 m from the pool edge.

How do I clean the filter cartridge?

Unplug the pump. Remove the cartridge and rinse it with clean water. Gently brush to remove debris. Do not let the cartridge dry completely before reinstalling. Replace it every two weeks.

How often should the filter cartridge be replaced?

For optimal performance and good hygiene, we recommend replacing the cartridge every two weeks.

What should I do if the pump does not start?

Check that the device is properly plugged in and that the RCD has not tripped. Make sure the pump is primed (the inlet and outlet openings must be submerged). If the problem persists, consult a qualified electrician.

Can I use an extension cord with this pump?

No, extension cords are prohibited. The power cord must be plugged directly into a protected outlet.

How do I store the pump in winter?

Disassemble the pump, clean it, and dry it completely. Remove the cartridge. Store it in a dry place at a temperature between 10 °C and 38 °C. Do not leave it outside in winter.

Is it safe to leave the pump in the rain?

No, it is imperative to unplug the pump on rainy days. The device is not designed to be exposed to weather. Protect it from atmospheric conditions.

Can the pump run dry?

No, never run the pump dry. Ensure that the inlet and outlet valves are fully submerged before starting the pump.

Where can I find spare parts for the Flowclear 58383 pump?

Replacement parts must be approved by the manufacturer. Visit www.bestwaycorp.com/support or contact your authorized dealer.

USER MANUAL Flowclear 58383 BESTWAY

bestwaycorp.com/support

Visit the Bestway YouTube channel YouTube

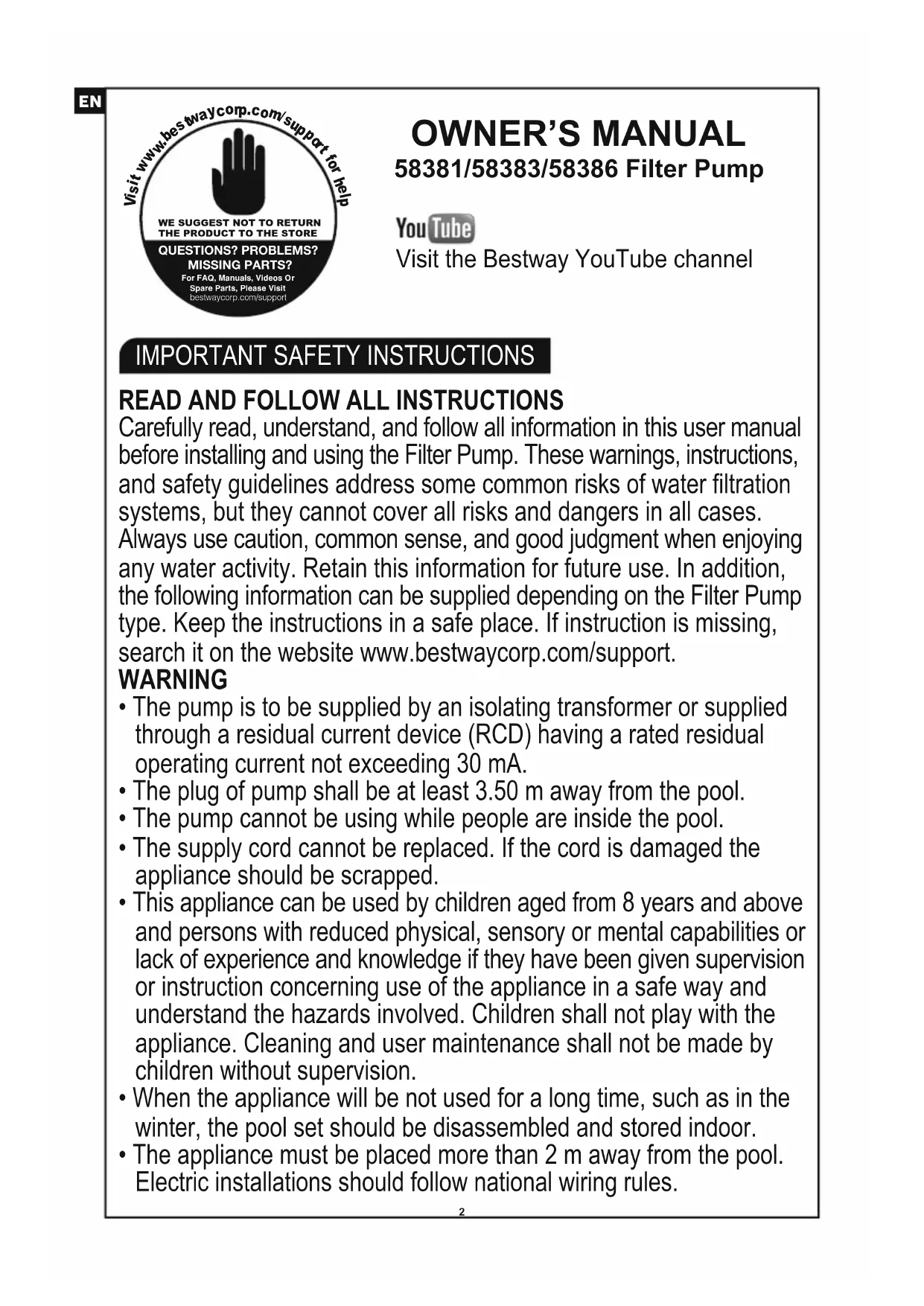

OWNER'S MANUAL

58381/58383/58386 Filter Pump

YouTube

Visit the Bestway YouTube channel

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS

Carefully read, understand, and follow all information in this user manual before installing and using the Filter Pump. These warnings, instructions, and safety guidelines address some common risks of water filtration systems, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Retain this information for future use. In addition, the following information can be supplied depending on the Filter Pump type. Keep the instructions in a safe place. If instruction is missing, search it on the website www.bestwaycorp.com/support.

WARNING

• The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA .
• The plug of pump shall be at least 3.50m away from the pool.
• The pump cannot be using while people are inside the pool.
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• When the appliance will be not used for a long time, such as in the winter, the pool set should be disassembled and stored indoor.

• The appliance must be placed more than 2m away from the pool. Electric installations should follow national wiring rules.

• Only the media provided or specified by the manufacturer is to be used with product installation.

• It is essential to check that the suction openings are not obstructed.
• It is advisable to stop the filtration during maintenance operations on the filtration system.
• Regularly monitor the filter clogging level.
• A weekly check is recommended for cleaning.
• Minimum daily filtration operating time of 8 hours is recommended to ensure clear pool water.
• It is essential to change any damaged element or set of elements as soon as possible. Use only parts approved by person responsible for placing the product on the market.
• All filters and filter media shall be inspected regularly to ensure that there is not a build-up of detritus thus preventing good filtration. The disposal of any used filter media should also be in accordance with applicable regulations/legislation.
• The water circulation installation shall comply with the European as well as national/local regulations, especially when dealing with electrical issues. Any change of valve position, pump size, grille size can cause a change of the flow and the suction velocity can be increased.
• It is necessary to have the plug accessible after installation of the pool.
• Please read the instruction manual carefully and keep it for future reference.
• If instruction is missed, please contact with Bestway or search it in website: www.bestwaycorp.com.

DISPOSAL

Electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SAFETY TECHNICAL INSTRUCTIONS

• The appliance must be supplied by a grounded power source.
• Extension cords can't be used.
• In case of damage to the filter pump, do not use the pool.
• Do not bury cord. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.
• This pump is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled

to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.

• Using the pump with an unmatched electrical supply is dangerous and will result in catastrophic failure of pump.
• When working with electricity, turn the electrical power off at the circuit breaker and lock breaker door. Failure to do so will result in increased risk of shock, injury and possibly death.
• Do not remove the grounding prong or modify the plug in any way. Do not use adapter plugs. Consult a qualified electrician for any questions related to the validity of your plug's grounding.
• Handle the pump with care. Do not pull or carry the pump by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the filter pump.
• Cleaning and user maintenance must be performed by an adult above 18 years old who is familiar with the risk of electric shock.
• Consult a qualified electrician for any questions.
• In case of doubt on the pump or any circulation devices, contact a qualified installer, or the manufacturer/importer/distributor.
• Mind all the safety requirements and recommendations described in the manual.
• Please examine equipment before use. Notify Bestway at the customer service address listed on this manual for any manufacturing defect or missing parts at the time of purchase. Verify that the equipment components represent the filter pump model that you had intended to purchase.
• Atmospheric conditions may affect the performance and life span of your filter pump. Unnecessary wear and tear may occur during periods of cold, heat and exposure to sun. Whenever possible, shelter the pump from these conditions.
• It is important to ensure the factory equipped stopper plugs for the inlet and outlet ports replace the screens before removal or maintenance on the pump is attempted.
• Do not add chemicals in the filter pump.
• Don't plug or unplug the appliance if your hand is wet.
• Always unplug the appliance: on rainy days, before cleaning or other maintenance, and when leaving it unattended on holidays.
• This product is not intended for commercial use.

ATTACHING A BASE

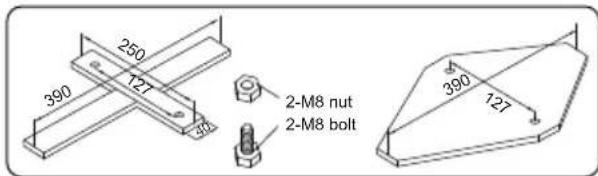

FOR 330GAL

EN60335-2-41 TEST standard requires the filter pump to be vertically fixed on the ground or a base made of wood or concrete before use. There should be two holes 9mm in diameter on the base, the space between which should be 127mm . Put filter pump on the base and attach them together by fastening the bolts and nuts. All the base parts should weigh at least over 18kg to prevent the pump from accidentally falling.

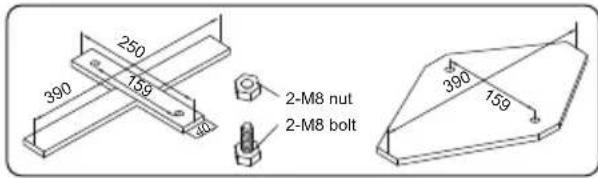

FOR 530GAL

EN60335-2-41 TEST standard requires the filter pump to be vertically fixed on the ground or a base made of wood or concrete before use. There should be two holes 9mm in diameter on the base, the space between which should be 159mm . Put filter pump on the base and attach them together by fastening the bolts and nuts. All the base parts should weigh at least over 18kg to prevent the pump from accidentally falling.

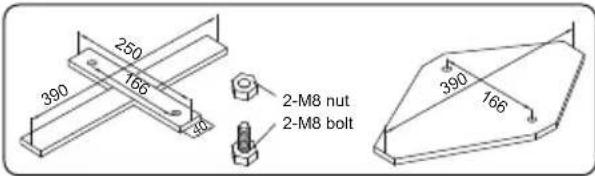

FOR 800GAL

EN60335-2-41 TEST standard requires the filter pump to be vertically fixed on the ground or a base made of wood or concrete before use. There should be two holes 9mm in diameter on the base, the space between which should be 166~mm . Put filter pump on the base and attach them together by fastening the bolts and nuts. All the base parts should weigh at least over 18kg to prevent the pump from accidentally falling.

SETUP

CHECK LIST

To check the parts included in the box, consult the part list inside this manual. Verify that the equipment components represent the model that you had intended to purchase. In case of any damaged or missing parts at the time of purchase, visit our website bestwaycorp.com/support.

CHOOSE THE CORRECT LOCATION

Place the Filter Pump on a solid and level ground; it must be positioned on the same level as the base of the pool. If the Filter Pump is in an upper or lower position than the base of the pool, the performance and life span of the Filter Pump can be compromised. The pool and the Filter Pump have to be positioned in an area with adequate drainage and easy access for maintenance operations. Never place the Filter Pump in a area that may accumulate water.

INSTALLATION

• For the installation instructions, refer to the illustration steps. Drawings are for illustration purposes only. May not reflect actual product. Not to scale.
• Bestway will not be responsible for any damage caused to the Filter Pump due to mishandling or failure to follow these instructions.
• It is imperative to check that the hydraulic connectors are not obstructed.
• Do not dry run the Filter Pump. Make sure both the pool's inlet and outlet valves are fully covered by water before operating the Filter Pump.

MAINTENANCE

• Make sure that the Filter Pump is unplugged before any maintenance.
• For the maintenance instructions, refer to illustration steps inside this manual. Drawings are for illustration purposes only. May not reflect actual product. Not to scale.
  To optimize the Filter Pump performance and for sanitary reasons, we suggest replacing the filter cartridge with a new one every two weeks.

STORAGE

• Remove all accessories; be sure that Filter Pump, hoses and debris screens are completely clean and dry before the storage. If all the parts are not completely dry, mold may result.
• Before storage, remove and dispose of the filter cartridge.
  We strongly recommend disassembling the Filter Pump when the environment temperature is below 10^ / 50^
• Store the Filter Pump in a dry place with a moderate temperature between 10^ / 50^ and 38^ / 100^ .

WARRANTY TERMS

For information concerning warranty terms, visit our website at: www.bestwaycorp.com.

MANUAL DO UTILIZADOR

58381/58383/58386 Bomba de Filtragem

You Tube

Visite o canal YouTube da Bestway

INSTRUÇÉS DE SEGURANÇA IMPORTANTES

LEIA E SIGA TODAS AS INSTRUÇÉS

CONDITIONS DE GARANTIE

CONDITIONS DE GARANTIE

BbIEEPNTI PPABINbHOE MECTO YCTAHOBKN

PomeCTHe fIbtpyOuH HACo HA TBepyIO pOBHy IOBepxHOCTb; OH DOnJKeH 6bTb paCNoJIOeH Ha TOM JcE ypOBHe, YTO n OCHOBaHne BaccenHa. Ecnn fIbtpyOuH HACo cpaNIOJeoH bIe He NmHKe OCHOBaHna BaccseHa, 3To MoKET OPuaTeNBHO NBnAHTb HPOINBODInbHOCTb H CPOK cnYkbbl PAnbtpyoUero HAcoca. BaccseHfNbtpyOuH HACoc DOJXkbbl 6bTb paCNOJIOeH B3OHe C DOCTaTOHbIM dpEhAKOM IERKMIDOCTyONM dnn npOBedeHn paBoTn ToexHNueckomy 0cbnykBaHnIO. HIKOrda He pa3MeuaIte fIbtpyOuH HACoc B MecTe, rDe MOKeT CKANIIBaTbCBBOJa.

YCTAHOBKA

• INCHpykunno yctahOBke CM. Ha pncyHKax C NOAROBIMN yka3aHnRM. Cxembl npedna3aHneBnckIOHTeBHO dner ceJeIINIOCTpaumn. OHMOYrHEOTbKoHHpeTHe 3dJIe. Cxembl He OTO6pKaHOT DeIcTBntBbHm MacuTa6.
  KOMNAHnBestway He HecET OTBETCBHOCHT 3a npuHHHeHbIe FInbtpyUcemy HaocCy NOBpeJDeHn BcneCTBn HnnpabNtBHO ObaueHn IIN HEC6JIIOEHN HACTOUIX INCHpykun.
• 063aTeBn y6eDnTeCb B TOM, YTO rnpabnueckne coeHNHTeH He 3akynopeHbI.
• He BKNIOUaIte fumbtpuyoun Hacoc 6e3 BQbl. IpeKJe Yem BKNIOUaTb fumbtpuyoun Hacoc, y6eNTecb, YTO BnyckHO N BbyNcHoi KnaNaHb6accenHa nonHOCTbO NOKpbTb BOdo.

TEXHINUCKOE OBCJNYKUBAHNE

• Pape npoBeHnem TexnHeckoro 06cnykBaHnry y6eHntecb, TTO pIbtpyUOuHn HAcoc OTcoeHnHnEh OJNEKTPocetM.
• INHCTpyKUIN NO TEXHNHECKOMY OBCJNYKBAHNI CM. HA PNCYHKAX C NOAAROBBM YKA3AHMIM B DAHNOM PYKOBOIDCTBE Cxembl npedHa3HaeHbNCKIIOHTENBNO DnIeNEI INIIOCTPAUN. OHN MOrT HE OTObpaKaTb KOHKpeTHOE N3dINE.Cxembl HE OTObpaKaIOT DeIcETBNTenBbH MaCtTa6.
  IgONTHM3aun npou3BOUHTeBHOCTn fumbtpuyooero HAcoc a n no coobpaekhenm TmneHb Mbl pekomehdyem 3ameHt b KapTpndx pfNbtpa HObbim Upe3 kaxdble Dbe HeJeHN.

XPAHEHNE

• CnHmTe BCE npHaIeXHOCTn; y6eIITecb, 70 foNbtpyOuI HAcOC, IuaHrN nCeTAtBe FIOBTPbI NOnHOCTbIO YnCTbIE n CyXne nepex pAnHeM. Ecn He Bce DetaII NOnHOCTbIO cyXne, 3TO MOKeT PpNBHeHIO nnEeHN.
  -ПередхраненемИЗВЕКINTEиУтMuIn3npyuTe KapTpuaKФиьтpa.
• Mbl hactoTeIbHO peKOMeHdyem OTcoEINHrTb fNtBtpyUOuHn HAcOC, ecn TempepaTypa Bo3dyxa onyckaetca Hnke 10°C (50°F).
  XpaHnTe pInbtpuOni Hacoc B cyxom Mece npu ymepeHno TEmpeaType oT 10^ (50^) do 38^ (100^)

TAPAHNTHbIE YCJIOBnA

Дя получении унформачи ngсьовях rapангп постente haоаьб-сай no apecy: www.bestwaycorp.com.

INSTRUKCJA OBSŁUGI

Pompa filtrujuça 58381/58383/58386

You Tube

OdwiedźkanatBestwaynaYouTube

WAZNE WSKAZOwKI DOTYCZACE BEZPIECZENSTWA

PRZECZYTAJ I POSTEUJ ZGODNIE Z WSZYSTKIMI INSTRUKCJAMI
