Product Type	Skimatic Filter Pump
Brand	Bestway
Model	Flowclear 58470 (compatible 58463)
Category	Above-ground pool filter pump
Main functions	Filtration, skimming (Skimatic), water circulation
Maintenance	Clean cartridges regularly; replace every two weeks for optimal performance
Electrical safety	Use only on grounded outlet protected by ground fault circuit interrupter (GFCI); thermally protected motor
Safety during use	Do not operate pump when people are in the pool; do not run dry; install outlet more than 1.8 m from the pool
Installation	For adults only; check that suction openings are not obstructed; immerse valves before starting
Storage	Clean and dry all parts; remove cartridge; store between 10°C and 38°C; disassemble if temperature < 10°C
Spare parts	Filter cartridge (replacement every two weeks recommended)

Frequently Asked Questions - Flowclear 58470 BESTWAY

What to do if the pump does not start?

Check that the outlet is properly plugged in and that the GFCI breaker has not tripped. Make sure the pump is not running dry (inlet and outlet valves must be submerged). If the problem persists, contact Bestway support.

How often should I clean or replace the filter cartridge?

We recommend cleaning the cartridge every week and replacing it with a new one every two weeks to ensure optimal filtration and good hygiene.

Can I use this pump with an inground pool?

No, this pump is intended exclusively for above-ground pools that are dismantlable. Do not use it with permanently installed pools.

What minimum distance must I maintain between the pump and the pool?

The pool must not be installed less than 1.8 m from any electrical outlet. Do not place portable devices less than 1.5 m from the pool.

Can I use an extension cord to plug in the pump?

No, using an extension cord is prohibited to avoid risk of electrocution. Provide a properly located outlet nearby.

What to do if the power cord is damaged?

Immediately unplug the pump and do not use it. The cord must be replaced by the manufacturer, its after-sales service, or a qualified electrician.

How to store the pump in winter?

Remove all accessories, clean and dry the pump, hoses, and grilles completely. Remove and discard the cartridge. Store in a dry place between 10°C and 38°C. If the ambient temperature drops below 10°C, disassemble the pump.

The pump makes an abnormal noise, what to do?

Check that the suction openings are not obstructed and that the pump is not running dry. Make sure the pump is properly installed on its base. If the noise persists, contact support.

Can I add chemicals directly into the pump?

No, never pour chemicals into the filter pump. Add them directly to the pool according to the manufacturer's instructions.

Where to find spare parts or additional information?

Visit the site bestwaycorp.com/support for FAQs, manuals, videos, spare parts, and support.

USER MANUAL Flowclear 58470 BESTWAY

bestwaycorp.com/support

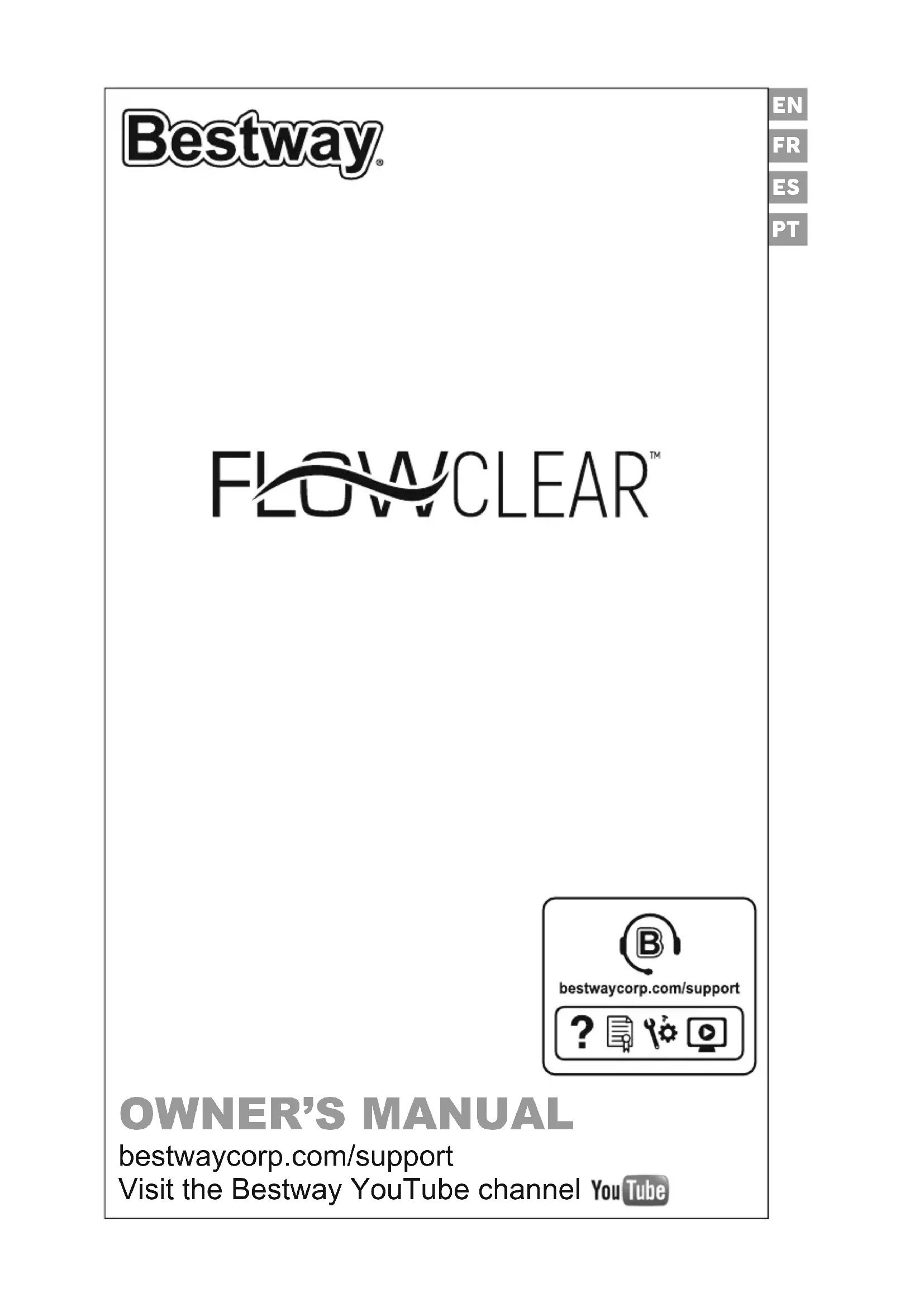

OWNER'S MANUAL

bestwaycorp.com/support

Visit the Bestway YouTube channel YouTube

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

OWNER'S MANUAL

58463/58470 Skimatic Filter Pump

YouTube

Visit the Bestway YouTube channel

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS

Carefully read, understand, and follow all information in this user manual before installing and using the Filter Pump. These warnings, instructions, and safety guidelines address some common risks of water filtration systems, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Retain this information for future use. In addition, the following information can be supplied depending on the Filter Pump type.

Keep the instructions in a safe place. If instruction is missing, search it on the website www.bestwaycorp.com/support.

WARNING

• THERMALLY PROTECTED MOTOR CSA ENCLOSURE 3.
• FOR USE WITH SWIMMING POOLS ONLY.
- CAUTION: TO ENSURE CONTINUED PROTECTION AGAINST SHOCK HAZARD, USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING.
- WARNING: RISK OF ELECTRIC SHOCK. CONNECT ONLY TO A GROUNDING TYPE RECEPTACLE PROTECTED BY A GROUND-FAULT CIRCUIT INTERRUPTER (GFCI).
- CAUTION: THIS PUMP IS FOR USE WITH STORABLE POOLS ONLY - DO NOT USE WITH PERMANENTLY-INSTALLED POOLS.
- CAUTION: CONNECT ONLY TO GROUNDING TYPE RECEPTACLE PROTECTED BY A CLASS A GROUND FAULT CIRCUIT INTERRUPTER.
- CAUTION: FOR CONTINUED PROTECTION AGAINST POSSIBLE ELECTRIC SHOCK THIS UNIT IS TO BE MOUNTED TO THE BASE IN ACCORDANCE WITH THE INSTALLATION INSTRUCTIONS.

TECHNICAL SAFETY INSTRUCTIONS

• The pump cannot be using while people are inside the pool.
  • To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.
• To reduce the risk of electric shock the pool must be installed no closer than 6 feet (1.8 m) from any electrical outlet. Do not place portable appliances closer than 5 feet (1.5 m) from the pool.
• Do not bury cord. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.
  • To reduce the risk of electric shock, replace damaged cord immediately. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• To reduce the risk of electric shock, do not use extension cord to connect unit to electric supply; provide a properly located outlet.
• This pump is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.
• For continued protection against possible electric shock this unit is to be mounted to the base in accordance with the installation instructions.
• Using the pump with an unmatched electrical supply is dangerous and will result in catastrophic failure of pump.
• When working with electricity, turn the electrical power off at the circuit breaker and lock breaker door. Failure to do so will result in increased risk of shock, injury and possibly death.
• Do not remove the grounding prong or modify the plug in any way. Do not use adaptor plugs. Consult a qualified electrician for any questions related to the validity of your plugs grounding. Handle the pump with care. Do not pull or carry the pump by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the filter pump.
  • Atmospheric conditions may affect the performance and life span of your filter pump. Unnecessary wear and tear that may occur during periods of cold, heat and exposure to sun. Whenever possible, shelter the pump from these conditions.
• Do not add chemicals in the filter pump.
• Assembly and disassembly by adults only.
  • Electric installations should follow national wiring rules, consult a qualified electrician with any questions.

SAVE THESE INSTRUCTIONS

SETUP

CHECK LIST

To check the parts included in the box, consult the part list inside this manual. Verify that the equipment components represent the model that you had intended to purchase. In case of any damaged or missing parts at the time of purchase, visit our website bestwaycorp.com/support.

INSTALLATION

• For the installation instruction refer to the illustration steps inside the manual. Drawings are for illustration purposes only. May not reflect actual product. Not to scale.
• Bestway will not be responsible for any damage caused to the Skimatic Filter Pump due to mishandling or failure to follow these instructions.
• It is imperative to check that the hydraulic connectors are not obstructed.
• Do not dry run the Skimatic Filter Pump. Make sure both the pool's inlet and outlet valves are fully covered by water before operating the Skimatic Filter Pump.

MAINTENANCE

• Make sure that the Skimatic Filter Pump is unplugged before any maintenance.
• For the maintenance instruction refer to illustration steps inside this manual. Drawings are for illustration purposes only. May not reflect actual product. Not to scale.
• To optimize the Skimatic Filter Pump performance and for sanitary reasons, we suggest replacing the filter cartridge with a new one every two weeks.

STORAGE

• Remove all accessories; be sure that Skimatic Filter Pump is completely clean and dry before the storage. If all the parts are not completely dry, mold may result.
• Before storage, remove and dispose of the filter cartridge.
• We strongly recommend disassembling the Skimatic Filter Pump when the environment temperature is below 50^ / 10^ .
• Store the Skimatic Filter Pump in a dry place with a moderate temperature between 50^ / 10^ and 100^ / 38^ .

WARRANTY TERMS

For information concerning warranty terms, visit our website at: www.bestwaycorp.com.

CONDITIONS DE GARANTIE

Line drawing of a cylindrical container with a handle and a rolled-up cylindrical component (no text or symbols)

10

11

12

V1

V2

V3

	V1	V2	V3
1	x1	x1	x1
2	x1	x1	x1
3	x1	x1	x1
4	x1	x1	x1
5	x1	x1	x1
6	x1	x1	x0
7	x1	x1	x0
8	x1	x0	x1
9	x1	x1	x1
10	x1	x1	x1
11	x1	x1	x1
12	x1	x1	x1

V1/V2

Diagram showing two experimental setups with a tube, tubing, and liquid, illustrating fluid flow or measurement principles.

Simple line drawing of a water tap with a downward arrow indicating flow or movement (no text or symbols)

Simple line drawing of a mechanical device with a handle and circular component, no text or symbols present.

(1) (2)

(1) (2) 5-10cm 2-4in. 30
