USER MANUAL 86525 UNOLD

Instructions for use Model 86525

Technical Specifications. 18
Explanation of the symbols 18
For your safety. 18
Tilt protection 21
Before using the appliance the first time.....21
The ideal location 21
Remote control/battery replacement 22
Display/control panel. 22
Operation. 23
Cleaning and care 24
Overheating protection circuit 25
Guarantee Conditions 25
Waste Disposal / Environmental Protection..25
Service 17

Dimensions: Approx. 23.0 × 23.0 × 68.7 cm (L/W/H)

Power cord: Approx. 160 cm

Weight: Approx. 3.7 kg

Housing: Plastic

Degree of

protection:

Noise level: < 50 dB(A)

Features: PTC ceramic heating element, removable and washable filter, electronic touch display, 75^ oscillating (swing function), overheating protection circuit, 12-hour timer, handle, ON/OFF switch

Accessories: Operating instructions, remote control unit

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF THE SYMBOLS

This symbol indicates potential hazards that may result in injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

This symbol warns that the appliance must not be covered with objects.

FOR YOUR SAFETY

General safety instructions

1. Please read the following instructions and keep them on hand for later reference.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Children of less than 3 years should be kept away unless continuously supervised.

2. Children aged from 3 years and less than 8 years shall only swith on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have

been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. CAUTION - Some parts of this product can become very hopt and cause burns. Particular attention has to be given where children and vulnerable people are present.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance out of the reach of children.
4. Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.
5. Do not operate this appliance with an external timer or remote control system.
6. Never immerse the appliance or the power cord in water or other liquids - life-threatening danger!
7. Do not open the motor housing under any circumstances, there is danger of electric shock!
8. The appliance is intended for household use only, or for similar areas of use, such as, kitchenettes in business offices or other workplaces, for use by guests in hot motels or other lodgings, in private guest houses holiday homes.
9. Check the appliance, the plug and the power cord regularly for wear or damage. In the event of damage to the power cord cable or other parts, please send the appliance or the power cord to

our customer service organisation for inspection and repair. Unauthorised repairs can result in serious hazards for the user and void the warranty.

1. To avoid damage, do not use the appliance with accessories of other manufacturers or brands.
2. Unplug the mains plug from the electrical outlet after use and before cleaning. Never leave the appliance unattended when the mains plug is plugged in.
3. We assume no liability for damage that occurs due to improper operation, power failure, frost, poor insulation or if the heating capacity is incorrectly selected for the size of the room.

Safety instructions for set-up and operation of the appliance

1. The appliance is only suitable for indoor use, in dry closed spaces.
2. Do not operate the appliance in garages, woodsheds or similar spaces.
3. Only place the appliance on a suitable, level, heat-resistant substrate.
4. Ensure that the power cord is laid out in such a manner that there is no possibility of stumbling over it.
5. To avoid damage to the cord, never wrap the power cord around the appliance.
6. To avoid damage to the cord, always unplug the mains plug from the electrical outlet by grasping the plug, never pull the power cord to unplug the appliance.

7. Ensure that the electrical outlet used is easily accessible, in order to unplug the appliance in an emergency.

8. To avoid damage to the power cord, ensure that it is not pinched or pulled over corners.

9. If possible, do not use an extension cord. If you must use an extension cord, completely unwind the extension cord and comply with the power limits of the respective extension cord.
10. The appliance is very hot during and after operation, consequently ensure that the power cord cannot touch hot appliance parts.
11. Never place the appliance directly under an electrical outlet.
12. For safety reasons, the appliance must not be used in the vicinity of sinks, bathtubs, or water connections.
13. Never touch the appliance with wet or moist hands - life-threatening danger due to electric shock!
14. For safety reasons do not use the appliance for the following purposes:

For defrosting iced-up vehicle windows/heating vehicle interiors 39
For animal breeding or-animal husbandry applications

Commercial use

1. Maintain a safety distance (at least 1 meter) to other objects, such as furniture, curtains, etc. and ensure that air can flow in and out unhindered.
2. Do not use the appliance to dry laundry - fire hazard.
3. Never leave the house when the appliance is switched on. Do not allow the appliance to run unattended.
4. Injuries can occur due to escaping hot air. Consequently always keep children away from the appliance.
5. To exclude the possibility of overheating the room, only rooms that are larger than 4 square meters should be heated.
6. Do not stick any objects in the appliance openings, this can result in electric shock.
7. Do to use any highly flammable substances or sprays, for example, in the vicinity of the appliance - fire hazard!
8. When it is not in use, only up store the appliance in closed, dry interior spaces.
9. Ensure that dust does not accumulate on the appliance and clean it regularly.

The appliance is very hot during and after operation - danger of burn injuries!

Do not use timers or other external switch-on / switch-off systems to operate the appliance. Use of such items could unintentionally reset the overheating protection circuit and cause a fire hazard.

To prevent overheating and the associated fire hazard, never cover the appliance during operation.

Do not operate the appliance in the vicinity of sinks, bathtubs or other containers filled with water. Never open the housing of the appliance. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

TILT PROTECTION

When you lightly shake the appliance you will hear a noise coming from the interior of the appliance. This is caused

by the tilt protection technology used; there is no defect in the appliance! The tilt protection switches the appliance off immediately, as soon as the appliance tilts to a position where safe operation is in jeopardy.

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and any transport safeguards. Keep packaging materials away from children.
2. Check whether all listed accessory parts are present and intact.

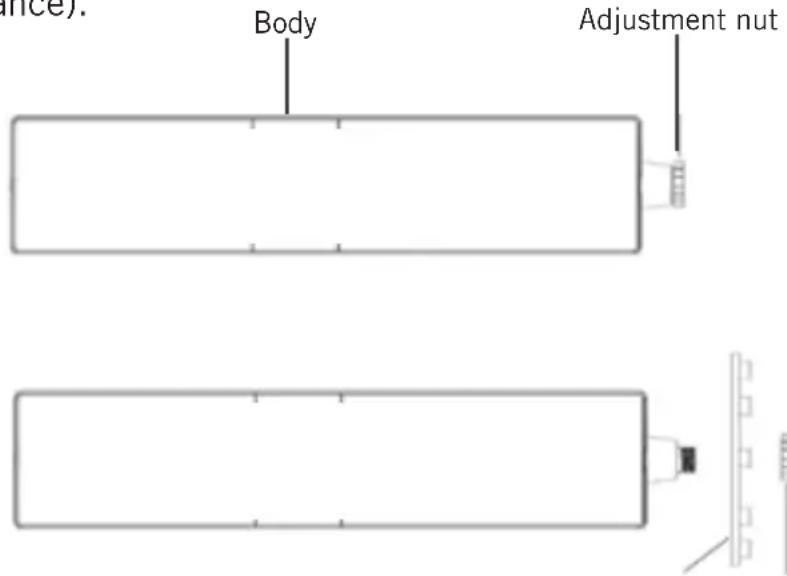

3. Unscrew the adjustment nut on the base foot and take it down.

4. Place the base on the axle. In this regard, note that the feet on the base must point downward (away from the appliance).

5. Refit the adjustment nut and tighten it firmly.

6. Select the location for your appliance, strictly comply with the instructions in the following chapter in this regard.
7. When you use the appliance for the first time, or if it has not been operated for an extended period of time, a slight odour can occur.

Adjustment nutBase

THE IDEAL LOCATION

1. Maintain an adequate safety distance (at least 1 meter) to other objects, such as furniture, curtains, etc.
2. Only place the appliance in operation in a vertical position.
3. Ensure that air can flow in and out unhindered - do not, under any cir

cumstances, cover the air inlets of the appliance.

1. Only place the appliance on a solid and level substrate. Do not place the appliance on soft surfaces (sofa, bed) because the appliance can tip over.

2. In addition, ensure that the appliance is not set up on deep-pile carpets or in dusty environments.

3. For safety reasons, the appliance must not be used in the vicinity of sinks, bathtubs, or water connections.

4. Never place the appliance directly under an electrical outlet, and ensure that the power socket used is easily accessible at all times.

5. Check whether the power cord is routed in such a manner that no one can stumble over it.

6. The power cord should not touch any housing parts, this could cause the cable to melt.

Be aware that the appliance can become very hot - fire hazard! Particularly ensure that children are kept away from the appliance.

REMOTE CONTROL/BATTERY REPLACEMENT

1. Carefully pull the cover of the battery compartment out of the remote control unit.
2. Insert the battery into the intended holder.

1. If you want to insert a different battery, ensure that you use a CRV2032 button cell battery.

2. Carefully slide the cover back into the remote control unit.

3. If you adjust the appliance with the remote control unit, ensure that you hold it in the direction of the fan heater while you are making the settings.

4. The designations of the buttons on the remote control unit are identical to those of the buttons on the appliance. Please comply with the instructions in this regard in the chapter, "Preparing the appliance for operation".

DISPLAY/CONTROL PANEL

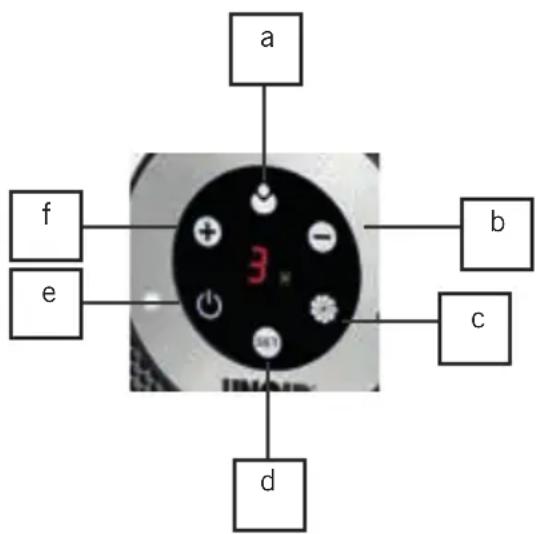

Control panel:

a Button - High/Low (heating capacity)
b Button - Temperature/Time
c Button - Oscillation/Swing function
d Button - Adjustment
e ON/OFF button
f Button + Temperature/Time

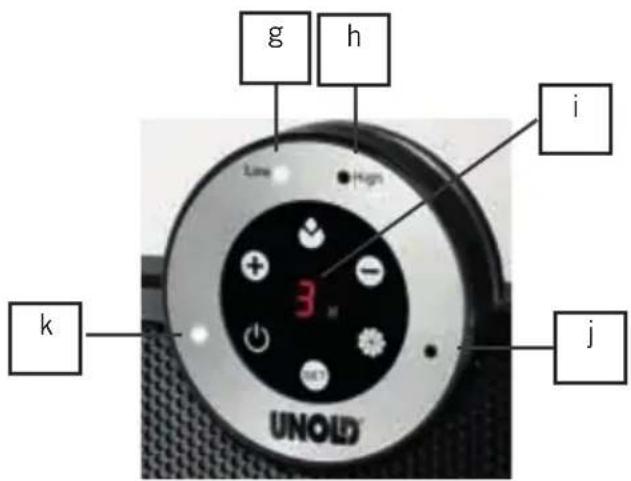

Display:

g Indicator lamp - low heating capacity

h Indicator lamp - high heating capacity

i Hour display/temperature display

j Indicator lamp - oscillation/swing function

k Function indicator lamp - ON/OFF

OPERATION

1. Comply with all safety instructions and safety regulations.
2. Ensure that you have selected a safe location.
3. Plug the mains plug of the appliance into an electrical outlet (220-240 V ~ 50 Hz).
4. Place the main switch on the rear of the appliance on "l"
5. The appliance is now in standby mode, only the ON/OFF button is active.
6. Press the ON/OFF button. A short signal tone will sound.
7. Caution: The following explanations apply for adjustment on the control panel itself, and via the remote control unit. The button designation is identical in each case.

Heating capacity

1. You can select from two heating capacities:

"Low" level for lower capacity (approx. 1,200 watt)
"High" level for more capacity (approx. 2,000 watt)

1. Note: It takes a few moments until the higher capacity is completely active.

2. Use the button to select the desired capacity. The respective indicator lamp shows the level at which the appliance is operating.

3. Oscillation function / swing function

4. With this function it is possible to distribute the air flow over a larger area, because the appliance swings back and forth in a specific radius.
5. The oscillation function can be switched on in every mode. To do this, select the button. If you want to stop the appliance in a specific position, press the button again.
6. Switch off the oscillation function before you switch off the appliance.

Time setting

1. With this function you select the time period during which the appliance provides heat. After this time elapses the appliance switches off.
2. When the appliance is switched on, press the button. The information in the display will flash.
3. Use the "+" and "-" buttons to set the desired time between 1 hour and 12 hours. If you select 0, the time setting is not active and the appliance will run continuously.
4. To save the time setting, press the button again.

Selecting the temperature

1. Now you can select the desired heatingtemperature.Pressthe button twice.

2. The pre-set value of 25^ appears in the display. Use the "+" and "-" buttons to select the desired temperature in a range between 15^ und 35^ .

3. The selected temperature is shown in the display.

4. Confirm the selected temperature by pressing the button again.

5. The appliance shows the current room temperature, the set temperature will be maintained automatically.

6. When you touch the button, the information in the display will flash for 5 seconds. If you make no input within these 5 seconds, the display will show the

current room temperature. If the room temperature is below -9^ , "LO" is shown in the display, if the temperature is above +39^ , the display shows "HI". At temperatures between -9^ and +39^ the actual room temperature is displayed.

1. To switch off the appliance, press the ON/OFF button and switch the main switch on the rear of the appliance to "0".

Be aware that the appliance can become very hot - danger of burns! Particularly ensure that children are kept away from the appliance.

CLEANING AND CARE

Switch off the appliance. Unplug the plug from the electrical outlet.

Allow the appliance to cool completely.

1. Never use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants.

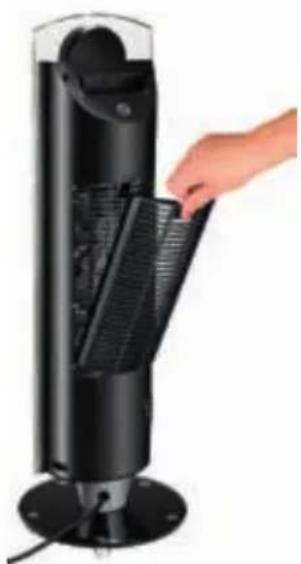

2. To clean the filter, open the filter cover. Remove the filter and clean it with warm water that must not be hotter than 30^ .

3. Allow the filter to dry completely, before you reinsert it. Then carefully close the filter cover.

4. You can remove dust in the appliance if you carefully hold a vacuum cleaner against the air outlet grille or air inlet grille.

5. 1. Store the fan heater in a dry, safe place so that it is protected from dust, shocks, heat and moisture.

OVERHEATING PROTECTION CIRCUIT

1. The appliance is equipped with an overheating protection circuit that switches the appliance off when it is heated over 70^ C.
2. If the overheating protection circuit has been tripped, switch the appliance off, unplug the plug from the electrical outlet and let the appliance cool for at least 30 minutes.
3. Eliminate the cause of the overheating, (e.g. excessive dust in

the appliance, air outlet grille is covered) and start up the appliance again.

1. If after eliminating the cause, you still cannot switch the appliance back on, or if the overheating protection circuit switches on without an apparent reason, contact our customer service organisation.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

Do not dispose of used batteries as household waste. Dispos of this product via your appliance dealer or take it to the municipal collection point.
