USER MANUAL 18416 UNOLD

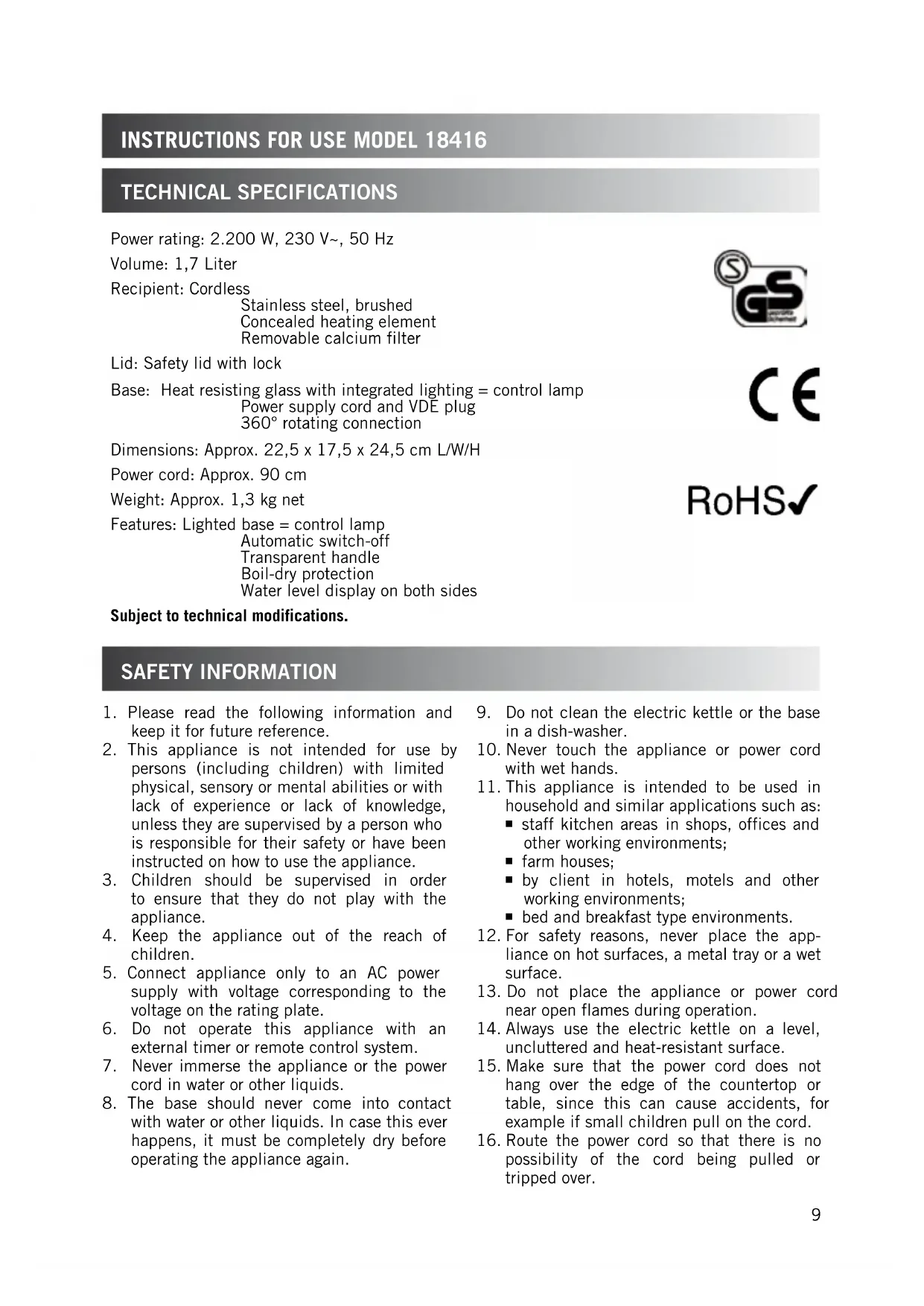

Instructions for use Model 18416

Technical Specifications 9
Important Safeguards. 9
First use and handling. 10
Cleaning and care 11
Guarantee Conditions 32
Waste Disposal / Environmental Protection 36

Navod k obsluze model 18416

Stainless steel, brushed

Concealed heating element

Removable calcium filter

Lid: Safety lid with lock

Base: Heat resisting glass with integrated lighting = control lamp

Power supply cord and VDE plug

360^ rotating connection

Dimensions: Approx. 22,5 x 17,5 x 24,5 cm L/W/H

Power cord: Approx. 90 cm

Weight: Approx. 1,3 kg net

Features: Lighted base = control lamp

Automatic switch-off

Transparent handle

Boil-dry protection

Water level display on both sides

Subject to technical modifications.

SAFETY INFORMATION

1. Please read the following information and keep it for future reference.
2. This appliance is not intended for use by persons (including children) with limited physical, sensory or mental abilities or with lack of experience or lack of knowledge, unless they are supervised by a person who is responsible for their safety or have been instructed on how to use the appliance.
3. Children should be supervised in order to ensure that they do not play with the appliance.
4. Keep the appliance out of the reach of children.
5. Connect appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.
7. Never immerse the appliance or the power cord in water or other liquids.

8. The base should never come into contact with water or other liquids. In case this ever happens, it must be completely dry before operating the appliance again.

9. Do not clean the electric kettle or the base in a dish-washer.

10. Never touch the appliance or power cord with wet hands.

11. This appliance is intended to be used in household and similar applications such as:

12. staff kitchen areas in shops, offices and other working environments;
    farm houses;
    by client in hotels, motels and other working environments;

13. bed and breakfast type environments.

14. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.

15. Do not place the appliance or power cord near open flames during operation.

16. Always use the electric kettle on a level, uncluttered and heat-resistant surface.
17. Make sure that the power cord does not hang over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.

18. Route the power cord so that there is no possibility of the cord being pulled or tripped over.

19. Never wrap the power cord around the appliance.

20. Use the electric kettle only indoors.
21. Use the appliance only for heating water. Do not use it to heat milk or other liquids, since they will boil over when heated.
22. Never heat objects such as cans or bottles in the electric kettle.
23. Make sure that the lid of the appliance is always completely closed, to prevent injuries from hot splashing water.
24. Do not open the lid as long as the water is boiling, to prevent injuries from hot splashing water.
25. Never fill the appliance with more than 1.7 liters of water, to prevent the water from boiling over.
26. Never switch on the appliance if there is no water in the kettle.
27. Make sure that all users, especially children, are aware of the danger of injury from emerging steam or hot splashing water - danger of burns!
28. Do not move the appliance as long as it is in operation, to prevent burns from splashing water.
29. The electric kettle features boil dry protection, which means the appliance shuts off automatically if the heating element

becomes too hot. Allow the appliance to cool about 15 minutes. Then fill the electric kettle with cold water. The boil dry protection is deactivated and the appliance is ready for operation again.

1. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.
2. Unplug the appliance from the power supply after use and prior to cleaning. Never leave the appliance unattended when it is plugged in to the power supply.
3. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the base for inspection and repair to our after sales service (for address, see warranty terms). Unauthorized repairs can result in serious risks to the user and void the warranty.
4. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Caution!

Do not open the lid while the water is boiling. If the kettle is overfilled, boiling water can splash out.

The manufacturer does not assume any warranty in case of improper or incorrect use or after repair by unauthorized third parties.

FIRST USE AND HANDLING

4. CAUTION!

1. Plug the cord of the base into the mains.
2. Remove the kettle from the base. Open the lid by pressing the black knob in the middle of the lid.
3. Fill the kettle with water (minimum 0.5 litres, mark MIN, maximum 1.7 litres, mark MAX). For the first use fill up to the mark MAX.

Do not overfill. If the kettle is overfilled, boiling water may be ejected.

1. Place the kettle level on the base in order to establish the contact with the power connection.
2. Close the lid with light pressure until it clicks into place. The locking avoids an accidental opening of the lid when pouring out water.

3. Switch on the kettle by pressing the key downwards and bring the water to boil. The base with be lighted. This lighted base serves as operation control lamp.

4. Pour away water from first boiling.

5. The kettle is automatically switched off when the water boils and the base lighting = control lamp turns out. However, boiling can be stopped by operating the ON/OFF switch or by lifting the kettle from the base.

10. ATTENTION!

The automatic shutoff only works, if the lid is correctly closed.

1. The kettle is switched off automatically as soon as the kettle is lifted from the base.
2. After an adequate cooling-off period the water can once again be brought to boil by pressing ON the switch.
3. The kettle is fitted with a dry-operation shutoff which switches off the heating element when it becomes too hot, for instance when the kettle has boiled dry. Allow the kettle to cool down. Then fill the kettle with cold water. This will reset the shutoff so that the kettle can be used again.

CLEANING AND CARE

1. Always disconnect the plug from the mains before cleaning the kettle and base.
2. Base, cable and kettle must never be immersed into water.
3. Wipe the kettle and base with a moist cloth and a drop of washing-up liquid. Never use an aggressive scouring or steel wool.
4. Cable and plug must be dried completely before being used again.
5. Descale the kettle regularly, possibly once a week, depending on the hardness of the water and the frequency of use. Scale significantly diminishes the heating performance of the kettle.
6. To descale fill half the kettle with a mixture of water and vinegar. Bring to the boil and then leave it to stand overnight. Next day

pour away and fill the kettle with fresh water and bring to the boil again. This water must also be poured away. Rinse twice with fresh water and wipe with a towel.

1. Normal commercial descalers for kettles can also be used. Follow the instructions for the respective descaler.

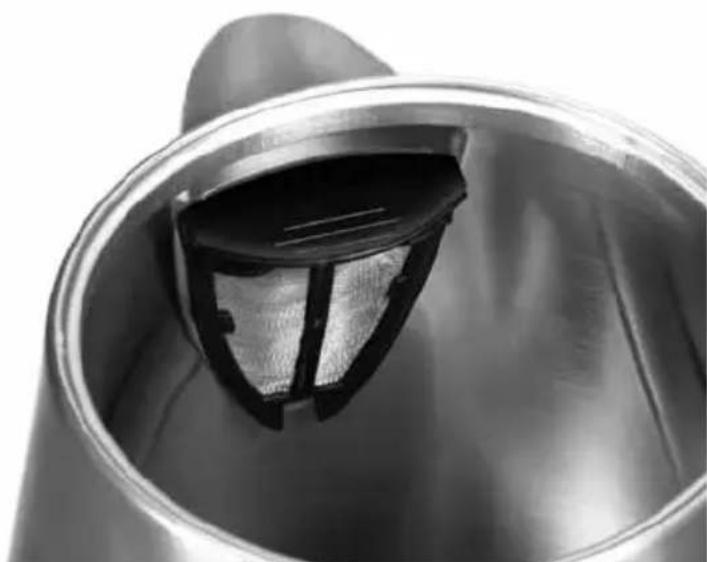

2. To clean the filter, empty the kettle and let it cool down.
3. Then pull the filter out of the spout.
4. Clean it with a soft brush or place it for some time in a dish with descaler or vinegar solution. Then rinse it thoroughly with clear water and place it into the spout again. Please be careful not to damage the filter mesh.

SPECIFICATION TECHNIQUE

Alimentation: 2.200 W, 230 V~, 50 Hz

We guarantee our appliances for 24 months, or in case of commercial use for 12 months, from the date of purchase in case of defects that occur during normal use and are demonstrably due to a factory fault. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties.

Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

CONDITIONS DE GARANTIE

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

TRAITEMENT DES DÉCHETS / PROTECTION DE L'ENVIRONNEMENT
