Avent SCF284 - Bottle sterilizer PHILIPS - Free user manual and instructions

Product type	Steam bottle sterilizer
Brand	Philips
Model	Avent SCF284
Capacity	Up to 6 bottles of 330 ml (11 oz)
Water volume required	100 ml (3.4 oz) per cycle
Cycle duration	Approximately 10 minutes (4 min heating, 6 min sterilization)
Power supply	Mains, short power cord (deliberately short)
Automatic shut-off	Yes, at end of cycle
Sterilization indicator	Yes
Basket material	Plastic (dishwasher-safe for dedicated basket)
Cleaning	Clean baskets and lid with hot water and dish soap; wipe base with damp cloth
Descaling recommendation	Every 4 weeks with white vinegar (80 ml vinegar + 20 ml water)
Important safety instructions	Do not immerse base; do not open during cycle; hot steam; unplug before cleaning
Included accessories	Large basket, small basket, lid with handle, tongs
Use with dishwasher basket	Not compatible (this model SCF284 does not include the dishwasher basket)
Operating ambient temperature	Not specified, but normal ambient conditions
Warranty	2 years against manufacturing defects
Spare parts / Repairability	No user-serviceable parts; do not open
Environment	Recycle at end of life via collection points
Customer service number	1 800 54-AVENT (1 800 542-8368)

Frequently Asked Questions - Avent SCF284 PHILIPS

How much water should I put in the sterilizer?

Pour exactly 100 ml (3.4 oz) of water directly into the reservoir at the base of the appliance. Do not use softened water.

How many bottles can I sterilize at once?

You can sterilize up to 6 bottles of 330 ml (11 oz) using both baskets. Place bottles upside down in the large basket and small accessories in the small basket.

Should I clean bottles before sterilizing?

Yes, it is important to clean thoroughly all items before sterilizing, either in the dishwasher (use the dedicated basket if compatible) or by hand with hot water and dish soap.

How long does a sterilization cycle take?

The total cycle lasts approximately 10 minutes: 4 minutes of heating and 6 minutes of sterilization. The appliance turns off automatically at the end.

Can I open the sterilizer during the cycle?

No, never move or open the appliance during use. Wait for it to cool completely before opening the lid to avoid steam burns.

How do I clean the sterilizer?

Unplug the appliance and let it cool. Clean the base with a damp cloth. The baskets and lid can be washed in hot water with dish soap. Never immerse the base in water.

How often should I descale the sterilizer?

It is recommended to descale every 4 weeks to ensure proper operation. Use a mixture of 80 ml white vinegar (5% acetic acid) and 20 ml cold water, let sit, then rinse.

What should I do if the appliance stops heating?

First check that you have added water and that the appliance is plugged in. If the problem persists, descaling may be necessary. If that does not help, contact customer service at 1 800 54-AVENT. The appliance contains no user-serviceable parts.

Can I use bleach or chemicals?

No, do not use any chemical sterilization or bleach products in the sterilizer. Use only distilled, bottled, or tap water without additives.

Is the sterilizer compatible with all Philips Avent bottles?

Yes, this sterilizer is designed to sterilize Philips Avent bottles and accessories as well as other brands compatible with steam sterilization. Ensure items are heat-resistant.

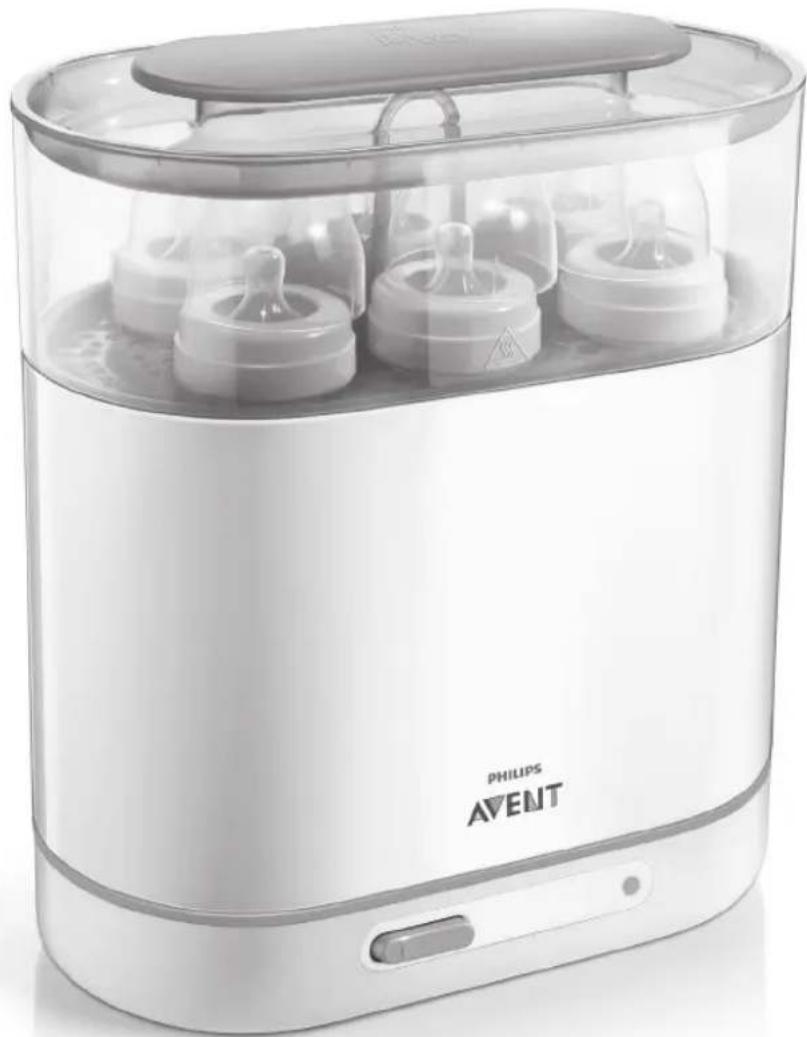

USER MANUAL Avent SCF284 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

SCF287

SCF286

SCF285

SCF284

PHILIPS

VENT

ENGLISH 6

ESPANOL 12

FRANÇAIS (CANADA) 18

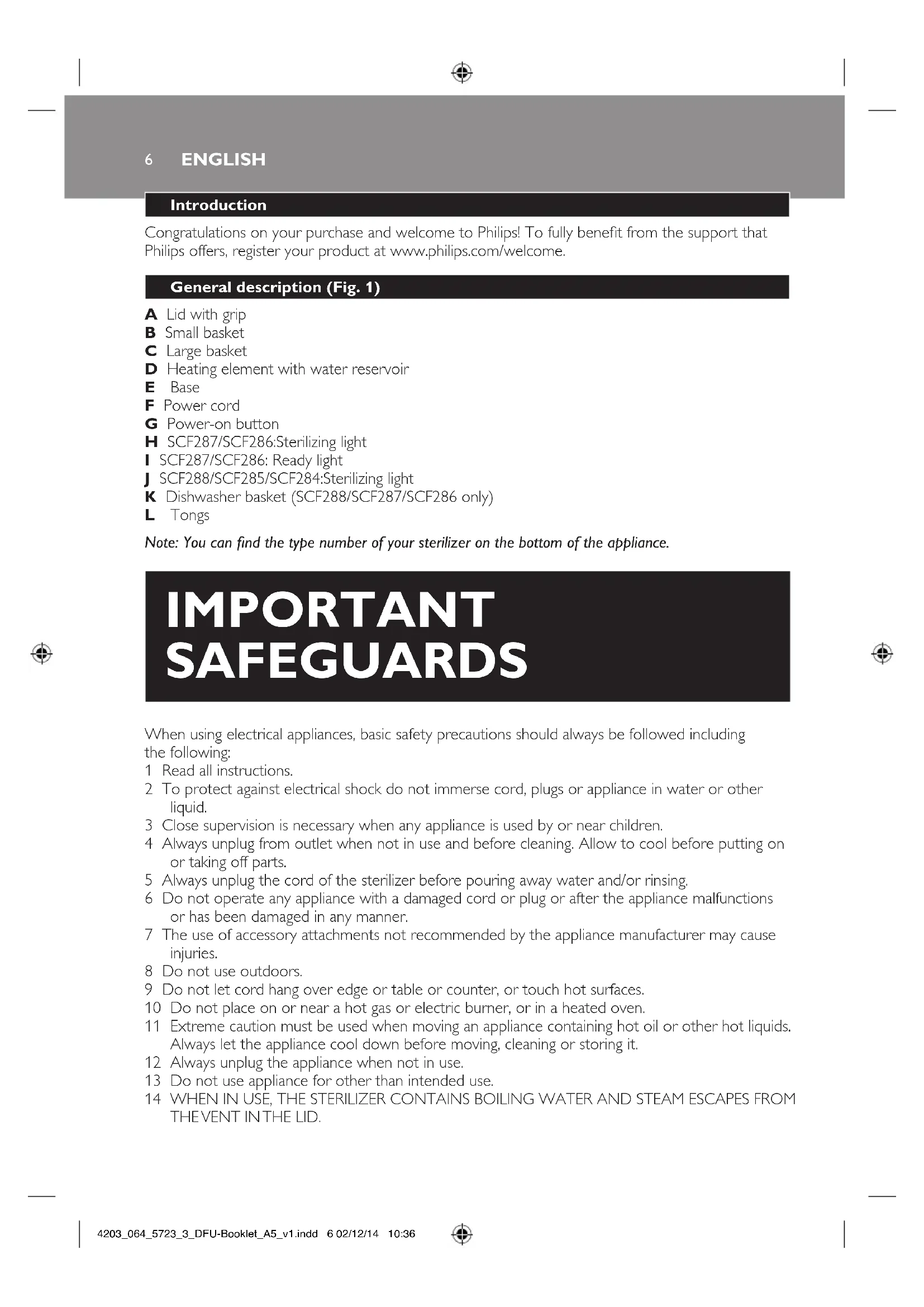

6 ENGLISH

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

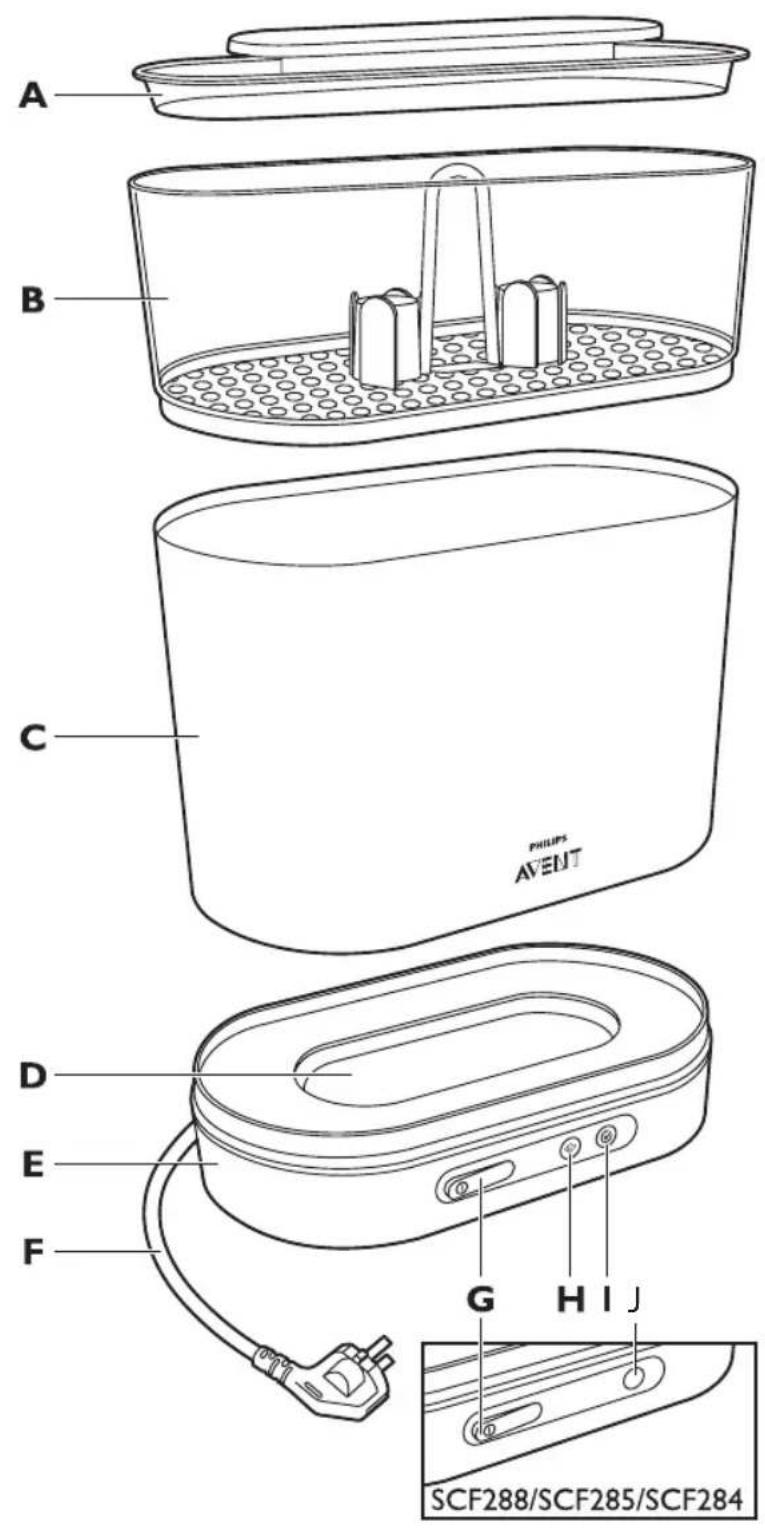

General description (Fig. 1)

A Lid with grip
B Small basket
Large basket
D Heating element with water reservoir
E Base
F Power cord
G Power-on button
H SCF287/SCF286:Sterilizing light
SCF287/SCF286: Ready light
SCF288/SCF285/SCF284:Sterilizing light

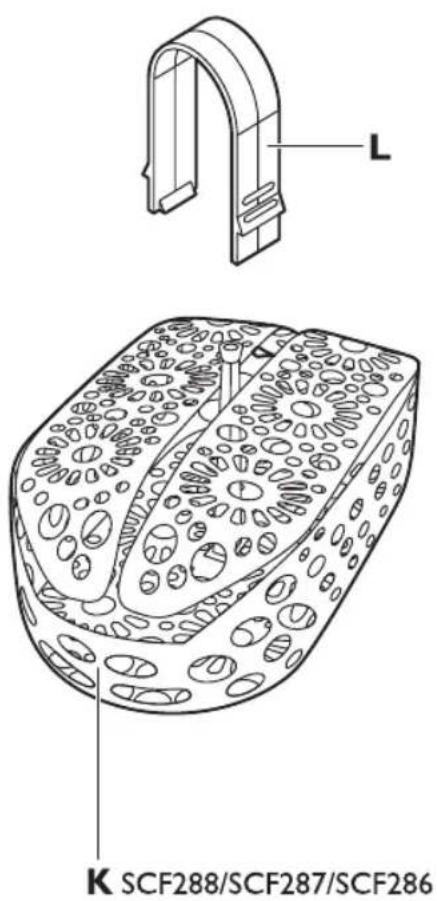

K Dishwasher basket (SCF288/SCF287/SCF286 only)
L Tongs

Note: You can find the type number of your sterilizer on the bottom of the appliance.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1 Read all instructions.
2 To protect against electrical shock do not immerse cord, plugs or appliance in water or other liquid.
3 Close supervision is necessary when any appliance is used by or near children.
4 Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
5 Always unplug the cord of the sterilizer before pouring away water and/or rinsing.
6 Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
7 The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8 Do not use outdoors.
9 Do not let cord hang over edge or table or counter, or touch hot surfaces.
10 Do not place on or near a hot gas or electric burner, or in a heated oven.
11 Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. Always let the appliance cool down before moving, cleaning or storing it.
12 Always unplug the appliance when not in use.
13 Do not use appliance for other than intended use.
14 WHEN IN USE, THE STERILIZER CONTAINS BOILING WATER AND STEAM ESCAPES FROM THEVENT IN THE LID.

ENGLISH 7

15 Ensure the sterilizer is placed on a firm level surface when in use.
16. Never move or open the unit when in use.
17 Always keep out of reach of children.
18 Never place items on top of the sterilizer.
19 To stop the sterilizer during the cycle, unplug at the electrical outlet.
20 Take care when opening as steam can burn.
21 Do not use chemical sterilizing solutions/tablets or bleach in your steam sterilizer or on products to be sterilized.
22 Do not use abrasive, antibacterial materials or scourers to clean the sterilizer.
23 Do not use softened water in the sterilizer.
24 A short power cord has been provided to prevent the risk of it becoming entangled or being tripped over.
25 Extension cords may be used if care is exercised in their use.
26 If an extension cord is used, its electrical rating must be as great as the rating of the appliance and not draped over the edge of the table top where it could be pulled by children or tripped over. The extension cord should be a grounded type 3 wire cord.
27 Failure to follow de-scaling instructions may cause irreparable damage.
28 There are no serviceable parts inside the sterilizer. Do not attempt to open, service or repair the sterilizer yourself.
29 Do not touch hot surfaces. Use handles or knobs.
30 HOUSEHOLD USE ONLY.
31 Check if the voltage that is indicated on the appliance corresponds to the local voltage before you connect the appliance.
32 Never turn on the Electric Steam Sterilizer before filling water into the water reservoir.
33 Do not sterilize very small parts which can fall through the holes of the containers
34 Using of homeopathic additives in water can have negative influence in steam, health and can damage plastic parts.

SAVE THESE INSTRUCTIONS

Caution

• Never use any accessories or parts from other manufacturers or Philips which are not specifically recommended. If you use such accessories or parts, your warranty becomes invalid.
• Use distilled water, bottled water or fresh running water without any additives.
• Do not put bleach or other chemicals in the appliance.
• Only sterilize baby feeding products that have been approved for sterilization.
• Do not expose the appliance to extreme heat or direct sunlight.
  Environmental conditions can influence the function of the appliance e.g. temperature, air pressure, local altitudes (sea level), etc.

ENGLISH8

Before first use

When you use the appliance for the first time, we advise you to let it complete one sterilization process with empty baskets.

Note: Heating up takes approx. 4 minutes and sterilizing takes approx. 6 minutes.

1 Use a baby bottle and pour exactly 3.4 fl. oz. (100 ml) of water directly into the water reservoir of the base (Fig. 2).
2 Place the large basket on the base (Fig. 3).
3 Place the small basket on the large basket (Fig. 4).
4 Place the lid on top of the small basket (Fig. 5).
Put the plug in an electrical outlet.
6 Press the power-on button to turn on the appliance. (Fig. 6)

Note: If you plug the appliance into the electrical outlet after you have pressed the power-on button, the sterilizer starts to heat up immediately.

SCF287/SCF286

The sterilizing light lights up to indicate that the appliance is on.
- When the sterilization process is finished, the ready light goes on. After 3 minutes the ready light goes out to indicate that you can now safely open the sterilizer.

SCF288/SCF285/SCF284

The sterilizing light lights up to indicate that the appliance is on.
- When the sterilization process is finished, the appliance turns off automatically.

After the appliance has cooled down completely, remove the lid, the small basket and the large basket and wipe them dry.
8 Let the appliance cool down completely for approx. 10 minutes before you use it again.

Note: The appliance does not work for 10 minutes after a sterilizing cycle. It needs to cool down first.

Preparing for use

Preparing for sterilizing

Before you put the items to be sterilized in the sterilizer, clean them thoroughly in the dishwasher or clean them by hand with hot water and some liquid soap.

Using the dishwasher basket (SCF288/SCF287/SCF286 only)

Use the dishwasher basket to preclean the items you want to sterilize.

1 Open the two sections of the lid of the dishwasher basket and place the bottles and accessories in the basket (Fig. 7).
Note: Make sure that the bottles are placed upside down.
2 Close the two sections of the lid of the dishwasher basket (Fig. 8).
3 Place the basket in the dishwasher.
Switch on the dishwasher and let it complete the dishwashing cycle.

ENGLISH 9

5 When the dishwasher is finished, take out the dishwasher basket and make sure that the dishwasher basket and all items to be sterilized, are clean. If not, clean them by hand.
6 Place the dishwasher basket completely into the large basket of the sterilizer.

Note: You can leave the dishwasher basket inside the large basket with the two sections of the lid opened.

Assembling the sterilizer

There are several ways to assemble the sterilizer.

1 With only the small basket on the base to sterilize small items such as pacifiers (Fig. 9).
2 With only the large basket on the base to sterilize medium-sized items such as toddler plates or toddler cutlery (Fig. 10).
3 With the large basket and the small basket on the base to sterilize up to 6 11 fl. oz. (330ml) bottles. Place the bottles upside down in the large basket and place the bottle dome caps, screw rings and nipples in the small basket (Fig. 11).

Note: When you fill the small basket, put the nipples on the bottom, place the screw rings loosely on top of the nipples and clip the bottle caps onto the two pillars in the small basket.

Note: Make sure all parts that need to be sterilized are completely disassembled and place them in the basket with their openings pointing down to prevent them from filling up with water.

Using the appliance

Use the sterilizer for its intended household use as described in this manual.

Only place items in the sterilizer which are suitable for sterilizing. Do not sterilize items that are filled with liquid, e.g. a teether with cooling fluid.

Note: Before you sterilize bottles and other items, clean them first (see section 'Preparing for sterilizing').

1 Use a baby bottle and pour exactly 3.4 fl. oz. (100 ml) water directly into the water reservoir of the base (Fig. 2).
2 Assemble the sterilizer (see section 'Assembling the sterilizer') and place the items to be sterilized in it.
3 Place the lid on top of the small or large basket (Fig. 5).
Put the plug in an electrical outlet.
5 Press the power-on button to switch on the appliance (Fig. 6).

Note: If you plug the appliance into the electrical outlet after you have pressed the power-on button, the sterilizer starts to heat up immediately.

SCF287/SCF286

The sterilizing light lights up to indicate that the appliance is on.
- When the sterilization process is finished, the ready light goes on. After 3 minutes the ready light goes out to indicate that you can now safely open the sterilizer.

SCF288/SCF285/SCF284

The sterilizing light lights up to indicate that the appliance is on.
- When the sterilization process is finished, the appliance turns off automatically.

ENGLISH10

6 Remove the lid.

Wait until the appliance has cooled down before you remove the lid.

Be careful, hot steam may come out of the sterilizer.

7 Remove the bottles and other items from the basket. Use the tongs to remove the smaller items.

Be careful, the sterilized items may still be hot.

Note: Make sure you wash your hands thoroughly before you touch the sterilized items.

8 Unplug the appliance from the outlet and wait until the appliance has cooled down completely.
Pour out any remaining water from the water reservoir and wipe the water reservoir dry.

Note: The appliance does not work for 10 minutes after a sterilizing cycle. It needs to cool down first.

Cleaning

Do not use abrasive or aggressive cleaning agents (e.g. bleach) or a scouring pad to clean this appliance.

Never immerse the base, the cord or the plug in water or any other liquid.

Note: The sterilizer is not dishwasher-safe. The baskets and the lid can be cleaned with hot water and some liquid soap.

1 Always unplug the appliance from the outlet and let it cool down before you clean it.
2 Clean the base with a damp cloth.
3 Clean the other parts in hot water with some liquid soap.

Note: After cleaning, store the sterilizer in a clean, dry place.

Dscaling

When you use the sterilizer, small spots may appear on the heating element in the base. This is scale that is building up. The harder the water, the faster scale builds up. Descale the sterilizer at least every 4 weeks to ensure that it continues to work effectively.

Pour 2.7 fl. oz. (80 ml) white vinegar (5% acetic acid) and 0.7 fl. oz. (20ml) cold water into the water reservoir.
2 Leave the solution in the water reservoir until the scale has dissolved.
3 Empty the water reservoir, thoroughly rinse it and wipe the base with a damp cloth.

Note: This appliance has no other user-serviceable parts. For assistance call 1-800-54-AVENT (1-800-542-8368).

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 12).
• For assistance visit www.recycle.philips.com or call 1-800-54-AVENT (1-800-542-8368).

Assistance

For assistance visit our website: www.philips.com/AVENT or call 1-800-54-AVENT (1-800-542-8368).

Warranty

FULL TWO-YEAR WARRANTY

Philips Electronics North America Corporation (USA) and Philips Electronics Ltd (CANADA) warrant each new Philips AVENT product, model SCF288, SCF287, SCF286, SCF285 or SCF284, against defects in materials or workmanship for a period of two years from the date of purchase, and agrees to repair or replace any defective product without charge.

IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, or the affixing of any attachment not provided with the product.

NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

In order to obtain warranty service, simply call 1-800-54 AVENT.

Note: This appliance needs to be descaled regularly for optimal performance. If you do not do this, the appliance may eventually stop working. In this case, repair is NOT covered by your warranty.

Manufactured for:

Philips Consumer Lifestyle

A Division of Philips Electronics North America Corporation

P.O.Box 10313, Stamford, CT 06904

In Canada: Philips Electronics Ltd

281 Hillmount Road, Markham, ON L6C 2S3

Introduccion

SCF288/SCF285/SCF284

SCF288/SCF285/SCF284

281 Hillmount Road, Markham, ON L6C 2S3

18 FRANÇAIS (CANADA)

Introduction

6 Retirez le couvercle.

281 Hillmount Road, Markham, ON L6C 2S3

www.philips.com/avent

Philips Consumer Lifestyle BV

Tussendiepen 4, 9206 AD Drachten, Netherlands

Trademarks owned by the Philips Group.

©2014 Koninklijke Philips N.V. All rights reserved

www.philips.com

100% recycled paper

100% papier recyclé

4203.064.5723.3
