USER MANUAL A 91011 KENWOOD

Diagram showing a circular component with evenly spaced dots next to three parallel wires (no text or symbols)

Two abstract diagrams: a circle with three double signs inside and two sets of rolled scrolls on the right (no text or symbols)

Casarecce (AT910003) Bigoli (AT9100

Simple line drawings of a circular component and several curved, rounded objects (no text or symbols)

Maccheroni Lisci (AT910004)

Simple line drawings of a smiling face, a rounded rectangular object, and a curved shape (no text or symbols)

Spaccatelli (AT910005)

Diagram showing a circular component with four black dots and three parallel cylindrical rods (no text or symbols)

Spaghetti Quadri (AT910006)

Simple line drawing of a circular symbol with three horizontal lines inside, next to three curved rectangular shapes (no text or symbols)

Pappardelle (AT910007)

Simple line drawings of a circular object with four swirls and three separate curved shapes (no text or symbols)

Silatelli (AT910008)

Diagram showing a circular component with four dots and three parallel lines, no text or symbols present.

Linguine (AT910009)

Simple line drawings of a cell nucleus and its three leaf-shaped fragments (no text or labels)

Fusilli (AT910010)

Simple line drawings of three abstract shapes: a circular outline with three vertical lines, two curved lines, and three striped oval shapes (no text or symbols)

Conchigliette (AT910011)

Diagram showing a circular component with four black dots and two parallel wires (no text or symbols)

Bucatini (AT910012)

Two abstract line drawings: a circular symbol with three curved crescent-like shapes and a separate spiral pattern (no text or symbols)

Orecchiette (AT910013)

Simple line drawing of a stylized object with circular elements and star symbols (no text or labels)

Biscuit Maker (AT910014)

Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK

www.kenwood.co.uk

KENWOOD

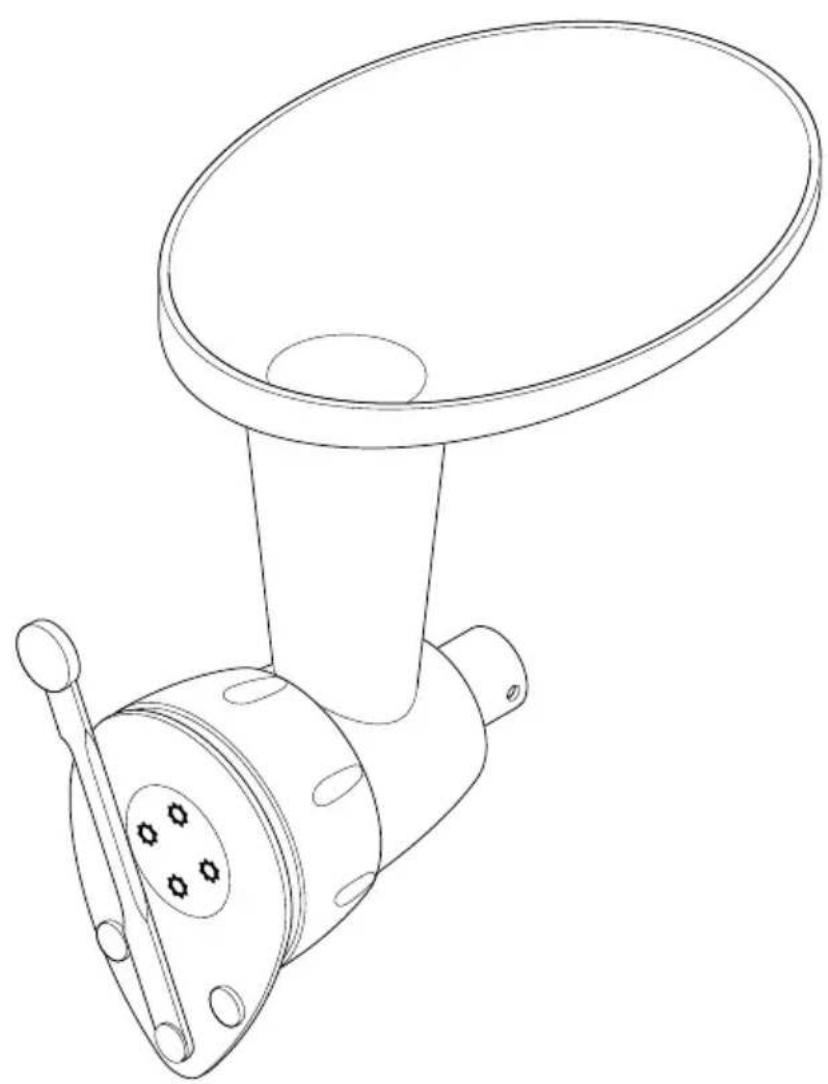

Technical line drawing of a mechanical tool or feeding component (no text or symbols present)

AT910

English 2 - 8

Nederlands 9 - 15

Français 16 - 22

Deutsch 23 - 29

Italiano 30 - 36

Português 37 - 43

Español 44 - 50

Dansk 51 - 56

Svenska 57 - 62

Norsk 63 - 68

Suomi 69 - 74

Türkçe 75 - 81

Česky82 - 87

Magyar88 - 94

Polski95 - 101

Русский102 - 109

Ελληνικά 110 - 116

Exploded diagram of a kitchen appliance with numbered parts for identification

Technical line drawing of a mechanical device with a circular component and directional arrows indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a circular component with a pointer (no text or symbols)

Diagram of two circular components with hexagonal cutouts, connected by a dotted line (no text or symbols)

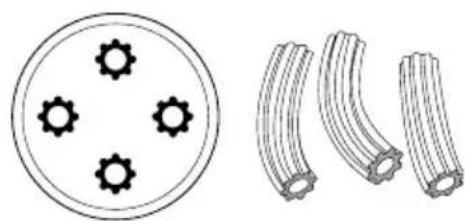

Diagram showing a circular component with four gear-like holes and three curved cylindrical objects (no text or symbols)

Maccheroni Rigati

safety

• Pasta mix made too dry or fed through too quickly can break your pasta maker and/or mixer.
• Do not place your fingers or any other item, except the spanner/pusher supplied, down the feed tube.
• Only use the spanner/pusher handle to push dough down the feed tube. And don't push too hard.
• Never attach or remove the pasta maker whilst the mixer is in operation.
• Feed the dough small amounts at a time and at a steady rate. Don't allow the feed tube to fill up.
  ● Take care when handling or cleaning as the cutting assembly blade will be sharp.

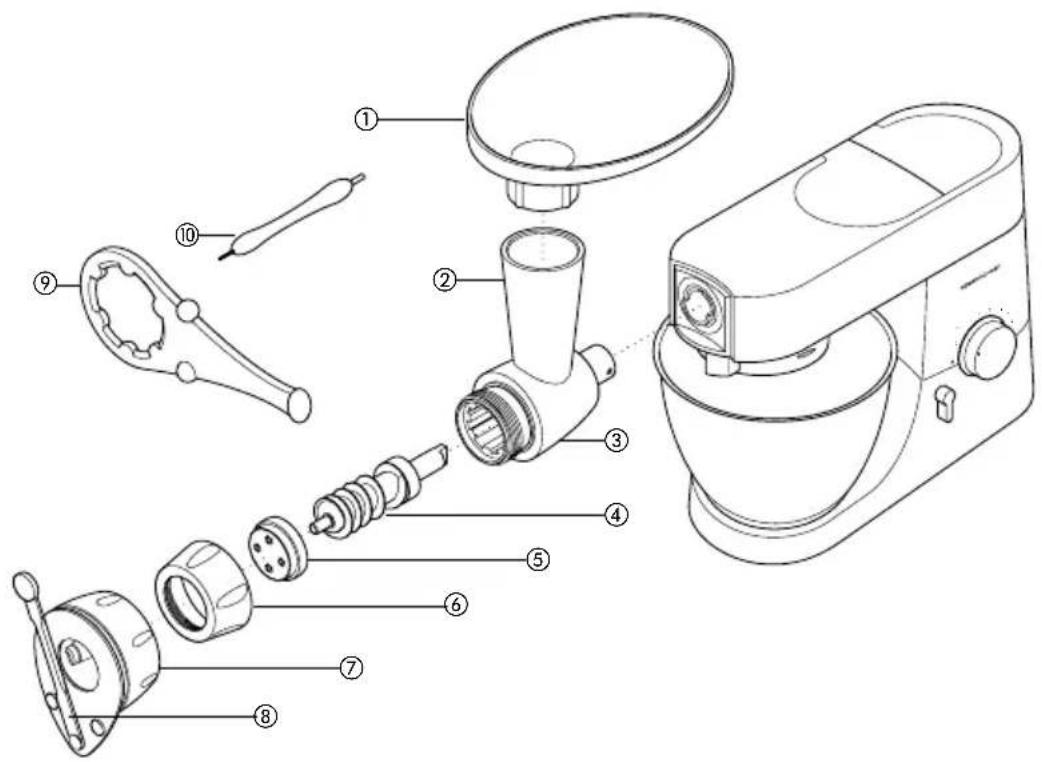

key

①hopper
②feed tube
③body
④scroll
⑤die*
⑥securing nut
⑦clamp ring of cutting assembly
⑧cutting blade
⑨spanner/pusher
⑩cleaning tool

*Included in your pack is the Maccheroni rigati die shown on the illustration page. To purchase any of the additional dies shown on the back page of this booklet, please call 0870 241 3653 or contact the shop where you purchased the attachment.

before using for the first time

- Wash the parts: see 'cleaning'.

to assemble

1 Optional: for easier pasta making, warm the body, die and ring nut in hot water, then dry.

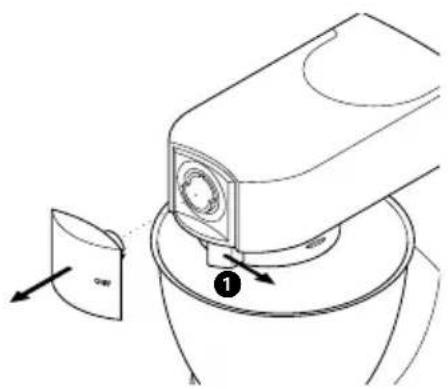

2 Remove the slow speed outlet cover; slide the catch, then pull 1.
3 Hold the catch back and insert the pasta maker body.
4 Fit the scroll inside the body and rotate until it engages with the machine.
5 Fit the die.
6 Fit the securing nut and hand tighten. (Don't use the spanner/pusher as this is to assist with removal only).
- Make sure the securing nut is almost flush against the body of the attachment.
7 Fit the hopper.

Optional: The cutting assembly can be fitted to the assembled pasta maker to assist with cutting the pasta into the desired lengths.

1 With the handle of the cutting blade uppermost, unscrew the clamp ring slightly. Place over the securing nut and twist if necessary until fully home on the attachment. The die should fit flush with the front of the cutting assembly.
2 Hold the edge of the cutting assembly and at the same time tighten the clamp ring by turning away from you ②.

Note – Whenever you fit or remove the cutting assembly, always hold the edge of the assembly in one hand and twist the clamp ring with the other.

to use your pasta maker

1 Make your pasta mix following a recipe supplied.

- Don't make the mix too dry as it could break your pasta maker or mixer. It should resemble coarse breadcrumbs or a coarse crumble texture. The particles should be separate but if squeezed together it should form a clump which bonds together.

2 Switch the mixer onto speed 2-3.

3 Place some of the mix onto the hopper. Feed a small amount of mix into the feed tube at a time. Allow the scroll to clear before continuing. If the feed tube becomes clogged use the end of the spanner/pusher handle to push the mix onto the scroll (don't use anything other than the spanner handle and don't push too hard). Never let the feed tube fill up.

4 When the pasta is long enough, move the handle on the cutting assembly back and forth to cut the pasta into the desired length. Alternatively if the cutting assembly is not fitted use a knife to cut the pasta.

- To change dies remove the cutting assembly. Always hold the edge of the cutting assembly in one hand and twist the clamp ring towards you and remove. Remove the securing nut (use the spanner/pusher to loosen the securing nut if necessary) and switch briefly to speed 1 to eject the die. Remove the die and any visible excess pasta and then fit the desired die. Replace the securing nut and cutting assembly.

warning

The pasta maker will get hot in use – this is normal and is caused by the pasta being compressed in the attachment.

NOTE

The dies are specially made from a bronze material to give the pasta a rough textured surface to hold pasta sauce for an authentic full flavour.

cleaning

dismantle the attachment

● Always hold the edge of the cutting assembly in one hand and twist the clamp ring towards you and remove. Remove the securing nut, use the spanner/pusher to loosen the securing nut if necessary. Remove the attachment from the mixer by sliding the catch and pulling off the attachment. Dismantle the parts.

dies

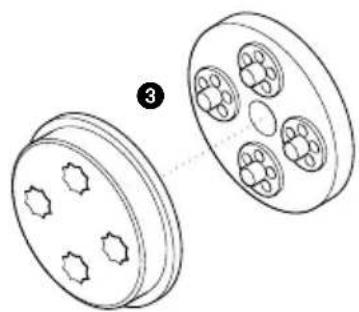

The Maccheroni rigati, Maccheroni lisci and Bucatini dies can be pulled apart to assist with the cleaning process ③.

- Clean immediately after use, otherwise the pasta will dry and be extremely difficult to remove. Use the cleaning tool to remove all the pasta from the dies. The thicker end of the tool is ideal for cleaning the larger holes on the Maccheroni rigati die, whilst the thinner end is suitable for cleaning other dies. Wash in hot soapy water, then dry thoroughly.

scroll

• Do not immerse in water.
• Wipe clean, then dry.

hopper, ring nut, body, spanner, cutting assembly.

- Remove any pasta dough and if necessary wash in hot soapy water, then dry thoroughly.

recipe for plain pasta mix

We recommend using 00 flour, but if this is not available, use All Purpose Plain Flour. Measure the ingredients carefully as too dry a mix could break your attachment and/or mixer. However, if the mixture forms a ball of dough then too much liquid has been added.

200g 00 flour

100g beaten egg (approximately 2 medium sized eggs)

Method

Place the flour into the bowl and with the K beater fitted, gradually add the beaten egg on minimum speed increasing to 1. Mix for 30 - 45 seconds, then scrape down. Switch on and continue mixing for approximately a further 30 seconds. The mixture should resemble coarse breadcrumbs or a coarse crumble texture. The particles should be separate but if a small amount is squeezed together it should form a clump which remains bonded together.

to make flavoured pasta

herb pasta

Use the above recipe but add 20ml washed and finely chopped herbs such as parsley to the beaten egg,

wholemeal – replace the flour with ordinary plain wholemeal flour

tomato – Replace 15ml beaten egg with 15ml tomato puree

verdi – Replace 30ml beaten egg with 30ml finely pureed spinach.

eggless pasta

200g 00 flour

pinch salt

25ml virgin olive oil

approximately 100ml water

Follow the method for plain pasta mix adding the salt to the flour and replacing the egg with the oil and water.

Japanese Soba Buckwheat Noodles

- Ideal for people who require a gluten free diet.

300g buckwheat flour

150g beaten egg

Follow the method for plain pasta mix.

Pass the mix through the pasta maker fitted with the Bigoli screen and cut into suitable lengths. Cook in boiling water.

udon noodles

350g All Purpose Plain flour 140ml cold water 20g salt

Stir the salt into the water until dissolved.

Follow the method for plain pasta mix replacing the beaten egg with the salt water.

Pass the mix through the pasta maker fitted with the Bigoli screen and cut into suitable lengths. Cook in unsalted boiling water for approximately 5 minutes, the noodles should be firm but tender. Drain immediately and rinse in cold water. Serve immediately with a sauce of your choice.

to cook your pasta

Before cooking, pasta can be dried for short periods - up to an hour before cooking. This will vary according to the type of pasta produced.

1 Bring a pan three quarters full of water to the boil. Add salt to taste.
2 Add your pasta and boil stirring occasionally. Cook until the pasta is al dente. It should be tender but yet still firm to bite. As a guide this will take 1 - 10 minutes but will vary on the type of pasta and the texture desired. Always check the texture regularly as the pasta will continue to cook a little after being removed from the heat.
- Never add oil to your water as it makes the pasta slippery, preventing the sauce from sticking properly.

choosing a sauce for pasta

Selecting the pasta to the sauce can make a difference. Tubular shapes trap bits of food in thick sauces, wheras long strands are good for absorbing juices of tomato sauces and seafood sauces without going soft, whilst thicker pasta usually goes with strong flavoured sauces.

biscuit maker (AT910014)

See back page for illustration of the biscuit maker.

1 Make up one of the following biscuit recipes and chill in the fridge to allow the mix to firm.
- Use small eggs otherwise the mix will be too soft.
2 Remove the shaper from the biscuit die. Assemble the pasta maker with the biscuit die, making sure the slots in the die end up on either side. Fit the attachment to the mixer. (The cutting assembly should not be fitted.)
3 Slide the shaper into the slots either side of the die and move until the desired shape is in the centre of the hole.

plain biscuits

150g softened butter

150g caster sugar

2 small eggs, beaten

300g plain flour, sieved

lemon essence optional

Cream the butter and the sugar in the bowl using the K beater until the mixture is light and fluffy. Beat in the egg, then fold in the sifted flour and essence. Pass the mixture through the attachment, having selected the desired shape and cut into suitable lengths. Place onto a greased baking sheet and bake in the centre of a hot oven 190°C, 375°F, gas mark 5 for approximately 10 minutes or until cooked. Cool on a wire rack.

chocolate biscuits

125g softened butter

200g caster sugar

2 small eggs, beaten

250g plain flour

25g cocoa powder

} sieved together

Follow the method for plain biscuits, replacing the essence with the cocoa powder.

After the biscuits have cooled, they can be decorated by dipping in melted chocolate or dusted with icing sugar.

trouble shooting

Question Answer/Hint
The appearance of the pasta is rough	● The screens/dies are specifically made of bronze. A feature of the bronze die is that it gives the pasta a rough surface which is preferred as it allows any accompanying sauce to stick
The quality of the extruded pasta varies throughout the mix by:-	● This is normal, but can be minimised-ensuring the mix is of a fairly even consistency to start with.- adding the mix to the pasta maker at a steady rate.- ensuring that all the mix is extruded in one batch.- ensuring the mix is not allowed to dry out.
Pasta doesn’t come out the holes	● Ensure the dies are clean before starting, any dried pasta in the holes will prevent extrusion.● Check that the feed tube is not blocked.● Use the spanner/pusher to help feed the pasta onto the scroll.
The dies are difficult to clean	● Always clean immediately after use, do not allow the mix to dry onto the die.● Use the tool provided. The thicker end of the tool is ideal for cleaning the larger holes on the Maccheroni rigati die, whilst the thinner end is suitable for cleaning other dies.
Pasta shapes are ragged	● Sometimes the first pasta extruded is slightly ragged. Add the pasta mix in a constant steady rate, try adjusting the rate at which the mix is added. Warm the body, die and ring nut in hot water and dry thoroughly before using.
The die doesn’t fit onto the scroll	● Check that the centre hole in the die is cleared of any dry mix from previous tests.● Check that if you are changing dies during operation, there is no mix between the die and scroll preventing it from fitting flush.
The feed tube keeps blocking	Add small amounts of pasta at a time in a steady rate and only add more when the feed tube is clear.The mix is too wet.Use the end of the spanner/pusher to push the mix down the feed tube.(Removing the hopper will enable the spanner to reach lower down the feed tube).Vary the speed of adding the mix.
The cutting assembly is difficult to remove for approximately 30 minutes.	Leave the attachment to cool down
The cutting assembly is difficult to fit partially unscrewed from the plastic	Make sure the metal clamp ring is inner before pushing onto the attachment.
