USER MANUAL For Bentley Barnato 42 Breitling

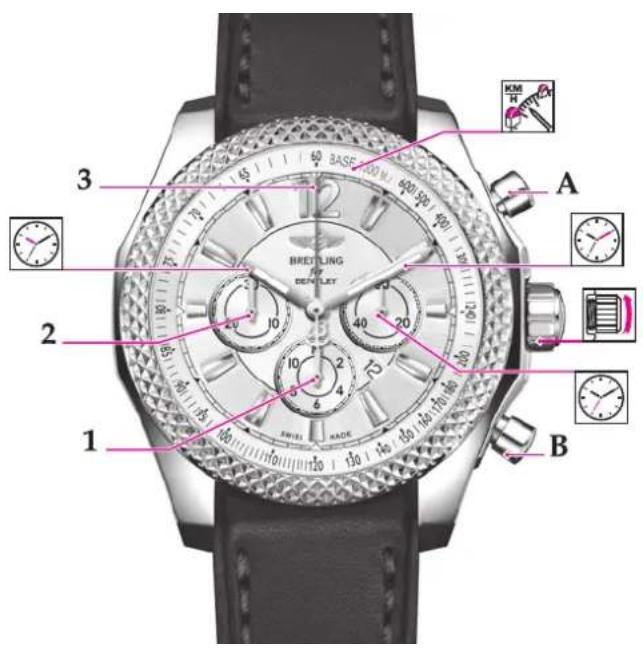

Close-up of a Bruhlins brand wristwatch with ornate dials and textured bezel (no readable text or symbols beyond branding)

3 BASE 100 MJ 40 20 A BRETUNG DENTLEY 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Aiguille des heures Hour hand Stundenzeiger Lancetta delle ore Aguja de horas Ponteiro das horas Часовая стрелка 時 鈍 時 鈍 時 鈍

Aiguille des minutes Minute hand Minutenzeiger Lancetta dei minuti Aguja de minutos Pontelo dos minutos Минутная стрелка 分 针 分 针 分 针

Aiguille des secondes Seconds hand Sekundenzeiger Lancetta dei secondi Aguja de segundos Ponteiro dos segundos Секундная стрёлка 秒 计 秒 计 秒 计

Compteur des heures du chronographe Chronograph's hours totalizer Chronograph-Stundenzähler Totalizzatore delle ore del cronografo Contador de horas del cronografo Contador das horas do cronografo Xronograph - счетчик часов

Poussoir Start / Stop Pushpiece Start / Stop Drücker Start / Stop Pulsante Start / Stop Pulsador Start / Stop Botão Start/Stop (inicio/paragem) Khonka crapt / cton スタート / ストップ・ボタン 催出 / 停止接限 启动 / 停止接限

Compteur des minutes du chronographe Chronograph's minutes totalizer Chronograph-Minutenzähler Totalizzatore dei minuti del cronografo Contador de minutos del cronografo Contador dos minutos do cronografo Xponograf - счетчик минут クロノグラフ分析設計 計時論録分析累計器 計時表分析累計器

Poussoir Reset Pushpiece Reset Drücker Reset Pulsante Reset Pulsador Reset Bolão Reset (reposição) Knonka cōpoca リセット・ボタン 肺外接続 肝外接続

Aiguille des secondes du chronographe Chronograph's seconds hand Chronograph-Sekundenzeiger Lancetta dei secondi del cronografo Aguja de segundos del cronográfio Ponteiro dos segundos do cronográfio Xponoi paφ - секундная стреика クロノグラフ秒计 計時施法秒计 計時施表秒计

Tachymètre Tachymetric scale Tachometrische Skala Scala tachimetrica Escala taquimétrica Taquímetro Taxiumepr タキメーター 測速計 測速計

FRANÇAIS

MISE EN SERVICE 5

PARTICULARITÉS 8

ENTRETIEN 13

ENGLISH

PREPARING THE WATCH FOR USE 17

SPECIAL CHARACTERISTICS 20

MAINTENANCE 25

DEUTSCH

INBETRIEBNAHME 29

BESONDERHEITEN 32

WARTUNG 37

ITALIANO

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with highlighted internal area and red arrows indicating features (no text or symbols)

Mechanical component diagram showing a bracket with arrows indicating force or movement (no text or symbols)

② click

④ click

12

MAINTENANCE

A chronometer is a high-precision instrument that has successfully passed the entire battery of tests imposed by the COSC (Swiss Official Chronometer Testing Institute), a neutral and independent body which individually tests each movement according to the prescriptions in force.

The certification test for wristwatches with sprung balance oscillators, according to the ISO 3159 norm, consists of observing each movement for 15 days and 15 nights, in 5 positions and at 3 different temperatures (8°C, 23°C, 38°C). In order to earn the prestigious chronometer label, a movement's performances must meet 7 very strict criteria, including a daily variation in rate ranging between only -4/+6 seconds.

The term “chronometer” should not be confused with that of “chronograph”, which is a complicated watch fitted with an additional mechanism enabling the measurement of the duration of an event. A chronograph is not necessarily chronometer-certified, but all BREITLING chronographs carry the much-coveted title of “chronometers”.

PREPARING THE WATCH FOR USE

WINDING - TIME-SETTING

Nota bene: mechanical watches endowed with a date, day, month or moon-phase indicator are equipped with a complex mechanism that is set into motion between 8 pm and 3 am. It is therefore vital to avoid adjusting the calendar or moving the time backwards during this period.

1. Unscrew the water-resistant crown in an anti-clockwise direction. Wind the watch by 40 clockwise turns of the crown.

2. Pull the crown out to position 2, turn it anti-clockwise to adjust the calendar to the day prior to the date when it is set into operation.

3. Pull the crown out to position 3. Turn the hands so as to make the calendar jump once when the hands pass through midnight. Then adjust the hour and minute.

4. Push the crown back to position 1. Press it gently, turning it gently in a clockwise direction, then tighten it again until you feel some resistance. Do not force!

USING THE CHRONOGRAPH

I. MEASURING A SINGLE SHORT TIME

1. Press pushpiece A to start the chronograph. Hand 3 shows the measurement in seconds.

2. Stop the measurement by pressing pushpiece A once more. The measurement is done in hours (totalizer 1), minutes (totalizer 2), seconds and 1/4 of a second (hand 3).

3. Return the chronograph to zero by pressing push-piece B.

II. MEASURING AN INTERRUPTED SHORT TIME

1. Press pushpiece A to start the chronograph. Hand 3 allows you to follow the measurement in seconds.

1. To interrupt the measurement, press pushpiece A once more. To restart the time measurement, press pushpiece A. This procedure makes it possible to add several short times.

1. The chronograph is reset to zero by pressing push-piece B, once the final measurement has been stopped.

SPECIAL CHARACTERISTICS

USING THE TACHOMETER

FIXED TACHOMETER

The tachometric scale makes it possible to determine an average speed calculated on the basis of the time required to cover a fixed distance of 1 kilometer or 1 mile. The place on the scale where the seconds hand has been stopped after the measurement indicates the average speed in km/h (if the distance covered is one kilometer) or in mp·h (if the distance covered is one mile).

Example 1: if it takes 20 seconds to cover one kilometer or one mile, the average speed is 180 km/h or 180 mph respectively.

Example 2: if it takes 36 seconds to cover one kilometer or one mile, the average speed is 100 km/h or 100 mph respectively.

SUN COMPASS

Your BREITLING chronometer may be used as a sun compass, thus enabling you to determine the Northerly-Southerly direction. For regions that have instated daylight saving time, subtract one hour when directing the watch.

In the Northern hemisphere

Point the hour hand precisely towards the sun. In relation to the watch dial, the point located midway between the current time and 12 o'clock in indicates the South, the North being exactly opposite.

In the Southern hemisphere

Point the hour-marker located at 12 o'clock on the dial precisely towards the sun. In relation to the watch dial, the point located midway between the current time and 12 o'clock indicates the North, the South being exactly opposite.

Diagram showing two circular clocks with directional arrows and sun icons, likely illustrating a physics or mathematics concept.

SPEED BRACELET

The Speed bracelet is equipped with an instantly adjustable comfort extension built into the clasp, a device that is greatly appreciated in hot weather or during long plane journeys.

N.B. At the time of purchase, the bracelet length adjustment must be done with the extension in position 1.

Technical line drawing of a mechanical clamp or bracket with no visible text or symbols

Technical diagram of a mechanical component with highlighted internal section and red arrows indicating force or movement (no text or symbols)

Mechanical assembly diagram showing a component with arrows indicating direction (no text or symbols)

② click

④ click

MAINTENANCE

Your BREITLING chronometer is a sophisticated instrument which is constantly subjected to a wide variety of stresses and strains. Within a very small volume, a large number of components contribute to handling all the functions. Their mechanical action inevitably leads to a certain amount of wear and tear, which may be controlled by maintenance consisting of renewing the lubrication and replacing worn components. Like any precision measurement instrument, your watch must be regularly maintained in order to function at its highest level of potential: we recommend a regular service every two years, while the complete overhaul should be scheduled about every five years. Your authorized B REITLING dealer will be pleased to handle this for you.

WATER-RESISTANCE

The movement of your chronome ter is protected by a complex case fitted with gaskets to ensure its water-resistance. Under the influence of various external agents – perspiration, chlorinated or salt water, cosmetics, fragrances or dust – these gaskets gradually deteriorate and must be regularly replaced. If used intensively in water, we recommend that this be done once a year as part of a service. If the watch is only occasional ly used in water, this operation may be carried out every two years. Moreover, a

water-resistance test should be done every year; it takes only a few minutes and can be performed by your authorized B REITLING dealer.

BREITLING models are water-resistant to varying degrees. The extent of the water-resistance, expressed in meters (M) is a standard value and does not indicate an absolute depth of immersion. The crown and pushpieces must not under any circumstances be operated under water or when the watch is wet. The table below indicates the conditions in which your watch may reasonably be used, according to its degree of water-resistance.

ACTIVITIES/DEGREE OF WATER-RESISTANCE	3bars/30M/100FT 5bars	50M/165FT 10bars/100	M/330FT 50bars/500M/1650FT+
Splashing
Shower, swimming, surface water sports
Water-skiing, dives, snorkeling
Diving

USEFUL TIPS

BREITLING genuine leather straps are crafted with the most refined materials and represent extremely high-quality products. Like all objects in natural skin (shoes, gloves, etc.), their length of life varies considerably,

according to the conditions in which they are worn. In particular, water, cosmetics and perspiration accelerate the aging process. A metal or synthetic BREITLING bracelet is thus better suited to activities involving frequent contact with water or humidity.

BREITLING metal cases and bracelets are made from the finest alloys and guarantee sturdiness and wearer comfort. Regular cleaning by rinsing and brushing in clear water will keep your watch shiny. This operation is strongly recommended after each immersion in salty or chlorinated water. For watches fitted with a leather strap, proceed in the same manner, while avoiding getting the strap wet.

WHAT TO AVOID

Like any valuable objects, B REITLING chronometers deserve special care. It is important to protect them from jarring and knocks by hard objects, and not to expose them to chemical products, solvents, dangerous gases, or magnetic fields. Moreover, your B REITLING chronometer is designed to run smoothly at temperatures ranging between 0°C and 50°C.

IHR BREITLING CHRONOMETER

Diagram showing two circular clocks with directional arrows and sun icons, likely illustrating a weather or solar cycle.

ARMBAND SPEED

Technical line drawing of a mechanical clamp or bracket with no visible text or symbols

Technical line drawing of a mechanical component with highlighted internal area and red arrows indicating features (no text or symbols)

Mechanical component diagram showing a bracket with arrows indicating force or movement (no text or symbols)

② click

④ click

36

WARTUNG

Technical line drawing of a mechanical clamp or bracket with no visible text or symbols

Technical line drawing of a mechanical component with highlighted internal area and red arrows indicating features (no text or symbols)

Mechanical component diagram showing a bracket with arrows indicating force or movement (no text or symbols)

② click

④ click

48 49

MANUTENZIONE

Diagram showing two circular clocks with directional arrows and sun icons, likely illustrating a weather or solar cycle.

BRAZALLETE SPEED

Technical line drawing of a mechanical clamp or bracket with no visible text or symbols

Technical line drawing of a mechanical component with highlighted internal area and red arrows indicating features (no text or symbols)

Mechanical component diagram showing a bracket with arrows indicating force or movement (no text or symbols)

② click

④ click

60

MANTENIMIENTO

Technical line drawing of a mechanical clamp or bracket with no visible text or symbols

Technical line drawing of a mechanical component with highlighted internal area and red arrows indicating features (no text or symbols)

Mechanical component diagram showing a bracket with arrows indicating force or movement (no text or symbols)

② click

④ click

MANUTENÇÃO

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with highlighted internal area and red arrows indicating features (no text or symbols)

Mechanical component diagram showing a bracket with arrows indicating force or movement (no text or symbols)

② click

④ click

81

PEMOHT

Diagram showing two analog clocks with directional arrows and sun symbols, likely illustrating solar or wind patterns.

スピード・ブレスレット

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical diagram of a mechanical component with red arrows indicating force or movement (no text or symbols present)

Mechanical assembly diagram showing a bracket with arrows indicating force or movement (no text or symbols present)

② click

④ click

メンテナンス

Diagram showing two circular clocks with directional arrows and sun symbols, likely illustrating a weather or solar cycle.

SPEED型錶鏈

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical component with red arrows indicating force or movement (no text or symbols)

Mechanical assembly diagram showing a bracket with arrows indicating force or movement (no text or symbols present)

② click

④ click

保養

Technical line drawing of a mechanical clamp or bracket with no visible text or symbols

Technical line drawing of a mechanical component with red arrows indicating force or movement (no text or symbols)

Technical diagram of a mechanical component with arrows indicating direction (no text or symbols)

② click

④ click

保养须知

Printed in Switzerland B-BAR42.1202.1,7
