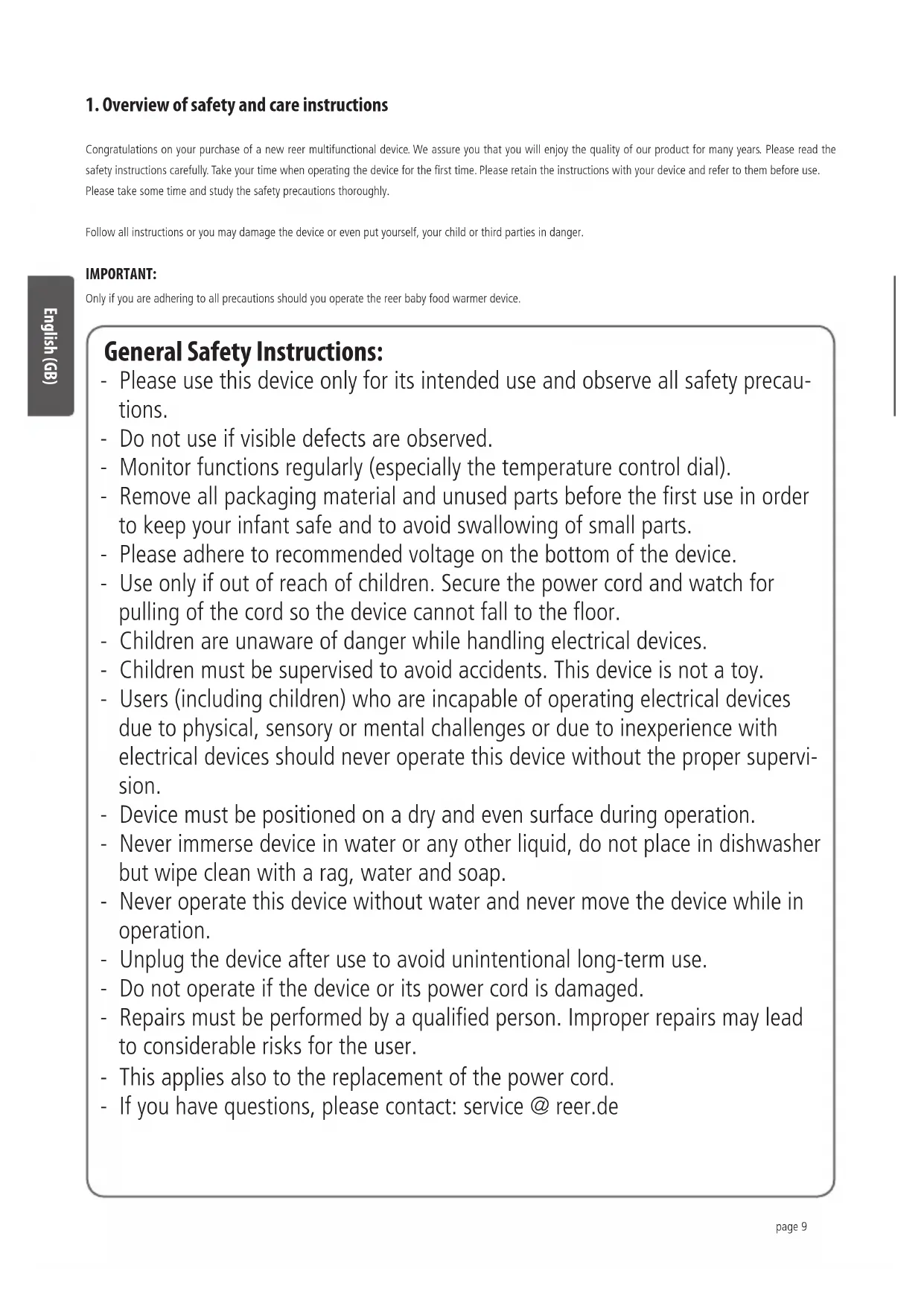

1. Overview of safety and care instructions

Congratulations on your purchase of a new reer multifunctional device. We assure you that you will enjoy the quality of our product for many years. Please read the safety instructions carefully. Take your time when operating the device for the first time. Please retain the instructions with your device and refer to them before use. Please take some time and study the safety precautions thoroughly.

Follow all instructions or you may damage the device or even put yourself, your child or third parties in danger.

IMPORTANT:

Only if you are adhering to all precautions should you operate the reer baby food warmer device.

General Safety Instructions:

• Please use this device only for its intended use and observe all safety precautions.
• Do not use if visible defects are observed.
• Monitor functions regularly (especially the temperature control dial).
• Remove all packaging material and unused parts before the first use in order to keep your infant safe and to avoid swallowing of small parts.
• Please adhere to recommended voltage on the bottom of the device.
• Use only if out of reach of children. Secure the power cord and watch for pulling of the cord so the device cannot fall to the floor.
• Children are unaware of danger while handling electrical devices.
• Children must be supervised to avoid accidents. This device is not a toy.
• Users (including children) who are incapable of operating electrical devices due to physical, sensory or mental challenges or due to inexperience with electrical devices should never operate this device without the proper supervision.
• Device must be positioned on a dry and even surface during operation.
• Never immerse device in water or any other liquid, do not place in dishwasher but wipe clean with a rag, water and soap.
• Never operate this device without water and never move the device while in operation.
• Unplug the device after use to avoid unintentional long-term use.
• Do not operate if the device or its power cord is damaged.
• Repairs must be performed by a qualified person. Improper repairs may lead to considerable risks for the user.
• This applies also to the replacement of the power cord.
• If you have questions, please contact: service @ reer.de

2. Safety precautions for maintenance and care of the device

Maintenance and care instructions

• Unplug the device from the wall socket before attempting to clean it!
• Never clean the device while hot!
• Do not use any harsh, abrasive cleaning aids or sharp tools as they may damage the surface of the device.

Environmental considerations:

This product should not be disposed of with your regular domestic household waste but must be disposed of at a collection point for the recycling of electrical appliances. See also the recycling logo on the box and the manual. The materials can be recycled according to their labeling. By recycling this product, other electrical products and electronic waste, you make a valuable contribution to our

environment. Please contact your municipal administration for the appropriate drop-off location.

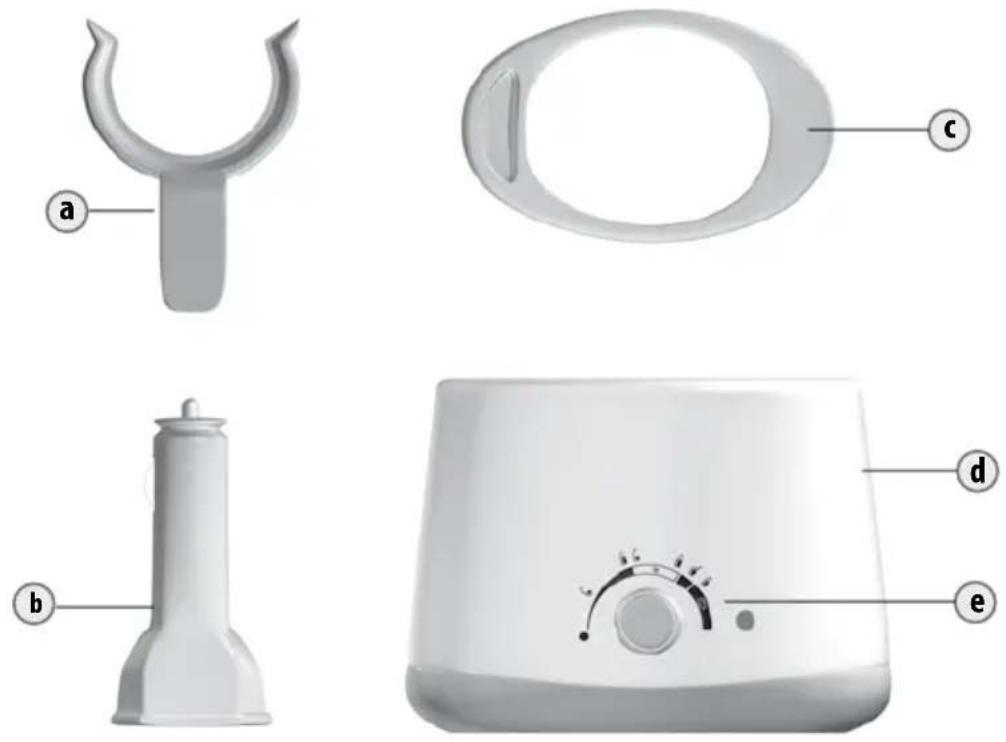

3. Description and Content

a) Jar holder b) 12-volt adapter
c) steamring with measuring cup
d) Reservoir (main unit) e) Control dial and light display

4. Warming of baby bottles and baby food jars

This device warms baby bottles and baby food jars conveniently and reliably. The water is heated by a hot plate on the bottom of the device and transmits heat via water steam to the bottle/ jar. After reaching the selected temperature, the device shuts down automatically.

CAutION:

Always place the device on a dry and

even surface.

Always maintain the appropriate

amount of water in the reservoir.

NOTICE:

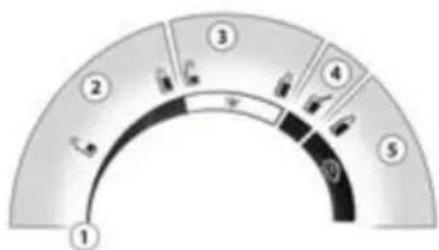

The symbols of the adjustable heat spectrum are approximate and the proper heat depends on the amount of milk, jar content, consistency, bottle material, and room temperature.

Schematic diagram of a semi-circular gauge with numbered segments and icons, likely representing a measurement or calibration system.

1 minimum

2 Bottle with room temperature content

3 Bottle with refrigerator temperature content

4 Jar

5 Car operation with 12-volt adapter

Start of Operation

White kitchen lamp with a handle and control knob (no text or symbols visible)

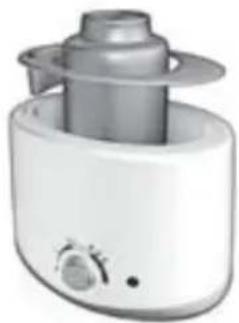

Put the baby bottle or the baby food jar inside the device, fill the measuring cup with the appropriate amount of water (20 ml), and pour it into the reservoir.

Caution: Remove the lid from the baby food jar and remove all labels so they cannot loosen during the heating process.

Put the steamring on and connect the power cord with the wall socket. Choose an appropriate temperature setting (see table to the left) depending on the content amount of the bottle/ jar. Push the temperature dial to start the heating process.

White 3D-rendered kitchen appliance with a cylindrical lid and control knob (no visible text or symbols)

Close-up of a white electronic device with a circular button and starburst icon, no visible text or symbols.

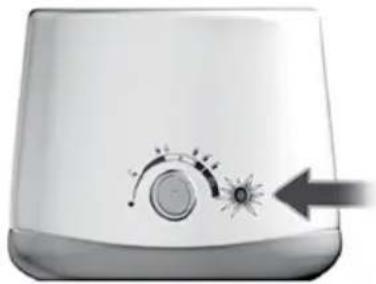

The red light display will be lit signaling that the device is in use. This light will turn off after about 4 minutes when the desired temperature is reached. Please wait for about 30 seconds before you take the steamring off.

Use the enclosed jar holder to lift the bottle or the baby food jar from the container. Unplug the device!

Caution: Before you feed you child please check the temperature with your wrist. Stir the content of the jar in order to distribute the heat equally inside the jar.

The device is able to maintain the heat for a short amount of time. Due to hygienic considerations, you should never maintain heat for more than one hour since hazardous bacteria would start to develop.

5. Heating of baby food jars while traveling

The device is equipped with an adapter. It is possible to connect the device to a 12-volt energy source like your car's cigarette lighter. You are able to heat up bottles or jars for your children while traveling.

Caution: Never operate the device while operating a vehicle.

while traveling

Put the baby bottle or the baby food jar inside the device, fill the measuring cup with the appropriate amount of water (20 ml), and pour it into the reservoir. Remove the lid and all labels.

Two metallic electrical plug connectors, one open and one closed, shown without any text or symbols.

Attach the adapter to the

regular plug of the power cord. Put on the steam stop.

Caution: the Adapter is equipped with a metal peg and can only be operated in a certain position.

Close-up of a white electronic device with a black arrow pointing to its screen (no visible text or symbols)

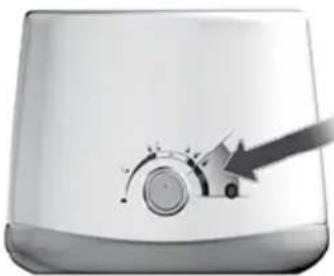

Select the heating function via the dial

Push the dial for at least 3 seconds to start the process.

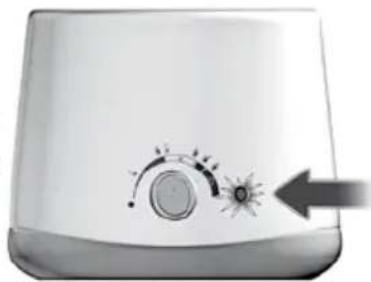

The red light display will be lit signaling that the device is in use. This light will turn off after the desired temperate has been reached.

Close-up of a white appliance with a circular button and a sunburst icon, no visible text or symbols.

Please wait for about 30 seconds before you take the steamring off in order to avoid scalding! Disconnect the device.

CAutION:

Operating this device will weaken your car battery.

NOTICE:

Some vehicles must be turned on in order for the cigarette lighter to function.

Scale removal

Depending on how often the unit is used and how hard the water used for disinfecting is, scale may develop on the heating plate on the unit floor. To ensure the unit is operating correctly, these deposits must be removed regularly.

nOTe:

We recommend using household vinegar to remove light scale deposits. In case of heavy scale deposits, a standard scale solvent must be used – be sure to follow the manufacturer's instructions.

Removing scale deposits with vinegar: Mix 100 ml of hot water with 100 ml of vinegar and pour the mixture onto the heating plate. Wait approximately 30 minutes, then pour out the mixture (do not turn the unit on). Then rinse the unit and wipe with a damp cloth.

Important: Do not use any abrasive cleaning agents.

Do you have questions or need technical support?

We are here to help you!

Your comments and opinions are important for the continuous improvement of our products, making them perfect for your needs and your baby's.

You can reach our service hotline at +49 (0)700 / 733 746 24 weekdays between 8 a.m. and 5 p.m.

(0.12 Euro/minute from Deutsche Telekom land lines).

Or contact us by e-mail at: [e-mail]

All technical data, information, as well as features described in this documentation are compiled to the best of our knowledge and up to date at the time of publication. The information provided by reer should be accurate and reliable. The company reer does not assume liability for potential errors in this document and reserves the right to make changes to the design of the product and/or specifications without prior notification.

Duplication and circulation of information contained in this copyrighted document in any form or type of graphic, electronic or mechanical form, such as photocopying, recording or database storage – including excerpts – require prior written authorization by the company reer.
