Product Type	Portable Toilet
Brand	Dometic
Model	966 Sanipottie
Fresh water tank capacity	9.8 L (2.6 gal)
Waste water tank capacity (standard models)	9.5 L (2.5 gal) or 18.9 L (5 gal) depending on version
Flush type	Manual with handle and sliding valve
Bellows pump	Yes, to add water to the bowl
Material	Plastic (parchment or platinum finish)
Power supply	Manual, no electricity
Maintenance	Lubricate valve seals with silicone spray if needed
Cleaning	Non-abrasive sanitary cleaners (e.g., SeaLand® Toilet Bowl Cleaner)
Winterization	Empty tanks, add non-toxic antifreeze for potable water
Safety (MSD models)	Risk of flooding if incorrect connection; mandatory valves
Installation	Floor mounting brackets for models 964/965; MSD connection for marine versions
Usage	Camping, caravan, boat (MSD models)
Spare parts	Available (lid, pump, tanks, seals, etc.)
Warranty	1 year personal use, 90 days commercial use
Customer service	Dometic Corp. (tel. [phone] USA/Canada)
Dimensions	Varies by model; tolerance ±10 mm

Frequently Asked Questions - 966 Sanipottie DOMETIC

How to prepare the toilet before first use?

Before each use, lid closed, pull then push the handle to reduce pressure. Fill the upper tank with fresh water and pour deodorizer directly into the lower tank.

How to drain the lower tank?

Make sure the sliding valve is closed. Separate the upper unit, take the lower tank to an authorized disposal point, remove the lid and empty. Rinse and reassemble.

Which cleaning products to use?

Preferably use SeaLand® Toilet Bowl Cleaner or any non-abrasive sanitary cleaner (Bar Keeper's Friend, Clorox, SaniFlush). Follow label instructions.

How to lubricate the sliding valve?

If flushing becomes difficult to pull, lubricate the valve seals with a silicone spray.

What to do to use the toilet in winter?

Add a non-toxic antifreeze for potable water system to the fresh water tank (quantity for 15 L). Never use alcohol-based or automotive antifreeze.

How to install the floor mounting brackets (models 964/965)?

Open the side locks, place the brackets under the tank, mark the holes, attach the brackets to the floor with the provided screws, then place the toilet between the brackets and lock.

What is the warranty of the Dometic 966 toilet?

1 year for personal, family or household use; 90 days for commercial or professional use, from the date of purchase.

Where to find spare parts for the 966 model?

Contact Dometic or an authorized dealer. The manual lists parts (lid, pump, tanks, seals) with their reference numbers.

How does the bellows pump work?

Press the bellows pump to add water to the bowl before use, especially to flush solid waste. Press once or several times after flushing to rinse.

Why should you pull the handle before each use?

This allows to reduce excess air pressure in the lower tank due to temperature or altitude changes.

USER MANUAL 966 Sanipottie DOMETIC

Installation (964, 965, 964MSD, 965MSD) 4-5

Cleaning and Maintenance 6

Winterizing 6

Convenience Products 6

Parts 7

Customer Service 8

Warranty 8

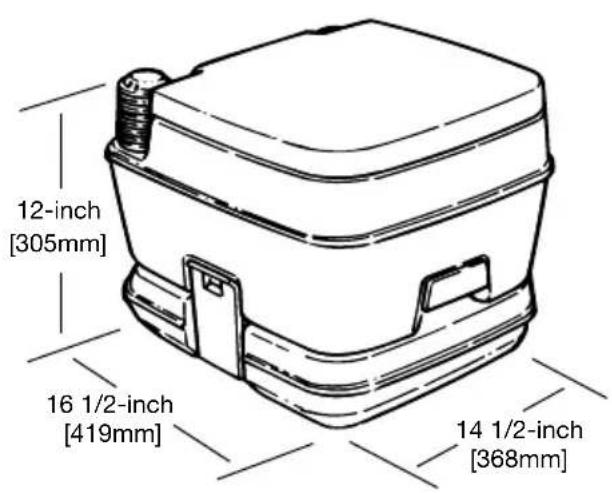

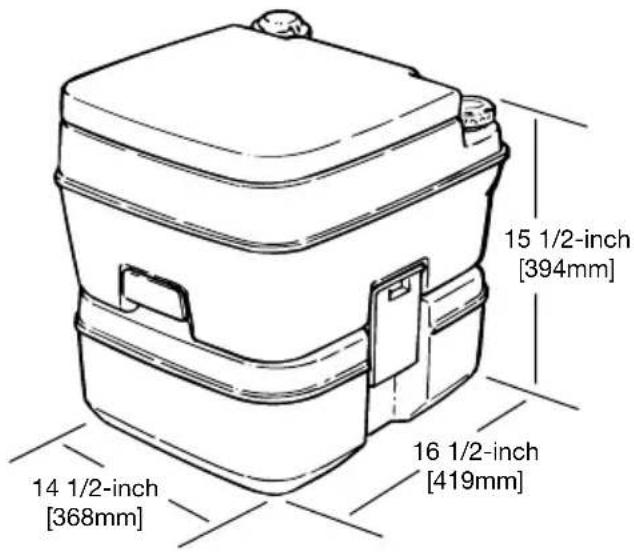

DIMENSIONS

962, 964, 964MSD

965, 965MSD, 966

All dimensions may vary ± 3 / 8 -inch (10mm).

OPERATION

Prepare toilet for use

1. CAUTION! With seat lid closed, pull flush handle to open slide valve, then push to close. This relieves air pressure that may be created in lower holding tank due to changes in temperature or altitude.

2. Remove water cap and fill upper tank. Replace cap.

3. Pull flush handle to open slide valve.

4. Pour deodorant directly into lower tank, then close slide valve.

CAUTION! Never pour deodorant into bowl with slide valve closed.

Use toilet

1. CAUTION! BEFORE EACH USE, with seat lid closed, pull flush handle to open slide valve, then push to close. This relieves air pressure that may be created in lower holding tank due to changes in temperature or altitude.

2. Use toilet. (If flushing solids, press bellows pump to add water to bowl before use.)

3. Pull flush handle to release waste into lower tank.

4. Press bellows pump one or more times to rinse bowl. Push flush handle to close valve.

Empty holding tank

CAUTION! MAKE SURE slide valve handle is all the way in.

1. Unlatch upper unit by disengaging side latches and lift from holding tank.

2. Carry holding tank to permanent toilet facility.

MSD Models: Pull flush handle to open flush valve. Pump out holding tank through boat's discharge fittings according to boat manufacturer's instructions.

INSTALLATION

BE SURE TO READ INSTRUCTIONS COMPLETELY BEFORE INSTALLING PORTABLE TOILET.

Models 964, 965

1. Position portable toilet in desired location. Make sure of adequate clearance for lid and seat in "up" position and clearance at the sides to unlatch and remove top tank.
2. Open side clasps by pulling outward at top of side clasps.

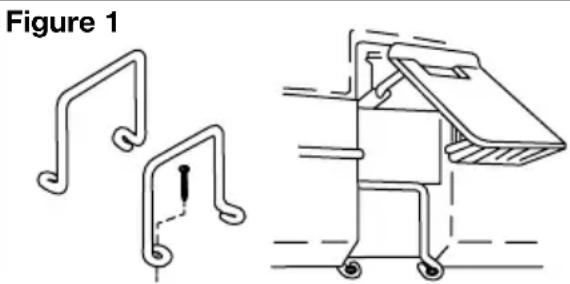

3. Place hold-down brackets, with mounting holes facing away from toilet, under the tank and align with grooves. See Figure 1.
4. Use pencil or awl to mark location of holddown bracket mounting holes.
5. Remove portable toilet.
6. Attach hold-down brackets to the floor or deck with screws provided.
7. Set portable toilet between brackets and latch in place with side clasps.

MOUNTING BRACKETS

Models 964MSD, 965MSD WARNINGS

Dometic marine toilet systems must be installed according to Dometic's recommended procedures. Equipment damage, injury to personnel or death could result from improper installation. DOMETIC CORPORATION ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR DAMAGE TO EQUIPMENT, OR INJURY OR DEATH TO PERSONNEL THAT MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR OPERATION OF THIS PRODUCT.

WARNING!

HAZARD OF FLOODING - If the toilet

system is connected to ANY through-the-hull fittings, properly installed seacocks MUST be installed in all piping connected to through-the-hull fittings. Seacocks MUST be easily accessible to all users of the toilet system or secondary valves fitted in hoses where they are easily accessible. ALWAYS close seacocks when toilet system is not in use (even if boat is unattended for a brief period. All valves MUST be full bore valves and marine quality. Screw-to-close gate valves are not recommended. Failure to comply can result in flooding which can cause loss of property and life.

WARNING!

HAZARD OF FLOODING - If toilet is used to ANY through-the-hull fittings, ALL hoses must be of marine sanitation quality. Must be secured to ANY fittings (such as in the seacock, vented loop or toilet) with two or 3 steel, worm-drive hose band clamps at a connection. Connections MUST be checked properly for integrity. Failure to comply can lead to flooding which can cause loss of dry and life.

WARNING!

HAZARD OF FLOODING - If toilet rim

is below the waterline at ANY time (during any conditions of heel, load or trim) and is connected to ANY through-the-hull fittings, properly positioned ventilated (vented) loops MUST be installed in discharge piping to prevent potential back siphonage of seawater into the boat. Failure to do so can result in flooding which can cause loss of property and life.

INSTALLATION

Models 964MSD, 965MSD

Portable toilets are legally acceptable for use in vessels not having permanently installed toilets, as determined by the United States Coast Guard. However, some states and the Canadian province of Ontario require a permanently installed portable toilet, such as the 964MSD and 965MSD.

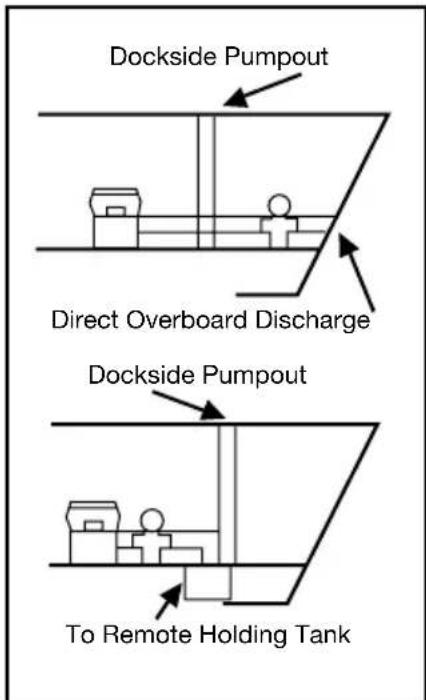

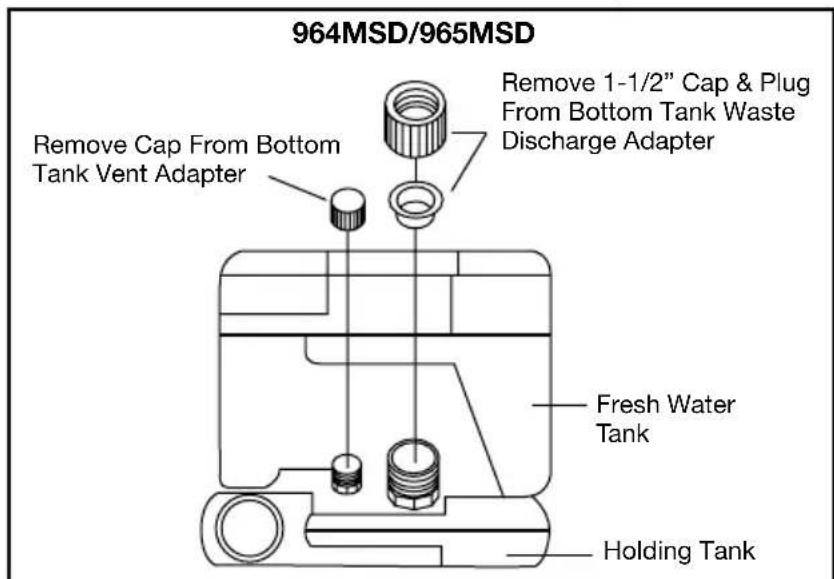

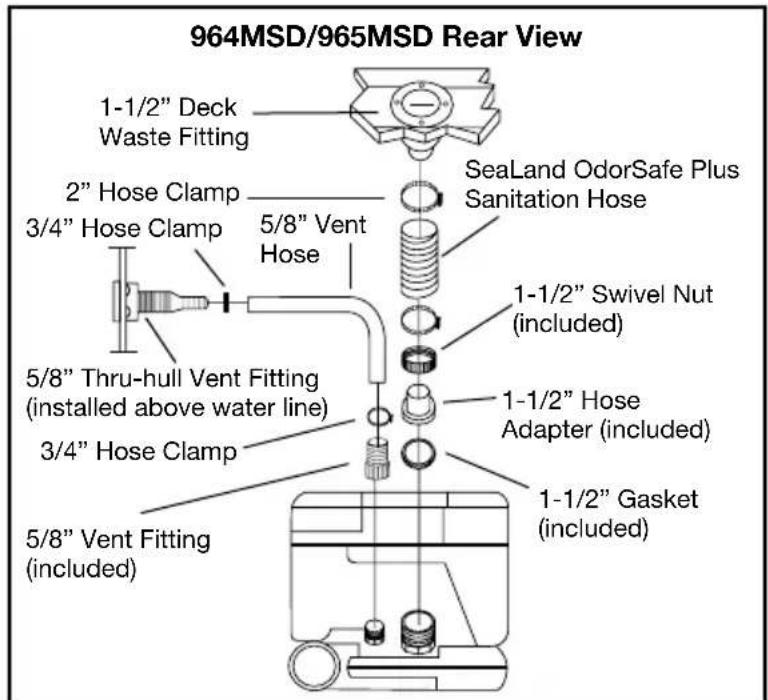

Installation Possibilities

MARINE SANITATION REGULATIONS

All boats with fixed toilets in U.S. waters and in the waters of some other countries are required to have an operable, permanently installed marine sanitation device (MSD). Series 960 MSD models, when permanently installed in a boat, are holding tank or Type III systems as defined by the U.S. Coast Guard. Type III systems permit operation of the toilet without direct discharge of untreated waste after every flush. Type III systems can be discharged at marina dockside pump-out stations or, if in coastal waters, a minimum of three miles offshore. Overboard discharge capability must remain secured while within the three-mile limit. If an overboard discharge pump is activated by a keyed switch in the toilet compartment, the key must be removed at all times except when discharge pump is operating and in the process of vessel operation.

Sewage from any source should not be discharged directly into boating waters. If you are interested in learning more about this issue, please visit our website at www.Dometic.com.

This symbol appears on the discharge fitting of MSD models.

CLEANING AND MAINTENANCE

Cleaning

For most effective cleaning, use SeaLand® Toilet Bowl Cleaner. It's intended for use with all Domatic toilets. If you cannot find it in your area, contact Domatic for your nearest dealer. If it is not available, you can also use most non-abrasive bathroom and toilet bowl cleaners (Bar Keeper's Friend® spray cleaner, Clorox® toilet bowl cleaner, SaniFlush® toilet bowl cleaner, etc.). Follow label instructions.

Maintenance

If flush handle becomes difficult to pull, lubricate slide valve seals with silicone spray.

WINTERIZING

Use

When using the Dometic portable toilet in cold or winter weather, the addition of nontoxic antifreeze designated for potable water systems provides safe winter protection. Use amounts specified on container that are safe for use with 4 gallons (15 l) of water.

NOTE: Never use alcohol-based or automotive-type antifreeze in freshwater systems.

Storage

To store Dometic portable toilet during the winter:

1. Empty freshwater tank and holding tank.
2. Make sure all water is cleared from freshwater tank's water lines by pressurizing tank and pushing flush button until no water enters bowl.

A small amount of water may remain in bottom of freshwater tank but will be harmless during winter storage.)

CONVENIENCE PRODUCTS

SeaLand® brand products are specially developed to work best in Domatic portable toilets. There are no better holding tank deodorizers and rapid-dissolving tissues available. To deodorize holding tank, follow instructions on package.

Toilet System	Deodorant Charge		Charging Procedure
	Liquid	Granulated or Toss-in Packet
Portable toilet	See directions on deodorant container	One 2 oz. (57 g) packet with 1 pint (.47 l) of water	Add directly to waste holding tank

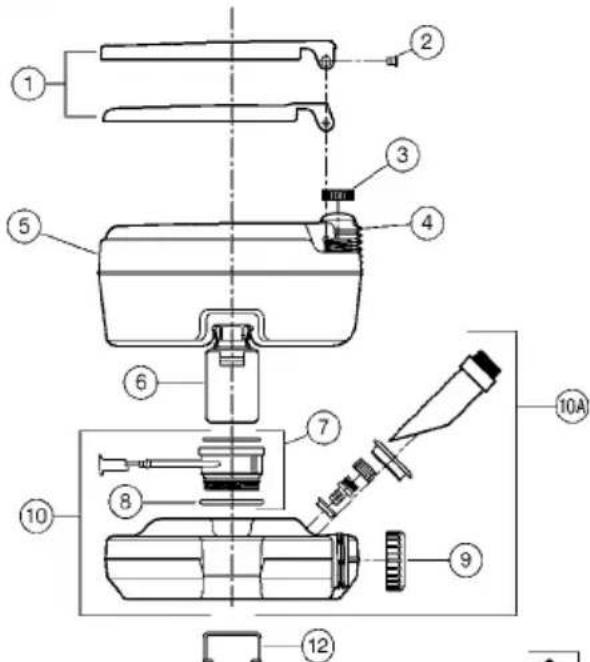

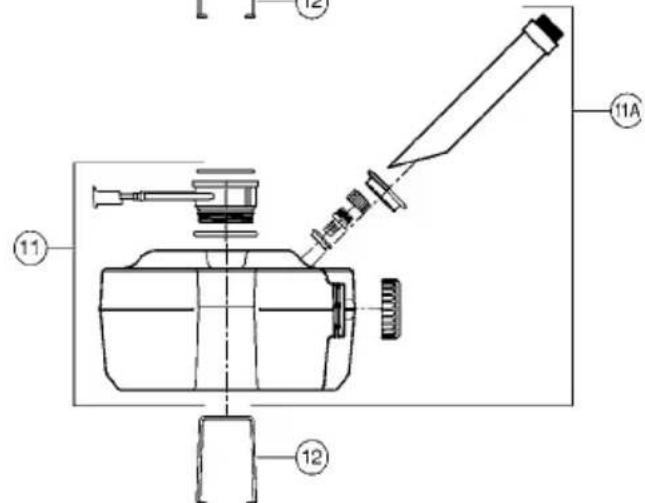

PARTS

NO.	USA DESCRIPTION
1	385311520	Seat lid and seat - parchment
	385311521	Seat lid and seat - platinum
2	385310900	Seat hinge pin - white
	385310899	Seat hinge pin - parchment
3	385310102	Water cap - parchment
	385310103	Water cap - platinum
4	385310104	Bellows assembly - parchment
	385310105	Bellows assembly - platinum
5	385230374	2.6-gal. (9.8 l) freshwater tank assembly - parchment (items 1 - 5)
	385230375	2.6-gal. (9.8 l) freshwater tank assembly - platinum (items 1 - 5)
6	385310066	Latch assembly - white
	385310067	Latch assembly - parchment
7	385239064 Slide	valve assembly - white
8	385346401 Bottom	O-ring
9	385310050	Waste tank cap - parchment
	385310031	Waste tank cap - platinum
10	385311522	2.5-gal. (9.5 l) wastewater tank assembly - parchment
	385311523	2.5-gal. (9.5 l) wastewater tank assembly - platinum
10A	385230376	2.5-gal. (9.5 l) 964MSD tank assembly - parchment
	385230377	2.5-gal. (9.5 l) 964MSD tank assembly - platinum
11	385311524	5.0-gal. (18.9 l) wastewater tank assembly - parchment
	385311525	5.0-gal. (18.9 l) wastewater tank assembly - platinum
11A	385230378	5.0-gal. (18.9 l) 965MSD tank assembly - parchment
	385230379	5.0-gal. (18.9 l) 965MSD tank assembly - platinum
12	385310018	Hold-down brackets - 2.5-gal. waste tank
	385310239	Hold-down brackets - 5.0-gal. waste tank
		964, 964MSD
		965, 965MSD

CUSTOMER SERVICE

There is a strong, worldwide network to assist in servicing and maintaining your sanitation system. For the Authorized Service Center near you, please call from 8:00 a.m. to 5:00 p.m. (ET) Monday through Friday.

You may also contact or have your local dealer contact the Parts Distributor nearest you for quick response to your replacement parts needs. They carry a complete inventory for the Dometic product line.

Telephone: [phone] U.S.A. and Canada

330-439-5550

International

Fax: [phone] U.S.A. and Canada

330-439-5567

International

Web site: www.Dometic.com

ONE-YEAR LIMITED WARRANTY

Dometic Corporation warrants, to the original purchaser only, that this Dometic portable toilet, if used for personal, family or household-like purposes, and if installed according to Dometic's recommended procedures, is free from defects in material and workmanship for a period of one (1) year from the date of purchase.

If this Dometic product is placed in commercial or business use, it will be warranted, to the original purchaser only, to be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase.

Dometic reserves the right to replace or repair any part of this product that proves, upon inspection by Dometic, to be defective in material or workmanship. All labor and transportation costs or charges incidental to warranty service are to be borne by the purchaser-user.

EXCLUSIONS

IN NO EVENT SHALL DOMETIC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR DAMAGES RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT, ABUSE, ALTERATION, FOREIGN OBJECTS DEPOSITED IN THE TOILET, OR USE OF UNAUTHORIZED COMPONENTS. THIS INCLUDES FAILURES WHICH MAY RESULT FROM NOT FOLLOWING THE WINTERIZATION OR CLEANING PROCEDURES AS DESCRIBED IN THIS MANUAL. ALL IMPLIED WARRANTYIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED TO A PERIOD OF ONE (1) YEAR FROM DATE OF PURCHASE.

IMPLIED WARRANTY

No person is authorized to change, add to, or create any warranty or obligation other than that set forth herein. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of purchase for products used for personal, family or household-like purposes, and ninety (90) days from the date of purchase for products placed in commercial or business use.

OTHER RIGHTS

Some states do not allow limitations on the duration of an implied warranty, and some states do not allow exclusions or limitations regarding incidental or consequential damages; so, the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

To obtain warranty service, first contact your local dealer from whom you purchased this product.

Dimensiones 9

Funcionamento 10

Instalacion (964, 965, 964MSD, 965MSD) 11-12

Modelos 964MSD, 965MSD

WARNING

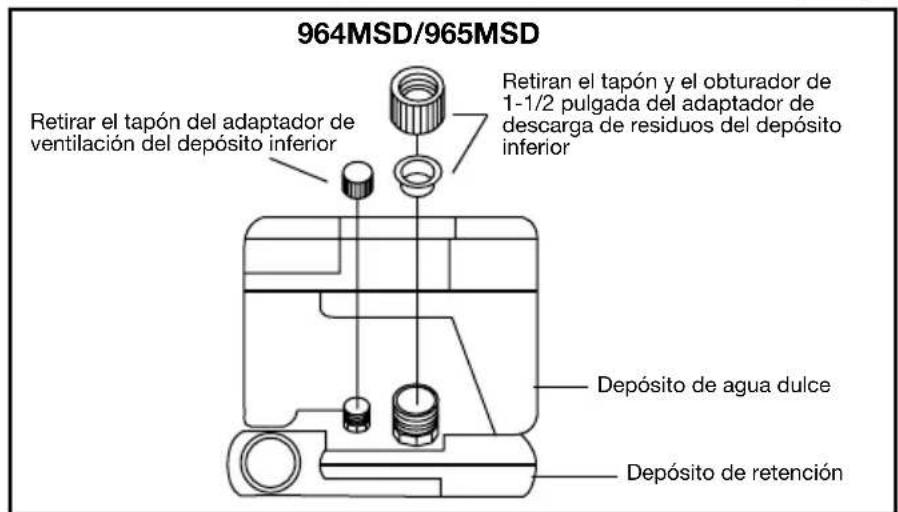

Modelos 964MSD, 965MSD

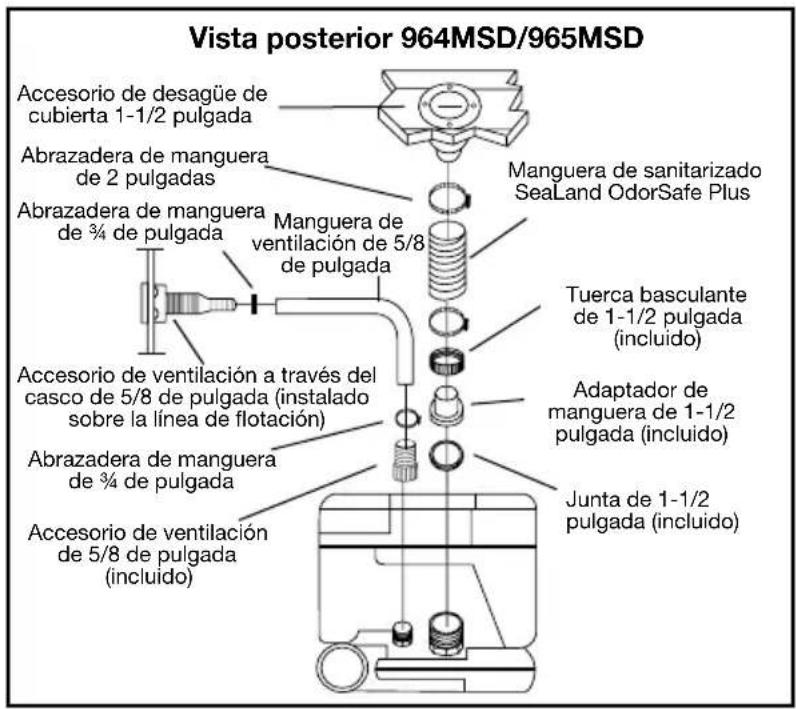

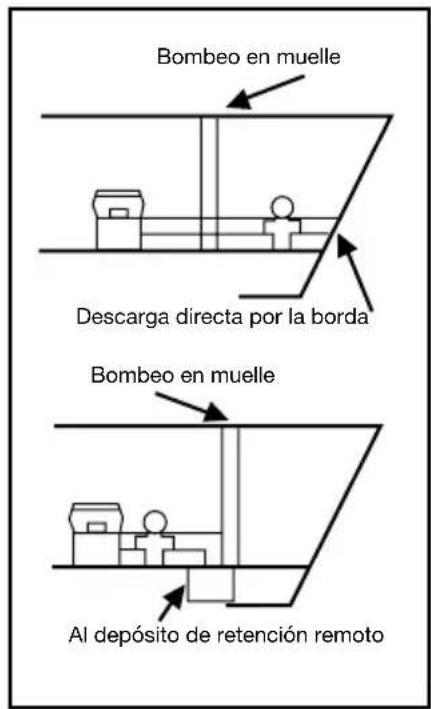

Installation Possibilities

Installation (964, 965, 964MSD, 965MSD)) 18-19

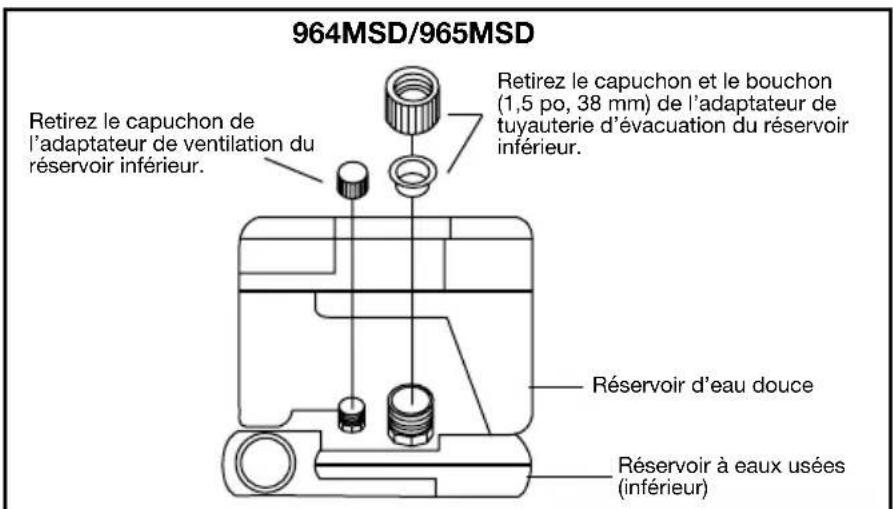

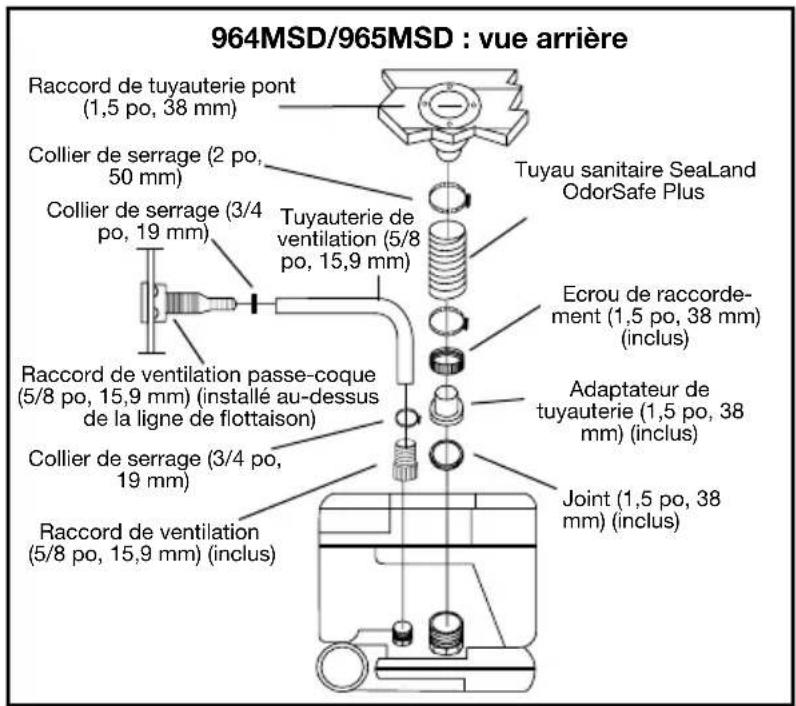

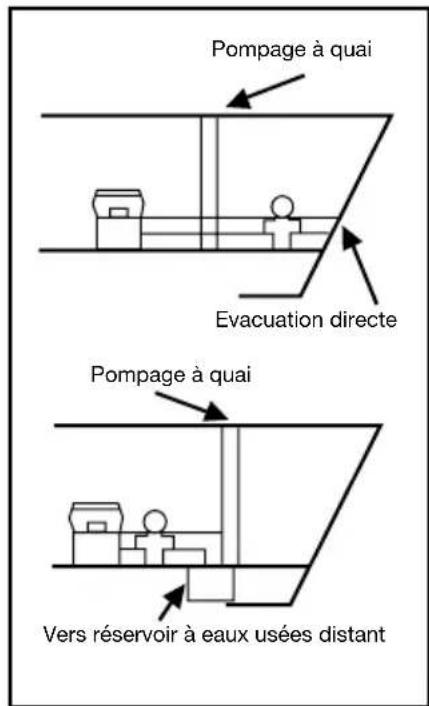

Possibilities d-installation
