SOCKET WITH MOVEMENT SENSOR

TUSSENSTEKKER MET BEWEGINGSSENSOR

PRISE INTERMÉDIAIRE AVEC DÉTECTEUR DE MOUVEMENTS

ENCHUFE CON DETECTOR DE MOVIMIENTOS

ZWISCHENSTECKER MIT BEWEGUNGSMELDER

GNIAZDO Z CZUJNIKIEM ZMIERZCHOWYM

TOMADA COM SENSOR

White portable electronic device with two ports and a circular lens (no visible text or symbols)

E304

USER MANUAL 2

GEBRUIKERSHANDLEIDING 6

MODE D'EMPLOI 10

MANUAL DEL USUARIO 14

White electrical plug with two socket ports and a small fuse (no visible text or symbols)

E304-G

CE

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	Risk of electroshock when opening the cover. Touching live wires can cause life-threatening electroshocks. Do not touch the metal parts of the socket!
	There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Protect the device against extreme heat and dust.
• Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

E304/E304-G

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

4. Features

• easy to use and install
  • adjustable distance sensitivity
  • automatically detects day and night
• socket: French (E304) or German (E304-G) plug
• switch: auto/on/off
  • adjustable time delay

5. Installation

5.1 Installation Guidelines

Technical line drawing of three mechanical components with no visible text or symbols

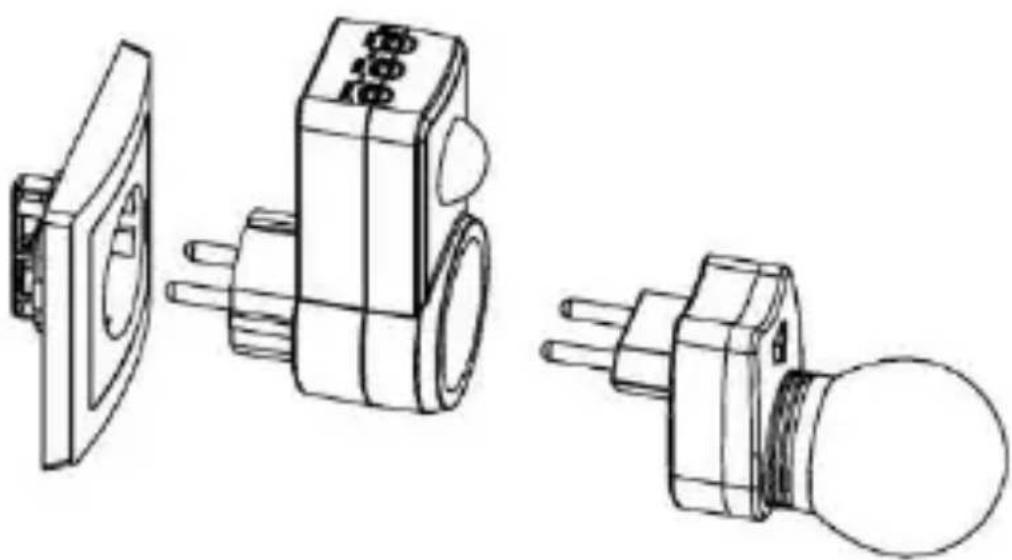

Plug the socket into the mains. Plug your lamp into the socket.

5.2 Testing the Socket

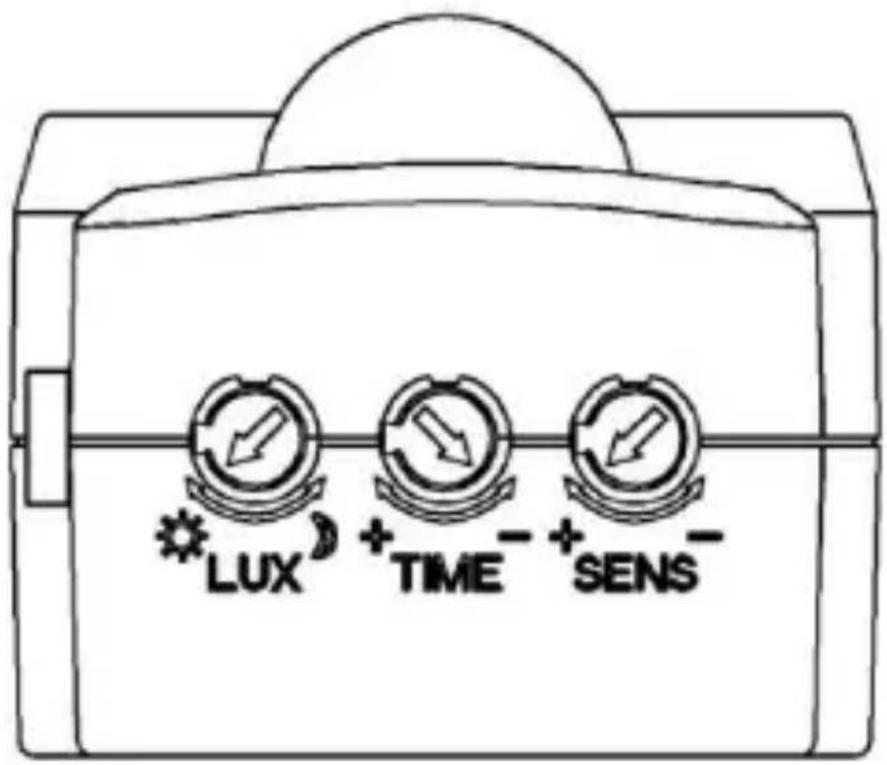

LUX + TIME - + SENS -

1. Test the socket at the point of time you feel the lamp needs to be switched on.
2. Turn the SENS and LUX knobs fully clockwise; turn the TIME knob fully anti-clockwise.
3. Plug the socket into the mains. The socket needs a warm-up time of ± 30 seconds before it will switch on the connected lamp. When no signal is detected, the lamp will switch off after ± 10 seconds.
4. Turn the LUX knob fully anti-clockwise. The lamp should switch off.

5.3 Setting the Socket

1. Turn the SENS and LUX knobs until the lamp switches on.
2. Now, set the switch-off delay with the TIME knob going from ± 10 seconds to ± 7 minutes.

6. Cleaning and Maintenance

The socket does not need any particular maintenance. However, occasionally wipe it with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

7. Technical Specifications

power supply		220-240 V~, 50 Hz
detection range		2-9 m (< 24 °C) adjustable
detection angle		120°
light control		3 to 2000 lux (adjustable)
activation duration		min. 10 s ± 3 s to max. 7 min ± 2 min
power consumption		0.5 W
motion speed detection		0.6-1.5 m/s
working temperature		-20 °C to +40 °C
working humidity		< 93 % RH
max. rated load
	resistive	1200 W
	inductive	300 W
switch type		relay
relay output		normally open (N.O.)
dimensions		50 x 95 x 60 mm
weight		115 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Technical line drawing of three mechanical components with no visible text or symbols

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Technical line drawings of three mechanical components with no visible text or symbols

Technical line drawing of three mechanical components with no visible text or symbols

Technical line drawing of three mechanical components with no visible text or symbols

Technical line drawing of three mechanical components with no visible text or symbols

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Technical line drawing of three mechanical components with no visible text or symbols

Introduza a ficha na tomada elétrica. Ligue a lâmpada à ficha.

5.2 Testar a Ficha

LUX + TIME - + SENS -

Technical line drawings of three mechanical components with no visible text or symbols
