TH0429 - Climate control SOLAC - Free user manual and instructions

Product type	Horizontal fan heater
Brand	SOLAC
Model	TH0429
Category	Climate control
Power supply	220-240 V ~ 50/60 Hz
Functions	Ventilation (2 speeds) and heating (2 powers: intermediate and maximum)
Thermostat	Adjustable with ambient temperature maintenance
Safety	Automatic shut-off in case of overheating; protection against water splashes; thermal cut-out
Supplied accessories	Wall accessory for permanent fixing
Wall installation	Recommended height: 1.80 m; can be used in bathroom out of reach of water
Recommended use	Supplementary heating; do not use as main heating; room of at least 4 m²
Maintenance	Clean with a dry cloth; dust the grilles with a vacuum cleaner if necessary
Storage	Store in a dry place, preferably in its original packaging
Environment	Do not throw in the trash; take to a recycling point or waste disposal center

Frequently Asked Questions - TH0429 SOLAC

How to install the fan heater on the wall?

Use the supplied wall accessory (8). Screw it to the wall horizontally at a height of 1.80 m. Then insert the appliance into the space provided (7) until it clicks. To remove it, press the internal tab and pull upwards.

What safety precautions should be observed?

Never cover the appliance. Leave a free space of at least 50 cm on the sides and above, and 120 cm in front. Do not place near flammable materials (curtains, carpets). Avoid any contact with water. Do not touch the hot front grille.

How to set the ideal temperature?

Turn the temperature regulator (2) to maximum. Select the desired power with the selector (1). When the room is at the right temperature, slowly turn the regulator to the left until you hear a click: the appliance stops and then restarts automatically to maintain the temperature.

What to do in case of unexpected shutdown?

The appliance is equipped with an overheat shut-off system. Unplug it, let it cool for 15 minutes, check that the grilles are not blocked by dust. Clean with a vacuum cleaner if necessary. If the problem persists, contact technical support.

How to clean the appliance?

Make sure it is cold and unplugged. Clean the outside with a dry cloth. For the grilles, use a vacuum cleaner to remove dust. At the end of the season, clean it and store it in a dry place.

Can I use the appliance in a bathroom?

Yes, provided it is installed on the wall at a height of at least 1.80 m, so that the controls are out of reach of a person in the bathtub or shower. Never use it near a water point.

What is the minimum recommended area for using this appliance?

It is not recommended to use the fan heater in rooms smaller than 4 m². It is a supplementary heater, not a main heating system.

How to hang the appliance on the wall without accessory?

The wall accessory (8) is essential for wall mounting. It is supplied with the appliance. Do not attempt to use the appliance without this accessory, as the intended holes (7) are designed specifically for it.

What to do if the power cord is damaged?

Do not use the appliance. Contact an approved technical service to have it replaced, to avoid any risk of electric shock.

How to recycle the appliance at the end of its life?

Do not throw it in household waste. Take it to a recycling point or the nearest waste disposal center. You will contribute to protecting the environment.

USER MANUAL TH0429 SOLAC

Solac is a registered Trade Mark

10/07

5-8· ESPÁÑOL

9-12 • ENGLISH

13-16· FRANÇAIS

17-20 DEUTSCH

21-24· PORTUGUES

25-28 • ITALIANO

29-32 NEDERLANDS

33-36· CESKY

37-40· POLSKI

41-44·SLOVENCINA

45-49 MAGYAR

50-53·6bIrpck

54-57 • HRVATSKA

58-61· ROMÁNA

en

fr

de

pt

it

nl

CS

pl

sk

hu

bg

hr

ro

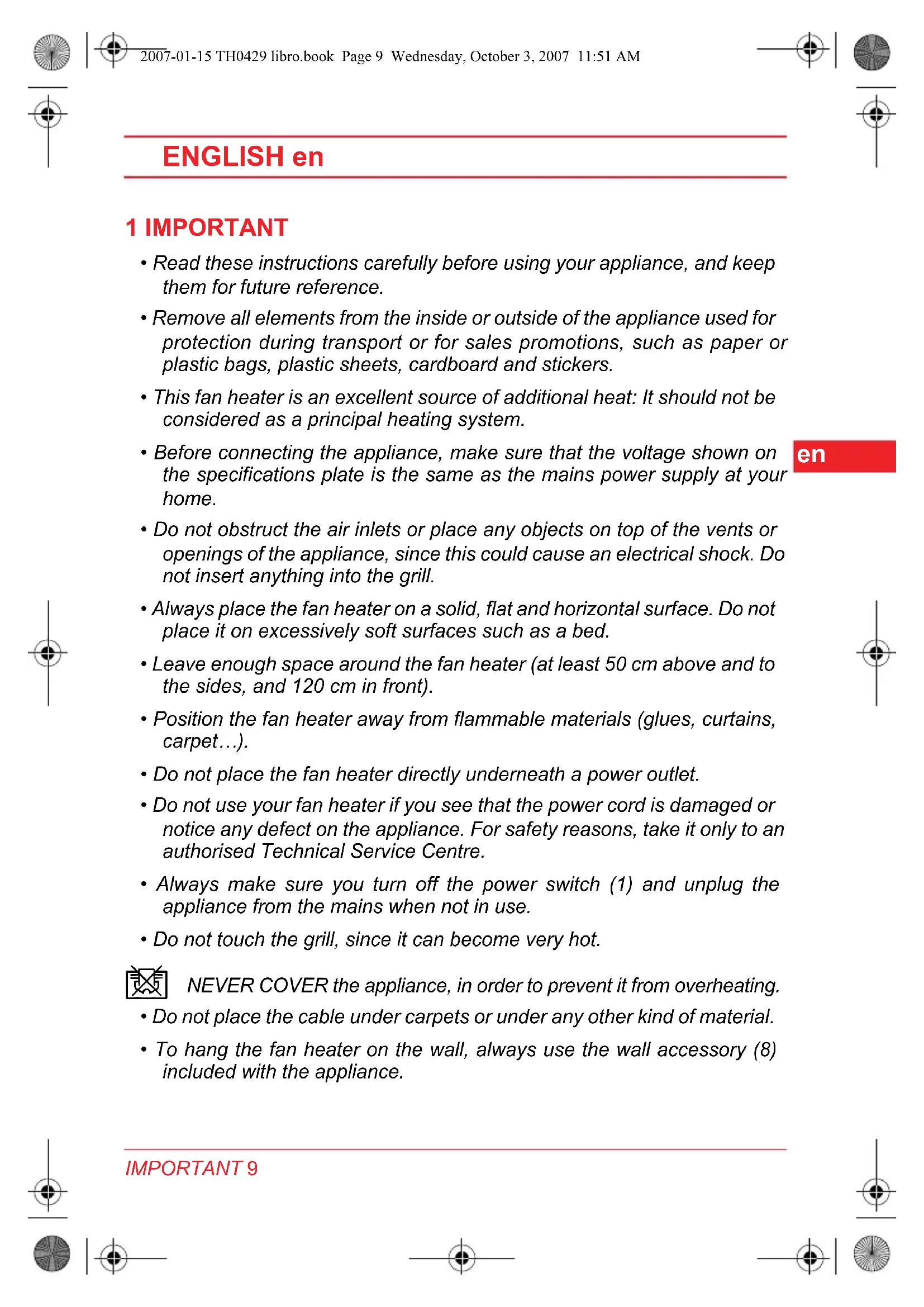

ESPNOL ES

1 ATEN C I O N

• Read these instructions carefully before using your appliance, and keep them for future reference.
• Remove all elements from the inside or outside of the appliance used for protection during transport or for sales promotions, such as paper or plastic bags, plastic sheets, cardboard and stickers.
• This fan heater is an excellent source of additional heat: It should not be considered as a principal heating system.
• Before connecting the appliance, make sure that the voltage shown on the specifications plate is the same as the mains power supply at your home.
• Do not obstruct the air inlets or place any objects on top of the vents or openings of the appliance, since this could cause an electrical shock. Do not insert anything into the grill.
• Always place the fan heater on a solid, flat and horizontal surface. Do not place it on excessively soft surfaces such as a bed.
• Leave enough space around the fan heater (at least 50~cm above and to the sides, and 120~cm in front).
• Position the fan heater away from flammable materials (glues, curtains, carpet...).
• Do not place the fan heater directly underneath a power outlet.
• Do not use your fan heater if you see that the power cord is damaged or notice any defect on the appliance. For safety reasons, take it only to an authorised Technical Service Centre.
• Always make sure you turn off the power switch (1) and unplug the appliance from the mains when not in use.
• Do not touch the grill, since it can become very hot.

NEVER COVER the appliance, in order to prevent it from overheating.

• Do not place the cable under carpets or under any other kind of material.
• To hang the fan heater on the wall, always use the wall accessory (8) included with the appliance.

IMPORTANT 9

• Do not place the appliance on top of the power cord when the appliance is hot. Do not operate the appliance with the cable wound up.
• Do not handle the appliance with wet hands.
• Do not use the appliance near a bath, shower or swimming pool or any other water container. If the fan heater falls into water, DO NOT try to take it out. Unplug it from the mains.
• Do not use the fan heater to dry clothes, do not leave furniture closer than 50~cm in front of the appliance, and do not use it in rooms with less than 4m^2 of floor space.
• Keep the appliance out of the reach of children.
• This appliance must not be used by disabled persons and children, or those who are not experienced in the use of the appliance, except when they are guided or supervised by someone who knows the safety instructions that must be followed to operate the appliance.
• In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

IMPORTANT!! When you want to dispose of the appliance, NEVER throw it in the rubbish bin. Take it to your nearest CLEAN POINT or the waste collection centre closest to your home for processing. You will thus be helping to take care of the environment.

2 SAFETY SYSTEM

The appliance is equipped with an OVERHEATING DISCONNECTION system. If a problem occurs, this system automatically switches off the appliance. If this happens, proceed as follows:

1 Unplug the appliance from the mains.
2 Allow it to cool for 15 minutes.
3 Ensure that there is no dust or other obstacles that obstruct the air flow.
4 Clean the grills, using a vacuum cleaner if necessary.

If the appliance still fails to work as normal, please contact the Technical Service Centre.

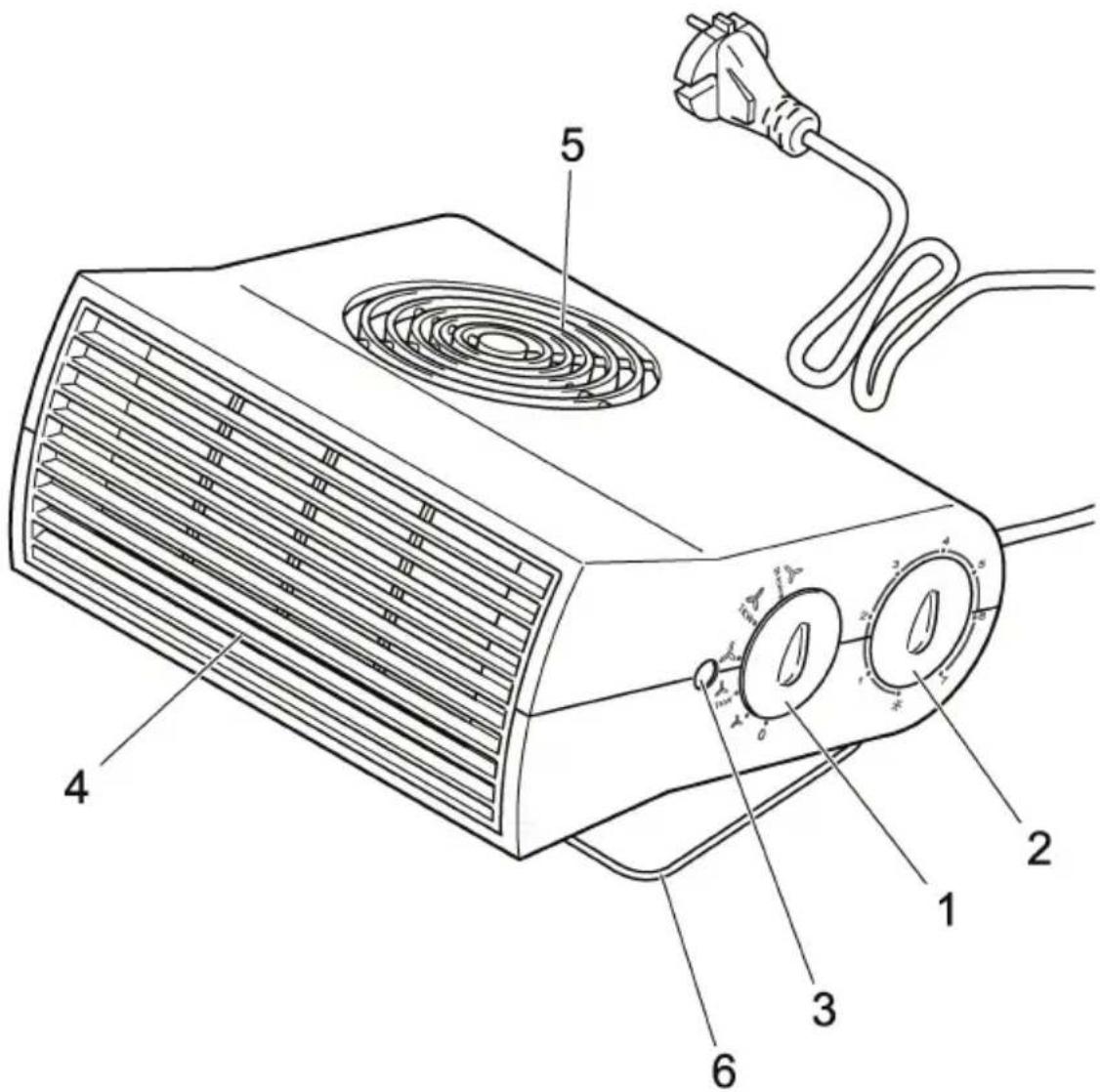

3 MAIN COMPONENTS

1 Function selector: cooling or heating:

Cooling. Low speed.

10 SAFETY SYSTEM

Heating. Low speed. Medium power.
Cooling. High speed.
Heating. High speed. Medium power.
Heating. High speed. Maximum power.

2 Temperature regulator
3 Pilot light
4 Front air outlet filter grille.
5 Top air intake grill.
6 Articulated support base.
7 Space used to attach the wall accessory.
8 Wall accessory.

4 OPERATION

en

1 Plug your fan heater into the mains.
2 Select the cooling or heating function and desired power and speed position with the function selector (1) and slide the temperature regulator (2).
3 If you wish to keep the room temperature stable, slide the temperature regulator (2) to maximum.
4 Place the function selector control (1) in the desired position:

1KW

Medium power

Zkw

Maximum power

5 When the room has reached the desired temperature, slowly slide the temperature regulator (2) to the left until a soft "click" is heard. The pilot light will turned off and the fan heater will switch off. The appliance will switch on and off in order to maintain the right temperature in the room.
6 To turn off the fan heater, move the function selector (1) to position 0, and unplug the appliance from the mains.
7 If you wish to prevent temperatures below 5^ C in the room, select the position using the temperature regulator (2) and the Heating - medium power position on the function selector (1). The fan heater will turn on when the room temperature drops below 5^ C.

5 WALL ACCESSORY

The fan heater has a wall accessory that allows you to mount the appliance on the wall in a permanent position. This accessory needs to be located at a 1,80 m height.
If used in a bathroom this heater has to be installed so that switches and other controls cannot be touched by a person in the bath or shower.

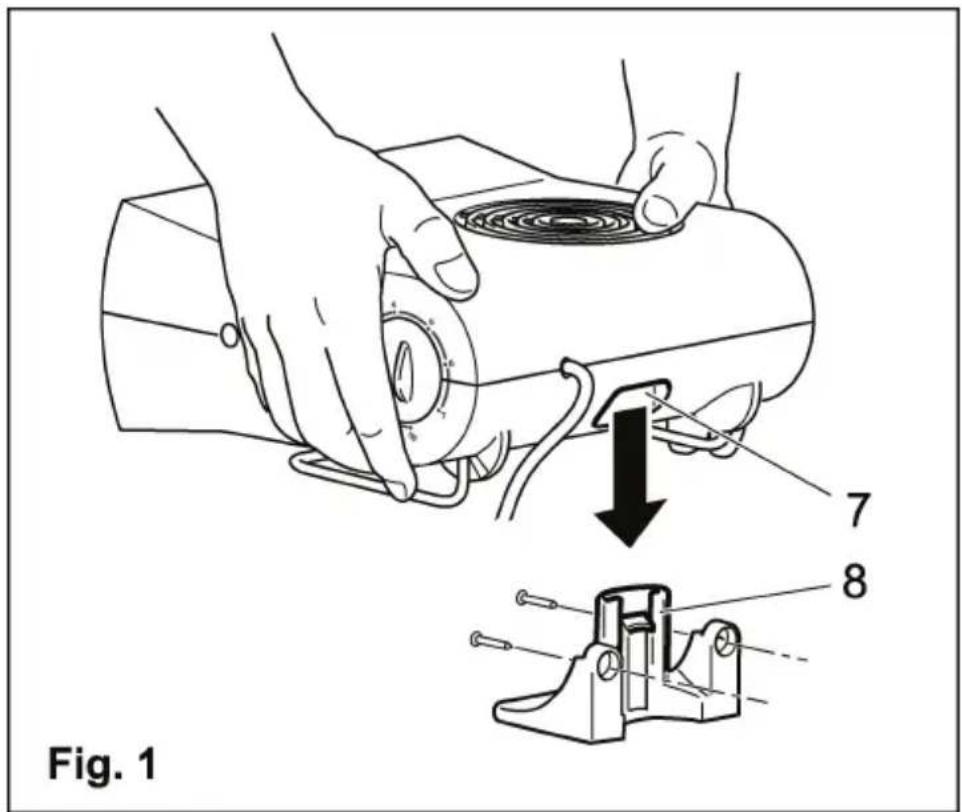

1 Place the wall accessory in parallel to the wall and screw it in. Insert the fan heater in the wall accessory, using the space existing in the appliance.(7) (Fig. 1)

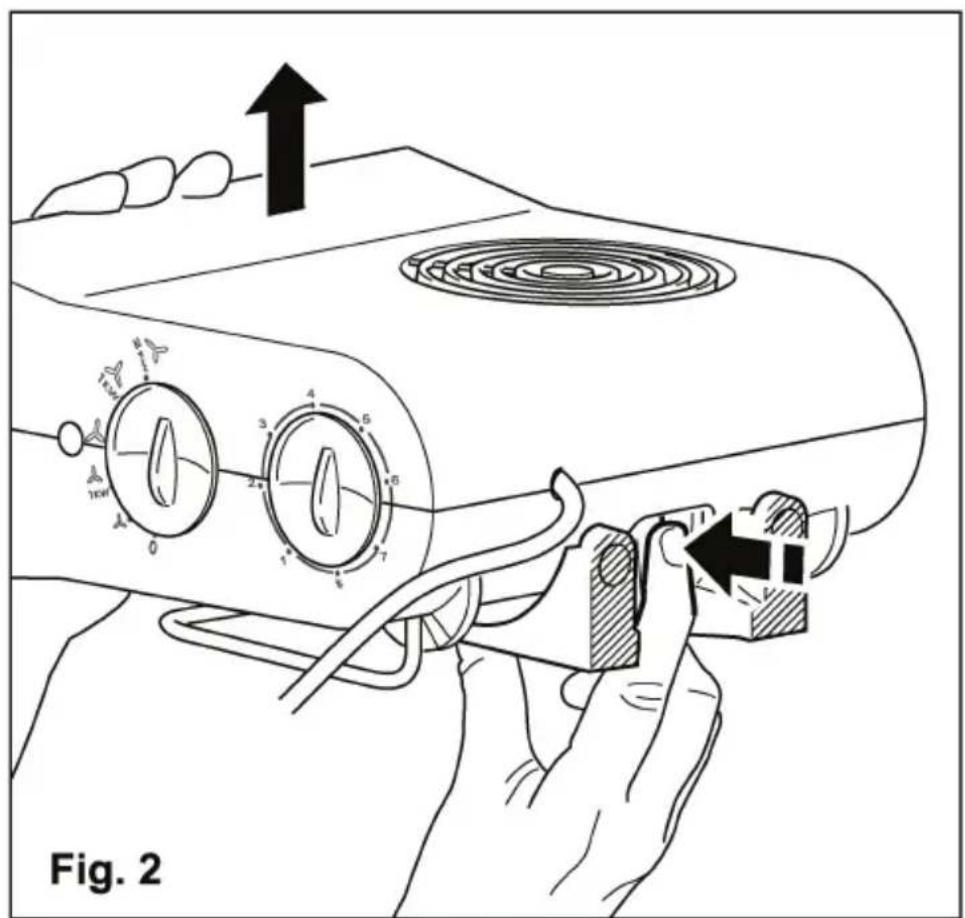

2 To remove the fan heater from the wall accessory, press the internal flap of the wall accessory (8) with your finger and pull upwards (Fig. 2).

6 CLEANING AND MAINTENANCE

Before cleaning the appliance, make sure it is switched off and unplugged from the mains.

1 Allow it to cool.
2 Clean the outside of the appliance with a dry cloth.
3 After each season, we recommend that you clean the appliance with a cloth and store it in its box in a dry place.
4 Before each use, be sure that the appliance is in perfect condition.
