USER MANUAL MHF03X HAGER

1. Ou composer le code

1. Ou composer le code

1. Ou composer le code

Placas MHF03X / MHF04X Placas MHF01X

5 seconden in werking. Open

5 seconden in werking. Open

• one or several electrical latches,

• one or several automatic gate control systems,

• one or several automatic garage door control systems,

• one or several lights. It also allows users to check the status of access points or lights using the screen on the handset at any time. Several additional interior handset units can be added to the doorphone system (maximum of 4 per call button). This manual describes how to use the following products: SC900AX Lithium/lithium 1-button 1-home doorphone kit SC901AX Mains/mains code-operated 1-home doorphone kit SC902AX Mains/lithium 1-button 1-home doorphone kit SC906AX Battery/mains 1-button 1-home doorphone kit SC100AX Interior handset unit + base + EU power pack SC101AX Interior handset unit + battery-charging base SC200AX Mains-powered control ler SC201AX Lithium battery-operated controller SC206AX Dry battery controller MHF01X Translucent 2-home outdoor caller unit MHF02X Translucent code-operated 2-home outdoor caller unit MHF03X Opaque 1-home outdoor caller unit MHF04X Opaque 2-home outdoor caller unit MHF05X Opaque code-operated 1-home outdoor caller unit MHF06X Opaque code-operated 2-home outdoor caller unit Waste processing of electrical and electronic devices at the end of their service life (Applicable in European Union countries and other European countries with a waste collection system). Used on products or product packaging, this sym- bol indicates that the product must not be thrown out with household waste. It must be taken to a waste collection point for electrical and electronic product recycling. When you make sure that this product is disposed of in the most appropriate manner, you are helping to protect the environment and human health. If you would like additional information concerning the recycling of this product, please contact your town/city council, nearest waste collection centre or the shop where you bought the product. Foreword111 Contents 1. Overview of handset keys and display......................................................................................................... 112 1.1 Description of handset................................................................................................................................ 112 1.2 Description of display ................................................................................................................................. 113 1.3 Handset display in standby mode (general information screen)............................................................... 114 2. Answering a visitor’s call................................................................................................................................ 114 2.1 Using the handset in handsfree mode (handset on base)......................................................................... 114 2.2 Using the handset in handheld mode (handset off base).......................................................................... 115 3. Switching the handset to silent mode.......................................................................................................... 116 4. Listen-in function ............................................................................................................................................ 1

ifying outdoor system operating options..

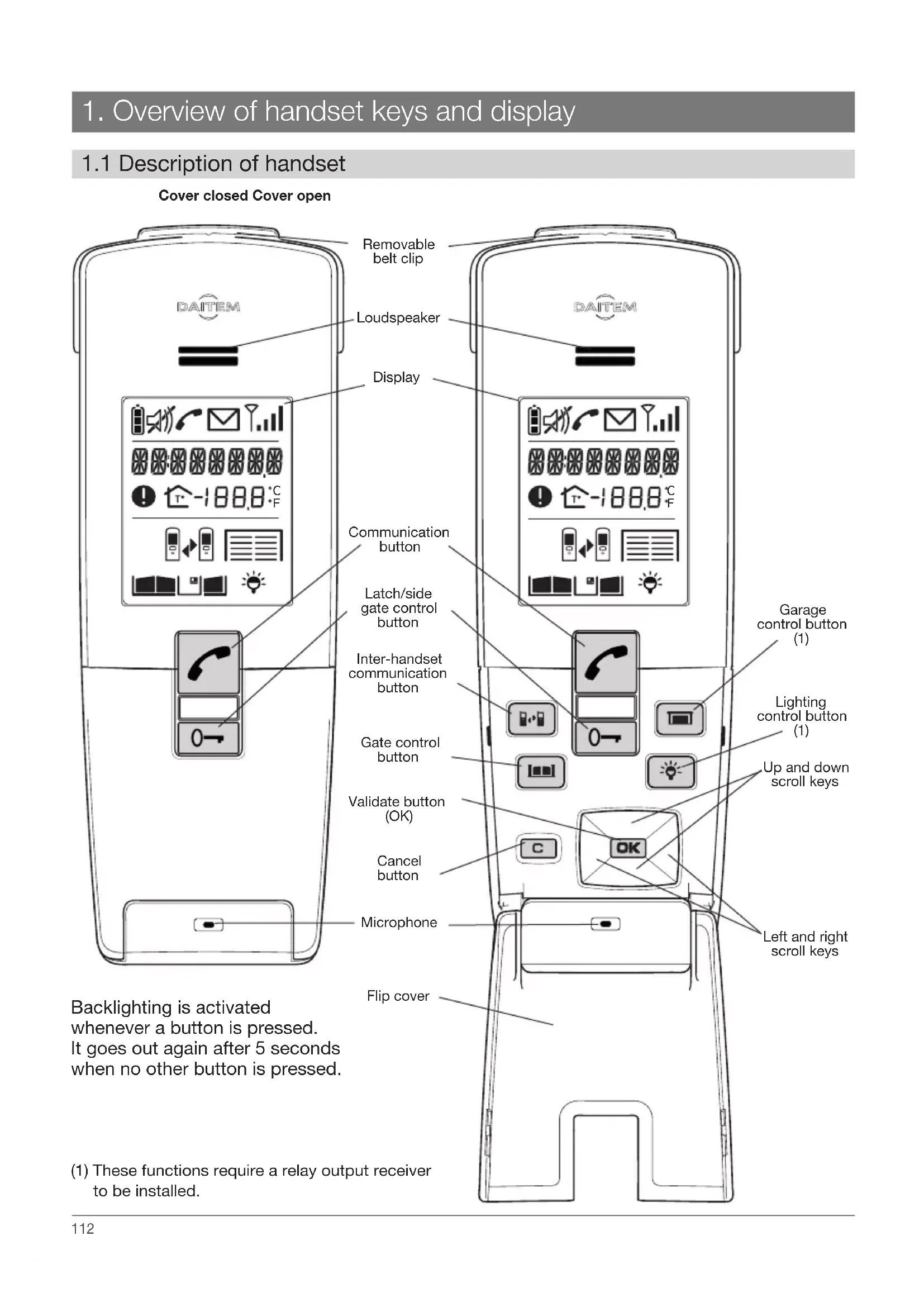

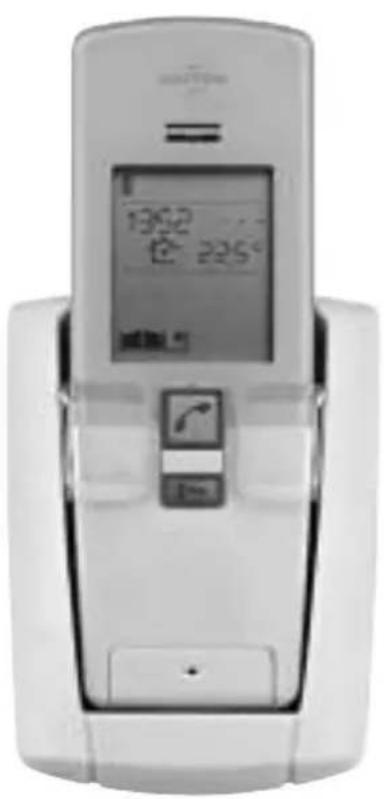

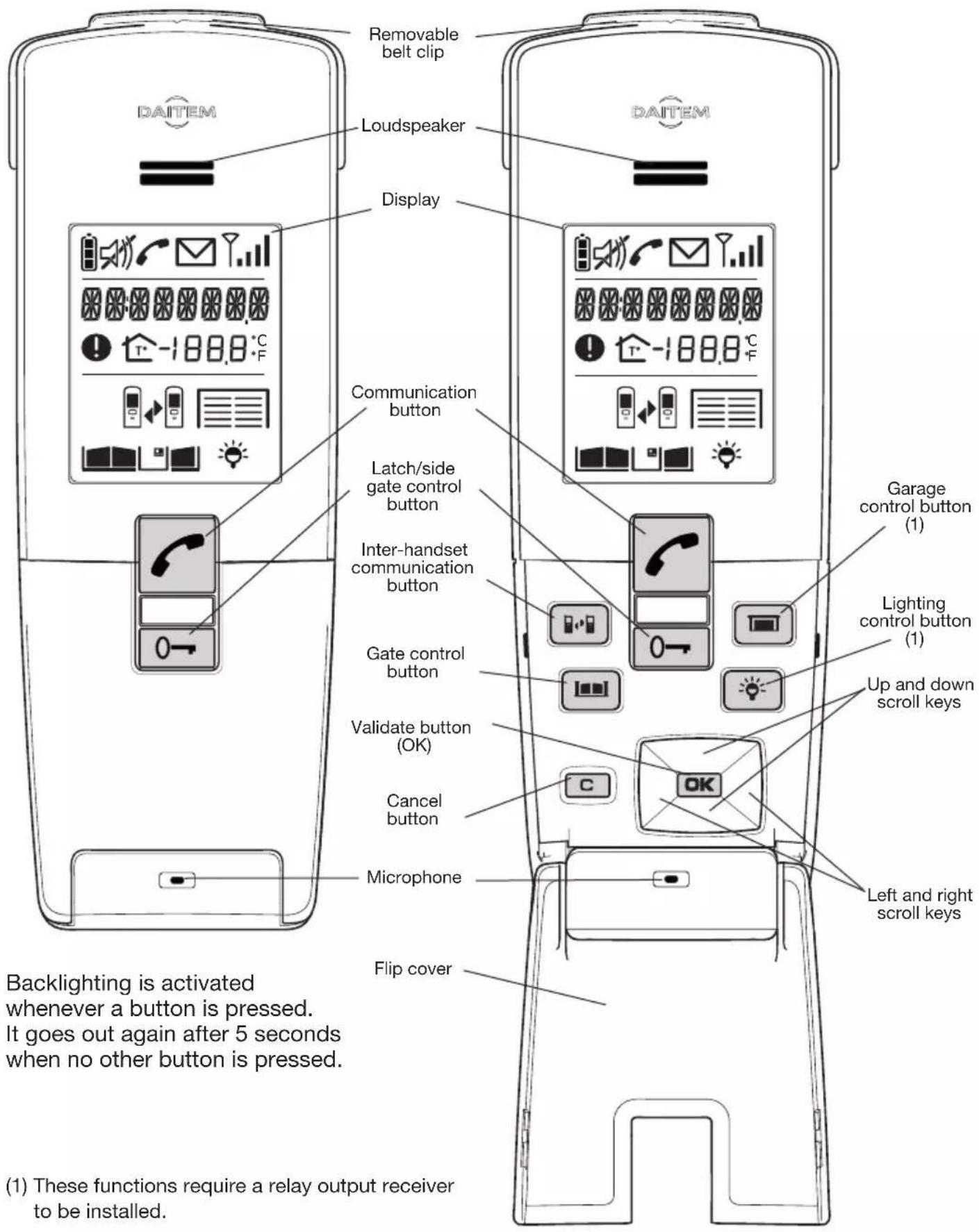

1.1 Description of handset

Cover closed Cover open Removable belt clip Loudspeaker Display Communication button Flip cover Microphone Cancel button Validate button (OK) Gate control button Inter-handset communication button Latch/side gate control button Garage control button (1) Lighting control button (1) Up and down scroll keys Left and right scroll keys Backlighting is activated whenever a button is pressed. It goes out again after 5 seconds when no other button is pressed. (1) These functions require a relay output receiver to be installed.113

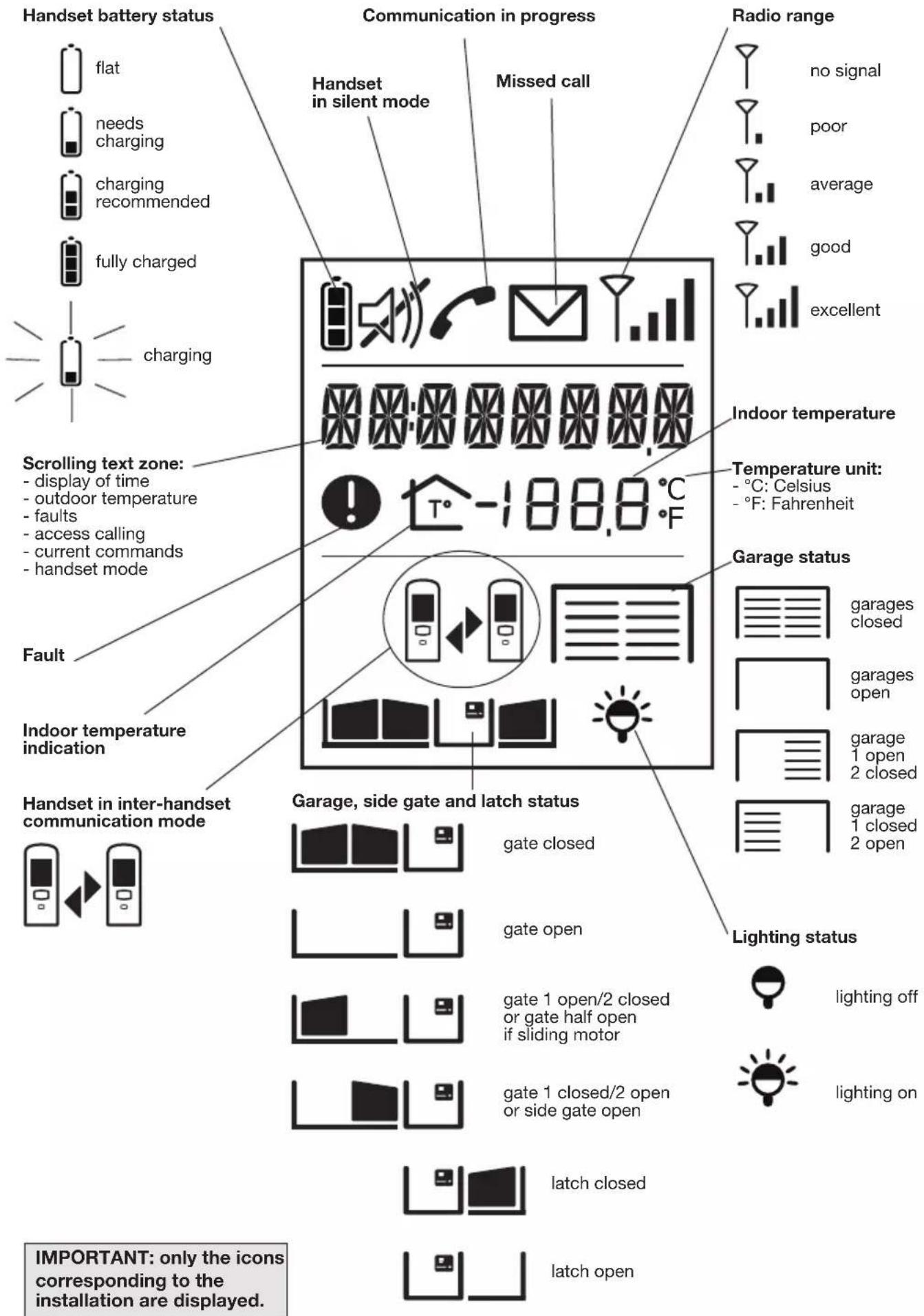

flat needs charging charging recommended fully charged charging Scrolling text zone: - display of time - outdoor temperature - faults - access calling - current commands - handset mode Fault Handset in inter-handset communication mode Handset battery status Handset in silent mode Communication in progress Missed call no signal poor average good excellent Radio range lighting off lighting on Lighting status Garage, side gate and latch status gate closed gate open gate 1 open/2 closed or gate half open if sliding motor gate 1 closed/2 open or side gate open latch closed latch open Garage status Indoor temperature indication Temperature unit: - °C: Celsius - °F: Fahrenheit Indoor temperature garages closed garages open garage 1 open 2 closed garage 1 closed 2 open IMPORTANT: only the icons corresponding to the installation are displayed.114 The handset rings (1) (unless it is in silent mode) and the backlighting flashes. (1) If nobody answers, the handset rings for 20 secs (factory setting) and then stops. The duration of ringing can beadjusted (see Programming handset operating options). If the handset is on its base, the handset rings at theprogrammed volume (see Modifying handset operating options). If the handset is off its base, the ringing volumebecomes progressively louder (from level 1 to the programmed level).(2) The names of access points can be customised (see Modifying doorphone operating options).The name of the accesspoint calling (2) is displayed.

IMPORTANT: if the handsets or controllers are too close to each other when you perform different tests, this may cause disturbance (Larsen effects, crackling, etc.). Move the various devices over 3 metres away from each other. Indication of the indoortemperatureThe temperature displayed isthe temperature measured onthe handset and is updatedevery 10 minutesIndication of the outdoortemperatureThe temperature displayed isthe temperature measured atthe first access pointprogrammed and is updatedevery 10 minutes115

2. You can now talk.

3. At the end of communication, press .

If no button is pressed, communication is automatically cut off after 3 minutes. You can switch to “handheld” mode at any time by taking the handset off the base.

1. If the handset is on the base, pick it up:

- if the automatic handheld mode has been activated, communication is established, - if not, press .

2. If the handset is already off the base, press .

2. Open the flip cover to talk and adjust the volume using the keys

3. At the end of communication, press

and/or put the handset back on the base (the handset beeps 3 times if it is correctly positioned on the base). If no button is pressed, communication is automatically cut off after 3 minutes. volume + volume –

2.1 Using the handset in handsfree mode (handset on base)

2.2 Using the handset in handheld mode (handset off base)116

The handset can be switched to silent mode using the key . The handset then remains in silent mode for 12 hours or until it is switched back to ringing mode.

1. Press for 5 seconds until the icon is

for 5 seconds until the icon disappears.

You can listen in to background sounds at the different access points where the outdoor caller units are installed using the key.

2. If you have more than 2 access points,

select the one you wish to listen in to using the keys then .

3. If you only have one access point

Listen-in begins and you will hear what is happening at the selected outdoor caller unit and the person in front of the unit will be able to hear you too.

3. Press again on to end listen-in.

3. Switching the handset to silent mode

4. Listen-in function117

You can communicate with another handset using the key . Handset making the call

1. Pick up the handset (if it is on the base),

open the flip cover and quickly press . Handset being called

2. If you have more than

2 handsets, select the handset to be called using the keys then .

2. If you have 2 handsets,

the inter-handset communication function is activated.

3. You can talk and adjust the

volume using the keys Open the flip cover and talk, adjusting the communication volume using the keys C C

4. At the end of communication,

press and/or put the handset back on the base. At the end of communication, press and/or put the handset back on the base.

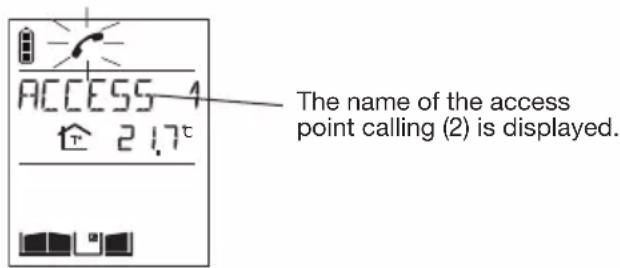

The handset rings (unless it is in silent mode) and the backlighting flashes. If the handset is on the base, pick it up. Otherwise, press .

IMPORTANT: if a call is triggered by an outdoor caller unit during inter-handset communication, the outdoor caller unit sounds engaged. (1) (1) The name of the handset can be customised (see Modifying handset operating options). volume + volume – volume + volume –

2. The latch of the access making the call is

unlocked within 5 sec. At the end of communication, the latch status icon is updated (if a position contact is connected).

The installation has a latch or a lock and a gate. You are communicating with access 1, for example.

6. Controlling latch access

6.1 When communicating

(1) Latch access can be operated using (see HANDSET/CONFIGURATION/OPEN BUTTON menu).119 Activate the outdoor caller unit Status display on the handset (1) Latch access status

1. Hold the tag in front of the

3. The latch is unlocked within

(1) If a position contact is connected. (2) If you press the wrong button, press then enter the access code again. (3) Only applies to the outdoor caller unit with keypad. If the AUTO COMMAND parameter (see ACCESS/PARAMETERS/AUTO COMMAND menu) is set to ELECTRIC STRIKE, the latch is opened as soon as the tag is held up to the caller unit or the access code is entered. There is then no need to press .

2. If you have more than

2 latch access points, pick up the handset (if it is on the base), open the flip cover and select the access point to be opened using the keys then . Closed Closed

3. If you only have one latch

access point, the opening command is sent directly to it. Opening command sent

(1) if a position contact is connected. (2) Latch access can be operated using (see HANDSET/CONFIGURATION/OPEN BUTTON menu).

3. The latch is unlocked within

5 seconds. Open C121 You are communicating with access 1, for example.

2. The gate at the access point making the call

is activated within 5 seconds. At the end of communication, the gate status icon is updated (if a position contact is connected).

The installation includes a gate and a latch.

(1) Gate access can be operated using (see HANDSET/CONFIGURATION/OPEN BUTTON menu).122 Activate the outdoor caller unit Status display on the handset (1) Gate access status

1. Hold the tag in front of the

3. The gate is activated within

(1) If a position contact is connected. (2) If you press the wrong button, press then enter the access code again. (3) Only applies to the outdoor caller unit with keypad. If the AUTO COMMAND parameter (see ACCESS/PARAMETERS/AUTO COMMAND menu) is set to GATE, the gate is opened as soon as the tag is held up to the caller unit or the access code is entered. There is then no need to press .

7.2.1 Using the outdoor caller unit with keypad

7.2 When not communicating123

(1) If a position contact is connected. (2) Gate access can be operated using (see HANDSET/CONFIGURATION/OPEN BUTTON menu). Activate the outdoor caller unit Status display on the handset (1) Gate access status

1. Pick up the handset (if it is

on the base), open the flip cover and quickly press (2)

2. If you have several gate

access points, select the access point to be opened using the keys then . Closed Closed

3. If you only have one gate

access point, the opening command will be sent directly to that access. Opening command sent

3. The gate is activated within

7.2.2 Using the handset124

2. The side gate at the access point making

the call is unlocked within 5 sec. At the end of communication, the side gate status icon is updated (if a position contact is connected).

The installation only has one gate. You are communicating with access 1, for example.

8.1 When communicating

1. Hold the tag in front of the

3. The side gate is unlocked

within 5 seconds. Open

(1) If a position contact is connected. (2) If you press the wrong button, press then enter the access code again. (3) Only applies to the outdoor caller unit with keypad. If the AUTO COMMAND parameter (see ACCESS/PARAMETERS/AUTO COMMAND menu) is set to ELECTRIC STRIKE, the side gate is opened as soon as the tag is held up to the caller unit or the access code is entered. There is then no need to press .

8.2.1 Using the outdoor caller unit with keypad

2. If you have more than

2 side gate access points, pick up the handset (if it is on the base), open the flip cover and select the access point to be opened using the keys then . Closed Closed

3. If you only have one side

gate access point, the opening command is sent directly to it. Opening command sent

(1) If a position contact is connected.

3. The side gate is unlocked

within 5 seconds. Open C127 This function requires one or several relay output receivers to be connected. The key can operate up to four different automatic garage door control systems. Activate the handset Status display on the handset (1) Garage door system status

1. Pick up the handset (if it is

on the base), open the flip cover and quickly press

2. If you have several

garages, select the garage to be opened using the keys then . Closed Closed

3. If you only have one

garage, the opening command will be sent directly to it. Opening command sent

3. The garage is activated

within 5 seconds. Open

(2) (1) If a position contact is connected to the output receiver. (2) The name of the automatic garage door control system can be customised (see Modifying handset operating options). IMPORTANT: if the key operates:

• 2 automatic garage door control systems, the handset displays: if both garages are closed, if both garages are open, if garage 1 is open and 2 is closed, if garage 2 is open and 1 is closed.

• more than 2 automatic garage door control systems, the handset displays: if all the garages are closed, if all the garages are open, if at least one garage is open.

9. Operating an automatic garage door control system128

This function requires one or several relay output receivers to be connected. The key can operate up to four different lights. Activate the handset Status display on the handset Light status

1. Pick up the handset (if it is

on the base), open the flip cover and quickly press

2. If you have several lights,

select the light to be switched on using the keys then . OFF OFF

3. If you only have one light,

the ON command will be sent directly to it. ON command sent

3. The light is activated within

(1) (1) The name of the light can be customised (see Modifying handset operating options).

10. Controlling lighting129

Pick up the handset and open the flip cover. Example of how to browse through the ACCESS menu: Browse through this menu using the keys Select the “ACCESS” menu using the keys Press to access an options menu You will access the possible values of the chosen option when you press then Handset display in standby mode RADIO LINK HANDSET ACCESS ADD NAME ACTIVE/INACTIVE DELETE If you have several access points, an additional ACCESS 1/ACCESS 2... menu is displayed here so that you can select the access point whose parameters you wish to change. You will access a set of menus allowing you to programme or modify the doorphone system’s parameters. Select the option status or value using the keys then You will then go back to the previous options menu. . Browse through this menu using the keys

• Quickly press to return to the previous display at any time.

• Press and hold to return to the handset display in standby mode.

• If no button on the handset is pressed for 30 sec, the screen returns to the handset display in standby mode.

11. Modifying outdoor system operating options

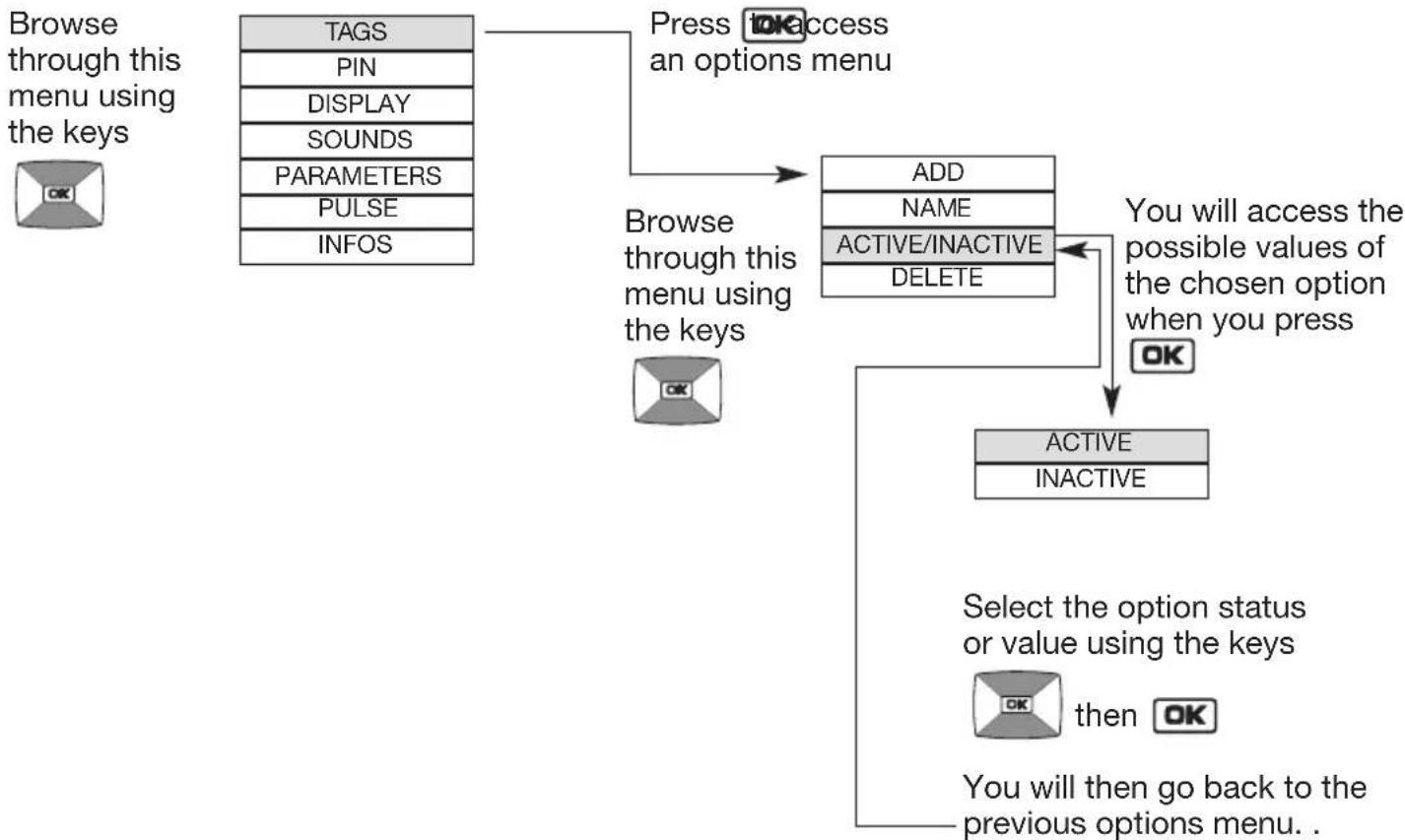

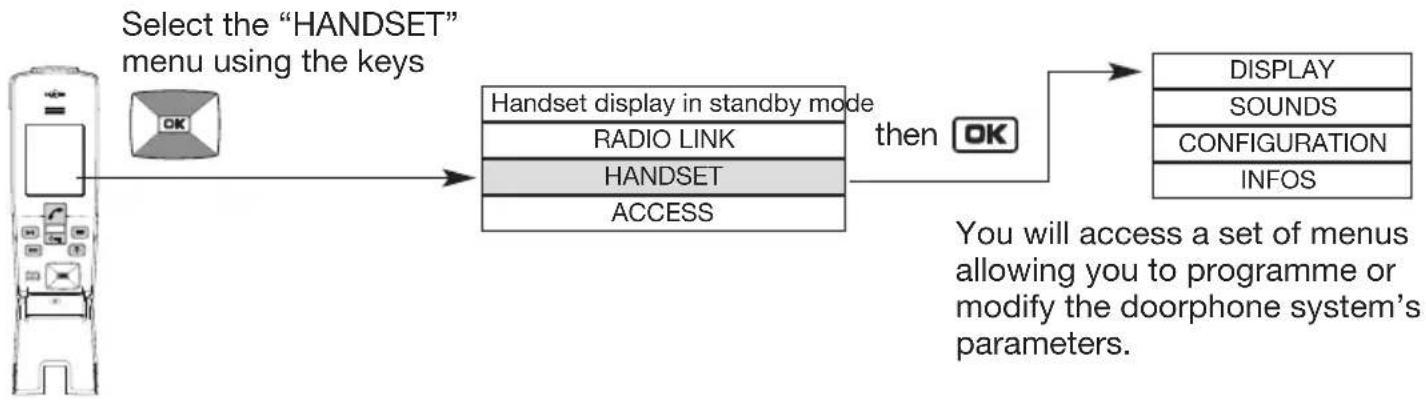

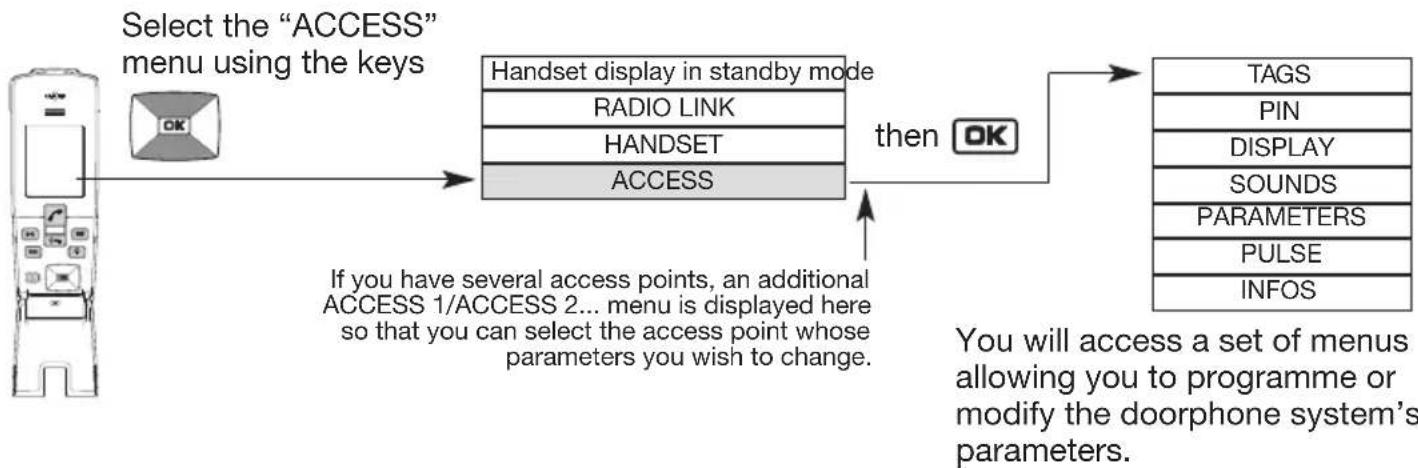

11.1 How to browse through the menus

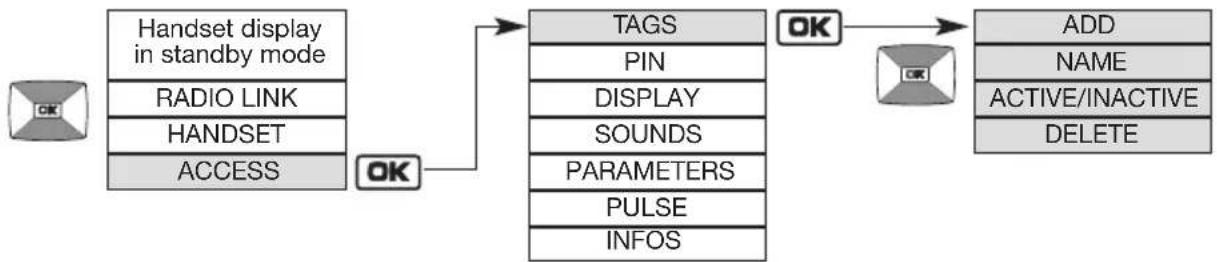

TAGS PIN DISPLAY SOUNDS PARAMETERS PULSE INFOS TAGS PIN DISPLAY SOUNDS PARAMETERS PULSE INFOS ACTIVE INACTIVE130 ADD Handset display in standby mode RADIO LINK HANDSET ACCESS Menu Setting possible Using the setting ADD Factory: no Programmed tag Can be used to register a tag on the outdoor caller unit so that a side gate, gate or latch can be opened (16 tags max.).

1. Pick up the handset and stand in front of the outdoor caller

3. Hold the tag to be registered in front of the

name label on the outdoor caller unit.

4. Each time a new tag is registered, an

additional value is added to the counter. The handset then displays the next screen.

tag, etc. Factory: ACTIVE for all tags NAME Can be used to change the name allocated to a previously registered tag (8 characters max.).

1. Select the tag to be modified.

character using the keys .

3. Move on to the next character

4. Perform steps 2 and 3 for all the characters and then, once

the desired name has been programmed, press .

ACTIVE/ INACTIVE ACTIVE INACTIVE Activates or deactivates a tag that has already been registered. Each tag is enabled by default when it is registered. DELETE Deletes a tag that has already been registered. The key selects the previous character. TIP: press and hold the keys to quickly scroll through the characters.132 IMPORTANT: the CODES menu is only displayed if the outdoor caller unit has a digicode. Handset display in standby mode RADIO LINK HANDSET ACCESS Factory: 4 4, 5, 6 SIZE Can be used to define the number of digits (between 4 and 6) for the 16 access codes. To later change the size of the access code, all codes must first be deleted (see DELETE menu). Menu Setting possible Using the setting ADD Factory: no code programmed for the 16 possible codes Can be used to programme an access code on the outdoor caller unit so that a side gate, gate or latch can be opened (restricted to 16 codes max.).

1. Stand in front of the outdoor caller unit with keypad holding

3. Enter the desired 4 to 6-digit code on the

outdoor caller unit keypad.

4. Each time a new code is entered, an

additional value is added to the counter. The handset then moves on to the next screen.

TAGS PIN DISPLAY SONS PARAMETERS PULSE INFO133 TIP: press and hold the keys to quickly scroll through the characters. Menu Setting possible Using the setting Factory: CODE 1 for 1

code, etc Factory: ACTIVE for all access codes NAME Can be used to change the name given to an access code that has already been registered (8 characters max.).

1. Select the code to be modified.

character using the keys .

3. Move on to the next character

4. Perform steps 2 and 3 for all the characters and then,

once the desired name has been programmed, press .

ACTIVE/ INACTIVE ACTIVE INACTIVE Activates or deactivates a code that has already been registered. Each code is enabled by default when it is created. DELETE Deletes a code that has already been registered. The key selects the previous character.134 Menu Setting possible Using the setting NAME ACCESS 1 KEYPAD 1 KEYPAD 2 Factory:

• ACCESS 1 for 1st access, ACCESS 2 for 2nd, etc.

• KEYPAD 1 for 1st key, KEYPAD 2 for 2nd, etc., as described in the table on the next page BACK- LIGHTING ON ACTION NIGHT MODE ACTIVE Can be used to define the outdoor caller unit backlighting operating mode. If the controller is connected to an external power supply or a solar panel, you can select the following depending on th

type of outdoor caller unit: Can be used to modify a name given to an access or to a call button (8 characters max.).

1. Select the name to be modified.

character using the keys .

3. Move on to the next character

4. Perform steps 2 and 3 for all the characters and then, once

the desired name has been programmed, press .

The key selects the previous character. IMPORTANT: if a power cut occurs and the controller has battery back-up, backlighting is activated when a button is pressed or a badge used. If the controller is powered by a solar panel, ACTIVE must be selected. Backlighting will be enabled when a button is pressed or a tag used. IMPORTANT: the KEYPAD 1/KEYPAD 2 menu is only displayed if the 2 outdoor caller unit call buttons have been programmed to be recognised by the same handset.

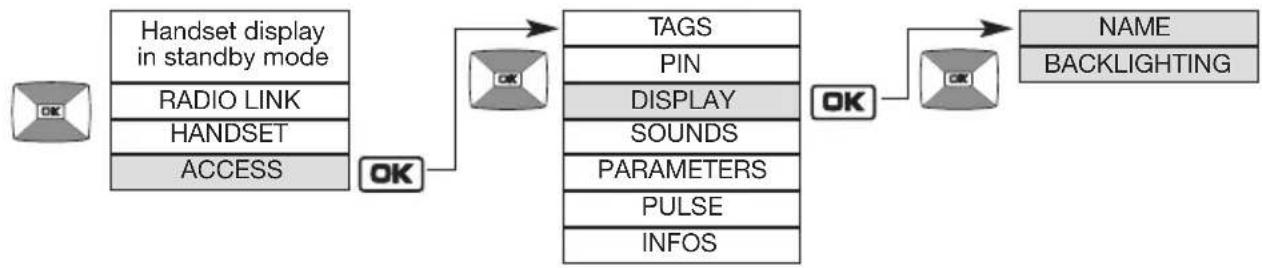

MHF05X / MHF06X units MHF02X units ACTIVE ACTIVE Backlighting is activated 24 hours/day NIGHT MODE Backlighting is activated at night time ON ACTION ON ACTION Backlighting is activated when a button is pressed or a tag used135 Controller/outdoor caller unit combinations possible from 1 to 4 controllers with 1 outdoor caller unit 1 button ACCESS X (with X being from 1 to 4 depending on the controller being called) 1 controller with 1 outdoor caller unit 2 buttons from 2 to 4 controllers with 1 outdoor caller unit 2 buttons ACCESS X, BUTTON 1 or BUTTON 2 alternately (with X being from 1 to 4 depending on the controller being called) Default message displayed on handset during a call Factory: ON ACTION Menu Setting possible Using the setting If the controller is battery-powered, backlighting is activated when a button is pressed or a tag used (the BACKLIGHTING menu is not displayed and no other operating mode is possible). BACK- LIGHTING (cont.) BUTTON 2

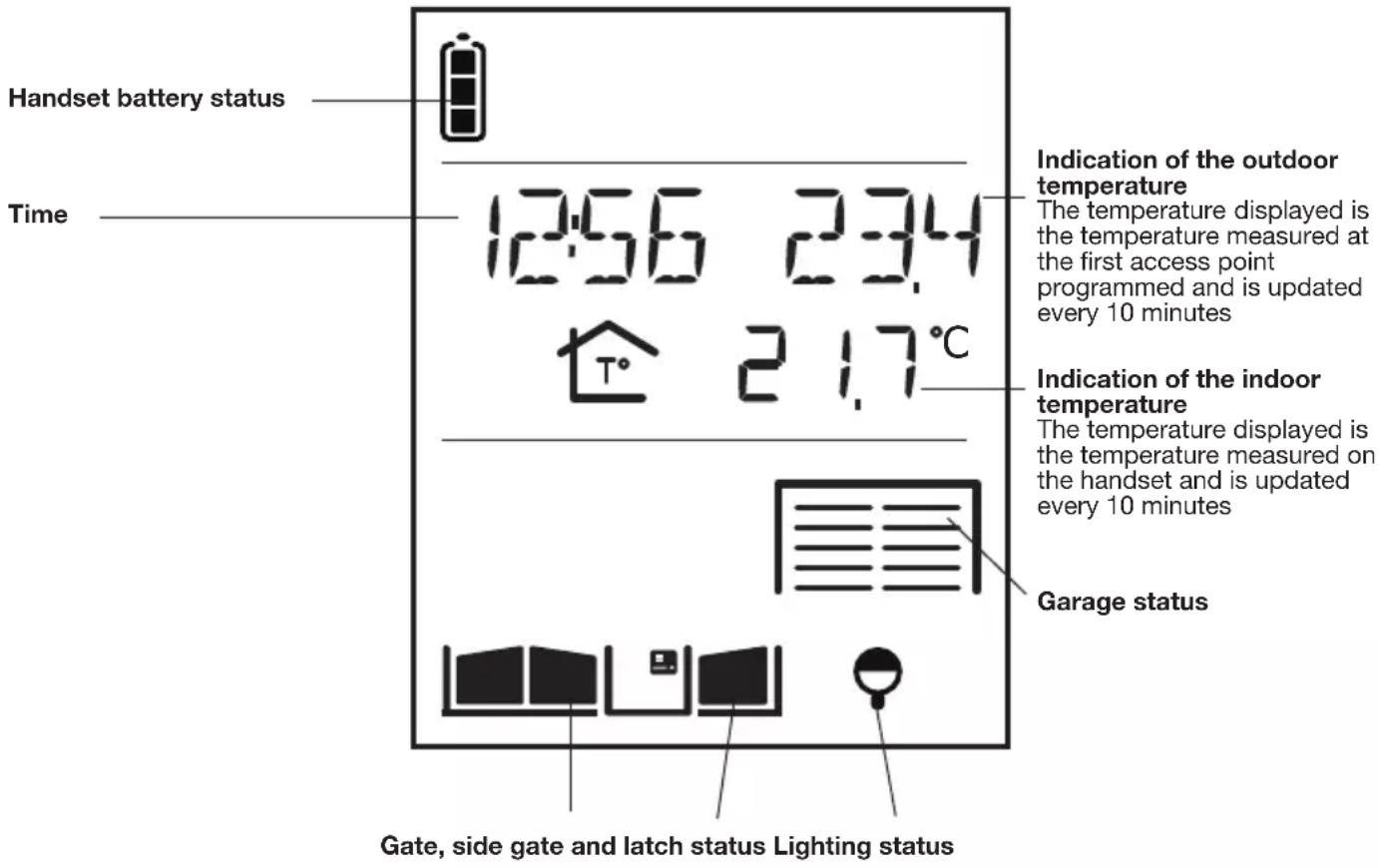

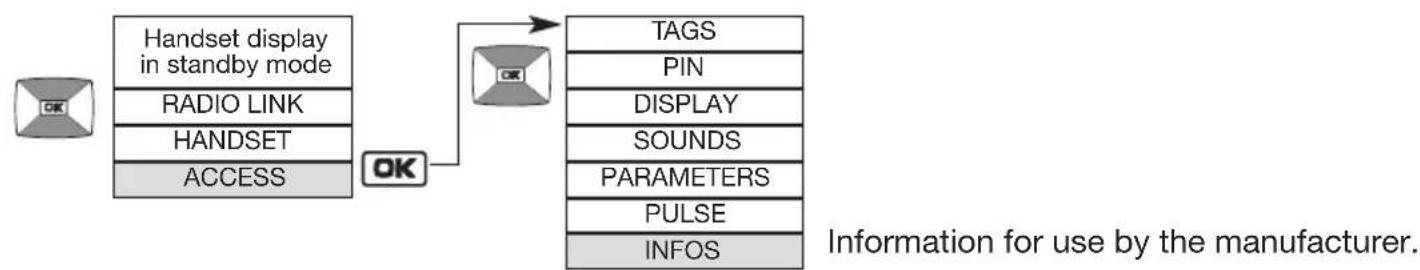

BUTTON 1 Handset display in standby mode RADIO LINK HANDSET ACCESS TAGS PIN DISPLAY SOUNDS PARAMETERS PULSE INFOS VOLUMES NIGHT MODE STRIKE SOUND KEYPAD TONES VOICE Menu Setting possible Using the setting KEYPAD TONES INACTIVE LOW HIGH Factory: LOW Can be used to disable or set the volume of a button when it is pressed and of ringing on the outdoor caller unit. The chosen volume can be heard on the outdoor caller unit when the setting is validated. Factory: 3 VOICE 1 to 4 Can be used to set the communication volume on the outdoor caller unit to between 1 (quiet) and 4 (loud).

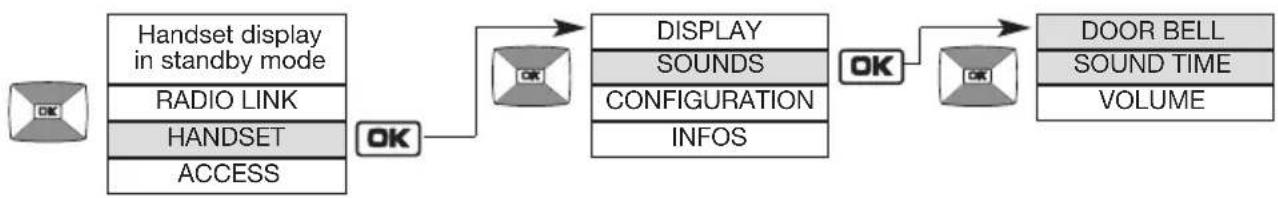

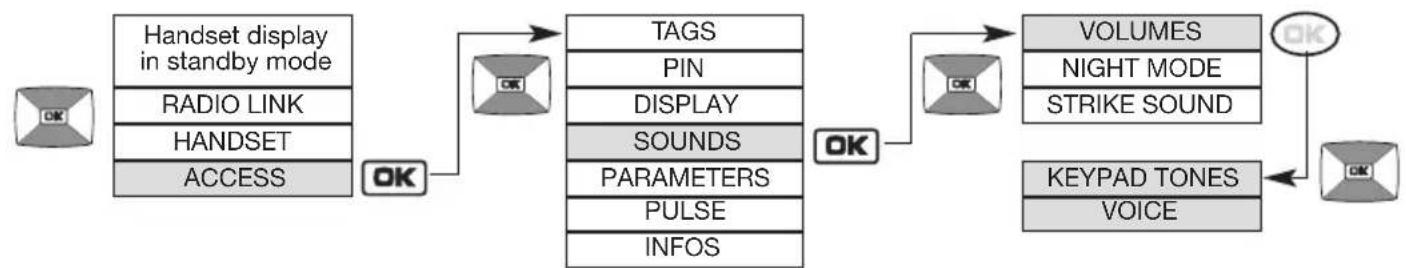

11.5 Modifying sound options136

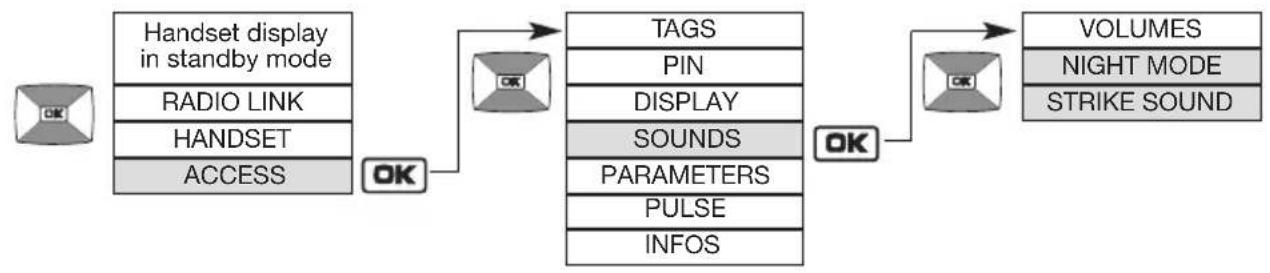

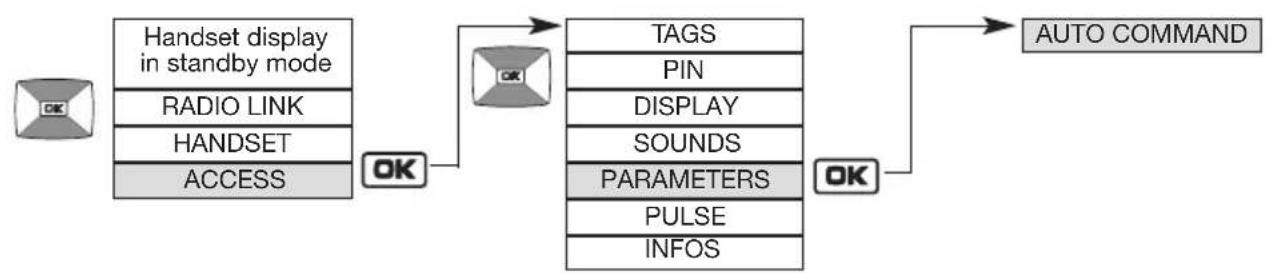

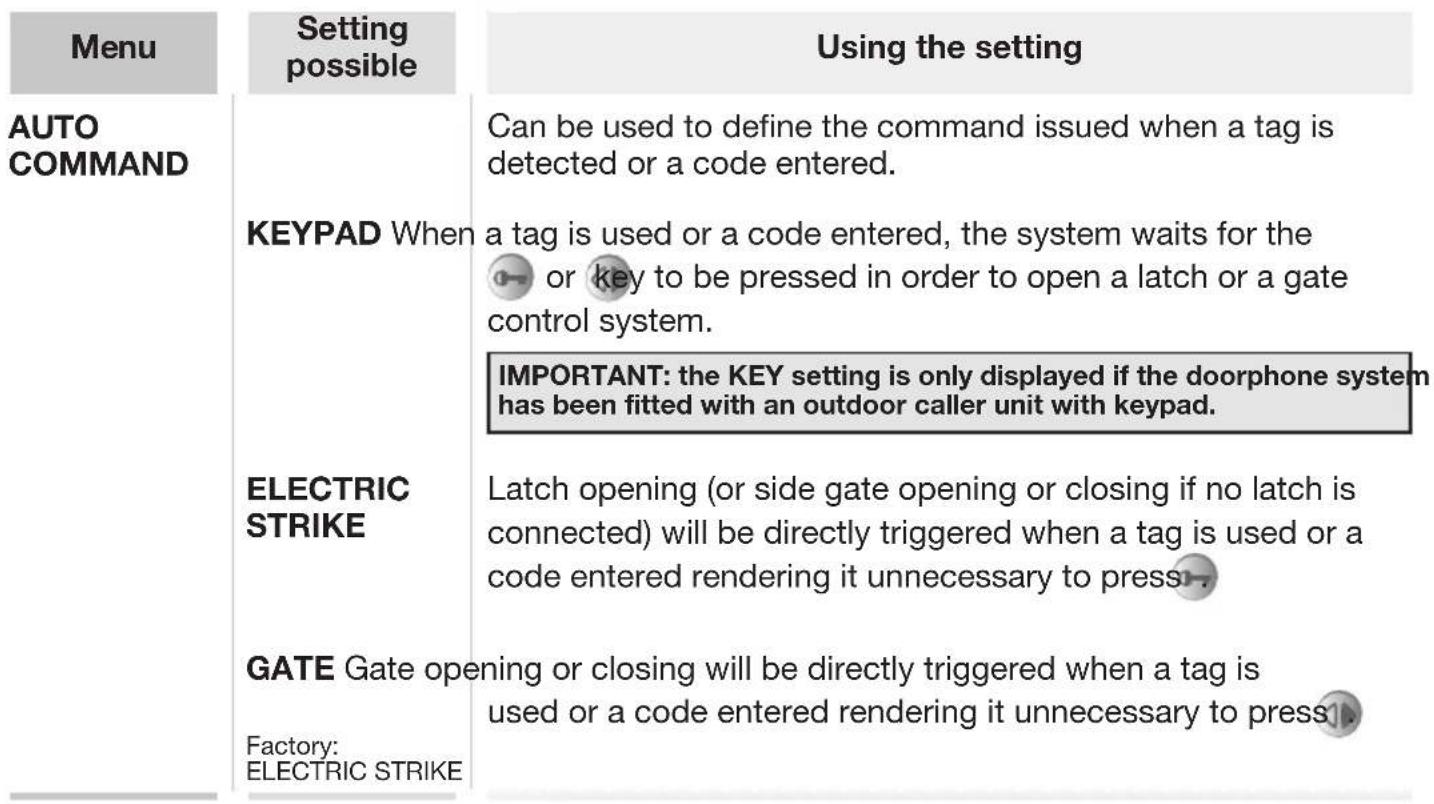

Handset display in standby mode RADIO LINK HANDSET ACCESS TAGS PIN DISPLAY SOUNDS PARAMETERS PULSE INFOS VOLUMES NIGHT MODE STRIKE SOUND Menu Setting possible Using the setting NIGHT MODE ACTIVE INACTIVE Factory: INACTIVE Can be used to lower the volume of a button when it is pressed or of ringing on the outdoor caller unit (the volume is lowered to QUIET). Factory: LOW STRIKE SOUND INACTIVE LOW HIGH Can be used to disable or adjust the volume on the outdoor caller unit when an electrical latch is operated. IMPORTANT: the NIGHT MODE menu is only displayed if the door phone system has been fitted with an MHF01X or MHF02X caller unit. Handset display in standby mode RADIO LINK HANDSET ACCESS TAGS PIN DISPLAY SOUNDS PARAMETERS PULSE INFOS AUTO COMMAND Menu Setting possible Using the setting AUTO COMMAND Factory: ELECTRIC STRIKE Can be used to define the command issued when a tag is detected or a code entered. KEYPAD When a tag is used or a code entered, the system waits for the or key to be pressed in order to open a latch or a gate control system. ELECTRIC STRIKE Latch opening (or side gate opening or closing if no latch is connected) will be directly triggered when a tag is used or a code entered rendering it unnecessary to press . GATE Gate opening or closing will be directly triggered when a tag is used or a code entered rendering it unnecessary to press . IMPORTANT: the KEY setting is only displayed if the doorphone system has been fitted with an outdoor caller unit with keypad.

Factory: 2.5 S Can be used to change the pulse duration for gate motorisation control (terminal blocks 12 and 14). PEDESTRIAN 0.5 SEC 1 SEC

Factory: 1 S Can be used to change the pulse duration for gate motorisation pedestrian opening control (terminal blocks 12 and 14). ELECTRIC STRIKE 2 SEC 5 SEC Factory: 5 S Can be used to change the pulse duration for electrical latch control (terminal blocks 3 and 4). Handset display in standby mode RADIO LINK HANDSET ACCESS TAGS PIN DISPLAY SOUNDS PARAMETERS PULSE INFOS

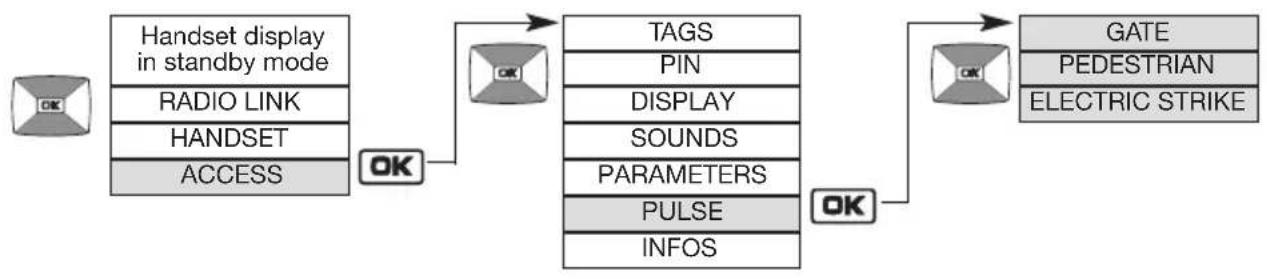

11.7 Modifying opening options

You will then go back to the previous options menu. Browse through this menu using the keys

• Quickly press to return to the previous display at any time.

• Press and hold to return to the handset display in standby mode.

• If no button on the handset is pressed for 30 sec, the screen returns to the handset display in standby mode. Pick up the handset and open the flip cover.

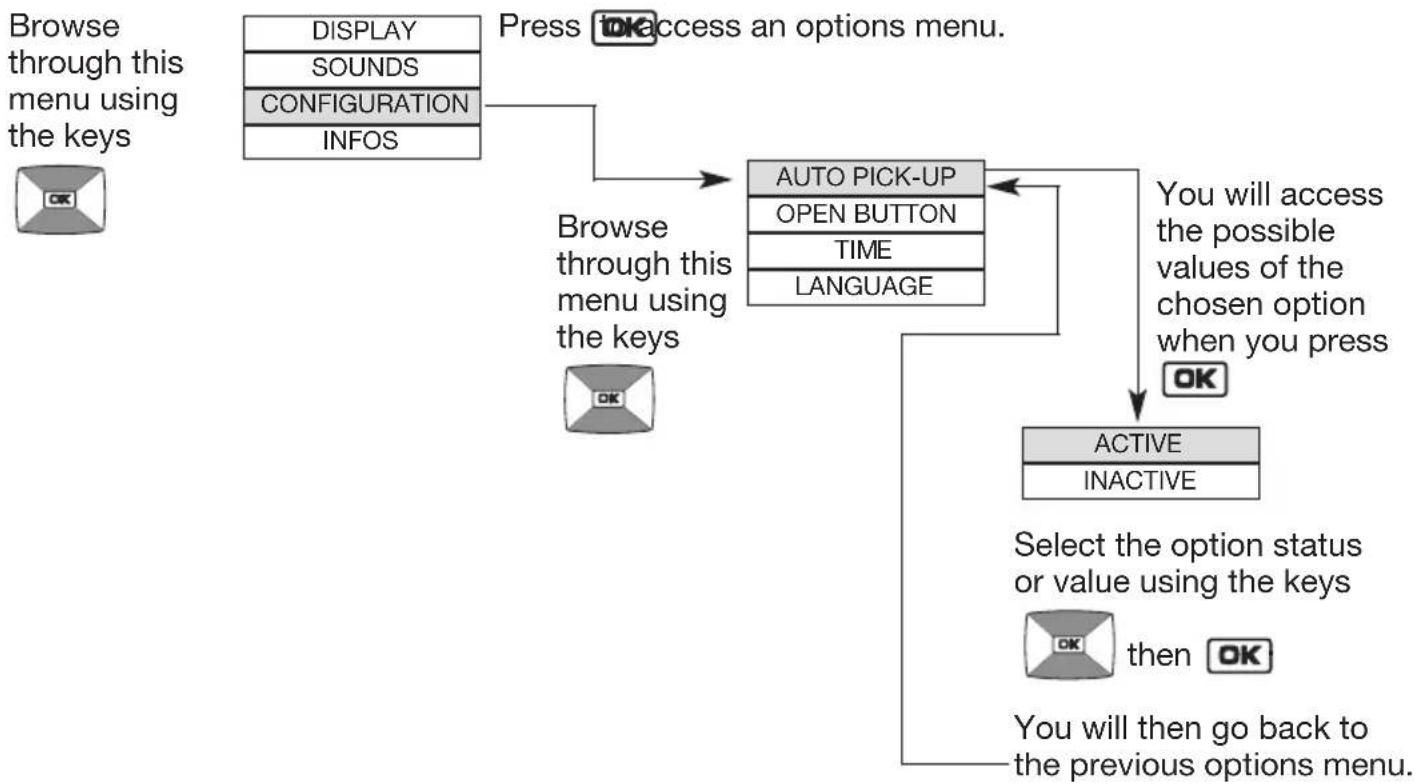

12. Modifying handset operating options

12.1 How to browse through the menus139

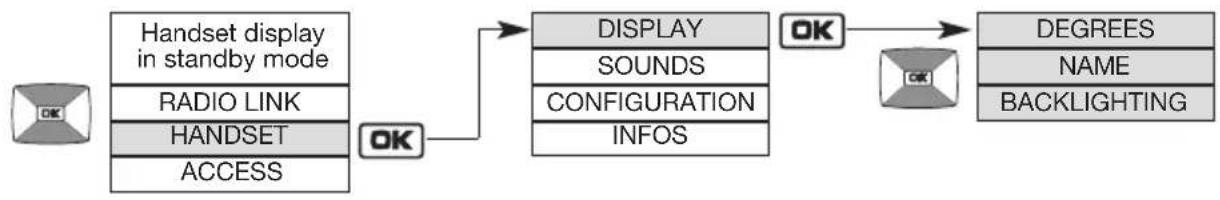

1. Select the name to be changed.

character using the keys .

3. Move on to the next character

4. Perform steps 2 and 3 for all the characters and then, once

the desired name has been programmed, press .

The key selects the previous character. TIP: press and hold the keys to quickly scroll through the characters.140 DISPLAY SOUNDS CONFIGURATION INFOS DOOR BELL SOUND TIME VOLUME Menu Setting possible Using the setting Factory: 20 SEC Factory: ACCESS 1: door bell 1 ACCESS 2: door bell 2 ACCESS 3: door bell 3 ACCESS 4: door bell 4 INTERCOM: door bell 5 DOOR BELL Can be used to change ringing when: ACCESS 1 ACCESS 2 ACCESS 3 ACCESS 4 a call arrives from access 1 from access 2 from access 3 from access 4 IINTERCOM or when a call arrives from another handset

5 SEC 10 SEC 20 SEC 30 SEC Can be used to choose the duration of handset ringing.

1. Select the door bell to be changed.

2. Choose the desired door bell from among the 9 available and

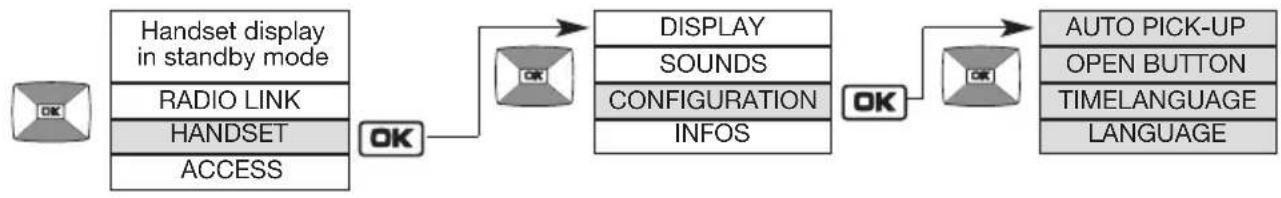

Menu Setting possible Using the setting AUTO PICK-UP ACTIVE INACTIVE Factory: ACTIVE Factory : ELECTRIC STRIKE Factory: 00:00 Factory: ENGLISH Can be used to automatically establish communication when the handset is picked up off the base without pressing . TIME Can be used to set the time displayed on the handset

2. Move on to the next digit

3. Perform steps 1 and 2 again to set the

minutes then, once the chosen time has been programmed, press .

OPEN BUTTON Can be used to change the commands associated with the and keys. When the ELECTRIC STRIKE command is selected (factory): The key controls electric strike opening. The key controls gate opening. When the GATE command is selected: The key controls gate opening. The key controls electric strike opening. LANGUAGE ENGLISH FRANCAIS ITALIANO ESPANOL DEUTSCH NEDERLANDS Can be used to set the handset language. The key selects the previous character.142 Call the installer out to replace the handset base battery. Handset base battery flat.

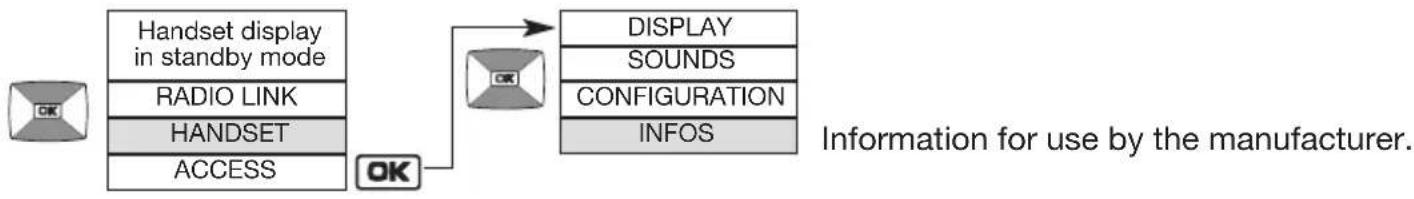

13 Fault indications Display Meaning Solution Put the handset back on its base to charge. Handset battery charge low.

Call the installer out to replace the controller batteries. It is advisable to change the handset battery at the same time. Controller batteries flat.

14. Questions and Answers

Plasterboard and wood 10% to 30% reduction Trees or bushes 10% to 30% reduction Brick 30% to 50% reduction Concrete and breeze-block 50% to 70% reduction Metal and metal cladding 70% to 90% reduction Questions Why can conversation be “broken” when using the handset? This can happen when you are at the radio reception limit. The controller cuts off communication when you go beyond this limit. You should move closer to the controller. What causes the interference (Larsen effect, crackling, etc.) that can be heard in the handset? This can happen when the handset is too close to another handset or the controller. Move the various devices over 3 metres away from each other. Answers Why does the reception quality vary when I move around with the handset? If there is no electromagnetic interference or no obstacle between the handset and the controller, the “free field” radio range is roughly 400 m. When the handset is inside the home, the radio range is less. Radio wave propagation is limited depending on the type and thickness of the walls or partitions through which they pass. What should I do if I lose the display on my handset? What should I do if the handset does not beep and display when I put it back on its base? Check the mains power supply or the state of the handset base battery. Can I clean my doorphone? Use soapy water and a soft cloth to clean products whenever necessary. Do not use alcohol or acetone to clean them. What should I do if the handset does not ring during a communication test?

• Move closer to the controller.

• Check that the handset is not in silent mode ( icon displayed). What does the icon displayed on the handset mean? A visitor came to the outdoor caller unit while you were out. To delete the icon, press on a handset button. Simply recharge the handset on its base. The time must be reprogrammed (HANDSET/CONFIGURATION/TIME menu)144 General data

• Failsafe multi-frequency radio technology with a free field (1) range of up to 400 m, according to environmental and installation conditions

• Radio link: 868 - 870 MHz, 25 mW max, Duty cycle: 0,1%, Rx: category 2

• High-fidelity digital sound Outdoor caller unit data

• External boxes made of polycarbonate

• Controller and outdoor caller unit degree of protection: IP54/IK08

• Operating temp erature from – 20°C to + 70°C

• Controller power supply: 2 x (3.6 V 17 Ah) MPU01X lithium batteries + 1 x (3.6 V 700 mAh) 908-21X lithium-ion battery and/or 12/24 VAC or 12/30V DC power supply and/or 12 V 8 W min. power solar panel, ref. MJU01X or 4 LR20 type 1.5 V alkaline batteries

• 5-year battery life (with MPU01X battery) or 3-year battery life (with 4 LR20 batteries) (2)

• Wiring using 4 wires between the outdoor caller unit and the controller

• Control and powering of any type of low consumption (0.5 A max.) 12 V latches.

• Control of safety ELV motorisation system able to operate with a 48 V DC/1 A dry contact (relay or switch)

• All controller inputs/outputs are SELV types Internal handset unit data

• Interior boxes made of ABS

• Degree of protection: IP31/IK04

• Operating temperature from -5°C to +55°C

• Base powered by: - batteries: MPU01X lithium battery 2 x (3.6 V 17 Ah) - mains supply: via 220 V/6 V transformer

• Rechargeable handset powered by MTU01X plug-in lithium-ion battery

• Rechargeable handset battery life when off base: 15 days (3)

• Battery base battery life: 5 years (3) (1) The free field range corresponds to the maximum theoretical distance separating the controller and the handset when there are no obstacles in the way (e.g. wall, screen, vegetation, electromagnetic disturbance, etc.) likely to reduce the range. (2) The battery life is based on household use, i.e.: 2 x 10-second communications, 7 latch commands and 6 gate commands per day for a controller and an outdoor caller unit without digicode, 1 x 10-second communication, 4 latch commands (without outdoor caller unit backlighting) and 5 gate commands (without outdoor caller unit backlighting) per day for a controller and outdoor caller unit with digicode. (3) The battery life is based on household use, i.e. 2 x 10-second communications, 2 x 10-second inter-handset communications and 6 commands (2 latch commands, 2 gate commands, 1 lighting command, and 1 garage door command) per day. For the rechargeable handset battery life to last its full period (15 days) when off its base, it must be left on its base to charge for at least 2 days when it is first powered or 4 days if the display screen disappears (during which time it can of course be used).

15. Technical data145

Hager Security SAS hereby declares that the radioelectric equipment, references SC100AX and SC101AX complie with the requirements of the following 2014/53/EU RE-D directive. The full text of the EU Declaration of Conformity is available at the address: www.daitem.co.uk. Non-binding document, subject to modification without notice.146147805015/D Daitem 09.20www.daitem.com
