USER MANUAL DryFix EQ10 SUNTEC

White portable air purifier device with ventilation grilles and control panel (no visible text or symbols)

SICHERHEITSHINWEISE

Line drawing of a portable air conditioner unit with airflow direction arrows and dimension标注 (no text or symbols)

Technical line drawing of a vintage radio receiver with visible ports and antenna (no text or labels)

AUSBAU DES FILTERS

© 2014 KLIMATRONIC® DryFix

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DÜSSELDORF / DEUTSCHLAND

KLIMATRONIC®

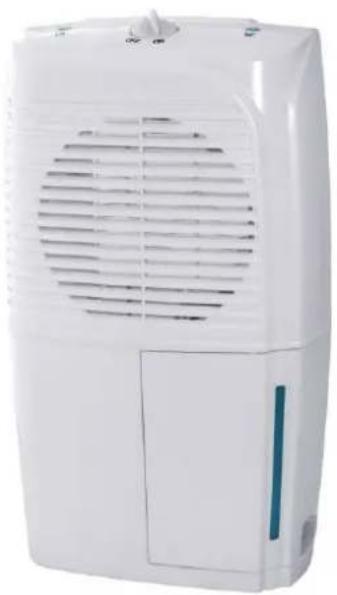

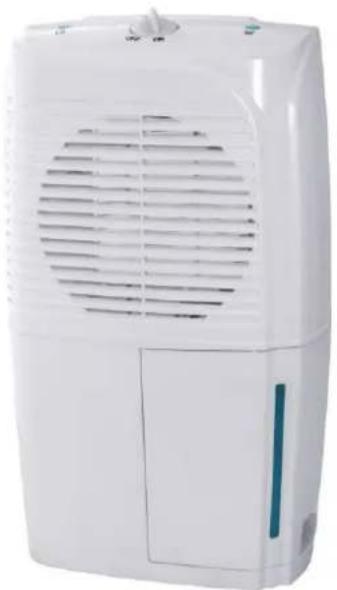

DryFix EQ10

White portable air purifier with ventilation slots and control panel (no visible text or symbols)

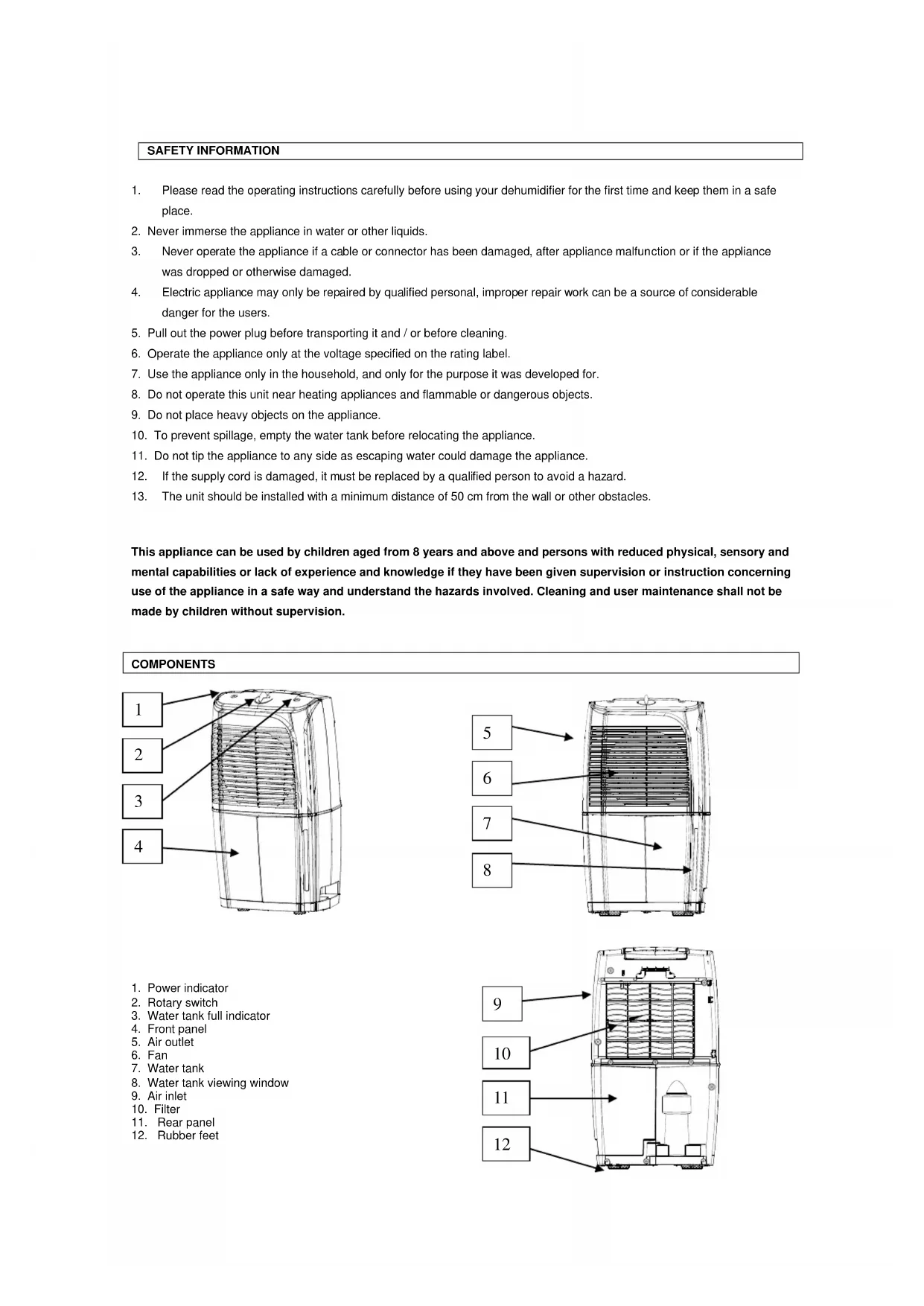

SAFETY INFORMATION

1. Please read the operating instructions carefully before using your dehumidifier for the first time and keep them in a safe place.
2. Never immerse the appliance in water or other liquids.
3. Never operate the appliance if a cable or connector has been damaged, after appliance malfunction or if the appliance was dropped or otherwise damaged.
4. Electric appliance may only be repaired by qualified personal, improper repair work can be a source of considerable danger for the users.
5. Pull out the power plug before transporting it and / or before cleaning.
6. Operate the appliance only at the voltage specified on the rating label.
7. Use the appliance only in the household, and only for the purpose it was developed for.
8. Do not operate this unit near heating appliances and flammable or dangerous objects.
9. Do not place heavy objects on the appliance.
10. To prevent spillage, empty the water tank before relocating the appliance.
11. Do not tip the appliance to any side as escaping water could damage the appliance.
12. If the supply cord is damaged, it must be replaced by a qualified person to avoid a hazard.
13. The unit should be installed with a minimum distance of 50 cm from the wall or other obstacles.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

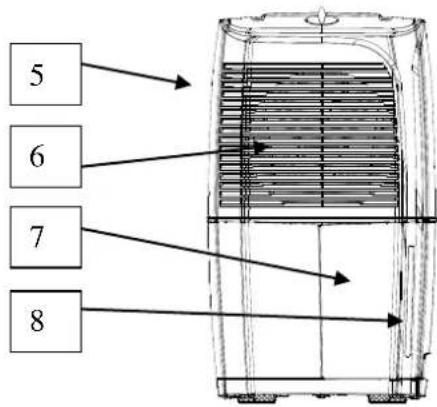

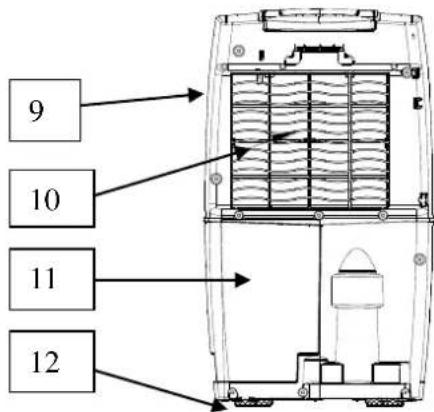

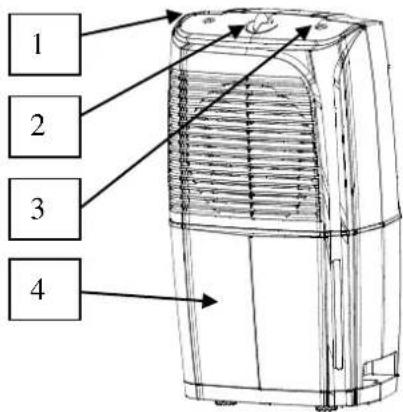

COMPONENTS

1 2 3 4

5 6 7 8

1. Power indicator
2. Rotary switch
3. Water tank full indicator
4. Front panel
5. Air outlet
6. Fan
7. Water tank
8. Water tank viewing window
9. Air inlet
10. Filter
11. Rear panel
12. Rubber feet

9 10 11 12

OPERATION INSTRUCTIONS

Starting the unit

1. Plug in the dehumidifier.
2. Turn the switch to the "ON" position.
3. Power indicator lights green, the unit automatically determines dehumidification level according to the ambient temperature and is then placed in the dehumidification mode.
4. To turn off the unit, turn the rotary switch to the "OFF" position, Power indicator is off.
5. Once the water tank is full, the compressor switches off. Water tank indicator lights red.

PRECAUTIONS

1. The dehumidifier will not start if the humidity setting is higher than the ambient humidity.
2. Empty the water tank if it's full and the water level indicator light illuminates. Then install the empty water tank back to its position, so the unit can continue its operation.
3. When the unit stops, you have to wait for 3 minutes before you can restart the unit to protect the compressor from damage.
4. The operational temperature range for this unit is 5-35 C°.
5. If the dehumidifier does not start (the operational light does not illuminate) or the dehumidifier makes intermediate stop on unknown reasons, please check the plug and power supply for poor connection. If the plug and power supply are in normal condition, wait for 10 minutes and restart the unit. If the unit still does not start in 10 minutes, please contact your dealer for repair.
6. When the dehumidifier is in operation, the running compressor will produce heat and make the room temperature higher. This is normal condition.

USE OF WATER TANK

When the water full indicator illuminates, the tank is full, and the compressor and the fan will stop operation. Please empty the water tank:

1. Turn off and unplug the unit
2. Remove the water tank and empty it.
3. Insert gently the water tank back into the unit.

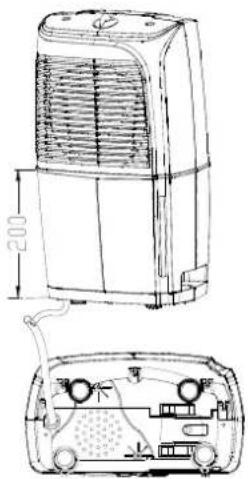

CONTINUOUS DRAINAGE

1. If you want to use this function, please take out the rubber plug from the bottom of the device.
2. Insert the spring into the 1cm wide side of the drainage tube.
3. Insert the end of the hose (with the spring) in the drainage opening in and fix the hose with the clip.
4. Place the other end of the hose in a suitable vessel so that the water can flow into it.

Technical line drawing of a portable air conditioner unit with side and top views (no text or symbols)

Push the clip of each side to enlarge the opening and put it onto the hose

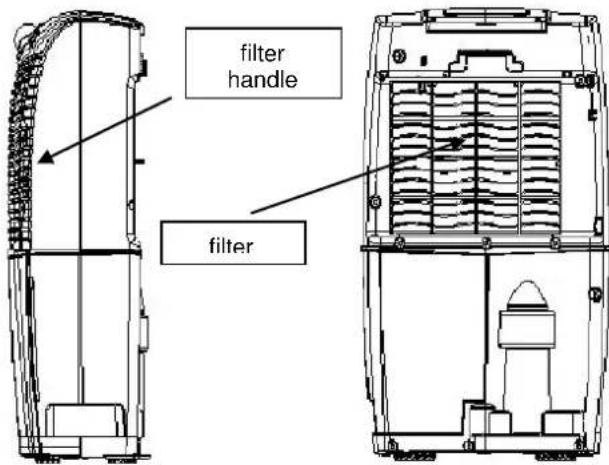

FILTER REMOVAL

• The filter can be removed from its slot by gripping the filter handle and sliding it out from the back of the appliance.
- Remove the filter every two weeks and clean it with warm water, below 40°C.

filter handle filter

1. Place the unit on a stable flat surface to avoid loud noises and vibrations.
2. Never insert any slim rod and hard object into the unit body to avoid occurrence of hazard or unit failure.
3. If the unit will not be used for a long time, please pull out the power cord from the outlet.
4. For a better dehumidifying effect, the areas in front and rear of the unit should be clear and free from obstacles, which will block the air flow for the unit.
5. Clean the filtering net once every two weeks (never use alcohol, gasoline, or hot water with a temperature of 40°C).

SPECIFICATIONS

MODELSPECIFICATION	DryFix 10EQ
DEHUMIDIFICATION (litre/day, 30°C and RH 80%)	10 I
RUNNING CURRENT	1,2 A
POWER	260 W
VOLTAGE	220V-240V/50Hz
REFRIGERANT	134a
DIMENSIONS	280 x 500 x 160 mm

TROUBLESHOOTING

Problem	Possible cause	Solution
The unit does not work.	Is the unit plugged in?	Plug in the unit.
	Does the "tank full" indicator (water tank is full or misplaced) light up?	Empty the water tank and set it to the correct position again.
	Is the ambient temperature higher than 35 °C or lower than 5 °C?	The heat protection has been activated, the device cannot be operated.
The device does not dehumidify.	Is the air filter dirty?	Clean the air filter as described in the manual.
	Is the air inlet or outlet blocked?	Check the air inlet and outlet and remove any obstructions.
The air does not flow out.	Is the air filter dirty?	Clean the air filter as described in the manual.
Loud noises during start up.	If the device was placed awry or unstable?	Place the unit on a stable flat surface.
	Is the air filter dirty?	Clean the air filter as described in the manual.

EC-Declaration of Conformity

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2014/03 SUNTEC WELLNESS GMBH

REFRIGERANT

(CE) N 842/2006: This dehumidifier contains the refrigerant R134A. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Suntec your dehumidifier does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.

GWP: R134A:1300

NOTE CONCERNING PROTECTION OF ENVIRONMENT

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicate such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment. Please ask your local council where your nearest disposal station is located.

© 2014 KLIMATRONIC® DryFix

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DÜSSELDORF / DEUTSCHLAND

KLIMATRONIC®

DryFix EQ10

White portable air purifier device with ventilation grille and control panel (no visible text or symbols)

CONSEILS SE SECURITE

Line drawing of a portable air purifier with ventilation grille and height dimension (200 mm), no text or symbols present.

Technical line drawing of a vintage radio receiver with visible sound waves and antenna (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

DÉMONTAGE DU FILTRE

© 2014 KLIMATRONIC® DryFix

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DÜSSELDORF / DEUTSCHLAND

KLIMATRONIC®

DryFix EQ10

White portable water heater with ventilation grilles and control panel (no visible text or symbols)

IMPORTANTI ISTRUZIONI DI SICUREZZA

Line drawing of a portable air conditioner unit with ventilation grilles and height dimension (no text or symbols)

Technical diagram of a vintage radio receiver with labeled components in Chinese

RIMUOVERE IL FILTRO

© 2014 KLIMATRONIC® DryFix

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DÜSSELDORF / DEUTSCHLAND

KLIMATRONIC®

DryFix EQ10

White portable air purifier device with ventilation grilles and control panel (no visible text or symbols)

VARNOSTNI NAPOTKI

Line drawing of a portable air conditioner unit with ventilation grille and height dimension (no text or symbols)

Technical line drawing of a vintage radio receiver with visible sound waves and antenna (no text or labels)

DEMONTAŽA FILTRA

© 2014 KLIMATRONIC® DryFix

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DÜSSELDORF / DEUTSCHLAND

KLIMATRONIC®

DryFix EQ10

White portable air purifier device with ventilation grilles and control panel (no visible text or symbols)

BEZPEČNOSTNÍ POKYNY

Line drawing of a portable air conditioner unit with ventilation ducts and height dimension (200 mm), no text or symbols present.

Technical line drawing of a vintage radio receiver with visible sound waves and antenna (no text or labels)

© 2014 KLIMATRONIC® DryFix

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40 221 DÜSSELDORF / DEUTSCHLAND

suntec® Wellness

suntec® Wellness

Záruční listina

suntec® Wellness

Garancijski list

Za ovaj uređaj preuzimamo garanciju u trajanju od 24 mjeseci!

Obavezujemo se, da ćemo za vrijeme trajanja 24-mjesečne garancije. Vaš uređaj besplatno popraviti tj. Vašem trgovcu besplatno na raspolaganje staviti zamjenski uređaj, ukoliko se isti uslijed tvorničke greške ili greške u materijalu, nastale u proizvodnom procesu, pokvari.
