USER MANUAL KJE5737M Montiss

VEILIGHEIDSVOORSCHRIFTEN HET PRODUCT

SAFETY REGULATIONS THE PRODUCT

MAINTENANCE AND CLEANING

RECIPES TECHNICAL DETAILS

DISPOSAL OF YOUR OLD APPLIANCE

English SAFETY REGULATIONS

1. Before using the device, please read this user manual carefully.

2. Do not use the appliance if the plug, the mains cord or other components are damaged.

3. If the mains cord is damaged, you must have it replaced by Van den Berg Products, a service

centre authorised by Van den Berg Products or similarly qualified person in order to avoid a safety hazard.

4. This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction regarding the use of the appliance by a person responsible for their safety.

5. Keep the device out of reach of children. Careful supervision is required if the device is

used near children. Never allow children to use the device.

6. Only use the device for its intended purpose as described in this user manual.

7. Do not immerse the device in water or in any other liquid.

8. Use only the power cable that has been supplied with the device.

9. Place the device on a solid surface. Preferably do not use a soft surface like, for example, an

artificial fibre table cloth. The device should not be placed on a vulnerable surface, such as a glass table, a table cloth, painted furniture, etc.

10. Ensure the power cable never hangs over the edge of a table. You must always place the

power cable in such a manner that no-one can trip over it.

11. Do not pull the plug from the wall socket by its power cord. To pull the plug from the wall

socket, take the plug and carefully pull it from the wall socket.

12. To avoid electric shocks ensure that the device and the power cable are dry.

13. Do not use the device outdoors.

14. Do not leave the device unattended when the plug is in the wall socket. Take the plug from

the wall socket when you are not using the device or when carrying out maintenance.

15. Do not use any accessories that are not recommended by the supplier, especially not

accessories that have not been supplied with the device.

16. Before use, check whether the mains voltage corresponds with rating label of the device.

17. Never immerse the motor housing into water or into any other liquids. Never use the device

18. When the device is switched on and the motor is running, you may NEVER put your hands

or any other objects in the machine!

19. Do not operate the juicer for more than 3 minutes at a time when you juice heavy loads and l

et it cool down sufficiently afterwards.

20. Use this device exclusively for the preparation of fruit and vegetable juices.

21. Never bend the mains lead sharply, nor let it lie on hot parts.

22. Never place the device near equipment that produces heat, such as ovens, gas cookers,

cooking rings, etc. Keep the device away from walls or other objects that can catch fire, such as curtains, towels (cotton or paper, etc.)

23. If you wish to move the device, you must see that it is switched off. You must use both

hands when moving the device.

24. Use only the enclosed pounder for pressing on pieces of fruit or vegetables that are stuck in

the opening.15 English THE PRODUCT

25. Make sure all parts are correctly mounted before you switch on the appliance.

26. If you detect cracks in the filter or if the filter is damaged in any way, do not use the

appliance anymore and contact Van den Berg Products.

27. Only unlock the latch after you have switched off the appliance and the grater has stopped

28. Do not remove the pulp container when the appliance is operating.

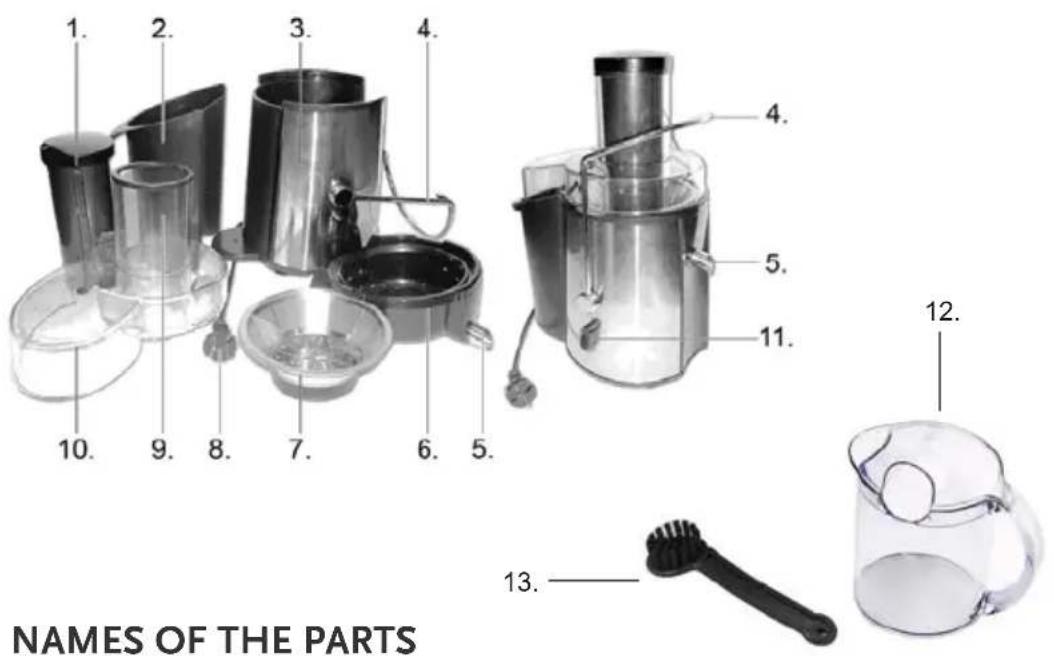

8. Power cable with plug

Before the first use: - Remove all the packaging from the inside and outside of the device. - Carefully read the user manual and observe the safety regulations. - Clean the device and the accessories, please refer to the section maintenance and cleaning. - Place the device on a clean, flat and hard surface. - Your device is ready for use!

Preparing for use - Place the motor housing (3) on a flat surface, e.g. a kitchen counter, and make sure it is standing stabile. - Place the grater house (6) on the motor unit so that the spout (5) fits in the slot on the side of the motor section. - Push the pulp container (2) up under the edge of the grater housing so that it locks on the foot of the motor housing tightly. - Carefully place the grater (7) in the grater housing . Be careful not to touch the sharp parts at the bottom of the grater. - Make sure that the grater fits properly in the housing and the gear in the grater and the housing are connected properly. - Make sure that the grater does not sit loosely on the base and that it rotates evenly. - Place the lid (10) on the appliance so that it covers both the pulp container and the grater. Make sure that the lid fits tightly onto the grater housing. - Lift the latch (4) to the vertical position and make sure that it locks the lid. The latch makes a clicking sound when this is done correctly. - Place the juice cup under the spout. - The device is now ready for use. Preparing fruit or vegetables Important: use only well-ripened fruit to avoid blockages so that cleaning is needed less often. Wash or peel the fruit and the vegetables that you want to process. Always remove the stones from fruits with large ones. For example from cherries, peaches and apricots the stones must always be removed. Fruits with seeds, such as apples and pears can be processed with their peels and cores. From fruits with a thick peel, such as citrus fruits, pineapples, melons, kiwis and beetroots, the peel must first be removed. With grapes you remove only the thick stalks. With green vegetables (spinach) and spices you must firmly roll the leaves together before feeding them into the feeder. Making juice - Put the vegetables and/or fruit into the feeder. Turn the speed control knob to setting 1 ( low speed) or 2 (normal speed) to switch on the appliance. Speed 1 is especially suitable for soft fruits and vegetables such as watermelons, grapes, tomatoes, cucumbers and raspberries. Speed 2 is suitable for all kinds of other fruits and vegetables. Use the grounder to press the ingredients down. Add the remaining fruit or vegetables while the motor is running. - You can continue making juice until the pulp container is beginning to fill up. You must empty the pulp container when it is visibly full. - Do not operate the juicer for more than 3 minutes when juicing heavy loads and let it cool down sufficiently afterwards. - Fruit and vegetable juices contain valuable vitamins and minerals. When the juice comes into contact with oxygen or light, the quality and quantity of vitamins and minerals quickly decrease. Therefore it is recommended to drink the fruit or vegetable juice when fresh, preferably just after it has been made.17 English Tips - Use fresh fruit and vegetables, as they contain more juice. Pineapples, beetroots, celery stalks, apples, cucumbers, carrots, spinach, melons, tomatoes, pomegranates, oranges and grapes are particularly suitable for processing in the juicer. - When you prepare apple juice, remember that the thickness of the apple juice depends on the kind of apple you use. The juicier the apple, the thinner the juice. Choose a kind of apple that produces the type of juice you prefer. - Apple juice turns brown very quickly. To slow down this process, add a few drops of lemon juice. - Fruits that contain starch, such as bananas, papayas, avocados, figs and mangoes are not suitable for processing in the juicer. Use a food processor, blender or bar blender to process these fruits. - To extract the maximum amount of juice, always press the grounder down slowly. - Add soft products slowly to extract more juice from them. - Vitamins disappear, so the faster you drink your juice, the more vitamins you get. - If you would like to keep the juice for a while then it must be placed in the refrigerator. It is good to add some drops of lemon juice. - Do not drink more than 3 glasses of 230 ml of juice a day. - Dilute the juice for children with an equal quantity of water. - Juice of dark green (broccoli, spinach etc.) or dark red (beets, red cabbage, etc.) vegetables are quite strong, therefore always dilute them with water. - Fruit juice has a high content of fructose. Persons with diabetes or a low content of blood sugar must avoid drinking too much juice. - Do not use any brushes, scourers or other aggressive cleaning devices. - The appliance is easier to clean if you do so immediately after use. - Ensure the device is switched off and remove the plug from the wall socket. - Remove the dirty parts from the motor unit. Disassemble the appliance in the following order: Remove the pulp container, remove the grounder, open the latch, remove the lid, remove the grater with the housing. - Clean the pulp container, the grater, the lid and the grounder with hot water and a mild detergent. - All detachable parts are dishwasher-safe. Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element. - The motor unit can be cleaned with a moist cloth or sponge. Never immerse the motor unit in water or in any other liquid!

MAINTENANCE AND CLEANING18

English Carrot cocktail Preparation: 10 minutes For: 2 glasses of 375 ml 10-12 carrots 125 ml pineapple juice 125 ml orange juice 1-2 teaspoonfuls of honey, to taste 8 ice cubes Juice the carrots in the juicer. Use a jug to stir the other ingredients through the carrot juice before serving. Fresh pineapple juice with mandarin sorbet Preparation: 10 minutes For: 2 glasses of 375 ml 1 pineapple (2.5 kg) 250 ml ginger ale 4 scoops of mandarin sorbet (to taste) Peel the pineapple and place it in the device. Mix the pineapple juice and the ginger ale together. Place it in the refrigerator. Pour the juice in chilled glasses and place 2 scoops of mandarin sorbet in each glass. Vitamin boost Preparation: 15 minutes For: 4 glasses of 200 ml 1 large apple 6 carrots 4 celery stems 6 leaves of iceberg lettuce 20 spinach leaves Place the apple in the device with peel and core, together with the carrots, the celery, the iceberg lettuce and the spinach and process all together. Pour the juice into glasses and serve with ice cubes to chill. Summer refreshment Preparation: 15 minutes For: 2 glasses of 375 ml 3 Oranges 250 g fresh strawberries 300 g seedless grapes 2 peaches Peel the oranges and process them in the juicer. Process the strawberries and grapes separately and add them to the orange juice. Pour boiling water over the peaches and leave them to stand for 30 seconds before cooling them in cold water. Pull off the skins, remove the stones and process them in the juicer before adding to the rest of the mixed juice. Pour the juice into glasses. Serve with spoons with long handles. RECIPES19 English TECHNICAL DETAILS Honey-melon-passion fruit mixture Preparation: 10 minutes For: 2 glasses of 375 ml 1 middle-sized honey-melon (approx. 750g) 6 Passion fruits Ice cubes for serving Peel the melon. Cut it into pieces and process in the juicer. Halve the passion fruits, spoon out the pulp. Mix the melon juice with the pulp of passion fruit. Cool down well. Serve in a glass with ice cubes. Model number KJE5737M Power 850W Nominal voltage 220-240V~ Nominal frequency 50-60 Hz

DISPOSAL OF YOUR APPLIANCE

Montiss is a registered brand name of :

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is

covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal

waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences

for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city

office, waste disposal service or the shop where you purchased the product. Van den Berg Products BV IJzerwerf 10-12 6641 TK Beuningen The Netherlands www.vdbergproducts.com20 English GUARANTEE This guarantee covers your unit for a period of 24 months from the date of purchase for service and replacement of parts, on the condition that you have used the machine correctly as described in the user manual. This guarantee does not exclude national legislation that may exist in the country of purchase in regards to warranty regulations. When you make a claim under this guarantee, you must submit the original invoice or receipt with clear mention of the date of purchase, name of retailer and the description and model number of the appliance. You are advised to keep these documents in a safe place. This device is intended for domestic use only. Damage and / or malfunctions as the result of industrial or commercial use are excluded from the warranty.. The guarantee for this appliances expires if: - The original invoice or receipt has in one way or another been changed or made illegible, - The model or serial number on the product has been changed, removed, deleted or made illegible, - Repairs have been executed by unauthorized repair workshops or persons who are not authorized to do so, - The damage is the result of an external cause, such as fire damage, water damage, transport damage, atmospheric discharges, insufficient or improper maintenance; - The appliance has been operated in another country than for which originally designed, approved, released and produced, as well as defects occurred as the result of such modifications. - The appliance has not been used according to the guidelines and directions in the user manual supplied with the product. In the unlikely event your appliance is not functioning well or shows any defect, please contact your retailer. To avoid any inconvenience, we advise you to read the user manual carefully before contacting them.21 English WARRANTY THE PRODUCT: Article number: KJE5737M Article description: Montiss Juice Extractor Place of purchase:................................................................................................................................ Date of purchase (as per proof of purchase):.................................................................................... YOUR CONTACT DETAILS: Name:.................................................................................................................................................... Address:................................................................................................................................................ Postal cod............................................................................................................................................ City:....................................................................................................................................................... Telephone:............................................................................................................................................ E-mail:................................................................................................................................................... DESCRIPTION OF THE PROBLEM:

Please note we only accept warranties that have been filled out clearly and completely. Kindly check and ensure all details are filled out in the form below in order for us to attend to your complaint as soon as possible. Please note we only accept warranties that have been filled out clearly and completely. Kindly check and ensure all details are filled out in the form below in order for us to attend to your complaint as soon as possible.You can send this form, together with the proof of purchase, to: Van den Berg Products BV Afdeling Service IJzerwerf 10-12 NL-6641 TK Beuningen The Netherlands Or fax it to: +31 24 - 345 44 29 Accessories and parts of the product that are susceptible to wear and tear are not included in this guarantee. Should you wish to reorder these, please visit www.muppa.nl. PLEASE NOTE THAT ALL WARRANTIES NEED TO BE ACCOMPANIED BY A VALID PROOF OF PURCHASE IN ORDER TO BE CONSIDERED.22 Deutsch SICHERHEITSVORSCHRIFTEN
