USER MANUAL Toastation 22720 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Please call us - our friendly associates are ready to help. USA:1,800,851,8900

Questions?

• Do not operate while unattended.
• Do not use in toaster mode with food that has been spread with butter, jelly, frosting, etc.
• Do not use in toaster mode with rice cakes, fried foods, frozen prepared foods, or nonbread items.
• Do not use in toaster mode with toaster pastries. Always cook toaster pastries in a toaster oven broiler.
• Do not cover or use near curtains, walls, cabinets, paper or plastic products, cloth towels, etc.
• Closely supervise when used by or near children.
  Always unplug Toastation when not in use.

Failure to follow these instructions can result in death or fire.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electrical shock do not immerse cord, plug, or toaster oven in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning appliance and putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. To disconnect, turn all controls to OFF; then remove plug from wall outlet.
12. Use extreme caution when removing tray or disposing of hot grease.
13. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.

14. Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.

15. A fire may occur if the toaster oven is covered, touching or near flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.

16. Extreme caution should be exercised when using containers constructed of other than metal or glass.
17. Do not store any materials, other than appliance manufacturer recommended accessories, in this oven when not in use.
18. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
19. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

20. To turn the oven off, press the ON/OFF button. To stop a toast cycle, press the ON/OFF button or lift up on the bread ladder.

21. Do not place eyes or face in close proximity with tempered safety glass door in the event that the safety glass breaks.

22. Do not use appliance for other than intended use.
23. Before using this appliance, move it 2 to 4 inches away from wall or any object on the countertop. Remove any object that may have been placed on top of the appliance. Do not use on surfaces where heat may cause a problem.
24. If plug gets hot, please call a qualified electrician.
25. The oven door is not a shelf. Do not place anything on the door.
26. Use extreme caution when extending loaded rack or adding food to extended rack.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

This appliance is equipped with a fully tempered safety glass door. The tempered glass is four times stronger than ordinary glass and more resistant to breakage. Tempered glass can break, however it breaks into pieces with no sharp edges. Care must be taken to avoid scratching door surface or nicking edges. If the door has a scratch or nick, call our toll-free customer service number.

When heavy foods are on the oven rack, do not pull the oven rack out more than halfway. To baste or check for doneness, remove food from the oven and place on heat-resistant countertop surface or trivet.

Do not place bake pan directly on heat shields that protect lower heating elements.

To avoid an electrical circuit overload, do not operate another high-wattage appliance on the same circuit with the appliance.

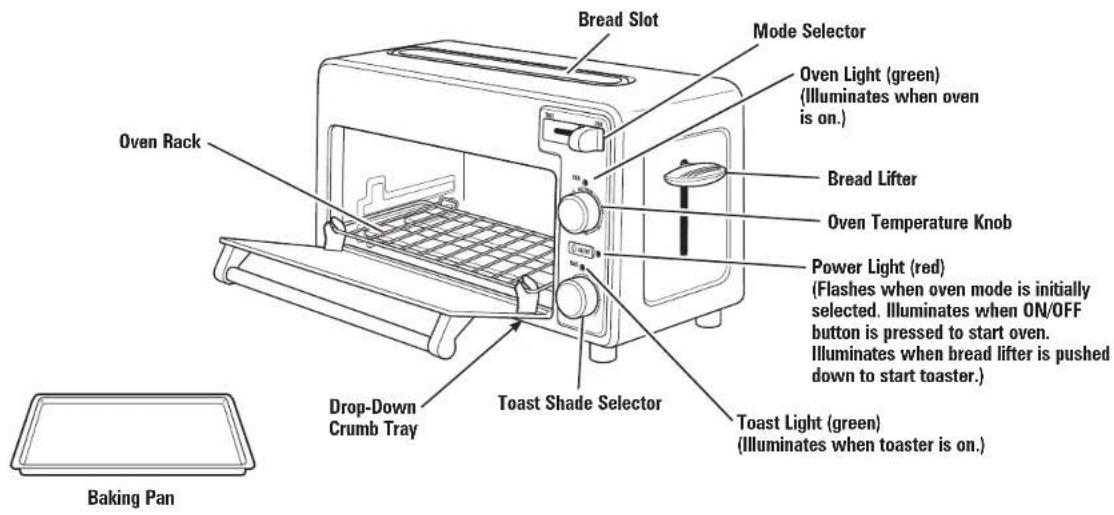

Parts and Features

BEFORE FIRST USE: Select Oven Mode; set on 450^ (230^) . Heat for 15 minutes without food. Most heating appliances produce an odor and/or smoke when used the first time. This is normal for this type of appliance and should not be present after this initial preheating.

Toast Mode

WARNING

Fire Hazard.

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not leave appliance unattended when in operation.

• Always unplug toaster oven when not in use.

NOTE: The bread lifter will not latch down unless the toaster is plugged in.

Red power light and green toast indicator light will illuminate.

Press ON/OFF button to stop toasting at any time.

Toast Mode (cont.)

FOOD		MODE/TEMP.SHA
Regular bread	2-5	Toaster
English muffins 4 Toaster
Bagels	3-6	Toaster
Frozen bread or buns 4	Toaster
Frozen waffles 4	Toaster
Toaster pastries* N/A Oven/350°F (180°C) (such as Pop Tarts') for 2	Oven/350°F (180°C) minutes
Frozen prepared foods* (such as Toaster StrudelTM or Hot Pockets*)	N/A Oven/350°F (180°C) follow manufacturers' instructions

• Pop Tarts is a registered trademark of the Kellogg Co.
  Toaster Strudel is a trademark of the Pillsbury Co.
  *Hot Pockets is a registered trademark of Nestlé
• Do not heat in toaster—use toaster oven portion of Toastation with Mode Selector set to oven position. NEVER heat cracked, broken or warped pastries, and NEVER leave unattended.

To remove food that becomes DE SEETING food slots, disconnect from outlet and allow toaster to cool. Turn toaster upside down and shake. Do not use fork or other utensil that could damage heating element or result in risk of fire or electrical shock.

Oven Mode

NOTE: Wash baking pan before using.

Make sure Mode Selector is in "OVEN" position (slot closed). Red power light will flash 6 times.

Toastation™ is intended to prepare foods most commonly cooked in a toaster oven: appetizers, pizza, bagels, chicken nuggets, fries, and toaster pastries. It was designed with these foods in mind.

• Most foods should be baked according to package or recipe directions. Watch carefully and adjust time or temperature if needed.
  To reheat pizza, never place box in oven. Cook at 450^ (230^) for 3 minutes or until ready.
• For crisp crust pizza, cook frozen pizza directly on oven rack.
• For soft crust pizza, cook on baking pan.
• For baked potato, bake directly on oven rack at 400^ (204^) for 1 hour.

WARNING

Fire Hazard.

• Do not leave oven unattended during operation.

• Keep one inch between food and heating element.

• Do not use oven cooking bags.

• Do not heat foods in plastic containers.
• Follow food manufacturers' instructions.

Press ON/OFF button and let preheat for 5 minutes. Red power light and green oven light will illuminate.

When finished, press ON/OFF button. Red power light will turn off. Unplug unit after use. NOTE: Oven turns off automatically after 2 hours.

• For a homemade crust pizza (or any soft dough), cook pizza on baking pan.
• To toast regular toaster pastry or frozen pastry, toast directly on oven rack.If pastry has a glaze or frosting,use baking pan.
• When toasting, condensation may form on oven door. A toaster oven is enclosed so moisture is slow to escape. After use, wipe door to dry and make clean-up easier.
• Remove food immediately or heat remaining in toaster oven will continue to bake and dry out your food.

Care and Cleaning

Your Toastation should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.

WARNING

Electrical Shock Hazard.

Do not clean with metal scouring pads.

Pieces can break off pad and touch electrical parts.

Unplug Toastation and allow to cool.

Pull tray down and out. Gently shake crumbs out of tray and wipe with a damp, clean cloth. Push tray back and lock into place.

To clean inside of oven, wipe oven walls, bottom of oven, and glass door with a damp, soapy cloth. Repeat with a damp, clean cloth.

8

Troubleshooting

PROBLEM

Oven will not heat.

PROBABLE CAUSE

• Check to make sure electrical outlet is working and the oven is plugged in. Ensure that ON/OFF button has been pressed after setting desired temperature.
  Make sure Mode Selector is set to OVEN.
  Oven turns off automatically after 2 hours.

Moisture forms on inside of oven door when toasting.

• This is normal when toasting in a toaster oven. Moisture is slower to escape from toaster oven than from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen pastries.

An odor and smoke comes from oven.

• Smoke and odor are normal during the first use of most heating appliances. This will not be present after the initial heating period.

Indicator light stays on.

• It is normal for the green indicator light to be illuminated when the unit is plugged in. If the red indicator light stays on after the ON/OFF button is pressed to cancel toasting or baking, unplug unit and call our toll-free customer service number for information on examination, repair, or electrical or mechanical adjustment. Do not continue to use your toaster oven.

Some foods burn and some are not done.

• Adjust oven temperature or cooking time for best results with your recipes.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights.

You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

AAVERTISSEMENT

CONSERVEZ CES INSTRUCTIONS!

Col. Palmitas Polanco

Mexico, D.F. C.P. 11560

01-800-71-16-100

Mixcoac MEXICO 03910 D.F.

Tel: [phone] • Fax: [phone]

Nuevo Leon

Ruperto Martinez No.238 Ote

Centro MONTERRE, 64000 N.L.

Tel: [phone] Fax: [phone]

Jalisco

SERVICIOS DE MANTENIMIENTO CASTILLO
Garibaldi No. 1450
Ladrón de Guevara
GUADALAJARA 44660 Jal.
Tel: [phone] Fax: [phone]

Chihuahua

DISTRIBUIDORA TURMIX
Av. Paseo Triunfo de la Rep. No. 5289 Local 2 A.
Int. Hipermart
Alamos de San Lorenzo
CD.JUAREZ 32340 Chih
Tel: [phone] Fax: [phone]

Modelos:

22720, 22721, 22722

Tip:

054

Characteristicas Elcctricas:

120V~ 60Hz 1300W
