USER MANUAL Ensemble 22002 HAMILTON BEACH

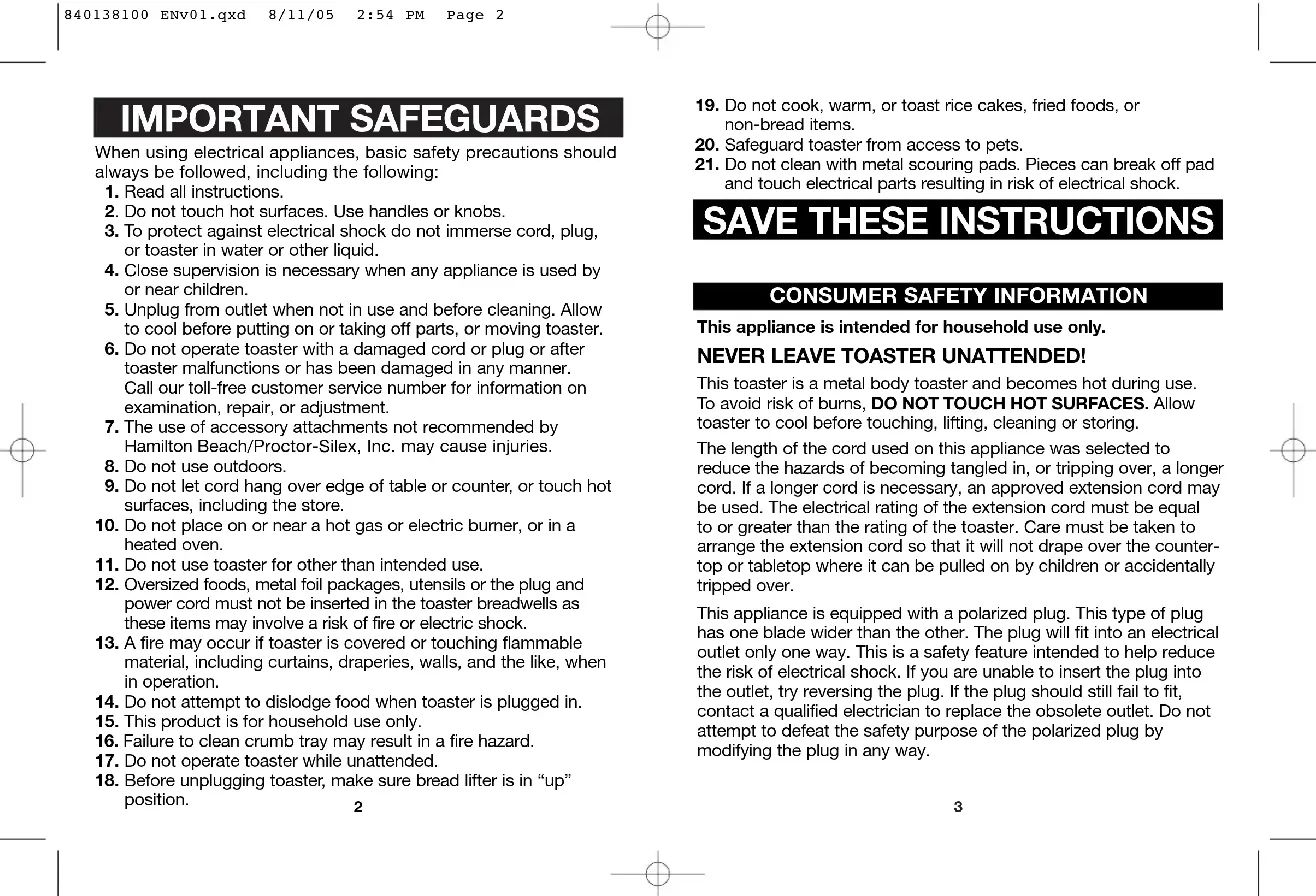

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electrical shock do not immerse cord, plug,

or toaster in water or other liquid.

4. Close supervision is necessary when any appliance is used by

5. Unplug from outlet when not in use and before cleaning. Allow

to cool before putting on or taking off parts, or moving toaster.

6. Do not operate toaster with a damaged cord or plug or after

toaster malfunctions or has been damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

7. The use of accessory attachments not recommended by

Hamilton Beach/Proctor-Silex, Inc. may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot

surfaces, including the store.

10. Do not place on or near a hot gas or electric burner, or in a

11. Do not use toaster for other than intended use.

12. Oversized foods, metal foil packages, utensils or the plug and

power cord must not be inserted in the toaster breadwells as these items may involve a risk of fire or electric shock.

13. A fire may occur if toaster is covered or touching flammable

material, including curtains, draperies, walls, and the like, when in operation.

14. Do not attempt to dislodge food when toaster is plugged in.

15. This product is for household use only.

16. Failure to clean crumb tray may result in a fire hazard.

17. Do not operate toaster while unattended.

18. Before unplugging toaster, make sure bread lifter is in “up”

19. Do not cook, warm, or toast rice cakes, fried foods, or

20. Safeguard toaster from access to pets.

21. Do not clean with metal scouring pads. Pieces can break off pad

and touch electrical parts resulting in risk of electrical shock.

SAVE THESE INSTRUCTIONS

CONSUMER SAFETY INFORMATION

This appliance is intended for household use only. NEVER LEAVE TOASTER UNATTENDED! This toaster is a metal body toaster and becomes hot during use. To avoid risk of burns, DO NOT TOUCH HOT SURFACES. Allow toaster to cool before touching, lifting, cleaning or storing. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over, a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the toaster. Care must be taken to arrange the extension cord so that it will not drape over the counter- top or tabletop where it can be pulled on by children or accidentally tripped over. This appliance is equipped with a polarized plug. This type of plug has one blade wider than the other. The plug will fit into an electrical outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way. 840138100 ENv01.qxd 8/11/05 2:54 PM Page 25 How to Toast

1. Plug toaster into electrical outlet.

2. Place bread in slots. Select toast shade and press down

bread lifter. NOTE: The bread lifter will not latch down unless toaster is plugged in.

3. At the end of the toasting cycle, the bread will pop up

4. To stop the toasting cycle sooner, lift up bread lifter or

push the cancel button. wWARNING Fire Hazard Do not operate while unattended. Do not cook, warm, or toast rice cakes, fried foods, or non-bread items. Heat pastry-filled or frosted items on lightest setting. Do not cover toaster or use near curtains, drapes, walls, or under cabinets. Close supervision is necessary when used by or near children. Never cover toaster or toast slots during operation. Always unplug toaster when not in use. Failure to follow these instructions can result in death or fire.

3. Cancel Button – This light will be illuminated as long as

the toaster is on. To end toast cycle at any time in any cycle, press the Cancel button. The cycle will stop and the light will go out.

4. Shade Selector – The shade selector ranges from light

toast (setting 1-2) to dark toast (setting 4-6). Adjust to desired setting before using.

5. Bagel – Load the toaster with the cut sides of the bagel

facing out. After the toasting cycle has started, press the Bagel button. The Bagel light will come on and the inside heating element will turn off.

6. Slide-Out Crumb Tray – (see page 7 for more information).

down bread lifter to start toaster. Press Cancel button to stop toast- ing at any time during the cycle.

Pop Tart is a registered trademark of the Kellogg Co.

• NOTE: Hamilton Beach/Proctor-Silex does not recommend heating toaster pastries in your toaster. Toaster pastries should be heated in a toaster oven broiler. However, if an alternative is not available, and you must use the toaster, be sure to set the toaster to the lowest possible setting, and never leave the toaster unattended during use. Toasting Guide

Regular bread 3 to 4 English muffins 6 Bagels 5 to 6 Frozen bread or buns 4 to 5 Frozen waffles 1 Toaster pastries (such as Pop Tarts

• Toasting is affected by the temperature of the bread. Room temperature bread may toast to a medium color on the medium setting. The same type of bread that has been refrigerated may require a darker setting to reach a medium color.

• The moisture content will also affect toasting. Fresh bagels, made locally, will have a higher moisture content than bagels purchased in the bread section of the supermarket. The bagel setting only energizes the outside wall heating ele- ments. A second, shorter toasting cycle may be needed to reach desired browness. Fresh bagels made locally may require two toasting cycles.

• Because of the irregular surface of English muffins, they may require more than one toasting cycle. After toasting for one cycle on the darkest setting, if a darker shade is desired, adjust shade selector to a lighter setting and toast for a second cycle. Watch closely to avoid overbrowning. English muffins cut with a knife toast more evenly than English muffins split with a fork.

• Many toasters have thermostats that must reset after toast- ing one cycle. The electronic controls of this toaster allow toasting batch after batch, with no waiting for the thermo- stat to reset.

• Thick foods may become wedged in the toaster slot. If food becomes jammed, the toaster will automatically shut off at the end of the toasting cycle. Unplug the toaster and let cool. Use a wooden utensil to remove food.

• When toasting only one slice, the bread may be placed in any slot of the toaster. When toasting a single slice, you may notice variations in bread color from side to side. Cleaning NOTE: If the toaster is used daily, the crumb tray should be cleaned weekly.

1. Unplug toaster and let cool.

2. Slide open crumb tray, discard crumbs

and wipe tray with clean cloth. Replace crumb tray.

3. Wipe outside of toaster with a

damp cloth. Do not use abrasive cleansers that may scratch the surface of the toaster. 840138100 ENv01.qxd 8/11/05 2:54 PM Page 68 Customer Service If you have a question, call our customer service number. Before calling, please note the model, type, and series numbers. These numbers can be found on the bottom of your toaster and will help us answer your question. This warranty applies to product purchased in the U.S. or Canada. LIMITED WARRANTY This product is warranted to be free from defects in material and workmanship for a period of one (1) year for Hamilton Beach products or one hundred eighty (180) days for Proctor-Silex and Traditions products from the date of original purchase, except as noted below. During this period, we will repair or replace this product, at our option, at no cost. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED. There is no warranty with respect to the following, which may be supplied with this product: glass parts, glass containers, cutter/strainer, blades, and/or agitators. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you. If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.)
