CoolTouch 22464 - Toaster HAMILTON BEACH - Free user manual and instructions

Frequently Asked Questions - CoolTouch 22464 HAMILTON BEACH

USER MANUAL CoolTouch 22464 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Questions?

Black and white photo of a modern toaster with two food items on top (no visible text or symbols)

Hamilton Beach®

Silhouette of a flame with sharp edges, resembling a stylized mountain or flame (no text or symbols)

To reduce the risk of fire:

• Do not operate while unattended.
• Do not use with food that has been spread with butter, jelly, frosting, etc.
• Do not use with rice cakes, fried foods, frozen prepared foods, or non-bread items.
• Do not use with toaster pastries. Always cook toaster pastries in a toaster oven broiler.
• Do not cover or use near curtains, walls, cabinets, paper or plastic products, cloth towels, etc.
• Closely supervise when used by or near children.
  • Always unplug toaster when not in use.

Failure to follow these instructions can result in death or fire.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. Do not operate toaster while unattended.
3. Close supervision is necessary when any appliance is used by or near children.
4. Do not attempt to dislodge food when toaster is plugged in.
5. To protect against electrical shock, do not immerse cord, plug, or toaster in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, or moving toaster.

7. Do not operate toaster with a damaged cord or plug or after toaster malfunctions or has been damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

8. Oversized foods, metal foil packages, or utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.

9. Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts resulting in risk of electrical shock.
10. A fire may occur if toaster is covered or touching flammable material, including curtains, draperies, walls, overhead cabinets, paper or plastic products, cloth towels, and the like, when in operation.

11. Do not operate toaster in an enclosed space, such as an appliance cabinet, caddy, garage, or other storage area.

12. Do not cook, warm, or toast rice cakes, fried foods, non-bread items, or toaster pastries. Toaster pastries should be heated in a toaster oven broiler. Do not heat any food product that has been spread or iced with margarine, butter, jelly, frosting, syrup, or other spread. Follow Toasting Chart.

13. Failure to clean crumb tray may result in a fire hazard.
14. Do not place on or near a hot gas or electric burner, or in a heated oven.

15. Do not touch hot surfaces. Use handles or knobs.

16. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

17. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
18. Before unplugging toaster, make sure bread lifter is in "up" position.
19. Do not use outdoors.
20. Do not use toaster for other than intended use.
21. This product is for household use only.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the counter-top or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

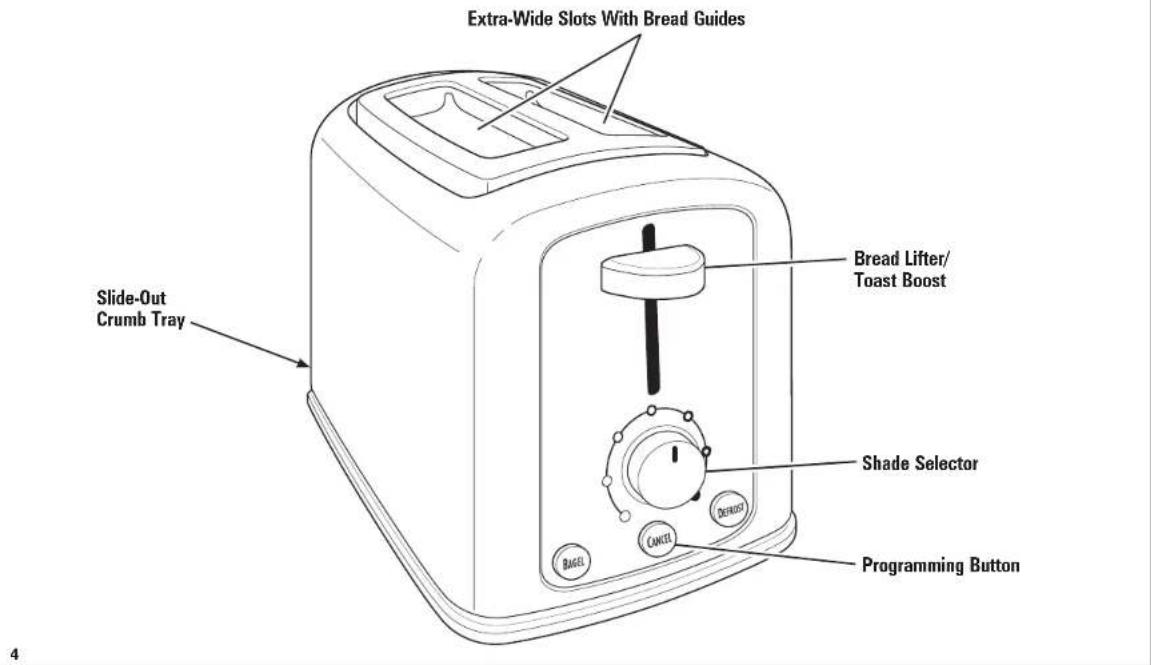

Parts and Features

Extra-Wide Slots With Bread Guides Slide-Out Crumb Tray Bread Lifter/ Toast Boost Shade Selector DEMOUST BAGEL CANCEL Programming Button 4

How to Use Your Toaster

Electrical outlet with two power plugs and a plug, showing a black arrow pointing to the plug (no text or symbols present)

Bread lifter will not latch down unless toaster is plugged in.

Hand pressing down on a toaster into a button (no text or symbols visible)

Lighter Darker

Hand pressing down on a toaster oven with a downward arrow indicating the press (no text or symbols present)

Hand pressing down on a toaster front panel with a downward arrow indicating the press (no text or symbols present)

Line drawing of a toaster with two upward arrows indicating top-down motion (no text or symbols)

BAGEL CAUSE DEFROST

Press CANCEL to stop toasting at any time.

Simple line drawing of an electrical outlet connected to a plug, showing power flow direction (no text or symbols)

Illustration of hands operating a mechanical device with a black arrow indicating motion (no text or symbols)

TOAST BOOST: After toast cycle ends, raise bread lifter to remove food easily.

Toasting Chart

FOOD	SHADE SETTING OPTIONAL SETTING
Regular bread	Medium
English muffins Dark Bagel
Bagels	Dark	Bagel
Frozen bread or buns Medium Defrost
Frozen waffles Light	Defrost
Toaster pastries(such as Pop-Tarts®)Pop-Tarts®is a registered trademark of the Kellogg Co.	Do not heat in toaster. Use Toaster Oven broiler. If you must use toaster, ALWAYS set to lowest shade setting. NEVER heat cracked, broken or warped pastries and NEVER leave unattended.

To remove food that becomes lodged in food slots, disconnect from outlet and allow toaster to cool. Turn toaster upside down and shake. Do not use fork or other utensil that could damage heating element or result in risk of fire or electrical shock.

Tips and Troubleshooting

• Toasting is affected by the temperature of the bread. Room-temperature bread may toast to a medium color on the medium setting. The same type of bread that has been refrigerated may require a darker setting to reach a medium color.

• The moisture content will also affect toasting. Fresh bagels, made locally, will have a higher moisture content than bagels purchased in the bread section of the supermarket. The bagel setting only energizes the inside heating elements. A second, shorter toasting cycle may be needed to reach desired browness. Fresh bagels made locally may require two toasting cycles.

• Because of the irregular surface of English muffins, they may require more than one toasting cycle. After toasting for one cycle on the darkest setting, if a darker shade is desired, adjust shade selector to a lighter setting and toast for a second cycle. Watch closely to avoid overbrowning. English muffins cut with a knife toast more evenly than English muffins split with a fork.

• Some foods may become wedged in the toaster slot. If food becomes jammed, the toaster will automatically shut off at the end of the toasting cycle. Unplug the toaster and let cool. Use a wooden utensil to remove food.
• When toasting only one slice, the bread may be placed in any slot of the toaster. When toasting a single slice, you may notice variations in bread color from side to side.

Cleaning Your Toaster

WARNING

Electrical Shock Hazard.

Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts, causing a risk of electric shock.

Your toaster should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire hazard.

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the direction of insertion.

Illustration of a hand using a toaster to press down a stack of paper (no text or symbols present)

Line drawing of two hands holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a hand using a toaster to press down a piece of paper (no text or symbols present)

Line drawing of a hand cleaning a toaster into a pan (no text or symbols)

7

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

▲AVERTISSEMENT

Simple line drawing of an electrical outlet with a plug inserted, showing power lines and a black arrow pointing to the outlet (no text or symbols)

Hand pressing down on a toaster into a slot (no text or symbols visible)

Illustration of a hand pressing down on a toaster into a button (no text or symbols)

Illustration of a toaster with two upward arrows indicating top-down motion (no text or symbols)

12

BAGEL Cancel DEFROST 6

Simple line drawing of an electrical outlet with a plug, showing power connection (no text or symbols)

(二)本说明仅供参考。

Illustration of hands operating a portable device with a black arrow pointing to the handle (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with a magnified view indicating the arrow direction.

Illustration of a hand using a toaster to press down a card (no text or symbols present)

Line drawing of two hands holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a hand using a grater to press down a piece of paper (no text or symbols visible)

Line drawing of a hand cleaning a toaster with a handle (no text or symbols)

14

Notes

15

Garantie limitée

Silhouette of a flame with sharp edges, resembling a stylized mountain or flame (no text or symbols)

Electrical outlet with two power outlets and a plug inserted, showing a cable (no text or symbols)

Hand pressing down on a toaster into a slot (no text or symbols visible)

Hand pressing down on a toaster into a control panel (no text or symbols visible)

Illustration of a toaster with two upward arrows indicating top-down motion (no text or symbols)

20

BAGEL Cancel DEFROST 6

Simple line drawing of an electrical outlet with a plug, showing a black arrow pointing to the outlet (no text or symbols present)

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating direction (no text or symbols)

Line drawing of a hand inserting a card into a toaster (no text or symbols)

Line drawing of two hands holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a hand inserting a card into a microwave oven (no text or symbols)

Line drawing of a hand cleaning a toaster with a handle (no text or symbols)

22
