USER MANUAL Twin 0 plus Storchenmuhle

Assembly and Usage Instructions

Group 0+ (-13 kg)

These Assembly and Usage Instructions must be given to the client.

Subject to printing errors, mistakes and technical changes.

WARNING - keep for future reference.

Only the best for your child! Congratulations! You have chosen a high-grade quality product from Storchenmühle.

Bringing up a child is one of the most fulfilling tasks that life can bring and, at the same time, is a huge responsibility. It's good to know that you are not alone, and that you are supported by a competent partner who has optimized the safety of your child in a car from the outset: Storchenmühle.

Storchenmühle wishes you a safe journey at all times.

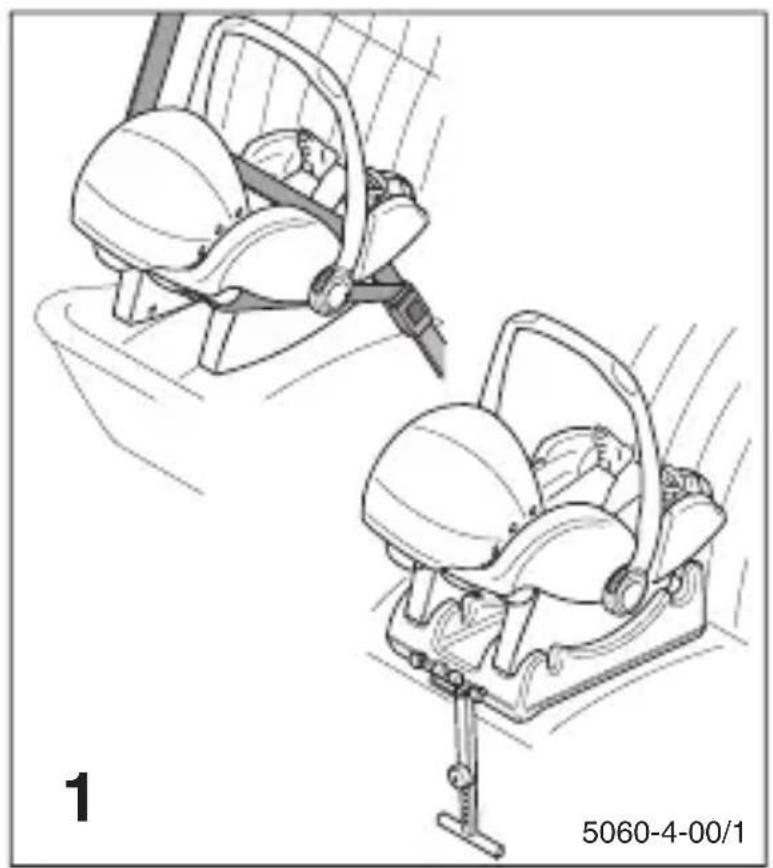

Infant carrier from birth until a maximum weight of 13kg for installation in a vehicle either with a three-point belt or on the matching Isofix base. The Isofix system corresponds with Isofix Size Class E. Tested according to ECE 44/04, XPS54.040 & XPS54.046. If you intend using the Isofix system then please check beforehand in your vehicle manual whether this size class is approved for your vehicle.

Schaukelfunktion:

Rocking-seat function:

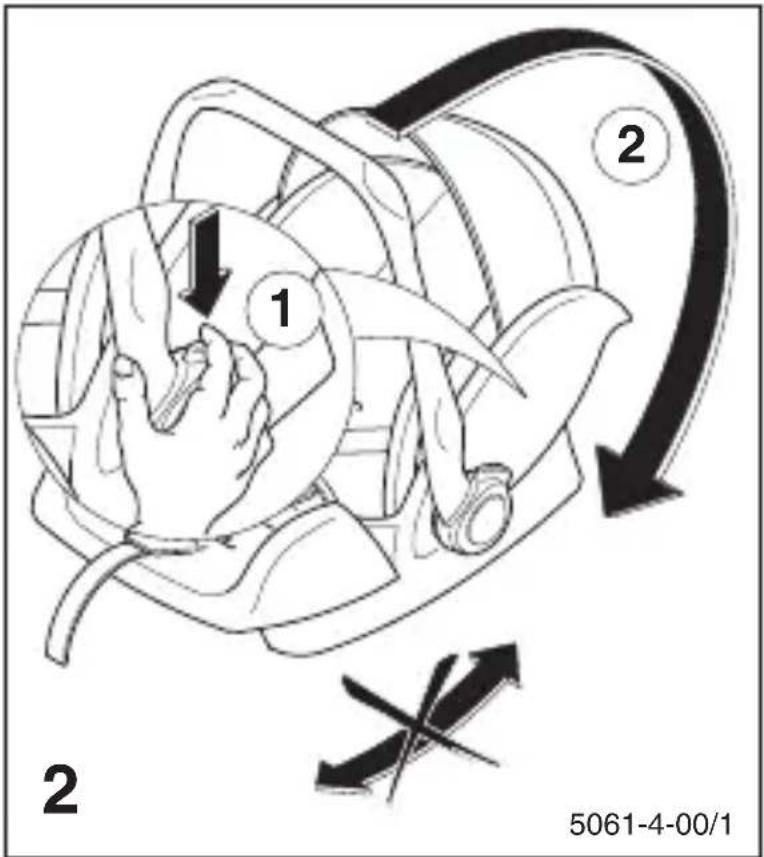

The shape of the infant carrier allows it to be rocked. To eliminate the rocking function fold the carrying handle over the head area until it locks in place. When the child is in the infant carrier the harness should be fastened at all times!

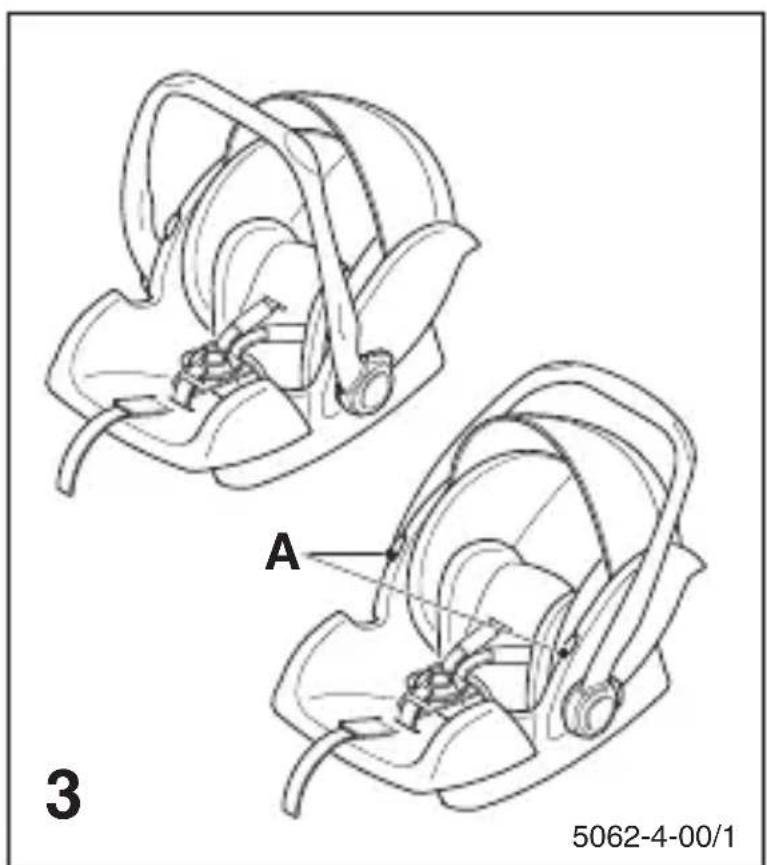

Diverse carrying frame positions.

Can be fitted in a pushchair and sports car (A). This is only possible if the manufacturer has provided the car with an appropriate adapter.

Einbau mit Isofix

Installing with Isofix

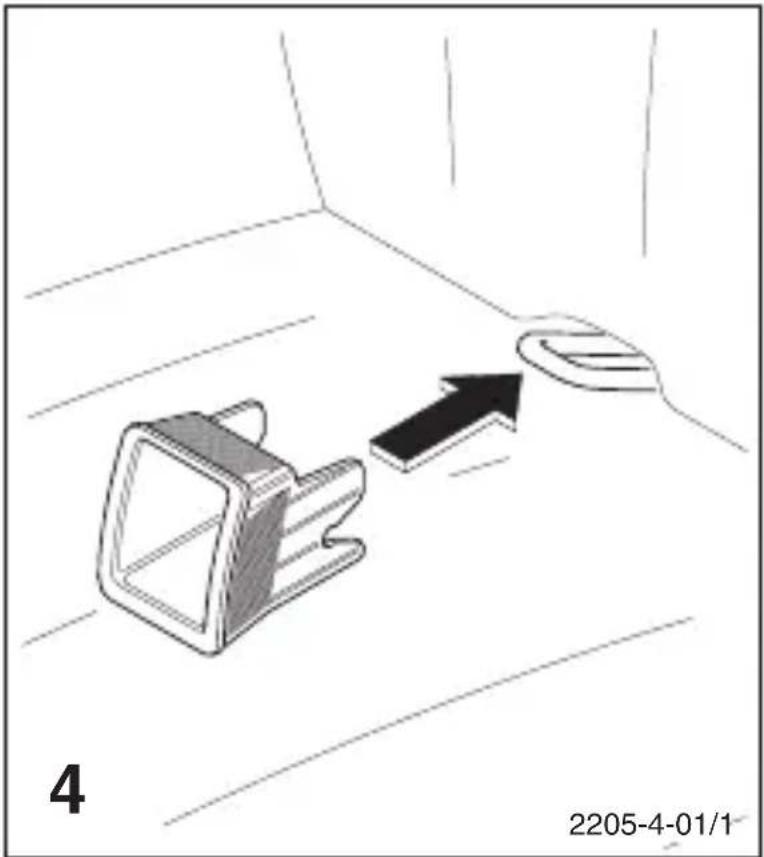

Insert the guides through the upholstery slot between the back rest and seat and on to the Isofix bracket. This is not necessary when such guides have already been installed, e.g. BMW. Ensure that the open side area faces upwards. In some vehicles, the isofix brackets are located behind the seat fabric and are not visible; in this situation please contact your vehicle manufacturer or dealer.

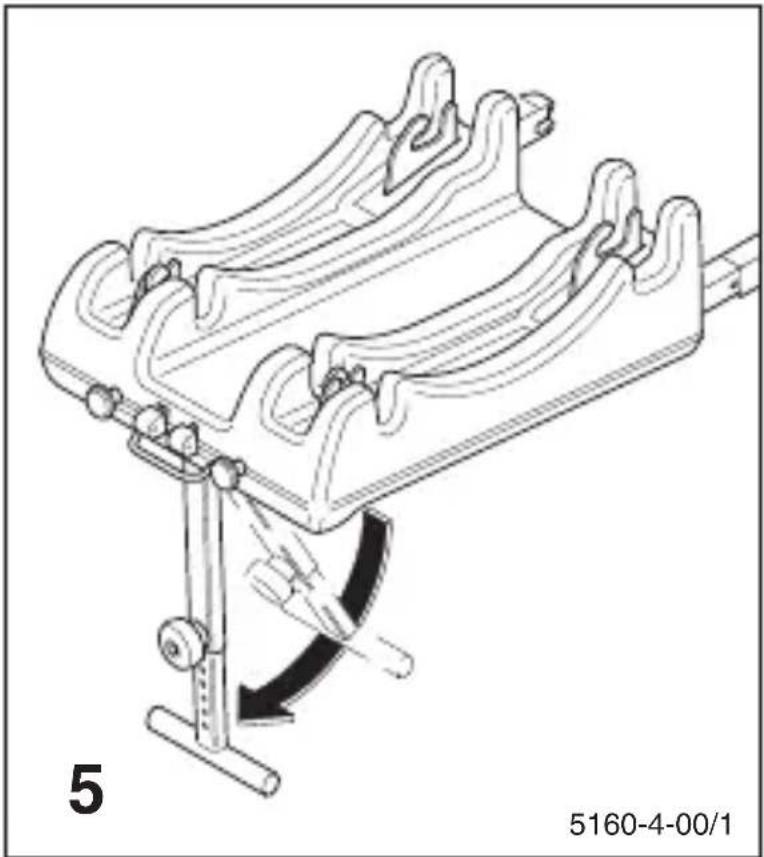

Attention: The leg must always be extended

Isofix:

The Isofix connectors must be extended by pressing the yellow buttons. This is necessary each time they are fitted to another vehicle.

Attention: Do never use the platform in this first position.

Fitting the Isofix:

Insert the Isofix connectors (A) of the platform into the insertion aids.

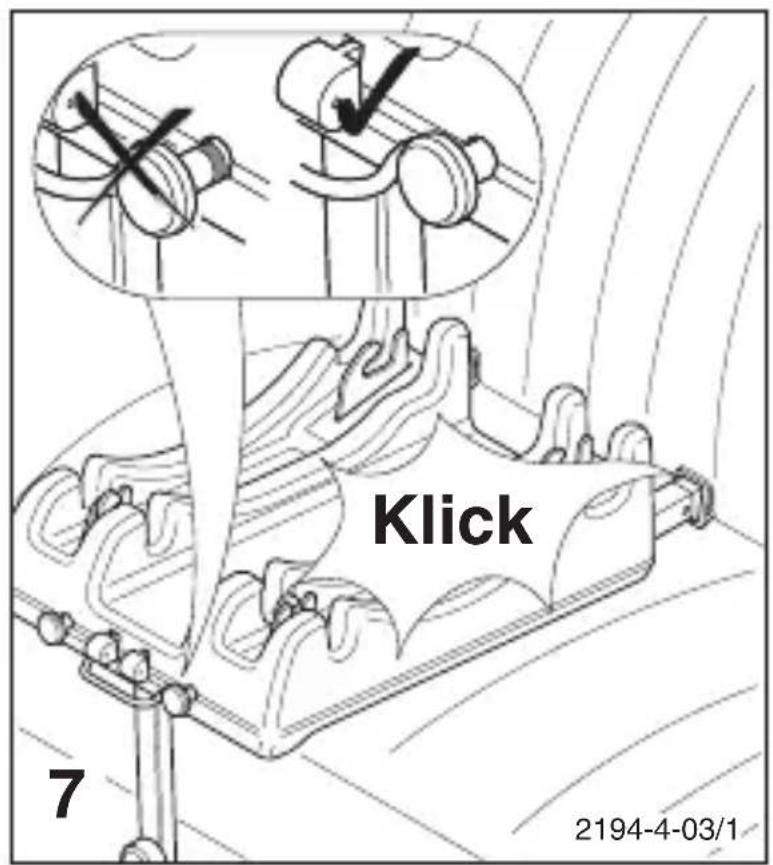

Latch the Isofix connectors into the Isofix frame. The red marks in the release buttons should no longer be visible! Check that it is correctly latched in my pulling on both sides of the platform.

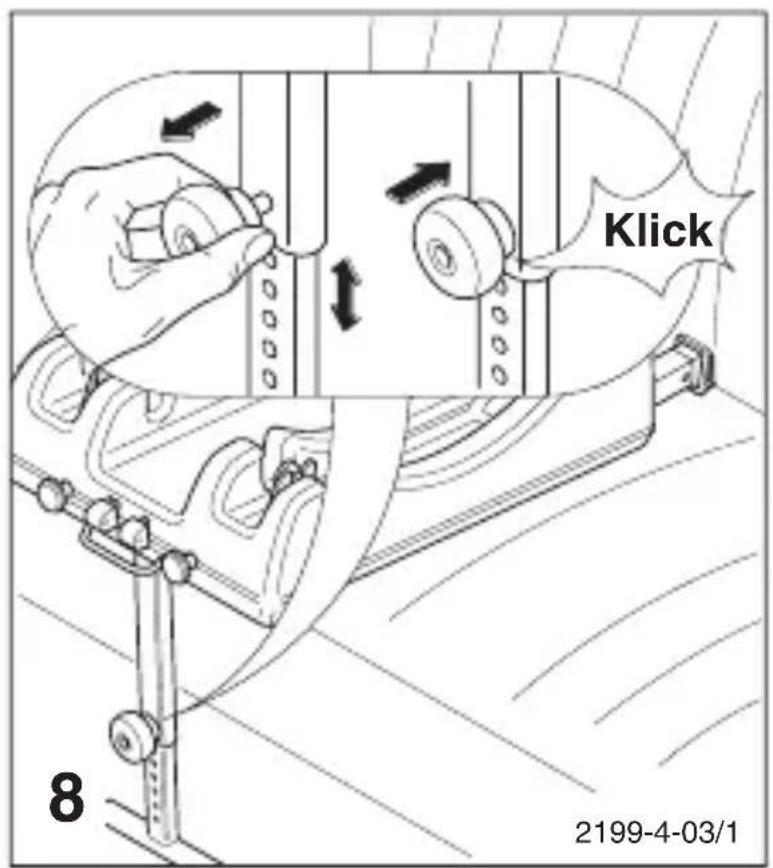

Pull out the latch knob and adjust the foot so that it rests on the floor of the vehicle. Then release the latch knob and make sure that the lower part of the foot is latched in position.

Kindanschnallen:

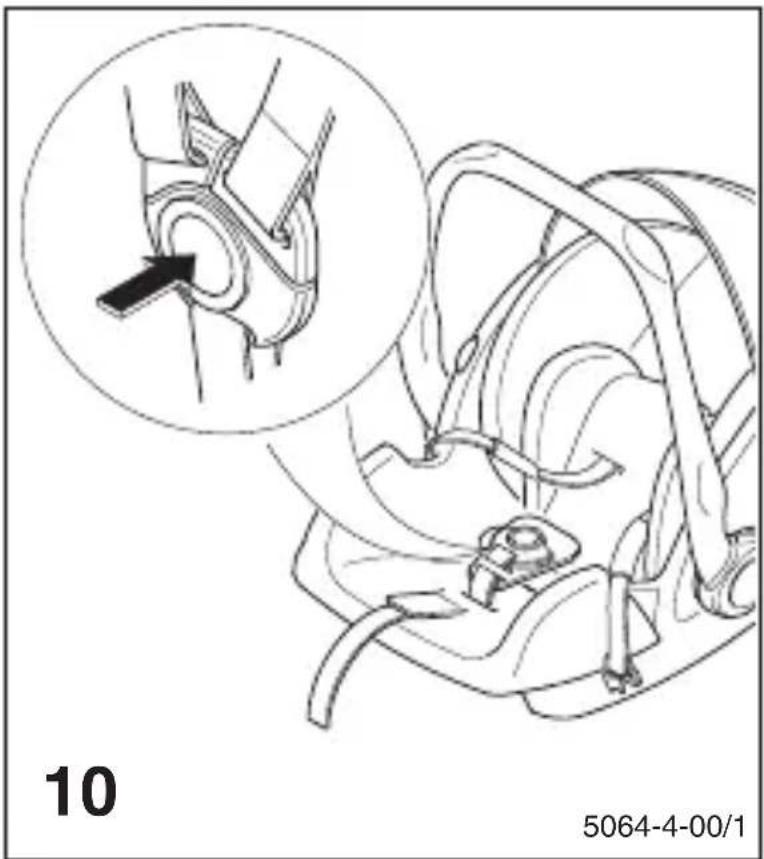

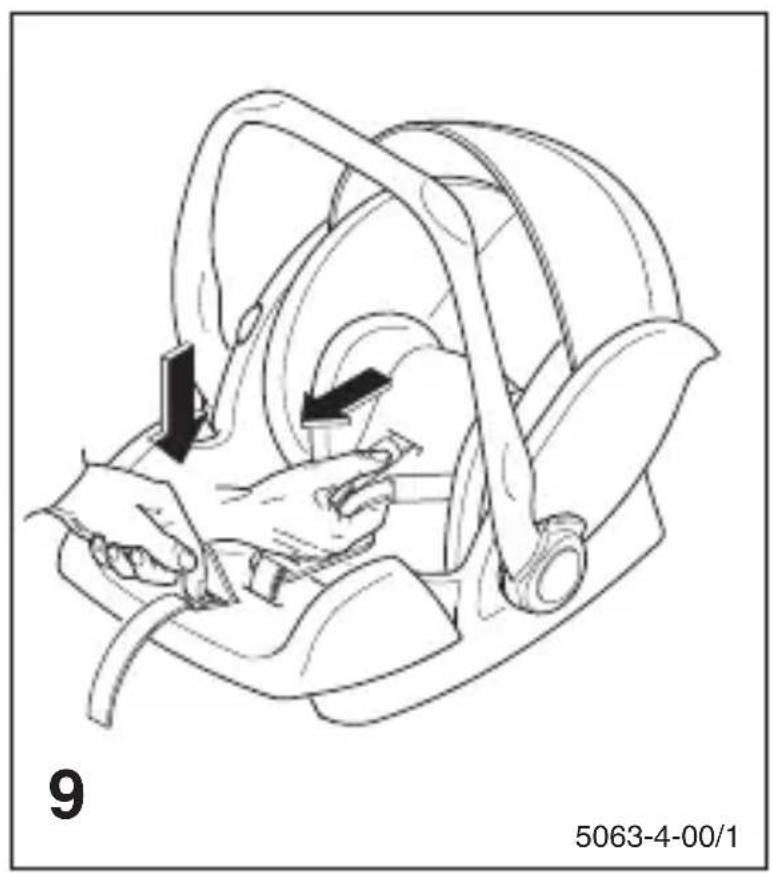

Lengthen the belts by pressing the central adjuster, keep depressed and pull the shoulder belts.

Open the locking buckle by pressing the red button and place the belts to either side.

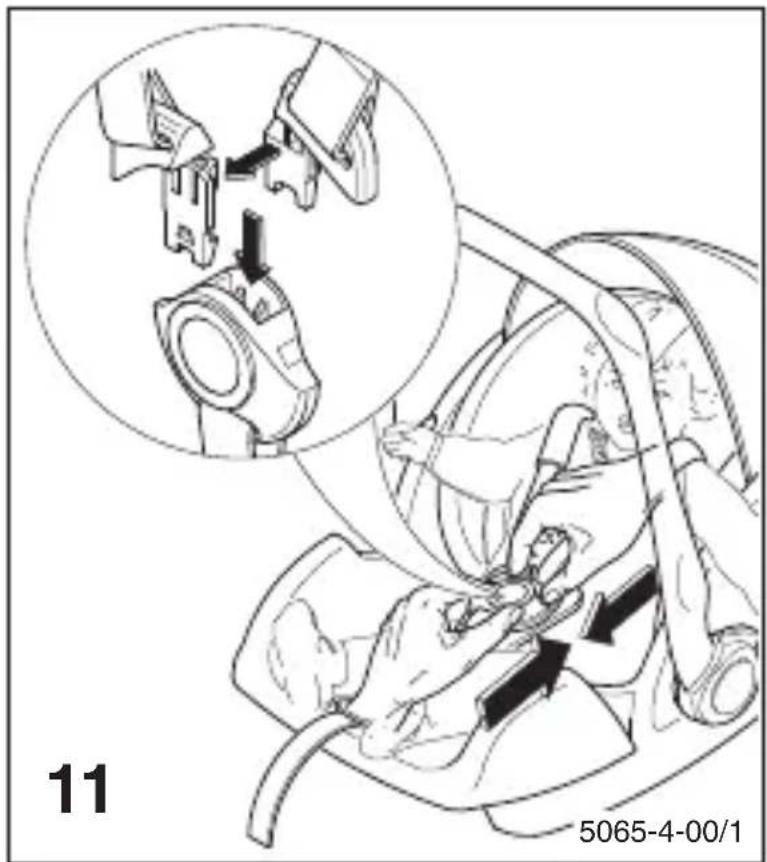

Place the child in the seat, position the upper belts over the child's shoulders, locate the buckle tabs into each other (see diagram11) and secure into the locking buckle with an audible click.

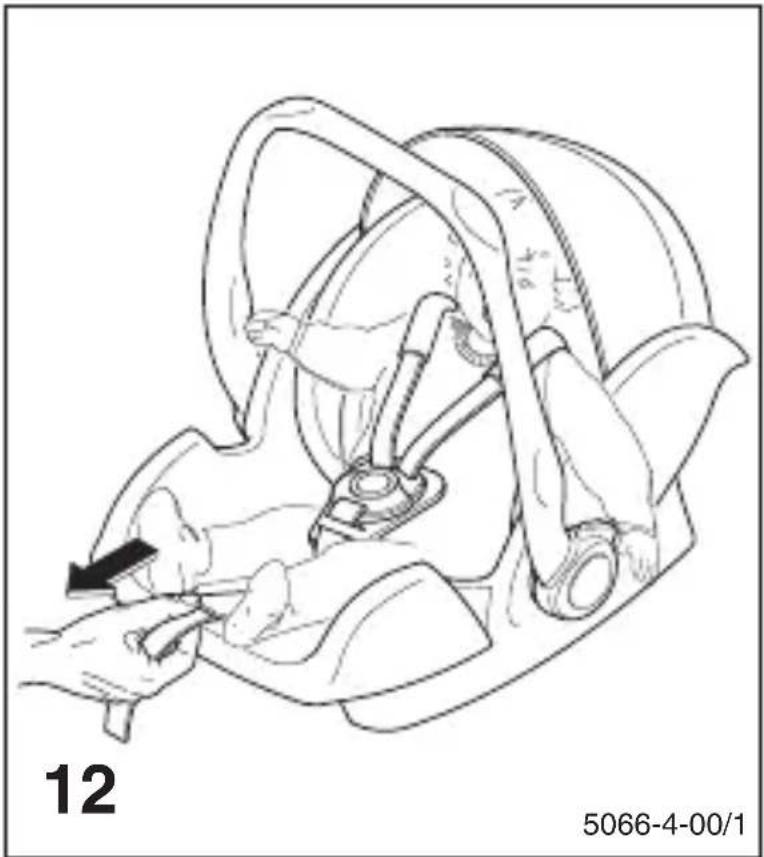

Pull the crotch-strap upwards and tighten the belts by pulling the forward section of the belt as shown in diagram 12. The belts should be pulled tight, so that one finger can just be inserted between the belt and child's body.

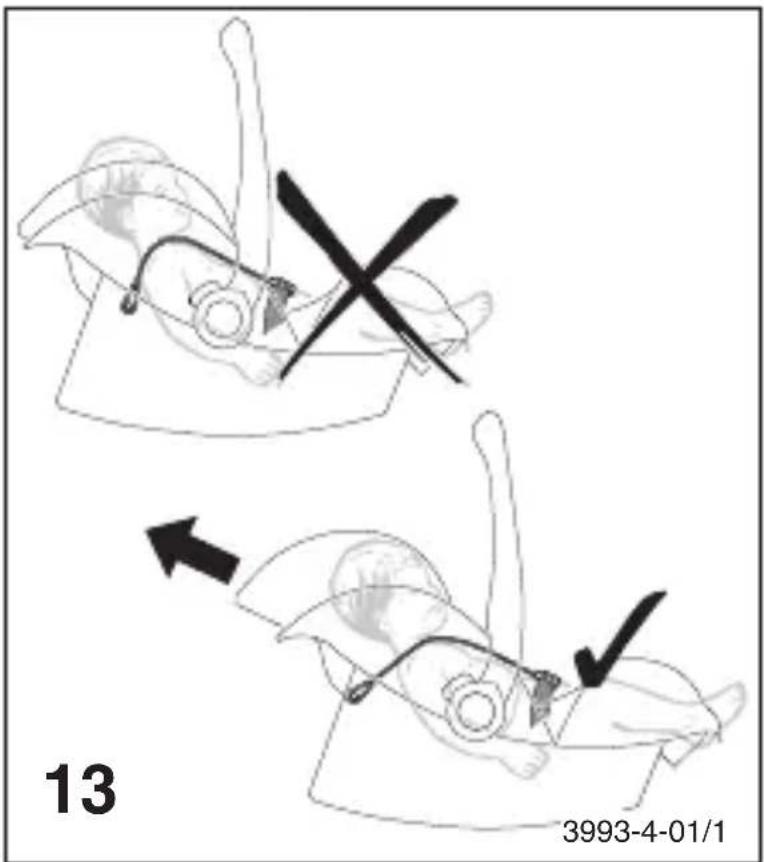

Ensure that the shoulder belt is correctly positioned with the belts either level or slightly below the child's shoulders, as shown in the manner indicated in diagram 13. For adjustments see next picture.

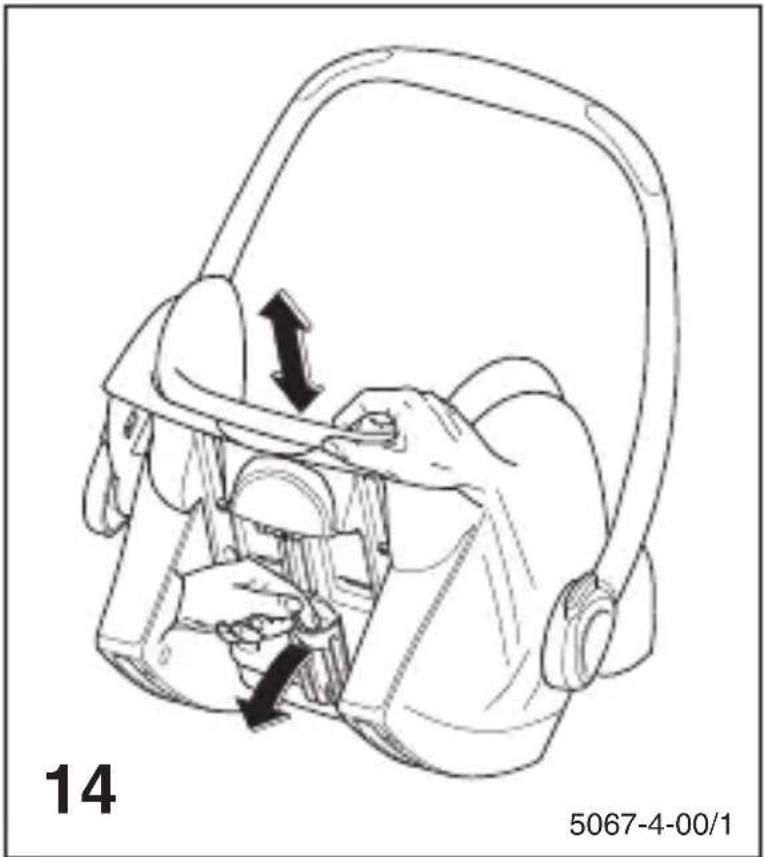

Loosen the harness, then pull the lever at the back of the shell and adjust the head-rest to the required position.

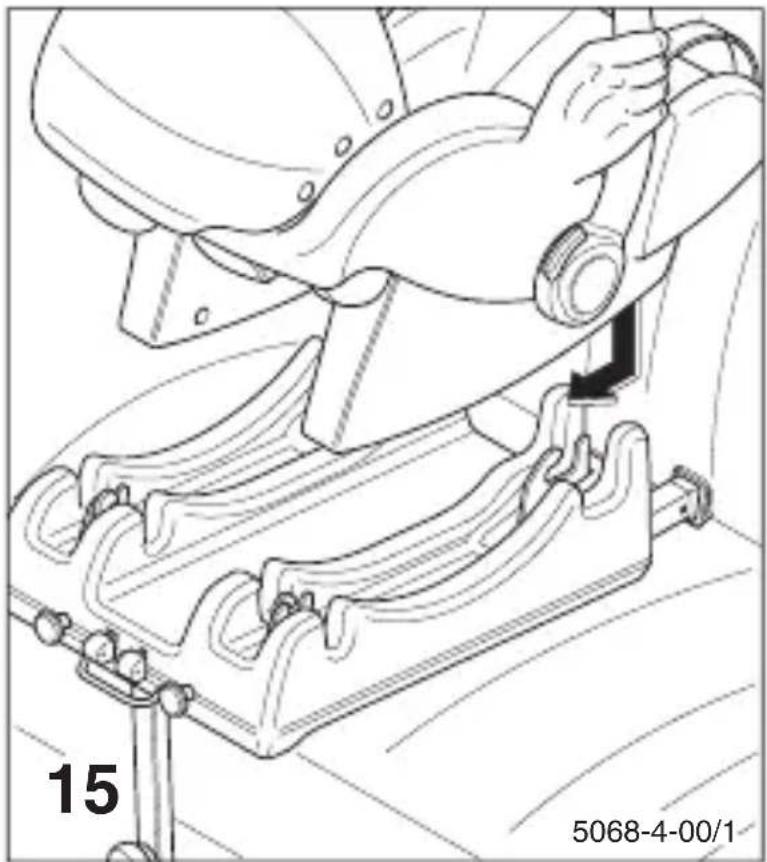

Anchoring the infant carrier: Insert the the rear fittings of the infant carrier in the rear anchor points of the Isofix base and pull slightly forwards.

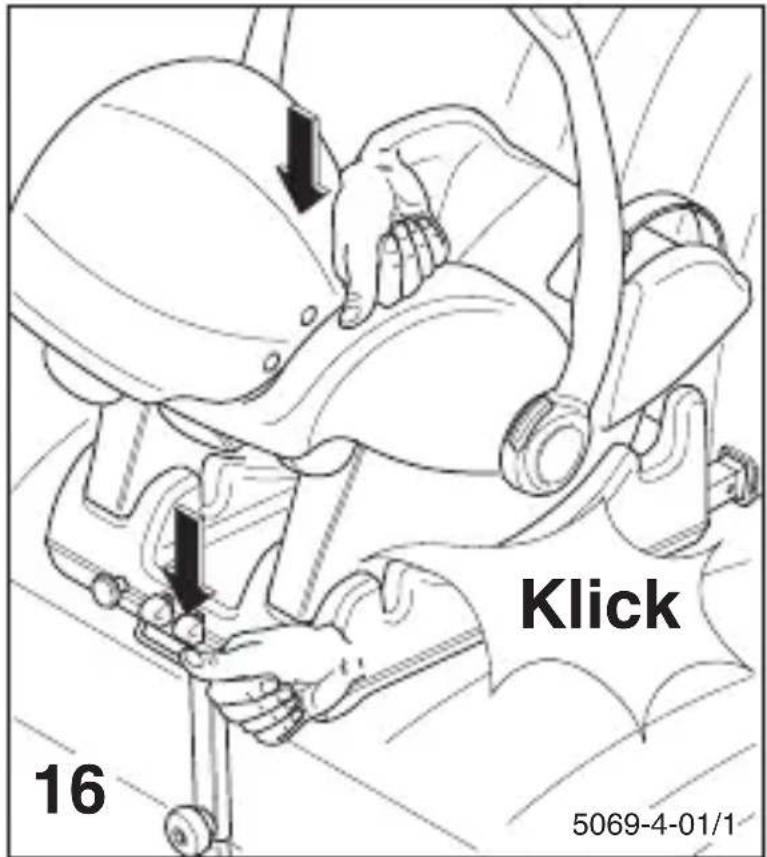

Lock the front fittings of the infant carrier into the front anchor points of the Isofix base. Lift to check that the infant carrier is securely locked at both the front and back.

Press both of the yellow buttons (A) in order to release the first notch. You can now push the system back in the direction of the car upholstery without pressing the yellow buttons; it comes to a halt just before making contact with the upholstery.

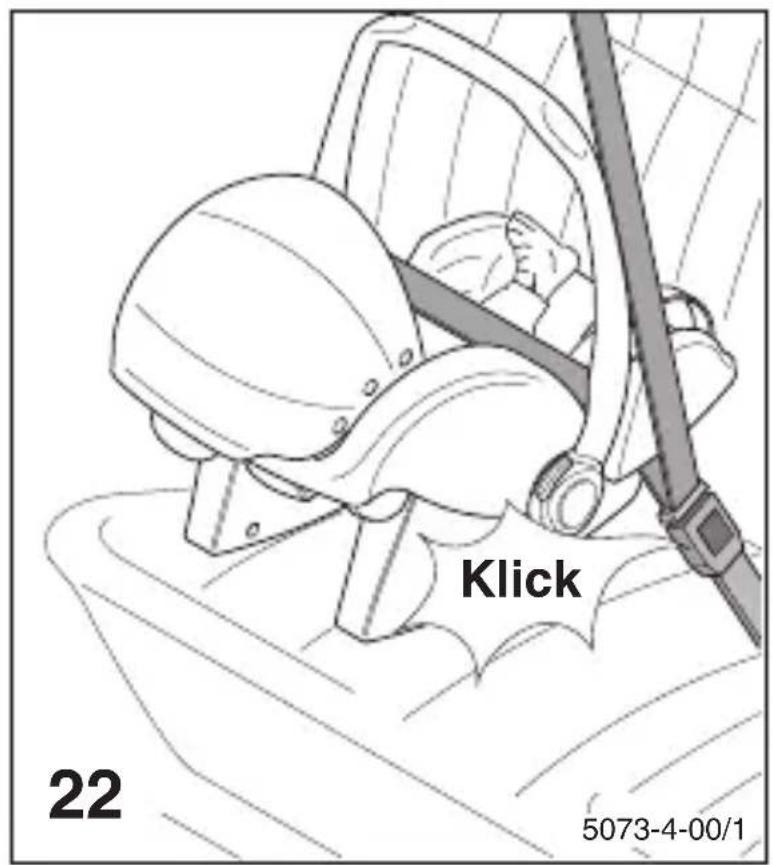

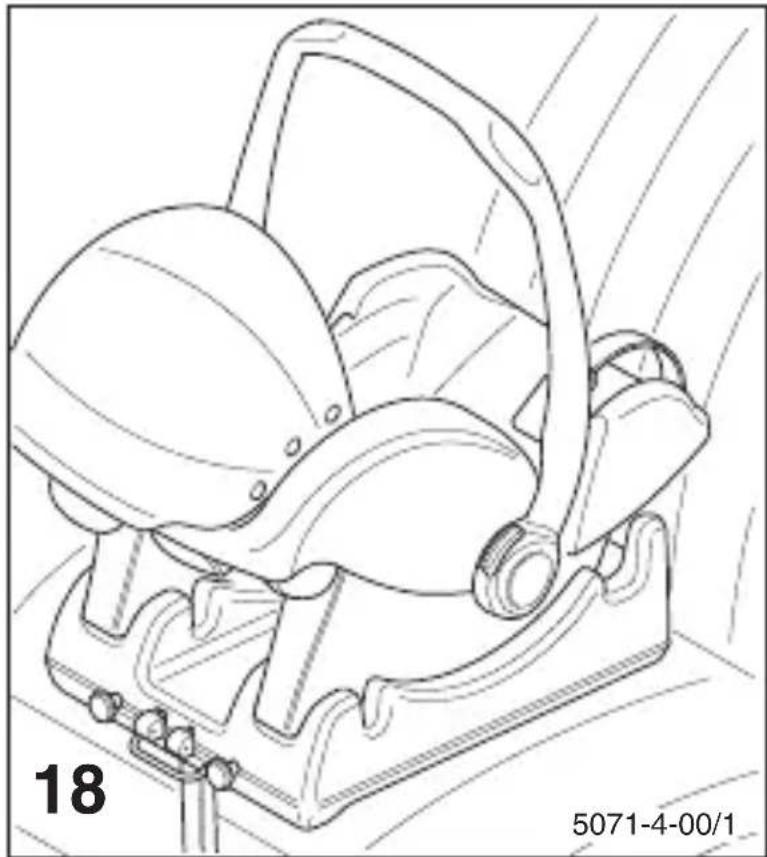

During transportation in the vehicle, the carrying handle must be in the upright position.

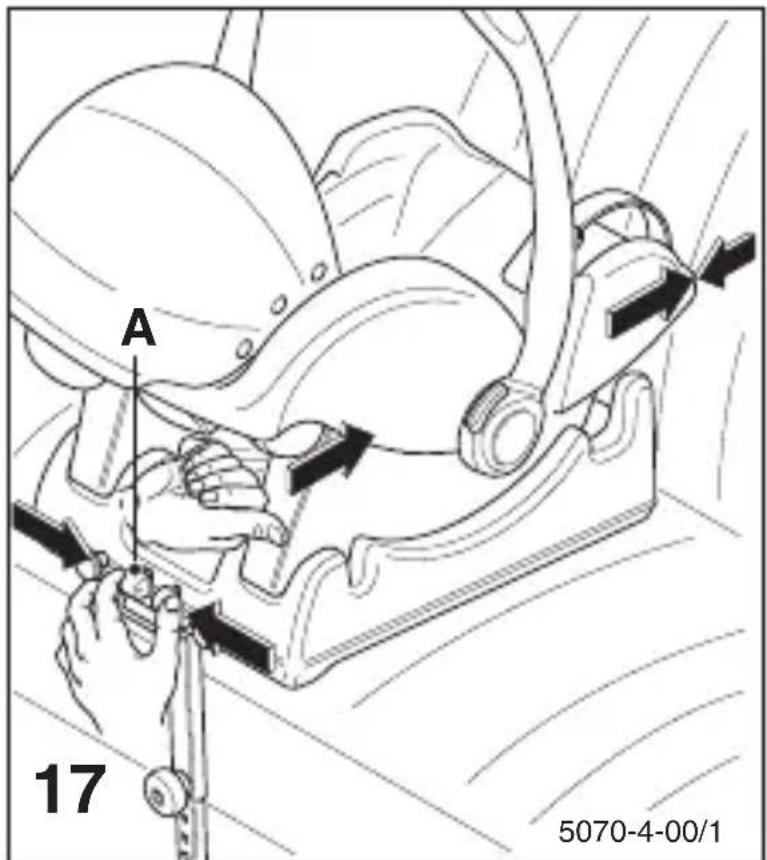

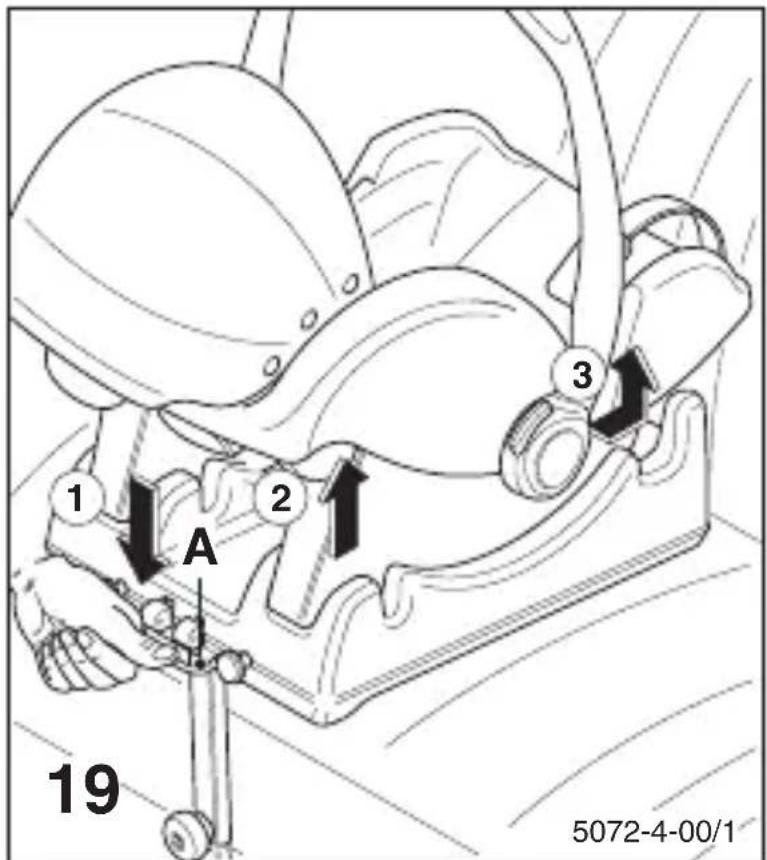

Removing the infant carrier: Press down the locking lever (A) to release the front locks and lift off the infant carrier. Push the infant carriers slightly towards the rear of the vehicle and lift out. If this proves to be difficult on account of collision with the vehicle's rear seat, then readjust the Isofix base slightly forwards (see fig. 20).

Ausbau Isofix:

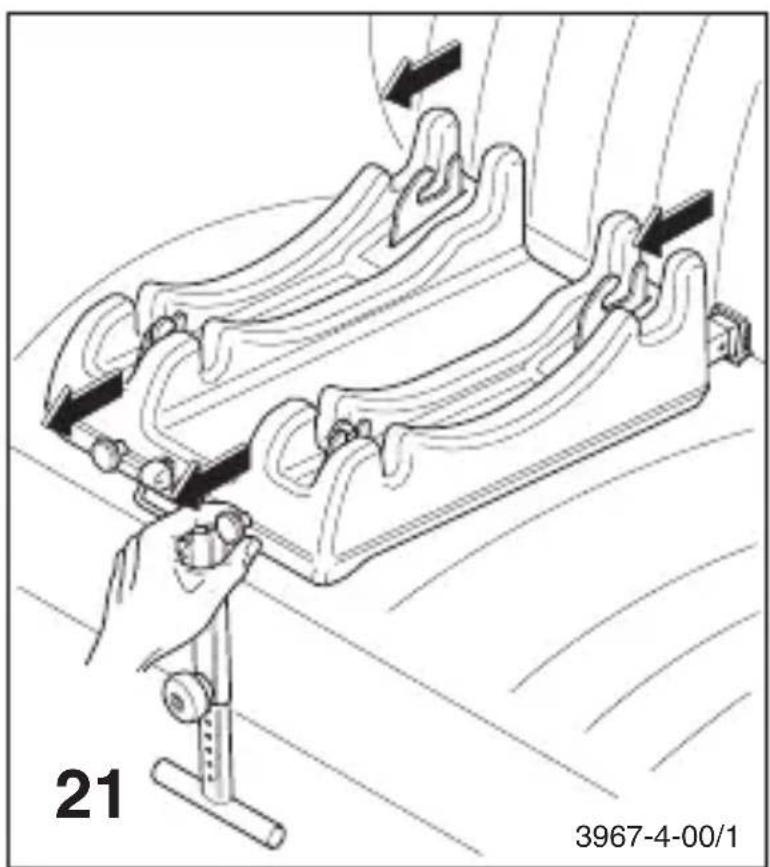

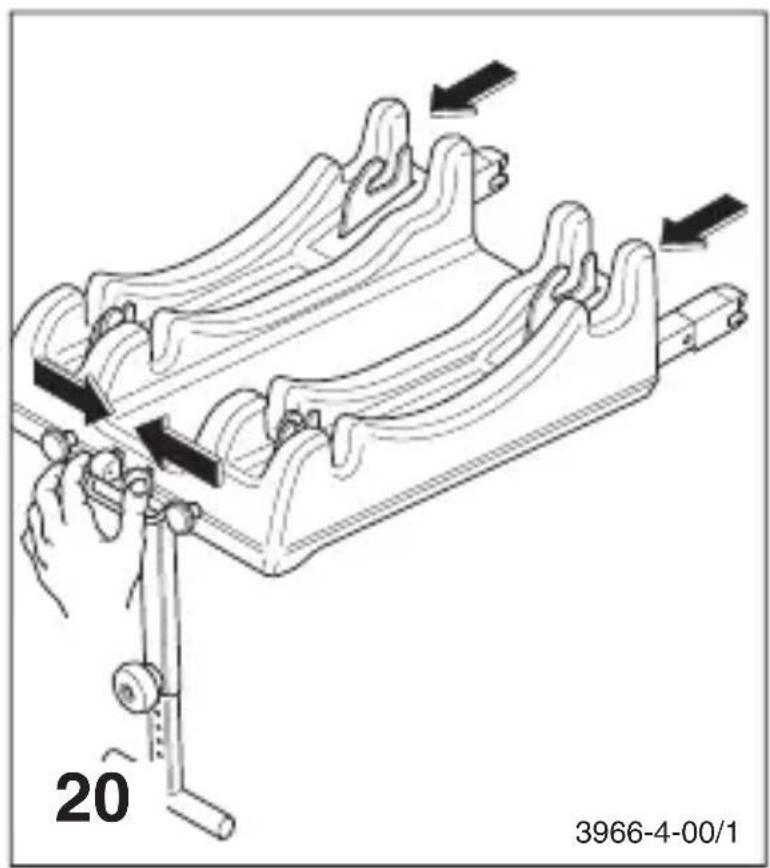

The Isofix base can be extended on its connectors by pressing the yellow buttons together and moving the Isofix base towards the front of the vehicle. This is necessary before any renewed installation in another vehicle.

Release the Isofix connectors by pulling the two unlocking buttons.

Installing with the vehicle belt:

Insert the lap section of the seatbelt in the guides on both sides and close the belt locking buckle with an audible click.

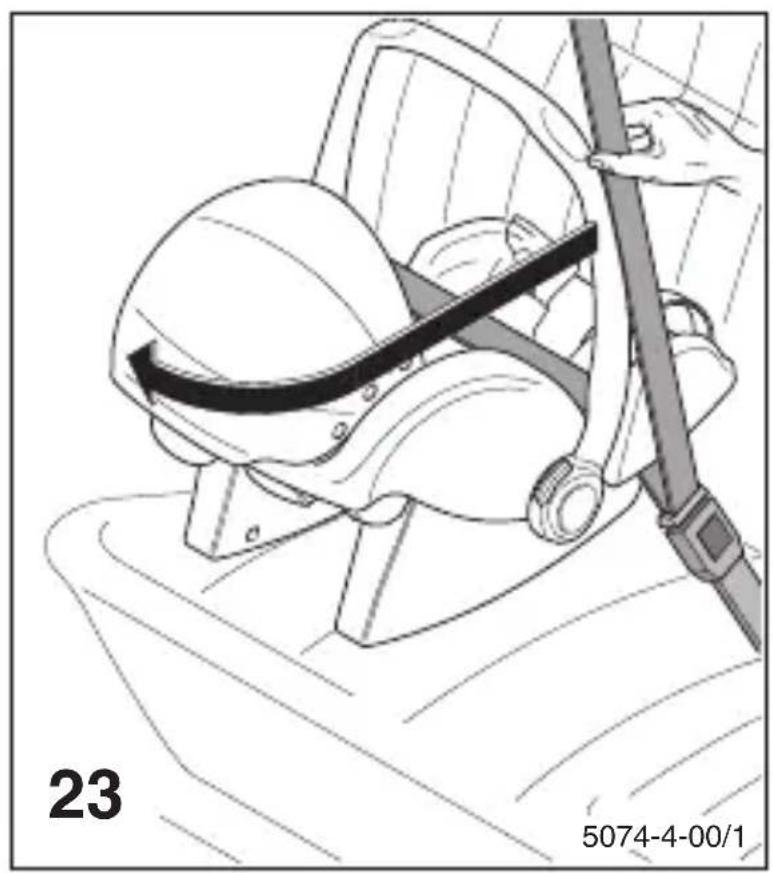

Pull out the shoulder belt and place it around the head area of the infant carrier.

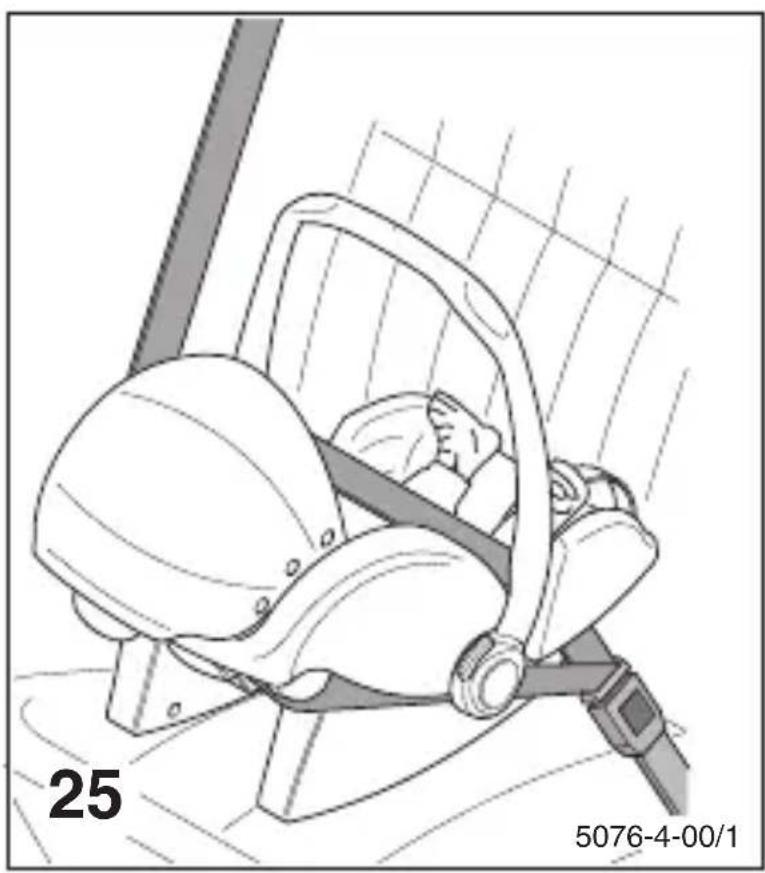

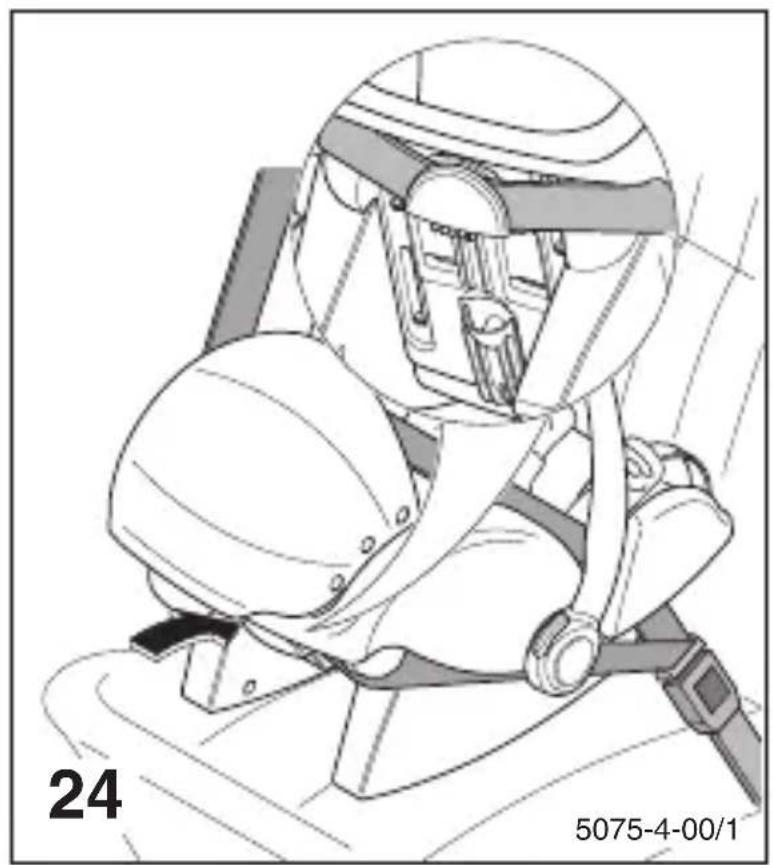

Insert the shoulder belt in the guide (see the blue routing arrow).

During transportation in the vehicle, the carrying handle must be in the upright position.

Bezug abnehmen:

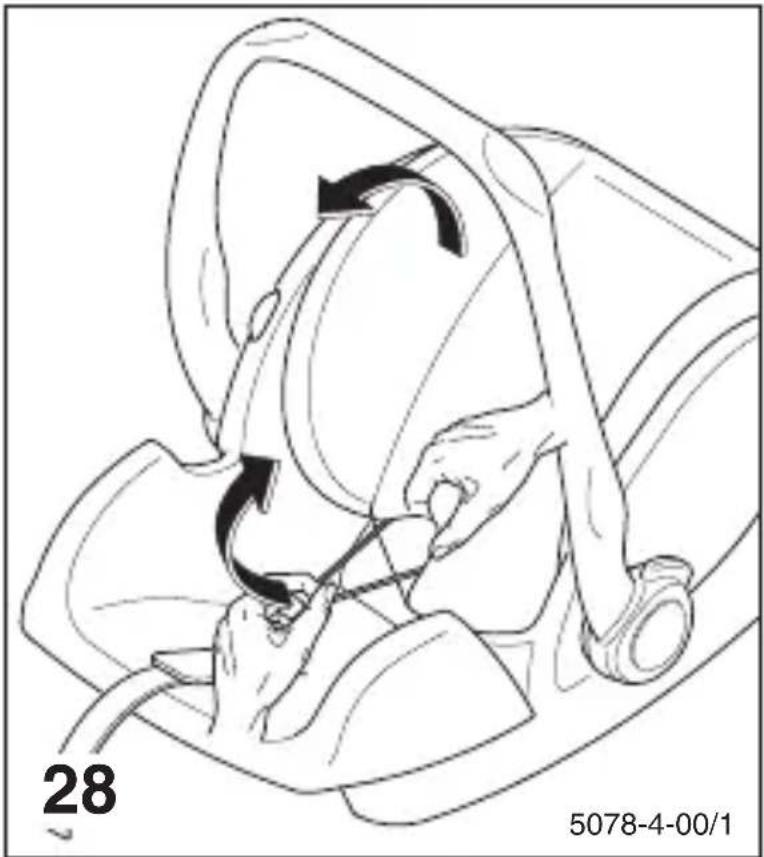

Pull the shoulder pads and belt locking buckle pad off the belts.

Remove the head-support and unbutton the sunshade.

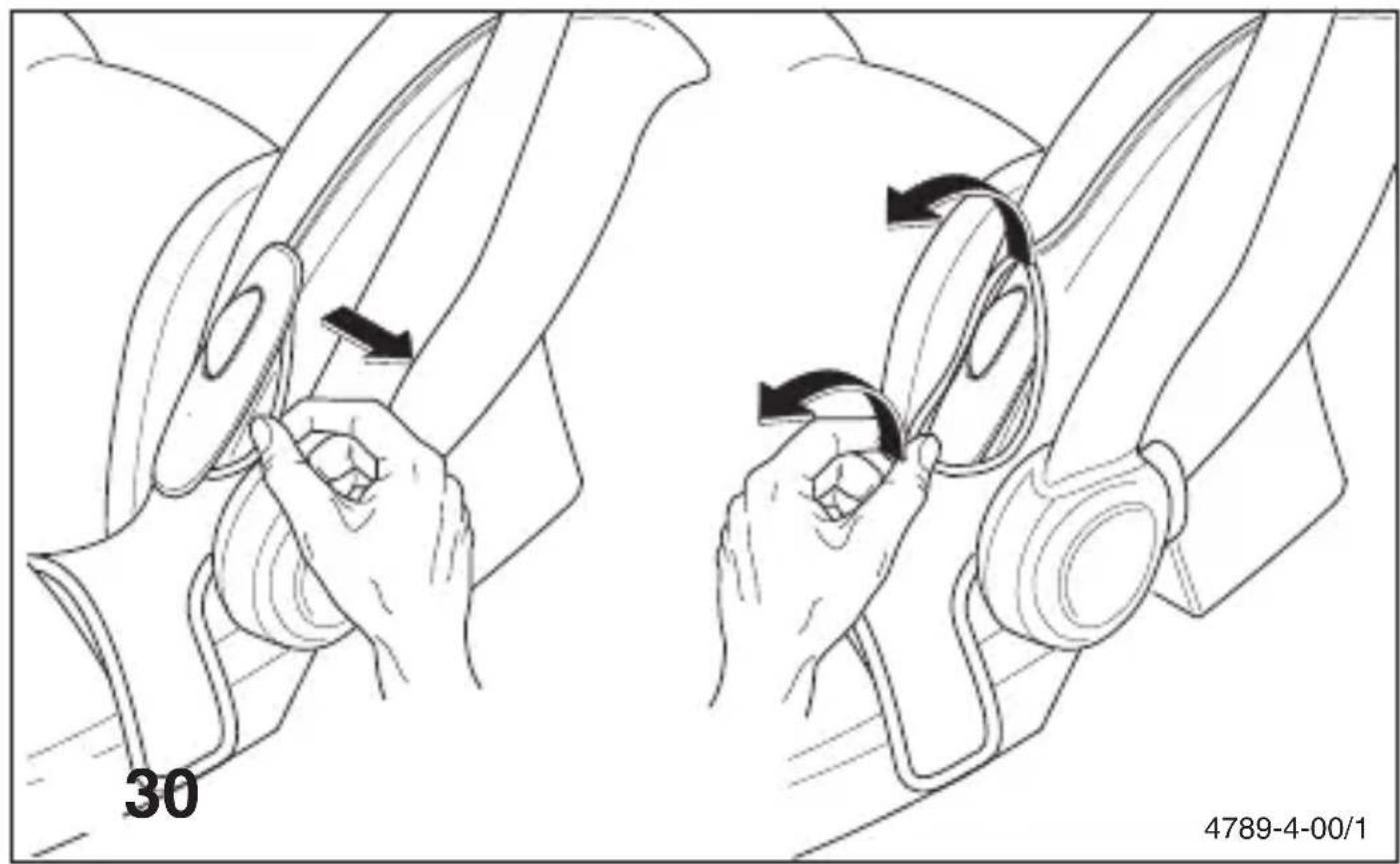

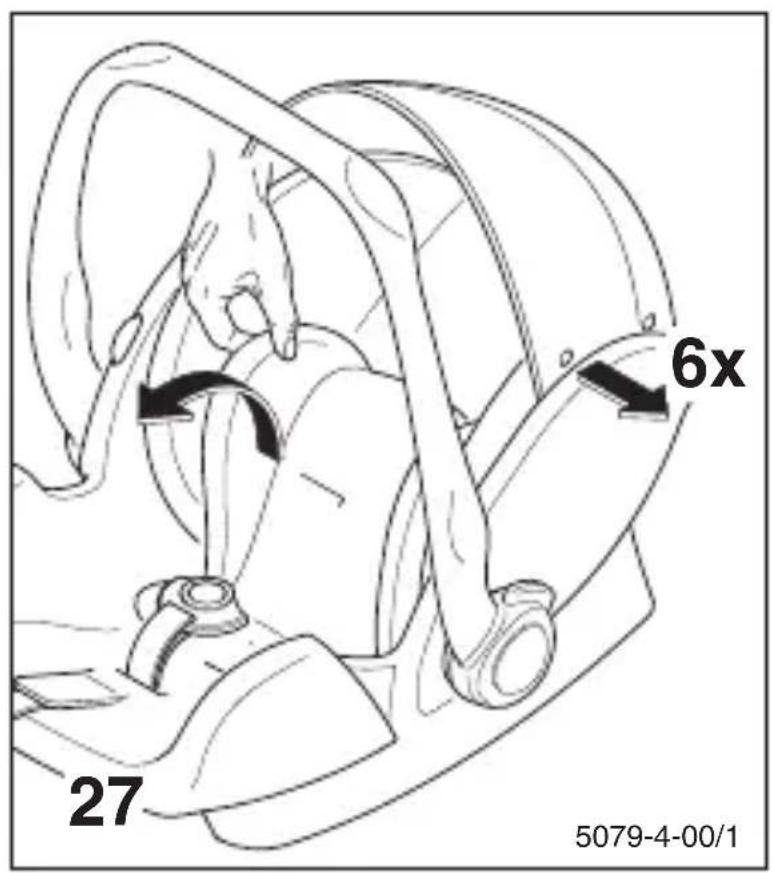

Unhook the rubber loops and pull off the head support cover.

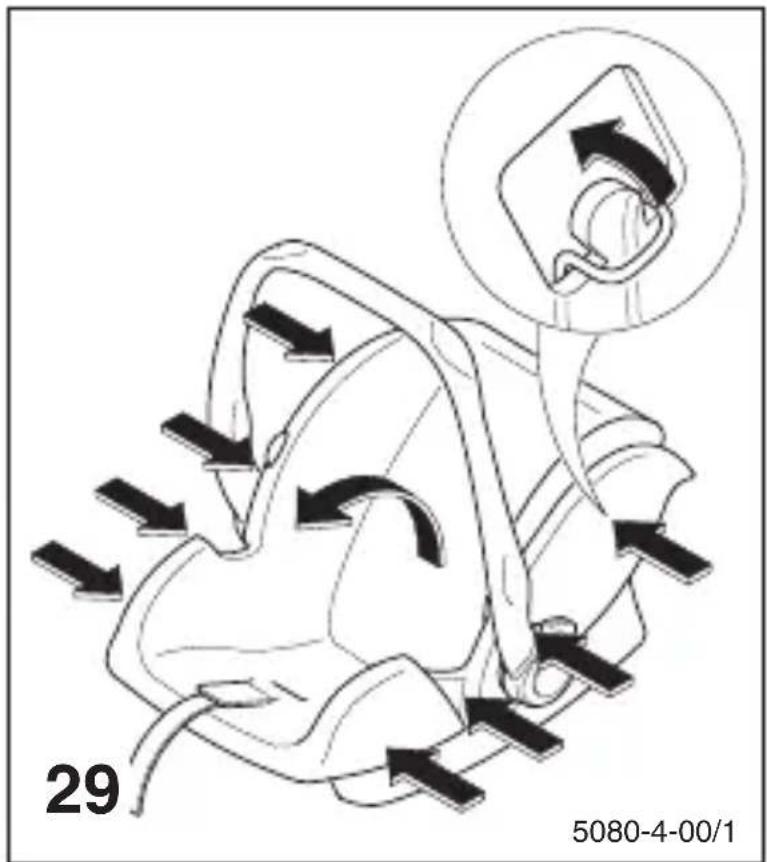

Unhook the rubber loops from the inside of the shell and remove the cover.

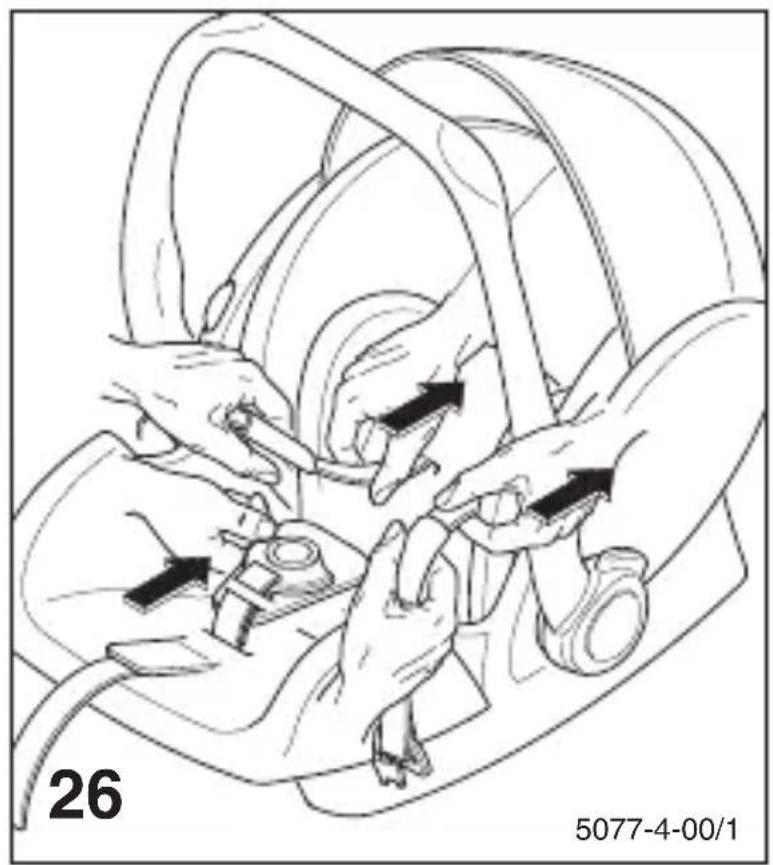

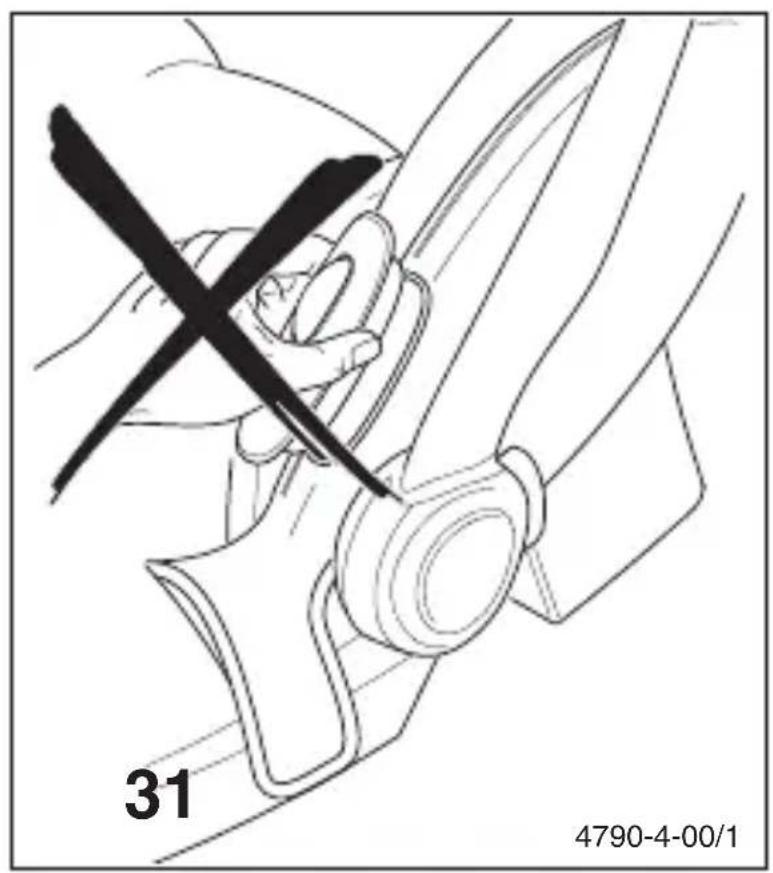

Fasten the cover in the reverse sequence (see diagrams 31 - 26).

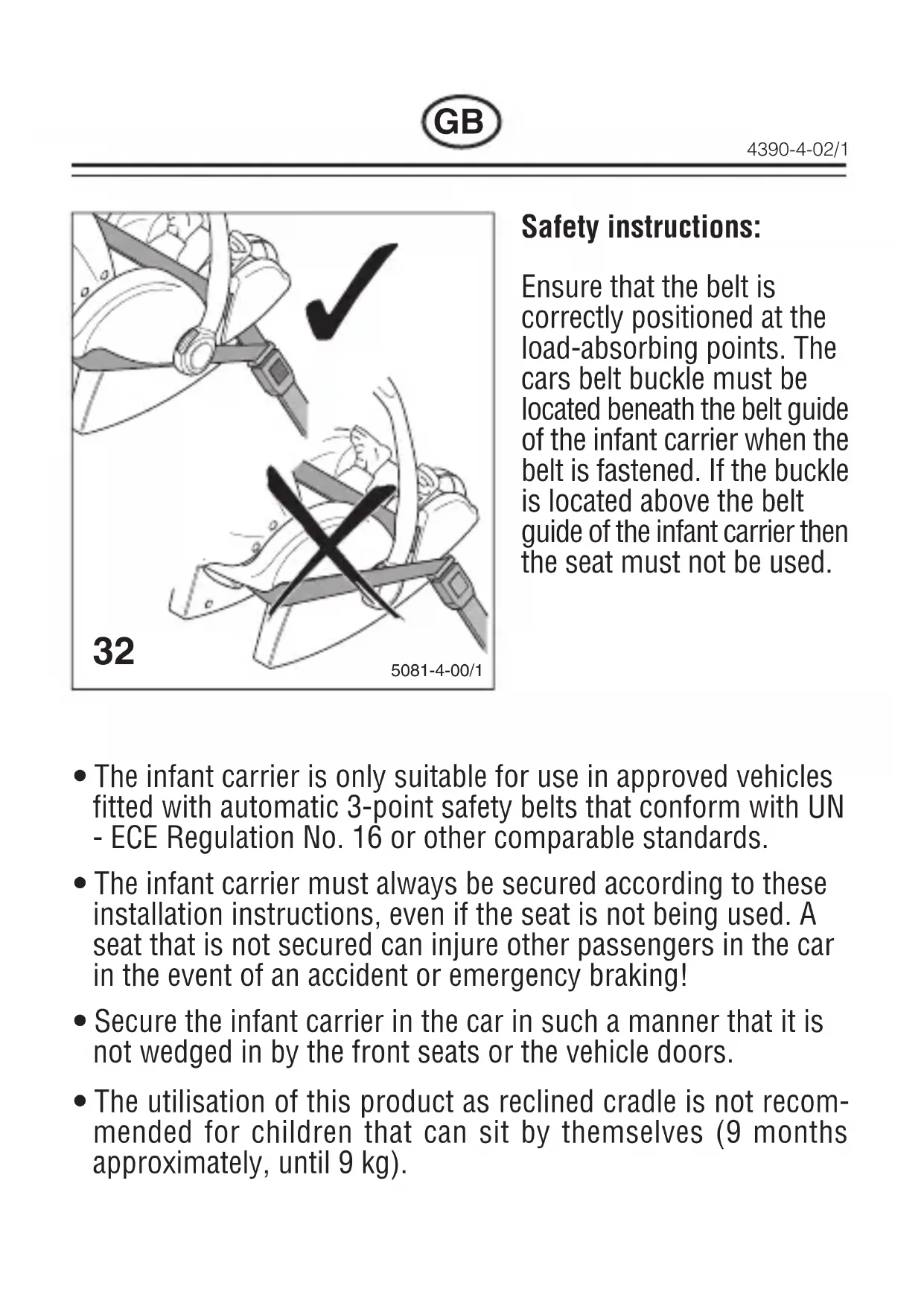

Safety instructions:

Ensure that the belt is correctly positioned at the load-absorbing points. The cars belt buckle must be located beneath the belt guide of the infant carrier when the belt is fastened. If the buckle is located above the belt guide of the infant carrier then the seat must not be used.

• The infant carrier is only suitable for use in approved vehicles fitted with automatic 3-point safety belts that conform with UN - ECE Regulation No. 16 or other comparable standards.
• The infant carrier must always be secured according to these installation instructions, even if the seat is not being used. A seat that is not secured can injure other passengers in the car in the event of an accident or emergency braking!
• Secure the infant carrier in the car in such a manner that it is not wedged in by the front seats or the vehicle doors.

• The utilisation of this product as reclined cradle is not recommended for children that can sit by themselves (9 months approximately, until 9 kg).

• The child seat must not be changed and the assembly and usage instructions must be carefully observed because, otherwise, the child could be endangered while travelling.

• The belts must not be twisted, jammed or squeezed, and they must be taut.
• After an accident the child seat should be replaced.
• Ensure that luggage and other objects are adequately secured, particularly when they are on the rear window shelf, otherwise they could cause injuries in the event of a crash. Set a good example and strap yourself in. An adult that is not strapped in can be a danger to the child.
• WARNING: Never leave a child in a baby seat unattended!
• WARNING: It is dangerous to put this infant carrier on an elevated area!
• Never leave a child in a baby seat unattended.
• Always buckle in your child.
• Protect the child seat from direct exposure to the sun so that the child cannot be burnt by a hot cover, and to prevent the cover from fading.
• Never use the child seat without the cover! Never exchange the seat cover for one that has not been recommended by the manufacturer. This is because the cover forms an integral part of the system's safety function!

General instructions

• The Usage Instructions are in a pocket under the cover. They should always be returned to this pocket after use.
• Weight Class 0+ to 13 kg. Only to be fitted rearward facing.
• The seat and belts can be cleaned with lukewarm water and soap. The cover can be washed according to the care label.
• The belt locking buckle can be flushed out with water.

Warranty:

• 2-year warranty, as of the date of purchase, for fabrication and material faults. Claims can only be made against proof of purchase date. The warranty is limited to child seats that have been correctly treated and are returned in a clean and orderly state.
• The warranty does not cover natural wear and damage caused by excessive, unsuitable or improper usage.
• Fabric: All our fabrics fulfil high demands regarding colour fastness. However, fabrics are bleached by UV radiation. This is not a material fault, merely normal wear for which no guarantee is given.
• Locking buckle: Functional faults of the belt locking buckle are usually attributable to dirt for which no guarantee is given.

Protecting your vehicle

• We point out that the use of child seats may cause damage to the vehicle seats. Safety directive ECE R44 requires firm fitment. Please take suitable precautions (e.g. Storchenmühle Car Seat Protector) for the seats of your vehicle. RECARO GmbH & Co. KG and its dealers are not liable for possible damage to the car seats.
• If you have any questions call us or send us an email. Telephone: [phone], email: [e-mail]

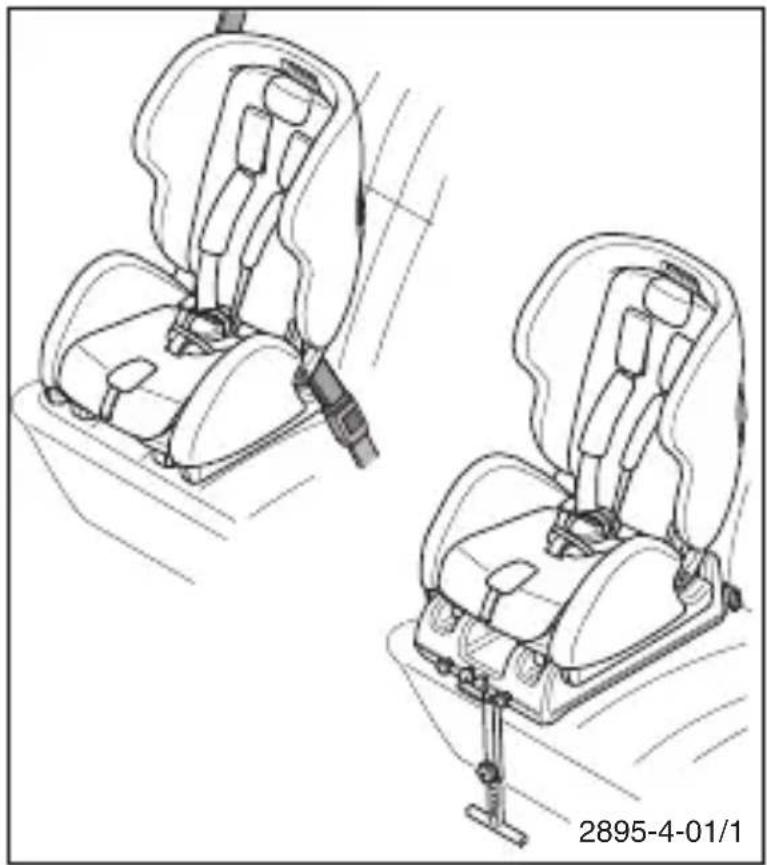

Twin One-the expert for Group 1

The Twin One Isofix is the optimal upgrade to your Twin 0 Plus. It is designed for weight class 1 (9-18 kg) and can be securely fitted to the vehicle with the same Isofix basis.

Ask your dealer.
