USER MANUAL Latte Creme W7.001 BEEM

Details of this user manual 3

Copyright 3 3
Warnings 34
Intended use 35
Disclaimer 35

Safety 36

Danger of electric shock 36
Danger of burns/danger of scalding 36
Fundamental safety precautions 37

Setting up and connection 38

Safety precautions 38
Checking contents and packaging 38
Disposal of the packaging 39
Requirements for the place of use 39
Electrical connection 40
Before using for the first time 40

Design and function 41

Device elements 41
Operating elements 42

Preparing 43

Inserting/removing the frother 43

Placing the milk container onto the base plate 43

Operation and use 44

Safety precautions 44
Notes on the non-stick coating of the milk container 44
Possibilities for use 4 4
Using the device 45
After use 48

Table of Contents

EN

Cleaning and maintenance 4

Safety precautions 48

Cleaning 48

Troubleshooting 5

Safety precautions 50

Faults - causes and remedies 51

Information on storage/disposal 52

Storage 52

Disposal 52

Appendix 5

Technical data 52

Spare parts and other accessories 53

Certifications 53

Guarantee, service and repairs 54

EC Declaration of Conformity 56

Index 57

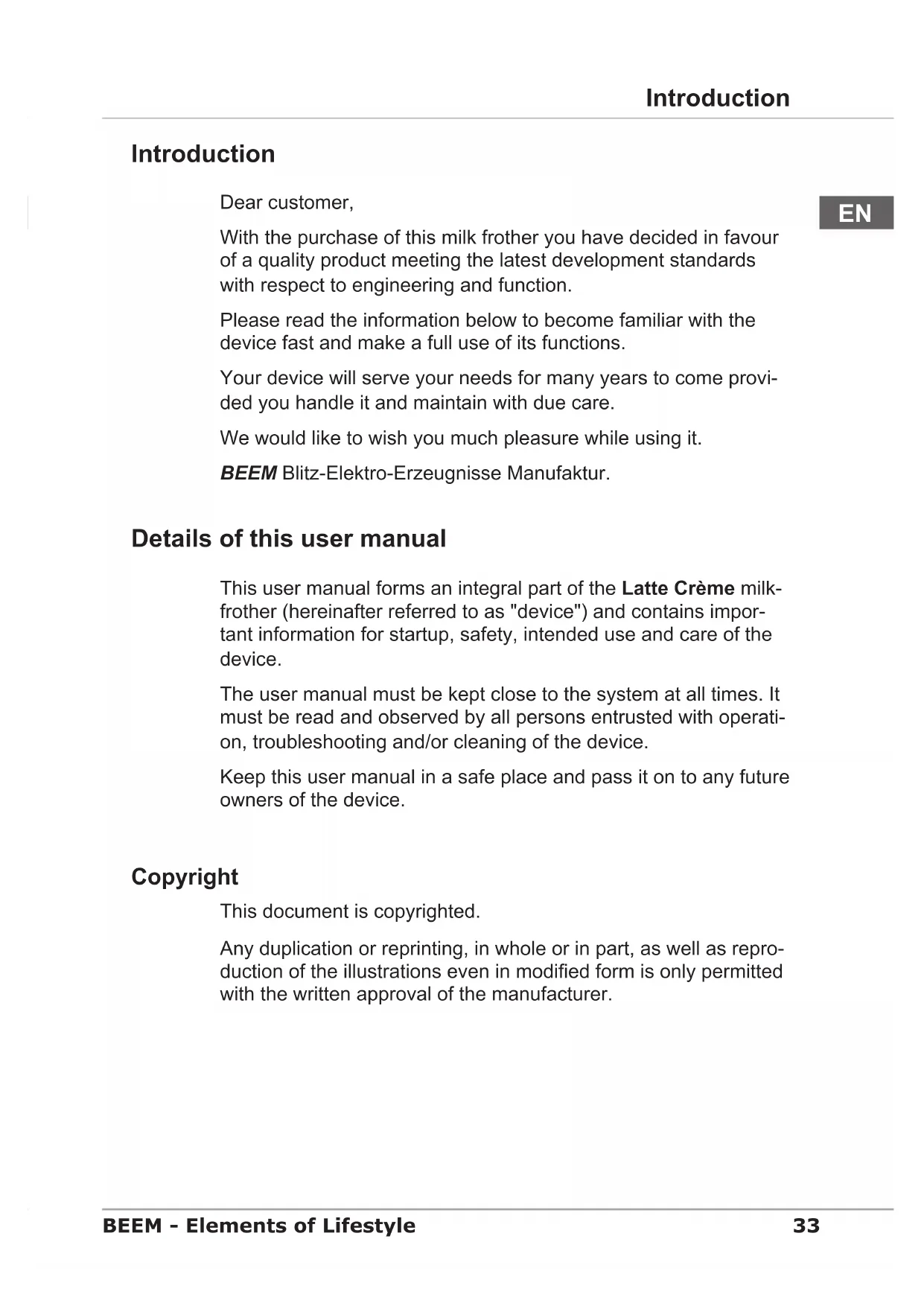

Introduction

Dear customer,

With the purchase of this milk frother you have decided in favour of a quality product meeting the latest development standards with respect to engineering and function.

Please read the information below to become familiar with the device fast and make a full use of its functions.

Your device will serve your needs for many years to come provided you handle it and maintain with due care.

We would like to wish you much pleasure while using it.

Details of this user manual

This user manual forms an integral part of the Latte Crème milk-frother (hereinafter referred to as "device") and contains important information for startup, safety, intended use and care of the device.

The user manual must be kept close to the system at all times. It must be read and observed by all persons entrusted with operation, troubleshooting and/or cleaning of the device.

Keep this user manual in a safe place and pass it on to any future owners of the device.

Copyright

This document is copyrighted.

Any duplication or reprinting, in whole or in part, as well as reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.

Warnings

The following warnings are used in this user manual:

EN

DANGER

A warning of this category indicates an impending dangerous situation.

If the dangerous situation is not avoided, it may lead to serious injury or even death.

Follow the instructions in this warning to avoid the danger of serious injury or even death.

WARNING

A warning of this category indicates a potentially dangerous situation.

If the dangerous situation is not avoided, it may lead to injuries.

Follow the instructions in the warning to prevent injuries to persons.

CAUTION

A warning of this category indicates potential material damage.

If the situation is not avoided, it may lead to material damage.

Follow the instructions in the warning to prevent damage.

NOTE

A note indicates additional information that simplifies the use of the device.

Intended use

The device is intended only to heat and froth milk in enclosed rooms for non-commercial use. If used commercially, please pay attention to the modified warranty period.

Use in any other or further way is not considered an intended use.

WARNING

Danger from use for other than the intended purpose!

If not used for its intended purpose and/or used in any other way, the device may be or become a source of danger.

Use the machine only for its intended purpose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage or injury resulting from use of the device for other than its intended purpose.

The risk has to be borne solely by the machine owner.

Disclaimer

All technical information, data and instructions on installation, operation and maintenance of the device contained in this user manual represent the latest status at the time of printing.

No claims can be derived from the information, illustrations and descriptions in this user manual.

The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.

Safety

EN

This appliance complies with the prescribed safety regulations. Improper use can however result in personal injury and/or device damage.

Danger of electric shock

DANGER

Danger to life by electric shock!

Contact with live wires or components could lead to serious injury or even death!

Observe the following safety precautions to avoid electric shocks:

Do not use the device if the connecting cable, plug or housing are damaged.

Do not open the housing of the device. Danger of electric shock if live connections are touched and/or the electrical and mechanical configuration is changed.

Danger of burns/danger of scalding

WARNING

Parts of the device and the milk heated become very hot!

Observe the following safety precautions to avoid burning or scalding yourself and/or others:

Do not touch the hot surfaces during operation.

Do not move the device while it is switched on. Moving the device can cause hot milk to leak out.

Use the handle to take hold of the device while it is in operation.

Before cleaning, allow the device to cool down.

Fundamental safety precautions

For safe use of the device, observe the following fundamental safety precautions and the precautions described separately in the individual sections:

EN

Inspect the device for visible signs of damage before use. Do not use a damaged device.

Do not remove the rating plate or any warning signs on the device.

Keep the device out of the reach of children.

Do not operate the device for prolonged periods without supervision.

Only use the device in connection with the base plate supplied.

Persons who due to their physical, mental or motor response abilities are unable to operate the device may only use the device under supervision or instruction by a responsible person.

Never immerse the device, the mains cable or the mains plug in water or other liquids.

Do not pull the cable to remove the plug from the mains so- ■ cket.

Repairs to the machine may only be carried out by the specialist retailer or by the works after-sales service. Unqualified repairs can lead to considerable danger for the user. They will also void the warranty.

Repairs to the device during the warranty period may only be carried out by service centres authorised by the manufacturer as the warranty will otherwise be voided in the event of damage or subsequent damage.

Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

Setting up and connection

EN

Safety precautions

WARNING

Persons may be injured or material damage may be caused during startup!

Observe the following safety precautions to avoid any danger: Never play with packaging material. Risk of suffocation.

Observe all information on the requirements for the place of operation and the electrical connection of the device to avoid personal injury and material damage.

Checking contents and packaging

The device is supplied with the following components as standard:

Milk container

Brother

Base plate with integrated electrical adapter and mains cable

User manual

NOTE

Check for visible signs of damage or missing items on delivery. Report an incomplete or damaged delivery to your supplier/retailer immediately.

Disposal of the packaging

The packaging protects the device against damage during transit. The packaging materials have been selected according to environmental and waste disposal aspects and can therefore be recycled.

Recycling the packaging material for further use saves raw materials and reduces the waste. When no longer required, dispose of the packaging materials in accordance with the local regulations.

NOTE

If possible, keep the original packaging during the warranty period in order to pack the device properly in the event of a warranty claim. Transport damage will invalidate the warranty.

Requirements for the place of use

For safe and trouble-free operation of the device, the place of operation must satisfy the following requirements:

• Place the device on a level, heat resistant surface that is also resistant to splashing milk.

Do not place the appliance in a hot, wet or very humid environment or in the vicinity of inflammable materials. There must be a gap of at least 15cm between the device and any walls, furniture or other objects.

Select a location that does not allow children to reach the hot surfaces of the device.

The device is not intended to be mounted.

The mains socket must be easily accessible so that the plug can be quickly pulled out in an emergency.

EN

Electrical connection

For safe and trouble-free operation of the device, the following instructions have to be observed for the electrical connection:

Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the device. If in doubt, ask your electrical device retailer.

The mains socket must be protected by at least a 10 A circuit breaker.

Ensure that the connecting cable is undamaged and is not laid over hot surfaces or sharp edges.

The connecting cable must not be strained, bent or come into contact with the hot device.

Place the cable in such a way as to avoid danger from trip- ping.

The device may not be connected using an extension cable or multiple power strip.

• The electrical safety of the device is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Before using for the first time

Clean the device as described in section Cleaning and maintenance.

NOTE

The device must not be cleaned in a dishwasher.

Design and function

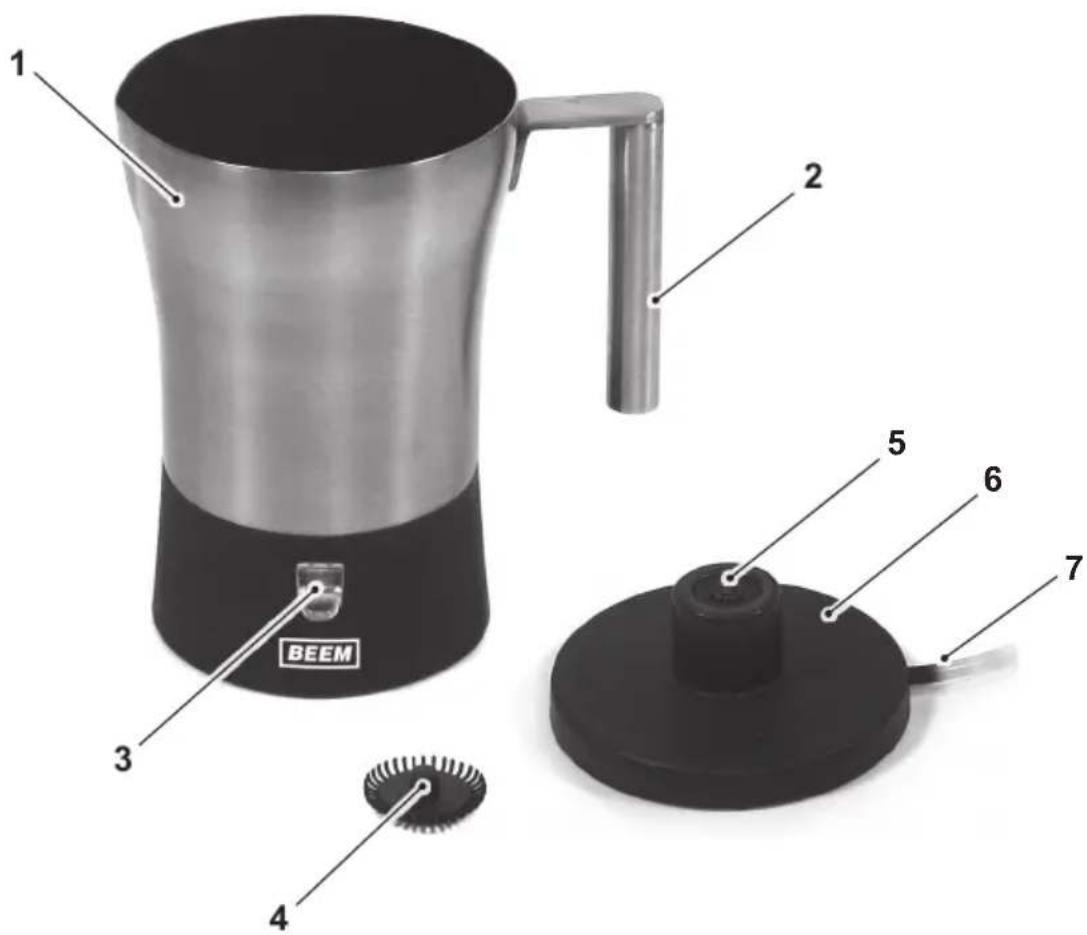

Device elements

EN

1 Milk container
2 Handle
3 ON switch with control lamp
4 Frother
5 Electrical adapter
6 Base plate
7 Connecting cable with mains plug

Operating elements

EN

ON switch

To switch on the device, proceed as follows:

Push the ON switch (3) briefly so that the control light goes on.

NOTE

Do not press the ON switch (3) again after the device has been switched on.
The device cannot be switched off via the ON switch (3); it switches itself off automatically.

NOTE

If the ON switch (3) was already pressed before connection of the device, the device will be switched on when the mains cable (7) is inserted into the mains socket.

The device switches itself off automatically only after frothing or when the required milk temperature has been reached.

Preparing

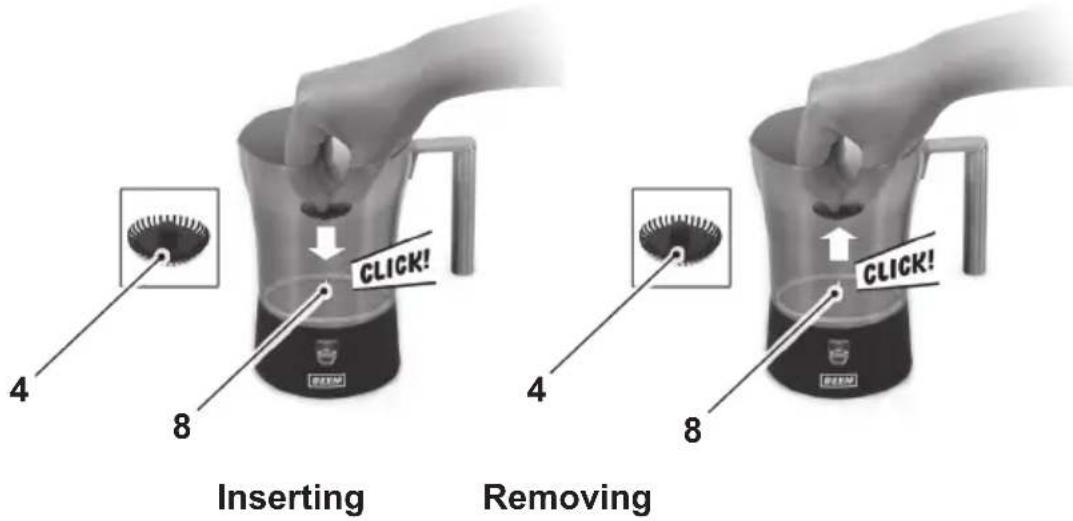

Inserting/removing the frother

EN

WARNING

Danger of injury by accidentally switching on the device.

Switching on the device accidentally can cause burns.

Do not insert the plug into the mains socket yet.
Do not place the milk container (1) onto the base plate (6) yet.

Put the frother (4) on the holding pin (8) on the bottom of the milk container (1) and push it with minimal force until it snaps in with a "click".

Pull the frother (4) carefully with minimal force from the hol- ding pin (8) of the milk container (1).

Placing the milk container onto the base plate

Place the milk container (1) onto the middle of the base plate (6). This makes an electrical contact between the milk container (1) and the base plate (6).

Insert the mains plug of the connecting cable (7) into the mains socket.

EN

This section contains important information on the operation of the device.

Safety precautions

WARNING

Improper use may cause injury to persons or material damage!

In addition to the fundamental safety precautions, observe all information stated in this section in order to avoid danger.

Do not put any inflammable substances onto the device or into the vicinity of the appliance.

Notes on the non-stick coating of the milk container

NOTE

The inside of milk container (1) has a non-stick ceramic coating. This is designed to prevent milk and fat from sticking to the container.

Possibilities for use

You can prepare tasty milk froth for approx. three to four cups of cappuccino or Latte Macchiato easily with the device. You can use various different milk types. It does not matter if you froth milk from cows, goats or soy, the protein content is decisive for the result and not the origin or fat content. It is therefore possible to create creamy froth from milk with a low fat content.

Another advantage: if you are allergic to cow's milk, you could use soy milk instead. You do not have to do without a tasty cappuccino!

Using the device

CAUTION

Danger of damage if heated dry.

Using the device without any liquid (milk) can cause overheating and cause damage to the device.

Before using the device, always fill the milk container with milk.

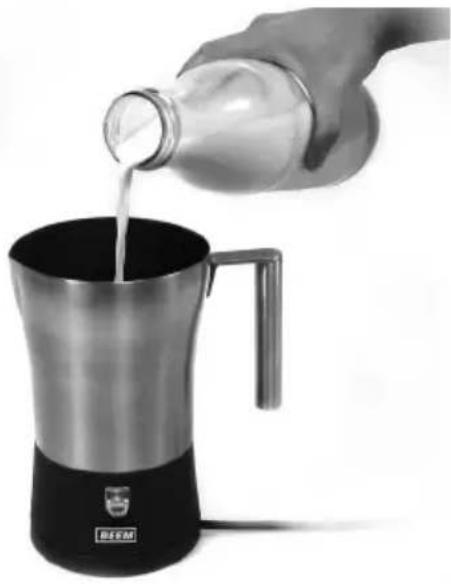

Fill the milk container with the desired quantity of milk.

NOTE

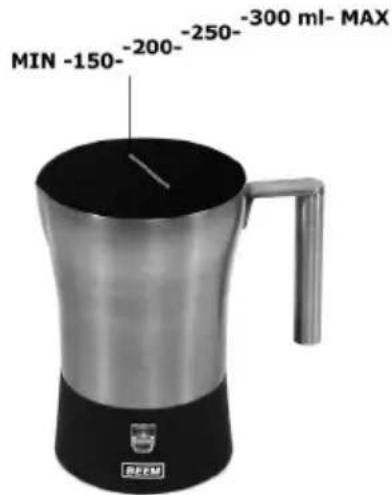

Pay attention to the minimum and maximum filling levels.

Too much milk can froth over. Refer to the level mark on the inside of the milk container:

minimum filling quantity: 150 ml

maximum filling quantity: 300 ml

EN

Place the milk container (1) onto the base plate (6).

Insert the mains plug of the connecting cable (7) into the mains socket.

Switch on the device as described in the section Switching on by briefly pressing the ON switch (3).

Wait until the milk is warmed up and frothy and the device switches itself off (the control lamp in the ON switch (3) goes out).

NOTE

Depending on the quantity, the frothing process can take approx. 1-2 minutes.

The more milk is poured into the device, the longer the frothing process takes.

CAUTION

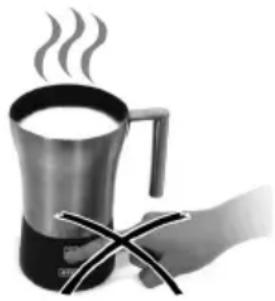

Risk of overheating.

Continued use of the device without allowing it to cool down can lead to overheating and cause damage to the device.

Do not press the ON switch (3) after the device has automatically switched itself off.

Do press and hold the ON switch (3) for longer periods of time.

DANGER

Danger of burns from hot surfaces / danger of scalding from hot milk!

Do not touch the hot milk container and only use the handle (2) to pick it up.

Move the milk container slowly and carefully so that hot milk does not spray or spill out.

Pick up the milk container (1) from the base plate (6) using the handle (2).

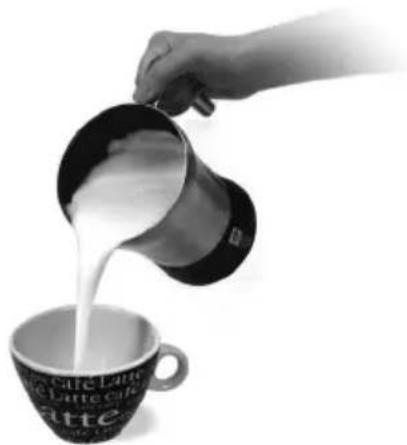

Pour the froth into a cup or use a spoon to remove it from the milk container.

NOTE

Before you begin frothing milk again, you must allow the device too cool down. The device cannot be switched on again until it has cooled down sufficiently.

Rinse the milk container (1) with cold water after each frothing process to accelerate cooling down.

Switching off

NOTE

The device cannot be switched off via the ON switch (3).
The device switches itself off automatically only after frothing or when the required milk temperature has been reached.

Pull the mains plug out of the mains socket if you accident- tally switch on the device and remove the milk container (1) from the base plate (6).

Pull the plug out of the mains socket after the device has automatically switched itself off.

EN

After use

Pull the plug out of the mains socket.

Allow the device to cool down and clean it as described in the section Cleaning and maintenance.

Cleaning and maintenance

This section contains important information on cleaning and maintenance of the device.

Safety precautions

DANGER

Danger to life by electric shock!

Wait until the device has switched itself off before disconnection the mains plug from the mains socket and beginning with cleaning.

WARNING

Risk of burning from the hot device!

The device remains hot after use. Danger of burning!

Wait until the device has cooled down before you start to clean it.

Cleaning

CAUTION

Possible damage to the non-stick coating by scratching!

The surface on the inside of the milk container (1) has a non-stick coating. Observe the following instructions to avoid damage:

When cleaning the milk container (1), do not use abrasive cleaners, metal brushes or other objects that could scratch the surface.

The device must be cleaned after each use.

NOTE

Clean the device as soon as it has cooled down. Waiting too long makes cleaning unnecessarily difficult.

Before cleaning, remove the frother (4) from the holding pin (8) and clean each part separately.

EN

NOTE

Clean regularly to prevent milk residue from sticking to the frother (4) and holding pin (8).

Rinse the milk container with cold water after each frothing process.

CAUTION

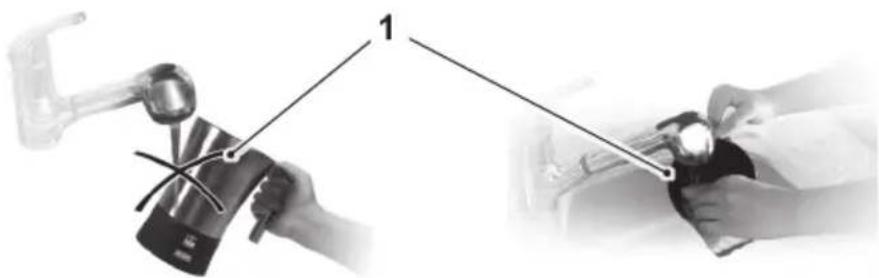

Damage to the device by penetrating liquids

Only rinse the inside of the milk container (1).

The device is not suitable for cleaning in a dishwasher.

Never immerse the device, the base plate or the mains cable with mains plug in water or other liquids.

Wipe the device with damp cloth or sponge and a little washing-up liquid and then with a damp cloth without washing-up liquid.

Troubleshooting

EN Safety precautions

DANGER

Danger to life by electric shock!

Pull the plug out of the mains socket before starting trouble-shooting.

WARNING

Danger caused by unqualified repairs!

Unqualified repairs can lead to considerable danger for the user and cause serious damage to the device.

Repairs to electrical appliances may only be carried out by the works customer service or by specialists trained by the manufacturer.

Faults - causes and remedies

Fault Possible cause Remedy
Device cannot be swit-ched on	Plug not inserted into mains socket	Insert plug
	Automatic circuit breaker in fuse box tripped	Switch on the automatic circuit breaker again
	Milk container (1) does not sit properly on the base plate (6)	Place the milk container (1) properly in the middle of the base plate (6)
	Device is still too warm from previous use	Allow the device to cool down (e.g., rinse with cold water)
The automatic circuit breaker in the fuse box trips.	Too many devices con- nected to the same power circuit.	Reduce the number of devices on the power circuit.
	Device is defective	Contact customer service.
Device does not switch off automatically	Defective thermostatic switch	Disconnect device from the mains and contact customer service
Milk froths over Milk container (1) too full		Pay attention to the maximum filling quantity
Frothing is not satis-factory	Brother (4) is not sitting properly on the holding pin (8)	Put the brother (4) pro- perly onto the holding pin (8)
	Brother (4) and/or holding pin (8) dirty/stuck	Clean brother (4) and/ or holding pin (8)

NOTE

If you cannot resolve the problem with the steps described above, please contact customer service.

EN

Information on storage/disposal

Storage

If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and maintenance to prevent mould from building up. Mould fungi can damage the device and cause marks that cannot then be removed.

Disposal

In the European Community, this product must not be disposed of in the domestic refuse.

Dispose of the device in accordance with the EU Directive 2002/96/EU-WEEE (Waste Electrical and Electronic Equipment). Should you have any questions, please contact the local authority responsible for waste disposal.

Appendix

Technical data

Model	Milk frother Latte Crème
Type number W7.001
Operating voltage 230 VAC
Mains frequency 50 Hz
Power consumption 600 W
Dimensions	18.5 x 16 x 13 cm (H x W x D)
Approximate weight 0.9 kg
Protection class I
Type of protection IP 20
Filling quantity	max. 300 ml min. 150 ml

We reserve the right to modify design and technology at any time.

Spare parts and other accessories

Item* Article No. Designation

4 900 482 001 Frother

• according to the drawing in the description of the device

EN

Certifications

Symbol Meaning
SGS Gesellschaften Sicherheit	The W7.001 device is tested and certified by SGS.
CE	The device conforms to the relevant EU Directives (see Declaration of Conformity).
RoHS	This device conforms to the Directives on the Restriction of Hazardous Substances in Electrical and Electronic Devices (RoHS).
	This device conforms to the provisions of the Waste Electrical and Electronic Equipment Directive (WEEE).

EN

Guarantee, service and repairs

This is a quality product from BEEM and was produced using the latest manufacturing methods.

We guarantee the perfect condition of this quality product. We will remedy any faults due to material flaws or manufacturing faults free of charge within the warranty period.

The warranty period for this product is two years.

For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the warranty period is 6 months. This does not infringe the warranty disclaimer.

Warranty disclaimer: The warranty does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.

If we are obliged by law to provide a warranty, we will comply with such obligation – to the exclusion of the right to cancellation or price reduction – and at our discretion, repair or replace the product free of charge. Should the remedy fail despite several attempts or should the replacement product exhibit faults attributable to us, the customer shall be entitled – at his/her discretion – to reduce the purchase price or to cancel the contract of purchase. Claims under warranty do not prolong the warranty period. For exchange or return of the device (withdrawal from the purchase contract) or reduction of the purchase price, the first contact is always the retailer from whom you purchased the product. This particularly applies to returning the device or the claim for reductions as these have to be settled with respect to the purchase price. Refunding the purchase price or a credit note in the event of a reduction of the purchase price can only be handled by the retailer from whom you purchased the device.

Should faults nevertheless occur, please try to resolve the matter by telephone first. Should this not be successful, please send the carefully packed device to your retailer or to the customer service address shown below. Please state your complete address, type and model number and the serial number of the device. This information can be found on the rating plate of the device. Please describe the fault or defect in as much detail as possible. The product or spare part order should be accompanied by a printed and dated receipt of purchase or invoice. No services under warranty can be provided for repairs, spare parts or other claims without a printed receipt of purchase or an invoice.

Outside Germany and in particular in non-EC countries, please contact your retailer or the local distributor first. Information can be obtained - preferably by e-mail - from the customer service address indicated below.

Repairs not covered by the warranty can also be performed against individual payment by customer service - outside Germany by the retailer from whom you purchased the device or by a service centre, if available.

Replacement parts and consumables can be ordered from your retailer or the stated customer service address. Please contact your dealer or the local distributor if you live outside Germany.

For product information, accessory orders or questions on service handling, please contact your retailer or the stated customer service address. Outside Germany and in particular in non-EU countries, please contact your retailer or the local distributor first.

You can also use the Internet. You will find accessories and spare parts, as well as user manuals in various languages on our website www.beem.de . Additional product information can also be found here.

EN

EC Declaration of Conformity

Name/address of manufacturer: BEEM Blitz-Elektro-Erzeugnisse Manufaktur Handels-GmbH Dieselstrasse 19-21 D-61191 Rosbach v.d.H.
We hereby declare that the product
Model: Frother	Latte Crème
Type: W7.001
conforms to the following relevant regulations: EU Directive 2006/95/EU Electrical devices for use within certain voltage limits, EU Directive 2004/108/EU Electromagnetic Compatibility.
The following harmonised standards were applied in whole or in part: EN 60335-2-9:2003 + A1:2004 + A2:2006 + A12:2007 EN 60335-1:2002 + A11:2004 + A1:2004 + A12:2006 + A2:2006 + A13:2008 EN 62233:2008 EN 55014-1:2006 + A1:2009 EN 55014-2:1997 + A1:2001 + A2:2008 EN 61000-3-2:2006 + A2:2009 EN 61000-3-3:2008
We declare that this device and its components comply with the European directive on materials and articles intended to come into contact with food, C1935/2004/EC as well as the European directive on materials and articles made of plastic intended to come into contact with food, 2002/72/EC. Overall migration as well as specific migrations are below the statutory limit values. Tests were conducted according to the directives 82/711/EEC und 85/572/EC.
Rosbach, 28.07.2010	BIEEM. BEEM Bilts-Institut-Erzeugnisse Manufacturer Historie-GmbH 61191 Rosbach AG/Germany Bijan Mehshat (Legally binding signature of the issuer)

Index

B

Base plate. 43

C

Certifications 53

Cleaning 48

Cleaning and maintenance. 48

D

Danger of burns 36

Danger of electric shock 36

Delivery contents 38

Device elements 41

Disposal 52

Disposal of the packaging. 39

E

EC Declaration of Conformity . 37, 56

Electrical connection. 40

Electrical safety. 40

F

Frother inserting/removing 43

Fundamental safety precautions. . 37

G

Guarantee. 54

1

Installation location 39

Intended use 35

L

Liability disclaimer. 35

M

Milk container 43

N

New owner 33,48

Non-stick coating 44

0

ON switch 42

Operating elements 42

Operating the device. 45

Operation and use 44

P

Packaging 39

Possibilities for use 44

R

Repairs 54

Risk of overheating 46

S

Safety 36

Service 54

Spare parts 53

Storage 52

Switching off 47

T

Table of contents. 31

Technical data. 52

Transport inspection 38

Troubleshooting 50

U

Using for the first time. 40

W

Warnings. 34

EN

Table des matieres

Avant-propos 6

Chere cliente, cher client,

Revetement anti-adherent 72

Elements of Lifestyle

BEEM GmbH
